Contact Information
If you need to contact ASRock or want to know more about ASRock, you’re
welcome to visit ASRock’s website at http://www.asrock.com; or you may contact
your dealer for further information. For technical questions, please submit a
support request form at https://event.asrock.com/tsd.asp
ASRock Incorporation
e-mail: [e-mail]
ASRock EUROPE B.V.
e-mail: [e-mail]
ASRock America, Inc.
e-mail: [e-mail]
Scan the QR code to view more manuals and documents.
3 / 66

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 I/O Panel 8
1.5 Block Diagram 10
Chapter 2 Installation 11
2.1 Installing the CPU 12

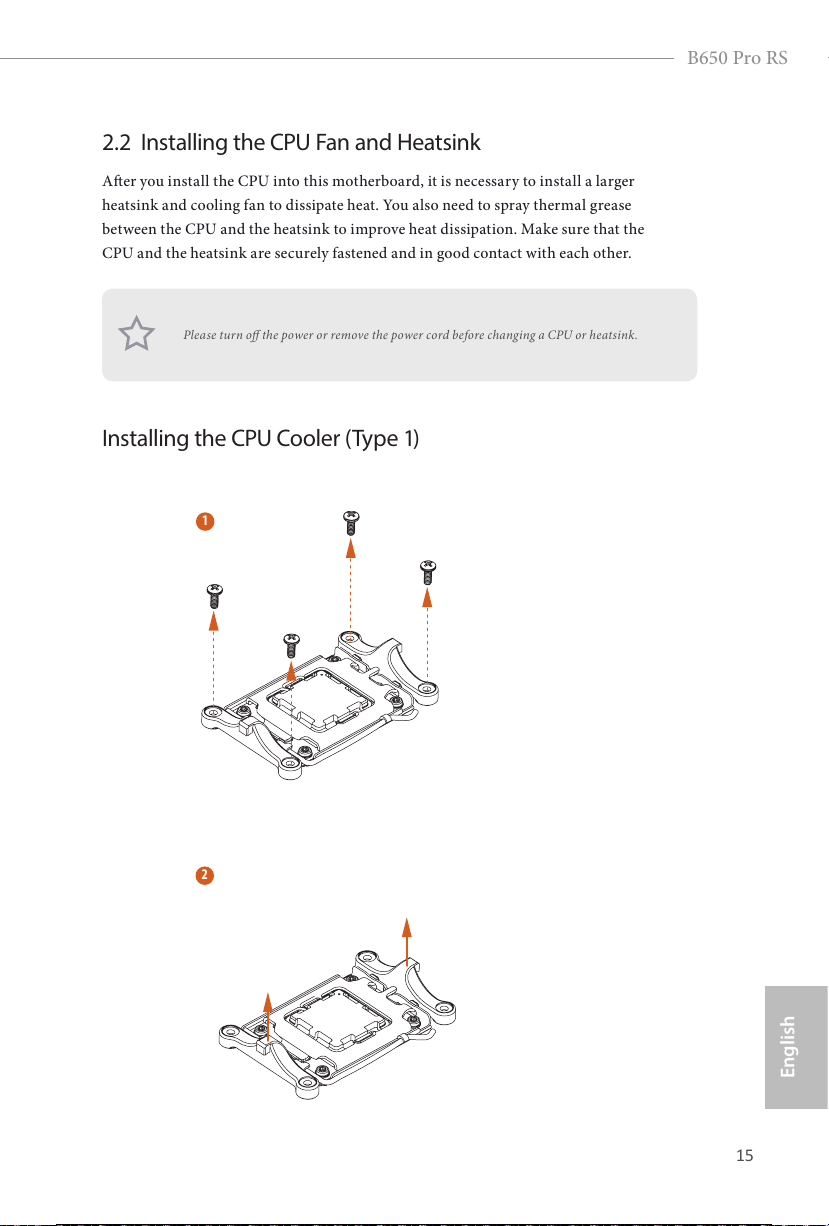

2.2 Installing the CPU Fan and Heatsink 15
2.3 Installing Memory Modules (DIMM) 24
2.4 Connecting the Front Panel Header 26
2.5 Installing the Motherboard 27
2.6 Installing SATA Drives 28
2.7 Installing a Graphics Card 30
2.8 Connecting Peripheral Devices 32
2.9 Connecting the Power Connectors 33
2.10 Power On 34
2.11 Jumpers Setup 35
2.12 Onboard Headers and Connectors 36
2.13 Smart Switches 48
2.14 Post Status Checker 50
2.15 M.2 SSD Module Installation Guide (M2_1) 51
4 / 66

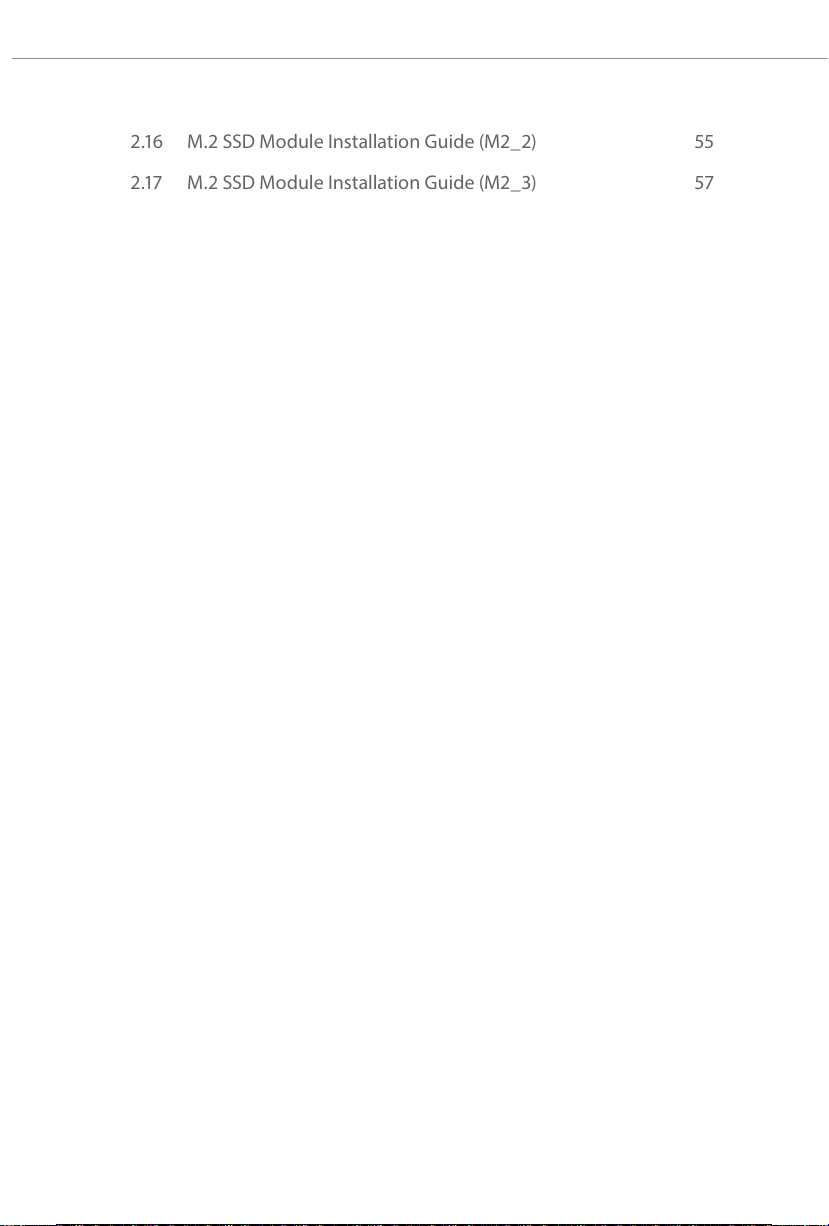

2.16 M.2 SSD Module Installation Guide (M2_2) 55
2.17 M.2 SSD Module Installation Guide (M2_3) 57
5 / 66

English
1
B650 Pro RS

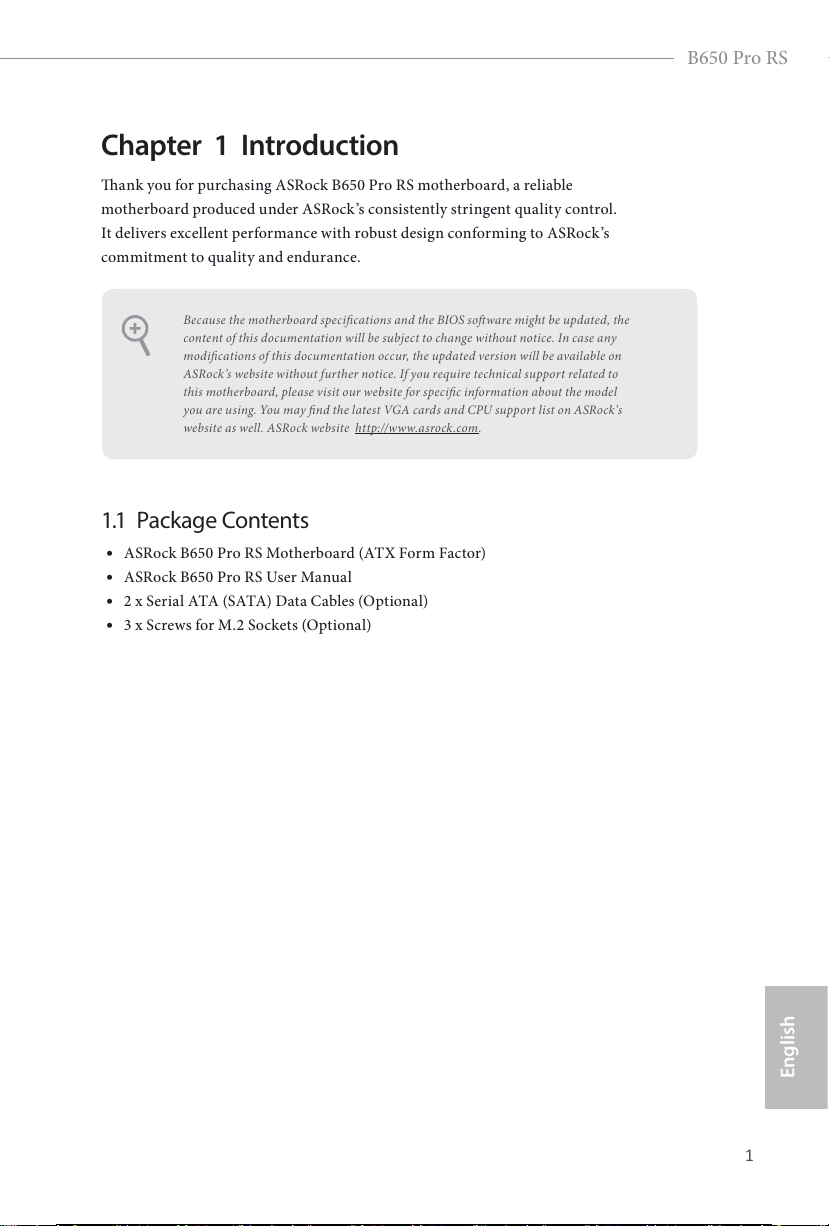

Chapter 1 Introduction
ank you for purchasing ASRock B650 Pro RS motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock B650 Pro RS Motherboard (ATX Form Factor)
• ASRock B650 Pro RS User Manual
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 3 x Screws for M.2 Sockets (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.
6 / 66

English
2
1.2 Specications
Platform • ATX Form Factor
• 8 Layer PCB
CPU • Supports AMD Socket AM5 RyzenTM 7000 Series Processors
Chipset • AMD B650
Memory • Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buered memory up to
7200+(OC)*
• Max. capacity of system memory: 192GB
• Supports Extreme Memory Prole (XMP) and EXTended
Proles for Overclocking (EXPO) memory modules
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
Expansion
Slot
CPU:
• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
Chipset:
• 1 x PCIe 4.0 x1 Slot (PCIE2)*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe
WiFi module
* Supports NVMe SSD as boot disks
• Supports AMD CrossFireTM
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Graphics • Integrated AMD RDNATM 2 graphics (Actual support may
vary by CPU)
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR,
HDCP 2.3 and max. resolution up to 4K 120Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP
2.3 and max. resolution up to 4K 120Hz
7 / 66

English
3
B650 Pro RS

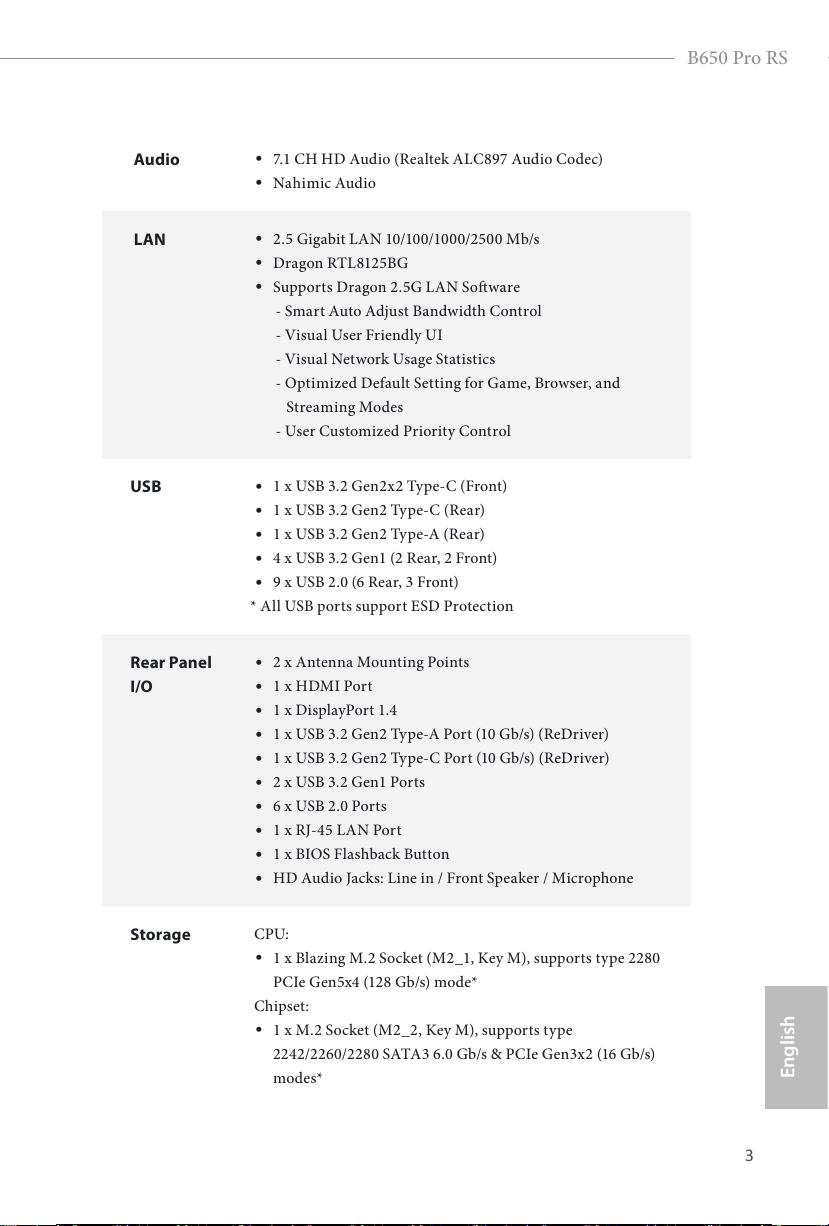

Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio
LAN • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Soware
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and
Streaming Modes
- User Customized Priority Control
USB • 1 x USB 3.2 Gen2x2 Type-C (Front)
• 1 x USB 3.2 Gen2 Type-C (Rear)
• 1 x USB 3.2 Gen2 Type-A (Rear)
• 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
• 9 x USB 2.0 (6 Rear, 3 Front)
* All USB ports support ESD Protection
Rear Panel
I/O
• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
• 2 x USB 3.2 Gen1 Ports
• 6 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage CPU:
• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280
PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
• 1 x M.2 Socket (M2_2, Key M), supports type
2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s)
modes*
8 / 66

English
4

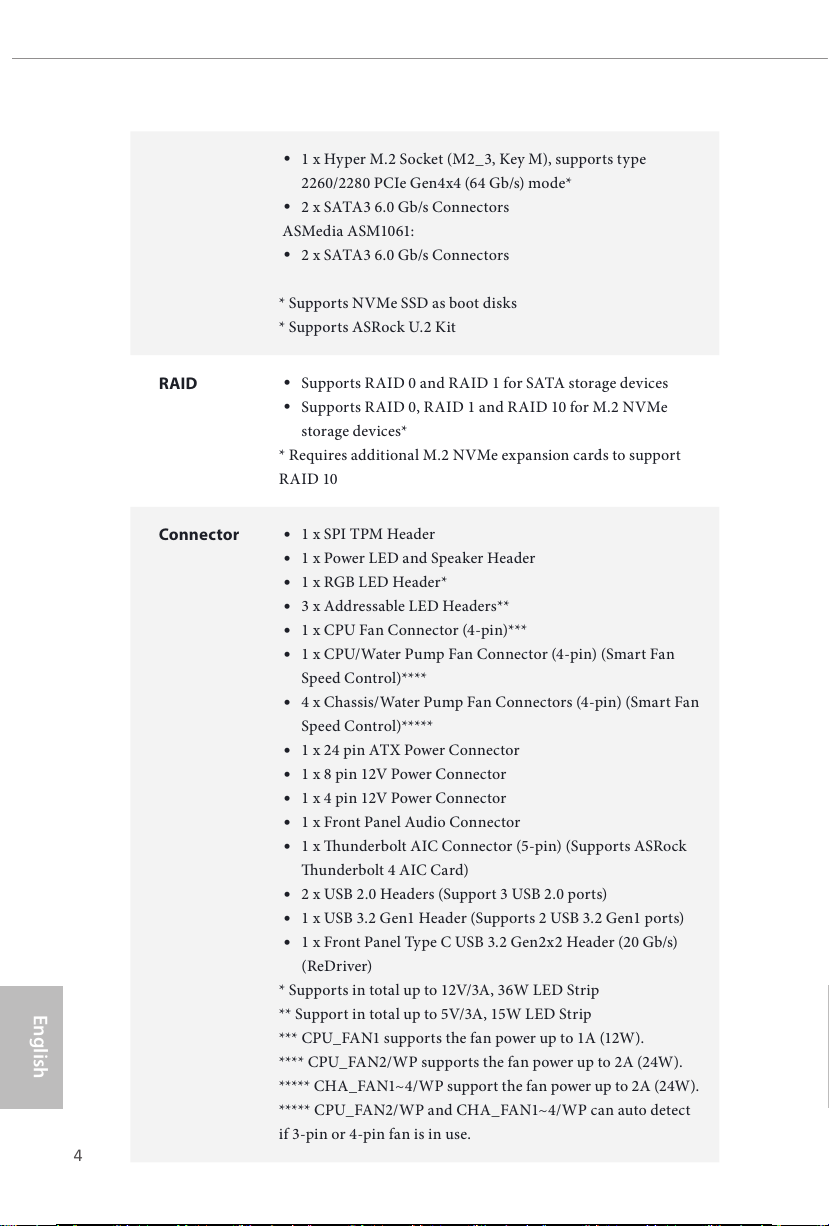

• 1 x Hyper M.2 Socket (M2_3, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 2 x SATA3 6.0 Gb/s Connectors
ASMedia ASM1061:
• 2 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
RAID • Supports RAID 0 and RAID 1 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe
storage devices*
* Requires additional M.2 NVMe expansion cards to support
RAID 10
Connector • 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)****
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)*****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x 4 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x underbolt AIC Connector (5-pin) (Supports ASRock
underbolt 4 AIC Card)
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
(ReDriver)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect
if 3-pin or 4-pin fan is in use.
9 / 66

English
5
B650 Pro RS

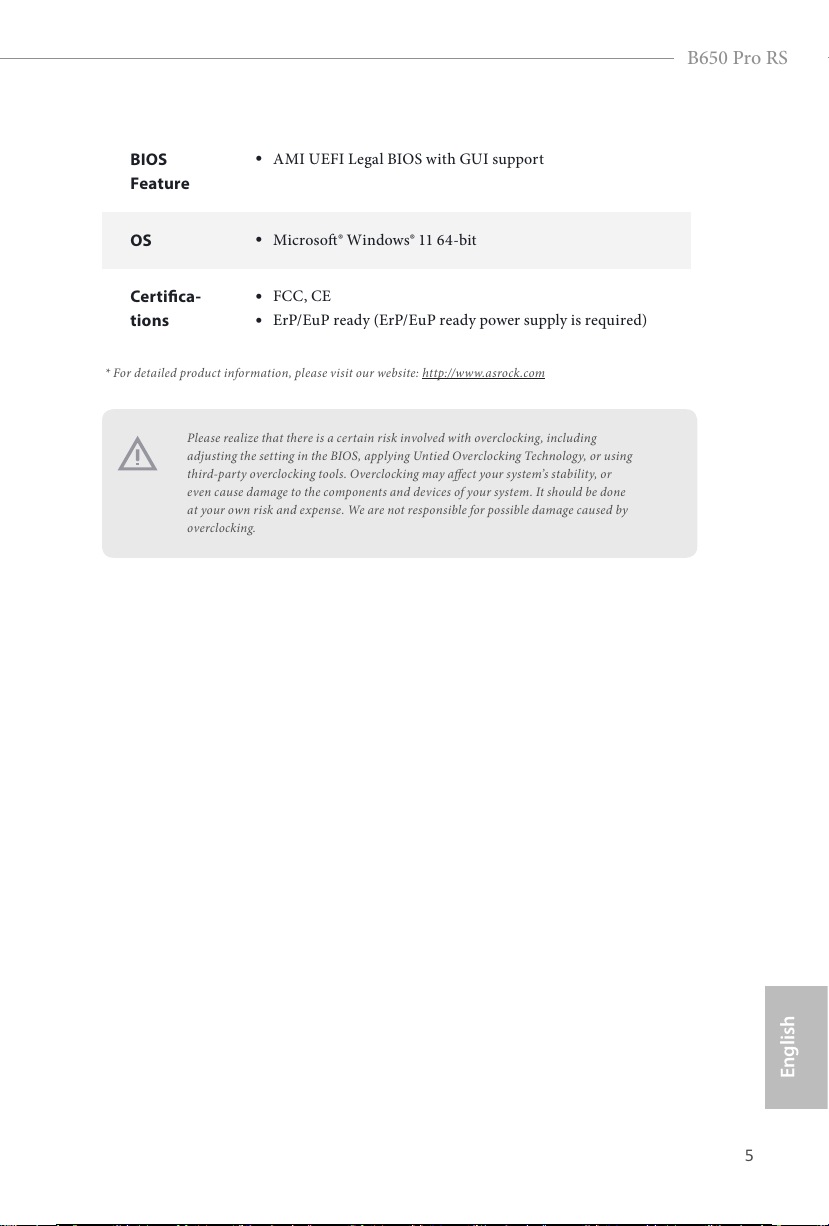

BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
OS • Microso® Windows® 11 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com
10 / 66

English
6

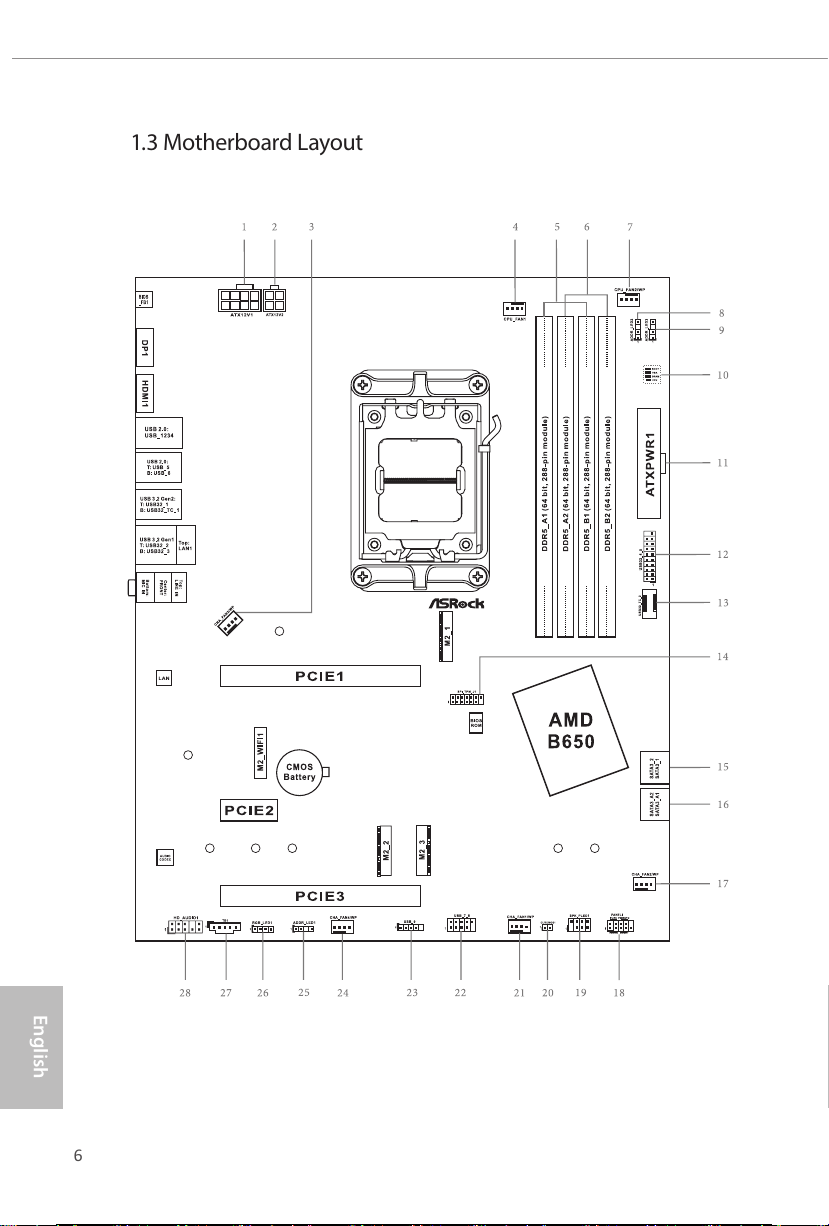

1.3 Motherboard Layout
11 / 66

English
7
B650 Pro RS
No. Description
1 8 pin 12V Power Connector (ATX12V1)
2 4 pin 12V Power Connector (ATX12V2)
3 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)
4 CPU Fan Connector (CPU_FAN1)
5 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1)
6 2 x 288-pin DDR5 DIMM Slots (DDR5_A2, DDR5_B2)
7 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
8 Addressable LED Header (ADDR_LED2)
9 Addressable LED Header (ADDR_LED3)
10 Post Status Checker (PSC)
11 ATX Power Connector (ATXPWR1)
12 USB 3.2 Gen1 Header (USB32_4_5)
13 Front Panel Type C USB 3.2 Gen2x2 Header (USB32_TC_2)
14 SPI TPM Header (SPI_TPM_J1)
15 SATA3 Connector (SATA3_2) (Upper), SATA3 Connector (SATA3_1) (Lower)
16 SATA3 Connector (SATA3_A2) (Upper), SATA3 Connector (SATA3_A1) (Lower)
17 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
18 System Panel Header (PANEL1)
19 Power LED and Speaker Header (SPK_PLED1)
20 Clear CMOS Jumper (CLRCMOS1)
21 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
22 USB 2.0 Header (USB_7_8)
23 USB 2.0 Header (USB_9)
24 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)
25 Addressable LED Header (ADDR_LED1)
26 RGB LED Header (RGB_LED1)
27 5-pin underbolt AIC Connector (TB1)
28 Front Panel Audio Header (HD_AUDIO1)
12 / 66

English
8
1.4 I/O Panel
No. Description No. Description
1 2.5G LAN RJ-45 Port* 7 USB 3.2 Gen2 Type-C Port (USB32_TC_1)
2 Line In (Light Blue)** 8 USB 2.0 Ports (USB_56)
3 Front Speaker (Lime)** 9 USB 2.0 Ports (USB_1234)
4 Microphone (Pink)** 10 HDMI Port
5 USB 3.2 Gen1 Ports (USB32_23) 11 DisplayPort 1.4
6 USB 3.2 Gen2 Type-A Port (USB32_1) 12 BIOS Flashback Button
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
1012 4
2
3
9 5
1
6
7
8
11
13 / 66

English
9
B650 Pro RS

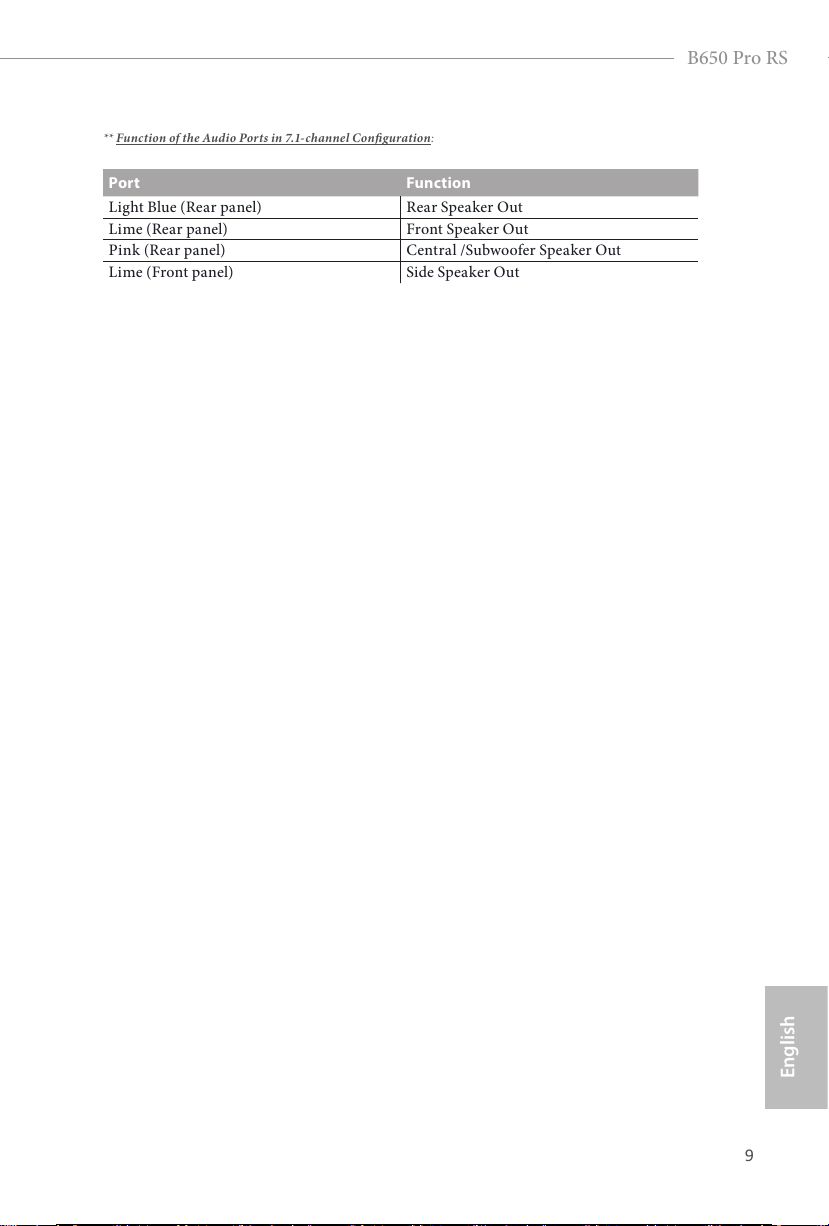

** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
14 / 66

English
10
1.5 Block Diagram
5Gb/s
Rear USB3.2 GEN1 port(LAN down)
x4 Gen3 PCIe3 Gen3x4 Slot
M2_3(PCIe x4)
x4 Gen4
1st AMD PROM21 Chipset AMD AM5 Processor LGA1718
Front USB3.2 Gen2X2 Type C 20Gb/s
DP0
HDMI Port
Front USB3.2 GEN1 2 ports
SATA 6Gb SATA 2 ports
Front USB2.0 3 ports 480Mb/s
Line in
Front Speaker Microphone
Rear USB2.0 2 ports
the down port support Flash Back
480Mb/s
SPI eSPI SIO NCT6796D-S
Flash ROM
AZ(HD Audio)
Audio Codec ALC897-VB2
DP1
10Gb/s
DP Port
Rear USB3.2 GEN2 Type A+C
M2_2(PCIe x2/SATA)
x2 Gen3 x1 ASM1061 SATA SATA 2 ports
Rear USB2.0 4 ports
from USB2.0 Hub
Channel B Channel A
DDR5 Slot x2
DDR5 Slot x2
5Gb/s
Rear USB3.2 GEN1 1 port(LAN UP)
5Gb/s
PCIe1 Gen4x16 Slot
x4 Gen5 M2_1(PCIe x4)
PCIe x4 Gen4 BUS
x16 Gen4
x1
Realtek 2.5GLAN 8125BG
WiFi KeyE
x1
x1 Gen4 PCIe2 GEN4x1 slot
15 / 66

English
11
B650 Pro RS
is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the
components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation
16 / 66

English
12

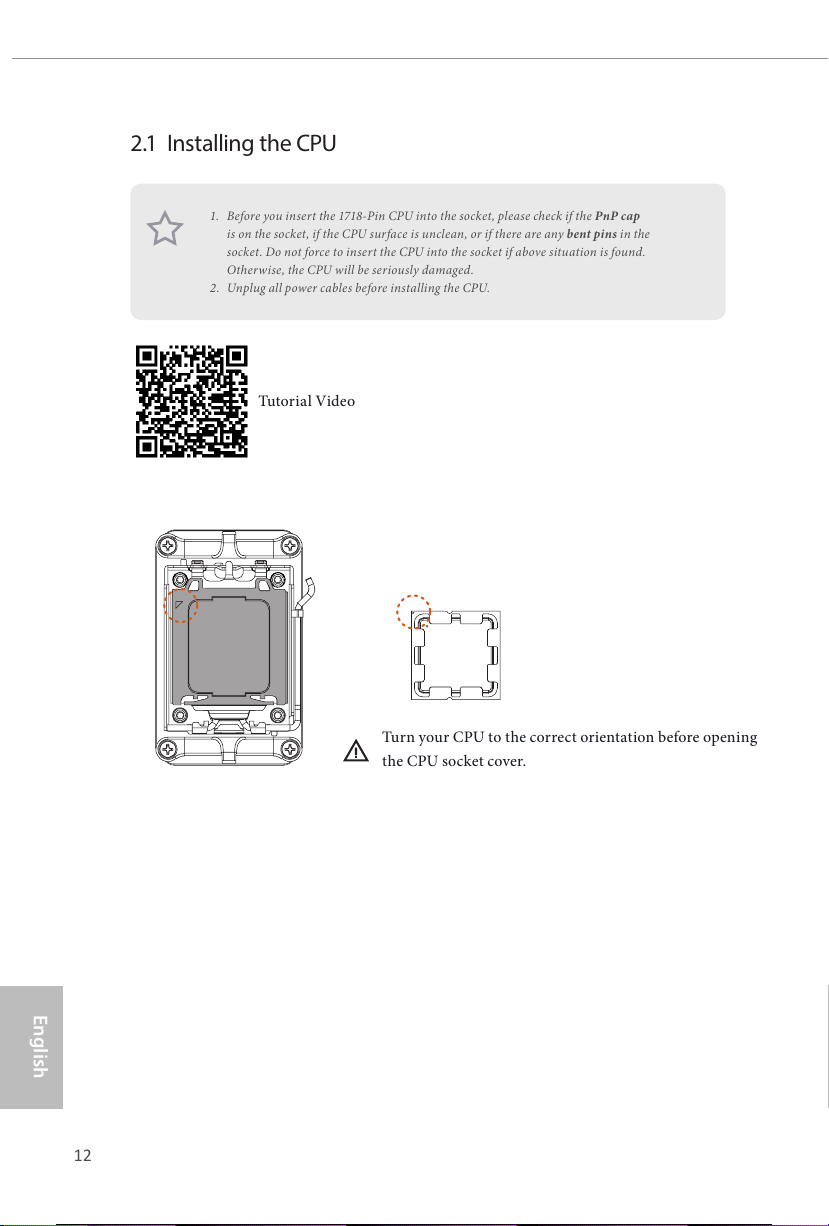

2.1 Installing the CPU
1. Before you insert the 1718-Pin CPU into the socket, please check if the PnP cap
is on the socket, if the CPU surface is unclean, or if there are any bent pins in the
socket. Do not force to insert the CPU into the socket if above situation is found.
Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
Tutorial Video
Turn your CPU to the correct orientation before opening
the CPU socket cover.
17 / 66

English
13

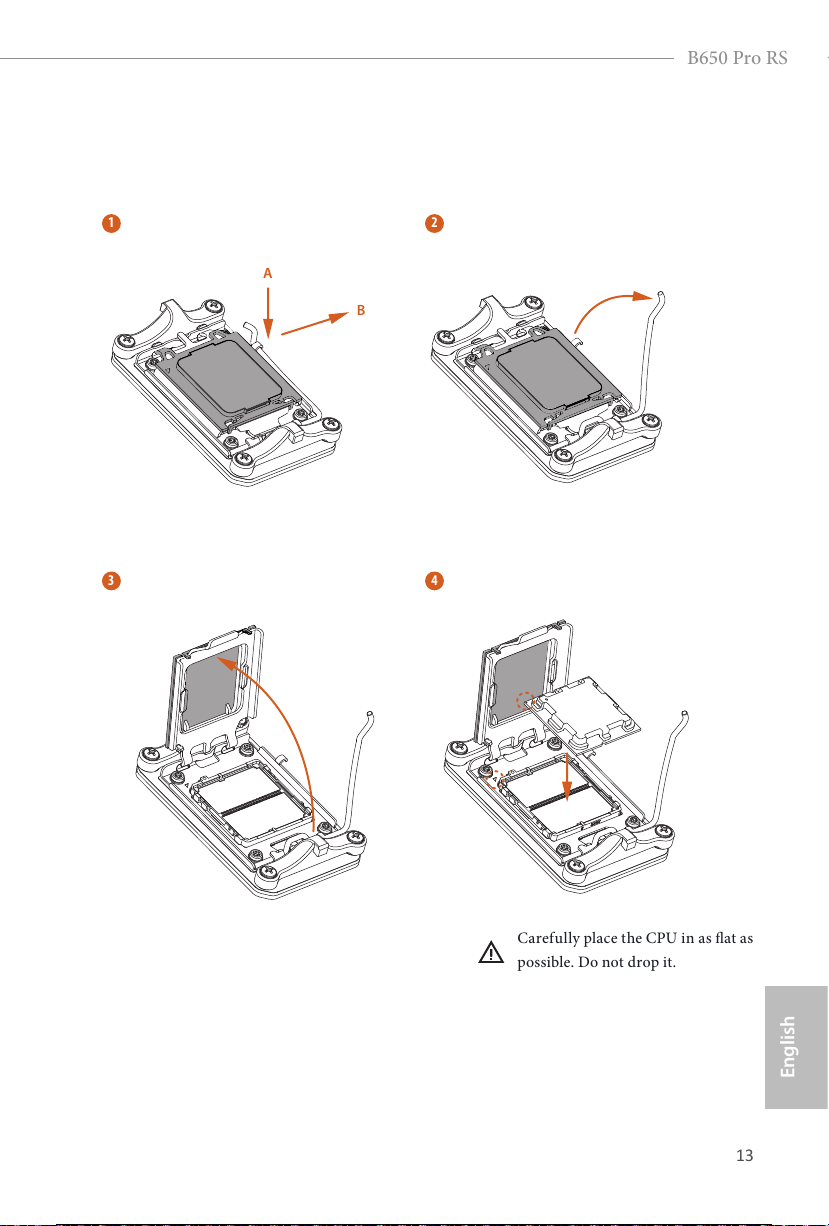

B650 Pro RS
Carefully place the CPU in as at as
possible. Do not drop it.
4
12
A
B
3
Turn your CPU to the correct orientation before opening
the CPU socket cover.
18 / 66

English
14

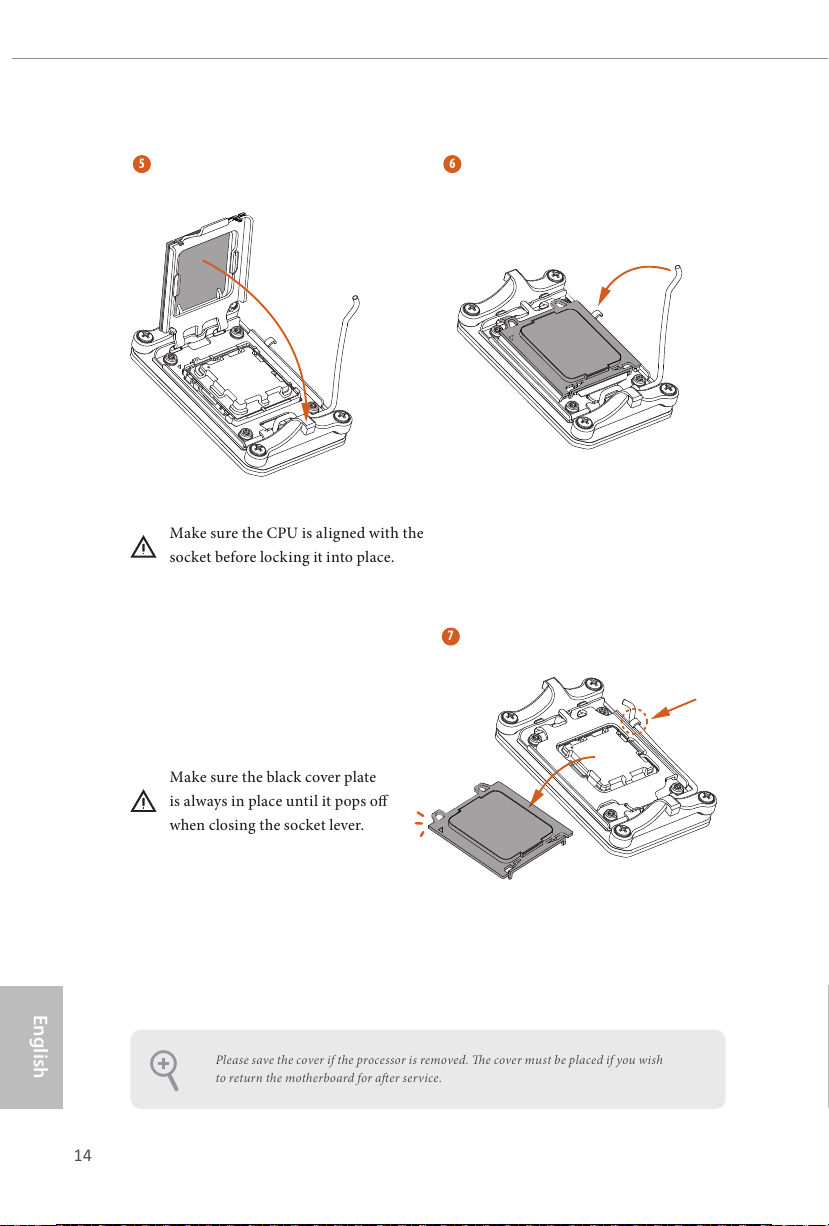

6
7
5
Please save the cover if the processor is removed. e cover must be placed if you wish
to return the motherboard for aer service.
Make sure the black cover plate
is always in place until it pops o
when closing the socket lever.
Make sure the CPU is aligned with the
socket before locking it into place.
19 / 66

English
15
B650 Pro RS
2.2 Installing the CPU Fan and Heatsink
Aer you install the CPU into this motherboard, it is necessary to install a larger
heatsink and cooling fan to dissipate heat. You also need to spray thermal grease
between the CPU and the heatsink to improve heat dissipation. Make sure that the
CPU and the heatsink are securely fastened and in good contact with each other.
Installing the CPU Cooler (Type 1)
Please turn o the power or remove the power cord before changing a CPU or heatsink.
2
1
20 / 66
