ASROCK B660D4-P1 User manual

Version 1.0
Published February 2023
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

English
1
B660D4-P1

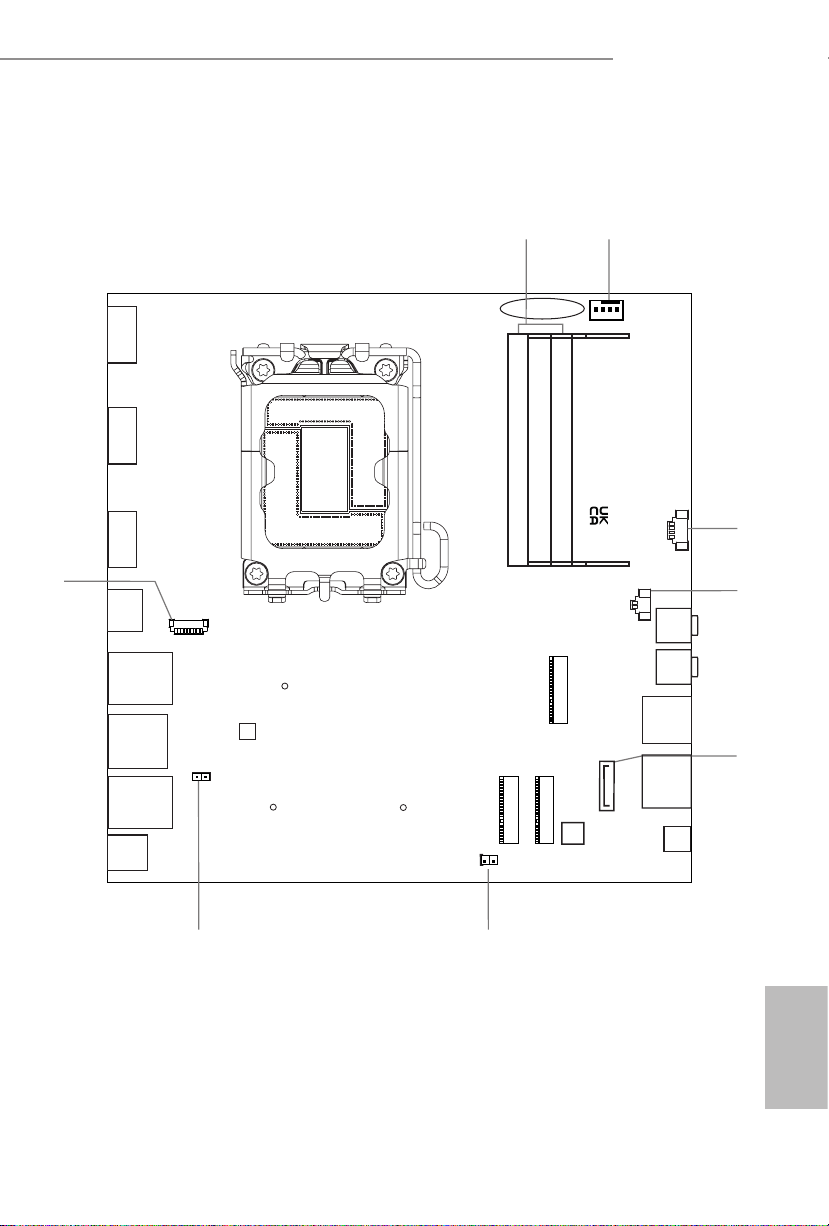

Motherboard Layout
6
DC Jack
HDMI1
B660D4-P1
RoHS
DDR4_B1
DDR4_A1
USB 3.2 Gen1
USB_TC_1
8
2
BIOS
ROM
M2_3
M2_2
M2_1
M2_3_CT1_1
M2_2_CT1_1
M2_1_CT1_1
CPU_FAN1
CMOS
Battery
COM1
1
MONO1
CHA_FAN1
1
1
3
4
5
SATA1
Mic In
Power
Button
USB 3.2 Gen1
T: USB_1
B: USB_TC_2
USB 3.2 Gen1
T: USB_2
B: USB_3
Headset
CLRMOS1
1
1
RJ-45
USB 3.2 Gen1
T: USB_6
B: USB_7
USB 3.2 Gen1
T: USB_4
B: USB_5
DP1
LAN
1
CI1
7
DP2

English
2
No. Description
1 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_A1, DDR4_B1)
2 CPU Fan Connector (CPU_FAN1)
3 Chassis Fan Connector (CHA_FAN1)
4 2.5W Mono Out Speaker Header (MONO1)
5 SATA3 Connector (SATA1)
6 Clear CMOS Jumper (CLRMOS1)
7 Chassis Intrusion Header (P305)
8 COM Port Header (COM1)

English
3
B660D4-P1
Front Panel
No. Description No. Description
1 Power Button (SW1) 4 USB 3.2 Gen1 Type-C Port (USB_TC_2)
2USB 3.2 Gen1 Type-A Ports (USB_2_3) 5 Microphone Input
3 USB 3.2 Gen1 Type-A Port (USB_1) 6 Headphone/Headset Jack
6
2
4
135

English
4
Chapter 1 Introduction
ank you for purchasing B660D4-P1 motherboard. In this documentation,
Chapter 1 and 2 contains the introduction of the motherboard and step-by-step
installation guides.
1.1 Package Contents
• B660D4-P1 Motherboard
• 1 x Quick Installation Guide
• 1 x SATA Data with Power Cable (Optional)
• 2 x Screws for M.2 Sockets (Optional)
• 1 x Screw for WiFi Module (Optional)
Rear Panel
No. Description No. Description
1Display Port (DP1) 5 USB 3.2 Gen1 Type-A Ports (USB_4_5)
2 Display Port (DP2)*(co-lay D-SUB) 6 LAN RJ-45 Port*
3 HDMI Port 7 USB 3.2 Gen1 Type-A Ports (USB_6_7)
4 USB 3.2 Gen1 Type-C Port 8 DC Jack**
(USB_TC_1)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Green 100Mbps connection
On Link Orange 1Gbps connection
** Please use a 19V power adapter for the DC jack. is jack accepts dual barrel plugs with an inner diameter of 2.5
mm and an outer diameter of 5.5 mm, where the inner contact is +19 (±10%) DC and the shell is (centre positive).
Please use a 90W adapter for the 35W CPU and a 120W adapter for the 65W CPU.
is motherboard is available with support for either 4-pin ATX 19V power or DC-in power supplies. Please do
not use two kinds of power supplies at the same time! Doing so may damage the motherboard components and
devices. When you use the DC-in power adapter, please use the onboard SATA power connector to get the power
for HDDs.
ACT/LINK LED
SPEED LED
LAN Port
1 3 4 65 7 8 2

English
5
B660D4-P1
Chapter 1 Introduction
ank you for purchasing B660D4-P1 motherboard. In this documentation,
Chapter 1 and 2 contains the introduction of the motherboard and step-by-step
installation guides.
1.1 Package Contents
• B660D4-P1 Motherboard
• 1 x Quick Installation Guide
• 1 x SATA Data with Power Cable (Optional)
• 2 x Screws for M.2 Sockets (Optional)
• 1 x Screw for WiFi Module (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice.

English
6
1.2 Specications
Platform • 6.7-in x 6.8-in, 17.0 cm x 17.2 cm
• Solid Capacitor design
CPU • Supports 13th Gen & 12th Gen Intel® CoreTM Processors
(LGA1700)
• 4 Power Phase design
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
Chipset • Intel® B660
Memory • Dual Channel DDR4 Memory Technology
• 2 x DDR4 SO-DIMM Slots
• Supports DDR4 non-ECC, un-buered memory up to 3200*
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)
• Max. capacity of system memory: 64GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
Expansion
Slot

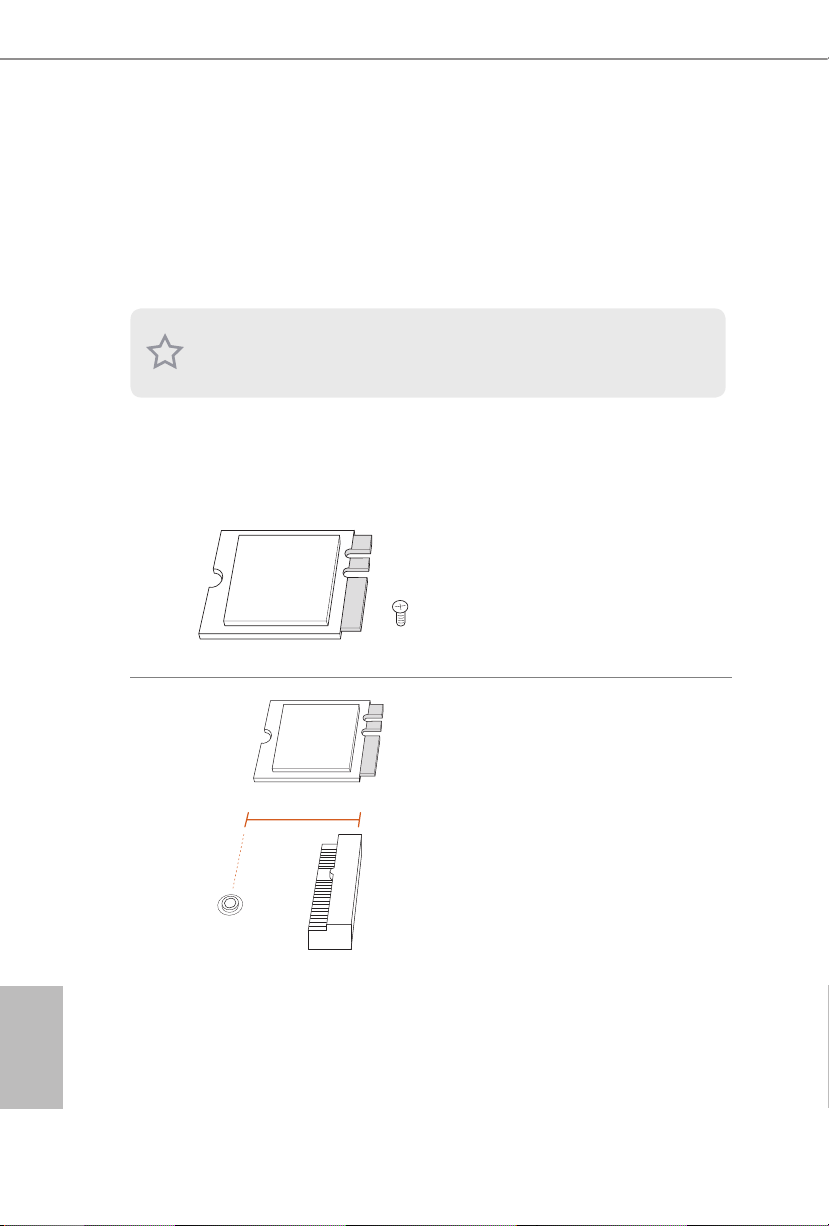

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
and Intel® CNVi (Integrated WiFi/BT)
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Intel® XeGraphics Architecture (Gen 12)
• ree graphics output options: 1x HDMI, 1 x DisplayPort 1.4
(DP1), 1 x DisplayPort 1.2 (DP2)
• Supports Triple Monitor
• Supports HDMI 2.1 TMDS Compatible with max. resolution
up to 4K x 2K (4096x2160) @ 60Hz
• Supports DisplayPort 1.4 with DSC (compressed) max.
resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @
120Hz
• Supports DisplayPort 1.2 with DSC (compressed) max.
resolution up to 4K x 2K (4096x2304) @ 60Hz

English
7
B660D4-P1
• Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and
DisplayPort 1.4/1.2 Ports
Audio • Realtek ALC269 Audio Codec
• 1 x MIC IN
• 1 x Headset/Headphone
LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111FP
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports LAN Cable Detection
• Supports Energy Ecient Ethernet 802.3az
• Supports UEFI PXE
• Supports DASH
Front
Panel I/O
• 1 x Power Button
• 1 x Headphone/Headset Jack
• 3 x USB 3.2 Gen1 Type-A Ports (Support ESD Protection)
• 1 x USB 3.2 Gen1 Type-C Port (Support ESD Protection)
• 1 x Microphone Input Jack
Rear Panel
I/O
• 1 x DC Jack (Compatible with the 19V power adapter)*
* Please use 90W power adapter for 35W CPU and 120W power
adapter for 65W CPU.
• 1 x HDMI Port
• 2 x DisplayPort*
* (1 x DP co-lay D-SUB)
• 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
Storage • 1 x SATA3 6.0 Gb/s Connector, supports NCQ, AHCI and Hot
Plug
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280
PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe
Gen3x4 (32 Gb/s) mode*
* Supports NVMe SSD as boot disks

English
8

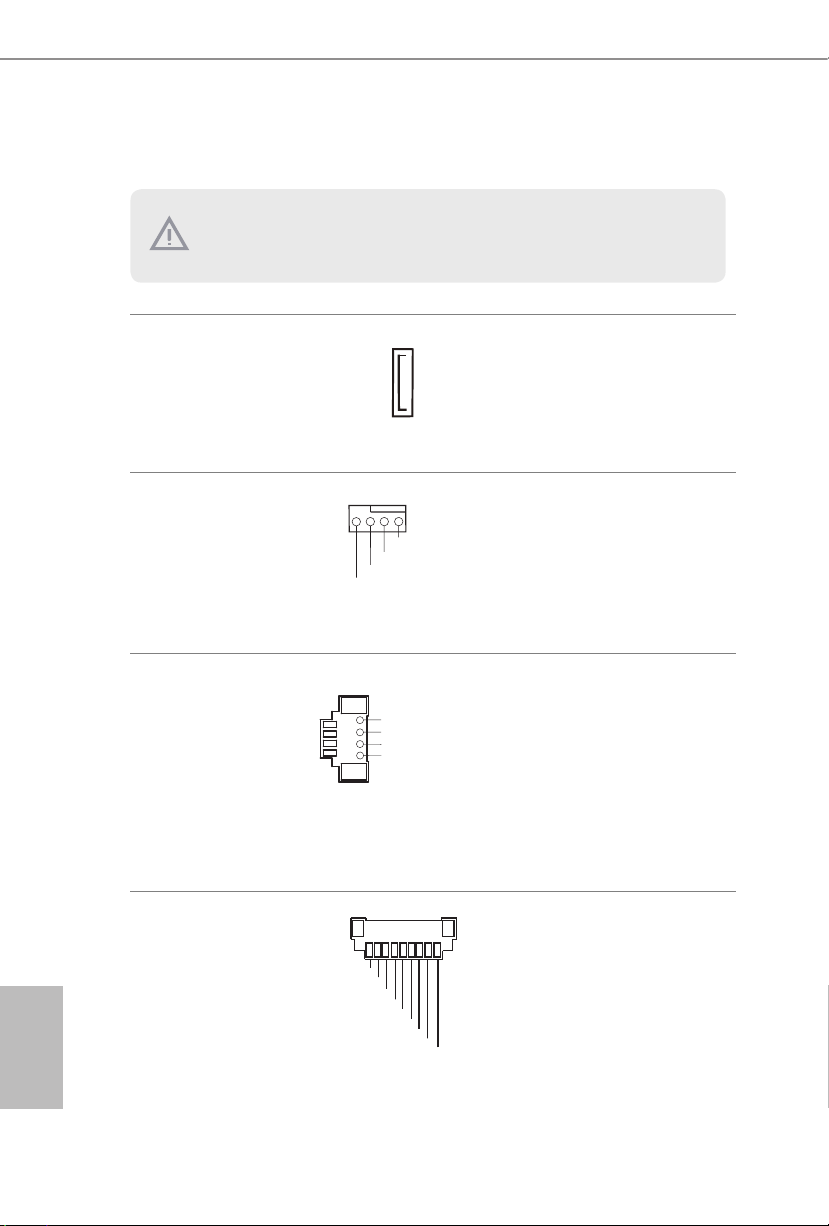

Connector • SPI TPM 2.0 IC (NUVOTON NPCT750)
• 1 x COM Port Header
• 1 x Chassis Intrusion Header
• 1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum 1A
(12W) fan power.
• 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x Mono-Out Header
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 Support
Hardware
Monitor
• Fan Tachometer: CPU, Chassis Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU temperature):
CPU, Chassis Fans
• Fan Multi-Speed Control: CPU, Chassis Fans
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS • Microso® Windows® 10 64-bit / 11 64-bit
Power • 1 x DC Jack (Supports 19V DC Power Adapters)
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.

English
9
B660D4-P1
is is a Proprietary form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard.
Failure to do so may cause physical injuries to you and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
10
2.1 Installing the CPU
1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A
B
2 3

English
11
B660D4-P1
5
76
4

English
12
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.

English
13
B660D4-P1

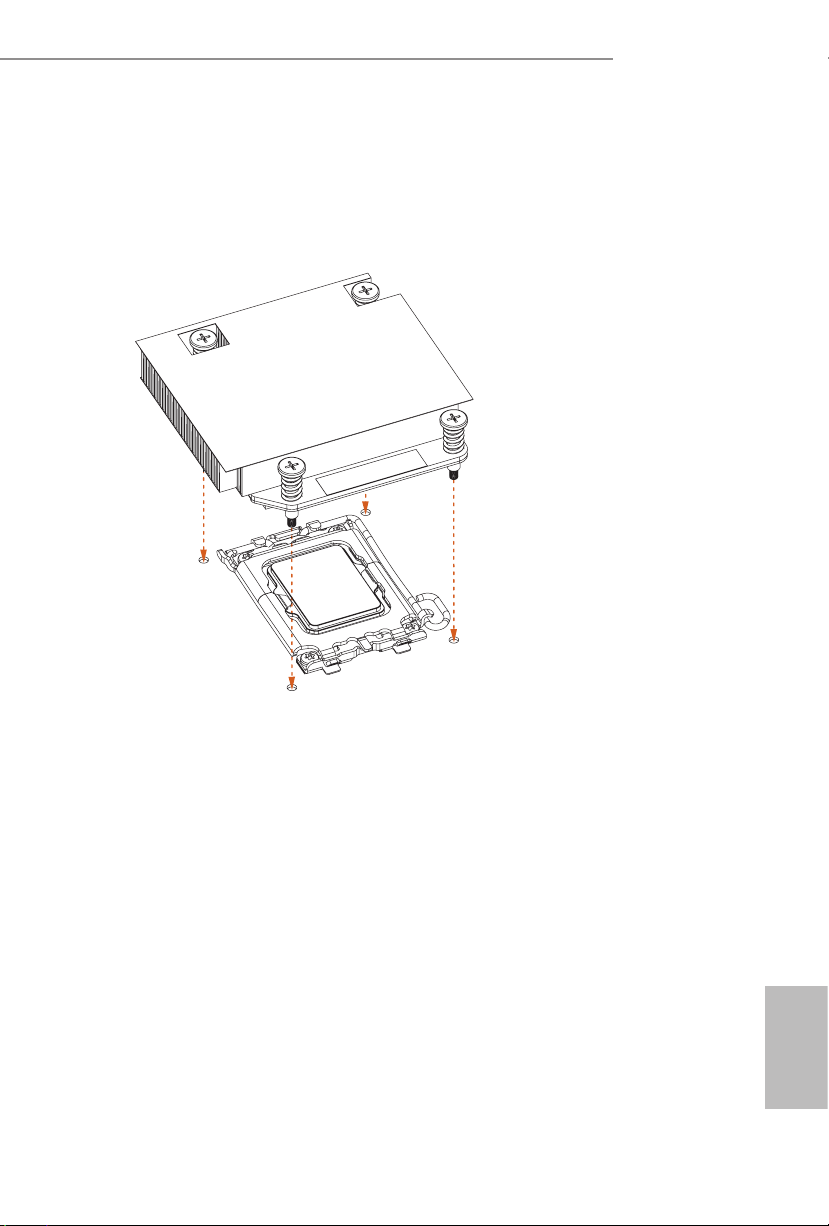

2.2 Installing the CPU Fan and Heatsink

English
14
2.3 Installing Memory Modules (SO-DIMM)
is motherboard provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM
slots.
1. Carefully insert the SO-DIMM memory modules into the slot at a 30-degree angle.
2. Push down until the modules snap into place.
e SO-DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at incorrect
orientation.
It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot;
otherwise, this motherboard and SO-DIMM may be damaged.

English
15
B660D4-P1
2.4 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is
“Open”.
Clear CMOS Jumper
(CLRCMOS1)
(see p.1, No. 6)
Short: Clear CMOS
Open: Default
CLRCMOS1 allows you to clear the data in CMOS. e data in CMOS includes
system setup information such as system password, date, time, and system setup
parameters. To clear and reset the system parameters to default setup, please
turn o the computer and unplug the power cord, then use a jumper cap to short
the pins on CLRCMOS1 for 3 seconds. Please remember to remove the jumper
cap aer clearing the CMOS. If you need to clear the CMOS when you just nish
updating the BIOS, you must boot up the system rst, and then shut it down
before you do the clear-CMOS action.
If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear
Status” to clear the record of previous chassis intrusion status.
2-pin Jumper

English
16
2.5 Onboard Headers and Connectors
Serial ATA3 Connector
(SATA1:
see p.1, No. 5)
is SATA3 connector
supports SATA data cables
for internal storage devices
with up to 6.0 Gb/s data
transfer rate.
CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.1, No. 2)
is motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector. If
you plan to connect a 3-Pin
CPU fan, please connect it
to Pin 1-3.
Chassis Fan Connectors
(4-pin CHA_FAN1)
(see p.1, No. 3)
Please connect fan cables
to the fan connectors and
match the black wire to the
ground pin.
Serial Port Header
(9-pin COM1)
(see p.1, No.8)
is COM1 header supports
a serial port module.
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.
CPU_F
FAN_VOLTAGE
GND
AN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
1
RRI#1
CCTS#1
RRTS#1
DDSR#1
GND
DDTR#1
TTXD#1
RRXD#1
DDCD#
1
GND
+5V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
4
3
2
1

English
17
B660D4-P1
Chassis Intrusion Header
(2-pin P305)
(see p.1, No. 7)
is motherboard supports
CASE OPEN detection
feature that detects if the
chassis cove has been
removed. is feature
requires a chassis with
chassis intrusion detection
design.
2.5W Audio Amp Output
Header
(2-pin MONO1)
(see p.1, No. 4)
Please connect the chassis
speaker to this header.
MONO_OUT+
MONO_OUT-
1
2
1
Signal
GND

English
18
2.6 M.2 WiFi/BT Module and Intel® CNVi (Integrated WiFi/BT)
Installation Guide
e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (Key
E) supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT).
* e M.2 socket does not support SATA M.2 SSDs.
Installing the WiFi/BT module or Intel® CNVi (Integrated WiFi/BT)
Step 1
Prepare a type 2230 WiFi/BT module
or Intel® CNVi (Integrated WiFi/BT)
and the screw.
PCB Length: 3cm
Module Type: Type2230
A
Step 2
Find the nut location to be used.
Before you install Intel® Integrated Connectivity (CNVi) module, be sure to turn o the AC
power.
