Contact Information
If you need to contact ASRock or want to know more about ASRock, you’re
welcome to visit ASRock’s website at http://www.asrock.com; or you may contact
your dealer for further information. For technical questions, please submit a
support request form at https://event.asrock.com/tsd.asp
ASRock Incorporation
e-mail: [e-mail]
ASRock EUROPE B.V.
e-mail: [e-mail]
ASRock America, Inc.
e-mail: [e-mail]
Scan the QR code to view more manuals and documents.
3 / 73

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 I/O Panel 8
1.5 Block Diagram 10
1.6 802.11ax Wi-Fi 6E Module and ASRock WiFi 2.4/5/6 GHz
Antennas 11
1.7 Graphics Card Holder 13
Chapter 2 Installation 14
2.1 Installing the CPU 15
2.2 Installing the CPU Fan and Heatsink 18
2.3 Installing Memory Modules (DIMM) 27
2.4 Connecting the Front Panel Header 29
2.5 Installing the Motherboard 30
2.6 Installing SATA Drives 31
2.7 Installing a Graphics Card 33
2.8 Connecting Peripheral Devices 35
2.9 Connecting the Power Connectors 36
2.10 Power On 37
2.11 Jumpers Setup 38
2.12 Onboard Headers and Connectors 39
4 / 73

2.13 Smart Switches 51
2.14 Post Status Checker 53
2.15 M.2 SSD Module Installation Guide (M2_1) 54
2.16 M.2 SSD Module Installation Guide (M2_2) 58
2.17 M.2 SSD Module Installation Guide (M2_3) 61
5 / 73

English
1
B650E PG Riptide WiFi
Chapter 1 Introduction
ank you for purchasing ASRock B650E PG Riptide WiFi motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock B650E PG Riptide WiFi Motherboard (ATX Form Factor)
• ASRock B650E PG Riptide WiFi User Manual
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 2 x ASRock WiFi 2.4/5/6 GHz Antennas (Optional)
• 2 x Screws for M.2 Sockets (Optional)
• 1 x Graphics Card Holder (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.
6 / 73

English
2
1.2 Specications
Platform • ATX Form Factor
• 8 Layer PCB
CPU • Supports AMD Socket AM5 RyzenTM 7000 Series Processors
Chipset • AMD B650
Memory • Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buered memory up to
7600+(OC)*
• Max. capacity of system memory: 192GB
• Supports Extreme Memory Prole (XMP) and EXTended
Proles for Overclocking (EXPO) memory modules
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
Expansion
Slot
CPU:
• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
• 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
Chipset:
• 1 x PCIe 4.0 x1 Slot (PCIE2)*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe
WiFi module
* Supports NVMe SSD as boot disks
• Supports AMD CrossFireTM
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Graphics • Integrated AMD RDNATM 2 graphics (Actual support may
vary by CPU)
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR,
HDCP 2.3 and max. resolution up to 4K 120Hz
Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio
7 / 73

English
3
B650E PG Riptide WiFi
LAN • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Killer® E3100G
• Supports Killer LAN Soware
Wireless
LAN
• 802.11ax Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports Dual-Band 2x2 with extended 6GHz band* sup-
port
* Wi-Fi 6E (6GHz band) will be supported by Microso® Win-
dows® 11. e availability will depend on the dierent regula-
tion status of each country and region. It will be activated (for
supported countries) through Windows Update and soware
updates once available.
* A 6GHz compatible router is required for 6E functionality.
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity
technology
• Supports Bluetooth + High speed class II
• Supports MU-MIMO
USB • 1 x USB 3.2 Gen2x2 Type-C (Front)
• 1 x USB 3.2 Gen2 Type-C (Rear)
• 1 x USB 3.2 Gen2 Type-A (Rear)
• 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
• 9 x USB 2.0 (6 Rear, 3 Front)
* All USB ports support ESD Protection
Rear Panel
I/O
• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
• 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming
Ports)
• 6 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone
8 / 73

English
4
Storage CPU:
• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280
PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
• 1 x M.2 Socket (M2_2, Key M), supports type
2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s)
modes*
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 2 x SATA3 6.0 Gb/s Connectors
ASMedia ASM1061:
• 2 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
RAID • Supports RAID 0 and RAID 1 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe
storage devices*
* Requires additional M.2 NVMe expansion cards to support
RAID 10
Connector • 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)****
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)*****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x 4 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x underbolt AIC Connector (5-pin) (Supports ASRock
underbolt 4 AIC Card)
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
(ReDriver)
9 / 73

English
5
B650E PG Riptide WiFi
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect
if 3-pin or 4-pin fan is in use.
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
OS • Microso® Windows® 11 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com
10 / 73

English
6
1.3 Motherboard Layout
11 / 73

English
7
B650E PG Riptide WiFi
No. Description
1 8 pin 12V Power Connector (ATX12V1)
2 4 pin 12V Power Connector (ATX12V2)
3 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)
4 CPU Fan Connector (CPU_FAN1)
5 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1)
6 2 x 288-pin DDR5 DIMM Slots (DDR5_A2, DDR5_B2)
7 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
8 Addressable LED Header (ADDR_LED2)
9 Addressable LED Header (ADDR_LED3)
10 Post Status Checker (PSC)
11 ATX Power Connector (ATXPWR1)
12 USB 3.2 Gen1 Header (USB32_4_5)
13 Front Panel Type C USB 3.2 Gen2x2 Header (USB32_TC_2)
14 SPI TPM Header (SPI_TPM_J1)
15 SATA3 Connector (SATA3_2) (Upper), SATA3 Connector (SATA3_1) (Lower)
16 SATA3 Connector (SATA3_A2) (Upper), SATA3 Connector (SATA3_A1) (Lower)
17 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
18 System Panel Header (PANEL1)
19 Power LED and Speaker Header (SPK_PLED1)
20 Clear CMOS Jumper (CLRCMOS1)
21 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
22 USB 2.0 Header (USB_7_8)
23 USB 2.0 Header (USB_9)
24 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)
25 Addressable LED Header (ADDR_LED1)
26 RGB LED Header (RGB_LED1)
27 5-pin underbolt AIC Connector (TB1)
28 Front Panel Audio Header (HD_AUDIO1)
12 / 73

English
8
1.4 I/O Panel
No. Description No. Description
1 Antenna Ports 7 USB 3.2 Gen2 Type-A Port (USB32_1)
2 2.5G LAN RJ-45 Port* 8 USB 3.2 Gen2 Type-C Port (USB32_TC_1)
3 Line In (Light Blue)** 9 USB 2.0 Ports (USB_56)
4 Front Speaker (Lime)** 10 USB 2.0 Ports (USB_1234)
5 Microphone (Pink)** 11 HDMI Port
6 USB 3.2 Gen1 Ports (USB32_23)*** 12 BIOS Flashback Button
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
1112 5
3
4
10 6
2
7
8
9
1
13 / 73

English
9
B650E PG Riptide WiFi

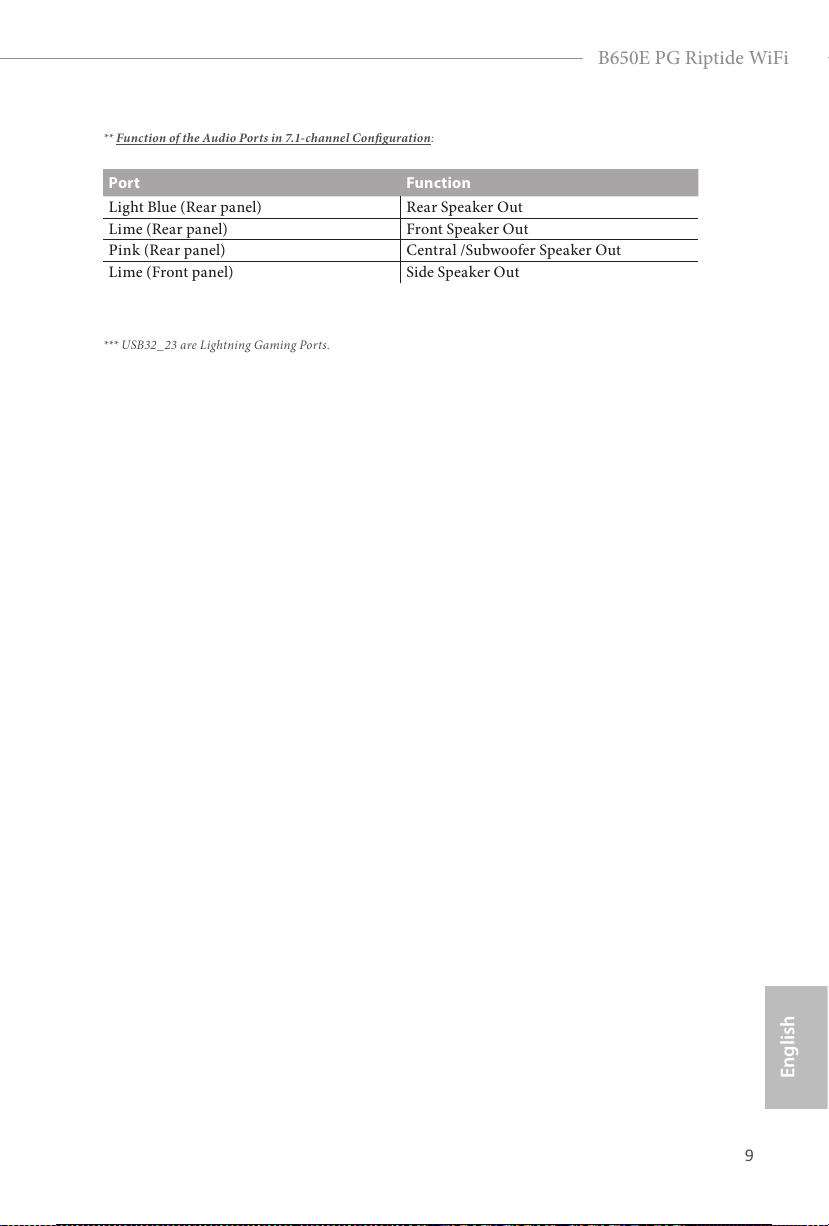

** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
*** USB32_23 are Lightning Gaming Ports.
14 / 73

English
10
1.5 Block Diagram
5Gb/s
Rear USB3.2 GEN1 port(LAN down)
x4 Gen3 PCIe3 Gen3x4 Slot
M2_3(PCIe x4)
x4 Gen4
1st AMD PROM21 Chipset AMD AM5 Processor LGA1718
Front USB3.2 Gen2X2 Type C 20Gb/s
DP0
HDMI Port
Front USB3.2 GEN1 2 ports
SATA 6Gb SATA 2 ports
Front USB2.0 3 ports 480Mb/s
Line in
Front Speaker Microphone
Rear USB2.0 2 ports the down port support Flash Back
480Mb/s
SPI eSPI SIO NCT6796D-S
Flash ROM
AZ(HD Audio)
Audio Codec ALC897-VB2
10Gb/s
Rear USB3.2 GEN2 Type A+C
M2_2(PCIe x2/SATA)
x2 Gen3 x1 ASM1061 SATA SATA 2 ports
Rear USB2.0 4 ports from USB2.0 Hub
Channel B Channel A
DDR5 Slot x2
DDR5 Slot x2
5Gb/s
Rear USB3.2 GEN1 1 port(LAN UP)
5Gb/s
PCIe1 Gen5x16 Slot
x4 Gen5 M2_1(PCIe x4)
PCIe x4 Gen4 BUS
x16 Gen5
x1
Killer 2.5GLAN E3100G
WiFi KeyE
x1
x1 Gen4 PCIe2 GEN4x1 slot
15 / 73

English
11
B650E PG Riptide WiFi
1.6 802.11ax Wi-Fi 6E Module and ASRock WiFi 2.4/5/6 GHz
Antennas
802.11ax Wi-Fi 6E + BT Module
is motherboard comes with an exclusive 802.11 a/b/g/n/ac/ax Wi-Fi 6E + BT
module that oers support for 802.11 a/b/g/n/ac/ax Wi-Fi 6E connectivity standards
and Bluetooth. Wi-Fi 6E + BT module is an easy-to-use wireless local area network
(WLAN) adapter to support Wi-Fi 6E + BT. Bluetooth standard features Smart Ready
technology that adds a whole new class of functionality into the mobile devices.
BT also includes Low Energy Technology and ensures extraordinary low power
consumption for PCs.
* e transmission speed may vary according to the environment.
* Wi-Fi 6E (6GHz band) will be supported by Microso® Windows® 11. e availability
will depend on the dierent regulation status of each country and region. It will be
activated (for supported countries) through Windows Update and soware updates
once available.
* A 6GHz compatible router is required for 6E functionality.
16 / 73

English
12
WiFi Antennas Installation Guide
Step 1
Prepare the WiFi 2.4/5/6 GHz Antennas that
come with the package.
Step 2
Connect the two WiFi 2.4/5/6 GHz Antennas
to the antenna connectors. Turn the antenna
clockwise until it is securely connected.
Step 3
Set the WiFi 2.4/5/6 GHz Antenna as shown in
the illustration.
*You may need to adjust the direction of
the antenna for a stronger signal.
17 / 73

English
13
B650E PG Riptide WiFi
1.7 Graphics Card Holder
Installing the Graphics Card Holder
Step 1
Secure the Graphics Card Holder to the chassis
with 2 screws.
*ere are two types of screws in the package.
Please use the appropriate type based on the
standos on the motherboard tray of your PC
case.
Step 2
Aer installing your graphics card, place the
bracket in the proper position to make sure that
it holds your graphics card in place.
en secure the bracket to the Graphics Card
Holder with 1 screw.
Before installing the Graphics Card Holder , please make sure that your motherboard
is properly installed into a PC case.
Type A Type B
18 / 73

English
14
is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the
components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation
19 / 73

English
15
B650E PG Riptide WiFi
2.1 Installing the CPU
1. Before you insert the 1718-Pin CPU into the socket, please check if the PnP cap
is on the socket, if the CPU surface is unclean, or if there are any bent pins in the
socket. Do not force to insert the CPU into the socket if above situation is found.
Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
Tutorial Video
Turn your CPU to the correct orientation before opening
the CPU socket cover.
20 / 73
