Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 I/O Panel 8
1.5 Block Diagram 9
Chapter 2 Installation 10

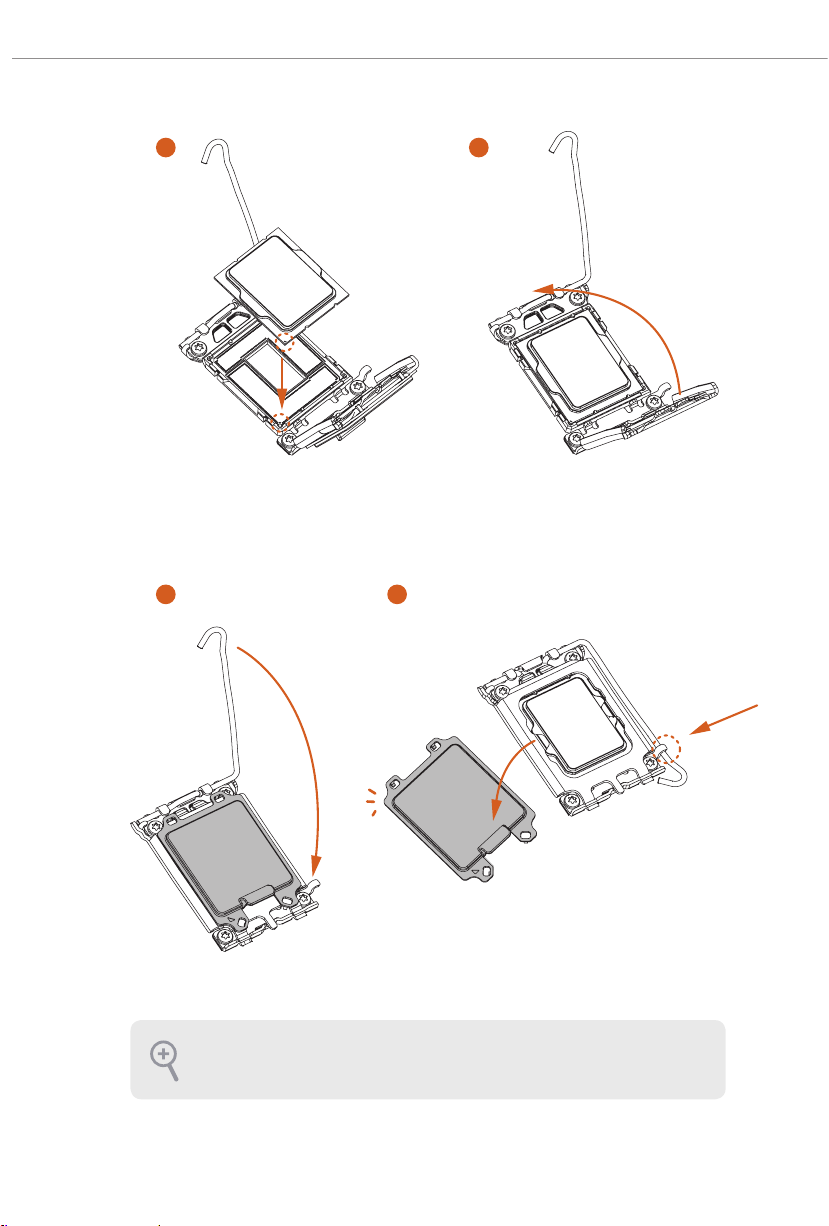

2.1 Installing the CPU 11

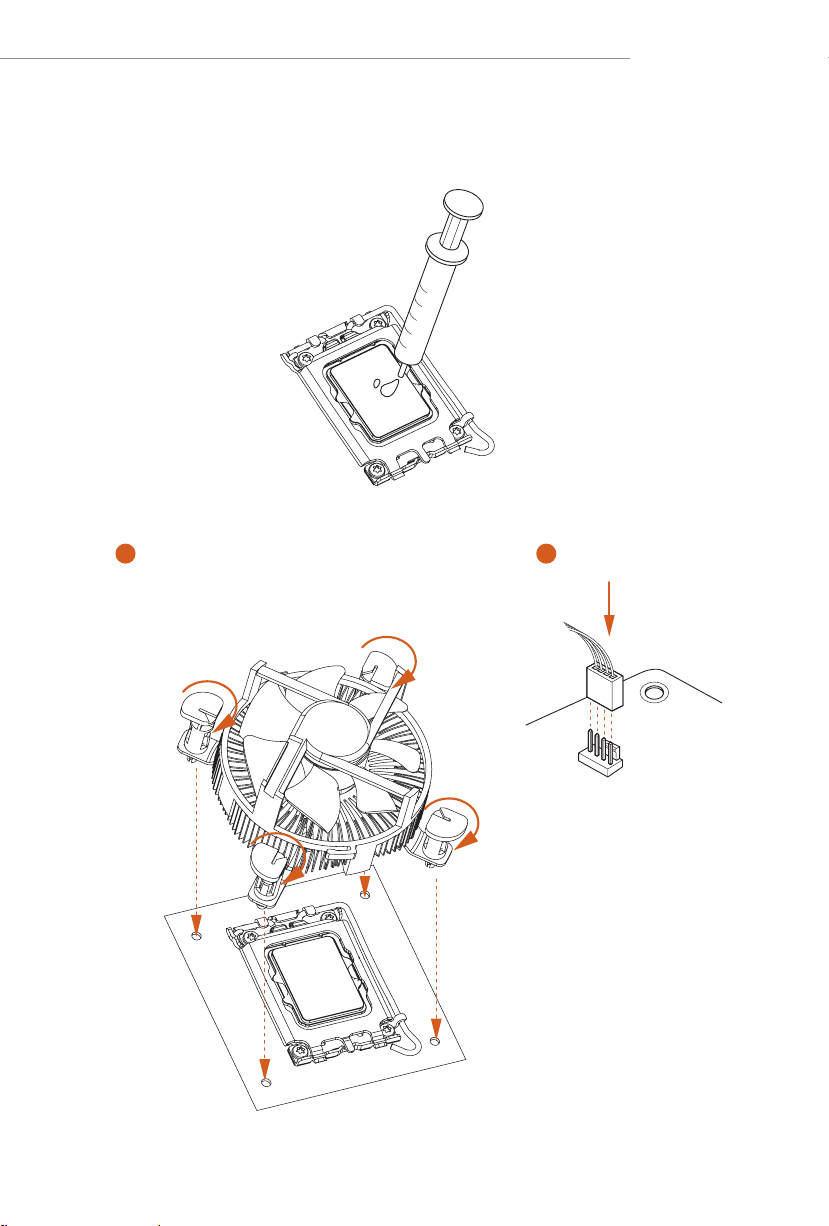

2.2 Installing the CPU Fan and Heatsink 13
2.3 Installing Memory Modules (DIMM) 14

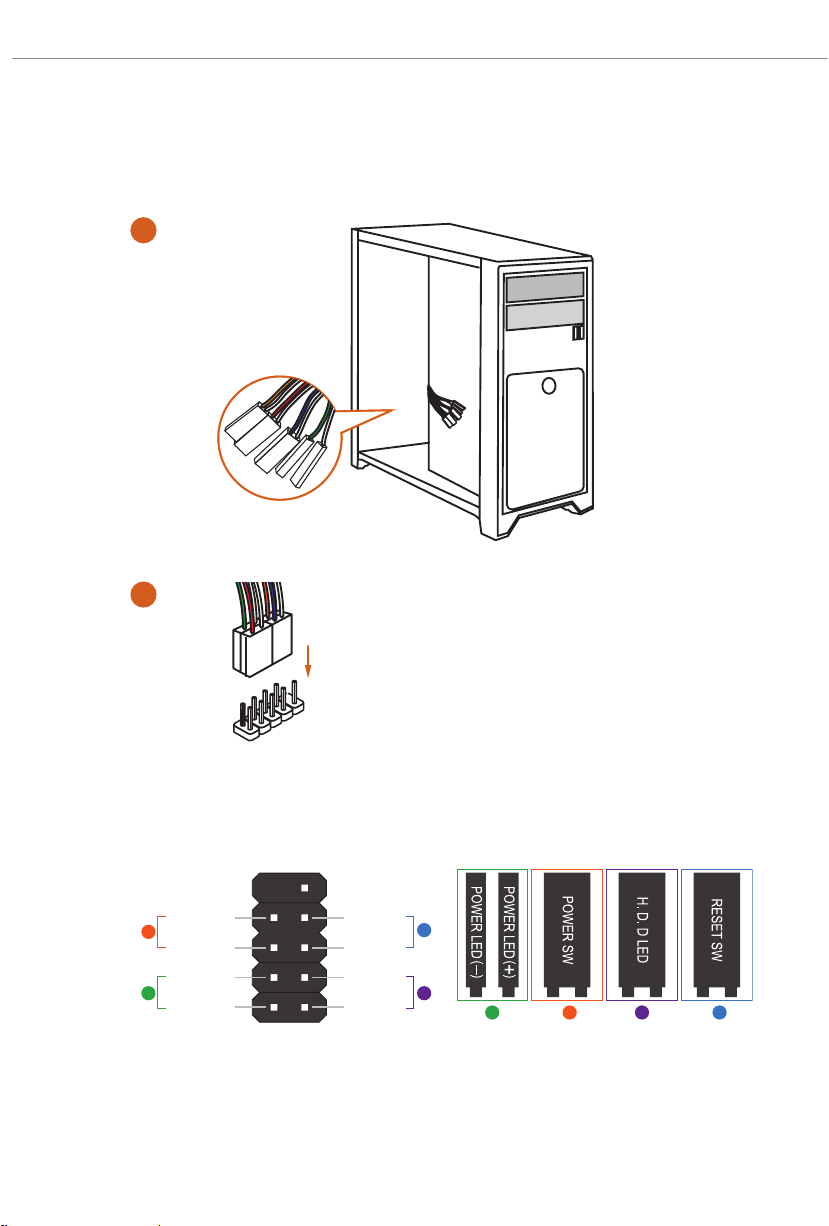

2.4 Connecting the Front Panel Header 16
2.5 Installing the Motherboard 17
2.6 Installing SATA Drives 18
2.7 Installing a Graphics Card 20
2.8 Connecting Peripheral Devices 22
2.9 Connecting the Power Connectors 23
2.10 Power On 24
2.11 Jumpers Setup 25
2.12 Onboard Headers and Connectors 26
2.13 Post Status Checker 43
2.14 M.2 WiFi/BT PCIe WiFi Module and Intel® CNVi (Integrated
WiFi/BT) Installation Guide 44

2.15 M.2 SSD Module Installation Guide (M2_1) 46
2.16 M.2 SSD Module Installation Guide (M2_2 and M2_3) 50

1
B760 Pro RS/D4
Chapter 1 Introduction
ank you for purchasing ASRock B760 Pro RS/D4 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock B760 Pro RS/D4 Motherboard (ATX Form Factor)
• ASRock B760 Pro RS/D4 User Manual
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 4 x Screws for M.2 Sockets (Optional)
• 1 x Stando for M.2 Socket (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi-
cations of this documentation occur, the updated version will be available on ASRock’s
website without further notice. If you require technical support related to this mother-
board, please visit our website for specic information about the model you are using. You
may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock
website http://www.asrock.com.

2
1.2 Specications
Platform • ATX Form Factor
CPU • Supports 13th Gen & 12th Gen Intel® CoreTM Processors
(LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® ermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
Chipset • Intel® B760
Memory • Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
• Supports DDR4 non-ECC, un-buered memory up to
5333+(OC)*
• Supports ECC UDIMM memory modules (operate in non-
ECC mode)
• Max. capacity of system memory: 128GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
Expansion
Slot
CPU:
• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
• 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
• 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*
• 1 x PCIe 3.0 x1 Slot (PCIE2)*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe
WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/
BT)
* Supports NVMe SSD as boot disks
• Supports AMD CrossFireTM

3
B760 Pro RS/D4
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Intel® XeGraphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and
max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP
2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio
LAN • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Soware
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and
Streaming Modes
- User Customized Priority Control
USB • 1 x USB 3.2 Gen2 Type-C (Front)
• 1 x USB 3.2 Gen1 Type-C (Rear)
• 7 x USB 3.2 Gen1 Type-A (5 Rear, 2 Front)
• 4 x USB 2.0 (2 Rear, 2 Front)
* All USB ports support ESD Protection
Rear Panel
I/O
• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 5 x USB 3.2 Gen1 Type-A Ports

4
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage CPU:
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
• 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280
PCIe Gen4x2 (32 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 4 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
RAID • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices
Connector • 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 2 x RGB LED Headers*
• 2 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)****
• 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)*****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connec-
tor)
• 1 x 4 pin 12V Power Connector (Hi-Density Power Connec-
tor)
• 1 x Front Panel Audio Connector

5
B760 Pro RS/D4
• 1 x underbolt AIC Connector (5-pin) (Supports ASRock
underbolt 4 AIC Card)
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
* Support in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~5/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect
if 3-pin or 4-pin fan is in use.
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
OS • Microso® Windows® 10 64-bit / 11 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

6
PCIE1
PCIE3
1
1
HD_AUDIO1
16
1
30
11
12
HDMI1
2
AUDIO
CODEC
36
CHA_FAN1/WP
CHA_FAN3/WP
CHA_FAN5/WP
CPU_FAN2/WP
57
13
17
18
26 25
SUPER
I/O
RoHS
RGB_LED1
RGB _LE D2
USB_3_4
SPI_TPM_J1
2428
DP1
14
15
CPU_FAN1
8
21
T B1
1
HDLED RESET
PLED PWRBTN
1
PANEL1
CPU
DRAM
VGA
BOOT
PCIE2
Intel
B760
1
CLRMOS1
CHA_FAN4
/WP
M2_1
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
M2_WIFI_CT1
M2_WIFI1
USB32_TC2
1
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
USB32_6_7
1
SATA3_2 SATA3_3
CHA_FAN2
/WP
1
ADDR_LED1
M2_2
M2_3
LAN
2327
ATXPWR1
BIOS
ROM
Top:
RJ-45
USB 3.2 Gen1
T: USB32_4
B: USB32_5
USB 3.2 Gen1
T: USB32_2
B: USB32_3
USB 3.2 Gen1
T:USB32_1
B: USB32_TC1
USB 2.0
T: USB_1
B: USB_2
9
1
1
ADDR_LED2
PCIE4
ATX12V1AT X12V2
4
10
SPK_CI1
1
SATA3_1
SATA3_0
20 19
CMOS
Battery
29
22
1.3 Motherboard Layout

7
B760 Pro RS/D4
No. Description
1 8 pin 12V Power Connector (ATX12V1)
2 4 pin 12V Power Connector (ATX12V2)
3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4 CPU Fan Connector (CPU_FAN1)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
6 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
7 Chassis/Water Pump Fan Connector (CHA_FAN5/WP)
8 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)
9 RGB LED Header (RGB_LED2)
10 Addressable LED Header (ADDR_LED2)
11 ATX Power Connector (ATXPWR1)
12 Front Panel Type C USB 3.2 Gen2 Header (USB32_TC2)
13 USB 3.2 Gen1 Header (USB32_6_7)
14 SATA3 Connector (SATA3_3)
15 SATA3 Connector (SATA3_2)
16 Post Status Checker (PSC)
17 SPI TPM Header (SPI_TPM_J1)
18 System Panel Header (PANEL1)
19 SATA3 Connector (SATA3_1)
20 SATA3 Connector (SATA3_0)
21 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)
22 Clear CMOS Jumper (CLRMOS1)
23 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
24 USB 2.0 Header (USB_3_4)
25 RGB LED Header (RGB_LED1)
26 Addressable LED Header (ADDR_LED1)
27 Chassis Intrusion and Speaker Header (SPK_CI1)
28 Front Panel Audio Header (HD_AUDIO1)
29 5-pin underbolt AIC Connector (TB1)
30 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

8
1.4 I/O Panel
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
No. Description No. Description
1 2.5G LAN RJ-45 Port* 7 USB 3.2 Gen1 Type-A Port (USB32_1)
2 Line In (Light Blue)** 8 USB 3.2 Gen1 Type-C Port (USB32_TC1)
3 Front Speaker (Lime)** 9 HDMI Port
4 Microphone (Pink)** 10 DisplayPort 1.4
5 USB 3.2 Gen1 Ports (USB32_45) 11 USB 2.0 Ports (USB_12)
6 USB 3.2 Gen1 Ports (USB32_23)
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
10 5
1
4
3
2
611 9
8
7

9
B760 Pro RS/D4

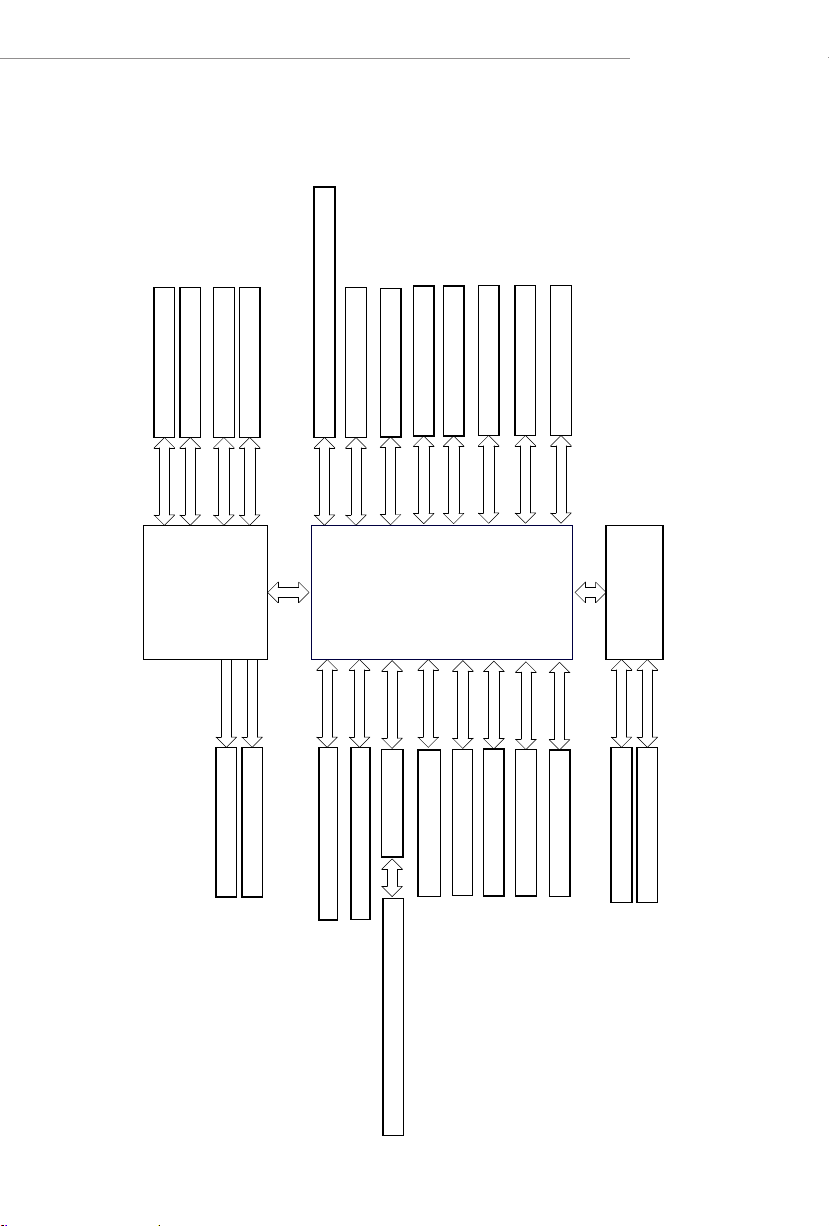

1.5 Block Diagram
PCIE1 (GEN4 x16 Slot )
M2_1(PCIe Gen4x4)
DDR4 Slot x2 DDR4 Slot x2
Intel Raptor Lake Processor Socket 1700
DMI Gen4 x4
DDI2 DDI3
Channel A Channel B
Gen4 x16 Gen4 x4
Front USB 3.2 Gen2 Type C 1 Port
Rear USB 3.2 Gen1 Type A 2 ports
ASM1074 USB HUB
Front USB 3.2 Gen1 2 ports
Front USB 2.0 2 ports
Rear USB 2.0 2 ports Flash ROM 128Mb
SATA 4 ports
PCIE3 Gen4x4 (X16 Slot)(TBT4 AIC Support)
M2_2(PCIe Gen4 x2)
M2_3(PCIe Gen4 x4) PCIE2( x1 Slot)
PCIE4( x16 Slot)
RTL8125BG(2.5G LAN)
ALC897 (3 jack Audio)
Intel 700 Series Chipset
H/W Monitor
FAN x7 Headers
SIO NCT6796D
eSPI
10Gb/s 5Gb/s
5Gb/s
5Gb/s
480Mb/s
480Mb/s
SATA 6Gb
SPI
Gen4 x4 Gen4 x2
Gen4 x4
Gen3 x1
Gen3 x1 Gen3 x1
AZ(HD Audio)
Display Port
HDMI
Rear USB3.2 Gen1 3 ports Type A+ 1 port Type C
M2_WIFI(CNVi and PCIE)
Gen3 x1

10
is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

11
B760 Pro RS/D4
2.1 Installing the CPU
1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A
B
2 3

12
5
76
4
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.

13
B760 Pro RS/D4
2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

14
2.3 Installing Memory Modules (DIMM)
is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
Recommended Memory Conguration
1 DIMM
2 DIMMs
4 DIMMs
A1 A2 B1 B2
V
A1 A2 B1 B2
VV
A1 A2 B1 B2
VVVV
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three
memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.
4. e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.

15
B760 Pro RS/D4
1
2
3

16
2.4 Connecting the Front Panel Header
ABC D
1
2
32:(56:
5(6(76:
32:(5/('
32:(5/('
+''/('
3$1(/
Power SW (-)RESET SW (+)
HDD LED (-)
HDD LED (+)
12
910
RESET SW (-)Power SW (+)
Power LED (-)
Power LED (+)
A
B
C
D
PANEL1
HDD LED
RESET SW
System Panel Header Front Panel Wires
