ASROCK FM2A58M-VG3+ User manual

User Manual
FM2A58M-VG3+

Version 1.0
Published March 2014
Copyright©2014 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com

Contents
1. Introduction ................................................................ 1
1.1 Package Contents ..................................................................... 1
 1.2 Specications............................................................................. 2
1.3 Unique Features ........................................................................ 5

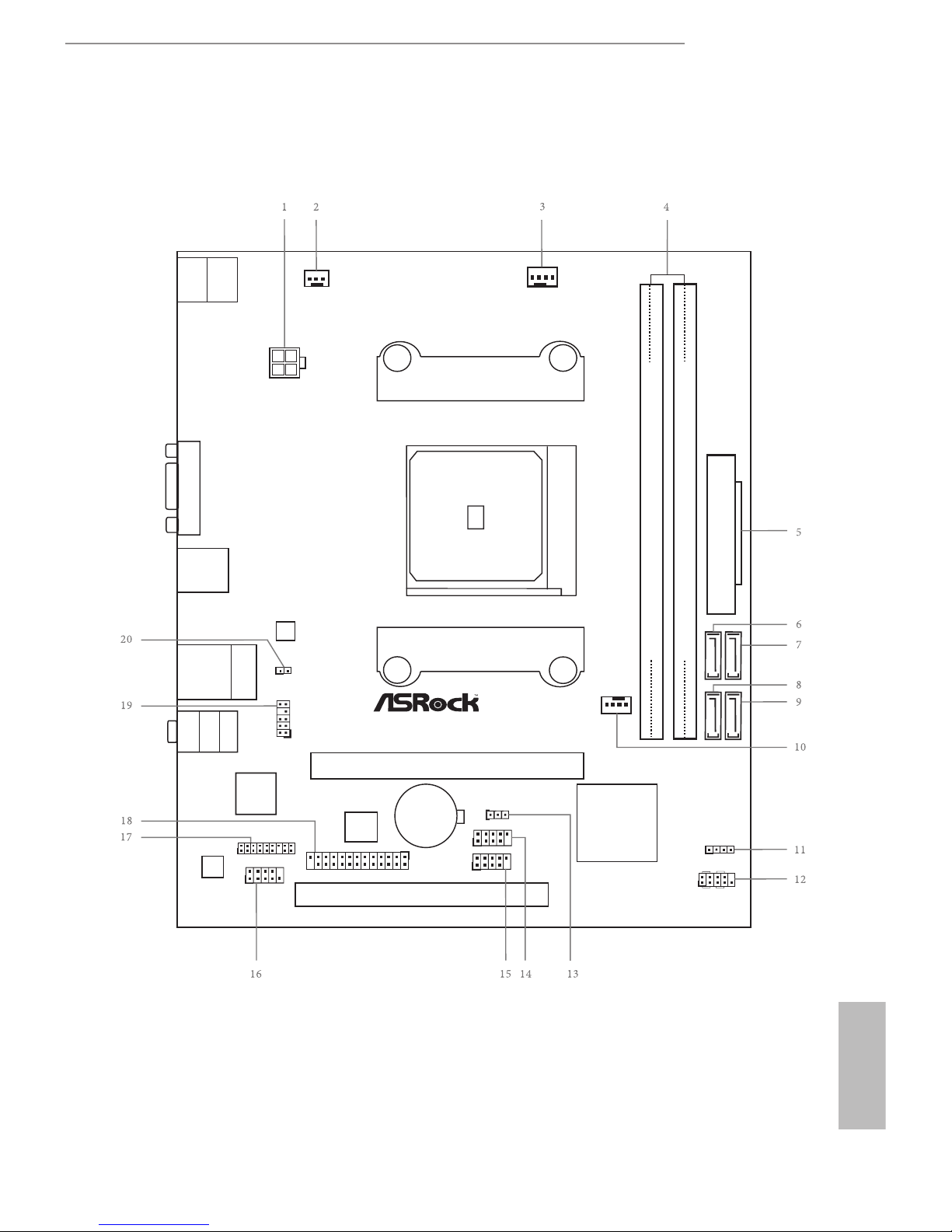

1.4 Motherboard Layout ................................................................. 9

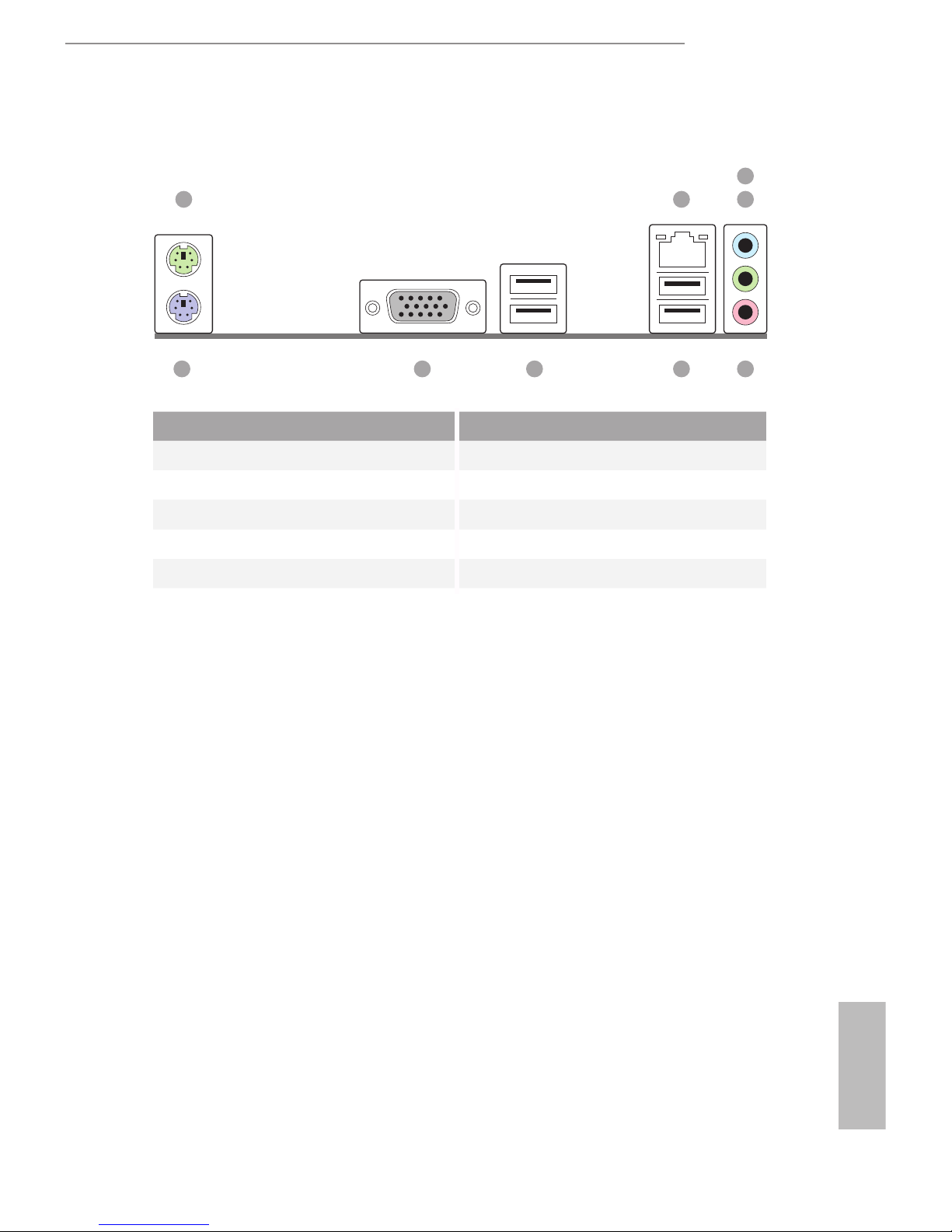

1.5 I/O Panel .................................................................................. 11
2. Installation .................................................................. 13
Pre-installation Precautions ................................................................ 13
2.1 CPU Installation ......................................................................... 14
2.2 Installation of CPU Fan and Heatsink ...................................... 15
2.3 Installation of Memory Modules (DIMM) .................................... 16
2.4 Expansion Slots (PCI and PCI Express Slots)........................... 18
2.5 Jumpers Setup........................................................................... 19
2.6 Onboard Headers and Connectors ....................................... 20
2.7 Dual Graphics Operation Guide ................................................ 24
3. Software and Utilities Operation............................... 26
3.1 Installing Drivers ........................................................................ 26
3.2 A-Tuning .................................................................................... 27
3.3 Start8 ......................................................................................... 31
4. UEFI SETUP UTILITY.................................................. 34
4.1 Introduction ................................................................................ 34
4.1.1 UEFI Menu Bar................................................................ 34
4.1.2 Navigation Keys............................................................... 35
4.2 Main Screen............................................................................... 35
4.3 OC Tweaker Screen................................................................... 36
4.4 Advanced Screen ...................................................................... 39
  4.4.1 CPUConguration........................................................... 40
  4.4.2 NorthBridgeConguration .............................................. 41
  4.4.3 SouthBridgeConguration ............................................. 42
  4.4.4 StorageConguration...................................................... 43
  4.4.5 SuperIOConguration.................................................... 44
  4.4.6 ACPIConguration.......................................................... 45
  4.4.7 USBConguration........................................................... 47
4.4.8 Trusted Computing .......................................................... 48
4.5 Tool ............................................................................................ 49
4.6 Hardware Health Event Monitoring Screen ............................... 52
4.7 Boot Screen ............................................................................... 53

4.8 Security Screen ......................................................................... 55
4.9 Exit Screen ................................................................................ 56

FM2A58M-VG3+
1
English
1. Introduction
Thank you for purchasing ASRock FM2A58M-VG3+ motherboard, a reliable moth-
erboard produced under ASRock’s consistently stringent quality control. It delivers
excellent performance with robust design conforming to ASRock’s commitment to
quality and endurance.
In this documentation, Chapter 1 and 2 contains the introduction of the motherboard
and step-by-step installation guides. Chapter 3 contains the operation guide of the
softwareandutilities.Chapter4containsthecongurationguideoftheBIOSsetup.
 Because the motherboard specications and the BIOS software might
be updated, the content of this manual will be subject to change without
notice.Incaseanymodicationsofthismanualoccur,theupdatedver-
sion will be available on ASRock website without further notice. You may
ndthelatestVGAcards andCPUsupportlistsonASRock website as
well. ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
ourwebsiteforspecicinformationaboutthemodelyouareusing.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock FM2A58M-VG3+ Motherboard (Micro ATX Form Factor)
ASRock FM2A58M-VG3+ Quick Installation Guide
ASRock FM2A58M-VG3+ Support CD
2 x Serial ATA (SATA) Data Cables (Optional)
1 x I/O Panel Shield

English
2
1.2 Specications
Platform - Micro ATX Form Factor
- All Solid Capacitor design
- High Density Glass Fabric PCB
CPU - Supports Socket FM2+ 95W / FM2 100W processors
Chipset - AMD A58 FCH (Bolton-D2)
Memory - Dual Channel DDR3 Memory Technology
- 2 x DDR3 DIMM Slots
- Supports DDR3 1866/1600/1333/1066 non-ECC,
un-buffered memory (see CAUTION 1)
- Max. capacity of system memory: 32GB (see CAUTION 2)
- Supports Intel®ExtremeMemoryProle(XMP)1.3/1.2
 -SupportsAMDMemoryProle(AMP)
Expansion Slot - 1 x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode)
* PCIE 3.0 is only supported with FM2+ CPU. With FM2
CPU, it only supports PCIE 2.0.
- 1 x PCI Slot
- Supports AMD Dual Graphics
Graphics - Integrated AMD RadeonTM R7/R5 Series Graphics in
A-series APU
- DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11,
Pixel Shader 5.0 with FM2 CPU.
- Max. shared memory 2GB
- Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
 -SupportsAMDSteadyVideoTM 2.0: New video post
processing capability for automatic jitter reduction on
home/online video
Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports Surge Protection (ASRock Full Spike Protection)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111FR (see CAUTION 3)
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike
Protection)
- Supports LAN Cable Detection
 -SupportsEnergyEfcientEthernet802.3az
- Supports PXE

FM2A58M-VG3+
3
English
Rear Panel I/O - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full
Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Storage - 4 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0,
RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
Connector - 1 x Print Port Header
- 1 x COM Port Header
- 1 x Chassis Intrusion Header
- 1 x TPM Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
 -1x4pin12VPowerConnector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports
ESD Protection (ASRock Full Spike Protection))
BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support
- Supports “Plug and Play”
- ACPI 1.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3.1 support
 -DRAM,CPUVoltagemulti-adjustment
Support CD -Drivers,Utilities,AntiVirusSoftware(TrialVersion),Google
Chrome Browser and Toolbar, Start8 (30 days trial)
Hardware - CPU temperature sensing
Monitor - Chassis temperature sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU/Chassis Quiet Fan
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
 -Voltagemonitoring:+12V,+5V,+3.3V,Vcore
OS - Microsoft® Windows®8.1 32-bit / 8.1 64-bit / 8 32-bit /
8 64-bit / 7 32-bit / 7 64-bit

English
4
WARNING
Please realize that there is a certain risk involved with overclocking,
including adjusting the setting in the BIOS, applying Untied Overclocking
Technology, or using third-party overclocking tools. Overclocking may
affect your system’s stability, or even cause damage to the components
and devices of your system. It should be done at your own risk and
expense. We are not responsible for possible damage caused by
overclocking.
CAUTION!
1. Whether 1866/1600MHz memory speed is supported depends
on the CPU you adopt. If you want to adopt DDR3 1866/1600
memory module on this motherboard, please refer to the mem-
ory support list on our website for the compatible memory mod-
ules.
ASRock website http://www.asrock.com
2. Due to Windows®32-bit operating system limitation, the actual
memory size may be less than 4GB for the reservation for sys-
tem usage under Windows®8.1 / 8 / 7. You can use ASRock
XFast RAM to utilize the memory that Windows®cannot use.
For Windows®64-bit OS with 64-bit CPU, there is no such limi-
tation.
3. Wake-On-WAN allows you to wake up this system from remote
mobile devices, such as smart phones, tables, or other PCs. It
needs third-party softwares and applications to utilize this fea-
ture. Please visit our website for ASRock Cloud topic.
Certications - FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com

FM2A58M-VG3+
5
English
1.3 Unique Features
ASRock A-Tuning
A-Tuning is ASRock’s multi purpose software suite with a new
interface, more new features and improved utilities, including
XFast RAM, Dehumidier, Good Night LED, FAN-Tastic Tun-
ing, OC Tweaker and a whole lot more.
ASRock Instant Boot
ASRock Instant Boot allows you to turn on your PC in just a few
seconds, provides a much more efcient way to save energy,
time, money, and improves system running speed for your sys-
tem. It leverages the S3 and S4 ACPI features which normally
enable the Sleep/Standby and Hibernation modes in Windows®
toshortenbootuptime.BycallingS3andS4atspecictiming
during the shutdown and startup process, Instant Boot allows
you to enter your Windows®desktop in a few seconds.
ASRock Instant Flash
 ASRockInstantFlashisaBIOSashutilityembeddedinFlash
ROM. This convenient BIOS update tool allows you to update
system BIOS without entering operating systems rst like MS-
DOS or Windows®. With this utility, you can press the <F6> key
during the POST or the <F2> key to enter into the BIOS setup
menu to access ASRock Instant Flash. Just launch this tool and
savethe new BIOSletoyour USB ash drive,oppydisk or
hard drive, then you can update your BIOS only in a few clicks
withoutpreparing anadditionaloppy diskette orother compli-
cated ash utility. Please be noted that the USB ash drive or
harddrivemustuseFAT32/16/12lesystem.
ASRock APP Charger
If you desire a faster, less restricted way of charging your
Apple devices, such as iPhone/iPad/iPod Touch, ASRock has
prepared a wonderful solution for you - ASRock APP Charger.
Simply install the APP Charger driver, it makes your iPhone
charge much quickly from your computer and up to 40% faster
than before. ASRock APP Charger allows you to quickly charge
many Apple devices simultaneously and even supports continu-
ous charging when your PC enters into Suspend to RAM (S3),
hibernation mode (S4) or power off (S5). With APP Charger

English
6
driver installed, you can easily enjoy the marvelous charging
experience.
ASRock XFast LAN
ASRock XFast LAN provides a faster internet access, which
includes the benefits listed below. LAN Application Prioritiza-
tion:Youcancongureyourapplication’spriorityideallyand/or
add new programs. Lower Latency in Game: After setting online
game’spriorityhigher,itcanlowerthelatencyingames.Trafc
Shaping: You can watch Youtube HD videos and download si-
multaneously. Real-Time Analysis of Your Data: With the status
window, you can easily recognize which data streams you are
transferring currently.
ASRock XFast RAM
ASRock XFast RAM is included in A-Tuning. It fully utilizes the
memory space that cannot be used under Windows®32-bit
operating systems. ASRock XFast RAM shortens the loading
timeof previouslyvisitedwebsites, making websurngfaster
than ever. And it also boosts the speed of Adobe Photoshop 5
times faster. Another advantage of ASRock XFast RAM is that
it reduces the frequency of accessing your SSDs or HDDs in
order to extend their lifespan.
ASRock Crashless BIOS
ASRock Crashless BIOS allows users to update their BIOS
without fear of failing. If power loss occurs during the BIOS up-
dateprocess,ASRockCrashlessBIOS will automaticallynish
the BIOS update procedure after regaining power. Please note
that BIOS les need to be placed in the root directory of your
USB disk. Only USB2.0 ports support this feature.
ASRock OMG (Online Management Guard)
Administrators are able to establish an internet curfew or restrict
internetaccessatspeciedtimesviaOMG.Youmayschedule
the starting and ending hours of internet access granted to other
users. In order to prevent users from bypassing OMG, guest
accounts without permission to modify the system time are re-
quired.

FM2A58M-VG3+
7
English
ASRock Internet Flash
ASRock Internet Flash searches for available UEFI firmware
updates from our servers. In other words, the system can auto-
detectthelatestUEFIfromourserversandashthemwithout
entering Windows®OS.
ASRock UEFI Tech Service
Contact ASRock Tech Service by sending a support request
from the UEFI setup utility if you are having trouble with your
PC.
ASRock Dehumidier Function
Users may prevent motherboard damages due to dampness by
enabling “Dehumidier Function”. When enabling Dehumidier
Function, the computer will power on automatically to dehumidi-
fy the system after entering S4/S5 state.
ASRock Easy RAID Installer
ASRock Easy RAID Installer can help you to copy the RAID
driver from a support CD to your USB storage device. After
copying the RAID driver to your USB storage device, please
change “SATA Mode” to “RAID”, then you can start installing the
OS in RAID mode.
ASRock Easy Driver Installer
For users that don’t have an optical disk drive to install the
drivers from our support CD, Easy Driver Installer is a handy
tool in the UEFI that installs the LAN driver to your system via
an USB storage device, then downloads and installs the other
required drivers automatically.
ASRock Interactive UEFI
ASRock Interactive UEFI is a blend of system configuration
tools, cool sound effects and stunning visuals. The unprec-
edented UEFI provides a more attractive interface and brings a
lot more amusing.
ASRock Fast Boot
With ASRock’s exclusive Fast Boot technology, it takes less
than 1.5 seconds to logon to Windows®8 from a cold boot. No
more waiting! The speedy boot will completely change your user
experience and behavior.

English
8
ASRock X-Boost
Brilliantly designed for combo overclocking, ASRock X-Boost
Technology is able to unleash the hidden power of your CPUs.
Simply press “X” when turning on the PC, X-Boost will automati-
cally overclock the relative components to get up to 15.77%
performance boost! With the smart X-Boost, overclocking CPU
can become a near one-button process.
ASRock Restart to UEFI
Windows®8 brings the ultimate boot up experience. The light-
ning boot up speed makes it hard to access the UEFI setup. AS-
Rock Restart to UEFI technology is designed for those requiring
frequent UEFI access. It is included in ASRock’s exclusive all-
in-one A-Tuning tuning program that allows users to easily enter
the UEFI automatically when turning on the PC next time. Just
simply enable this function; the PC will be assured to access the
UEFI directly in the very beginning.
ASRock USB Key
In a world where time is money, why waste precious time
everyday typing usernames to log in to Windows? Why should
we even bother memorizing those foot long passwords? Just
plug in the USB Key and let your computer log in to windows
automatically!
ASRock FAN-Tastic Tuning
ASRock FAN-Tastic Tuning is included in A-Tuning. Congure
up to ve different fan speeds using the graph. The fans will
automatically shift to the next speed level when the assigned
temperature is met.

FM2A58M-VG3+
9
English
1.4 Motherboard Layout
FM2A58M-VG3+
X
Fast RAM
RoHS
AMD
A58 FCH
(Bolton-D2)
Chipset
CMOS
BATTERY
64Mb
BIOS
ATXPWR1
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
SATA_3
SATA_1
ATX12V1
Super
I/O
LAN
AUDIO
CODEC
1
CLRCMOS1
PCIE1
PCI1
1
USB_6_7
1
USB_4_5
HD_AUDIO1
1
CPU_FAN1
CHA_FAN1
SPEAKER1
1
HDLED RESET
PLED PWRBTN
1
PANE L 1
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
RJ-45 LAN
USB 2.0
T: USB2
B: USB3
USB 2.0
T: USB0
B: USB1
PS2
Mouse
PS2
Keyboard
VGA1
CI1
1
SOCKET FM2b
X
Fast LAN
SATA_4
SATA_2
PCI Express 3.0
PWR_FAN1
1
LPT1
TPMS1
1
1
COM1

English
10
No. Description
1ATX12VPowerConnector(ATX12V1)
2 Power Fan Connector (PWR_FAN1)
3 CPU Fan Connector (CPU_FAN1)
4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)
5 ATX Power Connector (ATXPWR1)
6 SATA2 Connector (SATA_3)
7 SATA2 Connector (SATA_4)
8 SATA2 Connector (SATA_1)
9 SATA2 Connector (SATA_2)
10 Chassis Fan Connector (CHA_FAN1)
11 Chassis Speaker Header (SPEAKER1)
12 System Panel Header (PANEL1)
13 Clear CMOS Jumper (CLRCMOS1)
14 USB 2.0 Header (USB_6_7)
15 USB 2.0 Header (USB_4_5)
16 COM Port Header (COM1)
17 TPM Header (TPMS1)
18 Print Port Header (LPT1)
19 Front Panel Audio Header (HD_AUDIO1)
20 Chassis Intrusion Header (CI1)

FM2A58M-VG3+
11
English
1.5 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 6 USB 2.0 Ports (USB_2_3)
2 LAN RJ-45 Port* 7 USB 2.0 Ports (USB_0_1)
3 Line In (Light Blue) 8 D-Sub Port
4 Front Speaker (Lime)** 9 PS/2 Keyboard Port
5 Microphone (Pink)
1 2 4
56789
3

English
12
* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indica-
tions.
Activity / Link LED Speed LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
To enable Multi-Streaming function, you need to connect a front panel audio
cable to the front panel audio header. Please refer to below steps for the
software setting of Multi-Streaming. After restarting your computer, please
double-click “Realtek HD Audio Manager” on the system tray. Set “Speaker
Conguration” to “Quadraphonic” or “Stereo”. Click “Device advanced set-
tings”, choose “Make front and rear output devices playbacks two different
audio streams simultaneously”, and click “ok”. Then reboot your system.

FM2A58M-VG3+
13
English
2. Installation
This is a Micro ATX form factor motherboard. Before you install the motherboard,
studythecongurationofyourchassistoensurethatthemotherboardtsintoit.
Pre-installation Precautions
Take note of the following precautions before you install motherboard
components or change any motherboard settings.
Before you install or remove any component, ensure that the
power is switched off or the power cord is detached from the
power supply. Failure to do so may cause severe damage to the
motherboard, peripherals, and/or components.
1. Unplug the power cord from the wall socket before touching any
component.
2. To avoid damaging the motherboard components due to static elec-
tricity,NEVERplaceyourmotherboarddirectlyonthecarpetorthe
like. Also remember to use a grounded wrist strap or touch a safety
grounded object before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-
static pad or in the bag that comes with the component.
5. When placing screws into the screw holes to secure the mother-
board to the chassis, please do not over-tighten the screws! Doing
so may damage the motherboard.

English
14
2.1 CPU Installation
Step 1. Unlock the socket by lifting the lever up
to a 90oangle.
Step 2. Position the CPU directly above the
socket such that the CPU corner with
the golden triangle matches the socket
corner with a small triangle.
Step 3. Carefully insert the CPU into the
 socketuntilittsinplace.
TheCPUtsonlyinonecorrect
orientation. DO NOT force the CPU
into the socket to avoid bending of
the pins.
Step 4. When the CPU is in place, press it
 rmlyonthesocketwhileyoupush  
down the socket lever to secure the
CPU. The lever clicks on the side tab
to indicate that it is locked.

FM2A58M-VG3+
15
English
2.2 Installation of CPU Fan and Heatsink
After you install the CPU into this motherboard, it is necessary to install a
larger heatsink and cooling fan to dissipate heat. You also need to spray
thermal grease between the CPU and the heatsink to improve heat dis-
sipation. Make sure that the CPU and the heatsink are securely fastened
and in good contact with each other. Then connect the CPU fan to the
CPU FAN connector (CPU_FAN1, see Page 9, No. 3). For proper instal-
lation, please kindly refer to the instruction manuals of the CPU fan and
the heatsink.

English
16
2.3 Installation of Memory Modules (DIMM)
This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM
slots, and supports Dual Channel Memory Technology.
The DIMM only ts in one correct orientation. It will cause permanent dam-
age to the motherboard and the DIMM if you force the DIMM into the slot at
incorrect orientation.
1. For dual channel conguration, you always need to install identical (the
same brand, speed, size and chip-type) DDR3 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one
memory module installed.
3. It is not allowed to install a DDR or DDR2 memory module into a DDR3
slot; otherwise, this motherboard and DIMM may be damaged.
