ASROCK B760M-C R2.0 User manual

Contact Information
If you need to contact ASRock or want to know more about ASRock, you’re
welcome to visit ASRock’s website at http://www.asrock.com; or you may contact
your dealer for further information. For technical questions, please submit a
support request form at https://event.asrock.com/tsd.asp
ASRock Incorporation
e-mail: [e-mail]
ASRock EUROPE B.V.
e-mail: [e-mail]
ASRock America, Inc.
e-mail: [e-mail]
Scan the QR code to view more manuals and documents.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 I/O Panel 8
1.5 Block Diagram 9
1.6 WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz
Antennas 10
Chapter 2 Installation 12
2.1 Installing the CPU 13
2.2 Installing the CPU Fan and Heatsink 15
2.3 Installing Memory Modules (DIMM) 16
2.4 Connecting the Front Panel Header 18
2.5 Installing the Motherboard 19
2.6 Installing SATA Drives 20
2.7 Installing a Graphics Card 22
2.8 Connecting Peripheral Devices 24
2.9 Connecting the Power Connectors 25
2.10 Power On 26
2.11 Jumpers Setup 27
2.12 Onboard Headers and Connectors 28
2.13 Post Status Checker 40

2.14 M.2 SSD Module Installation Guide (M2_1) 41
2.15 M.2 SSD Module Installation Guide (M2_2) 43

English
1
B760M-C R2.0
Chapter 1 Introduction
ank you for purchasing ASRock B760M-C R2.0 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock B760M-C R2.0 Motherboard (Micro ATX Form Factor)
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 2 x ASRock WiFi 2.4/5 GHz Antennas (Optional)
• 2 x Screws for M.2 Sockets (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

English
2
1.2 Specications
Platform • Micro ATX Form Factor
CPU • Supports 13th Gen & 12th Gen Intel® CoreTM Processors
(LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® ermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
Chipset • Intel® B760
Memory • Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buered memory up to
7200+(OC)*
• Max. capacity of system memory: 192GB
• Supports Intel® Extreme Memory Prole (XMP) 3.0
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
Expansion
Slot
CPU:
• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
• 1 x PCIe 4.0 x16 Slot (PCIE2), supports x1 mode*
• 1 x PCIe 4.0 x16 Slot (PCIE3), supports x1 mode*
• 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode*
• 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT
PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated
WiFi/BT)
* Supports NVMe SSD as boot disks
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Intel® XeGraphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and
max. resolution up to 4K 60Hz

English
3
B760M-C R2.0
Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN • Gigabit LAN 10/100/1000 Mb/s
• Realtek 8111H
Wireless
LAN
• 802.11ac WiFi Module
• Supports IEEE 802.11a/b/g/n/ac
• Supports Dual-Band (2.4/5 GHz)
• Supports high speed wireless connections up to 433Mbps
• Supports Bluetooth + High speed class II
USB • 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
• 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• 8 x USB 2.0 (4 Rear, 4 Front)
* All USB ports support ESD Protection
Rear Panel
I/O
• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x USB 3.2 Gen1 Type-C Port
• 3 x USB 3.2 Gen1 Type-A Ports
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage CPU:
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type
2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280
PCIe Gen4x4 (64 Gb/s) mode*
• 4 x SATA3 6.0 Gb/s Connectors
ASMedia ASM1061:
• 4 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
RAID • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices

English
4
Connector • 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)****
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)*****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connec-
tor)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen1 Header
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect
if 3-pin or 4-pin fan is in use.
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
OS • Microso® Windows® 10 64-bit / 11 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
• CEC Tier II ready
* For detailed product information, please visit our website: http://www.asrock.com

English
5
B760M-C R2.0
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.

English
6

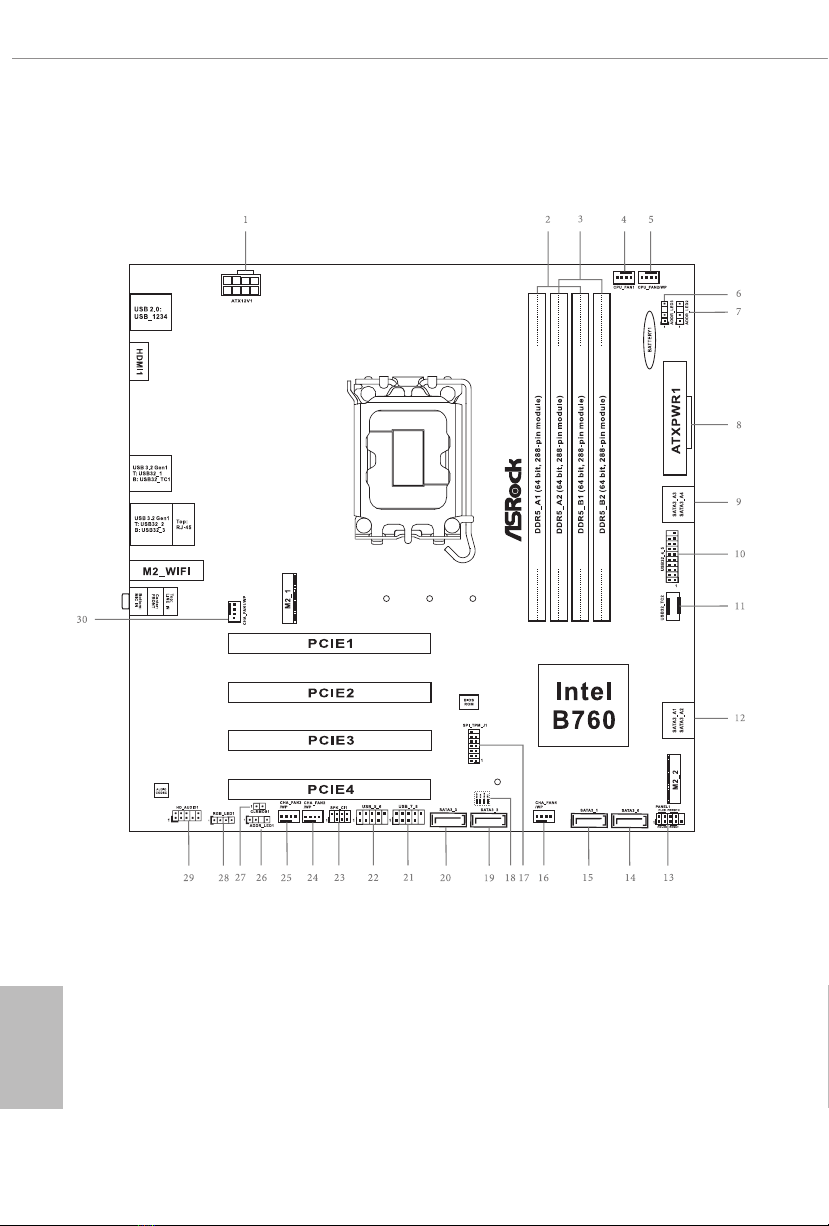

1.3 Motherboard Layout

English
7
B760M-C R2.0
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1)
3 2 x 288-pin DDR5 DIMM Slots (DDR5_A2, DDR5_B2)
4 CPU Fan Connector (CPU_FAN1)
5 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
6 Addressable LED Header (ADDR_LED3)
7 Addressable LED Header (ADDR_LED2)
8 ATX Power Connector (ATXPWR1)
9 SATA3 Connectors (SATA3_A3)(Upper), (SATA3_A4)(Lower)
10 USB 3.2 Gen1 Header (USB32_4_5)
11 Front Panel Type C USB 3.2 Gen1 Header (USB32_TC2)
12 SATA3 Connectors (SATA3_A1)(Upper), (SATA3_A2)(Lower)
13 System Panel Header (PANEL1)
14 SATA3 Connector (SATA3_0)
15 SATA3 Connector (SATA3_1)
16 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)
17 SPI TPM Header (SPI_TPM_J1)
18 Post Status Checker (PSC)
19 SATA3 Connector (SATA3_2)
20 SATA3 Connector (SATA3_3)
21 USB 2.0 Header (USB_7_8)
22 USB 2.0 Header (USB_5_6)
23 Chassis Intrusion and Speaker Header (SPK_CI1)
24 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
25 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)
26 Addressable LED Header (ADDR_LED1)
27 Clear CMOS Jumper (CLRMOS1)
28 RGB LED Header (RGB_LED1)
29 Front Panel Audio Header (HD_AUDIO1)
30 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

English
8

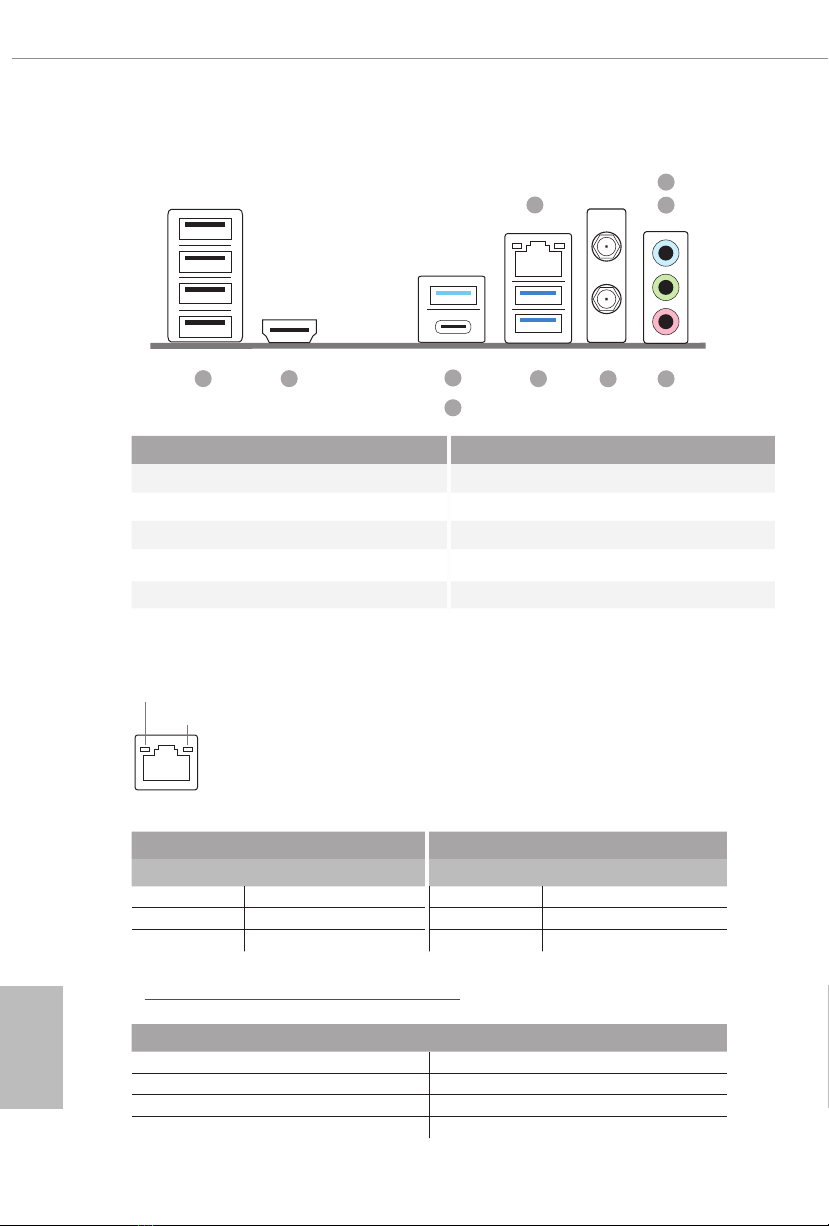

1.4 I/O Panel
No. Description No. Description
1 LAN RJ-45 Port* 6 USB 3.2 Gen1 Type-A Ports (USB32_23)
2 Line In (Light Blue)** 7 USB 3.2 Gen1 Type-A Port (USB32_1)
3 Front Speaker (Lime)** 8 USB 3.2 Gen1 Type-C Port (USB32_TC1)
4 Microphone (Pink)** 9 HDMI Port
5 Antenna Ports 10 USB 2.0 Ports (USB_1234)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
7
8
96
1
4
3
2
10 5

English
9
B760M-C R2.0
1.5 Block Diagram
Intel 700 Series
Chipset B760
Channel B Channel A
SIO NCT6796D
Gen4 x1 Gen5 x16 Gen4 x1
eSPI
H/W Monitor
Gen4 x4
SATA 4 ports SATA 6Gb USB2.0 HUB =>Rear 4 ports USB 2.0 480Mb/s
5Gb/s 5Gb/s
Front USB 3.2 Gen1 Type C
5Gb/s
Front USB 3.2 Gen1 2 ports Front USB 2.0 4 ports 480Mb/s
ALC897(3 jack Audio+front header=>7.1CH)
AZ(HD Audio)
REALTEK RTL8111H-CG
SPI Flash ROM 128Mb
Gen3 x1/CNVi/USB M.2 Key E(intel 3168 (PCIE) or 9462 (CNVi))
ASM1074 =>Rear 4 ports USB 3.2 Gen1(A*3+C*1)
ASM1061 =>SATA 2 ports Gen2 x1
USB2.0
LED MCU
RGB_LED1 RGB LED DRIVER
ADDR_LED2 ADDR_LED1 ADDR_LED3
SPI TPM Header
NCT3947S-A NCT3947S-A
CPU_FAN2/WP
CHA_FAN1/WP
NCT3947S-A NCT3947S-A
CHA_FAN2/WP
CHA_FAN3/WP
CPU_FAN1 UART1 header(Port 80 debug)
Gen4 x1
ASM1061 =>SATA 2 ports Gen2 x1
DDR5 Slot x2
DDR5 Slot x2
PCIE1 (PCIe Gen5 x16)
DDIB
HDMI
M2_1 (PCIe Gen4 x4)
Intel Alder Lake-S
Raptor Lake-S
Processor (LGA1700)
Gen4 x4
DMI Gen4 x4
Gen3 x1
PCIE2 (PCIe Gen4 x1, X16 slot) PCIE3 (PCIe Gen4 x1, X16 slot) PCIE4 (PCIe Gen4 x1, X16 slot) M2_2 (PCIe Gen4 x4)
NCT3947S-ACHA_FAN4/WP

English
10
1.6 WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz
Antennas
WiFi-802.11ac + BT Module
is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT module
that oers support for WiFi 802.11 a/b/g/n/ac connectivity standards and
Bluetooth. WiFi + BT module is an easy-to-use wireless local area network
(WLAN) adapter to support WiFi + BT. Bluetooth standard features Smart Ready
technology that adds a whole new class of functionality into the mobile devices.
BT also includes Low Energy Technology and ensures extraordinary low power
consumption for PCs.
* e transmission speed may vary according to the environment.

English
11
B760M-C R2.0
WiFi Antennas Installation Guide
Step 1
Prepare the WiFi 2.4/5 GHz Antennas that come
with the package.
Step 2
Connect the two WiFi 2.4/5 GHz Antennas
to the antenna connectors. Turn the antenna
clockwise until it is securely connected.
Step 3
Set the WiFi 2.4/5 GHz Antenna as shown in the
illustration.
*You may need to adjust the direction of
the antenna for a stronger signal.

English
12
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the
components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
13
B760M-C R2.0

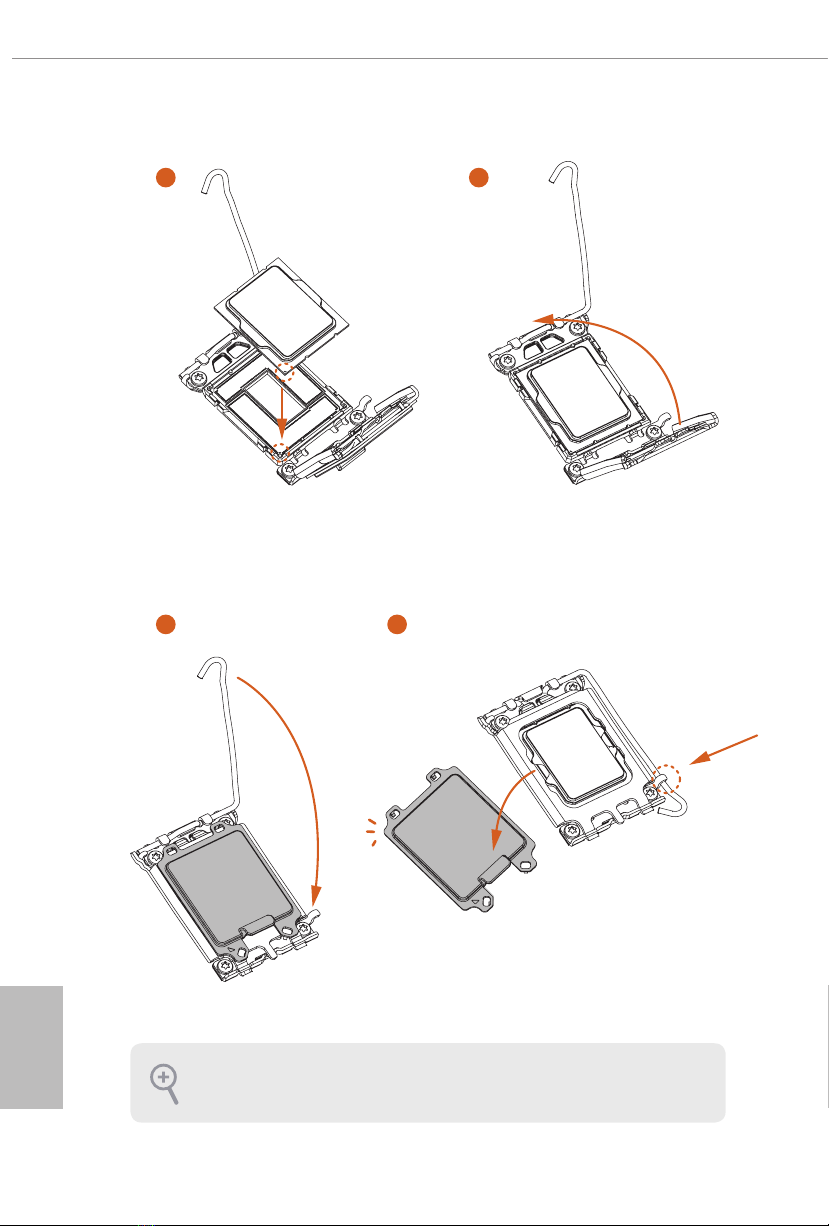

2.1 Installing the CPU
1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap
is on the socket, if the CPU surface is unclean, or if there are any bent pins in the
socket. Do not force to insert the CPU into the socket if above situation is found.
Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A
B
2 3

English
14
5
76
4
Please save and replace the cover if the processor is removed. e cover must be
placed if you wish to return the motherboard for aer service.

English
15
B760M-C R2.0

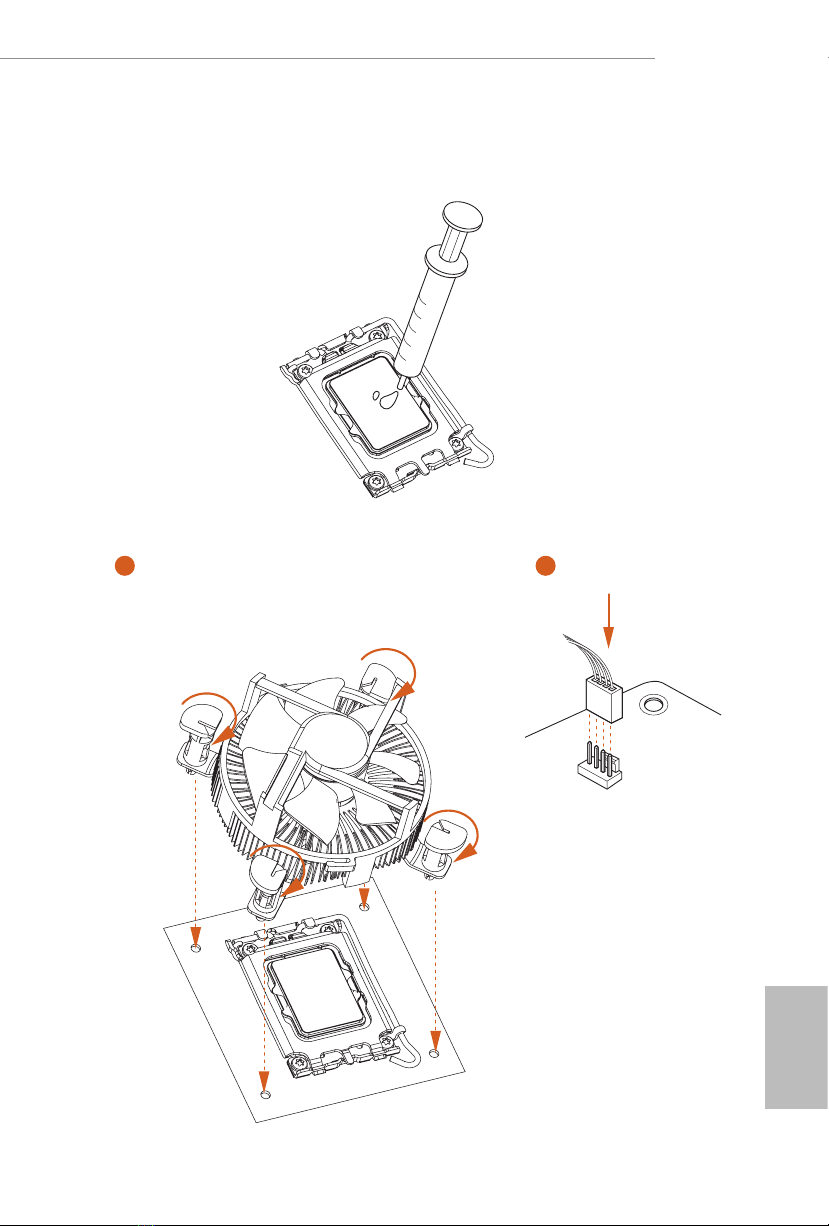

2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

English
16
2.3 Installing Memory Modules (DIMM)
is motherboard provides four 288-pin DDR5 (Double Data Rate 5) DIMM slots,
and supports Dual Channel Memory Technology.
Recommended Memory Conguration
1 DIMM
2 DIMMs
4 DIMMs
A1 A2 B1 B2
V
A1 A2 B1 B2
VV
A1 A2 B1 B2
VVVV
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR5 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three
memory module installed.
3. It is not allowed to install a DDR, DDR2 , DDR3 or DDR4 memory module into a
DDR5 slot; otherwise, this motherboard and DIMM may be damaged.
4. e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.
