Z790 Riptide WiFi
Chapter 1 Introduction
ank you for purchasing ASRock Z790 Riptide WiFi motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock Z790 Riptide WiFi Motherboard (ATX Form Factor)
• ASRock Z790 Riptide WiFi User Manual
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x ASRock WiFi 2.4/5/6 GHz Antenna (Optional)
• 1 x ARGB Splitter Cable (Optional)
• 1 x ermistor Cable (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi-
cations of this documentation occur, the updated version will be available on ASRock’s
website without further notice. If you require technical support related to this mother-
board, please visit our website for specic information about the model you are using. You
may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock
website http://www.asrock.com.

2
1.2 Specications
Platform • ATX Form Factor
• 8 Layer PCB
CPU • Supports 14th, 13th & 12th Gen Intel® CoreTM Processors
(LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® ermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
Chipset • Intel® Z790
Memory • Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buered memory up to
8000+(OC)*
• Max. capacity of system memory: 192GB
• Supports Intel® Extreme Memory Prole (XMP) 3.0
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
Expansion
Slot
CPU:
• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
• 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
• 1 x PCIe 3.0 x1 Slot (PCIE3)*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe
WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/
BT)
* Supports NVMe SSD as boot disks
* If M.2_GEN5 is occupied, PCIE1 will downgrade to x8 mode.
• Supports AMD CrossFireTM

3
Z790 Riptide WiFi
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Intel® XeGraphics Architecture (Gen 12)
• 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and
max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP
2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio • 7.1 CH HD Audio with Content Protection (Realtek
ALC1220 Audio Codec)
• Impedance Sensing on Rear Out port
• Individual PCB Layers for R/L Audio Channel
• Nahimic Audio
LAN • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Killer® E3100G
• Supports Killer LAN Soware
Wireless
LAN
• 802.11be 2x2 Wi-Fi 7 Module
• Supports IEEE 802.11a/b/g/n/ac/ax/be
• Supports 2.4GHz/5GHz/6GHz* frequency band
• Supports 320MHz channel bandwidth with 6GHz*
frequency band
* Wi-Fi 7 (6GHz band) will be supported by Microso®
Windows® 11. e availability will depend on the dierent
regulation status of each country and region. It will be activated
(for supported countries) through Windows Update and
soware updates once available.
* A 6GHz compatible router is required for 7 functionality.
• 1 antenna to support 2 (Transmit) x 2 (Receive) diversity
technology
• Supports Bluetooth 5.4**
** Bluetooth® Audio Ooad (HFP, A2DP, and LE Audio) is not
supported.
• Supports MU-MIMO

4
USB • 1 x USB 3.2 Gen2x2 Type-C (Front)
• 2 x USB 3.2 Gen2 Type-A (Rear)
• 1 x USB 3.2 Gen1 Type-C (Rear)
• 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
Rear Panel
I/O
• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
• 1 x USB 3.2 Gen1 Type-C Port
• 4 x USB 3.2 Gen1 Type-A Ports (USB32_56 are Lightning
Gaming Ports.)
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage CPU:
• 1 x Blazing M.2 Socket (M2_GEN5, Key M), supports type
2280 PCIe Gen5x4 (128 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_4, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 8 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
* If M.2_GEN5 is occupied, PCIE1 will downgrade to x8 mode.

5
Z790 Riptide WiFi
RAID • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2
NVMe storage devices
Connector • 1 x eDP Signal Connector
• 1 x ermistor Cable Header
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)****
• 1 x Chassis Fan Connector (4-pin)*****
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)******
• 1 x 24 pin ATX Power Connector
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connec-
tor)
• 1 x Front Panel Audio Connector
• 1 x underbolt AIC Connector (5-pin) (Supports ASRock
underbolt 4 AIC Card)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN5 supports the fan power up to 1A (12W).
****** CHA_FAN1~4/WP support the fan power up to 2A
(24W).
****** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect
if 3-pin or 4-pin fan is in use.

6
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
OS • Microso® Windows® 10 64-bit / 11 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

7
Z790 Riptide WiFi
PCIE1
HDLED RESET
PLED PWRBTN
1
1
HD_AUDIO1
HDMI1
AUDIO
CODEC
CHA_FAN2/WP
CHA_FAN1/WP
CPU_FAN2/WP
1
1
RGB_LED1
USB_3_4
SPK_PLED1
PANEL1
SPI_TPM_J1
DP1
CPU_FAN1
PCIE3
TB1
1
1
1
CLRMOS1
CHA_FAN5
Top:
RJ-45
USB32_TC2
1
1
DDR5_A2 (64 bit, 288-pin module)
DDR5_A1 (64 bit, 288-pin module) DDR5_B2 (64 bit, 288-pin module)
DDR5_B1 (64 bit, 288-pin module)
USB32_7_8
1
SATA3_7
SATA3_6
SATA3_5
SATA3_4
CHA_FAN4
/WP
1
ADDR_LED1
USB 2.0
T: USB_1
B: USB_2
ATX12V1AT X12V2
ATXPWR1
BIOS
ROM
CPU
DRAM
1
ADDR_LED2
1
ADDR_LED3
1
USB_5_6
M2_2
M2_1
M2_GEN5
USB 3.2 Gen1
T: USB32_5
B: USB32_6
Top:
LIN E IN
Center:
FRONT
Bottom:
MIC I N
USB 3.2 Gen1
T: USB32_1
B: USB32_2
USB 3.2 Gen2
T: USB32_3
B: USB32_4
USB 3.2 Gen1:
USB32_TC1
VGA
BOOT
SATA3_3
SATA3_2
PCIE2
M2_3 M2_4
CHA_FAN3/WP
SATA3_1
SATA3_0
17
20
1
9
11
2
23
5
467
12
18
19
29
32 31
15
16
14
13
38
21
22
2426
28 27 25
33
Intel
Z790
10
T_SENSOR1
30
CMOS
Battery
M2_WIFI1
WiFi-802.11be
Module
1.3 Motherboard Layout
Top Side View

8
Back Side View
34
EDP1
LAN

9
Z790 Riptide WiFi
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 ATX 12V Power Connector (ATX12V2)
3 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
4 CPU Fan Connector (CPU_FAN1)
5 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1)
6 2 x 288-pin DDR5 DIMM Slots (DDR5_A2, DDR5_B2)
7 Addressable LED Header (ADDR_LED3)
8 Addressable LED Header (ADDR_LED2)
9 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
10 Post Status Checker (PSC)
11 ATX Power Connector (ATXPWR1)
12 Front Panel Type C USB 3.2 Gen2x2 Header (USB32_TC2)
13 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)
14 USB 3.2 Gen1 Header (USB32_7_8)
15 SATA3 Connectors (SATA3_6)(Lower), (SATA3_7)(Upper)
16 SATA3 Connectors (SATA3_4)(Lower), (SATA3_5)(Upper)
17 SATA3 Connectors (SATA3_2)(Lower), (SATA3_3)(Upper)
18 SPI TPM Header (SPI_TPM_J1)
19 System Panel Header (PANEL1)
20 Power LED and Speaker Header (SPK_PLED1)
21 SATA3 Connector (SATA3_1)
22 SATA3 Connector (SATA3_0)
23 Chassis Fan Connector (CHA_FAN5)
24 USB 2.0 Header (USB_5_6)
25 USB 2.0 Header (USB_3_4)
26 Addressable LED Header (ADDR_LED1)
27 RGB LED Header (RGB_LED1)
28 5-pin underbolt AIC Connector (TB1)
29 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)
30 ermistor Cable Header (T_SENSOR1)
31 Clear CMOS Jumper (CLRMOS1)
32 Front Panel Audio Header (HD_AUDIO1)
33 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
34 eDP Signal Connector (EDP1)

10

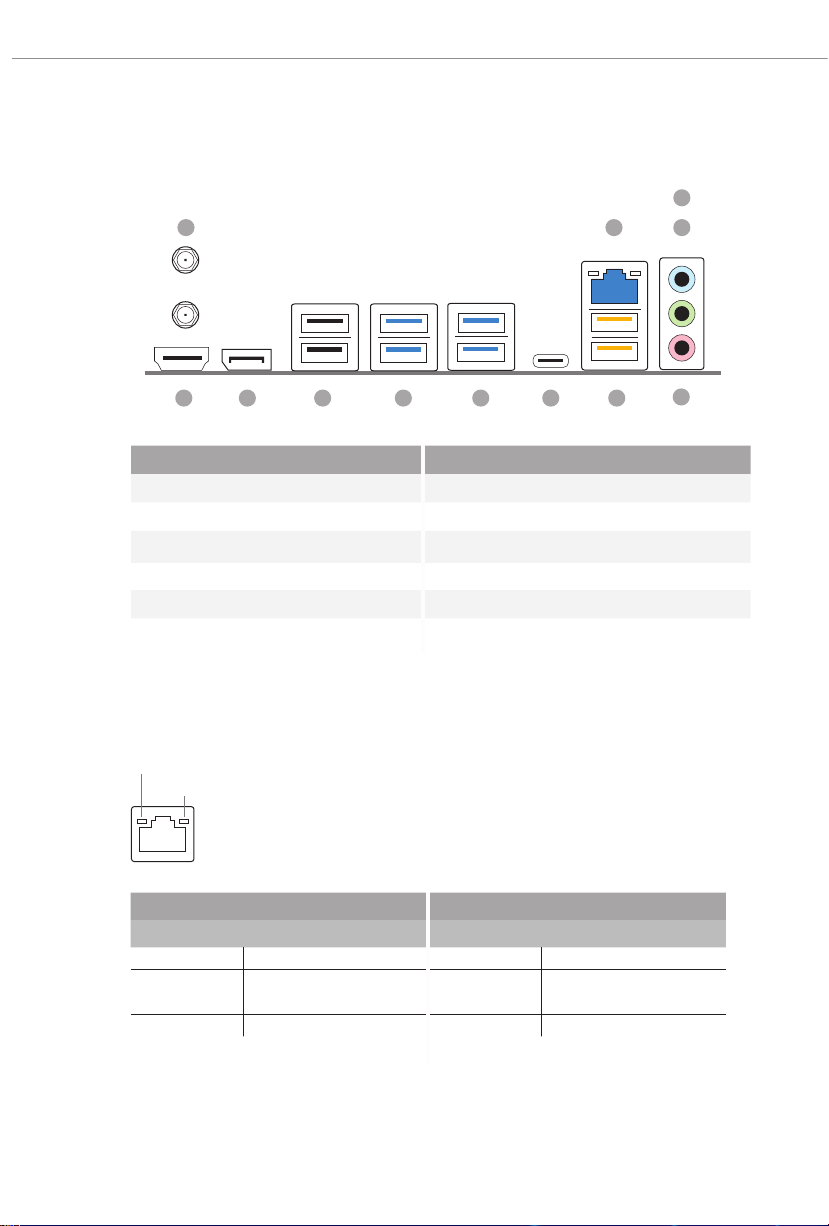

1.4 I/O Panel
No. Description No. Description
1Antenna Ports 7 USB 3.2 Gen1 Type-C Port (USB32_TC1)
22.5G LAN RJ-45 Port* 8USB 3.2 Gen2 Ports (USB32_34)
3 Line In (Light Blue)** 9 USB 3.2 Gen1 Ports (USB32_12)
4Front Speaker (Lime)** 10 USB 2.0 Ports (USB_12)
5Microphone (Pink)** 11 DisplayPort 1.4
6USB 3.2 Gen1 Ports (USB32_56)*** 12 HDMI Port
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps
connection
On Link Green 2.5Gbps connection
11 1012 89 7 6
21
5
3
4

11
Z790 Riptide WiFi
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
*** USB32_56 are Lightning Gaming Ports.

12
1.5 Block Diagram
Intel Z790 Chipset
Intel Alder Lake-S Raptor Lake-S Processor (LGA1700)
20Gb/s
USB32_TC2 (Front USB 3.2 Gen2x2 TypeC)
5Gb/s
USB32_12 (Rear USB 3.2 Gen1 TypeA*2)
Channel B Channel A
DDR5 Slot x2 DDR5 Slot x2
SIO NCT6796D
ALC1220 (3 jack Audio)
PCIE1 (PCIe Gen5 x16)
M.2_2 (PCIe Gen4 x4)
Gen4 x4 Gen4 x4
PCIE2 (PCIe Gen4 x4, x16 slot)
10Gb/s
USB32_34 (Rear USB 3.2 Gen2 TypeA*2)
Gen5 lane[0:7,12:15] Gen3 x1
PCIE3 (PCIe Gen3 x1, x1 slot)
5Gb/s
ASM1074
AZ(HD Audio)
eSPI
Gen3 x1
UART port
H/W Monitor
Flash ROM 128Mb
DDIB
HDMI
Gen4 x4
M.2_3 (PCIe Gen4 x4)
Gen4 x4
M.2_1 (PCIe Gen4 x4)
5Gb/s
USB32_TC1 (Rear USB 3.2 Gen1 TypeC)
USB32_7_8 (Front USB 3.2 Gen1 TypeA*2)
M.2_WIFI1 (PCIe Gen3 x1 / CNVi / USB BT)
Gen3 x1
Killer 2.5G E3100G
USB32_56 (Rear USB 3.2 Gen1 TypeA*2)
5Gb/s
Gen5 lane[8:11]
DDIC
DP
M.2_G5 (PCIe Gen5 x4) Gen5 Redriver+Switch
DMI Gen4 x8
Gen4 x4
M.2_4 (PCIe Gen4 x4)
USB_5_6 (Front USB 2.0 TypeA*2)
USB_3_4 (Front USB 2.0 TypeA*2)
480Mb/s
Redriver
5Gb/s
Redriver
Gen3 x1
ASM3042
CNVi SATA 6Gb/s
SATA 8 port
USB_12 (Rear USB 2.0 TypeA*2)
480Mb/s 480Mb/s
480Mb/s SPI
SPI TPM Header
TB1
GPIO SMBus
MCU
RGB_LED1 ADDR_LED1, ADDR_LED2, ADDR_LED3 Onboard LED(side-view 6pcs under M.2 heatsink)
NCT3948S
CPU_FAN2/WP CHA_FAN1/WP
NCT3948S NCT3948S
CHA_FAN2/WP CHA_FAN3/WP
NCT3948SCHA_FAN4/WP
CHA_FAN5 CPU_FAN1
NCT3948S
DDIA
eDP
T_SENSOR

13
Z790 Riptide WiFi
1.6 802.11be Wi-Fi 7 Module and ASRock WiFi 2.4/5/6 GHz
Antenna
802.11be Wi-Fi 7 + BT Module
is motherboard comes with an exclusive 802.11 a/b/g/n/ac/ax/be Wi-Fi 7 + BT v5.4
module that oers support for 802.11 a/b/g/n/ac/ax/be Wi-Fi 7 connectivity standards
and Bluetooth v5.4. Wi-Fi 7 + BT module is an easy-to-use wireless local area network
(WLAN) adapter to support Wi-Fi 7 + BT. Bluetooth v5.4 standard features Smart
Ready technology that adds a whole new class of functionality into the mobile devices.
* e transmission speed may vary according to the environment.
* Wi-Fi 7 (6GHz band) will be supported by Microso® Windows® 11. e availability
will depend on the dierent regulation status of each country and region. It will be
activated (for supported countries) through Windows Update and soware updates
once available.
* A 6GHz compatible router is required for 7 functionality.

14
is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

15
Z790 Riptide WiFi
2.1 Installing the CPU
1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A
B
2 3

16
5
76
4
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.
