ASROCK B760M-H2/M.2 User manual

Contact Information
If you need to contact ASRock or want to know more about ASRock, you’re
welcome to visit ASRock’s website at http://www.asrock.com; or you may contact
your dealer for further information. For technical questions, please submit a
support request form at https://event.asrock.com/tsd.asp
ASRock Incorporation
e-mail: [e-mail]
ASRock EUROPE B.V.
e-mail: sa[email protected]
ASRock America, Inc.
e-mail: sa[email protected]
Scan the QR code to view more manuals and documents.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 5
1.4 I/O Panel 7
1.5 Block Diagram 8
Chapter 2 Installation 9
2.1 Installing the CPU 10
2.2 Installing the CPU Fan and Heatsink 12
2.3 Installing Memory Modules (DIMM) 13
2.4 Connecting the Front Panel Header 15
2.5 Installing the I/O Panel Shield 16
2.6 Installing the Motherboard 17
2.7 Installing SATA Drives 18
2.8 Installing a Graphics Card 20
2.9 Connecting Peripheral Devices 22
2.10 Connecting the Power Connectors 23
2.11 Power On 24
2.12 Jumpers Setup 25
2.13 Onboard Headers and Connectors 26
2.14 M.2 WiFi/BT PCIe WiFi Module Installation Guide 36
2.15 M.2 SSD Module Installation Guide (M2_1) 38
2.16 M.2 SSD Module Installation Guide (M2_2) 40

English
1
B760M-H2/M.2
Chapter 1 Introduction
ank you for purchasing ASRock B760M-H2/M.2 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock B760M-H2/M.2 Motherboard (Micro ATX Form Factor)
• ASRock B760M-H2/M.2 User Manual
• 1 x I/O Shield
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 3 x Screws for M.2 Sockets (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

English
2
1.2 Specications
Platform • Micro ATX Form Factor
CPU • Supports 14th, 13th & 12th Gen Intel® CoreTM Processors
(LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® ermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
Chipset • Intel® B760
Memory • Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buered memory up to
7200+(OC)*
1DPC 1R Up to 7200+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively.
• Max. capacity of system memory: 96GB
• Supports Intel® Extreme Memory Prole (XMP) 3.0
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
Expansion
Slot
CPU:
• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
• 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe
WiFi module
* Supports NVMe SSD as boot disks
Graphics * Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Intel® XeGraphics Architecture (Gen 12)
• 2 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and
max. resolution up to 4K 60Hz

English
3
B760M-H2/M.2
Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Soware
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and
Streaming Modes
- User Customized Priority Control
USB • 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
Rear Panel
I/O
• 2 x Antenna Mounting Points
• 2 x HDMI Ports
• 4 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage Chipset:
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280
PCIe Gen4x4 (64 Gb/s) modes*
• 4 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
RAID • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices

English
4
Connector • 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)****
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)*****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~2/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect
if 3-pin or 4-pin fan is in use.
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
OS • Microso® Windows® 10 64-bit / 11 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

English
5
B760M-H2/M.2
1.3 Motherboard Layout
HDLED RESET
PLED PWRBTN
1
HD_AUDIO1
HDMI2
HDMI1
1
DDR5_B1 (128 bit, 288-pin module)
DDR5_A1 (128 bit, 288-pin module)
17
1
11
12
25
4
8
9
13
1822 16
2021 15
3
10
SUPER
I/O
BIOS
ROM
AUDIO
CODEC
CMOS
Battery
USB_3_4
CHA_FAN2/WP
SPK_CI1
CLRMOS1
11
PANEL1
SPI_TPM_J1
USB32_5_6
1
1
SATA3_2
SATA3_3
SATA3_1
SATA3_0
1
ATXPWR1
PCIE1
PCIE2
PCIE3
Intel
B760
M2_WIFI1
ATX12V1
CPU_FAN1 CHA_FAN1/WP
M2_1
M2_2
CPU_FAN2/WP
USB 3.2 Gen1
T:USB32_1
B:USB32_2
Top:
RJ-45
Top:
LIN E IN
Center:
FRONT
Bottom:
MIC I N
RoHS
1
1
USB_5_6
1
1
1
ADDR_LED1RGB_LED1
ADDR_LED2
ADDR_LED3
19
USB 2.0
T:USB_1
B:USB_2
USB 3.2 Gen1
T:USB32_3
B:USB32_4
6
7
14

English
6
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
3 CPU Fan Connector (CPU_FAN1)
4 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1)
5 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
6Addressable LED Header (ADDR_LED2)
7Addressable LED Header (ADDR_LED3)
8 ATX Power Connector (ATXPWR1)
9USB 3.2 Gen1 Header (USB32_5_6)
10 SATA3 Connector (SATA3_0)
11 SATA3 Connector (SATA3_1)
12 SATA3 Connectors (SATA3_2)(Upper), (SATA3_3)(Lower)
13 SPI TPM Header (SPI_TPM_J1)
14 Chassis Intrusion and Speaker Header (SPK_CI1)
15 System Panel Header (PANEL1)
16 RGB LED Header (RGB_LED1)
17 USB 2.0 Header (USB_5_6)
18 USB 2.0 Header (USB_3_4)
19 Addressable LED Header (ADDR_LED1)
20 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
21 Clear CMOS Jumper (CLRMOS1)
22 Front Panel Audio Header (HD_AUDIO1)

English
7
B760M-H2/M.2
1.4 I/O Panel
No. Description No. Description
1 2.5G LAN RJ-45 Port 5 USB 3.2 Gen1 Type-A Ports (USB32_34)
(Dragon RTL8125BG)* 6 USB 3.2 Gen1 Type-A Ports (USB32_12)
2 Line In (Light Blue)** 7 USB 2.0 Ports (USB_12)
3Front Speaker (Lime)** 8HDMI Port
4Microphone (Pink)** 9HDMI Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 2.5Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
7
1
4
3
2
6 5
8
9

English
8

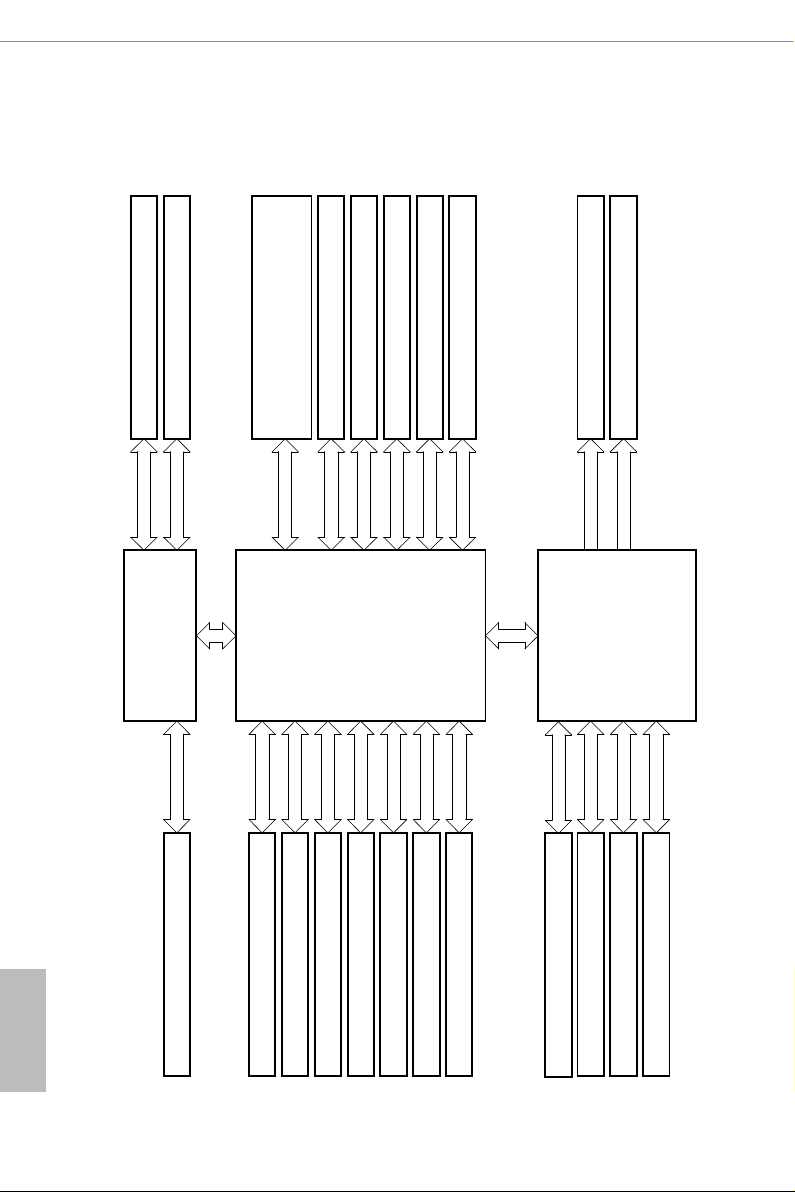

1.5 Block Diagram
5 5
4 4
3 3
2 2
1 1
D D C C B B A A
ALC897 (3 jack Audio)
AZ(HD Audio)
RTL8125 2.5G LAN
Flash ROM 128Mb
Gen3 x1
M.2 Key E
HDMI
Channel B
DDR5 Slot x1
5Gb/s
480Mb/s
Gen4 x4 Gen3 x1 Gen3 x1
Gen3 x1
Intel 700 Series Chipset
Intel Raptor Lake Processor Socket 1700
Channel A
128-bit Dual-Channel Memory x 2 Slots
DDR5 Slot x1
SIO NCT6796D
PCIe x16 Slot (x16)
DMI Gen4 x4
M.2 Key M PCIe Gen4 x4 PCIe x1 Slot
Gen4 x4
M.2 Key M PCIe Gen4 x4
Gen4 x16
HDMI
PCIe x1 Slot
eSPI
UART port x1FAN x4
H/W Monitor
DDIB DDIC
SATA 4 port
SATA 6Gb
Rear USB 2.0 2 port
480Mb/s
Front USB 3.2 Gen1 Type A 2 port Front USB 2.0 4 port
5Gb/s
Rear USB 3.2 Gen1 Type A 4 port
480Mb/s
LED MCU 3* 5V LED Header 1* 12V LED Header
SPI

English
9
B760M-H2/M.2
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the
components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
10
2.1 Installing the CPU
1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap
is on the socket, if the CPU surface is unclean, or if there are any bent pins in the
socket. Do not force to insert the CPU into the socket if above situation is found.
Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A
B
2 3

English
11
B760M-H2/M.2
5
76
4
Please save and replace the cover if the processor is removed. e cover must be
placed if you wish to return the motherboard for aer service.

English
12
2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

English
13
B760M-H2/M.2

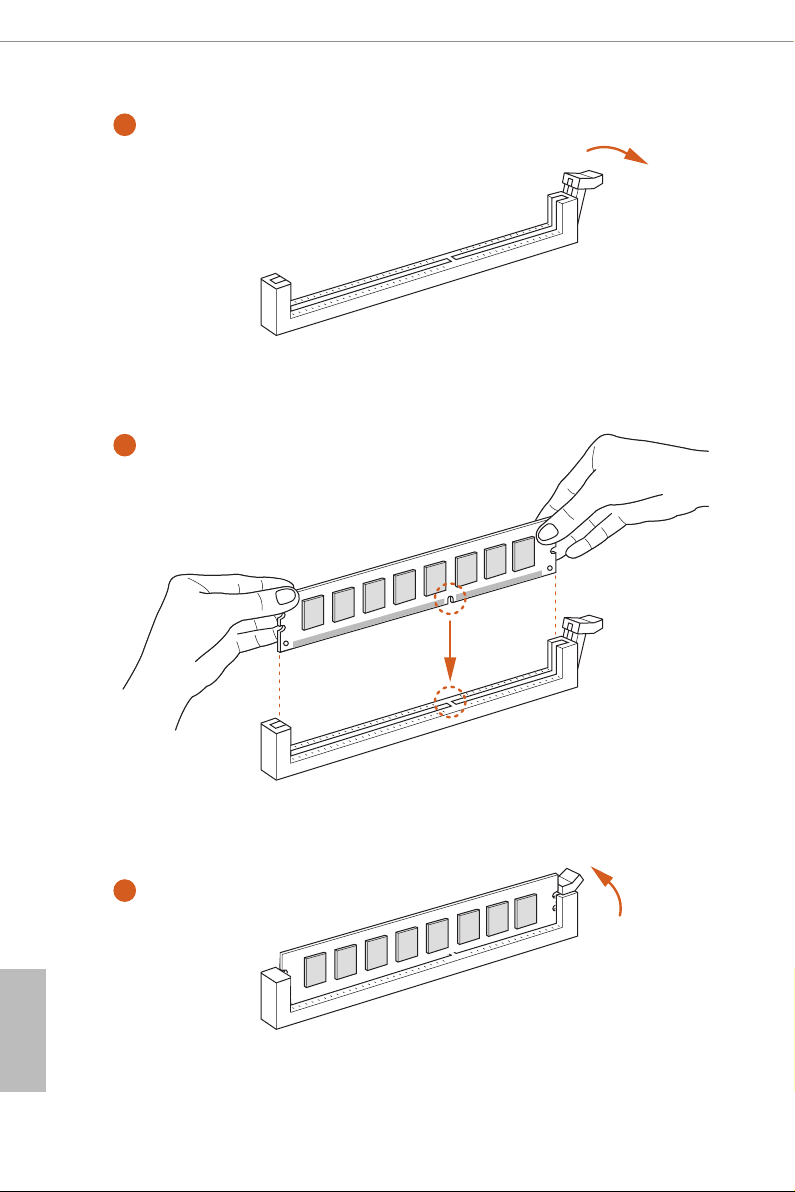

2.3 Installing Memory Modules (DIMM)
is motherboard provides two 288-pin DDR5 (Double Data Rate 5) DIMM slots,
and supports Dual Channel Memory Technology.
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR5 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory
module installed.
3. It is not allowed to install a DDR, DDR2 , DDR3 or DDR4 memory module into a
DDR5 slot; otherwise, this motherboard and DIMM may be damaged.
4. e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.

English
14
1
2
3

English
15
B760M-H2/M.2
2.4 Connecting the Front Panel Header
ABC D
1
2
32:(56:
5(6(76:
32:(5/('
32:(5/('
+''/('
3$1(/
Power SW (-)RESET SW (+)
HDD LED (-)
HDD LED (+)
12
910
RESET SW (-)Power SW (+)
Power LED (-)
Power LED (+)
A
B
C
D
PANEL1
HDD LED
RESET SW
System Panel Header Front Panel Wires

English
16
2.5 Installing the I/O Panel Shield
1
