EP2C612D8 Series
1
English
Chapter 1 Introduction
ank you for purchasing ASRock Rack EP2C612D8 / EP2C612D8-8R /
EP2C612D8-2T8R motherboard, a reliable motherboard produced under ASRock
Rack’s consistently stringent quality control. It delivers excellent performance with
robust design conforming to ASRock Rack’s commitment to quality and endurance.
In this manual, chapter 1 and 2 contains introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contains the conguration
guide to BIOS setup and information of the Support CD.
1.1 Package Contents
•ASRock Rack EP2C612D8 / EP2C612D8-8R / EP2C612D8-2T8R Motherboard
(ATX Form Factor: 12'' x 10'', 30.5 cm x 25.4 cm)
•4 x SATA3 Cables (50cm)
•2 x SATA3 Cables (60cm)
•2 x Mini SAS HD to 4 SAS/SATA Cables (12G) (for EP2C612D8-8R and EP2C612D8-2T8R only)
•1 x I/O Shield
•Support CD
•User Manual
If any items are missing or appear damaged, contact your authorized dealer.
Because the motherboard specications and the BIOS soware might be updated, the con-
tent of this manual will be subject to change without notice. In case any modications of
this manual occur, the updated version will be available on ASRock Rack website without
further notice. You may nd the latest memory and CPU support lists on ASRock Rack
website as well. ASRock Rack’s Website: www.ASRockRack.com
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
http://www.asrockrack.com/support

2
English
1.2 Specications
EP2C612D8-8R / EP2C612D8-2T8R / EP2C612D8
MB Physical Status
Form Factor ATX
Dimension 12'' x 10'' (30.5 cm x 25.4 cm)
Processor System
CPU Intel® Xeon processor E5-2600/4600 & v3 series
Socket Dual Socket LGA 2011 R3 (Square ILM)
Chipset Intel® C612
System Memory
Capacity 8 DIMM slots (support NVDIMM)
Type - Quad Channel memory technology
- Supports 2133/1866/1600 LR/R/ECC and NVDIMM
Voltage 1.2V
Expansion Slot (Slot 6 is the closest to the CPU)
Slot 6 x16 (CPU1)
Slot 4 x8 (CPU1)
Slot 2 x16 (CPU2)
Storage
SATA
Controller
Intel® C612 : 10 x SATA3 6 Gb/s
Additional
SATA
Controller
EP2C612D8-2T8R / EP2C612D8-8R:
LSI3008 by miniSAS HD connectors x1 (8 ports)
EP2C612D8:
N/A
Ethernet
Interface EP2C612D8-2T8R:
10000/1000 /100 Mbps by Intel X540
EP2C612D8-8R / EP2C612D8:
1000 /100/10 Mbps by Intel i350

EP2C612D8 Series
3
English
LAN EP2C612D8-2T8R:
2 x RJ45 10GLAN by Intel®X540
1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Ecient Ethernet 802.3az
- Supports Quad LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI
EP2C612D8-8R / EP2C612D8:
2 x RJ45 GLAN by Intel® i350
1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Ecient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI
Management
BMC Controller ASPEED AST2400
IPMI Dedicated
GLAN
- 1 x Realtek RTL8211E for dedicated management GLAN
Features - Watch Dog
- NMI
Graphics
Controller ASPEED AST2400
VRAM DDR3 16MB
Rear Panel I/O
VGA Port 1 x D-Sub
USB 3.0 Port 2
USB 2.0 Port 2
Lan Port - 2 + 1 (IPMI) Lan port (RJ45)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port 1 (COM1)
Internal Connector
Auxiliary Panel
Header
1 (includes chassis intrusion, location button & LED, front
LAN LED)
TPM Header 1
IPMB Header 1
Fan Header 2x CPU Fan, 5x system Fan (4 front, 1 rear)
ATX Power 1 (24-pin) + 2 (8-pin)
USB 3.0 Header 1 ( support 2 USB 3.0)
USB 2.0 Header 1 ( support 2 USB 2.0)
Type A USB 3.0
Port
1

4
English
System BIOS
BIOS Ty pe 128Mb AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash
Hardware Monitor
Temperature - CPU Temperature Sensing
- MB Temperature Sensing
- Card Side Temperature Sensing
Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU
Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,
1.05V_PCH, +BAT, 3VSB, 5VSB
Support OS
OS Microso® Windows®
- Server 2008 R2 SP1 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux®
- RedHat Enterprise Linux Server 5.10/6.5 (32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.2 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare® ESXi 5.5
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation
temperature: -40°C ~ 70°C

EP2C612D8 Series
5
English
is motherboard supports Wake from on Board LAN. To use this function, please make
sure that the “Wake on Magic Packet from power o state” is enabled in Device Manager
> Intel® Ethernet Connection > Power Management. And the “PCI Devices Power On” is
enabled in UEFI SETUP UTILITY > Advanced > ACPI Conguration. Aer that, onboard
LAN1&2 can wake up S5 under OS.
If you install Intel® LAN utility or Marvell SATA utility, this motherboard may fail Win-
dows® Hardware Quality Lab (WHQL) certication tests. If you install the drivers only, it
will pass the WHQL tests.

6
English
1.3 Unique Features
ASRock Rack Instant Flash is a BIOS ash utility embedded in Flash ROM. is con-
venient BIOS update tool allows you to update system BIOS without entering operat-
ing systems rst like MS-DOS or Windows®. With this utility, you can press the <F6>
key during the POST or the <F2> key to enter into the BIOS setup menu to access
ASRock Rack Instant Flash. Just launch this tool and save the new BIOS le to your
USB ash drive, oppy disk or hard drive, then you can update your BIOS only in a
few clicks without preparing an additional oppy diskette or other complicated ash
utility. Please be noted that the USB ash drive or hard drive must use FAT32/16/12
le system.

EP2C612D8 Series
7
English

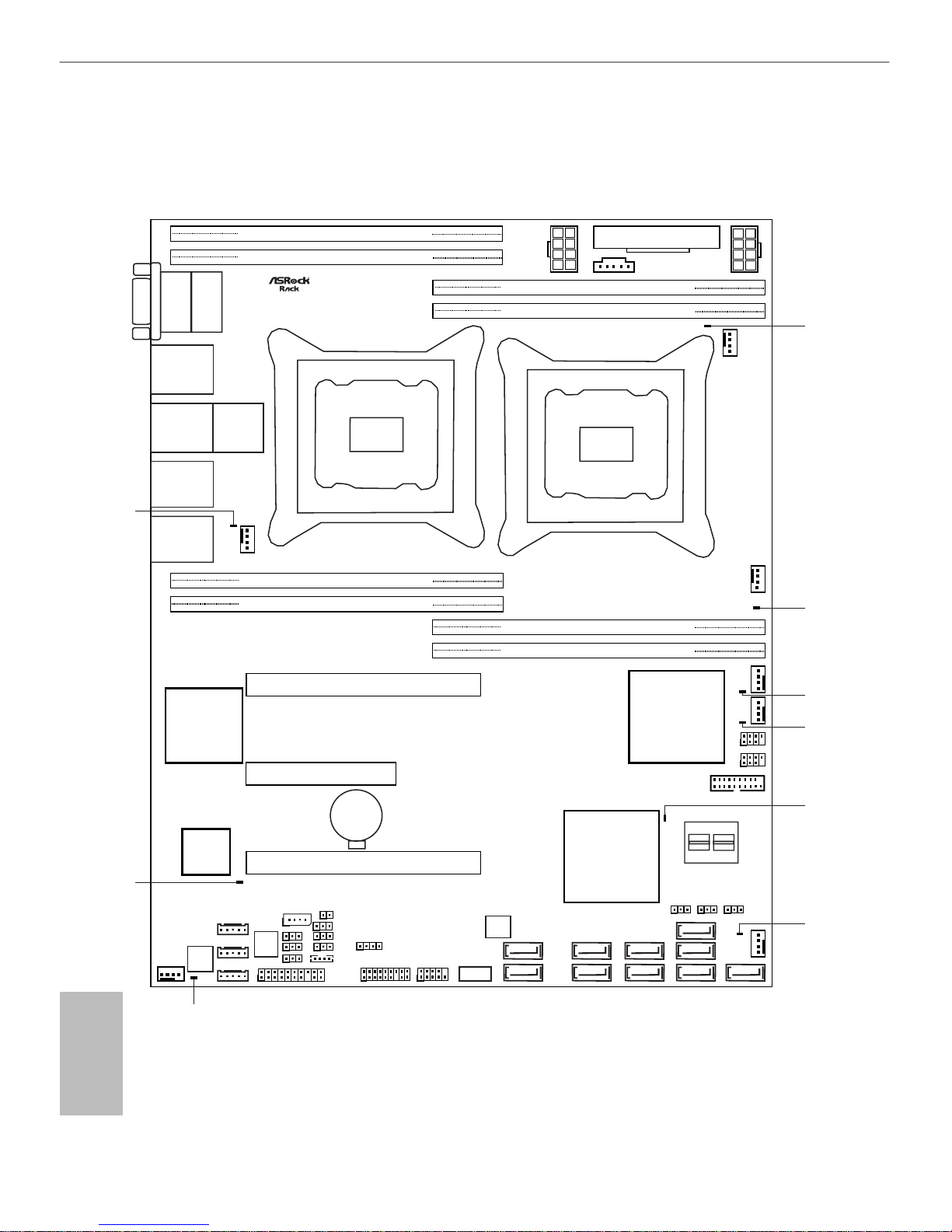

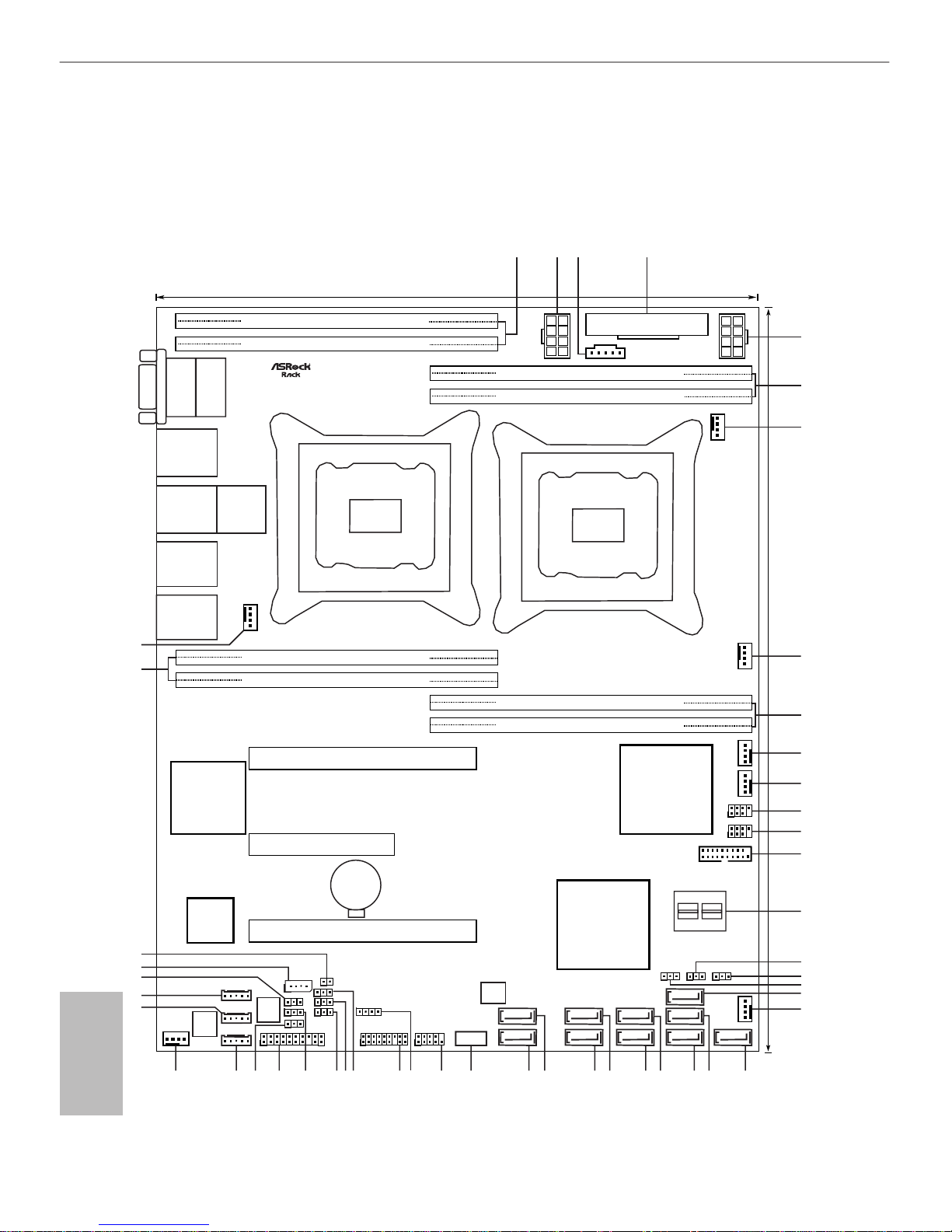

1.4 Motherboard Layout
EP2C612D8-2T8R
24.4cm (9.6 in)
25.4cm (10.0 in)
ATXPWR1
1
PCIE2
VGA1 COM1
LAN1
LAN2
USB3_2_3
DDR4_D (64 bit, 288-pin module)
DDR4_C (64 bit, 288-pin module)
DDR4_F (64 bit, 288-pin module)
DDR4_E (64 bit, 288-pin module)
DDR4_A (64 bit, 288-pin module)
DDR4_B (64 bit, 288-pin module)
DDR4_G (64 bit, 288-pin module)
DDR4_H (64 bit, 288-pin module)
USB 2.0
T: USB_2
B: USB_1
PCIE6
PCIE4
1
PSU_SMB1
1
1
IPMB_1
1
CMOS
Battery
RoHS
BMC_SMB_3
2
1
EP2C612D8-2T8R
USB 3.0
T: USB3_2
B: USB3_1
Top:
IMPI_LAN
USB3_5
1
11
AUX_PANEL1 PANEL1
TPM1
BMC_SMB_2
BMC_SMB_1
1
11
1
BMC
ROM
64Mb
BIOS
Intel
C612
LSI
3008
Intel
X540
BMC
AST2400
64Mb
BIOS
4
5
6
7
1
1
REAR_FAN1
SPEAKER1
SATA_4
SATA_5
SATA_2
SATA_3
SATA_0
SATA_1
SCU_0
SCU_3
SCU_2
SCU_1
FRNT_FAN1
SATA_SGPIO2
SATA_SGPIO1
FRNT_FAN2
FRNT_FAN4
CPU1_FAN
FRNT_FAN3
CPU2_FAN
8
9
10
11
12
13
14
15
17
2122232425272829293031
32
34 36 33353738394041
42
43
44
45
47
48
3
ATX12V3AT X12V2
CPU1
CPU2
(NCSI)
(Blue, from CPU1)
(White, from CPU2)
(Blue, from CPU1)
NMI_BTN1
PECI_SEL1
J100
PMBUS_CLK_SEL
111
CHASSIS_ID0_1 CHASSIS_ID0_2
CHASSIS_ID0_3
18
19
1
PMBUS_DATA_SEL
PMBUS_ALT_SEL
ME_RECOVERY1
20
46
LSI_SAS_0_7
16

8
English
EP2C612D8-8R
24.4cm (9.6 in)
25.4cm (10.0 in)
ATXPWR1
1
PCIE2
VGA1 COM1
LAN1
LAN2
USB3_2_3
DDR4_D (64 bit, 288-pin module)
DDR4_C (64 bit, 288-pin module)
DDR4_F (64 bit, 288-pin module)
DDR4_E (64 bit, 288-pin module)
DDR4_A (64 bit, 288-pin module)
DDR4_B (64 bit, 288-pin module)
DDR4_G (64 bit, 288-pin module)
DDR4_H (64 bit, 288-pin module)
USB 2.0
T: USB_2
B: USB_1
PCIE6
PCIE4
1
PSU_SMB1
1
1
IPMB_1
1
CMOS
Battery
RoHS
BMC_SMB_3
2
1
EP2C612D8-8R
USB 3.0
T: USB3_2
B: USB3_1
Top:
IMPI_LAN
USB3_5
1
11
AUX_PANEL1 PANEL1
TPM1
BMC_SMB_2
BMC_SMB_1
1
11
1
BMC
ROM
64Mb
BIOS
Intel
C612
LSI
3008
Intel
I210
BMC
AST2400
64Mb
BIOS
4
5
6
7
1
1
REAR_FAN1
SPEAKER1
SATA_4
SATA_5
SATA_2
SATA_3
SATA_0
SATA_1
SCU_0
SCU_3
SCU_2
SCU_1
FRNT_FAN1
SATA_SGPIO2
SATA_SGPIO1
FRNT_FAN2
FRNT_FAN4
CPU1_FAN
FRNT_FAN3
CPU2_FAN
8
9
10
11
12
13
14
15
17
2122232425272829293031
32
34 36 33353738394041
42
43
44
45
47
48
3
ATX12V3AT X12V2
CPU1
CPU2
(NCSI)
(Blue, from CPU1)
(White, from CPU2)
(Blue, from CPU1)
NMI_BTN1
PECI_SEL1
J100
PMBUS_CLK_SEL
111
CHASSIS_ID0_1 CHASSIS_ID0_2
CHASSIS_ID0_3
18
19
1
PMBUS_DATA_SEL
PMBUS_ALT_SEL
ME_RECOVERY1
20
46
LSI_SAS_0_7
16

EP2C612D8 Series
9
English
No. Description
1 2 x 288-pin DDR4 DIMM Slots (DDR4_G, DDR4_H, Blue)
2 ATX 12V Power Connector (ATX12V3)
3PSU SMBus (PSU_SMB1)
4 ATX Power Connector (ATXPWR1)
5 ATX 12V Power Connector (ATX12V2)
6 2 x 288-pin DDR4 DIMM Slots (DDR4_A, DDR4_B, Blue)
7 Front Fan Connector (FRONT_FAN3)
8 CPU1 Fan Connector (CPU1_FAN)
9 2 x 288-pin DDR4 DIMM Slots (DDR4_C, DDR4_D, Blue)
10 Front Fan Connector (FRONT_FAN4)
11 Front Fan Connector (FRONT_FAN2)
12 SATA SGPIO Connector (SATA_SGPIO1)
13 SATA SGPIO Connector (SATA_SGPIO2)
14 USB 3.0 Header (USB3_2_3)
15 Mini SAS HD Connector (LSI_SAS_0_7)
16 Chassis ID2 Jumper (Chassis_ ID0_2)
17 Chassis ID3 Jumper (Chassis_ ID0_3)
18 Chassis ID1 Jumper (Chassis_ ID0_1)
19 SCU Connector (SCU_1), White
20 Front Fan Connector (FRONT_FAN1)
21 SCU Connector (SCU_0), White
22 SCU Connector (SCU_2), White
23 SCU Connector (SCU_3), White
24 SATA3 Connector (SATA_1), White
25 SATA3 Connector (SATA_0), White
26 SATA3 Connector (SATA_3), White
27 SATA3 Connector (SATA_2), White
28 SATA3 Connector (SATA_5), White
29 SATA3 Connector (SATA_4), White
30 Vertical Type A USB 3.0 (USB3_5)
31 System Panel Header (PANEL1)
32 Speaker Header (SPEAKER1)
33 Auxiliary Panel Header (AUX_PANEL1)

10
English
No. Description
34 ME Recovery Jumper (ME_RECOVERY1)
35 CPU PECI Mode Jumper (PECI_SEL1)
36 Descriptor Security Override Jumper (J100)
37 PMBUS Mode Jumper (PMBUS_SEL_DAT1)
38 TPM Header (TPM1)
39 PMBUS Mode Jumper (PMBUS_SEL_ALT1)
40 BMC SMBus Header (BMC_SMB_3)
41 Rear Fan Connector (REAR_FAN1)
42 BMC SMBus Header (BMC_SMB_2)
43 BMC SMBus Header (BMC_SMB_1)
44 PMBUS Mode Jumper (PMBUS_SEL_CLK1)
45 Intelligent Platform Management Bus header (IPMB_1)
46 Non Maskable Interrupt Button (NMI_BTN1)
47 2 x 288-pin DDR4 DIMM Slots (DDR4_E, DDR4_F, Blue)
48 CPU 2 Fan Connector (CPU2_FAN)
*For DIMM installation and conguration instructions, please see p.23 (Installation of Memory Modules
(DIMM)) for more details.

EP2C612D8 Series
11
English
EP2C612D8
24.4cm (9.6 in)
25.4cm (10.0 in)
ATXPWR1
1
PCIE2
VGA1 COM1
LAN1
LAN2
USB3_2_3
DDR4_D (64 bit, 288-pin module)
DDR4_C (64 bit, 288-pin module)
DDR4_F (64 bit, 288-pin module)
DDR4_E (64 bit, 288-pin module)
DDR4_A (64 bit, 288-pin module)
DDR4_B (64 bit, 288-pin module)
DDR4_G (64 bit, 288-pin module)
DDR4_H (64 bit, 288-pin module)
USB 2.0
T: USB_2
B: USB_1
PCIE6
PCIE4
1
PSU_SMB1
1
1
IPMB_1
1
CMOS
Battery
RoHS
BMC_SMB_3
2
1
EP2C612D8
USB 3.0
T: USB3_2
B: USB3_1
Top:
IMPI_LAN
USB3_5
1
11
AUX_PANEL1 PANEL1
TPM1
BMC_SMB_2
BMC_SMB_1
1
11
1
BMC
ROM
64Mb
BIOS
Intel
C612
LSI
3008
Intel
I210
BMC
AST2400
64Mb
BIOS
4
5
6
7
1
1
REAR_FAN1
SPEAKER1
SATA_4
SATA_5
SATA_2
SATA_3
SATA_0
SATA_1
SCU_0
SCU_3
SCU_2
SCU_1
FRNT_FAN1
SATA_SGPIO2
SATA_SGPIO1
FRNT_FAN2
FRNT_FAN4
CPU1_FAN
FRNT_FAN3
CPU2_FAN
8
9
10
11
12
13
14
15
16
2021222324252627282930
31
3335 32343637383940
41
42
43
44
46
47
3
ATX12V3AT X12V2
CPU1
CPU2
(NCSI)
(Blue, from CPU1)
(White, from CPU2)
(Blue, from CPU1)
NMI_BTN1
PECI_SEL1
J100
PMBUS_CLK_SEL
111
CHASSIS_ID0_1 CHASSIS_ID0_2
CHASSIS_ID0_3
17
18
1
PMBUS_DATA_SEL
PMBUS_ALT_SEL
ME_RECOVERY1
19
45

12
English
No. Description
1 2 x 288-pin DDR4 DIMM Slots (DDR4_G, DDR4_H, Blue)
2 ATX 12V Power Connector (ATX12V3)
3PSU SMBus (PSU_SMB1)
4 ATX Power Connector (ATXPWR1)
5 ATX 12V Power Connector (ATX12V2)
6 2 x 288-pin DDR4 DIMM Slots (DDR4_A, DDR4_B, Blue)
7 Front Fan Connector (FRONT_FAN3)
8 CPU1 Fan Connector (CPU1_FAN)
9 2 x 288-pin DDR4 DIMM Slots (DDR4_C, DDR4_D, Blue)
10 Front Fan Connector (FRONT_FAN4)
11 Front Fan Connector (FRONT_FAN2)
12 SATA SGPIO Connector (SATA_SGPIO1)
13 SATA SGPIO Connector (SATA_SGPIO2)
14 USB 3.0 Header (USB3_2_3)
15 Chassis ID2 Jumper (Chassis_ ID0_2)
16 Chassis ID3 Jumper (Chassis_ ID0_3)
17 Chassis ID1 Jumper (Chassis_ ID0_1)
18 SCU Connector (SCU_1), White
19 Front Fan Connector (FRONT_FAN1)
20 SCU Connector (SCU_0), White
21 SCU Connector (SCU_2), White
22 SCU Connector (SCU_3), White
23 SATA3 Connector (SATA_1), White
24 SATA3 Connector (SATA_0), White
25 SATA3 Connector (SATA_3), White
26 SATA3 Connector (SATA_2), White
27 SATA3 Connector (SATA_5), White
28 SATA3 Connector (SATA_4), White
29 Vertical Type A USB 3.0 (USB3_5)
30 System Panel Header (PANEL1)
31 Speaker Header (SPEAKER1)
32 Auxiliary Panel Header (AUX_PANEL1)
33 ME Recovery Jumper (ME_RECOVERY1)

EP2C612D8 Series
13
English
No. Description
34 CPU PECI Mode Jumper (PECI_SEL1)
35 Descriptor Security Override Jumper (J100)
36 PMBUS Mode Jumper (PMBUS_SEL_DAT1)
37 TPM Header (TPM1)
38 PMBUS Mode Jumper (PMBUS_SEL_ALT1)
39 BMC SMBus Header (BMC_SMB_3)
40 Rear Fan Connector (REAR_FAN1)
41 BMC SMBus Header (BMC_SMB_2)
42 BMC SMBus Header (BMC_SMB_1)
43 PMBUS Mode Jumper (PMBUS_SEL_CLK1)
44 Intelligent Platform Management Bus header (IPMB_1)
45 Non Maskable Interrupt Button (NMI_BTN1)
46 2 x 288-pin DDR4 DIMM Slots (DDR4_E, DDR4_F, Blue)
47 CPU 2 Fan Connector (CPU2_FAN)
*For DIMM installation and conguration instructions, please see p.23 (Installation of Memory Modules
(DIMM)) for more details.

14
English
1.5 Onboard LED Indicators
ATXPWR1
PCIE2
VGA1 COM1
LAN1
LAN2
DDR4_D (64 bit, 288-pin module)
DDR4_C (64 bit, 288-pin module)
DDR4_F (64 bit, 288-pin module)
DDR4_E (64 bit, 288-pin module)
DDR4_A (64 bit, 288-pin module)
DDR4_B (64 bit, 288-pin module)
DDR4_G (64 bit, 288-pin module)
DDR4_H (64 bit, 288-pin module)
USB 2.0
T: USB_2
B: USB_1
PCIE6
PCIE4
1
1
1
CMOS
Battery
RoHS
1
EP2C612D8-2T8R
USB 3.0
T: USB3_2
B: USB3_1
Top:
IMPI_LAN
USB3_5
1
11
1
11
1
BMC
ROM
64Mb
BIOS
Intel
C612
LSI
3008
Intel
X540
BMC
AST2400
64Mb
BIOS
1
1
CPU1_FAN
CPU1
CPU2
(NCSI)
111
1
1
3
2
4
6
7
9
8
5
LSI_SAS_0_7
