ASROCK H410TM-ITX User manual

Version 1.0
Published May 2020
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

English
1
H410TM-ITX

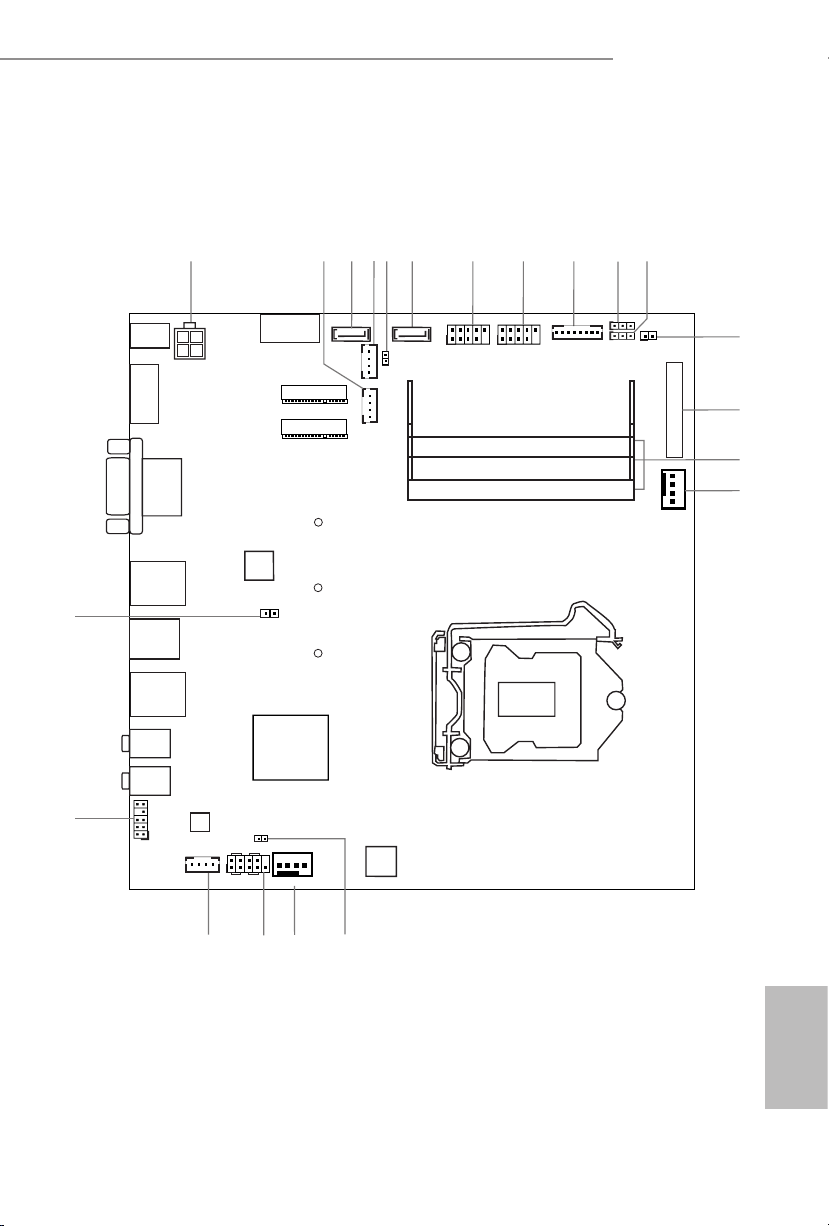

Motherboard Layout
14
Audio
CODEC
HDLED RESET
PLED PWRBTN
PANEL1
1
COM1
17
DC Jack
HDMI1
HDMI2
Super
I/O
BIOS
ROM
M.2 WiFi
M.2 SSD
CPU_FAN2
CPU_FAN1
9
H410TM-ITX
RoHS
19 18
DDR4_A2
DDR4_A1
SATA_1
3 6
1
USB2_1_2
7
LVDS1
BKT_PWR1
1
BLT_VOL1
1
15
1
13
SPK_OUT1
1
USB 3.2 Gen1
T: USB3_3
B: USB3_4
USB 3.2 Gen1
T: USB3_1
B: USB3_2
RJ-45
Headphone
Mic In
ATX_PWR1
1
HD_AUDIO1
20
10
8
SATA_2
USB2_3_4
1
SATAPWR2
1
1
CLR_MOS1
TH1
245
PNL_PWR1
1
11
Intel
H410
1
SATAPWR1
21
M2_1_CT2
M2_1_CT1
MH1
1
CI1
16
12
PNL_SW1
1

English
2
No. Description
1 4 pin 19V Power Connector (ATX_PWR1)
2 SATA Power Connector (SATAPWR2)
3 SATA3 Connector (SATA_1)
4 SATA Power Connector (SATAPWR1)
5 Clear CMOS Jumper (CLRCMOS1)
6 SATA3 Connector (SATA_2)
7 USB 2.0 Header (USB2_1_2)
8 USB 2.0 Header (USB2_3_4)
9 FPD Brightness Header (BLT_VOL1)
10 Panel Voltage Selection Header (PNL_PWR1)
11 Backlight Inverter Voltage Selection Header (BKT_PWR1)
12 Panel O Header (PNL_SW1)
13 LVDS Connector (LVDS1)
14 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_A1, DDR4_A2)
15 CPU Fan Connector (CPU_FAN1)
16 Chassis Intrusion Header (CI1)
17 CPU Fan Connector (CPU_FAN2)
18 System Panel Header (PANEL1)
19 Internal Speaker Header (SPK_OUT1)
20 Front Panel Audio Header (HD_AUDIO1)
21 ermal Sensor Header (TH 1)

English
3
H410TM-ITX

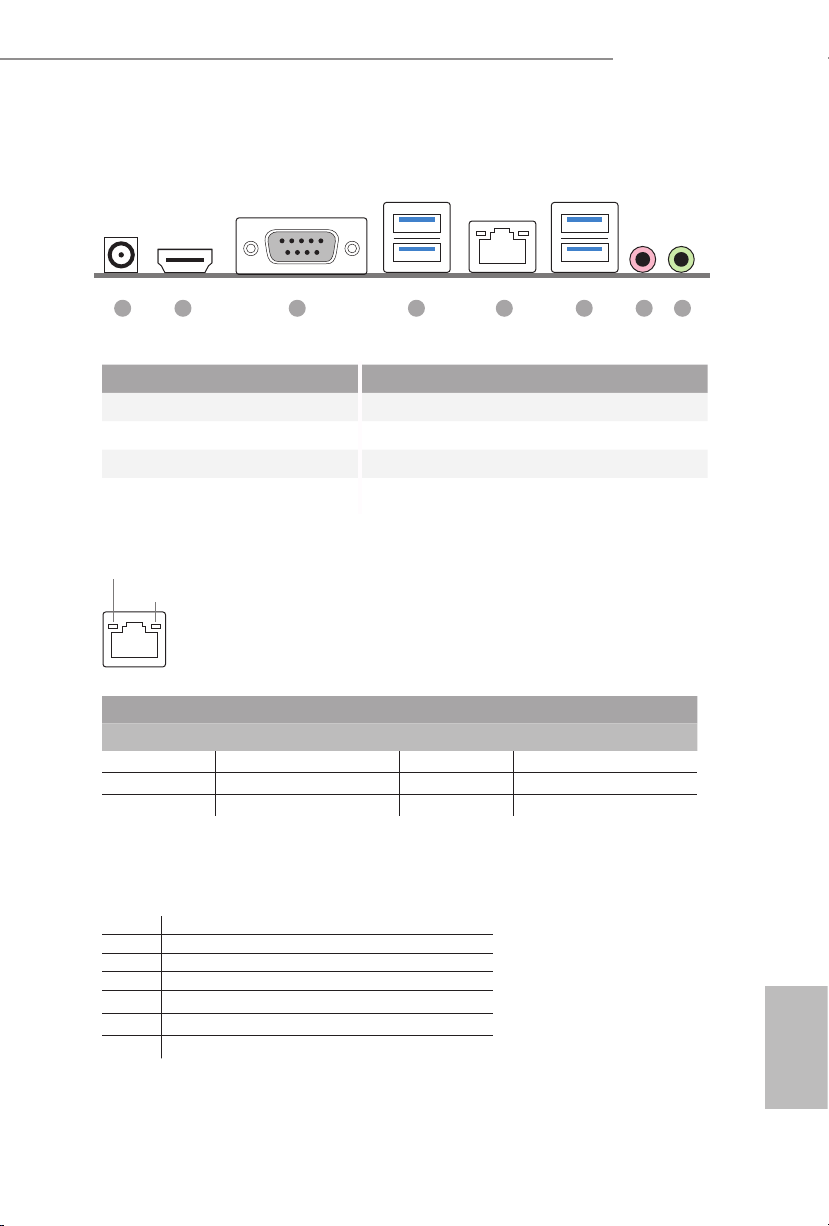

I/O Panel
No. Description No. Description
1 DC Jack** 5 LAN RJ-45 Port*
2HDMI Port (HDMI1) 6 USB 3.2 Gen1 Port (USB3_12)
3COM Port 7Microphone (Pink)
4 USB 3.2 Gen1 Port (USB3_34) 8 Line out (Lime)
*ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Green 100Mbps connection
On Link Green 1Gbps connection
** Please use a 19V power adapter for the DC jack. is jack accepts dual barrel plugs with an inner diameter of 2.5
mm and an outer diameter of 5.5 mm, where the inner contact is +19 (±10%) DC and the shell is (centre positive).
DELTA DELTA-ADP-150TB-150W/19V
HP HP-TBC-BA52-150W/19V
FSP FSP-FSP150-ABAN1-150W/19V
DELL FA130PE1-00-130W/19.5V
DELL LA90PE0-01-90W/19.5V
DELTA DELTA-ADP-180TB-180W/19V
FSP FSP-FSP180-ABBN3-180W/19V
is motherboard is available with support for either 4-pin ATX 19V power or DC-in power supplies. Please do
not use two kinds of power supplies at the same time! Doing so may damage the motherboard components and
devices. When you use the DC-in power adapter, please use the onboard SATA power connector to get the power
for HDDs.
ACT/LINK LED
SPEED LED
LAN Port
872 5431 6

English
4
Chapter 1 Introduction
ank you for purchasing H410TM-ITX motherboard. In this documentation,
Chapter 1 and 2 contains the introduction of the motherboard and step-by-step
installation guides.
1.1 Package Contents
• H410TM-ITX Motherboard (in Mini-ITX Form Factor)
• H410TM-ITX Quick Installation Guide (Optional)
• 1 x in-Mini ITX I/O Shield (Optional)
• 1 x Mini ITX I/O Shield (Optional)
• 1 x Serial ATA (SATA) Data Cables (Optional)
• 1 x SATA Power Cables (Optional)
• 2 x Screws for M.2 Sockets (M2*2) (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice.

English
5
H410TM-ITX
1.2 Specications
Platform • in Mini-ITX Form Factor
• Solid Capacitor design
CPU • Supports 10th Gen Intel® CoreTM Processors (Socket 1200)
• 4 Power Phase design
• Supports Intel® Turbo Boost Max 3.0 Technology
Chipset • Intel® H410
Memory • Dual Channel DDR4 Memory Technology
• 2 x DDR4 SO-DIMM Slots
• Supports DDR4 2933/2800/2666/2400/2133 non-ECC, un-
buered memory
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)
• CoreTM (i9/i7) support DDR4 up to 2933; CoreTM (i5/i3),
Pentium® and Celeron® support DDR4 up to 2666.
• Supports ECC UDIMM memory modules (operate in non-
ECC mode)
• Max. capacity of system memory: 64GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
Expansion
Slot • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265
8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2,
MJPEG, VC-1
* VP9 10bit and VC-1 are for decode only.
* VP8 and VP9 encode are not supported by Windows OS.

English
6
• Graphics, Media & Compute: Microso DirectX 12, OpenGL
4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid /
Switchable Graphics, OpenCL 2.1
• Display & Content Security: Rec. 2020 (Wide Color Gamut),
Microso PlayReady 3.0, Intel® SGX Content Protection,
UHD/HDR Blu-ray Disc
• ree graphics output options: 2 x HDMI, 1 x LVDS ports
• Supports 2 x HDMI 1.4 with max. resolution up to 4K x 2K
(4096x2160) @ 30Hz
HDMI x 1 port (Rear)
HDMI x 1 port (Internal)
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR
(High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI
monitor is required)
• Supports LVDS with max. resolution up to 1920x1080 @ 60Hz
• Supports HDCP 2.3 with HDMI 1.4 Port
• Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
Audio • Realtek ALC233 Audio Codec
• 1 x Line out
• 1 x MIC-In
LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE
I/O • 1 x DC Jack (Compatible with the 19V power adapter)
• 1 x Serial Port: COM
• 2 x HDMI Ports: HDMI1 (Rear), HDMI2 (Internal)
• 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
• HD Audio Jacks: Line out / Microphone

English
7
H410TM-ITX
Storage • 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot
Plug
• 1 x Ultra M.2 Socket, supports M Key type 2260/2280 M.2
SATA3 6.0 Gb/s module and M.2 PCI Express module up to
Gen3 x4 (32 Gb/s)
* Supports NVMe SSD as boot disks
Connector • 1 x Chassis Intrusion Header
• 1 x Panel Voltage Selection Header
• 1 x Backlight Inverter Voltage Selection Header
• 1 x FPD Brightness Header
• 1 x Panel O Header
• 1 x LVDS Connector
• 2 x CPU Fan Connectors (4-pin)
* e CPU Fan Connectors support the CPU fan of maximum 1A
(12W) fan power.
• 1 x 4 pin 19V Power Connector
• 1 x ermal Sensor Header (2-Pin)
• 1 x Front Panel Audio Connector
• 1 x Internal Speaker Header (4-Pin)
• 2 x SATA Power Connectors
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD
Protection)
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 Support
Hardware
Monitor
• CPU Temperature Sensing
• CPU Fan Tachometer
• CPU Quiet Fan (Auto adjust chassis fan speed by CPU
temperature)
• CPU Fan Multi-Speed Control
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS • Microso® Windows® 10 64-bit
Power • 1 x DC Jack (Supports 19V DC Power Adapters)

English
8
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.

English
9
H410TM-ITX
is is a in Mini-ITX form factor motherboard. Before you install the
motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard.
Failure to do so may cause physical injuries to you and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
10
2.1 Installing the CPU
1. Before you insert the 1200-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
A
B

English
11
H410TM-ITX
4
5
3

English
12
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.
1
2

English
13
H410TM-ITX

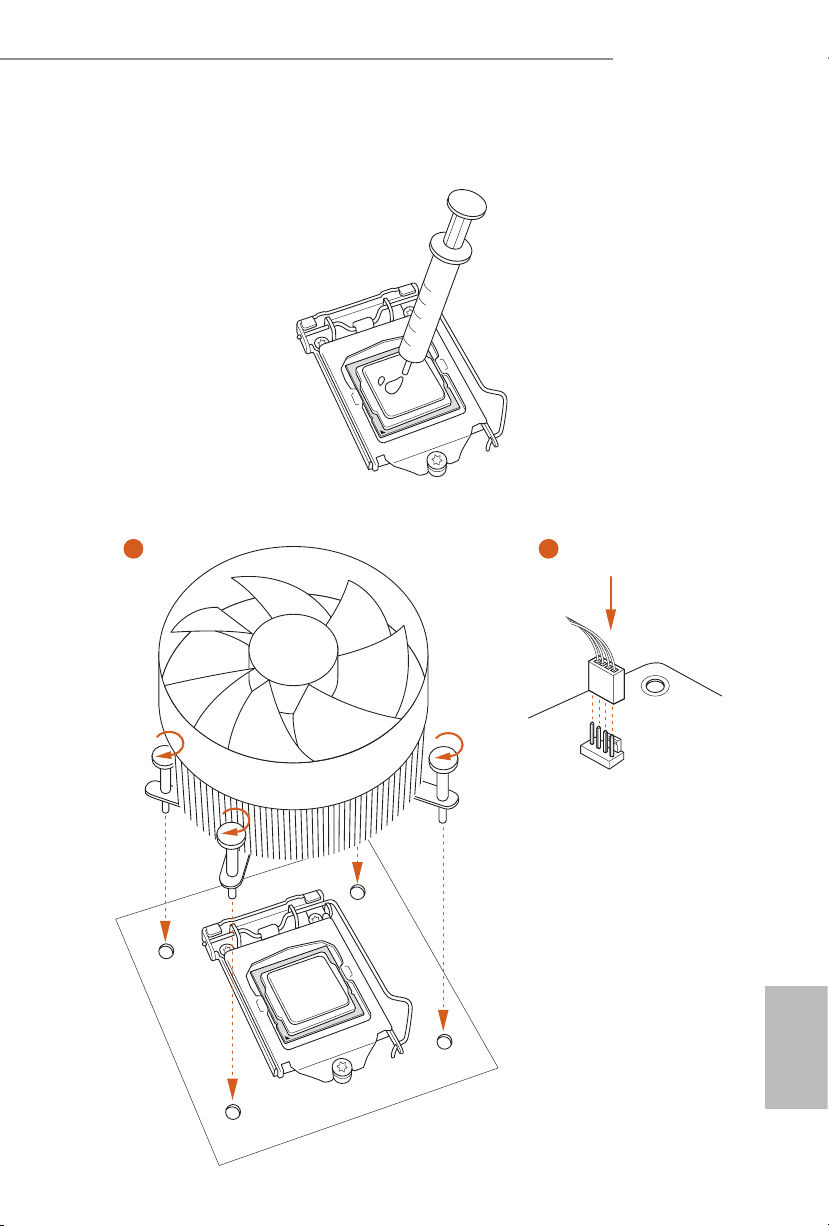

2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN
1
2

English
14
2.3 Installing Memory Modules (SO-DIMM)
is motherboard provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM
slots.
It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot;
otherwise, this motherboard and SO-DIMM may be damaged.
e SO-DIMM only ts in one correct orientation. It will cause permanent damage
to the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.

English
15
H410TM-ITX
2.4 Jumpers Setup

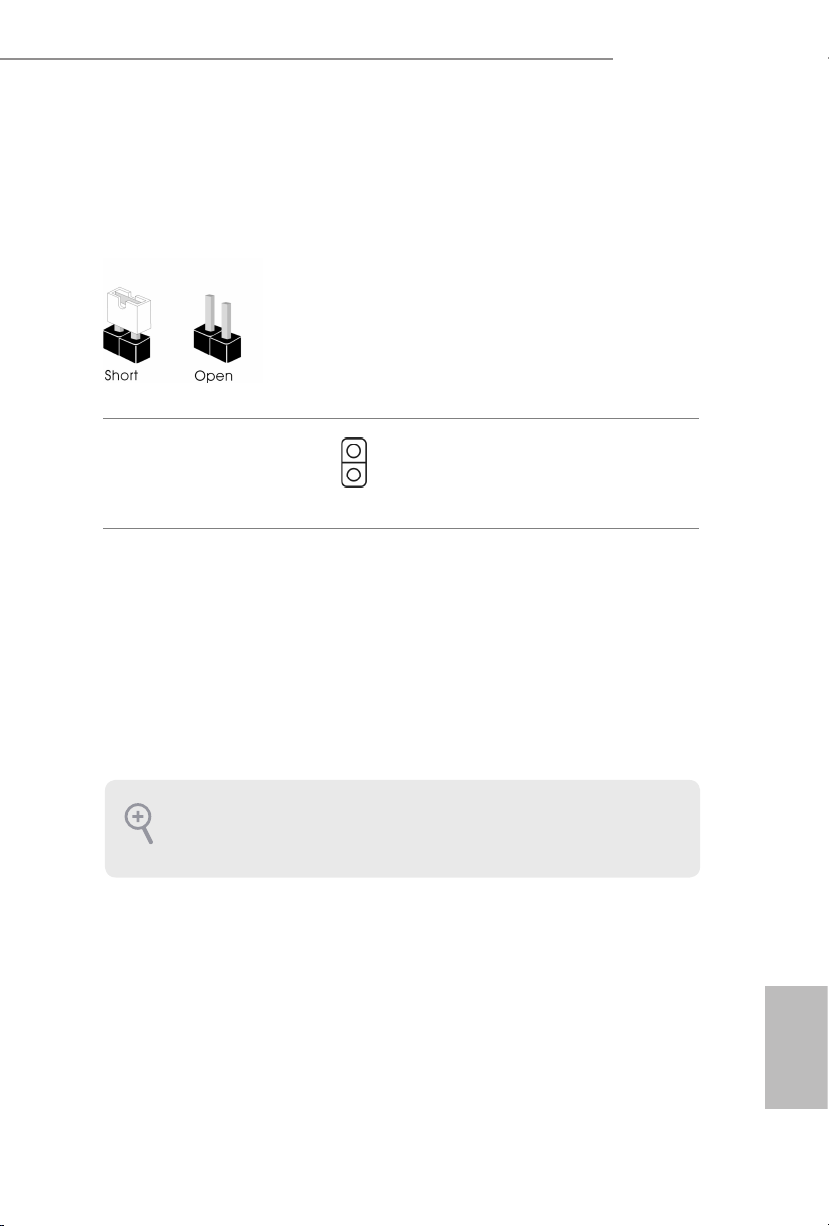

e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is
“Open”.
Clear CMOS Jumper
(CLRCMOS1)
(see p.1, No. 5)
CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short the pins on CLRMOS1 for 5 seconds. However, please do not clear the
CMOS right aer you update the BIOS. If you need to clear the CMOS when you
just nish updating the BIOS, you must boot up the system rst, and then shut it
down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed. Please remember toremove the jumper cap aer clearing the CMOS.
2-pin Jumper
If you clear the CMOS, the case open may be detected. Please adjust the BIOS option
“Clear Status” to clear the record of previous chassis intrusion status.

English
16

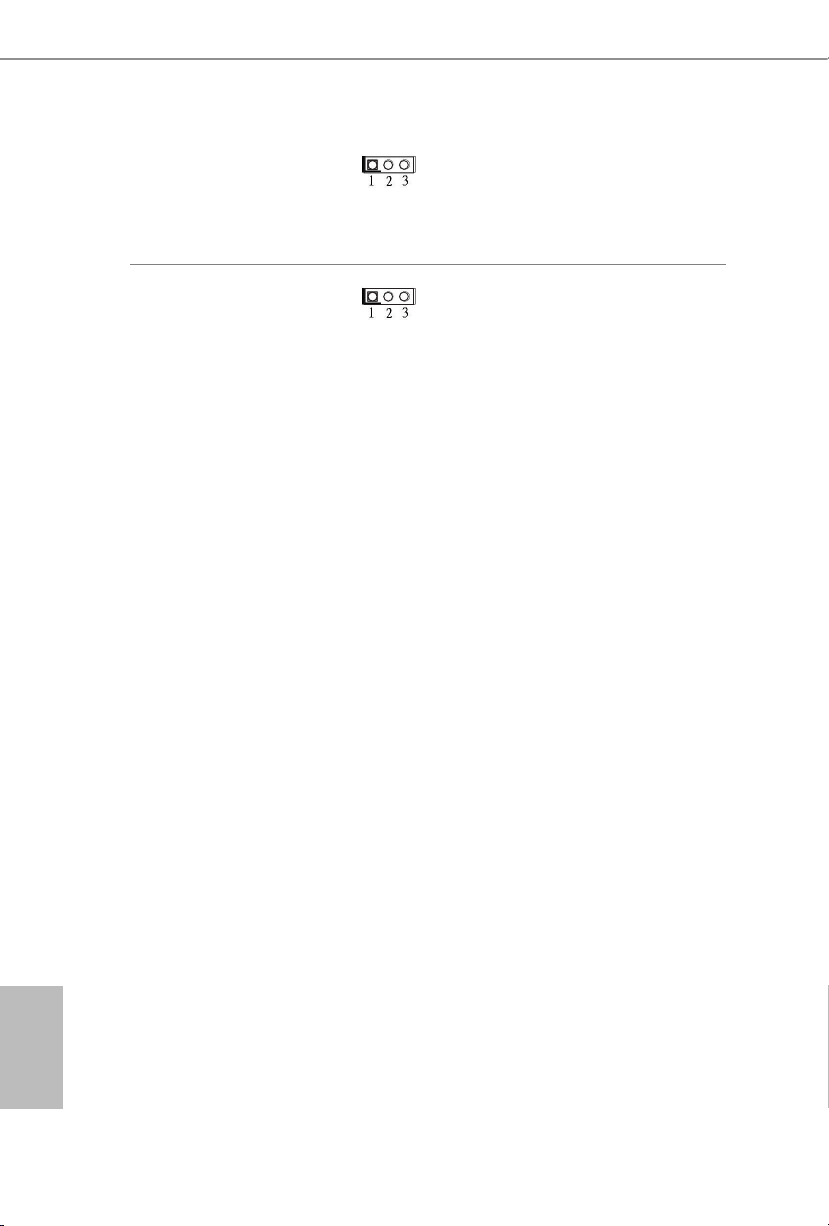

Backlight Inverter Voltage
Selection Header
(3-pin BKT_PWR1)
(see p.1, No. 11)
1-2 : +19V
2-3 : +12V
Panel Voltage Selection
Header
(3-pin PNL_PWR1)
(see p.1, No. 10)
1-2 : +3V
2-3 : +5V
Warning:
If selected Backlight Power or Panel Power is higher than panel's spec, it
may damage the panel.

English
17
H410TM-ITX
2.5 Onboard Headers and Connectors
System Panel Header
(9-pin PANEL1)
(see p.1, No. 18)
Connect the power
button, reset button and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.
PWRBTN (Power Button):
Connect to the power button on the chassis front panel. You may congure the way to turn
o your system using the power button.
RESET (Reset Button):
Connect to the reset button on the chassis front panel. Press the reset button to restart the
computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. e LED is on when the
system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e
LED is o when the system is in S4 sleep state or powered o (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. e LED is on when the
hard drive is reading or writing data.
e front panel design may dier by chassis. A front panel module mainly consists of power
button, reset button, power LED, hard drive activity LED, speaker and etc. When connect-
ing your chassis front panel module to this header, make sure the wire assignments and the
pin assignments are matched correctly.

English
18

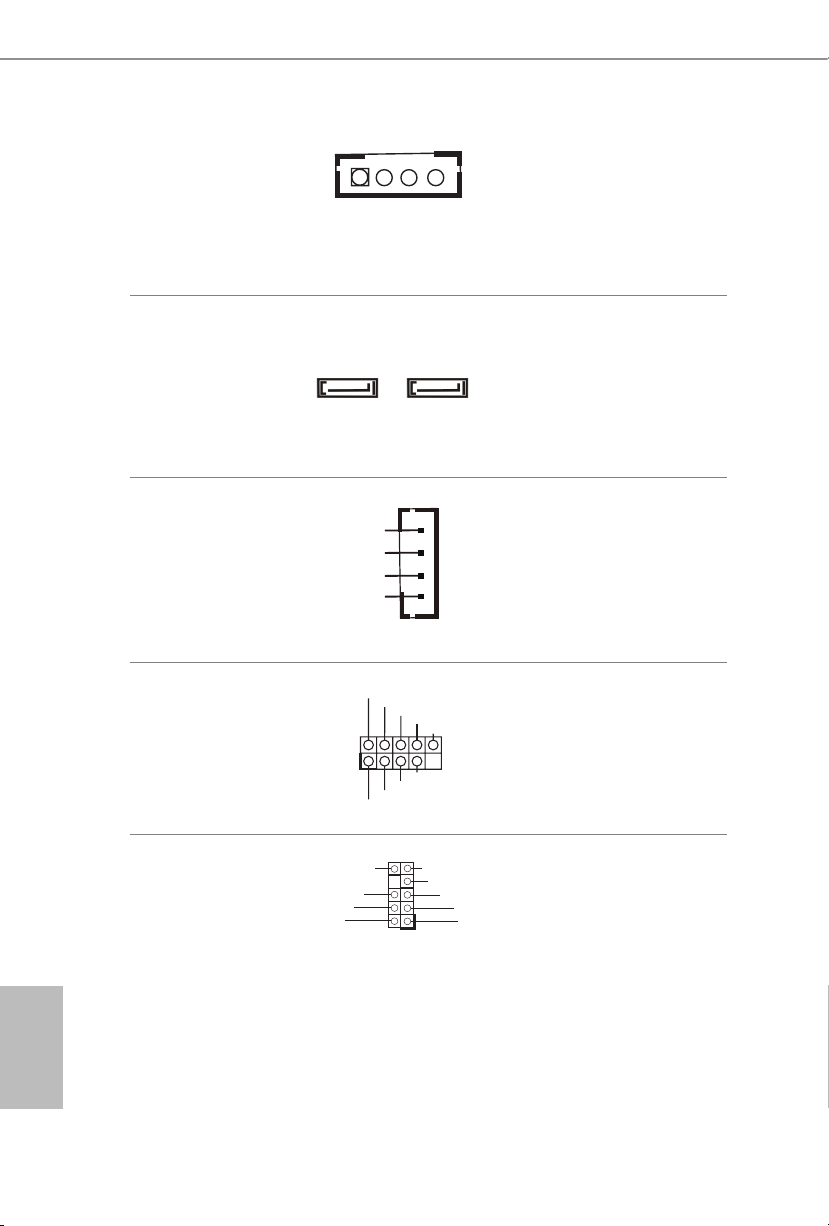

Internal Speaker Header
(4-pin SPK_OUT1)
(see p.1, No. 19)
Please connect the chassis
speaker to this header.
Serial ATA3 Connectors
(SATA_1:
see p.1, No. 3)
(SATA_2:
see p.1, No. 6)
ese two SATA3
connectors support SATA
data cable for internal
storage devices with up to
6.0 Gb/s data transfer rate.
SATA Power Connectors
(SATAPWR1:
see p.1, No. 4)
(SATAPWR2:
see p.1, No. 2)
Please connect SATA
power cables.
USB 2.0 Headers
(9-pin USB2_1_2)
(see p.1, No. 7)
(9-pin USB2_3_4)
(see p.1, No. 8)
ere are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 20)
is header is for
connecting audio devices
to the front audio panel.
R + - - +
L
1
SATA_1 SATA_2
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
J_SENSE
OUT2_L
1
MIC_RED
OUT_RET
OUT2_R
MIC2_R
MIC2_L
GND
PRESENCE#
GND
GND
+5V
+12V
1
