ASROCK H470M Pro4 User manual

Version 1.1
Published March 2020
Copyright©2020 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
compensation for any other reasonably foreseeable loss or damage caused by our
goods. You are also entitled to have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not amount to a major failure. If
you require assistance please call ASRock Tel : [phone] ext.123 (Standard
International call charges apply)
e terms HDMI® and HDMI High-Denition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.

English
1
H470M Pro4
Motherboard Layout

English
2
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 ATX 12V Power Connector (ATX12V2)
3 CPU Fan Connector (CPU_FAN1)
4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
6 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
7 RGB LED Header (RGB_LED2)
8 Addressable LED Header (ADDR_LED1)
9 ATX Power Connector (ATXPWR1)
10 USB 3.2 Gen1 Header (USB3_5_6)
11 SATA3 Connector (SATA3_0)
12 SATA3 Connector (SATA3_1)
13 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
14 USB 3.2 Gen1 Header (USB3_3_4)
15 SATA3 Connector (SATA3_2)
16 SATA3 Connector (SATA3_3)
17 System Panel Header (PANEL1)
18 Clear CMOS Jumper (CLRMOS1)
19 Chassis Intrusion and Speaker Header (SPK_CI1)
20 SATA3 Connector (SATA3_4)
21 SATA3 Connector (SATA3_5)
22 SPI TPM Header (SPI_TPM_J1)
23 POST Status Checker (PSC)
24 USB 2.0 Header (USB1_2)
25 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)
26 underbolt AIC Connector (TB1)
27 Addressable LED Header (ADDR_LED2)
28 RGB LED Header (RGB_LED1)
29 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)
30 Front Panel Audio Header (HD_AUDIO1)
31 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

English
3
H470M Pro4

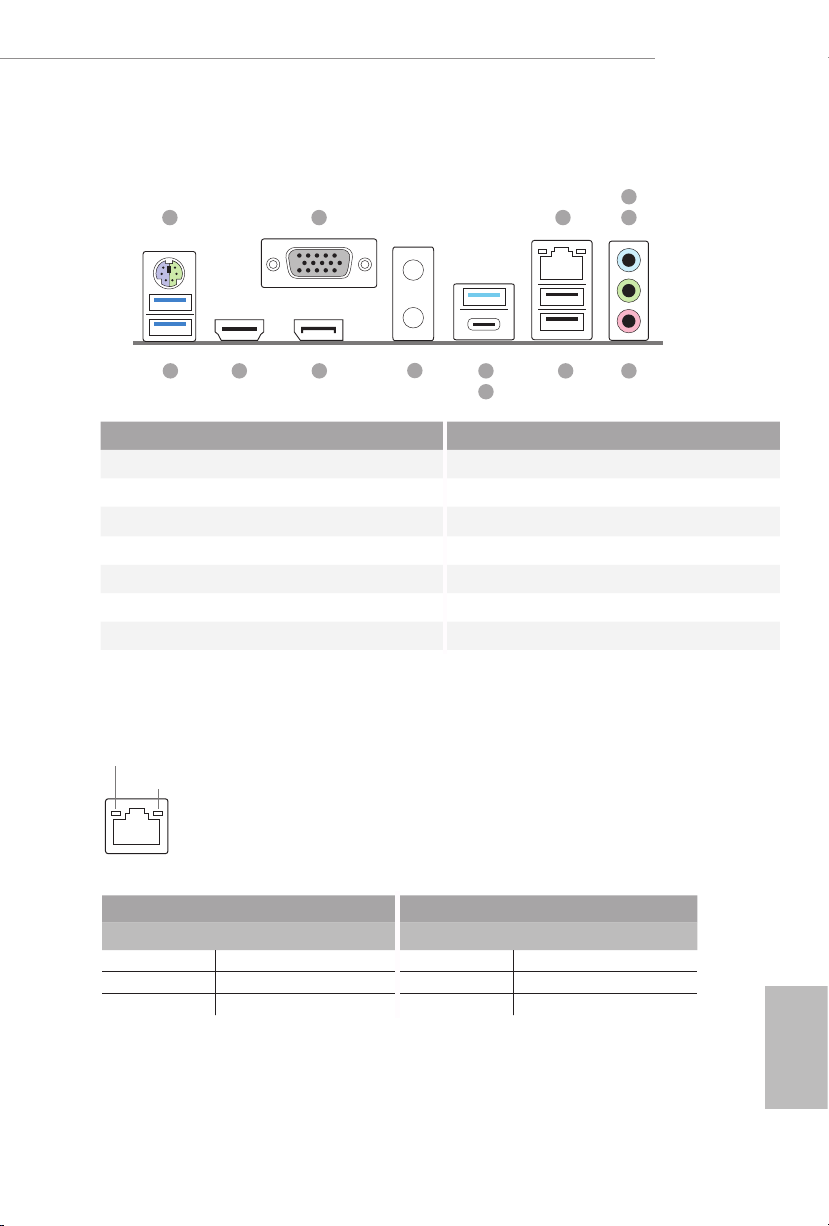

I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 8 USB 3.2 Gen2 Type-A Port (USB31_TA_1)
2 D-Sub Port 9 USB 3.2 Gen2 Type-C Port (USB31_TC_1)
3 LAN RJ-45 Port* 10 Antenna Bracket
4 Line In (Light Blue)** 11 DisplayPort 1.4
5 Front Speaker (Lime)** 12 HDMI Port
6 Microphone (Pink)** 13 USB 3.2 Gen1 Ports (USB3_1_2)
7 USB 2.0 Ports (USB_34)
13 6711
12
5
4
1 32
9
8
10
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

English
4
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

English
5
H470M Pro4
Chapter 1 Introduction
ank you for purchasing ASRock H470M Pro4 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock H470M Pro4 Motherboard (Micro ATX Form Factor)
• ASRock H470M Pro4 Quick Installation Guide
• ASRock H470M Pro4 Support CD
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 3 x Screws for M.2 Sockets (Optional)
• 1 x I/O Panel Shield
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

English
6
1.2 Specications
Platform • Micro ATX Form Factor
• Solid Capacitor design
CPU • Supports 10th Gen Intel® CoreTM Processors (Socket 1200)
• Digi Power design
• 9 Power Phase design
• Supports Intel® Turbo Boost 3.0 Technology
Chipset • Intel® H470
Memory • Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
• Supports DDR4 2933/2800/2666/2400/2133 non-ECC, un-
buered memory
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
* CoreTM (i9/i7) support DDR4 up to 2933; CoreTM (i5/i3),
Pentium® and Celeron® support DDR4 up to 2666.
• Supports ECC UDIMM memory modules (operate in non-
ECC mode)
• Max. capacity of system memory: 128GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
• 15μ Gold Contact in DIMM Slots
Expansion
Slot
• 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16
(PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))
* Supports NVMe SSD as boot disks
• 2 x PCI Express 3.0 x1 Slots
• Supports AMD Quad CrossFireXTM and CrossFireXTM
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
and Intel® CNVi (Integrated WiFi/BT)
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265
8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2,
MJPEG, VC-1

English
7
H470M Pro4
* VP9 10bit and VC-1 are for decode only.
* VP8 and VP9 encode are not supported by Windows OS.
• Graphics, Media & Compute: Microso DirectX 12, OpenGL
4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid /
Switchable Graphics, OpenCL 2.1
• Display & Content Security: Rec. 2020 (Wide Color Gamut),
Microso PlayReady 3.0, Intel® SGX Content Protection,
UHD/HDR Blu-ray Disc
• ree graphics output options: D-Sub, HDMI and
DisplayPort 1.4
• Supports Triple Monitor
• Supports HDMI 1.4 with max. resolution up to 4K x 2K
(4096x2160) @ 30Hz
• Supports DisplayPort 1.4 with max. resolution up to 4K x 2K
(4096x2304) @ 60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant
HDMI monitor is required)
• Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4
Ports
• Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and
DisplayPort 1.4 Ports
Audio • 7.1 CH HD Audio with Content Protection (Realtek
ALC1200 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection
• PCB Isolate Shielding
• Individual PCB Layers for R/L Audio Channel
• Nahimic Audio
LAN • Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel® I219V
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE

English
8
Rear Panel
I/O
• 1 x Antenna Bracket
• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD
Protection)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD
Protection)
• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology
17), NCQ, AHCI and Hot Plug*
* If M2_2 is occupied, SATA3_1 will be disabled.
• 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2
PCI Express module up to Gen3 x4 (32 Gb/s)**
• 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2
SATA3 6.0 Gb/s module and M.2 PCI Express module up to
Gen3 x2 (16 Gb/s)**
** Supports Intel® OptaneTM Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Connector • 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 2 x RGB LED Headers
* Support in total up to 12V/3A, 36W LED Strip
• 2 x Addressable LED Headers
* Support in total up to 5V/3A, 15W LED Strip
• 1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)

English
9
H470M Pro4
* e CPU/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_
FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin
fan is in use.
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x 4 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x underbolt AIC Connector (5-pin) (Supports ASRock
underbolt 3 AIC R2.0 Card only)
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports
ESD Protection)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
(Supports ESD Protection)
BIOS
Feature
• AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 Support
• CPU Core/Cache, GT, DRAM, VPPM, PCH,
VCCSA,VCCSFR Voltage Multi-adjustment
Hardware
Monitor
• Temperature Sensing: CPU, CPU/Water Pump, Chassis/Wa-
ter Pump Fans
• Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water
Pump Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU tempera-
ture): CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/
Water Pump Fans
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,
VPPM, PCH 1.05V, VCCSA, VCCST, VCCIO
OS • Microso® Windows® 10 64-bit

English
10
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

English
11
H470M Pro4
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
12

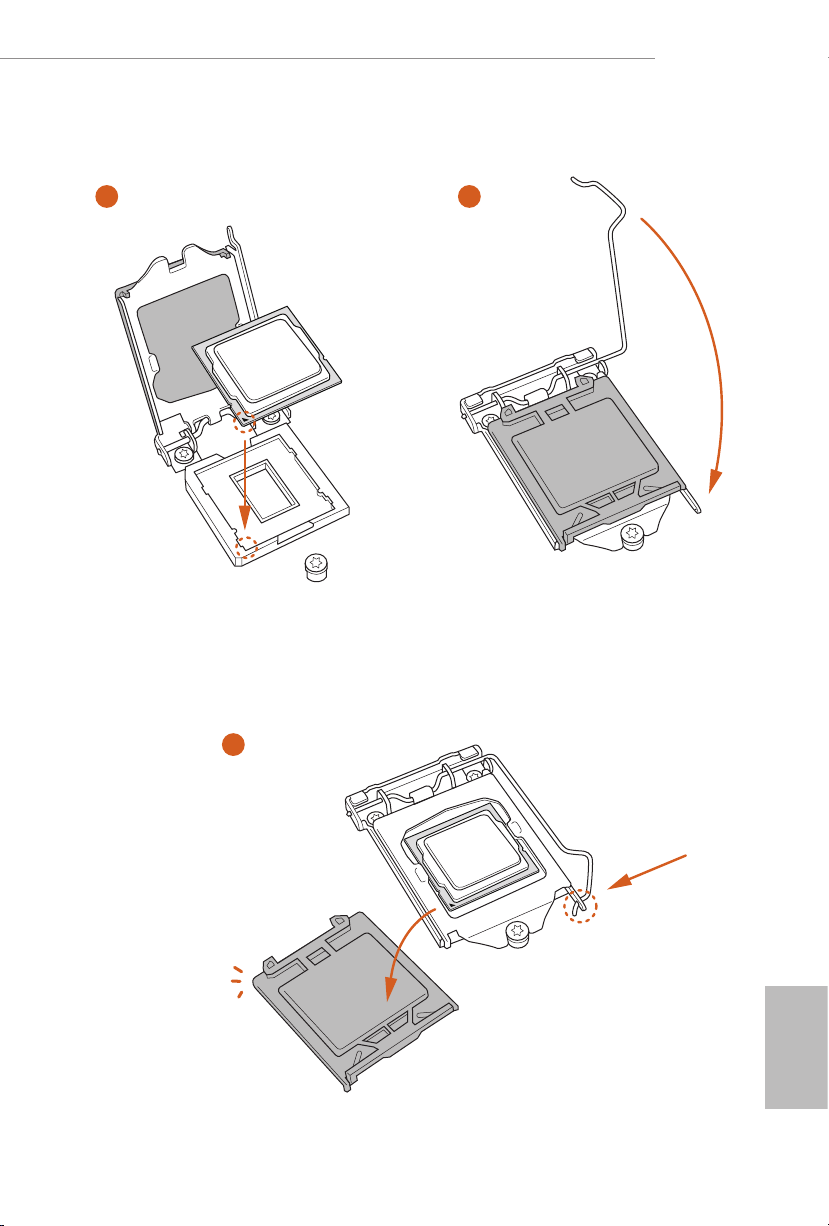

2.1 Installing the CPU
1. Before you insert the 1200-Pin CPU into the socket, please check if the PnP cap
is on the socket, if the CPU surface is unclean, or if there are any bent pins in the
socket. Do not force to insert the CPU into the socket if above situation is found.
Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
A
B

English
13
H470M Pro4
4
5
3

English
14
Please save and replace the cover if the processor is removed. e cover must be
placed if you wish to return the motherboard for aer service.

English
15
H470M Pro4
2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

English
16
2.3 Installing Memory Modules (DIMM)
is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
Dual Channel Memory Conguration
e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.
Priority DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2
1Populated Populated
2Populated Populated Populated Populated
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three
memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.

English
17
H470M Pro4
1
2
3

English
18
2.4 Expansion Slots (PCI Express Slots)
ere are 4 PCI Express slots on the motherboard.
PCIe slots:
PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x4 lane width graphics cards.
PCIe Slot Congurations
Before installing an expansion card, please make sure that the power supply is
switched o or the power cord is unplugged. Please read the documentation of the
expansion card and make necessary hardware settings for the card before you start
the installation.
For a better thermal environment, please connect a chassis fan to the motherboard’s
chassis fan connector (CHA_FAN1~4/WP) when using multiple graphics cards.
PCIE1 PCIE4
Single Graphics Card x16 N/A
Two Graphics Cards in
CrossFireXTM Mode x16 x4
