Chapter 1 Introduction
ank you for purchasing ASRock H510M-H2/M.2 SE motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock H510M-H2/M.2 SE Motherboard (Micro ATX Form Factor)
• ASRock H510M-H2/M.2 SE User Manual
• 1 x I/O Shield
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x Screw for M.2 Socket (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

English
2
1.2 Specications
Platform • Micro ATX Form Factor
CPU • Supports 10th Gen & 11th Gen Intel® CoreTM Processors
(LGA1200)
• Supports Intel® Turbo Boost Max 3.0 Technology
Chipset • Intel® H470
Memory • Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• Supports DDR4 3200/2933/2800/2666/2400/2133 non-ECC,
un-buered memory*
• Supports ECC UDIMM memory modules (operate in non-
ECC mode)
• Max. capacity of system memory: 64GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
• 15μ Gold Contact in DIMM Slots
* 11th Gen Intel® CoreTM (i9/i7/i5) support DDR4 3200 natively;
CoreTM (i3), Pentium® and Celeron® support DDR4 2666
natively.
* 10th Gen Intel® CoreTM (i9/i7) support DDR4 2933 natively;
CoreTM (i5/i3), Pentium® and Celeron® support DDR4 2666
natively.
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
Expansion
Slot
Intel® 11th Gen & 10th Gen Processors:
• 1 x PCIe 4.0 x16 Slot (PCIE1)*
Intel® 11th Gen Processors support PCIe 4.0 x16
Intel® 10th Gen Processors support PCIe 3.0 x16
Intel® H470 Chipset:
• 1 x PCIe 3.0 x1 Slot (PCIE2)*
* Supports NVMe SSD as boot disks
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Graphics specications may vary between CPU types.

English
3
H510M-H2/M.2 SE
• 2 x HDMI
Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3
and max. resolution up to 4K 60Hz
Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3
and max. resolution up to 4K 30Hz
Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN • Gigabit LAN 10/100/1000 Mb/s
• Realtek 8111H
USB • 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
Rear Panel
I/O
• 1 x PS/2 Mouse/Keyboard Port
• 2 x HDMI Ports
• 2 x USB 2.0 Ports
• 4 x USB 3.2 Gen1 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage Chipset:
• 1 x Ultra M.2 Socket (M2_1, Key M), supports type
2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
• 4 x SATA3 6.0 Gb/s Connectors
* Supports Intel® OptaneTM Technology
* Supports NVMe SSD as boot disks
RAID • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices
Connector • 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)**
• 1 x 24 pin ATX Power Connector

English
4
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
* CPU_FAN1 supports the fan power up to 1A (12W).
** CHA_FAN1~2/WP support the fan power up to 2A (24W).
** CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in
use.
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
OS • Microso® Windows® 10 64-bit / 11 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

English
5
H510M-H2/M.2 SE
1.3 Motherboard Layout

English
6
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
5 ATX Power Connector (ATXPWR1)
6 USB 3.2 Gen1 Header (USB32_5_6)
7 SATA3 Connectors (SATA3_0)(Upper), (SATA3_1)(Lower)
8 SATA3 Connectors (SATA3_2)(Upper), (SATA3_3)(Lower)
9 System Panel Header (PANEL1)
10 SPI TPM Header (SPI_TPM_J1)
11 USB 2.0 Header (USB_5_6)
12 USB 2.0 Header (USB_3_4)
13 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
14 Chassis Intrusion and Speaker Header (SPK_CI1)
15 Clear CMOS Jumper (CLRMOS1)
16 Front Panel Audio Header (HD_AUDIO1)

English
7
H510M-H2/M.2 SE
1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 6 USB 2.0 Ports (USB_12)
2 LAN RJ-45 Port* 7 USB 3.2 Gen1 Type-A Ports (USB32_34)
3 Line In (Light Blue)** 8 USB 3.2 Gen1 Type-A Ports (USB32_12)
4 Front Speaker (Lime)** 9 HDMI Port
5 Microphone (Pink)** 10 HDMI Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
10 568
9
4
3
12
7

English
8
1.5 Block Diagram
INTEL Channel B
INTEL
24MHz
ALC897
DDR4
Channel A
DDR4
SPI SPI FLASH
128Mb
H470
PCIe x16 Gen4 SLOT (PCIE1) x16 Gen4
DIGITAL PORT D
HDMI
DIGITAL PORT C
DMI 3.0
USB3.1 Gen1
6 ports(2*Front+4*Rear)
5Gb/s
RTL8111H LAN x1 Gen3
SPI TPM header
LPC BUS
33MHz
SIO
Nuvoton NCT5585D
NCT3947S
SATA3_1
Processor
x4 Gen3 / SATA
6Gb/s
M.2 slot (M2_1)
HDMI
x1 Gen3 PCIe x1 Gen3 SLOT (PCIE2)
480Mb/s
USB2.0
6 ports(4*Front+2*Rear)
CHA_FAN1/WP
CHA_FAN2/WP
CPU_FAN1
10th & 11th
*10th processor runs Gen3x16
NCT3947S
SATA3_2
SATA3_3
SATA3_4
PS2 port

English
9
H510M-H2/M.2 SE
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the
components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
10
2.1 Installing the CPU
1. Before you insert the 1200-Pin CPU into the socket, please check if the PnP cap
is on the socket, if the CPU surface is unclean, or if there are any bent pins in the
socket. Do not force to insert the CPU into the socket if above situation is found.
Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
A
B

English
11
H510M-H2/M.2 SE
4
5
3
Please save and replace the cover if the processor is removed. e cover must be
placed if you wish to return the motherboard for aer service.

English
12

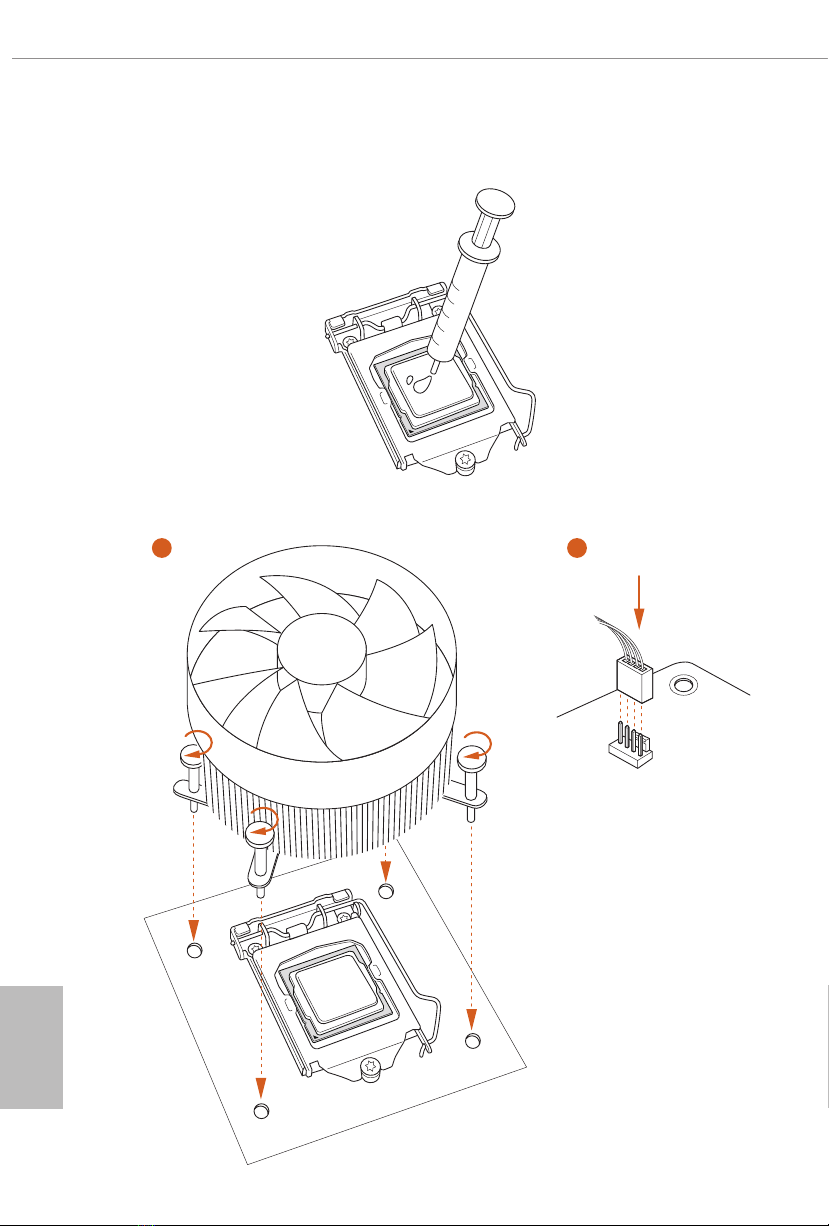

2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

English
13
H510M-H2/M.2 SE

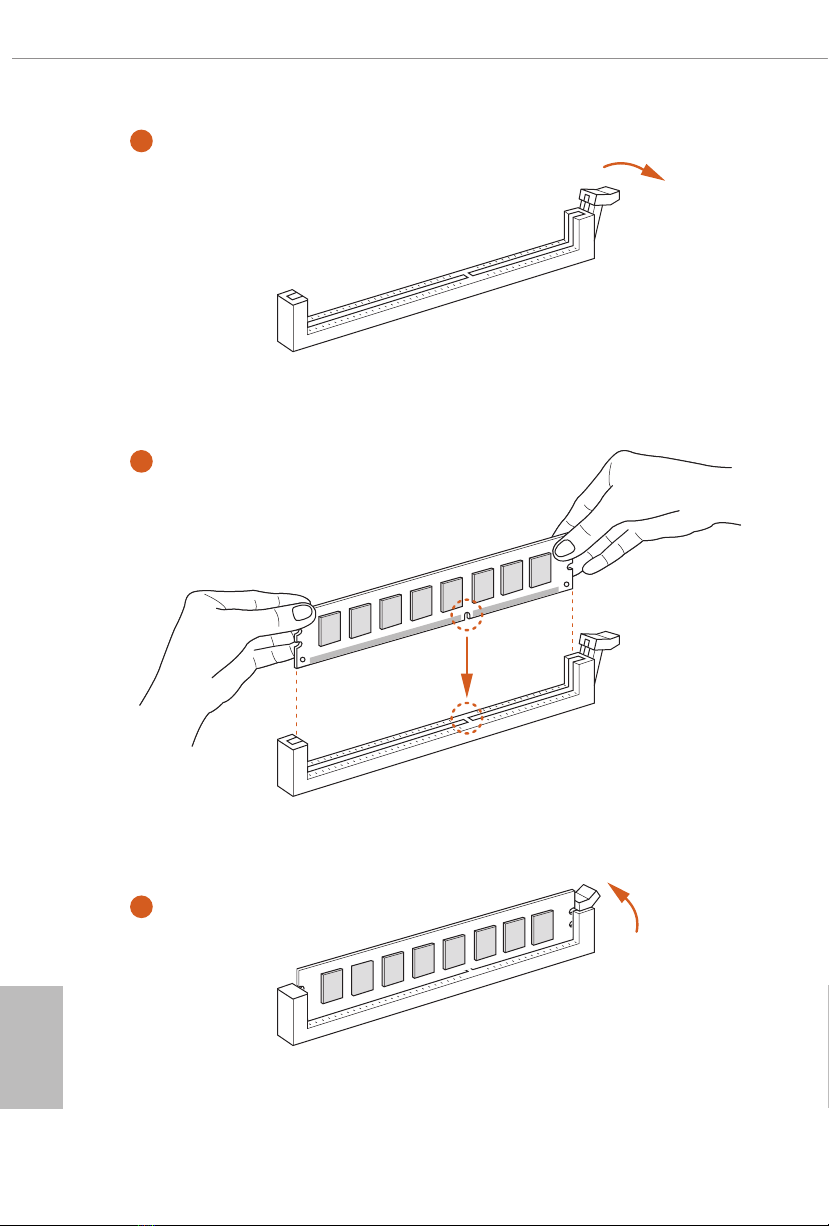

2.3 Installing Memory Modules (DIMM)
is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory
module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.
4. e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.

English
14
1
2
3

English
15
H510M-H2/M.2 SE

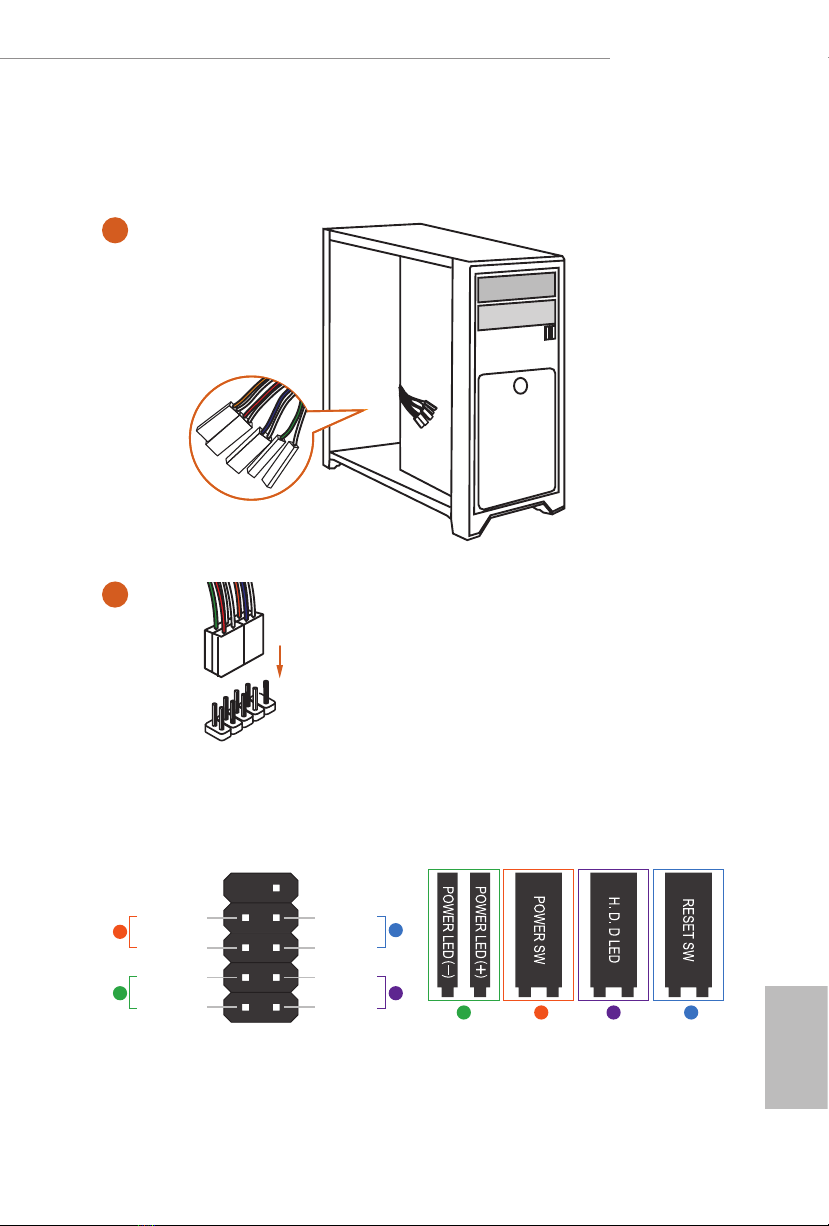

2.4 Connecting the Front Panel Header
A B C D
1
2
32:(56:
5(6(76:
32:(5/('
32:(5/('
+''/('
3$1(/
Power SW (-) RESET SW (+)
HDD LED (-)
HDD LED (+)
12
910
RESET SW (-)Power SW (+)
Power LED (-)
Power LED (+)
A
B
C
D
PANEL1
HDD LED
RESET SW
System Panel Header Front Panel Wires

English
16
2.5 Installing the I/O Panel Shield
1

English
17
H510M-H2/M.2 SE

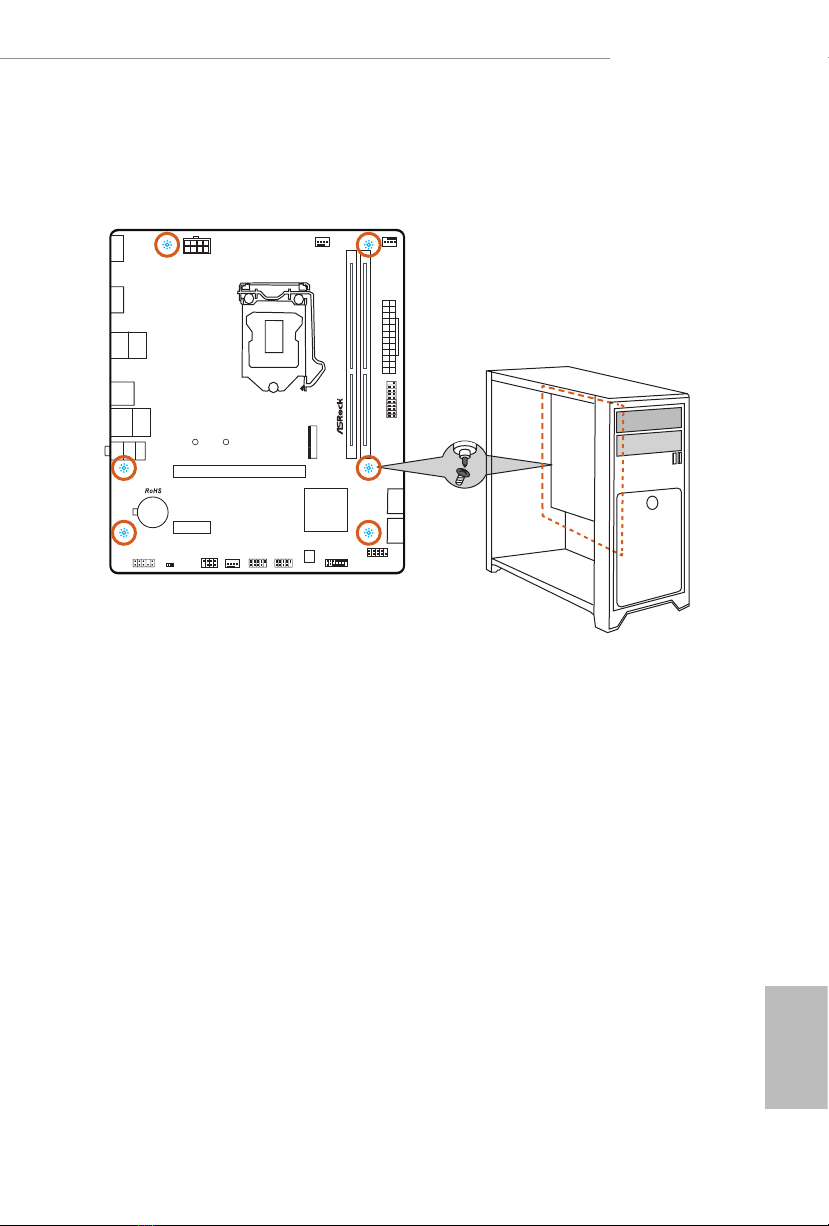

2.6 Installing the Motherboard
