ASROCK H61M-DP3/ASM User manual

1
ASRock H61M-DP3/ASM Motherboard
English
Copyright Notice:
No part of this installation guide may be reproduced, transcribed, transmitted, or trans-
lated in any language, in any form or by any means, except duplication of documentation
by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this guide may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identica-
tion or explanation and to the owners’ benet, without intent to infringe.
Disclaimer:
Specications and information contained in this guide are furnished for informational use
only and subject to change without notice, and should not be constructed as a commit-
ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may
appear in this guide.
With respect to the contents of this guide, ASRock does not provide warranty of any kind,
either expressed or implied, including but not limited to the implied warranties or condi-
tions of merchantability or tness for a particular purpose. In no event shall ASRock, its
directors, ofcers, employees, or agents be liable for any indirect, special, incidental, or
consequential damages (including damages for loss of prots, loss of business, loss of
data, interruption of business and the like), even if ASRock has been advised of the pos-
sibility of such damages arising from any defect or error in the guide or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com
Published July 2013
Copyright©2013 ASRock INC. All rights reserved.

2ASRock H61M-DP3/ASM Motherboard
English
Supplies Guaranteed for One Year:
ASRock guarantees immediate brand new replacement from distributors, shipped
prior to the return of the defective items with absolutely no questions asked during
the rst 30 days. Immediate new or buffer replacement from distributors depending
on their inventory’s availability for the next 11 months. And then regular RMA for the
following 2 years.

3
ASRock H61M-DP3/ASM Motherboard
Motherboard Layout
1 Power Fan Connector (PWR_FAN1) 14 SATA2 Connector (SATA_0)
2 ATX 12V Power Connector (ATX12V1) 15 SATA2 Connector (SATA_2)
3 1155-Pin CPU Socket 16 USB 2.0 Header (USB6_7)
4 CPU Fan Connector (CPU_FAN1) 17 USB 2.0 Header (USB4_5)
5 2 x 240-pin DDR3 DIMM Slots 18 Consumer Infrared Module Header (CIR1)
(Dual Channel: DDR3_A1, DDR3_B1) 19 COM Port Header (COM1)
6 ATX Power Connector (ATXPWR1) 20 Print Port Header (LPT1)
7 System Panel Header (PANEL1) 21 Front Panel Audio Header (HD_AUDIO1)
8 Intel H61 Chipset 22 PCI Slot (PCI1)
9 Chassis Speaker Header (SPEAKER1) 23 Chassis Intrusion Header (CI1)
10 32Mb SPI Flash 24 Clear CMOS Jumper (CLRCMOS1)
11 SATA2 Connector (SATA_3) 25 PCI Express 2.0 x1 Slot (PCIE2)
12 SATA2 Connector (SATA_1) 26 PCI Express 3.0 x16 Slot (PCIE1)
13 Chassis Fan Connector (CHA_FAN1)
Intel
H61
ATXPWR1
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
PCIE1
Top:
RJ-45
USB 2.0
T: USB2
B: USB3
PS2
Keyboard
USB 2.0
T: USB0
B: USB1
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
Super
I/O
CMOS
Battery
PWR_FAN1
CPU_FAN1
H61M-DP3/ASM
LAN
PHY
1
HD_AUDIO1
AUDIO
CODEC
32Mb
BIOS
1
SPEAKER1
3 4 5
6
12
22
21
SATA_ 0
SATA_ 1
SATA_ 2
SATA_ 3
PS2
Mouse
CHA_FAN1
USB6_7
1
X
Fast LAN
X
Fast USB
RoHS
COM1
1
LPT1
HDLED RESET
PLED PWRBTN
PANEL1
1
X
Fast RAM
ATX12V 1
USB4_5
CIR1
1
1
VGA1
DVI1
12
7
8
9
13
15
17
18
19
20
10
11
14
23
16
PCIE2
PCI1
CLRCMOS1
1
CI1
1
24
26
25
English

4ASRock H61M-DP3/ASM Motherboard
I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB23)
* 2 LAN RJ-45 Port 7 USB 2.0 Ports (USB01)
3 Line In (Light Blue) 8 DVI-D Port
** 4 Front Speaker (Lime) 9 D-Sub Port
5 Microphone (Pink) 10 PS/2 Keyboard Port (Purple)
** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming.
For Windows®XP:
After restarting your computer, you will nd “Mixer” tool on your system. Please select “Mixer
ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or
“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker
and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then
reboot your system.
For Windows®8 / 7 / VistaTM:
After restarting your computer, please double-click “Realtek HD Audio Manager” on the
system tray. Set “Speaker Conguration” to “Quadraphonic” or “Stereo”. Click “Device
advanced settings”, choose “Make front and rear output devices playbacks two different audio
streams simultaneously”, and click “ok”. Then reboot your system.
12
3
4
5
10 6
7
8
9
English

5
ASRock H61M-DP3/ASM Motherboard
English
1. Introduction
Thank you for purchasing ASRock H61M-DP3/ASM motherboard, a reliable moth-
erboard produced under ASRock’s consistently stringent quality control. It delivers
excellent performance with robust design conforming to ASRock’s commitment to
quality and endurance.
This Quick Installation Guide contains introduction of the motherboard and step-by-
step installation guide. More detailed information of the motherboard can be found
in the user manual presented in the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRock website without further notice. You may nd
the latest VGA cards and CPU support lists on ASRock website as well.
ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock H61M-DP3/ASM Motherboard (Micro ATX Form Factor)
ASRock H61M-DP3/ASM Quick Installation Guide
ASRock H61M-DP3/ASM Support CD
2 x Serial ATA (SATA) Data Cables (Optional)
1 x I/O Panel Shield
ASRock Reminds You...
To get better performance in Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /
VistaTM 64-bit, it is recommended to set the BIOS option in Storage Con-
guration to AHCI mode. For the BIOS setup, please refer to the “User
Manual” in our support CD for details.

6ASRock H61M-DP3/ASM Motherboard
1.2 Specications
Platform - Micro ATX Form Factor
- All Solid Capacitor design
CPU - Supports 3rd and 2nd Generation Intel®CoreTM i7 / i5 / i3 in
LGA1155 Package
- Supports Intel®Turbo Boost 2.0 Technology
- Supports K-Series CPU
Chipset - Intel®H61
- Supports Intel®Rapid Start Technology and Smart Connect
Technology
Memory - Dual Channel DDR3 Memory Technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered
memory (DDR3 1600 with Intel®Ivy Bridge CPU, DDR3
1333 with Intel®Sandy Bridge CPU)
- Max. capacity of system memory: 16GB (see CAUTION 1)
- Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2 with
Intel®Ivy Bridge CPU
Expansion Slot - 1 x PCI Express 3.0 x16 slot (PCIE1 @ x16 mode)
* PCIE 3.0 is only supported with Intel®Ivy Bridge CPU. With
Intel®Sandy Bridge CPU, it only supports PCIE 2.0.
- 1 x PCI Express 2.0 x1 slot
- 1 x PCI slot
Graphics * Intel®HD Graphics Built-in Visuals and the VGA outputs can
be supported only with processors which are GPU
integrated.
- Supports Intel®HD Graphics Built-in Visuals: Intel® Quick
Sync Video 2.0, Intel®InTruTM 3D, Intel®Clear Video HD
Technology, Intel®InsiderTM, Intel®HD Graphics 2500/4000
with Intel®Ivy Bridge CPU
- Supports Intel®HD Graphics Built-in Visuals: Intel® Quick
Sync Video, Intel®InTruTM 3D, Intel®Clear Video HD
Technology, Intel®HD Graphics 2000/3000, Intel®Advanced
Vector Extensions (AVX) with Intel®Sandy Bridge CPU
- Pixel Shader 5.0, DirectX 11 with Intel®Ivy Bridge CPU.
Pixel Shader 4.1, DirectX 10.1 with Intel®Sandy Bridge
CPU.
- Max. shared memory 1760MB with Intel®Ivy Bridge CPU.
Max. shared memory 1759MB with Intel®Sandy Bridge
CPU.
English

7
ASRock H61M-DP3/ASM Motherboard
- Dual VGA Output: support DVI and D-Sub ports by
independent display controllers
- Supports DVI with max. resolution up to 1920x1200 @
60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @
75Hz
- Supports HDCP function with DVI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
with DVI port
Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports LAN Cable Detection
- Supports Energy Efcient Ethernet 802.3az
- Supports PXE
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Connector - 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and
Hot Plug functions
- 1 x CIR header
- 1 x Print Port header
- 1 x COM port header
- 1 x Chassis Intrusion header
- 1 x CPU Fan connectors (4-pin)
- 1 x Chassis Fan connector (4-pin)
- 1 x Power Fan connector (3-pin)
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support
- Supports “Plug and Play”
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
English

8ASRock H61M-DP3/ASM Motherboard
- SMBIOS 2.3.1 Support
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),
CyberLink MediaEspresso 6.5 Trial, Google Chrome
Browser and Toolbar
Hardware - CPU Temperature Sensing
Monitor - Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS - Microsoft® Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /
VistaTM 64-bit / XP / XP 64-bit compliant
Certications - FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com
WARNING
Please realize that there is a certain risk involved with overclocking,
including adjusting the setting in the BIOS, applying Untied Overclocking
Technology, or using third-party overclocking tools. Overclocking may
affect your system’s stability, or even cause damage to the components
and devices of your system. It should be done at your own risk and
expense. We are not responsible for possible damage caused by
overclocking.
CAUTION!
1. Due to the operating system limitation, the actual memory size
may be less than 4GB for the reservation for system usage
under Windows®8 / 7 / VistaTM / XP. For Windows®OS with 64-
bit CPU, there is no such limitation. You can use ASRock XFast
RAM to utilize the memory that Windows®cannot use.
English

9
ASRock H61M-DP3/ASM Motherboard
1.3 Pin Header Easy Installation Guide
ASRock motherboard is equipped with pin headers with obvious colors which indi-
cate you to recognize the crucial headers more easily. Please refer to below illustra-
tions for the pin denition of onboard headers. If you want to have more information
about the usage of these headers, please refer to “Jumpers Setup“ and “Onboard
Headers and Connectors“ for details.
1
GND
PRESENCE#
MIC_RET
MIC2_L
MIC2_R
OUT2_R
J_SENSE
OUT2_L
OUT_RET
Front Panel Audio Header
USB 2.0 Header
1
USB_PWR
P- P+
USB_PWR
P- P+
GND
GND
DUMMY
Chassis Speaker Header
1
+5V
DUMMY
SPEAKER
DUMMY
1
PLED+
PLED-
PWRBTN#
HDLED+
HDLED-
GND
REST#
GND
DUMMY
System Panel Header
English

10 ASRock H61M-DP3/ASM Motherboard
1.4 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Jumper Setting Description
Clear CMOS Jumper
(CLRCMOS1)
(see p.3, No. 23)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time and user default prole will be
cleared only if the CMOS battery is removed.
Clear CMOSDefault
If you clear the CMOS, the case open may be detected. Please adjust
the BIOS option “Clear Status” to clear the record of previous chassis
intrusion status.
English

11
ASRock H61M-DP3/ASM Motherboard
1.5 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA2 Connectors These four Serial ATA2
(SATA_0: see p.3, No. 13) (SATA2) connectors support
(SATA_1: see p.3, No. 11) SATA data cables for internal
(SATA_2: see p.3, No. 14) storage devices. The current
(SATA_3: see p.3, No. 10) SATA2 interface allows up to
3.0 Gb/s data transfer rate.
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional) SATA2 hard disk or the SATA2
connector on this motherboard.
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB4_5) ports on the I/O panel, there
(see p.3 No. 16) are two USB 2.0 headers on
this motherboard. Each
USB 2.0 header can support
two USB 2.0 ports.
(9-pin USB6_7)
(see p.3 No. 15)
Consumer Infrared Module Header This header can be used to
(4-pin CIR1) connect the remote
(see p.3 No. 17) controller receiver.
SATA_3 SATA_1
SATA_2 SATA_0
English

12 ASRock H61M-DP3/ASM Motherboard
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.3 No. 20) convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
For Windows®XP / XP 64-bit OS:
Select “Mixer”. Select “Recorder”. Then click “FrontMic”.
For Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS:
Go to the "FrontMic" Tab in the Realtek Control panel. Adjust
“Recording Volume”.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.3 No. 7) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
English

13
ASRock H61M-DP3/ASM Motherboard
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.3 No. 4) match the black wire to the
ground pin.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep
state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
Chassis Speaker Header Please connect the chassis
(4-pin SPEAKER 1) speaker to this header.
(see p.3 No. 8)
Chassis and Power Fan Connectors Please connect the fan cables
(4-pin CHA_FAN1) to the fan connectors and
(see p.3 No. 12) match the black wire to the
ground pin.
(3-pin PWR_FAN1)
(see p.3 No. 1)
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
English

14 ASRock H61M-DP3/ASM Motherboard

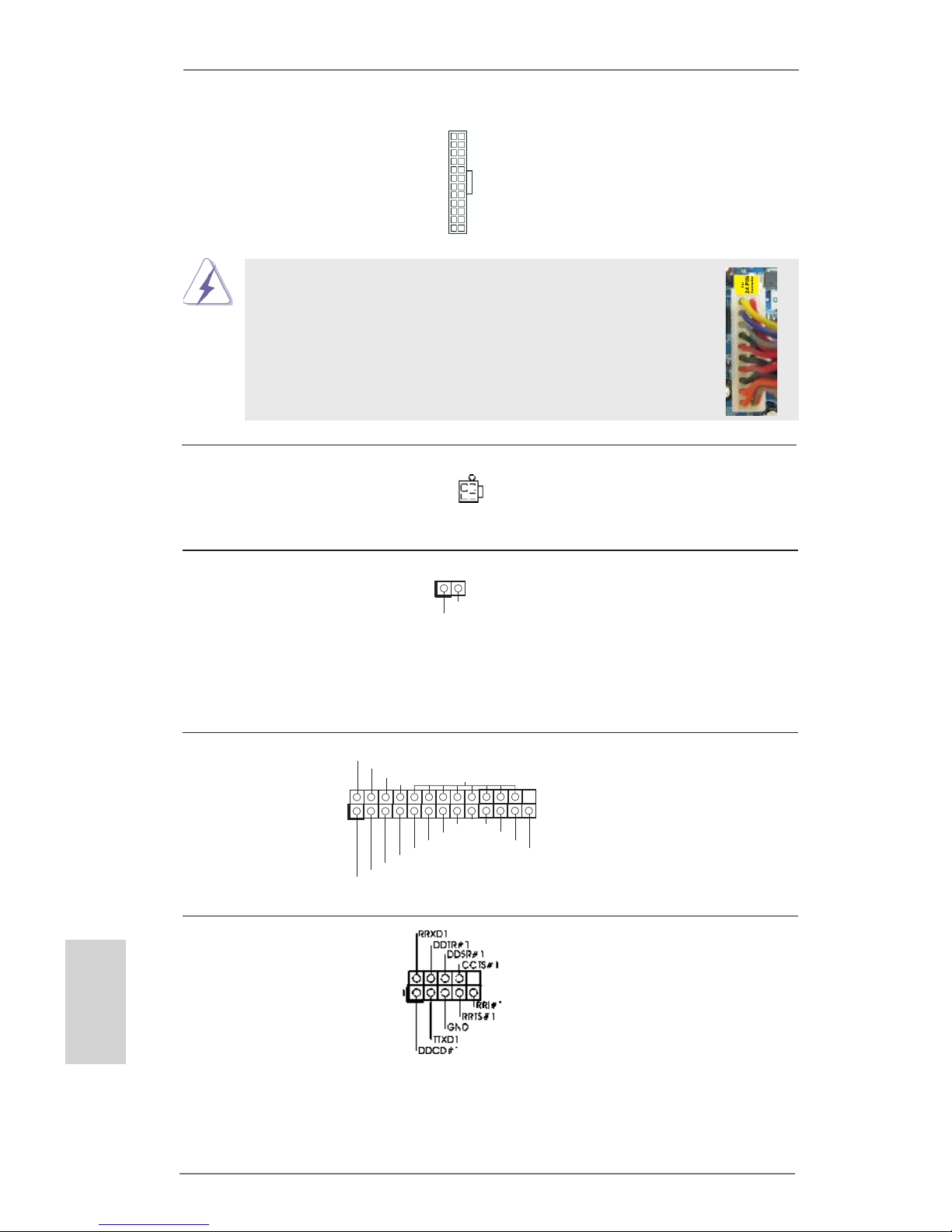

ATX 12V Power Connector Please connect an ATX 12V
(4-pin ATX12V1) power supply to this connector.
(see p.3 No. 2)
Chassis Intrusion Header This motherboard supports
(2-pin CI1) CASE OPEN detection feature
(see p.3, No. 22) that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
1
Signal
GND
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1) supply to this connector.
(see p.3 No. 6)
12
1
24
13
20-Pin ATX Power Supply Installation
Though this motherboard provides 24-pin ATX power connector,
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your
power supply along with Pin 1 and Pin 13.
12
1
24
13
Print Port Header This is an interface for print
(25-pin LPT1) port cable that allows
(see p.3 No. 19) convenient connection of printer
devices.
1
AFD#
ERROR#
PINIT# GND
SLIN#
STB#
SPD0
SPD1
SPD2
SPD3
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PESLCT
Serial port Header This COM1 header supports a
(9-pin COM1) serial port module.
(see p.3 No. 18)
English

15
ASRock H61M-DP3/ASM Motherboard
2. BIOS Information
The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up
the computer, please press <F2> or <Del> during the Power-On-Self-Test (POST)
to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you
wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl>
+ <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS
Setup program is designed to be user-friendly. It is a menu-driven program, which
allows you to scroll through its various sub-menus and to select among the prede-
termined choices. For the detailed information about BIOS Setup, please refer to the
User Manual (PDF le) contained in the Support CD.
3. Software Support CD information
This motherboard supports various Microsoft®Windows®operating systems: 8 / 8
64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64-bit. The Support CD that
came with the motherboard contains necessary drivers and useful utilities that will
enhance motherboard features. To begin using the Support CD, insert the CD into
your CD-ROM drive. It will display the Main Menu automatically if “AUTORUN” is
enabled in your computer. If the Main Menu does not appear automatically, locate
and double-click on the le “ASSETUP.EXE” from the BIN folder in the Support CD
to display the menus.
English

16 ASRock H61M-DP3/ASM Motherboard
Especicación
Plataforma - Factor forma Micro ATX
- Diseño de los Condensadores: All Solid
Procesador - Admite procesadores Intel®CoreTM i7 / i5 / i3 de la 3ª y 2ª
generación en el paquete LGA1155
- Admite la tecnología Intel®Turbo Boost 2.0 Technology
- Admite procesador de la serie K
Chipset - Intel®H61
- Admite las tecnologías Intel®Rapid Start y Smart Connect
Memoria - Soporte de Tecnología de Memoria de Doble Canal
- 2 x DDR3 DIMM slots
- Apoya DDR3 1600/1333/1066 non-ECC, memoria de
un-buffered (DDR3 1600 con CPU Intel®Ivy Bridge,
DDR3 1333 con CPU Intel®Sandy Bridge)
- Máxima capacidad de la memoria del sistema: 16GB
- Compatible con Intel® Extreme Memory Prole (XMP)1.3/1.2
con la CPU Intel®Ivy Bridge
Ranuras de - 1 x ranura PCI Express 3.0 x16 (PCIE1 @ modo x16)
Expansión * PCIE 3.0 solamente se admite con una CPU Intel®Ivy
Bridge. Con una CPU Intel®Sandy Bridge, solamente
admite PCIE 2.0.
- 1 x ranura PCI Express 2.0 x1
- 1 x ranura PCI
VGA OnBoard * Los efectos visuales incorporados con grácos de alta
denición Intel®y las salidas VGA sólo se soportan con
procesadores con GPU integrada.
- Admite Intel®HD Graphics Built-in Visuals: Intel® Quick Sync
Video 2.0, Intel®InTruTM 3D, Intel®Clear Video HD
Technology, Intel®InsiderTM, Intel®HD Graphics 2500/4000
con la CPU Intel®Ivy Bridge
- Admite Intel®HD Graphics Built-in Visuals: Intel® Quick Sync
Video, Intel®InTruTM 3D, Intel®Clear Video HD Technology,
Intel®HD Graphics 2000/3000 e Intel®Advanced Vector
Extensions (AVX) con la CPU Intel®Sandy Bridge
- Pixel Shader 5.0, DirectX 11 con CPU Intel®Ivy Bridge, Pixel
Shader 4.1, DirectX 10.1 con CPU Intel®Sandy Bridge
- 1760MB de Memoria máxima compartida con la CPU
Intel®Ivy Bridge. 1759MB de Memoria máxima compartida
con la CPU Intel®Sandy Bridge.
- Salida de VGA dual: apoya los puertos de DVI y de D-Sub
Español

17
ASRock H61M-DP3/ASM Motherboard
por los reguladores independientes de la exhibición
- Admite DVI con una resolución máxima de 1920x1200 a
60 Hz
- Admite D-Sub con una resolución máxima de 2048x1536 a
75 Hz
- Admite la función HDCP con puertos DVI
- Apoya la reproducción de Blu-rayo de 1080p (BD) / HD-DVD
con puertos DVI
Audio - Sonido HD de 5.1 Canales
(Códec de sonido Realtek ALC662)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Admite detección de conexión de cable LAN
- Compatible con Ethernet 802.3az de bajo consumo
energético
- Compatible con PXE
Entrada/Salida I/O Panel
de Panel - 1 x puerto de ratón PS/2
Trasero - 1 x puerto de teclado PS/2
- 1 x puerto D-Sub
- 1 x puerto DVI-D
- 4 x puertos USB 2.0 predeterminados
- 1 x Puerto LAN RJ-45 con LED (LED de ACCIÓN/ENLACE y
LED de VELOCIDAD)
- Conexión de audio: Entrada de línea / Altavoz frontal /
Micrófono
Conectores - 4 x conexiones SATA2, admiten una velocidad de
transferencia de datos de hasta 3,0Gb/s, soporta NCQ, AHCI
y “Conexión en caliente”
- 1 x Base de conexiones del módulo de infrarrojos para el
consumidor
- 1 x cabecera de puerto de impresora
- 1x En-tête de port COM
- 1 x Conector de detección de intrusión en el chasis
- 1 x Conector de ventilador de CPU (4-pin)
- 1 x Conector de ventilador de chasis (4-pin)
- 1 x Conector de ventilador de alimentacion (3-pin)
- 24-pin cabezal de alimentación ATX
- 4-pin conector de ATX 12V power
- Conector de audio de panel frontal
- 2 x Cabezal USB 2.0 (admite 4 puertos USB 2.0 adicionales)
Español

18 ASRock H61M-DP3/ASM Motherboard
BIOS - 32Mb BIOS legal UEFI AMI compatible con GUI
- Soporta “Plug and Play”
- ACPI 1.1 compliance wake up events
- Soporta “jumper free”
- Soporta SMBIOS 2.3.1
CD de soport - Controladores, utilidades, software de antivirus (versión de
prueba), Prueba de CyberLink MediaEspresso 6.5, Google
Chrome Browser y Toolbar
Monitor - Sensibilidad a la temperatura del procesador
Hardware - Sensibilidad a la temperatura de la placa madre
- Taquímetros de los ventiladores del procesador y del CPU
- Taquímetros de los ventiladores del procesador y del chasis
- Ventilador silencioso del procesador (ajuste automático de la
velocidad del ventilador del chasis en función de la
temperatura del procesador)
- Control de ajuste de la velocidad del ventilador de la CPU /
chasis
- Control de APERTURA DE CARCASA
- Monitor de Voltaje: +12V, +5V, +3.3V, Vcore
OS - En conformidad con Microsoft®Windows®8 / 8 64 bits / 7 / 7
64 bits / VistaTM / VistaTM 64 bits / XP / XP 64 bits
Certicaciones - FCC, CE, WHQL
- Cumple con la directiva ErP/EuP (se requiere una fuente de
alimentación que cumpla con la directiva ErP/EuP)
* Para más información sobre los productos, por favor visite nuestro sitio web:
http://www.asrock.com
Español

19
ASRock H61M-DP3/ASM Motherboard
Especicações
Plataforma - Formato Micro ATX
- Design de condensador sólido
CPU - Suporta Intel®CoreTM i7 / i5 / i3 de 3ª e 2ª geração no pacote
LGA1155
- Suporta a tecnologia Intel®Turbo Boost 2.0
- Suporta K-Series CPU
Chipsets - Intel®H61
- Suporta a tecnologia Rapid Start da Intel®e a tecnologia
Smart Connect
Memória - Suporte à tecnologia de memória de duplo canal
- 2 x slots de DDR3 DIMM
- Suporte para memória não intermédia DDR3 1600/1333/1066,
não ECC (DDR3 1600 com Intel®Ivy Bridge CPU, DDR3 1333
com processadores Intel®Sandy Bridge CPU)
- Capacidade máxima de memória do sistema: 16GB
- Suporta Extreme Memory Prole (XMP)1.3/1.2 da Intel® com
CPU Ivy Bridge da Intel®
Slots de -1 x slot de PCI Express 3.0 x16 (modo PCIE1 @ x16)
Expansão * O modo PCIE 3.0 apenas é suportado com a CPU Ivy Bridge
da Intel®A CPU Sandy Bridge da Intel®apenas suporta o
modo PCIE 2.0.
- 1 x slot de PCI Express 2.0 x1
- 1 x slot de PCI
VGA integrado * As saídas Intel®HD Graphics Built-in Visuals e VGA são
suportadas apenas por processadores com GPU integrada.
- Suporta Intel®HD Graphics Embutido Visuals: Intel® Quick
Sync Video 2.0, Intel®InTruTM 3D, Intel®Clear Video HD
Technology, Intel®InsiderTM, Intel®HD Graphics 2500/4000
com CPU Ivy Bridge da Intel®
- Suporta Intel®HD Graphics Embutido Visuals: Intel® Quick
Sync Video, Intel®InTruTM 3D, Intel®Clear Video HD
Technology, Intel®HD Graphics 2000/3000, Intel®Advanced
Vector Extensions (AVX) com CPU Sandy Bridge da Intel®
- Pixel Shader 5.0, DirectX 11 com Intel®Ivy Bridge CPU, Pixel
Shader 4.1, DirectX 10.1 com processadores Intel®Sandy
Bridge CPU
- Memória partilhada máxima 1760MB com CPU Ivy Bridge da
Intel®. Memória partilhada máxima 1759MB com CPU Sandy
Bridge da Intel®.
Português

20 ASRock H61M-DP3/ASM Motherboard
- Porta de saída VGA dupla: suporta portas DVI e D-Sub
através de controladores de visualização independentes
- Suporta DVI com resolução máxima até 1920x1200 @ 60Hz
- Suporta D-Sub com resolução máxima até 2048x1536 @
75Hz
- Suporta função HDCP com porta DVI
- Suporta a norma Blu-ray de alta denição 1080p (BD) / e a
reprodução de DVDs de alta denição com porta DVI
Áudio - Áudio de alta denição de canal 5.1
(Codec de áudio Realtek ALC662)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Suporta Detecção de cabo LAN
- Suporta Ethernet com Eciência Energética 802.3az
- Suporta PXE
Entrada/Saída I/O Panel
pelo painel - 1 x porta para mouse PS/2
- 1 x porta para teclado PS/2
- 1 x porta D-Sub
- 1 x porta DVI-D
- 4 x portas USB 2.0 padrão
- 1 x porta LAN RJ-45 com LED (LED ACT/LIG e LED
VELOCIDADE)
- Ficha de áudio HD: Entrada de linha / Altifalante frontal /
Microfone
Conectores -4 x conectores SATA2, suporte a taxa de transferência
de dados de até 3,0 Gb/s, suporte NCQ, AHCI e “conexão
a quente”
- 1 x Conector CIR
- 1 x Conector de Porta de Impressão
- 1 x conector da porta COM
- 1 x Conector de intrusão no chassis
- 1 x Conector do ventilador da CPU (4 pinos)
- 1 x Conector do ventilador da chassis (4 pinos)
- 1 x Conector do ventilador da energia (3 pinos)
- Conector de força do ATX de 24 pinos
- Conector ATX 12 V de 4 pinos
- Conector Áudio do painel frontal
- 2 x cabezal USB 2.0 (suporta 4 portas USB 2.0)
Português
