ASROCK IMB-146 User manual

1
IMB-146
User Manual
Version 1.0
Published November 2012
Copyright©2012 ASRock INC. All rights reserved.

2
Copyright Notice:
No part of this manual may be reproduced, transcribed, transmitted, or translated in
any language, in any form or by any means, except duplication of documentation by
the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this manual may or may not be regis-
tered trademarks or copyrights of their respective companies, and are used only for
identication or explanation and to the owners’ benet, without intent to infringe.
Disclaimer:
Specications and information contained in this manual are furnished for informa-
tional use only and subject to change without notice, and should not be constructed
as a commitment by ASRock. ASRock assumes no responsibility for any errors or
omissions that may appear in this manual.
With respect to the contents of this manual, ASRock does not provide warranty of
any kind, either expressed or implied, including but not limited to the implied warran-
ties or conditions of merchantability or tness for a particular purpose.
In no event shall ASRock, its directors, ofcers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from
any defect or error in the manual or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in Cali-
fornia, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com

3
Contents
1. Introduction ................................................................ 5
1.1 Package Contents.......................................................... 5
1.2 Specications ................................................................. 6
1.3 Unique Features............................................................. 8
1.4 Motherboard Layout ..................................................... 9
1.5 I/O Panel ...................................................................... 11
2. Installation .................................................................. 12
2.1 Installing Memory Modules (DIMM) ............................... 13
2.2 Expansion Slots (PCI Express Slots) ............................. 14
2.3 Installing SATA Hard Disks............................................. 15
2.4 Power Connectors.......................................................... 16
2.5 Installing the System Panel............................................ 17
2.6 Onboard Headers and Connectors ................................ 18
2.7 Jumpers Setup ............................................................... 23
2.8 Operating System Setup ................................................ 25
2.8.1 Installing Windows®7 Without RAID ..................... 25
2.9 Installing Drivers............................................................. 26
2.10 Dual Monitor................................................................... 27
2.11 Hot Plug for Hard Disk Drives ........................................ 28

4
3. UEFI SETUP UTILITY.................................................. 32
3.1 Introduction .................................................................... 32
3.1.1 UEFI Menu Bar ..................................................... 32
3.1.2 Navigation Keys .................................................... 33
3.2 Main Screen ................................................................... 34
3.3 Advanced Screen........................................................... 35
3.3.1 CPU Conguration ............................................... 36
3.3.2 Super IO Conguration ........................................ 37
3.3.3 Chipset Conguration........................................... 38
3.3.4 Storage Conguration .......................................... 39
3.3.5 ACPI Conguration............................................... 40
3.3.6 USB Conguration ............................................... 42
3.4 Hardware Health Event Monitoring Screen.................... 43
3.5 Boot Screen ................................................................... 44
3.6 Security Screen.............................................................. 45
3.7 Exit Screen..................................................................... 46

5
1. Introduction
Thank you for purchasing ASRock IMB-146 motherboard, a reliable moth-
erboard produced under ASRock’s consistently stringent quality control. It
delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
In this manual, chapter 1 contains the introduction of the motherboard.
Chapter 2 provides step by step installation instructions. Chapter 3 in-
cludes information about the UEFI.
Because the motherboard specications and the BIOS software
might be updated, the content of this manual will be subject to
change without notice. In case any modications of this manual
occur, the updated version will be available on ASRock’s web-
site. You may nd the latest VGA cards and CPU support list on
ASRock’s website as well. http://www.asrock.com
If you require technical support related to this motherboard,
please visit our website for specic information about the model
you are using. www.asrock.com/support/index.asp
1.1 Package Contents
ASRock IMB-146 Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRock IMB-146 Quick Installation Guide
ASRock IMB-146 Support CD
1 x Serial ATA (SATA) Data Cables
1 x Serial ATA (SATA) HDD Power Cables
1 x I/O Panel Shield

6
1.2 Specications
Platform
Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
ASRock DuraCaps (100% Japan-made high-quality Conduc-
tive Polymer Capacitors)
CPU
Intel®Dual-Core AtomTM CedarView Processor D2550/
N2600/N2800
Supports Hyper-Threading Technology
Chipset Intel®NM10 Express Chipset
Memory
Single Channel DDR3 memory technology
2 x 204-pin DDR3 SO-DIMM slots (see CAUTION 1)
Supports DDR3 1066/800 MHz SDRAM
Max. capacity of system memory: 8GB (see CAUTION 2)
Expansion
Slots 1 x mini-PCI Express slot
Graphics
Intel® PowerVR SGX545
Supports DirectX 9, Pixel Shader v3.0 and OGL 3.0
Max. shared memory 256MB
Four VGA Output options: D-Sub, 2 x LVDS and DVI
Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
Supports 2-CH/24bits LVDS with max. resolution up to
1920x1200 @ 60Hz
Supports DVI with max. resolution up to 1920x1200 @ 60Hz
Audio 2 CH Audio (Realtek ALC662 Audio Codec)
LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111E-VL
Supports Wake On LAN
Supports PXE
Rear Panel
I/O
1 x DC Jack
1 x PS/2 Keyboard/Mouse port
1 x D-Sub port
1 x Serial Port (RS-232)
4 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
Internal I/O
2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and
Hot Plug
1 x COM port header
2 x LVDS connectors
1 x DVI connector

7
* For detailed product information, please visit our website:
http://www.asrock.com
1 x Printer port
1 x LPC Debug header
1 x CPU Fan connector (1 x 4-pin)
1 x Chassis Fan connector (1 x 3-pin)
4 pin 12V power connector
SATA power connector
2 x USB 2.0 headers (supports 3 USB 2.0 ports)
BIOS
16Mb AMI UEFI Legal BIOS with GUI support
Supports “Plug and Play”
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support
Support CD Drivers
Hardware
Monitor
CPU/Chassis Temperature Sensing
CPU/Chassis Fan Tachometer
CPU Quiet Fan
Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS Microsoft®Windows®7 compliant
Certications
FCC, CE, WHQL
CAUTION!
1. N2600 only supports one SO-DIMM and 4GB of system memo-
ry.
2. Due to the operating system’s limitation, the actual memory size
of the reservation for system usage under Windows®32-bit op-
erating systems may be less than 4GB.

8
1.3 Unique Features
ASRock Instant Flash
ASRock Instant Flash is a BIOS ash utility embedded
in Flash ROM. This convenient BIOS update tool allows
you to update system BIOS without entering operating
systems rst like MS-DOS or Windows®. With this util-
ity, you can press the <F6> key during the POST or the
<F2> key to enter into the BIOS setup menu to access
ASRock Instant Flash. Just launch this tool and save
the new BIOS le to your USB ash drive, oppy disk or
hard drive, then you can update your BIOS only in a few
clicks without preparing an additional oppy diskette or
other complicated ash utility. Please be noted that the
USB ash drive or hard drive must use FAT32/16/12 le
system.
ASRock Crashless BIOS
ASRock Crashless BIOS allows users to update their
BIOS without fear of failing. If power loss occurs during
the BIOS update process, ASRock Crashless BIOS will
automatically finish the BIOS update procedure after
regaining power. Please note that BIOS files need to
be placed in the root directory of your USB disk. Only
USB2.0 ports support this feature.

9

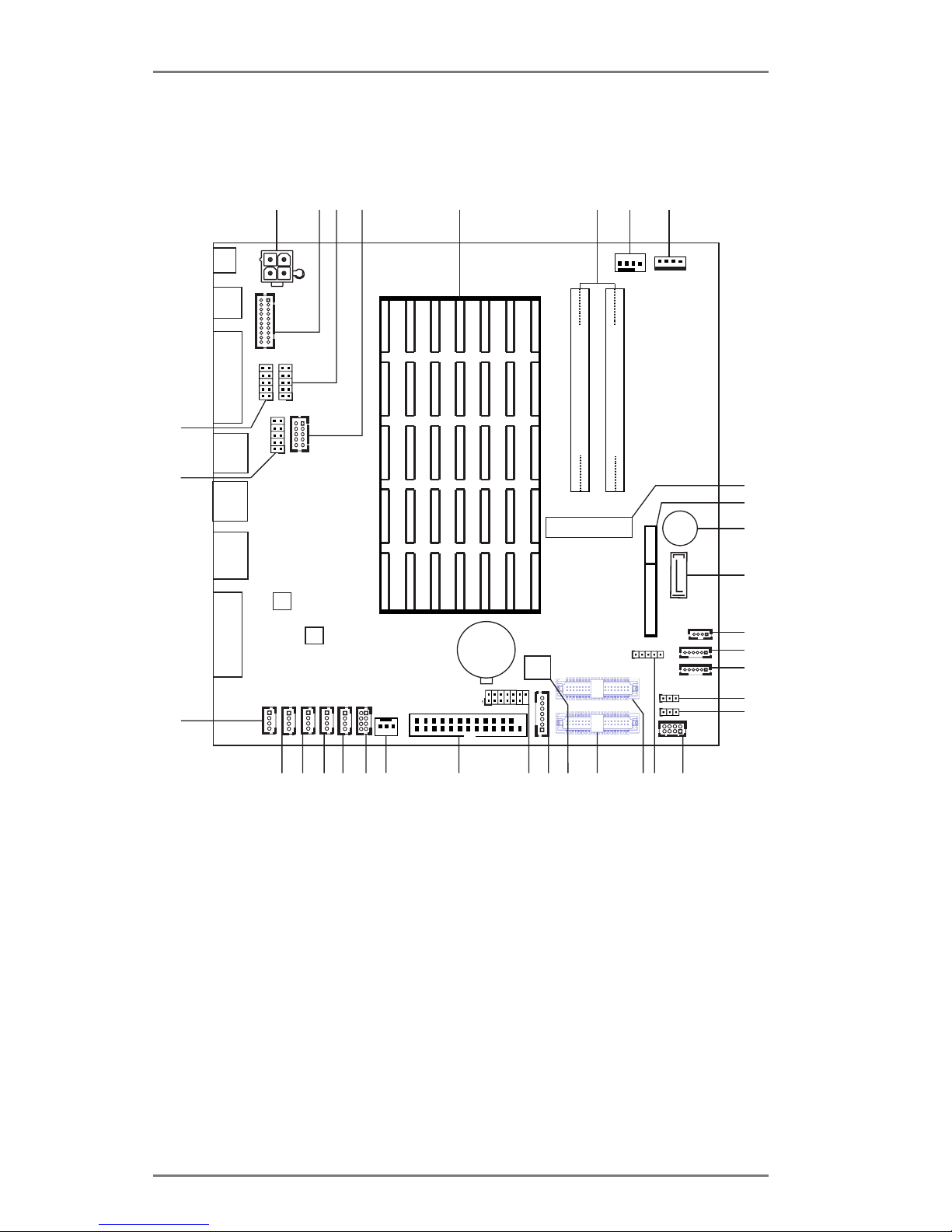

1.4 Motherboard Layout
1
ATX1 2V 1
DDR3_A1
DDR3_B1
BUZZ1
CMOS
Battery
USB 2.0
T: USB0
B: USB1
RJ-45
IMB-146
COM1
AUDIO
CODEC
LAN
16Mb
BIOS
SATAI I_ 2
1
LVDS1
CLRCMOS1
1
CPU_FAN1
CHA_FAN1
PCIE1
PS2
Keyboard
/Mouse
22
24
26
27
28
2930
31
32
33
SATA_PWR1
1
LPT1
1
1
LVDS2
DC_JACK1
USB 2.0
T: USB2
B: USB3
VGA1
LPC1
PWR_JP1
1
PANEL1
USB4_5
LVDS_VOL1
1
11
20
21
25
34
35
SATAI I_ 1
SET_CM2
DIO1
DVI1
1
1
SET_CM1
COM2
1
MIC_IN1 LINE_OUT1 LINE_IN1
SPEAKER_OUT1
USB6
111111
BLT_VOL1
1
1
LVDS2_BLT_CTL1
BLT_PWR3
BLT_PWR2
1
1
1
23489
5 6 7
10
12
11
13
14
15
16
17
18
19
23
1
1

10
1 4-pin ATX 12V Power Connector
2 DVI Connector (DVI1)
3 Digital I/O header (DIO1)
4 COM Port Header (COM2)
5 CPU
6 NM10 Express Chipset
7 2 x 204-pin DDR3 SO-DIMM Slots (DDR3_A1, DDR3_A2)
8 CPU Fan Connector (CPU_FAN1)
9 SATA Power Connector (SATA_PWR1)
10 mini PCI Express Slot (PCIE1)
11 SATA2 Connector (SATAII_2, Black)
12 Buzzer (BUZZ1)
13 SATA2 Connector (SATAII_1, Blue)
14 LVDS2 Backlight Control Connector (LVDS2_BLT_CTL1)
15 Backlight Power Connector (BLT_PWR3, for LVDS2)
16 Backlight Power Connector (BLT_PWR2, for LVDS1)
17 Clear CMOS Jumper (CLRCMOS1)
18 PWR-On Mode Jumper (PWR_JP1)
19 System Panel Header (PANEL1)
20 LVDS VDD PWR Setting Jumper (LVDS_VOL1)
21 LVDS Connector (LVDS2)
22 LVDS Connector (LVDS1)
23 SPI Flash Memory (16Mb)
24 Backlight & Amp Volume Control Header (BLT_VOL1)
25 LPC Debug Header (LPC1)
26 Printer Port (LPT1)
27 Chassis Fan Connector (CHA_FAN1)
28 USB 2.0 Header (USB4_5)
29 USB 2.0 Header (USB6)
30 Audio AMP Output Speaker Header (SPEAKER_OUT1)
31 Line-In Connector (LINE_IN1)
32 Line-Out Connector (LINE_OUT1)
33 MIC-In Connector (MIC_IN1)
34 COM Power Setting Jumper (SET_CM1)
35 COM Power Setting Jumper (SET_CM2)

11
1.5 I/O Panel
* There are two LEDs on each LAN port. Please refer to the table below for the LAN
port LED indications.
ACT/LINK
LED
SPEED
LED
LAN Port
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On 100Mbps connection Green 1Gbps connection
1DC Jack (Φ 2.0)
2 PS2 Keyboard/Mouse
3 COM Port (COM1)
4 USB 2.0 Ports (USB0_1)
5 USB 2.0 Ports (USB2_3)
6* LAN RJ-45 Port
7 D-Sub (VGA1)
14
36
27
5

12
Chapter 2: Installation
This is a Mini-ITX form factor motherboard. Before you install the mother-
board, study the conguration of your chassis to ensure that the mother-
board ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard com-
ponents or change any motherboard settings.
1. Make sure to unplug the power cord before installing or
removing the motherboard. Failure to do so may cause
physical injuries to you and damages to motherboard com-
ponents.
2. In order to avoid damage from static electricity to the moth-
erboard’s components, NEVER place your motherboard
directly on a carpet. Also remember to use a grounded wrist
strap or touch a safety grounded object before you handle
the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any components, place them on a
grounded anti-static pad or in the bag that comes with the
components.
5. When placing screws to secure the motherboard to the
chassis, please do not over-tighten the screws! Doing so
may damage the motherboard.

13
2.1 Installing Memory Modules (DIMM)
This motherboard provides two 204-pin DDR3 (Double Data Rate 3) SO-
DIMM slots.
Step 1. Align a DIMM on the slot such that the notch on the DIMM
matches the break on the slot.
The DIMM only ts in one correct orientation. It will cause per-
manent damage to the motherboard and the DIMM if you force
the DIMM into the slot at incorrect orientation.
Step 2. Firmly insert the DIMM into the slot until the retaining clips at both
ends fully snap back in place and the DIMM is properly seated.

14
2.2 Expansion Slots (PCI Express Slots)
There is 1 mini PCI Express slot on this motherboard.
mini-PCIE Slots: mini_PCIE1 is used for mini PCIE cards.
Installing an Expansion Card
Step 1. Before installing an expansion card, please make sure that the
power supply is switched off or the power cord is unplugged.
Please read the documentation of the expansion card and make
necessary hardware settings for the card before you start the
installation.
Step 2. Align the card connector with the slot and press rmly until the
card is completely seated on the slot.

15
Serial ATA2 Connectors
(SATAII_1: see p.10, No. 13)
(SATAII_2: see p.10, No. 11)
SATAII_2 SATAII_1
These two Serial ATA2
(SATA2) connectors sup-
port SATA data cables for
internal storage devices.
The current SATA2 interface
allows up to 3.0 Gb/s data
transfer rate.
2.3 Installing Serial SATA / SATA2 Hard Disks
STEP 1: Connect the SATA power cable to the hard disk.
STEP 2: Connect one end of the SATA data cable to the hard disk.
STEP 3:Connect the other end of the SATA data cable to the mother-
board’s SATA2 connectors.

16
SATA Power Connector
(4-pin SATA_PWR1)
(see p.10, No. 9)
2.4 Power Connectors
ATX 12V Power Connector
(4-pin ATX12V1)
(see p.10, No. 1)
Please connect a power
supply to this connector.
Please connect a SATA
power cable.
GND
+5V
+12V
GND
1

17
2.5 Installing the System Panel
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform
a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep
state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to
this header, make sure the wire assignments and the pin assignments are
matched correctly.
The white wires are negative (Connect to - or GND pins), while the
colored ones are positive.
System Panel Header
(8-pin PANEL1)
(see p.10, No. 19)
PIN Signal Name PIN Signal Name
1GND 2 RESET#
3GND 4 PWRBTN#
5 HDLED+ 6 HDLED-
7 PLED+ 8 SUS LED
1

18
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT
place jumper caps over these headers and connectors. Plac-
ing jumper caps over the headers and connectors will cause
permanent damage to the motherboard!
USB 2.0 Headers
(8-pin USB4_5)
(see p.10, No. 28)
(4-pin USB6)
(see p.10, No. 29)
Besides four default USB 2.0
ports on the I/O panel, there
are two USB 2.0 headers on
this motherboard. The USB
2.0 headers can support
three USB 2.0 ports.
This is an interface for print
port cable that allows conve-
nient connection of printer
devices.
Print Port Header
(25-pin LPT1)
(see p.10, No. 26)
PWR
GND
+
-
PWR
GND
+
-
14
PWR-6+6GND
Audio AMP Output
Speaker Header
(4-pin SPEAKER_OUT1)
(see p.10, No. 30)
Line-In Header
(4-pin LINE_IN1)
(see p.10, No. 31)
PIN Signal Name
1 SPK L+
2 SPK L-
3 SPK R-
4 SPK R+
PIN Signal Name
1 LINE L
2AGND
3 LINE R
4 LINE JD
1
1

19
Chassis Fan Connector
(3-pin CHA_FAN1)
(see p.10, No. 27)
Please connect a fan cable
to the fan connector and
match the black wire to the
ground pin.
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.10, No. 8)
Though this motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector, 3-Pin
CPU fans can still work suc-
cessfully even without fan
speed control. If you plan to
connect a 3-Pin CPU fan,
please connect it to Pin 1-3.
FAN_SPEED
FAN_SPEED_CONTROL
GND
+12V
1234
Serial Port Header
(10-pin COM2)
(see p.10, No. 4)
Line-Out Header
(4-pin LINE_OUT1)
(see p.10, No. 32)
MIC-In Header
(4-pin MIC_IN1)
(see p.10, No. 33)
PIN Signal Name
1 LOUT L
2AGND
3 LOUT R
4 LOUT JD
PIN Signal Name
1 MIC L
2AGND
3 MIC R
4 MIC JD
1
1
GND
+12V
FAN_SPEED
1PIN Signal Name PIN Signal Name
2 NC 1 GND
4COM PWR/RI 3 DTR
6 CTS 5 TXD
8RTS 7 RXD
10 DSR 9 COM PWR/DCD

20
LVDS Connector
(40-pin LVDS1)
(see p.10, No. 22)
(40-pin LVDS2)
(see p.10, No. 21)
1
39
40 2
1
39
40 2
PIN Signal Name PIN Signal Name
39 GND 40 GND
37 LVDS1 D3(-) 38 LVDS1 D3(+)
35 LVDS1 CLK(-) 36 LVDS1 CLK(+)
33 LVDS1 D2(-) 34 LVDS1 D2(+)
31 LVDS1 D1(-) 32 LVDS1 D1(+)
29 LVDS1 D0(-) 30 LVDS1 D0(+)
27 GND 28 GND
25 LVDS1 D3(-) 26 LVDS1 D3(+)
23 LVDS1 CLK(-) 24 LVDS1 CLK(+)
21 LVDS1 D2(-) 22 LVDS1 D2(+)
19 LVDS1 D1(-) 20 LVDS1 D1(+)
17 LVDS1 D0(-) 18 LVDS1 D0(+)
15 B/L ENABLE 16 GND
13 B/L ADJUST 14 LVDS PWR EN
11 DDC CLK 12 DDC DATA
9 LVDS PWR 10 LVDS PWR
7 VCC 3.3V 8 GND
5 +12V 6 GND
3 +12V 4 +12V
1 +12V 2 +12V
PIN Signal Name PIN Signal Name
39 GND 40 GND
37 NC 38 NC
35 NC 36 NC
33 NC 34 NC
31 NC 32 NC
29 NC 30 NC
27 GND 28 GND
25 LVDS2 D3(-) 26 LVDS2 D3(+)
23 LVDS2 CLK(-) 24 LVDS2 CLK(+)
21 LVDS2 D2(-) 22 LVDS2 D2(+)
19 LVDS2 D1(-) 20 LVDS2 D1(+)
17 LVDS2 D0(-) 18 LVDS2 D0(+)
15 B/L ENABLE 16 GND
13 B/L ADJUST 14 LVDS PWR EN
11 NC 12 NC
9 LVDS PWR 10 LVDS PWR
7 VCC 3.3V 8 GND
5 +12V 6 GND
3 +12V 4 +12V
1 +12V 2 +12V
