ASROCK IMB-150D-PCI User manual

1
IMB-150D-PCI
User Manual
Version 1.0
Published June 2018
Copyright©2018 ASRock INC. All rights reserved.

2
Version 1.0
Published June 2018
Copyright©2018 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

3
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 8
1.4 I/O Panel........................................................................ 10
2 Installation ......................................................... 11
2.1 Screw Holes................................................................... 11
2.2 Pre-installation Precautions ........................................... 11
2.3 Installation of Memory Modules (SO-DIMM).................. 12
2.4 Expansion Slots ............................................................. 14
2.5 Jumpers Setup............................................................... 16
2.6 Onboard Headers and Connectors................................ 19
3 UEFI SETUP UTILITY......................................... 24
3.1 Introduction .................................................................... 24
3.1.1 UEFI Menu Bar .................................................... 24
3.1.2 Navigation Keys ................................................... 25
3.2 Main Screen................................................................... 25
3.3 Advanced Screen........................................................... 26
3.3.1 CPU Conguration ............................................... 27
3.3.2 Chipset Conguration........................................... 28
3.3.3 Storage Conguration .......................................... 29
3.3.4 Intel(R) Smart Connect Technology ..................... 30
3.3.5 Super IO Conguration ........................................ 31
3.3.6 ACPI Conguration............................................... 32
3.3.7 USB Conguration ............................................... 33
3.3.8 Trusted Computing............................................... 34
3.4 Hardware Health Event Monitoring Screen ................... 35
3.5 Security Screen ............................................................. 36
3.6 Boot Screen ................................................................... 37
3.7 Exit Screen .................................................................... 39
4 Software Support .............................................. 40
4.1 Install Operating System................................................ 40
4.2 Support CD Information ................................................. 40
4.2.1 Running Support CD............................................ 40
4.2.2 Drivers Menu........................................................ 40
4.2.3 Utilities Menu........................................................ 40
4.2.4 Contact Information.............................................. 40

5
Chapter 1: Introduction
Thank you for purchasing ASRock IMB-150D-PCI motherboard, a reliable moth-
erboard produced under ASRock’s consistently stringent quality control. It delivers
excellent performance with robust design conforming to ASRock’s commitment to
quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRock website without further notice. You may nd
the latest VGA cards and CPU support lists on ASRock website as well.
ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock IMB-150D-PCI Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRock IMB-150D-PCI Driver CD
ASRock IMB-150D-PCI Jumper Setting Instruction
1 x I/O Panel Shield

6
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU Intel®Celeron®Processor J1900/N2930
Chipset SOC
Expansion
Slot
PCI 1
Mini-PCIe N/A
M.2
1 x M.2 (KEY E, 2230) with PCIe x 1 and shared
USB2.0 for wireless
1 x M.2 (KEY M, 2242/2260/2280) with SATA2
for SSD
mSATA N/A
Memory
Technology Dual Channel DDR3L 1333 MHz SDRAM
Max. 8GB
Socket 2 x SO-DIMM
Graphics
Controller Intel®Gen7 Intel Graphics DX 11, OGL3.2
VGA Supports max resolution up to 1920 x
1200@60Hz
LVDS Supports max resolution up to 1920 x
1200@60Hz
eDP N/A
HDMI Supports max resolution up to
1920x1200@60Hz
DVI N/A
DisplayPort N/A
Multi Display Dual Display
Ethernet
Ethernet 10/100/1000 Mbps
Controller GbE LAN: 2 x Realtek RTL8111G-CG
Connector 2 x RJ-45
Rear I/O
VGA 1
DVI N/A
HDMI 1
DisplayPort N/A
Ethernet 2
USB 4 x USB 3.0
Audio 2 (Mic-in, Line-out)
Serial 3 x COM (RS-232/422/485)
PS/2 2 (1 x keyboard, 1 x mouse)

7
Internal
Connector
USB 6 x USB 2.0
LVDS 1
eDP N/A
VGA N/A
Serial 3 x COM (RS-232)
SATA 1 x SATA2
Parallel 1
GPIO 4 x GPI + 4 x GPO
SATA PWR
Output Con 1
Speaker
Header 1
TPM 1 x Header
Watchdog
Timer
Output Output from super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec
Power
Requirements
Input PWR 9-19V DC-In (4-pin ATX PWR Con)
Power On
AT/ATX Supported
-AT : Directly PWR on as power input ready
-ATX : Press button to PWR on after power
input ready
Environment
Operating
Temperature 0ºC – 60ºC
Storage
Temperature -40ºC – 85ºC

8
1.3 Motherboard Layout
IMB-150D-PCI
1
HD_AUDIO1
18
21
23 1920
22
24
25
26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
SATA2_1
CPU_FAN1
1
LPC1
CHA_FAN1
SPEAKER1
1
HDMI1
ATX12V1
1
BLT_VOL1
PANEL1
1
HDLED RESET
PLED PWRBTN
1
LPT_GPIO1
SATA_PWR1
LVDS1
1
1
BLT_PWR1
Industrial
1
1
BLT_PWM1
PWR_COM3
PS2
Keyboard
PS2
Mouse
COM
Port 1
COM
Port 2
COM
Port 3
VGA1
Top:
LAN2
USB 3.0
T: USB3
B: USB4
Top:
LAN1
USB 3.0
T: USB1
B: USB2
Top:
Line Out
Bottom:
Mic In
DDR3_A1 (Support DDR3L Only)
1
PWR_COM2
1
PWR_COM1
1
USB2_6_7
CMOS
Battery
1
PNL_PWR1
1
BKT_PWR1
1
PWR_COM5
1
PWR_COM6
28
27
DDR3_B1 (Support DDR3L Only)
1
JGPIO_SET1
PCI1
BUZZ2
1
1
1
BL1
1
BL2
1
PWR_COM4
1
USB2_4_5
1
USB2_2_3
COM4
1
COM5
1
COM6
1
1
CLRMOS1
1
PWR_JP1
1
CI1
1
CI2
M.2 (Key-M) M.2 (Key-E)
USB_SEL1
1
JGPIO_PWR1

9
1 : COM Port PWR Setting Jumpers
PWR_COM1 (For COM Port1)
PWR_COM2 (For COM Port2)
PWR_COM3 (For COM Port3)
2 : BL1, BL2
3 : ATX Power Connector (Input 9V-19V)
4 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
5 : Panel Power Select (LCD_VCC) (PNL_PWR1)
6 : 4-Pin CPU FAN Connector (+12V)
7 : SATA2 Connectors (SATA2_1)
8 : SATA Power Output Connector
9 : Buzzer
10 : 3-Pin Chassis FAN Connector (+12V)
11 : USB Select
12 : USB2.0 Connectors (USB2_2_3, USB2_4_5, USB2_6_7)
13 : System Panel Header
14 : COM4, 5, 6 Headers (RS232)
15 : COM Port PWR Setting Jumpers
PWR_COM4 (For COM Port4)
PWR_COM5 (For COM Port5)
PWR_COM6 (For COM Port6)
16 : LPC Header
17 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)
18 : Printer Port / GPIO Header (LPT_GPIO1)
19 : ATX/AT Mode Select (PWR_JP1)
20 : Chassis Intrusion Headers (CI1, CI2)
21 : Clear CMOS Header
22 : Digital Input / Output Default Value Setting (JGPIO_SET1)
23 : Backlight Volume Control (BLT_VOL1)
24 : 3W Audio AMP Output Wafer
25 : Front Panel Audio Header
26 : Backlight Control Level (CON_LBKLT_CTL) (BLT_PWM1)
27 : Backlight Power Connector (BLT_PWR1)
28 : LVDS Panel Connector

10
1.4 I/O Panel
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 PS/2 Mouse Port
2 COM Port 1 (COM1)*
3 COM Port 3 (COM3)*
4 LAN RJ-45 Port**
5 LAN RJ-45 Port**
6 Line out (Green)
7 Microphone (Pink)
8 USB 3.0 Ports (USB3_3_4)
9 USB 3.0 Ports (USB3_1_2)
10 VGA Port (VGA1)
11 COM Port 2 (COM2)*
12 PS/2 Keyboard Port
13 HDMI Port (HDMI1)
ACT/LINK
LED
SPEED
LED
LAN Port
* This motherboard supports RS232/422/485 on COM1~3 ports. Please refer to below table for
the pin denition. In addition, COM1~3 ports (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to page 31 for details.
COM1~3 Port Pin Denition
6
124
35
8
7
13 12 10
11 9
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD RX+ N/A
3 TXD TX+ RTX+
4 DTR RX- N/A
5 GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9COM1: +5V/+12V/+5VSB
COM2, 3: +5V/+12V
COM1: +5V/+12V/+5VSB
COM2, 3: +5V/+12V
COM1: +5V/+12V/+5VSB
COM2, 3: +5V/+12V

11
Chapter 2: Installation
This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you
install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
IMB-150D-PCI motherboard provides two 204-pin DDR3 (Double Data Rate 3) SO-
DIMM slots, which support Dual Channel DDR3L (low voltage).
1. If you install one memory module only, please install it on DDR3_A1.
2. It is not allowed to install a DDR or DDR2 memory module into a
DDR3 slot; otherwise, this motherboard and SO-DIMM may be
damaged.
2. Please make sure to disconnect the power supply before adding or
removing SO-DIMMs or the system components.

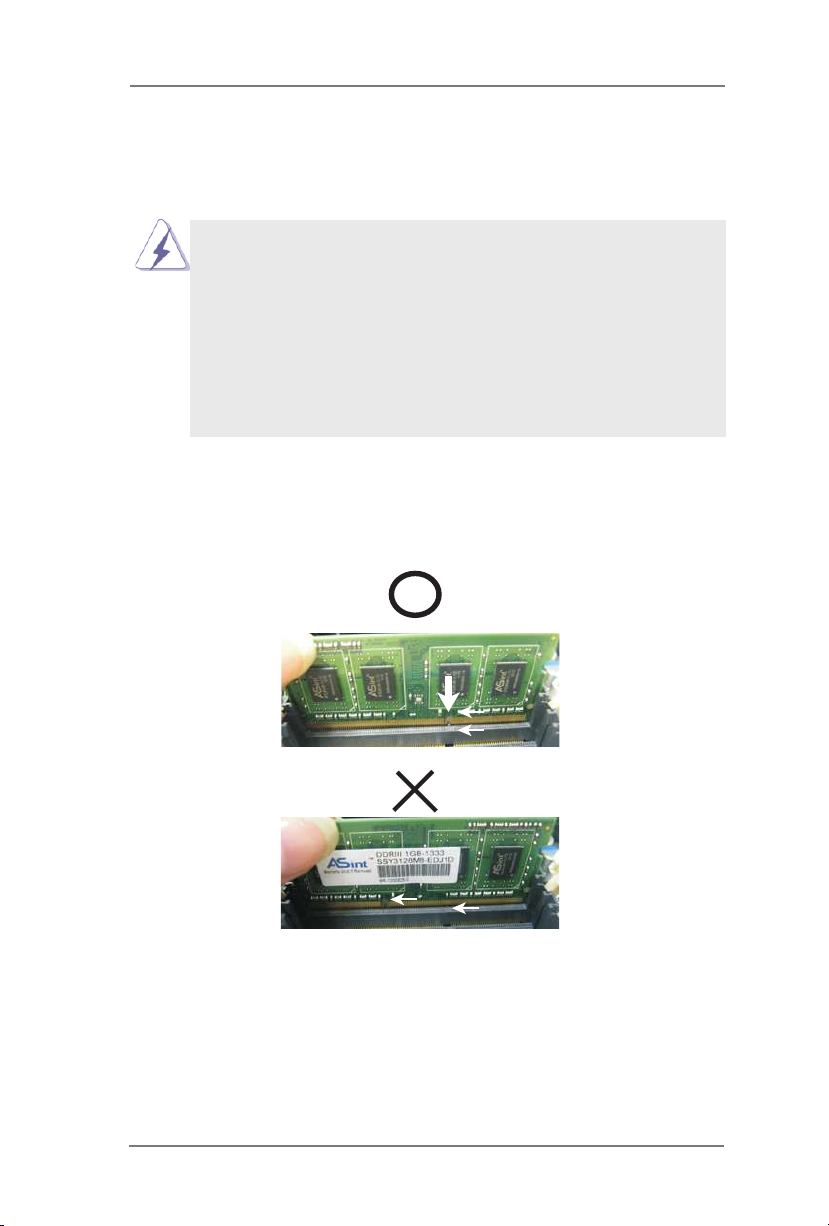

3. The SO-DIMM only ts in one correct orientation. It will cause
permanent damage to the motherboard and the SO-DIMM if you force
the SO-DIMM into the slot at incorrect orientation.
Installing a SO-DIMM (for DDR3_A1)
Step 1. Unlock a SO-DIMM slot by pressing the retaining clips outward.
Step 2. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
Step 3. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.
notch
break
notch break

13
Installing a SO-DIMM (for DDR3_B1)
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

14
2.4 Expansion Slots (PCI Slot and M.2 Sockets)
There is 1 PCI slot and 2 M.2 sockets on this motherboard.
PCI slot: The PCI slot is used to install expansion cards that have 32-bit PCI
interface.
M.2 sockets:

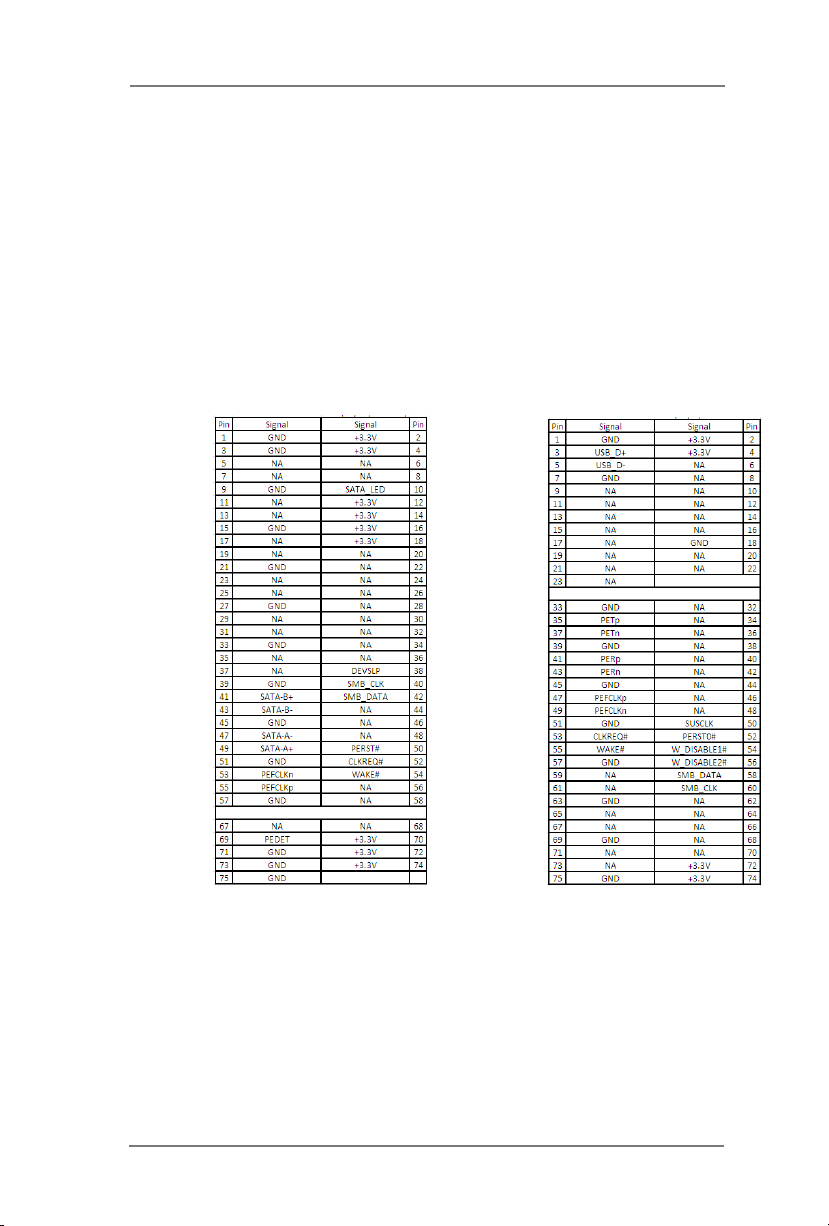

M.2 socket (Key-M) supports type 2242/2260/2280 M.2 SATA3 6.0 Gb/s
module.
M.2 socket (Key-E) supports type 2230 WiFi/BT module.
M.2 Key-E Socket:M.2 Key-M Socket:

15
M.2 Key-E Socket:
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

16

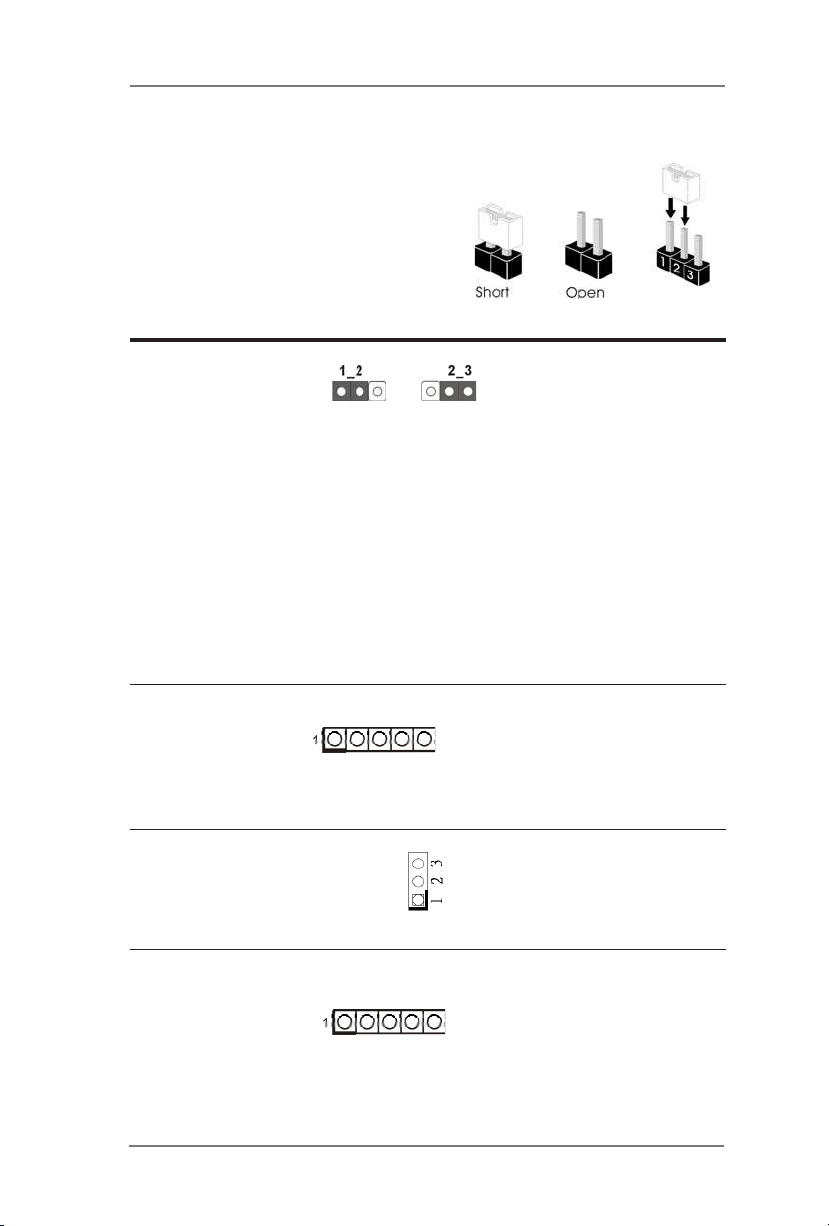

2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper
(CLRCMOS1)
(see p.8, No. 21)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time, user default prole and MAC
address will be cleared only if the CMOS battery is removed.
Clear CMOSDefault
Panel Power Select (LCD_VCC) Use this to set up the VDD
(5-pin PNL_PWR1) power of the LVDS connector.
(see p.8 No. 5) 1-2: LVDD: +3V
2-3: LVDD: +5V
4-5: LVDD: +12V
Digital Input / Output Power Select (JGPIOPWR) 1-2: +12V
(5-pin JGPIO_PWR1) 2-3: +5V
(see p.8 No. 17) 3-4: +5V
4-5: GND
ATX/AT Mode Select 1-2: AT Mode
(3-pin PWR_JP1) 2-3: ATX Mode
(see p.8 No. 19)

17
Backlight Power Select Use this to set up the backlight
(LCD_BLT_VCC) power of the LVDS connector
(5-pin BKT_PWR1) and the panel backlight power
(see p.8 No. 4) of BLT_PWM1.
1-2: LCD_BLT_VCC: +5V
2-3: LCD_BLT_VCC: +12V
4-5: LCD_BLT_VCC: DC_IN
Backlight Control Level (CON_LBKLT_CTL) 1-2: +3V
(3-pin BLT_PWM1) 2-3: +5V
(see p.8, No. 26)
COM Port PWR Setting Jumpers 1-2: +5V
(5-pin PWR_COM1, for COM Port1) 2-3: +12V
(see p.8, No. 1) 3-4: +12V
4-5: +5VSB
(3-pin PWR_COM2, for COM Port2) 1-2: +5V
(3-pin PWR_COM3, for COM Port3) 2-3: +12V
(see p.8, No. 1)
(3-pin PWR_COM4, for COM Port4) 1-2: +5V
(3-pin PWR_COM5, for COM Port5) 2-3: +12V
(3-pin PWR_COM6, for COM Port6)
(see p.8, No. 15)
USB Select Open: USB2.0 Connector
(2-pin USB_SEL1) Close: M.2 (Key-E) Slot Function
(see p.8, No. 11)
1
1
USB2_2_3
USB_SEL1
Digital Input / Output Default Value Setting 1-2: Pull-High
(3-pin JGPIO_SEL1) 2-3: Pull-Low
(see p.8, No. 22)

18
BL1, BL2
(2-pin BL1)
Open : Protect LCD_BLT_VCC
(see p.8 No. 2) Short : No Protect LCD_BLT_VCC
(2-pin BL2)
Open : Protect LCD_VCC
(see p.8 No. 2) Short : No Protect LCD_VCC
Chassis Intrusion Headers This motherboard supports
(2-pin CI1: see p.8, No. 20) CASE OPEN detection feature
(2-pin CI2: see p.8, No. 20) that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
CI1 :
Close : Active Case Open
Open : Normal
CI2 :
Close : Normal
Open : Active Case Open
1
Signal
GND

19
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!

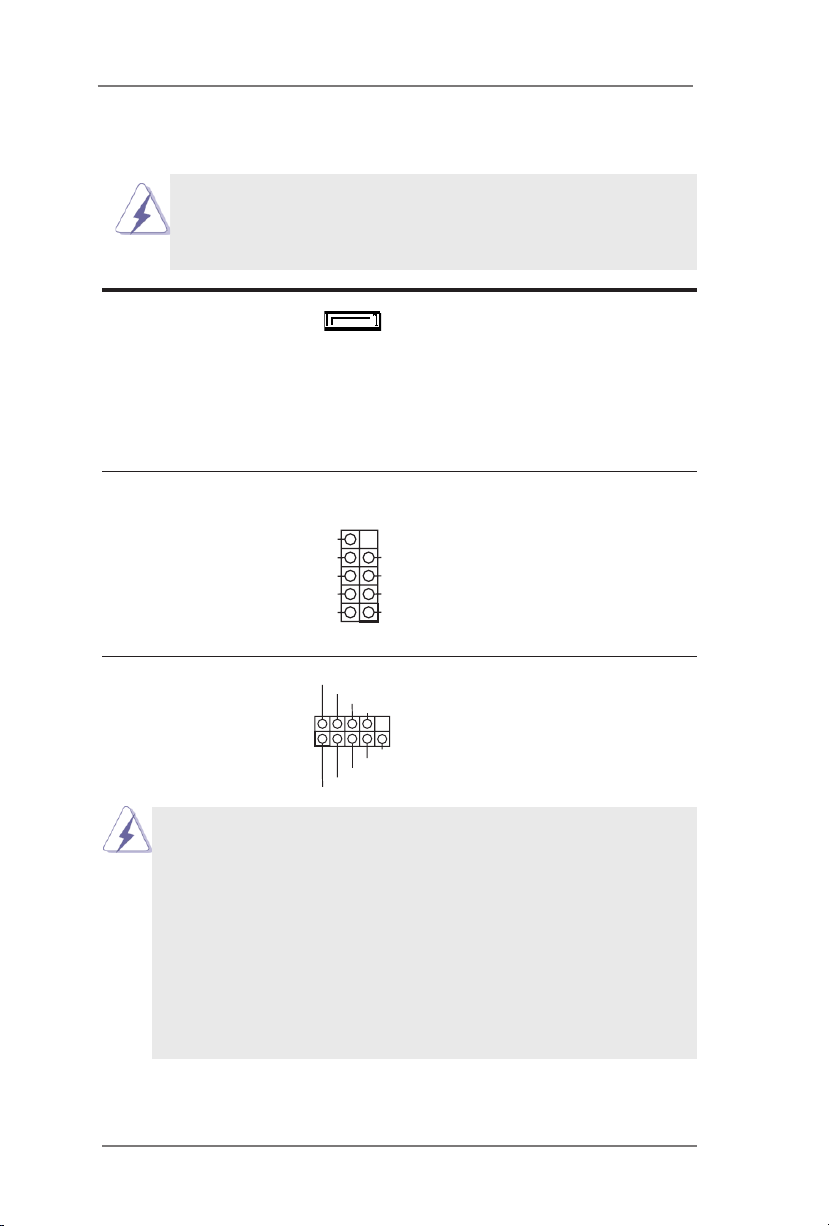

SATA2 Connector This Serial ATA2
(SATA2_1: see p.8, No. 7) (SATA2) connector supports
SATA data cables for internal
storage devices. The current
SATA2 interface allows up to
3.0 Gb/s data transfer rate.
USB 2.0 Connectors There are three USB 2.0
(9-pin USB2_2_3, USB2_4_5, USB2_6_7) connectors on this
(see p.8 No. 12) motherboard. Each USB 2.0
connector can support two USB
ports.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8 No. 13) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
SATA2_1
DUMMY
GND GND
+B
-B
+A
-A
USB_PWR USB_PW
R
1
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND

20
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep
state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.

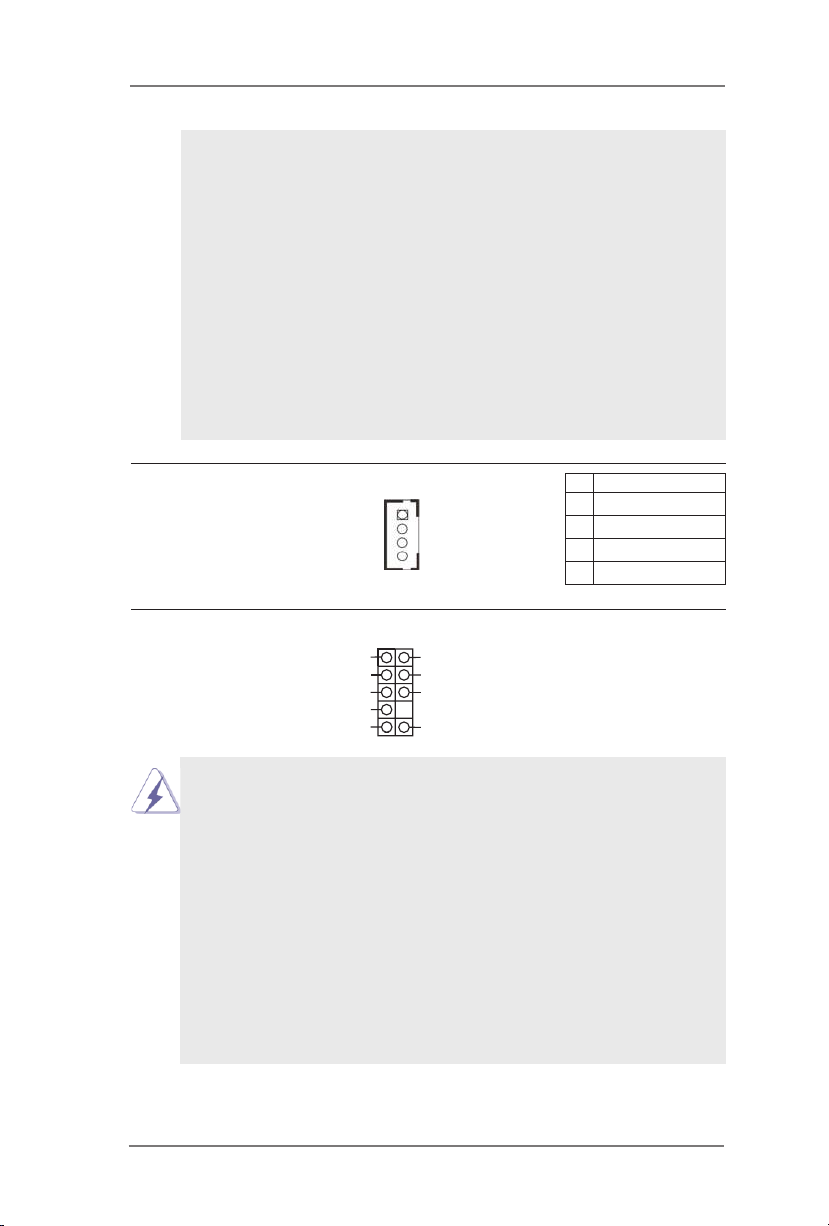

3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 24)
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 25) convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
1PIN Signal Name
1 OUTLN
2 OUTLP
3 OUTRP
4 OUTRN
MIC2_R
GND
OUT2_R
J_SENSE
MIC_RET
OUT_RET
MIC2_L
1
PRESENCE#
OUT2_L
