ASROCK IMB-1710 User manual

1
IMB-1710
User Manual
Version 1.0
Published November 2018
Copyright©2018 ASRock INC. All rights reserved.

2
Version 1.0
Published November 2018
Copyright©2018 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

3
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 8

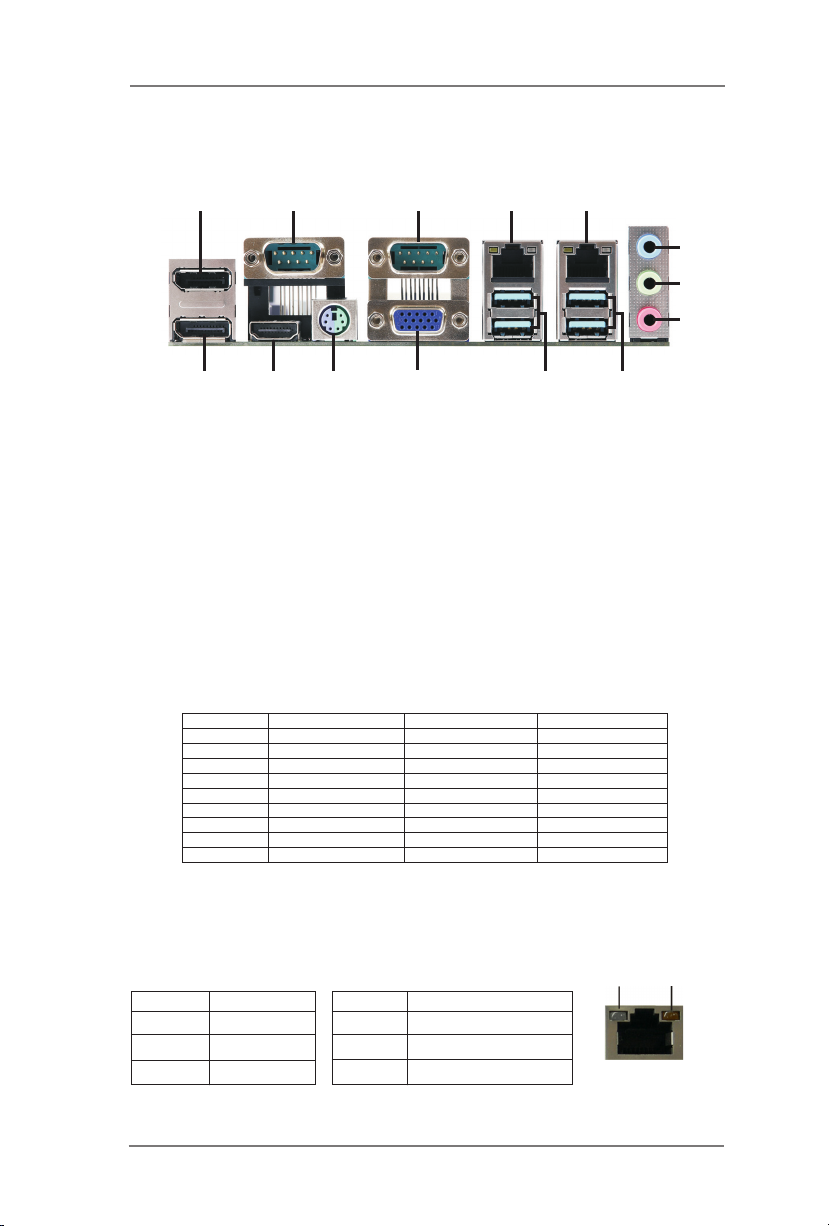

1.4 I/O Panel........................................................................ 10
2 Installation ......................................................... 11
2.1 Screw Holes................................................................... 11
2.2 Pre-installation Precautions ........................................... 11

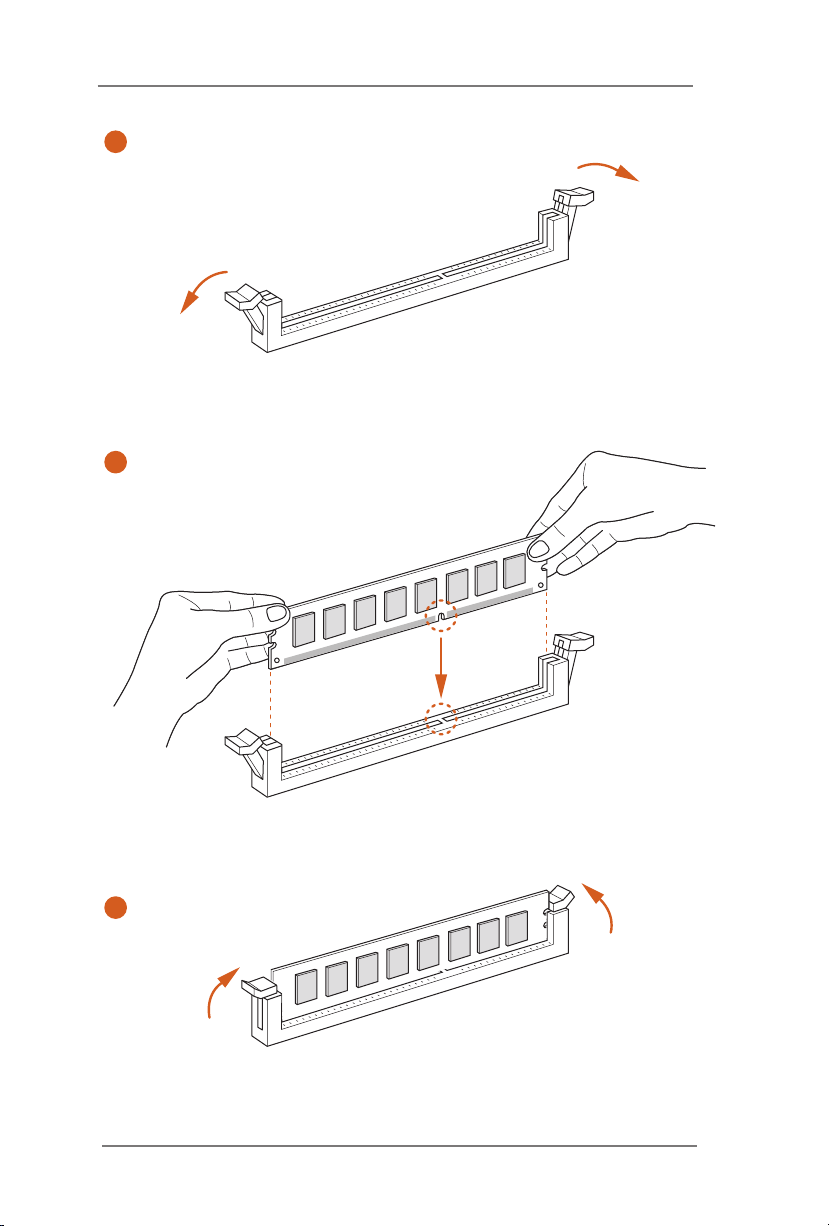

2.3 Installation of Memory Modules (DIMM) ........................ 12
2.4 Expansion Slots ............................................................ 14

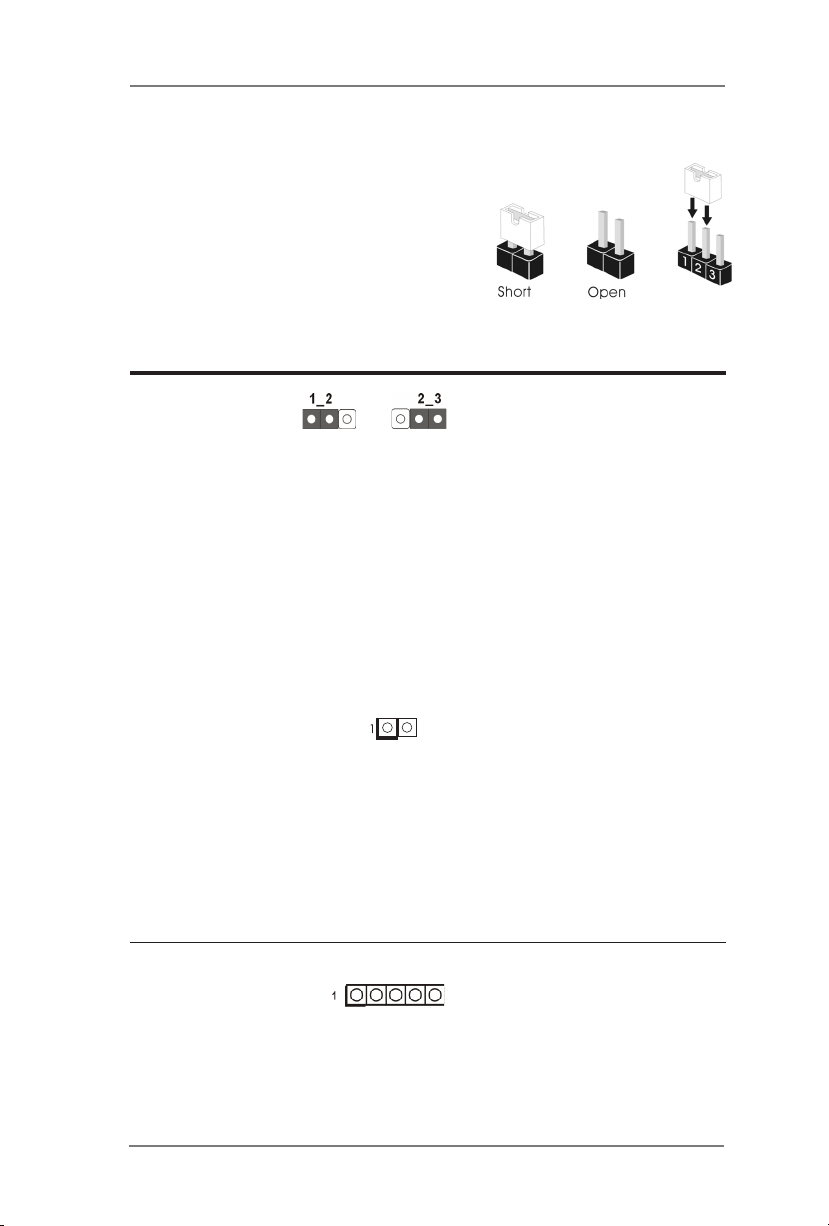

2.5 Jumpers Setup............................................................... 16
2.6 Onboard Headers and Connectors................................ 19
3 UEFI SETUP UTILITY......................................... 24
3.1 Introduction .................................................................... 24
3.1.1 UEFI Menu Bar .................................................... 24
3.1.2 Navigation Keys ................................................... 25
3.2 Main Screen................................................................... 25
3.3 Advanced Screen........................................................... 26
3.3.1 CPU Conguration ............................................... 27
3.3.2 Chipset Conguration........................................... 29
3.3.3 Storage Conguration .......................................... 31
3.3.4 Super IO Conguration ........................................ 32
3.3.5 AMT Conguration ............................................... 34
3.3.6 ACPI Conguration............................................... 36
3.3.7 USB Conguration ............................................... 37
3.3.8 Trusted Computing............................................... 38
3.4 Hardware Health Event Monitoring Screen ................... 39
3.5 Security Screen ............................................................. 40
3.6 Boot Screen ................................................................... 41
3.7 Exit Screen .................................................................... 43
4 Software Support .............................................. 44
4.1 Install Operating System................................................ 44
4.2 Support CD Information ................................................. 44
4.2.1 Running Support CD............................................ 44
4.2.2 Drivers Menu........................................................ 44
4.2.3 Utilities Menu........................................................ 44
4.2.4 Contact Information.............................................. 44

5
Chapter 1: Introduction
Thank you for purchasing ASRock IMB-1710 motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality and
endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRock website without further notice. You may nd
the latest VGA cards and CPU support lists on ASRock website as well.
ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock IMB-1710 Motherboard (ATX (12-in x 9.6-in))
ASRock IMB-1710 Driver CD
ASRock IMB-1710 Jumper setting instruction
1 x I/O Panel Shield

6
1.2 Specications
Form
Factor Dimensions ATX (12-in x 9.6-in)
Processor
System
CPU Socket LGA 1151 for Intel®Core i7/i5/i3/Celeron
(Supports up to 95W)
Chipset Intel®Q370
Expansion
Slot
PCIe 1 x PCIe x16 (Suppot x16/x8/x4 switch), 1 x
PCIe x 8, 3 x PCIe x4, 2 x PCIe x1
Mini-PCIe 1 x Full/Half with PCIe x1 and USB 2.0
M.2
1 x M.2 (Key E, 2230) with PCIe x1, CNVI and
USB2.0 for Wireless
1 x M.2 (Key M, 2242/2260/2280) with PCIe x4
and shared SATA3 for SSD
Memory
Technology Dual Channel DDR4 2400/2666 MHz
Max.
128GB*
* Intel®Core i9/i7/i5 CPUs support up to 128GB
(32GB per DIMM)
Intel®Core i3/Pentium®/Celeron®CPUs support
up to 64GB (16GB per DIMM)
Socket 4 x LONG-DIMM
Graphics
VGA Max resolution up to 1920x1200 @60Hz
DVI N/A
LVDS N/A
eDP N/A
HDMI Max resolution up to 4096x2160 @24Hz
DisplayPort Max resolution up to 4096x2304 @60Hz
Multi Display Triple Display
Ethernet Ethernet 10/100/1000 Mbps
Controller 1 x Intel I210, 1 x Intel I219LM
Rear I/O
VGA 1
DVI N/A
HDMI 1
DisplayPort 2
Ethernet 2
USB 4 x USB3.1
Serial 2 x COM (RS-232/422/485)
Audio Jack 3 (Mic-in, Line-out, Line-in)
PS/2 1 x PS/2 Combo

7
Internal
Connector
USB 2 x USB3.1, 6 x USB2.0
LVDS N/A
eDP N/A
VGA N/A
Serial 8 x COM (RS-232)
SATA 6 x SATA3 (6.0Gb/s), one is shared with M.2
GPIO 8 x GPI, 8 x GPO
Speaker
Header 1
TPM 1 x Onboard IC
Watchdog
Timer
Output From super I/O to drag RESETCON#
Interval 256 Segments, 0,1, 2…255 Sec
Power
Requirements
Input PWR ATX PWR 24+8-pin
Power On
AT/ATX Supported
AT: Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power
input ready
Environment
Operating
Temp 0ºC – 60ºC
Storage
Temp -40ºC – 85ºC

8

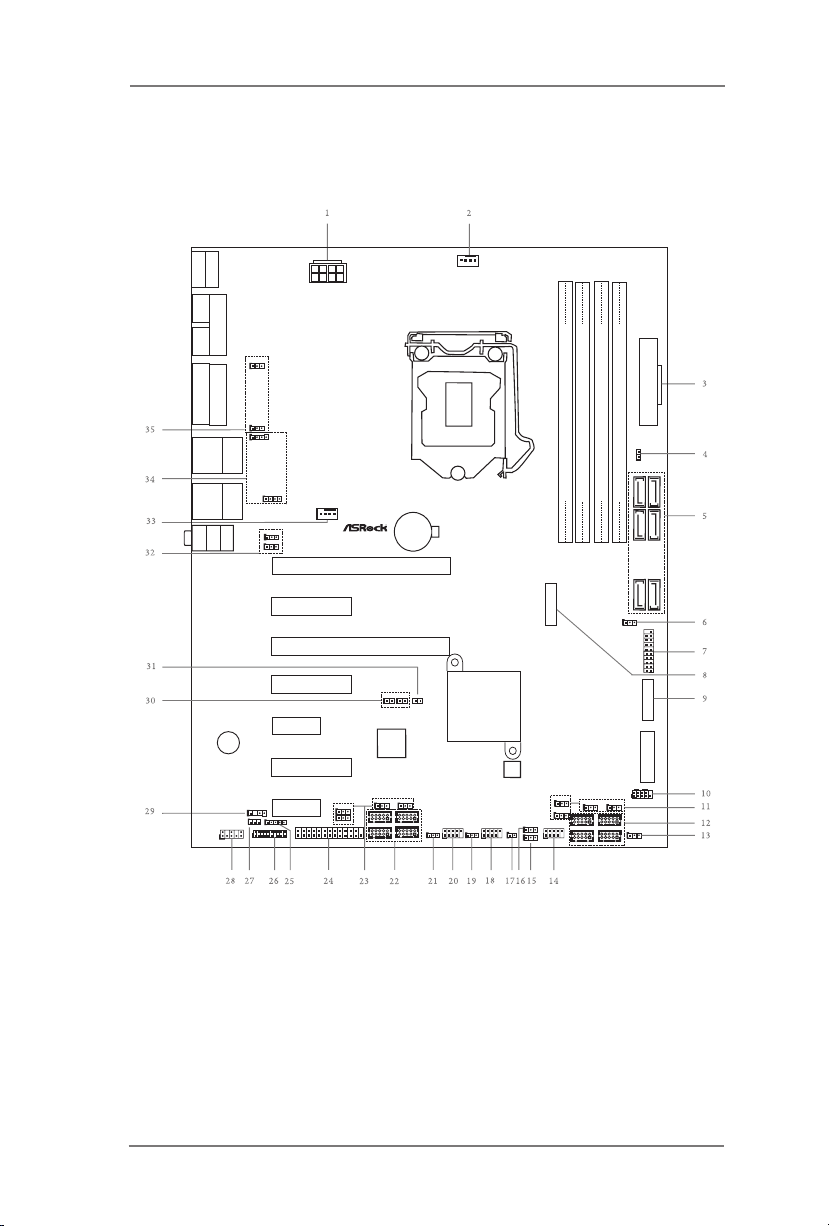

1.3 Motherboard Layout
ATXPWR1
PCIE1
PCIE2
1
HD_AUDIO1
CMOS
Battery
HDLED RESET
PLED PWRBTN
PANEL1
1
Super
I/O
SATA3_5
SATA3_3
SATA3_4 SATA3_6
CPU_FAN1
CI2
1
CI1
Top:
LAN2
USB 3. 0
T: USB1
B: USB 2
BUZZ1
Top:
Line I n
Center:
Line Out
Bottom:
Mic In
IMB-1710
ATX1 2V 1
LPC1
1
Industrial
BIO S
ROM
1
PWR_COM1
1
PWR_LOSS1
CHA_FAN1
1
LPT_GPIO1
USB2_9_10
1
JGPIO_SET1
1
1
JGPIO_PWR1
1
COM1
PS2
Keyboard
/Mouse
Top:
LAN1
USB 3. 0
T: USB3
B: USB 4
DP
DP
COM8
1
COM10
1
M.2 SS D ( )M2_1
DDR4_A1 (64 bit, 288-pin module)
DDR4_ B1 (6 4 bit, 288- pin m odule)
SPDIF1
1
PCIE3
PCIE4
PCIE6
PCIE5
PCIE7
DDR4_ A2 (6 4 bit, 288- pin m odule)
DDR4_B2 (64 bit, 288-pin module)
HDMI2
COM2
VGA1
1
PWR_COM2
LAN_LED1
1
LAN_LED2
1
1
USB3_PWR2
1
USB3_PWR1
SATA3_1
SATA3_2
1
USB3_PWR3
1
M.2 WiFi ( )M2_2
mini-PCIe
1
PWR_JP1
1
PWR_COM10
1
PWR_COM8
1
PWR_COM9
1
PWR_COM7
COM7
1
COM9
1
USB2_7_8
1
USB2_5_6
1
1
USB2_PWR3
1
CLRMOS1
1
CLRMOS2
USB2_PWR2
1
USB2_PWR1
1
COM4
1
COM6
1
1
PWR_COM5
1
PWR_COM6
COM3
1
COM5
1
SIO_AT 1
1
1
PWR_COM4
1
PWR_COM3
USB3_11_12

9
1 : ATX 12V Power Connector
2 : CPU FAN Connector (+12V)
3 : 24-pin ATX Power Input Connector
4 : PWR LOSS Header (PWR_LOSS1)
5 : SATA3 Connectors (SATA3_1 ~ SATA3_6)
6 : USB Power Setting Jumper (USB3_PWR3 (For USB3_5_6))
7 : USB 3.0 Header ( USB3_11_12)
8 : M.2 Key-M Socket (M2_1)
9 : M.2 Key-E Socket (M2_2)
10 : System Panel Header
11 : COM Port Pin9 PWR Setting Jumpers
PWR_COM7 (For COM Port7)
PWR_COM8 (For COM Port8)
PWR_COM9 (For COM Port9)
PWR_COM10 (For COM Port10)
12 : COM Port Headers (COM7, 8, 9, 10) (RS232)
13 : ATX/AT Mode Jumper (PWR_JP1)
14 : USB 2.0 Header (USB2_9_10)
15 : Clear CMOS Header (CLRMOS1)
16 : USB Power Setting Jumper (USB2_PWR3 (For USB2_9_10))
17 : Clear CMOS Header (CLRMOS2)
18 : USB 2.0 Header (USB2_7_8)
19 : USB Power Setting Jumper (USB2_PWR2 (For USB2_7_8))
20 : USB 2.0 Header (USB2_5_6)
21 : USB Power Setting Jumper (USB2_PWR1 (For USB2_5_6))
22 : COM Port Headers (COM3, 4, 5, 6) (RS232)
23 : COM Port Pin9 PWR Setting Jumpers
PWR_COM3 (For COM Port3)
PWR_COM4 (For COM Port4)
PWR_COM5 (For COM Port5)
PWR_COM6 (For COM Port6)
24 : Printer Port / GPIO Header (LPT_GPIO1)
25 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)
26 : LPC Header
27 : Digital Input / Output Default Value Setting (JGPIO_SET1)
28 : Front Panel Audio Header
29 : SPDIF Header
30 : Chassis Intrusion Headers (CI1, CI2)
31 : ATX/AT Mode Jumper (SIO_AT1)
32 : USB Power Setting Jumpers
USB3_PWR1 (For USB3_1_2)
USB3_PWR2 (For USB3_3_4)
33 : Chassis FAN Connector (+12V)
34 : LAN LED Headers
LAN_LED1 (For LAN1 Port)
LAN_LED2 (For LAN2 Port)
35 : COM Port Pin9 PWR Setting Jumpers
PWR_COM1 (For COM Port1)
PWR_COM2 (For COM Port2)

10
1.4 I/O Panel
1 DisplayPort (DP1)
2 COM Port (COM1) (RS232/422/485)*
3 COM Port (COM2) (RS232/422/485)*
4 LAN RJ-45 Port**
5 LAN RJ-45 Port**
6 Line In (Light Blue)
7 Line Out (Lime)
8 Microphone (Pink)
9 USB 3.1 Ports
10 USB 3.1 Ports
11 D-Sub Port (VGA1)
12 PS/2 Keyboard/Mouse Port
13 HDMI Port (HDMI1)
14 DisplayPort (DP2)
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
* This motherboard supports RS232/422/485 on COM1, 2 ports. Please refer to below table for
the pin denition. In addition, COM1, 2 ports (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to our user manual
for details.
COM1, 2 Port Pin Denition
PIN RS232 RS422 RS485
1 DCD, Data Carrier Detect TX- RTX-
2 RXD, Receive Data RX+ N/A
3 TXD, Transmit Data TX+ RTX+
4 DTR, Data Terminal Ready RX- N/A
5 GND GND GND
6 DSR, Data Set Ready N/A N/A
7 RTS, Request To Send N/A N/A
8 CTS, Clear To Send N/A N/A
9 No Power/5V/12V N/A N/A
6
124 35
8
7
13 12 10 11 9 14

11
Chapter 2: Installation
This is an ATX form factor (12” x 9.6”) motherboard. Before you install the mother-
board, study the conguration of your chassis to ensure that the motherboard ts
into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (DIMM)
This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM
slots, and supports Dual Channel Memory Technology.
The DIMM only ts in one correct orientation. It will cause permanent dam-
age to the motherboard and the DIMM if you force the DIMM into the slot at
incorrect orientation.
1. For dual channel conguration, you always need to install identical (the
same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or
three memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a
DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

13
1
2
3

14
2.4 Expansion Slots
There are 1 mini-PCIe slot, 7 PCI Express slots and 2 M.2 sockets on this mother-
board.
mini-PCIe slot:
MINI_PCIE1 (mini-PCIe slot; half size) is used for PCI Express mini
cards.
PCIE slots:
PCIE1 (PCIE x16 slot) is used for PCI Express x16 lane width cards.
PCIE2 (PCIE x4 slot) is used for PCI Express x4 lane width cards.
PCIE3 (PCIE x16 slot) is used for PCI Express x8 lane width cards.
PCIE4 (PCIE x4 slot) is used for PCI Express x4 lane width cards.
PCIE5 (PCIE x1 slot) is used for PCI Express x1 lane width cards.
PCIE6 (PCIE x4 slot) is used for PCI Express x4 lane width cards.
PCIE7 (PCIE x1 slot) is used for PCI Express x1 lane width cards.
* PCIE2 and PCIE3 are shared with PCIE1.
M.2 socket:
1 x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless.
1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and shared SATA3 for
SSD.

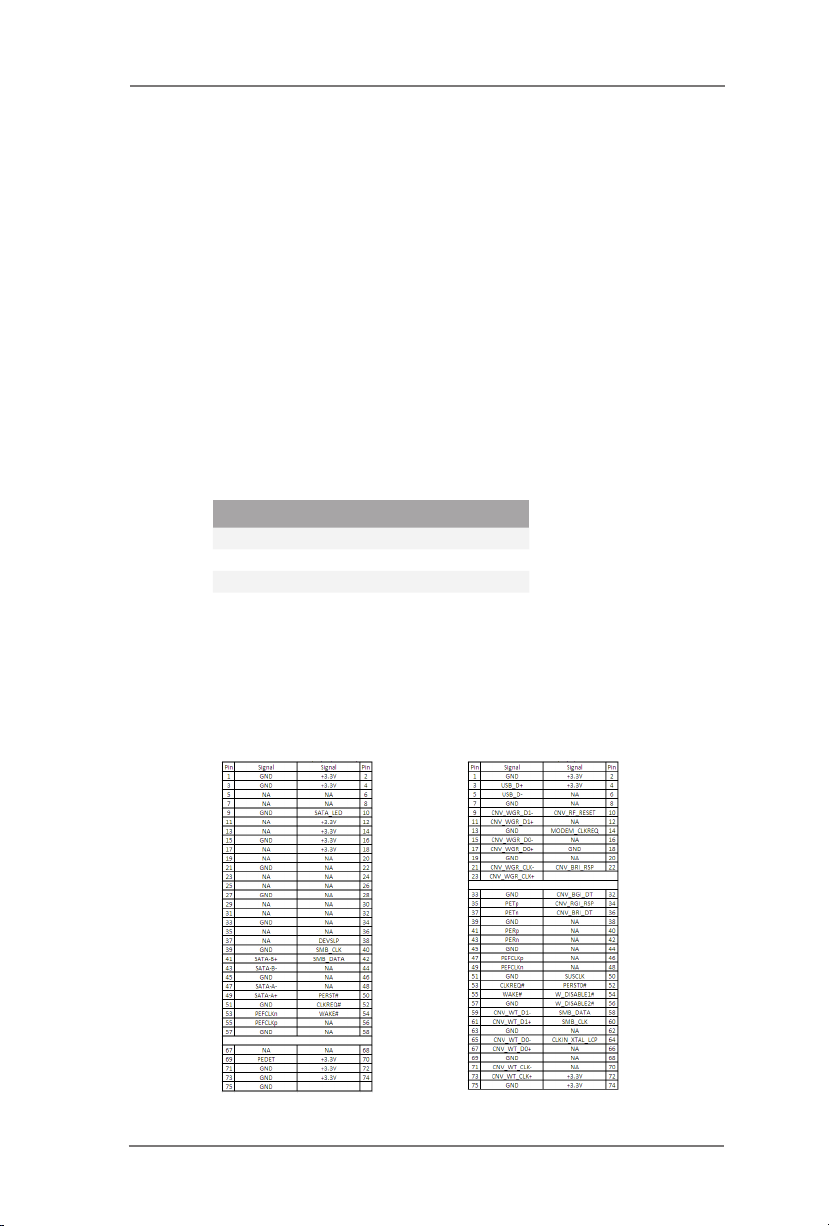

M.2 Key-M Socket (M2_1) M.2 Key-E Socket (M2_2)
3 OPTIONS FOR PCIE SLOT 1~3
Slot1 x16 x8 x8
Slot2 0 0 x4
Slot3 0 x8 x4

15
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched o󰀨 or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

16
2.5 Jumpers Setup
The illustration shows how jumpers are setup.
When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap is
placed on pins, the jumper is “Open”. The illus-
tration shows a 3-pin jumper whose pin1 and
pin2 are “Short” when jumper cap is placed on
these 2 pins.
Jumper Setting Description
Clear CMOS Jumpers CLRMOS1
:
(3-pin CLRMOS1)
1-2 : Normal
(see p.8, No. 15)
2-3 : Clear CMOS
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug the
power cord from the power supply. After waiting for 15 seconds, use a jumper cap
to short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear
the CMOS right after you update the BIOS. If you need to clear the CMOS when
you just nish updating the BIOS, you must boot up the system rst, and then shut
it down before you do the clear-CMOS action. Please be noted that the password,
date, time, user default prole and MAC address will be cleared only if the CMOS
battery is removed.
(2-pin CLRMOS2)
CLRMOS2
:
(see p.8, No. 17)
Open : Normal
Short : Auto Clear CMOS (Power O󰀨)
Note: CLRMOS2 allows you to clear the data in CMOS automatically when AC power
on. The data in CMOS includes system setup information such as system pass-
word, date, time, and system setup parameters. To clear and reset the system
parameters to default setup, please turn o󰀨 the computer and unplug the power
cord, then use a jumper cap to short the pins on CLRMOS2.
Digital Input / Output Power Select (JGPIOPWR) 1-2 : +12V
(5-pin JGPIO_PWR1)
2-3 : +5V
(see p.8, No. 25)
3-4 : +5V
4-5: GND
Clear CMOSDefault

17

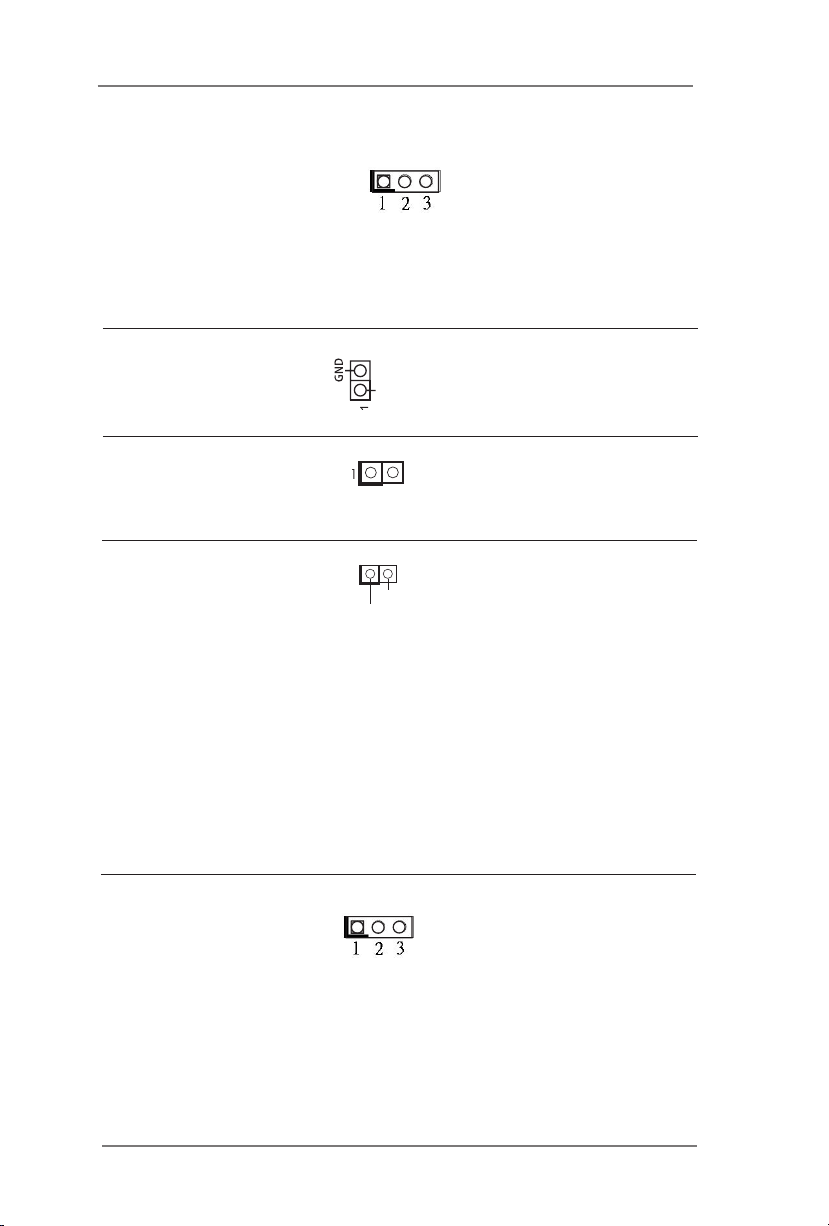

COM Port Pin9 PWR Setting Jumpers 1-2 : +5V
(3-pin PWR_COM7~10 (For COM Port7~10))
2-3 : +12V
(see p.8, No. 11)
(3-pin PWR_COM3~6 (For COM Port3~6))
(see p.8, No. 23)
(3-pin PWR_COM1~2 (For COM Port1~2))
(see p.8, No. 35)
+5VSB_ATX
PWR LOSS Header Short : Power Loss
(2-pin PWR_LOSS1)
Open : no Power Loss
(see p.8, No. 14)
ATX/AT Mode Jumper Open : ATX Mode
(2-pin SIO_AT1)
Close : AT Mode
(see p.8, No. 31)
Chassis Intrusion Headers This motherboard supports
(2-pin CI1, CI2: see p.8, No. 30) CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
CI1 :
Close : Active Case Open
Open : Normal
CI2 :
Close : Normal
Open : Active Case Open
1
Signal
GND
Digital Input / Output Default Value Setting 1-2 : Pull-High
(3-pin JGPIO_SET1)
2-3 : Pull-Low
(see p.8, No. 27)

18

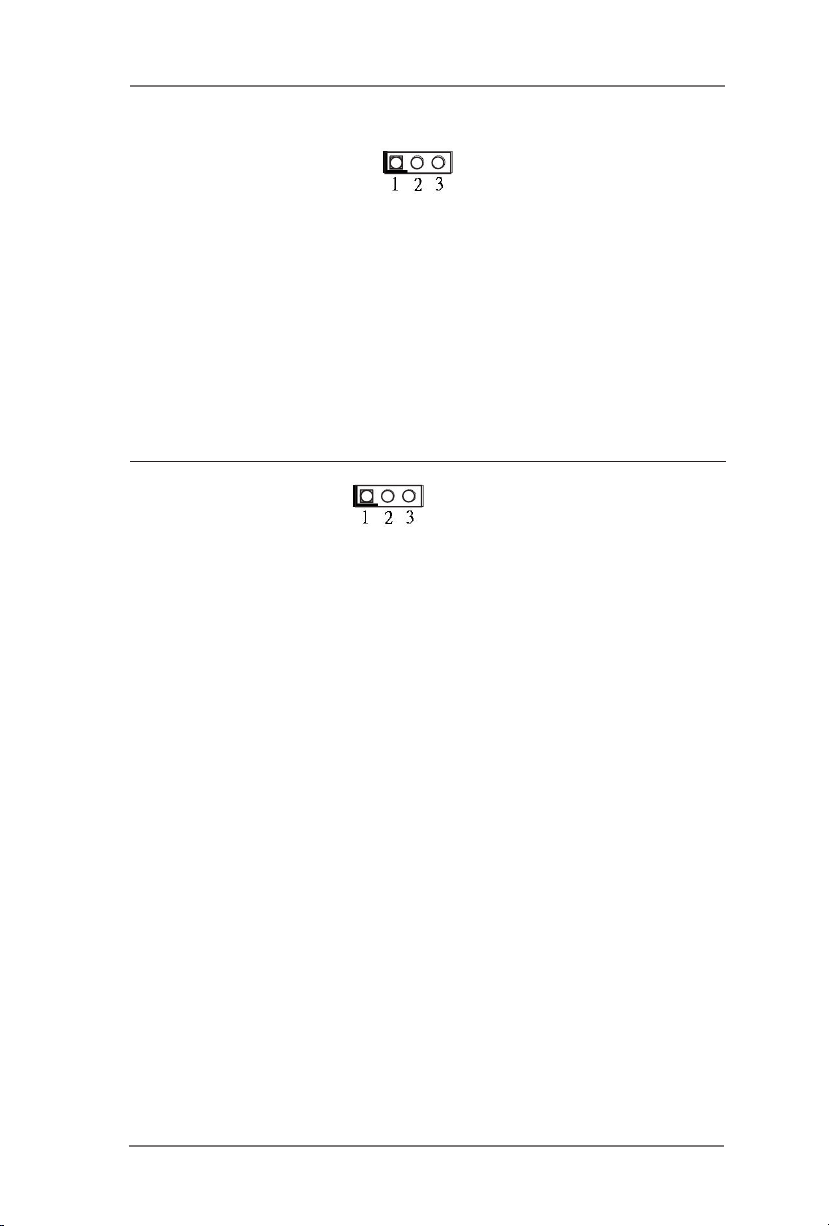

USB Power Setting Jumpers 1-2 : +5V
(3-pin USB3_PWR3 (For USB3_5_6),
2-3 : +5VSB
(see p.8, No. 6)
(3-pin USB2_PWR3 (For USB2_9_10),
(see p.8, No. 16)
(3-pin USB2_PWR2 (For USB2_7_8),
(see p.8, No. 19)
(3-pin USB2_PWR1 (For USB2_5_6),
(see p.8, No. 21)
(3-pin USB3_PWR1 (For USB3_1_2),
USB3_PWR2 (For USB3_3_4))
(see p.8, No. 32)
ATX/AT Mode Jumper 1-2 : AT Mode
(3-pin PWR_JP1)
2-3 : ATX Mode
(see p.8, No. 13)

19

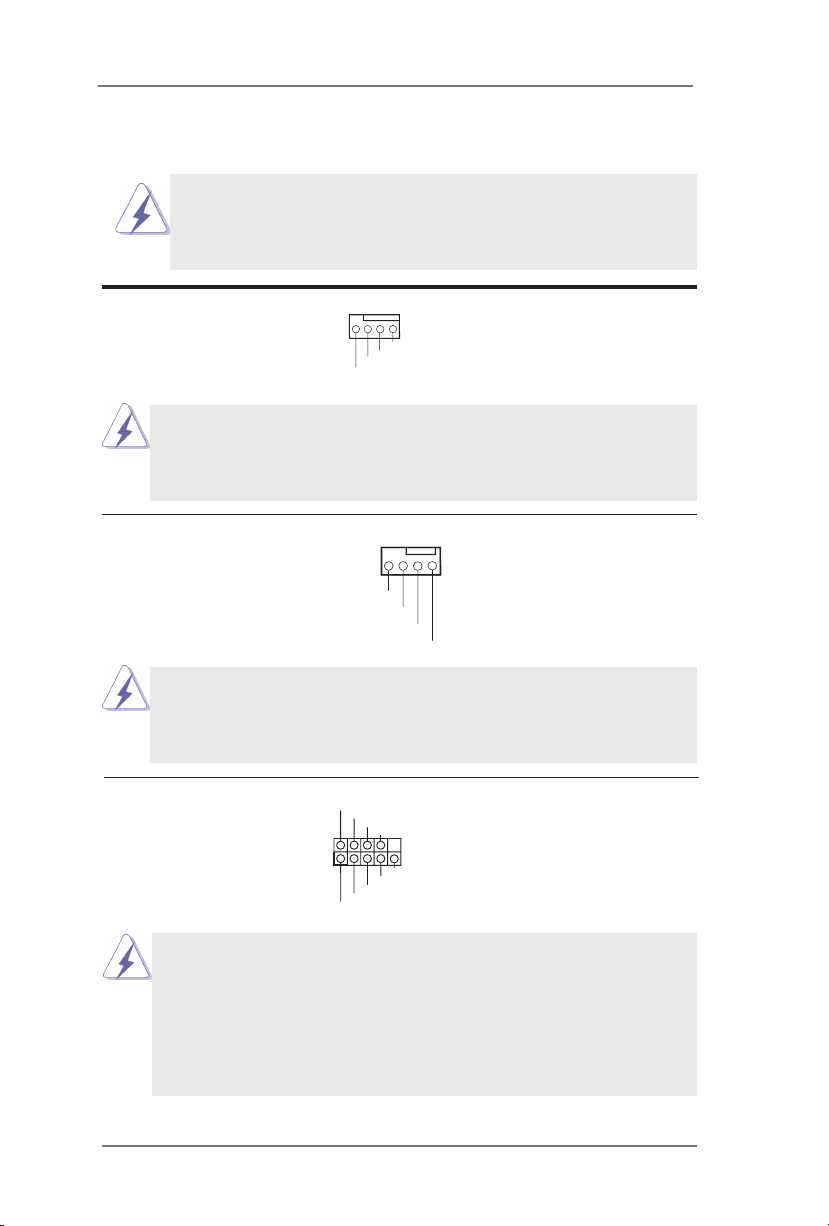

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.8 No. 2) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8, No. 10) functions.
Though this motherboard provides 4-Pin chassis fan (Quiet Fan) support,
the 3-Pin chassis fan still can work successfully even without the fan speed
control function. If you plan to connect the 3-Pin chassis fan to the chassis
fan connector on this motherboard, please connect it to Pin 1-3.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn o󰀨 your system using the power switch.
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
Chassis Fan Connector Please connect the fan cable
(4-pin CHA_FAN1) to the fan connector and
(see p.8 No. 33) match the black wire to the
ground pin.
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND

20
COM Port Headers (RS232)
(10-pin COM3~6: see p.8, No. 22)
(10-pin COM7~10: see p.8, No. 12)
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1/S3 sleep state. The LED is o󰀨 when the system is in S4 sleep
state or powered o󰀨 (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may di󰀨er by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
1
2
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name PIN Signal Name
10 N/A 8CCTS# 6DDSR# 4DDTR# 2RRXD
9+5V 7RRTS# 5GND 3TTXD 1DDCD#
SATA3 Connectors These six Serial ATA3 (SATA3)
(SATA3_1~6: see p.8, No. 5) connectors support SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
USB 2.0 Headers There are three headers on this
(9-pin USB2_9_10: see p.8, No. 14) motherboard. Each USB 2.0
(9-pin USB2_7_8: see p.8, No. 18) header can support two ports.
(9-pin USB2_5_6: see p.8, No. 20)
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA3_4 SATA3_3
SATA3_6 SATA3_5
SATA3_2 SATA3_1
