ASROCK IMB-192 User manual

1
IMB-192
User Manual
Version 1.0
Published July 2017
Copyright©2017 ASRock INC. All rights reserved.

2
Version 1.0
Published July 2017
Copyright©2017 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

3
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 8
1.4 I/O Panel........................................................................ 10
2 Installation ......................................................... 11
2.1 Screw Holes................................................................... 11
2.2 Pre-installation Precautions ........................................... 11
2.3 Installation of Memory Modules (SO-DIMM).................. 12
2.4 Expansion Slots ............................................................ 13
2.5 Jumpers Setup............................................................... 14
2.6 Onboard Headers and Connectors................................ 16
3 UEFI SETUP UTILITY......................................... 21
3.1 Introduction .................................................................... 21
3.1.1 UEFI Menu Bar .................................................... 21
3.1.2 Navigation Keys ................................................... 22
3.2 Main Screen................................................................... 22
3.3 Advanced Screen........................................................... 23
3.3.1 CPU Conguration ............................................... 24
3.3.2 Chipset Conguration........................................... 26
3.3.3 Storage Conguration .......................................... 28
3.3.4 Super IO Conguration ........................................ 29
3.3.5 ACPI Conguration............................................... 30
3.3.6 USB Conguration ............................................... 31
3.3.7 Trusted Computing............................................... 32
3.4 Hardware Health Event Monitoring Screen ................... 33
3.5 Security Screen ............................................................. 34
3.6 Boot Screen ................................................................... 35
3.7 Exit Screen .................................................................... 37
4 Software Support .............................................. 38
4.1 Install Operating System................................................ 38
4.2 Support CD Information ................................................. 38
4.2.1 Running Support CD ............................................ 38
4.2.2 Drivers Menu........................................................ 38
4.2.3 Utilities Menu........................................................ 38
4.2.4 Contact Information.............................................. 38

5
Chapter 1: Introduction
Thank you for purchasing ASRock IMB-192 motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality and
endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRock website without further notice. You may nd
the latest VGA cards and CPU support lists on ASRock website as well.
ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock IMB-192 Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRock IMB-192 Driver CD
ASRock IMB-192 Jumper setting instruction
1 x I/O Panel Shield

6
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU Socket LGA1151 for Intel®Core i7 / i5 / i3 /
Pentium®/ Celeron®(Skylake)
Core
Number (By CPU, Max 4)
Max Speed (By CPU)
L3 Cache (By CPU)
Chipset Intel®H110
BIOS UEFI
Expansion
Slot
PCIe 1 x PCI Express 3.0 x 4 Slot
Mini-PCIe 0
mSATA 0
M.2
1 x M.2 Socket (Key E), supports type 2230
WiFi/BT module
1 x M.2 Socket (Key M), supports type
2242/2260 (SATA only)
Memory
Technology Dual Channel DDR4 2133 MHz
Max. 32GB
Socket 2 x SO-DIMM
Graphics
Controller Intel®HD Graphics 510/530
VRAM Shared Memory
VGA Supports max resolution up to 1920x1200 @
60Hz
DVI No
LVDS Supports max resolution up to 1920 x
1200@60Hz @ 60Hz
HDMI Supports max resolution up to 4K x 2K
(4096x2160) @ 24Hz /(3840x2160) @ 30Hz
DisplayPort No
Multi Display Dual
Ethernet
Ethernet 10/100/1000 Mbps
Controller 1 x Intel®I219V
Connector 1 x RJ-45
SATA
Max Data
Transfer
Rate
SATA3 (6.0Gb/s)

7
Rear I/O
VGA 1
DVI 0
HDMI 1
DisplayPort 0
Ethernet 1
USB 4 x USB 3.0
Audio 2 (Mic-in, Line-out)
Serial 0
PS/2 0
Internal
Connector
USB 5 x USB 2.0 (2 x 2.54 pitch header, 1 x
Type A)
LVDS/
inverter 1/1
VGA 0
Serial 2 x 2.0 pitch header RS-232
SATA 2 x SATA3 (6.0Gb/s)
mPCIe 0
Parallel 0
mSATA 0
IrDA 0
GPIO 8-bit 0
SATA PWR
Output Con 1
Speaker
Header 1
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec/min
Power
Requirements
Input PWR 19V phone jack DC-In
Power On
AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power
input ready
Environment Temperature 0ºC – 60ºC

8
1.3 Motherboard Layout
Mic In
BIOS
Chip
1
USB2_1_2
1
HD_AUDIO1
CHA_FAN1
PCIE1
DC_JACK1
LVDS1
1
LPC1
1
CLRMOS1
1
USB 3.0
T: USB1
B: USB2
Line Out
TO_UPS1
1
BLT_CTL1
PANEL1
HDLED RESET
PLED PWRBTN
1
COM2 COM1
1
M2_2
SATA3_0 SATA3_1
LAN1
HDMI1
SPEAKER1
1
Industrial
1
BUZZ2
M2
VGA1
USB 3.0
T: USB3
B: USB4
1
MONITOR_SWITCH1
1
BL1
1
Bl2
SATA_POW1
1
PNL_PWR1
1
BKT_PWR1
PWR_COM1
1
1
1
USB2_4_5
SPDIF1
1
1
CI1
1
CI2
1
BKT_CON1
CPU_FAN1
1
PWR_JP1
1
CLRMOS2
IMB-192
13
12
11
13
24567810
16
17
15
18
21
22 19
20
23
24
25
26
28
29
27
14
9
1
PWR_COM2

9
1 : Clear CMOS Header
2 : 2-pin UPS Module Power Input Connector
3 : M.2 (Key-M)
4 : USB2.0 Header (USB2_1_2)
5 : USB2.0 Port
6 : 4-Pin Chassis FAN Connector (+12V)
7 : SATA3 Connectors (SATA3_0, SATA3_1)
8 : Monitor Switch Header
9 : SATA Power Output Connector
10 : Backlight Control (BLT_CTL1)
11 : System Panel Header
12 : BL1, BL2
13 : Panel Power Select (PNL_PWR1)
14 : Backlight Power Select (BKT_PWR1)
15 : LVDS Panel Connector
16 : COM Port Pin9 PWR Setting Jumpers
PWR_COM1 (For COM Port1)
PWR_COM2 (For COM Port2)
17 : COM Port Headers (COM1, COM2) (RS232)
18 : USB2.0 Header (USB2_4_5)
19 : 4-Pin CPU FAN Connector (+12V)
20 : Clear CMOS Jumper
21 : LPC Header
22 : ATX/AT Mode Jumper (PWR_JP1)
23 : Front Panel Audio Header
24 : Buzzer
25 : SPDIF Header
26 : 3W Audio AMP Output Wafer
27 : Chassis Intrusion Headers (CI1, CI2)
28 : M.2 (Key-E)
29 : Backlight Control Select (BKT_CON1)

10
1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1 DC Jack
2 D-Sub Port (VGA1)
3 USB 3.0 Ports (USB3_1_2)
4 HDMI Port (HDMI1)
5 LAN RJ-45 Port*
6 USB 3.0 Ports (USB3_3_4)
7 Microphone (Pink)
8 Line out (Lime)
6
124
358
7

11
Chapter 2: Installation
This is a Mini-ITX form factor (6.7” x 6.7”, 17.0 x 17.0 cm) motherboard. Before you
install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
IMB-192 provides two 204-pin DDR4 (Double Data Rate 4) SO-DIMM slots.

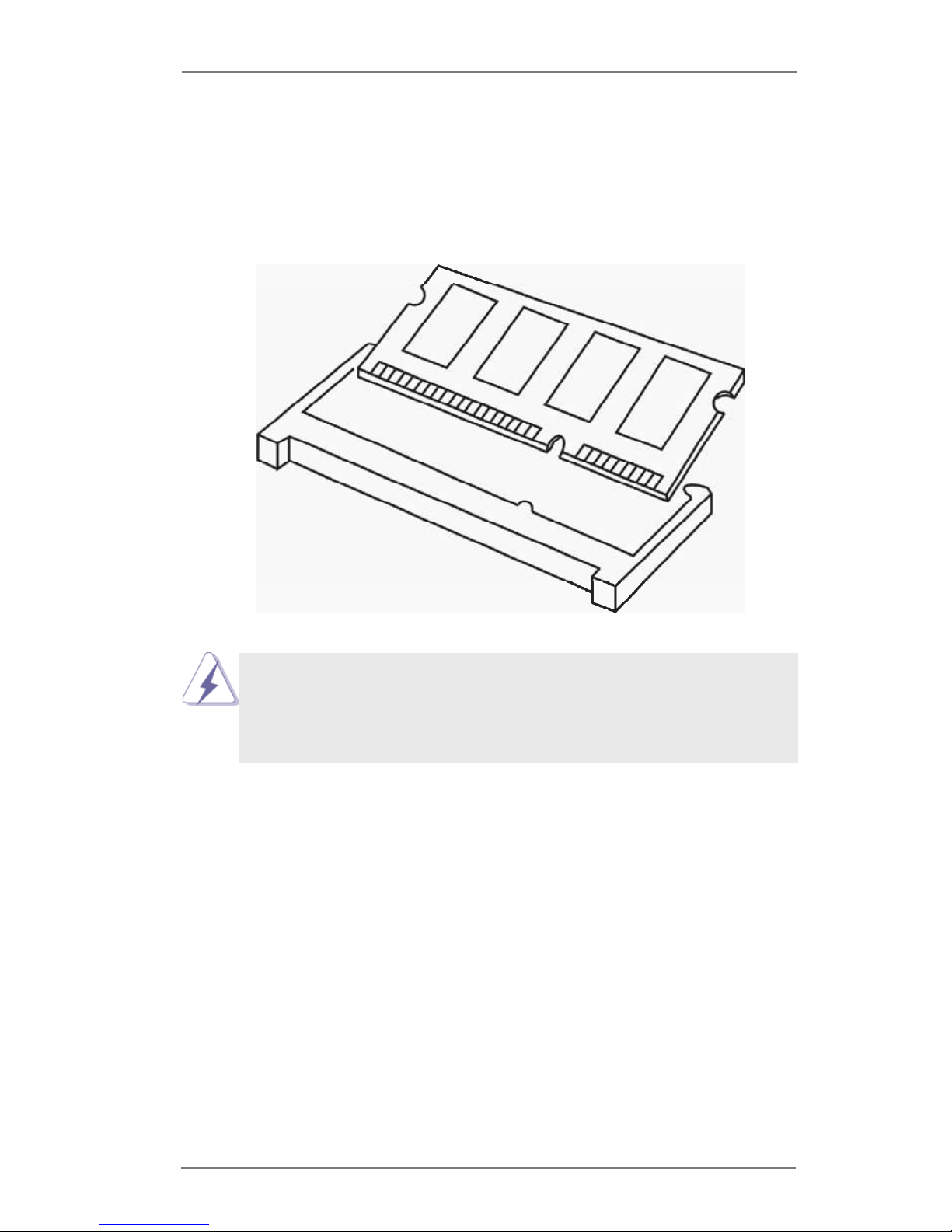

Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
1. The SO-DIMM only ts in one correct orientation. It will cause permanent damage
to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
2. Please do not intermix different voltage SO-DIMMs on this motherboard.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (PCIe and M.2 Slots)
There is 1 PCIe slot and 2 M.2 slots on this motherboard.
PCIe slot:
PCIE1 (PCIe 3.0 x 4 slot) is used for PCI Express x4 lane width cards.
M.2 slots:
M2 (Key E M.2 slot) supports type 2230 for WiFi + BT Module.
M2_2 (Key M M.2 slot) supports type 2242/2260 M.2 devices (SATA
only).
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

14
2.5 Jumpers Setup

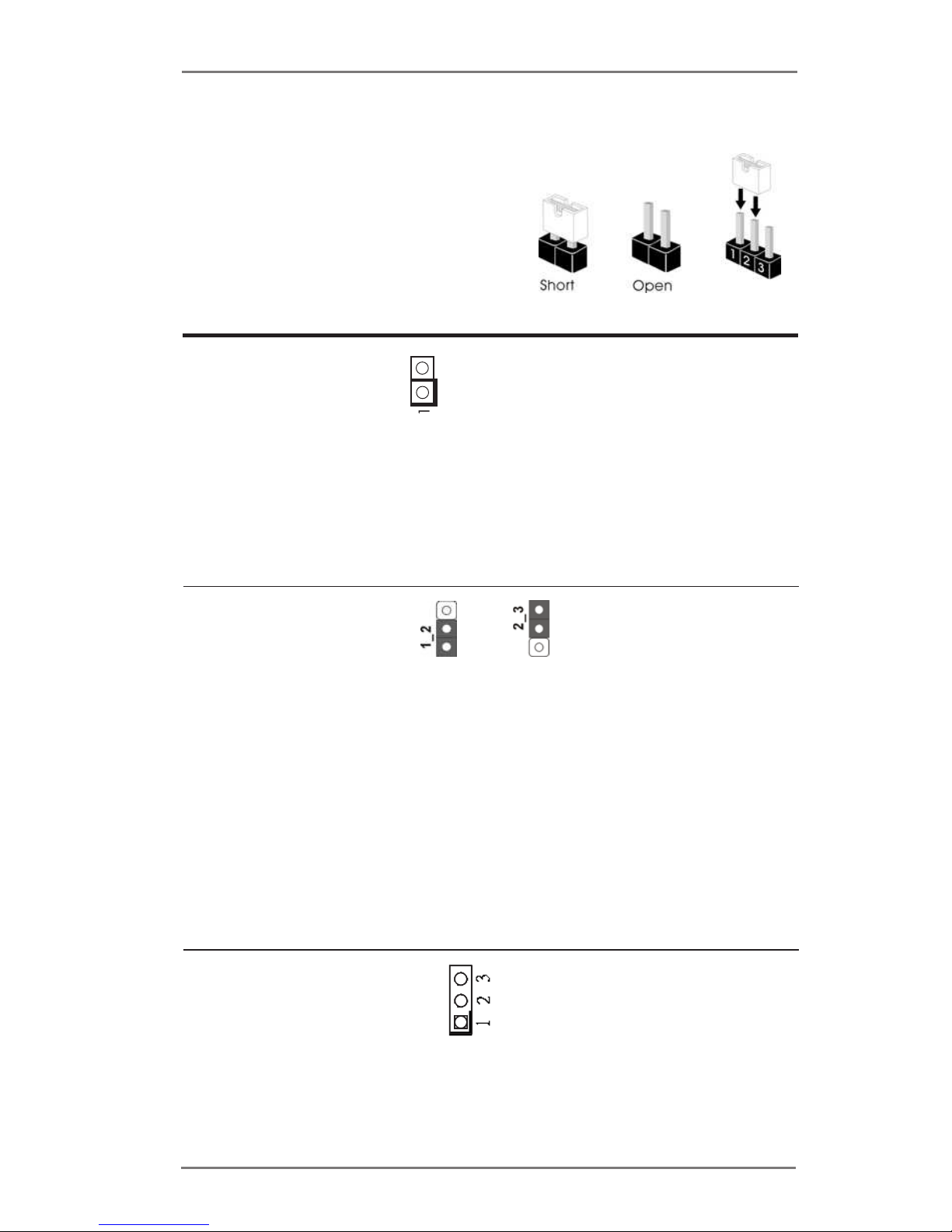

The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper Open: Normal
(2-pin CLRMOS2)
Short: Auto Clear CMOS (Power Off)
(see p.8, No. 20)
Note: CLRMOS2 allows you to clear the data in CMOS automatically when AC pow-
er on. The data in CMOS includes system setup information such as system
password, date, time, and system setup parameters. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord, then use a jumper cap to short the pins on CLRMOS2.
Clear CMOS Jumper
(3-pin CLRMOS1)
(see p.8, No. 1)
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time, user default prole and MAC
address will be cleared only if the CMOS battery is removed.
Clear CMOSDefault
AT/ATX Mode Select 1-2 : AT Mode
(3-pin PWR_JP1)
2-3 : ATX Mode
(see p.8, No. 22)

15
BL1, BL2 BL1 :
(2-pin BL1, BL2) Open : Protect LCD_BLT_VCC
(see p.8 No. 12) Short : No Protect LCD_BLT_VCC
BL2 :
Open : Protect LCD_VCC
Short : No Protect LCD_VCC
Backlight Control Select 1-2 : Control by PCH
(3-pin BKT_CON1)
2-3 : Control by CHRONTEL CH7511B
(see p.8, No. 29)
Backlight Power Select (LCD_BLT_VCC) 1-2 : +19V
(3-pin BKT_PWR1)
2-3 : +12V
(see p.8, No. 14)
COM Port Pin9 PWR Setting Jumpers 1-2 : +5V
(3-pin PWR_COM1 (For COM Port1))
2-3 : +12V
(see p.8, No. 16)
(3-pin PWR_COM2 (For COM Port2))
(see p.8, No. 16)
Panel Power Select 1-2 : +3V
(3-pin PNL_PWR1)
2-3 : +5V
(see p.8, No. 13)

16
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
Chassis Intrusion Headers This motherboard supports
(2-pin CI1, CI2: see p.8, No. 27) CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
CI1 :
Close : Active Case Open
Open : Normal
CI2 :
Close : Normal
Open : Active Case Open
SATA3 Connectors These two Serial ATA3
(SATA3_0, SATA3_1: see p.8, No. 7) (SATA3) connectors support
SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
SATA3_0 SATA3_1
CPU Fan Connector Please connect the fan cable
(4-pin CPU_FAN1) to the fan connector and
(see p.8 No. 19) match the black wire to the
ground pin.
Chassis Fan Connector Please connect the fan cable
(4-pin CHA_FAN1) to the fan connector and
(see p.8 No. 6) match the black wire to the
ground pin.
FAN_SPEED
FAN_SPEED_CONTROL
+12V
GND
4
3
2
1
FAN_SPEED
FAN_SPEED_CONTROL
+12V
GND

17
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8, No. 11) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep
state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
COM Port Headers (RS232)
(10-pin COM1, COM2: see p.8, No. 17)
Buzzer
(2-pin BUZZ1)
(see p.8 No. 24)
12
PIN Signal Name PIN Signal Name
9 +5V 10 NC
7 RRTS# 8 CCTS#
5 GND 6 DDSR#
3 TTXD 4 DDTR#
1 DDCD# 2 RRXD
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND

18

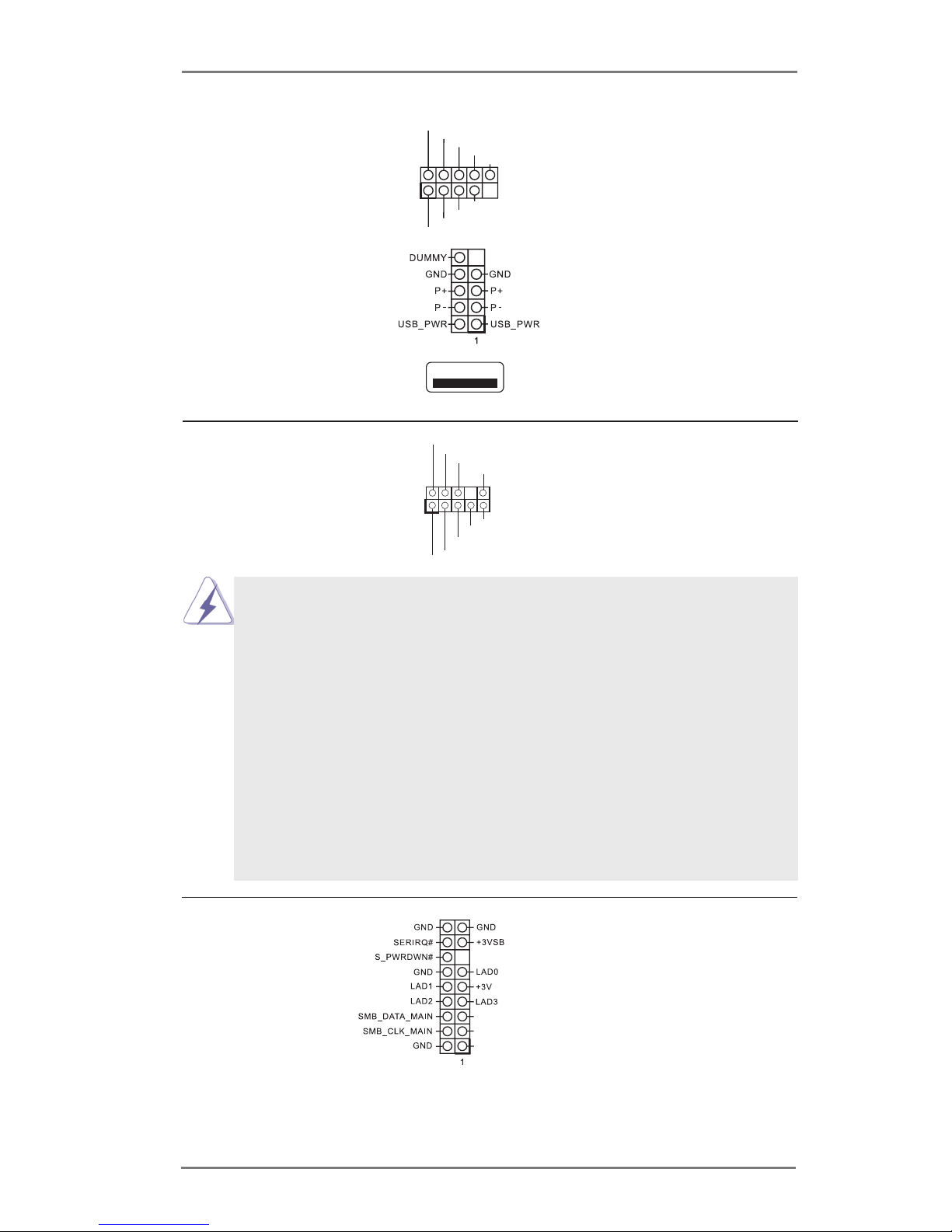

USB 2.0 Headers There are two headers and one
(9-pin USB2_1_2: see p.8, No. 4) port on this motherboard. Each
USB 2.0 header can support
two ports.
(9-pin USB2_4_5: see p.8, No. 18)
(USB: see p.8, No. 5)
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 23) convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
LPC Header This connector supports a
(17-pin LPC1) Trusted Platform Module (TPM)
(see p.8, No. 21) system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
PCIRST#
FRAME
PCICLK

19
LVDS Connector
(40-pin LVDS1)
(see p.8 No. 15)
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 26)
Backlight Control
(8-pin BLT_CTL1)
(see p.8 No. 10)
UPS Module Power Input Connector Please connect a DC power
(2-pin TO_UPS1) supply to this connector.
(see p.8 No. 2) Pin1 : GND
Pin2 : DC Input
2 1
PIN Signal Name PIN Signal Name
2 LCD_VCC 1 LCD_VCC
4 LDDC_CLK 3 +3.3V
6 LVDS_A_DATA0# 5 LDDC_DATA
8 GND 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9 LVDS_A_DATA1#
12 LVDS_A_DATA2# 11 GND
14 GND 13 LVDS_A_DATA2
16 LVDS_A_DATA3 15 LVDS_A_DATA3#
18 LVDS_A_CLK# 17 GND
20 GND 19 LVDS_A_CLK
22 LVDS_B_DATA0 21 LVDS_B_DATA0#
24 LVDS_B_DATA1# 23 GND
26 GND 25 LVDS_B_DATA1
28 LVDS_B_DATA2 27 LVDS_B_DATA2#
30 LVDS_B_DATA3# 29 DPLVDD_EN
32 GND 31 LVDS_B_DATA3
34 LVDS_B_CLK 33 LVDS_B_CLK#
36 CON_LBKLT_EN 35 GND
38 LCD_BLT_VCC 37 CON_LBKLT_CTL
40 LCD_BLT_VCC 39 LCD_BLT_VCC
1
39
40
2
1
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name
1SPK L- 2SPK L+ 3SPK R+ 4SPK R-
1
PIN Signal Name
1 CON_LBKLT_EN
2 CON_LBKLT_CTL
3 LCD_BLT_VCC
4 LCD_BLT_VCC
5 GND
6 GND
7 GPIO_BLT_UP
8 GPIO_BLT_DW
SATA Power Output Connector
(SATA_PWR1: see p.8 No. 9)

20
1
PWRDN
GND
SPDIF Out Connector Please connect the SPDIF
(3-pin SPDIF1) Out connector of a HDMI
(see p.8, No. 25) VGA card to this header
with a cable.
Monitor Switch Header This header can be used to
(2-pin MONITOR_SWITCH1) connect a switch that turns on/
(see p.8, No. 8) off the LVDS panel display’s
backlight.
M.2 Socket (Key-E)
(see p.8 No. 28)
M.2 Socket (Key-M)
(see p.8 No. 3)
