ASROCK X570M Pro4 User manual

Version 1.0
Published May 2019
Copyright©2019 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel
: [phone] ext.123 (Standard International call charges apply)
e terms HDMI® and HDMI High-Denition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.

English
1
X570M Pro4

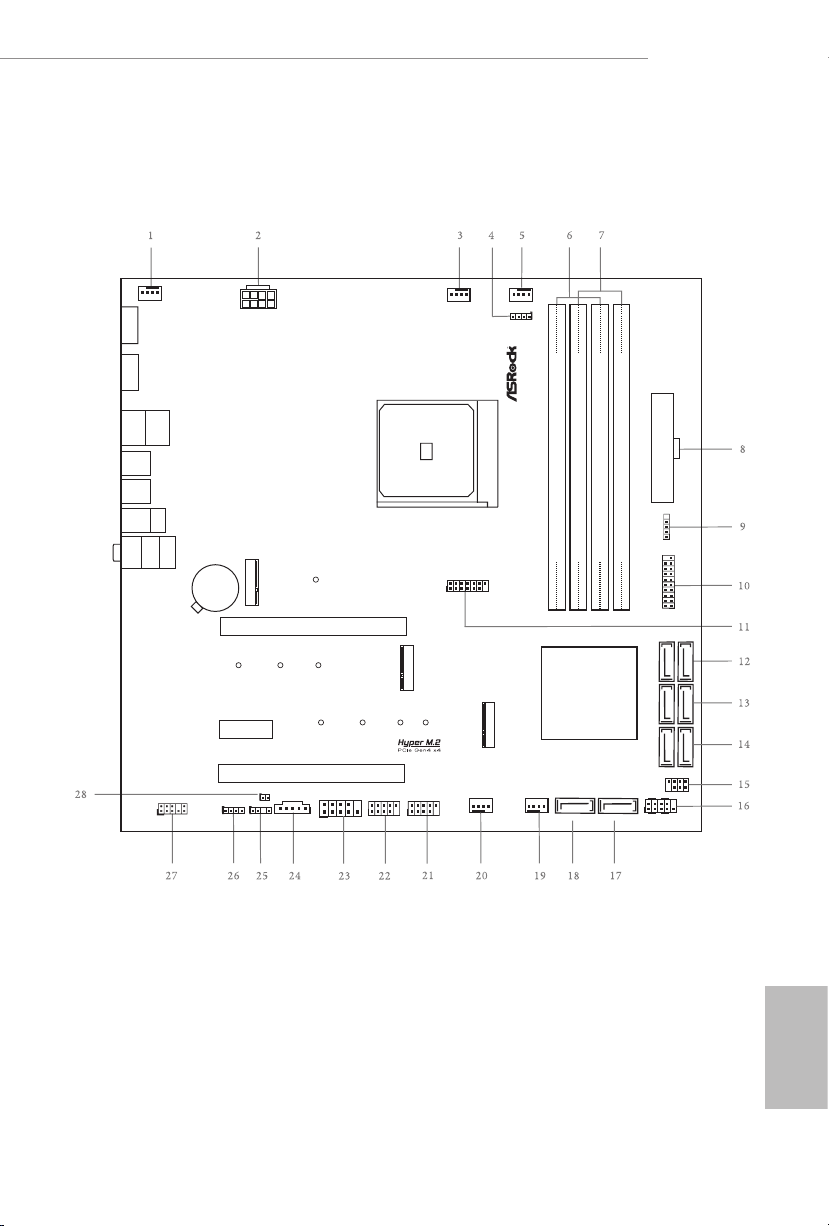

Motherboard Layout
DDR4_A2 (64 bit, 288-pi n module)
DDR4_A1 (64 bit, 288-pi n module)
DDR4_B2 (64 bit, 288-pi n module)
DDR4_B1 (64 bit, 288-pi n module)
ATXPWR1
PCIE1
USB 3 .2 Gen1
T:USB3_3
B: USB3_4
USB 3 .2 Gen1
T:USB3_5
B: USB3_6
Top:
LIN E IN
Center:
FRONT
Bottom:
MIC I N
HDLED RESET
PLED PWRBTN
PANEL1
1
1
SPK_PLED1
1
HD_AUDIO1
SATA3_1_2
SATA3_3_4
SATA3_8
SATA3_5_6
USB_1_2
1
USB 3 .2 Gen1
T:USB3_1
B: USB3_2
PS2
Keyboard
/Mouse
CPU_FAN1
M2_1
CPU_FAN2/WP
USB3_7_8
1
RoHS
Top:
RJ-45
AMD
Premium
X570
SOCKET AM4
CHA_FAN3/WP
ADDR_LED1
1
PCIE2
DP1
TB1
1
X570M PRO4
AMD_FAN_LED1
1
1
USB_5
ATX1 2V1
PCIE3
CMOS
Battery
CHA_FAN1/WP
CLRCMOS1
1
HDMI1
SPI_TPM_J1
1
SATA3_7
M2_2
COM1
1
RGB_LED1
1
USB 3 .2 Gen2
T:USB31_TA_1
B: USB31_TC_1
M2_3
USB_3_4
1
CHA_FAN2/WP

English
2
No. Description
1 Chassis Fan / Waterpump Fan Connector (CHA_FAN1/WP)
2 ATX 12V Power Connector (ATX12V1)
3 CPU Fan Connector (CPU_FAN1)
4 AMD Fan LED Header (AMD_FAN_LED1)
5 CPU Fan / Waterpump Fan Connector (CPU_FAN2/WP)
6 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
7 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
8 ATX Power Connector (ATXPWR1)
9 AMD LED Fan USB Header (USB_5)
10 USB 3.2 Gen1 Header (USB3_7_8)
11 SPI TPM Header (SPI_TPM_J1)
12 SATA3 Connector (SATA3_1_2)
13 SATA3 Connector (SATA3_3_4)
14 SATA3 Connector (SATA3_5_6)
15 Power LED and Speaker Header (SPK_PLED1)
16 System Panel Header (PANEL1)
17 SATA3 Connector (SATA3_8)
18 SATA3 Connector (SATA3_7)
19 Chassis Fan / Waterpump Fan Connector (CHA_FAN2/WP)
20 Chassis Fan / Waterpump Fan Connector (CHA_FAN3/WP)
21 USB 2.0 Header (USB_3_4)
22 USB 2.0 Header (USB_1_2)
23 COM Port Header (COM1)
24 underbolt AIC Header (TB1)
25 Addressable LED Header (ADDR_LED1)
26 RGB LED Header (RGB_LED1)
27 Front Panel Audio Header (HD_AUDIO1)
28 Clear CMOS Jumper (CLRCMOS1)

English
3
X570M Pro4

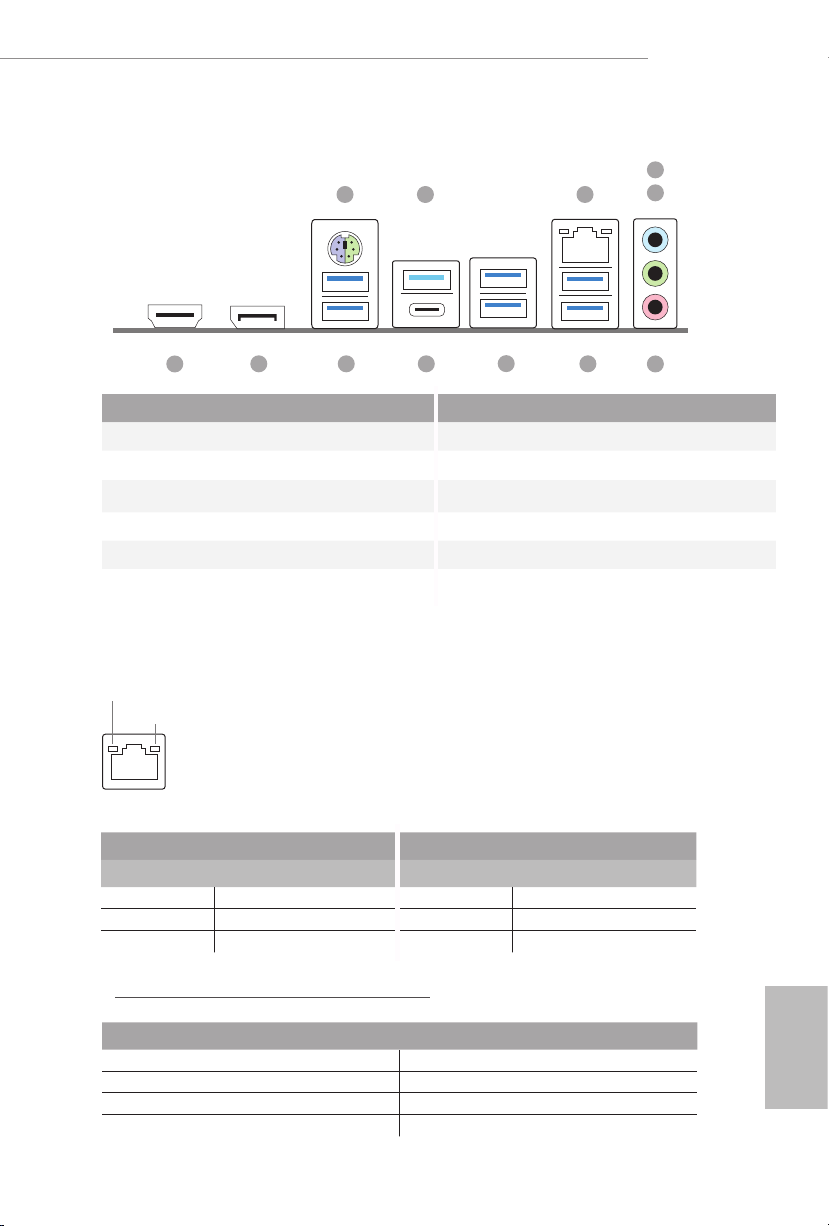

I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 7 USB 3.2 Gen1 Ports (USB3_5_6)
2 USB 3.2 Gen2 Type-A Port (USB31_TA_1) 8 USB 3.2 Gen1 Ports (USB3_3_4)
3 LAN RJ-45 Port* 9 USB 3.2 Gen2 Type-C Port (USB31_TC_1)
4 Line In (Light Blue)** 10 USB 3.2 Gen1 Ports (USB3_1_2)
5 Front Speaker (Lime)** 11 DisplayPort 1.2
6 Microphone (Pink)** 12 HDMI Port
7911
31
10 6
5
4
8
2
12
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

English
4
Chapter 1 Introduction
ank you for purchasing ASRock X570M Pro4 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock X570M Pro4 Motherboard (Micro ATX Form Factor)
• ASRock X570M Pro4 Quick Installation Guide
• ASRock X570M Pro4 Support CD
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 3 x Screws for M.2 Sockets (Optional)
• 1 x Stando for M.2 Socket (Optional)
• 1 x I/O Panel Shield
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

English
5
X570M Pro4
1.2 Specications
Platform • Micro ATX Form Factor
• Solid Capacitor design
• 2oz Copper PCB
CPU • Supports AMD AM4 socket RyzenTM 2000 and 3000 series
processors
• Digi Power design
• 10 Power Phase design
Chipset • AMD X570
Memory • Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
• AMD Ryzen series CPUs (Matisse) support DDR4 4200+
(OC)/4133(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC
& non-ECC, un-buered memory*
• AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4
3466+(OC)/3200(OC)/2933/2667/2400/2133 ECC & non-
ECC, un-buered memory*
• AMD Ryzen series CPUs (Picasso) support DDR4 3466+
(OC)/3200(OC)/2933/2667/2400/2133 non-ECC, un-buered
memory*
* For Ryzen Series CPUs (Picasso), ECC is only supported with
PRO CPUs.
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)
* Please refer to page 22 for DDR4 UDIMM maximum
frequency support.
• Max. capacity of system memory: 128GB
• 15μ Gold Contact in DIMM Slots
Expansion
Slot
AMD Ryzen series CPUs (Matisse)
• 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16
(PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*

English
6
AMD Ryzen series CPUs (Pinnacle Ridge)
• 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16
(PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
AMD Ryzen series CPUs (Picasso)
• 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8
(PCIE1); dual at x8 (PCIE1) / x4 (PCIE3))*
* Supports NVMe SSD as boot disks
• 1 x PCI Express 4.0 x1 Slot
• Supports AMD Quad CrossFireXTM and CrossFireXTM
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Graphics • Integrated AMD RadeonTM Vega Series Graphics in Ryzen
Series APU*
* Actual support may vary by CPU
• DirectX 12, Pixel Shader 5.0
• Shared memory default 2GB. Max Shared memory supports
up to 16GB.
* e Max shared memory 16GB requires 32GB system memory
installed.
• Dual graphics output: support HDMI and DisplayPort 1.2
ports by independent display controllers
• Supports HDMI 2.0 with max. resolution up to 4K x 2K
(4096x2160) @ 60Hz
• Supports DisplayPort 1.2 with max. resolution up to 4K x 2K
(4096x2160) @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant
HDMI monitor is required)
• Supports HDR (High Dynamic Range) with HDMI 2.0
• Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2
Ports
• Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and
DisplayPort 1.2 Ports
• Supports Microso PlayReady®

English
7
X570M Pro4
Audio • 7.1 CH HD Audio with Content Protection (Realtek
ALC1200 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection
• ELNA Audio Caps
• PCB Isolate Shielding
• Individual PCB Layers for R/L Audio Channel
LAN • Gigabit LAN 10/100/1000 Mb/s
• GigaLAN Intel® I211AT
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE
Rear Panel
I/O
• 3 x Antenna Ports (on I/O Panel Shield)
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x DisplayPort 1.2
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD
Protection)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD
Protection)
• 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage • 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• 1 x Hyper M.2 Socket (M2_1), supports M Key type
2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64
Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle
Ridge and Picasso)*
• 1 x Hyper M.2 Socket (M2_2), supports M Key type
2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2
PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse)
or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit

English
8
Connector • 1 x COM Port Header
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x AMD Fan LED Header
* e AMD Fan LED Header is compatible with a regular RGB
LED stripe.
* e AMD Fan LED Header supports LED strips of maximum
load of 3A (36W) and length up to 2.5M.
• 1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip
• 1 x Addressable LED Header
* Supports in total up to 5V/3A, 15W LED Strip
• 1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)
* e CPU/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and
CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x AMD LED Fan USB Header
• 1 x underbolt AIC Connector (5-pin) (Supports ASRock
underbolt AIC Card only)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports
ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
(Supports ESD Protection)

English
9
X570M Pro4
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
• Supports “Plug and Play”
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• CPU VCORE, CPU VDDCR_SOC, DRAM, VPPM, PREM
VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage
Multi-adjustment
Hardware
Monitor
• Temperature Sensing: CPU, CPU/Water Pump, Chassis,
Chassis/Water Pump Fans
• Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/
Water Pump Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU tempera-
ture): CPU, CPU/Water Pump, Chassis, Chassis/Water
Pump Fans
• Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis,
Chassis/Water Pump Fans
• Voltage monitoring: Voltage monitoring: +12V, +5V, +3.3V,
CPU Vcore, CPU VDDCR_SOC, DRAM, PREM VDDCR_
SOC, +1.8V, VDDP
OS • Microso® Windows® 10 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

English
10
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard.
Failure to do so may cause physical injuries to you and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
11
X570M Pro4

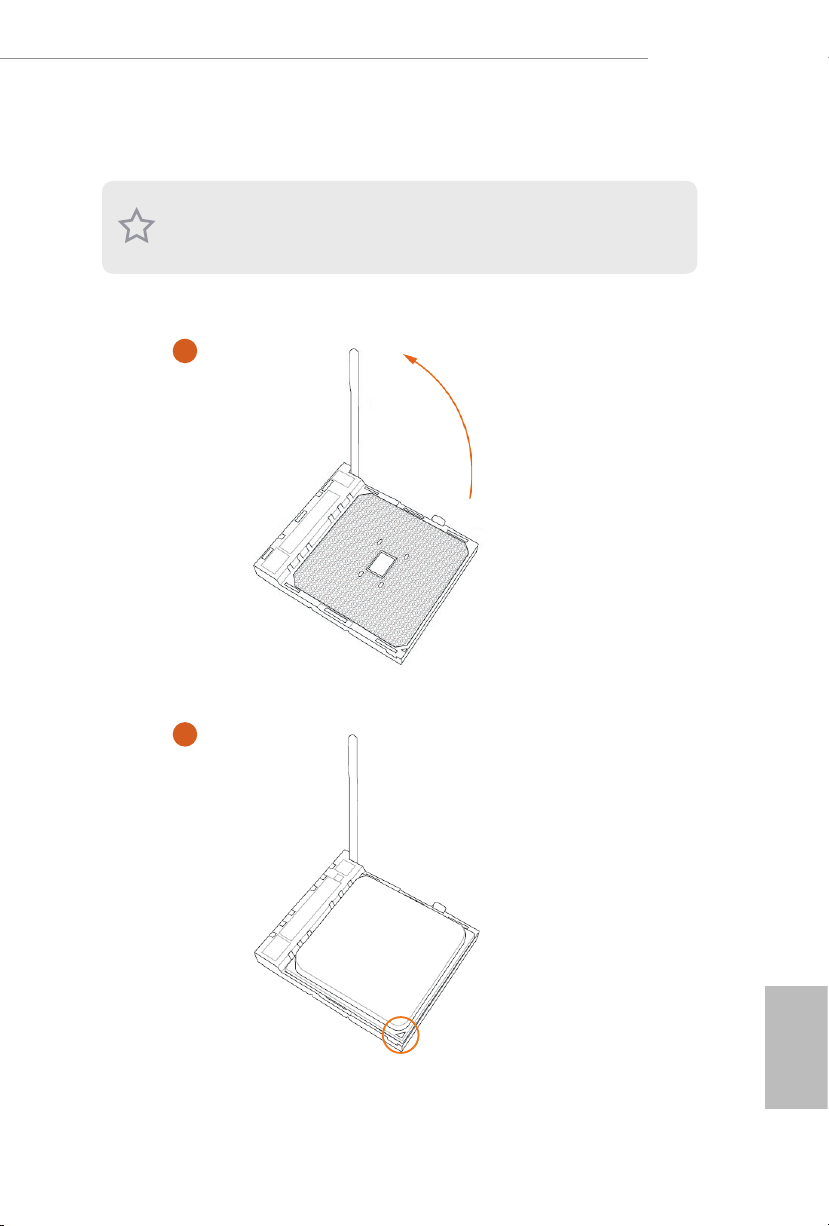

2.1 Installing the CPU
Unplug all power cables before installing the CPU.
2
1

English
12
3

English
13
X570M Pro4
2.2 Installing the CPU Fan and Heatsink
Aer you install the CPU into this motherboard, it is necessary to install a larger
heatsink and cooling fan to dissipate heat. You also need to spray thermal grease
between the CPU and the heatsink to improve heat dissipation. Make sure that the
CPU and the heatsink are securely fastened and in good contact with each other.

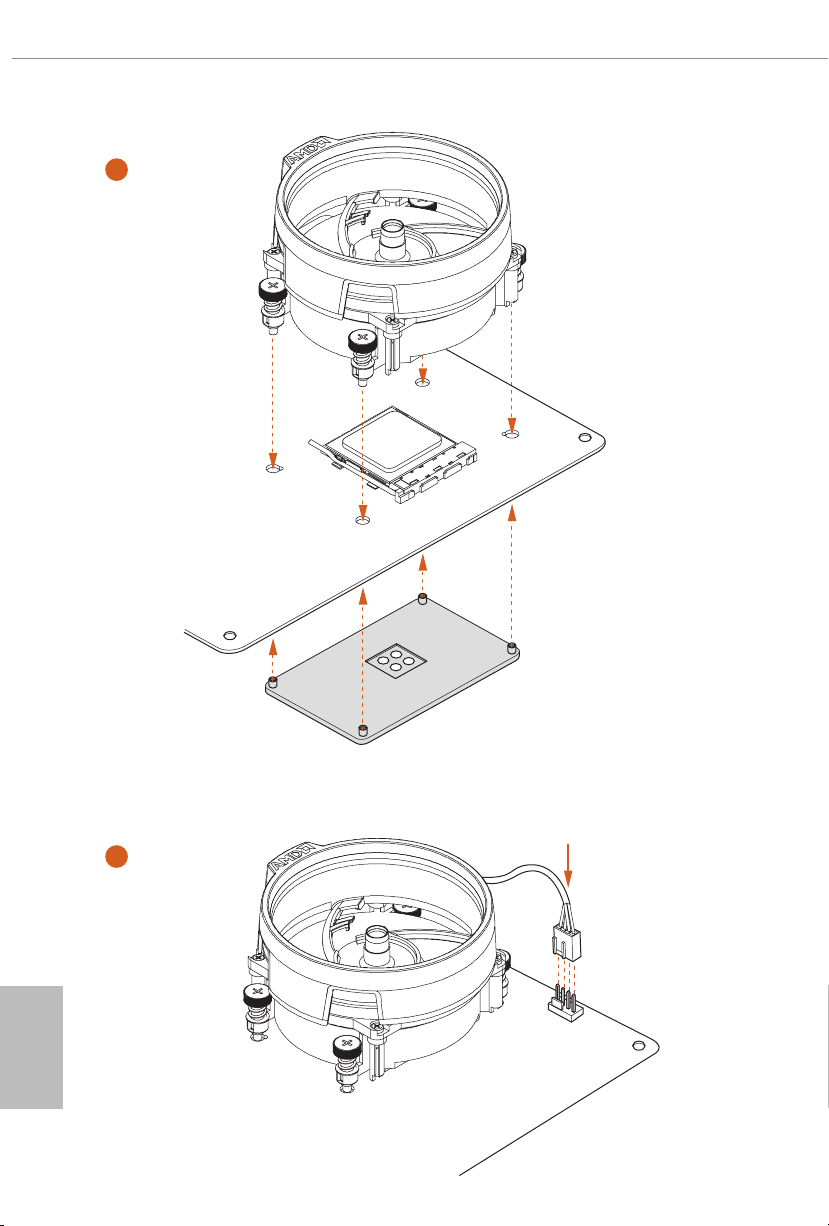

Installing the CPU Box Cooler SR1
Please turn o the power or remove the power cord before changing a CPU or heatsink.
1
2

English
14
3
4
CPU_FAN1

English
15
X570M Pro4

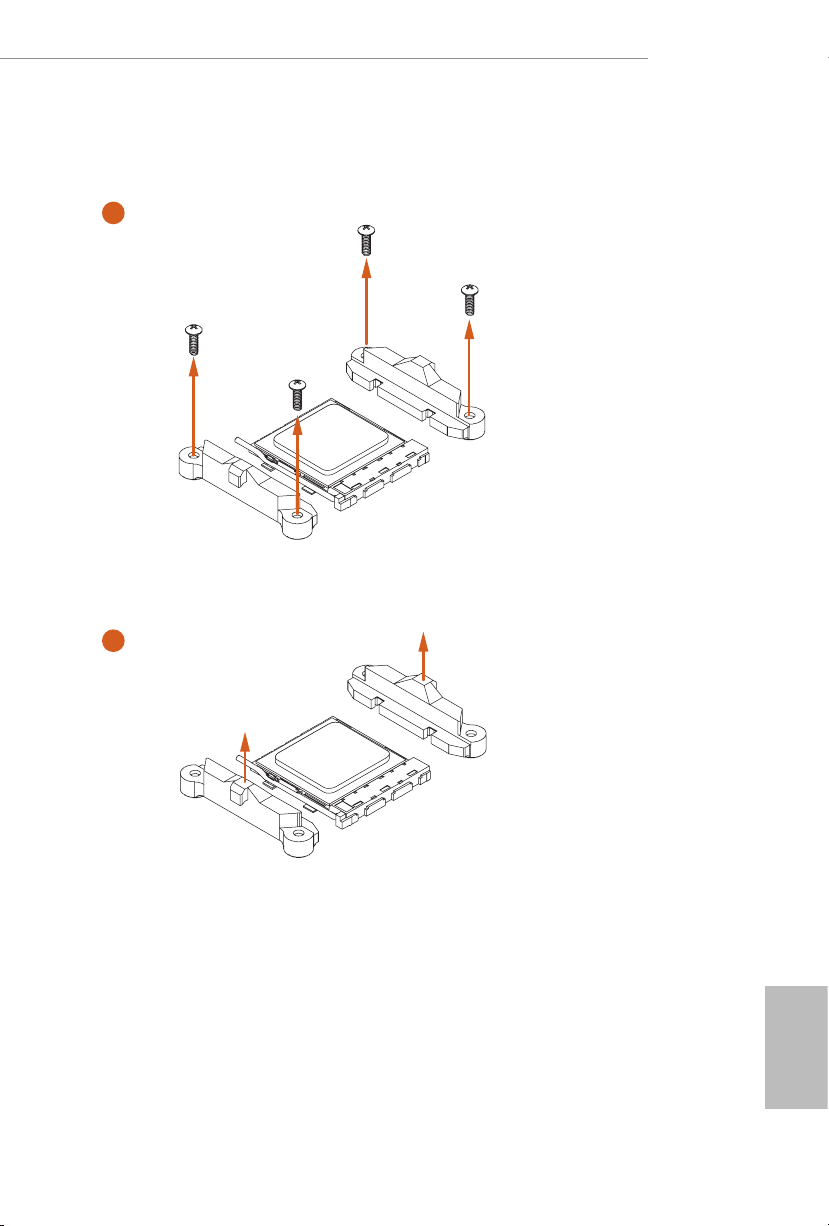

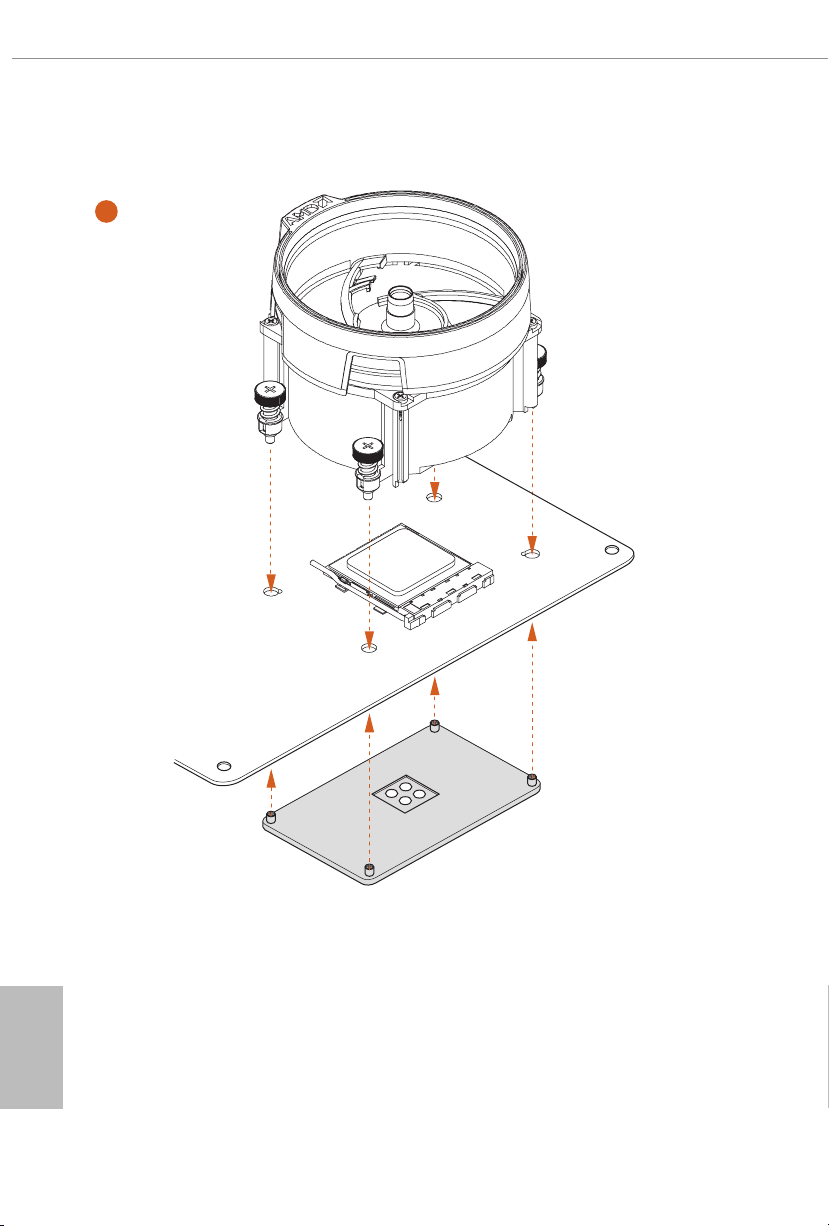

Installing the AM4 Box Cooler SR2
1
2

English
16
3

English
17
X570M Pro4

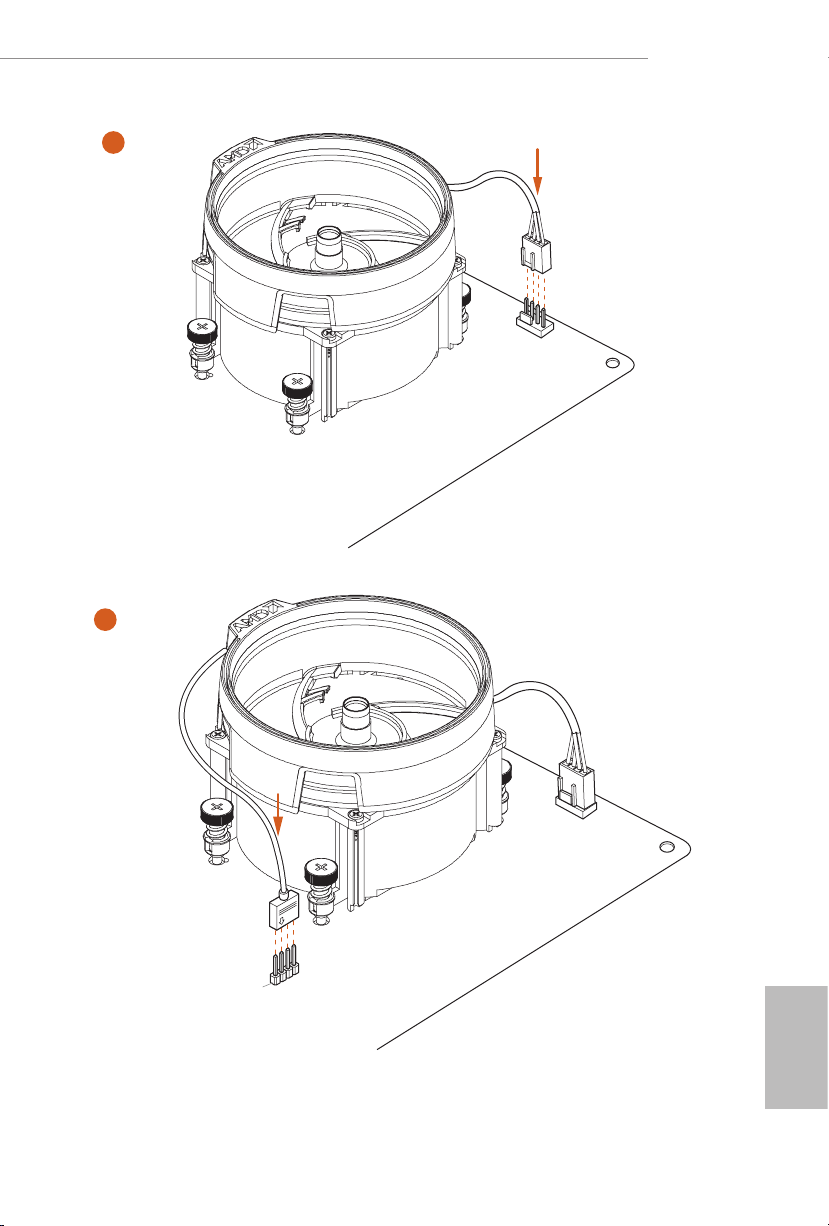

4-pin FAN cable
RGB LED Cable
+12V
*e diagrams shown here are for reference only. e headers might be in a dierent position on
your motherboard. Please refer to page 31 for the orientation of AMD Fan LED Header (AMD_
FAN_LED1).
5
CPU_FAN1
AMD_FAN_LED1
4
CPU_FAN1

English
18

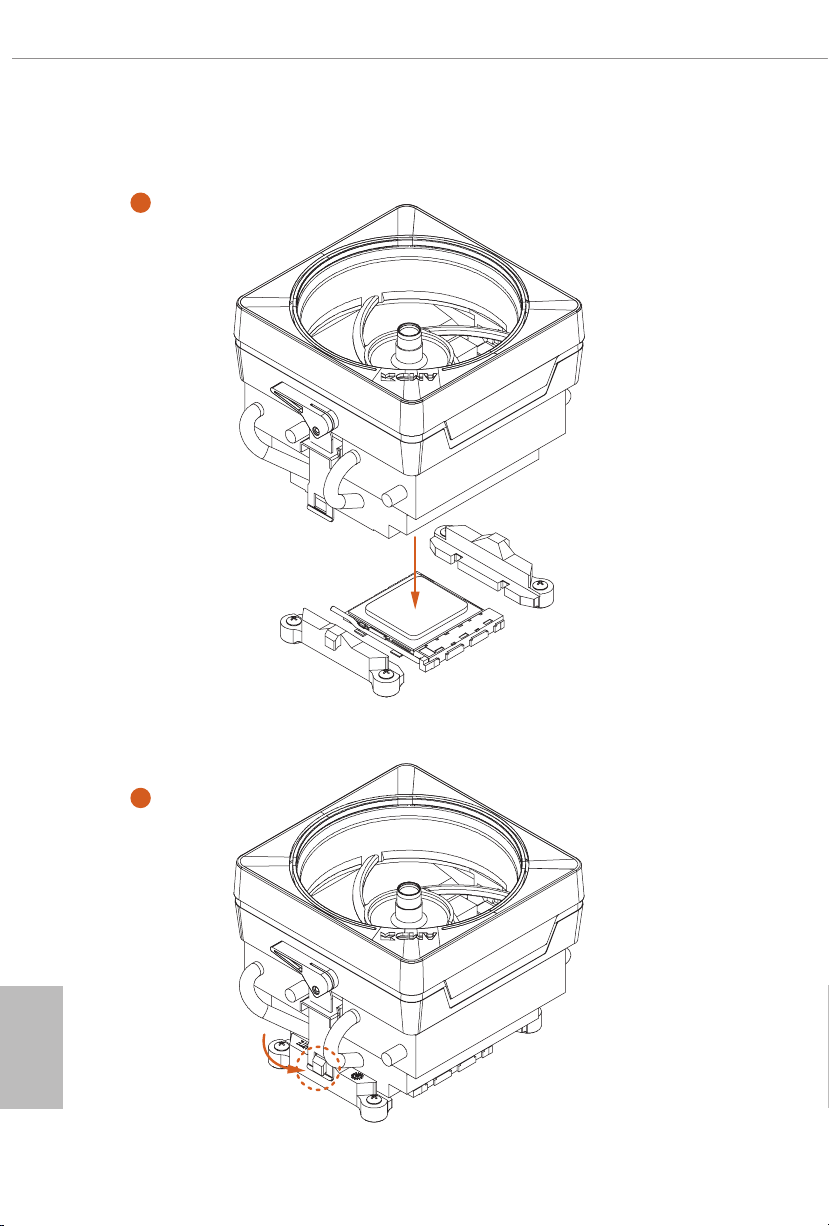

Installing the AM4 Box Cooler SR3
1
2
