ASROCK ROME2D32GM-2T User manual

ROME2D32GM-2T
ROME2D32GM-NL
User Manual
Version 1.0
Published January 2022
Copyright©2022 ASRock Rack INC. All rights reserved.

Version 1.0
Published January 2022
Copyright©2022 ASRock Rack Inc. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Rack Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished
for informational use only and subject to change without notice, and should not
be constructed as a commitment by ASRock Rack. ASRock Rack assumes no
responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock Rack does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock Rack, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRock Rack has been advised of the possibility of such damages
arising from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Rack’s Website: www.ASRockRack.com

Contact Information
If you need to contact ASRock Rack or want to know more about ASRock Rack,
you’re welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you
may contact your dealer for further information.
ASRock Rack Incorporation
6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,
Taipei City 112, Taiwan (R.O.C.)

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Unique Features 6
1.4 Motherboard Layout 7
1.5 Onboard LED Indicators 11
1.6 I/O Panel 13
1.7 Block Diagram 15
Chapter 2 Installation 17
2.1 Screw Holes 17
2.2 Pre-installation Precautions 17
2.3 Installing the CPU 18
2.4 Installation of Memory Modules (DIMM) 22
2.5 Jumper Setup 26
2.6 Onboard Headers and Connectors 28
2.7 Dr. Debug 35
2.8 Identication purpose LED/Switch 41
2.9 Driver Installation Guide 41
2.10 Dual LAN and Teaming Operation Guide (ROME2D32GM-2T only) 42
2.11 M.2_SSD (NGFF) Module Installation Guide 43
Chapter 3 UEFI Setup Utility 45
3.1 Introduction 45
3.1.1 UEFI Menu Bar 45

3.1.2 Navigation Keys 46
3.2 Main Screen 47
3.3 Advanced Screen 48
3.3.1 CPU Conguration 49
3.3.2 Chipset Conguration 50
3.3.3 Storage Conguration 53
3.3.4 ACPI Conguration 54
3.3.5 USB Conguration 55
3.3.6 Super IO Conguration 56
3.3.7 Serial Port Console Redirection 57
3.3.8 H/W Monitor 60
3.3.9 PCI Subsystem Settings 61
3.3.10 AMD CBS 62
3.3.11 AMD PBS 63
3.3.12 PSP Firmware Versions 64
3.3.13 Tls Auth Conguration 65
3.3.14 Network Stack Conguration 66
3.3.15 Instant Flash 68
3.4 Server Mgmt 69
3.4.1 System Event Log 70
3.4.2 BMC Network Conguration 71
3.4.3 BMC Tools 73
3.5 Security 74
3.5.1 Key Management 75

3.6 Boot Screen 79
3.6.1 CSM Parameters 81
3.7 Event Logs 87
3.8 Exit Screen 89
Chapter 4 Software Support 90
4.1 Install Operating System 90
4.2 Support CD Information 90
4.2.1 Running The Support CD 90
4.2.2 Drivers Menu 90
4.2.3 Utilities Menu 90
4.2.4 Contact Information 90
Chapter 5 Troubleshooting 91
5.1 Troubleshooting Procedures 91
5.2 Technical Support Procedures 93
5.3 Returning Merchandise for Service 93

ROME2D32GM-2T
ROME2D32GM-NL
PB 1
English
Chapter 1 Introduction
ank you for purchasing ASRock Rack ROME2D32GM-2T / ROME2D32GM-NL
motherboard, a reliable motherboard produced under ASRock Rack’s consistently
stringent quality control. It delivers excellent performance with robust design
conforming to ASRock Rack’s commitment to quality and endurance.
In this manual, chapter 1 and 2 contains introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contains the conguration
guide to BIOS setup and information of the Support CD.
1.1 Package Contents
• ASRock Rack ROME2D32GM-2T / ROME2D32GM-NL Motherboard
(Proprietary Form Factor: 16.5-in x 13.81-in, 42.0 cm x 35.1 cm)
• Quick Installation Guide
• 1 x Screw for M.2 Socket
If any items are missing or appear damaged, contact your authorized dealer.
Because the motherboard specications and the BIOS soware might be updated, the con-
tent of this manual will be subject to change without notice. In case any modications of
this manual occur, the updated version will be available on ASRock Rack website without
further notice. You may nd the latest memory and CPU support lists on ASRock Rack
website as well. ASRock Rack’s Website: www.ASRockRack.com
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
http://www.asrockrack.com/support/

2 3
English
1.2 Specications
ROME2D32GM-2T / ROME2D32GM-NL
MB Physical Status
Form Factor Proprietary
Dimension 16.5”x 13.81” (42 cm x 35.1 cm)
Processor System
CPU AMD EPYC™ 7002 Generation Processors
Socket Dual Socket P, LGA3647
ermal Design
Power
225W
CPLD LCMXO3LF-2100C
System Memory
Capacity 32 x 288-pin DDR4 DIMM slots
Type - 8 Channels memory technology (2DPC)
- Supports DDR4 3200/2933/2666/2400/2133 RDIMM,
LRDIMM, 3DS and NVDIMM
DIMM Size - RDIMM: 64GB, 32GB, 16GB, 8GB
- LRDIMM: 256GB, 128GB, 64GB, 32GB
- 3DS: 256GB, 128GB, 64GB, 32GB, 16GB, 8GB
- NV DIMM: 32GB
Voltage 1.2V
Storage
SATA Controller 32 SATA3 (from SLIM3_1/4_1/8_1/9_1)
M.2 CPU2: 1 M-key (Type 2280/22110, PCIe4.0 x4)
SlimSAS CPU1: 4 (PCIe4.0 x16), 1 (PCIe4.0 x8)
CPU2: 5 (PCIe4.0 x16)
Ethernet
Interface ROME2D32GM-2T:
Gigabit LAN 10/100/1000 Mb/s
ROME2D32GM-NL:
N/A
LAN controller ROME2D32GM-2T:
2 x RJ45 10GLAN by Intel®X550-AT2:
1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Ecient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI
ROME2D32GM-NL:
1 x RJ45 Dedicated IPMI LAN port

ROME2D32GM-2T
ROME2D32GM-NL
2 3
English
Management
BMC Controller ASPEED AST2500
IPMI Dedicated
GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Features - Watch Dog
- NMI
Graphics
Controller ASPEED AST2500
VRAM DDR4 256MB
Rear Panel I/O
VGA Port 1 (D-sub)
USB 3.2 Gen1 Port 4
LAN Port ROME2D32GM-2T:
- 2 + 1 (IPMI 2.0)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
ROME2D32GM-NL:
- 1 (IPMI 2.0)
- LAN Port with LED (ACT/LINK LED and SPEED LED)
UID Button/LED 1
Power Button 1
Reset Button 1
NMI Button 1
HDD/System Fault
LED
2
Internal Connector
Auxiliary Panel
Header
1 (includes chassis intrusion , location button & LED , front
LAN LED)
Front Panel Header 1
SGPIO Header 8
NMI Header 1
TPM Header 1
TPM_BIOS_PH1 1
Smbus from BMC 3
IPMB Header 1
Fan Header 8 x System Fans (6-pin)
ATX Power 1 (24-pin) + 2 (8-pin)
PSU SMB 1
Front VGA Header 1
USB 3.2 Gen1 Header 2 (supports 4 USB 3.2 Gen1 ports)
COM Header 1
NCSI Header 1
OH/FanFail LED 8 (only Fan Fail LED)
CPU_HSBP 2
IPMI LED Header 1
LCM Header 1

4 5
English
Rear Panel LAN LED 1
System BIOS
BIOS Ty pe 256Mb AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash
Hardware Monitor
Temperature - CPU Temperature Sensing
- System Temperature Sensing
- Card Side Temperature Sensing
Fan - CPU/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU Temperature)
- CPU/Front Fan Multi-Speed Control
Voltage Voltage Monitoring: CPU1_VCORE, CPU1_SOC, CPU2_
VCORE, CPU2_SOC VCCMABC, VCCMDEF, VCCMGHI,
VCCMJKL, 3V/5V/12V, CPU1_1V8 +BAT, 3VSB, 5VSB
Support OS
OS Microso® Windows®
- Server 2016 (64 bit)
- Server 2019 (64 bit)
Linux®
- RedHat Enterprise Linux Server 8.2 (64 bit) / 7.9 (64 bit)
- CentOs 8.2 (64 bit) / 7.9 (64 bit)
- SUSE SLES 15.2 (64 bit) / 12.5 (64 bit)
- UBuntu 20.04.1 (64 bit) / 18.04.5 (64 bit) / 16.04.7 (64 bit)
Hypervisor:
- VMWare 6.7 u3 / 7.0 u1
- vSphere 6.7 u3 / 7.0 u1
- CITRIX Hypervisor 8.1.0
*Please refer to our website for the latest OS support list.
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation
temperature: -40°C ~ 70°C
NOTE: Please refer to our website for the latest specications.

ROME2D32GM-2T
ROME2D32GM-NL
4 5
English
is motherboard supports Wake from on Board LAN. To use this function, please make
sure that the “Wake on Magic Packet from power o state” is enabled in Device Manager
> Intel® Ethernet Connection > Power Management. And the “PCI Devices Power On” is
enabled in UEFI SETUP UTILITY > Advanced > ACPI Conguration. Aer that, onboard
LAN1&2 can wake up S5 under OS.
If you install Intel® LAN utility or Marvell SATA utility, this motherboard may fail Win-
dows® Hardware Quality Lab (WHQL) certication tests. If you install the drivers only, it
will pass the WHQL tests.

6 7
English
1.3 Unique Features
ASRock Rack Instant Flash is a BIOS ash utility embedded in Flash ROM. is con-
venient BIOS update tool allows you to update system BIOS without entering operat-
ing systems rst like MS-DOS or Windows®. With this utility, you can press the <F6>
key during the POST or the <F2> key to enter into the BIOS setup menu to access
ASRock Rack Instant Flash. Just launch this tool and save the new BIOS le to your
USB ash drive, oppy disk or hard drive, then you can update your BIOS only in a
few clicks without preparing an additional oppy diskette or other complicated ash
utility. Please be noted that the USB ash drive or hard drive must use FAT32/16/12
le system.

ROME2D32GM-2T
ROME2D32GM-NL
6 7
English

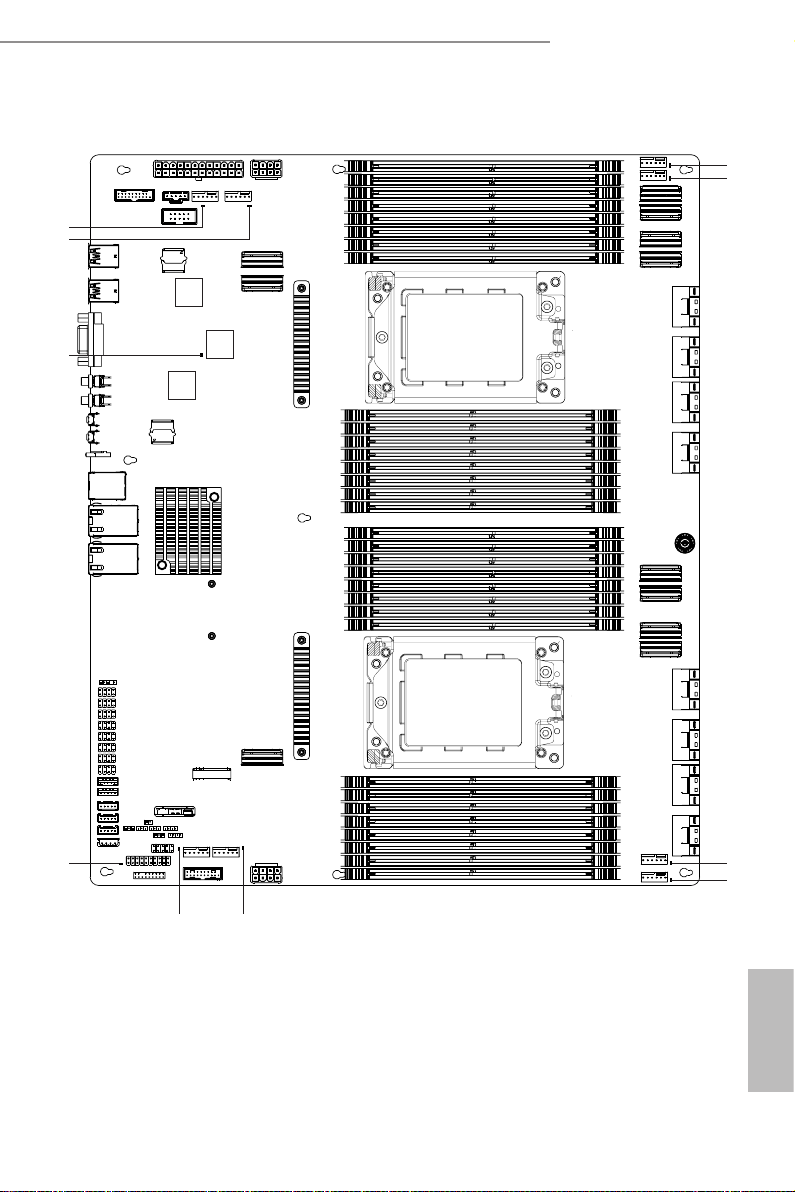

1.4 Motherboard Layout
35.1cm (13.81 in)
42.0cm (16.5 in)
ATXPWR1
PSU_SMB1FAN5 FAN6
COM1
BMC
ROM
SLIM10_1
SLIM10_2
FAN8
FAN7
SLIM9_1
SLIM9_2
SLIM8_1
SLIM8_2
SLIM7_1
SLIM7_2
SLIM6_1
SLIM6_2
SLIM4_1
SLIM4_2
SLIM3_1
SLIM3_2
SLIM2_1
SLIM2_2
SLIM1_1
SLIM1_2
FAN3
FAN4
USB3_5_6 ATX12V1
FAN1 FAN2
TPM1
PANEL1
AUX_PANEL1
IPMB_1
BMC_SMB_3
BMC_SMB_2
BMC_SMB_1
CPU2_HSBP1
CPU1_HSBP1
SATA_SGPIO8
SATA_SGPIO7
SATA_SGPIO6
SATA_SGPIO5
SATA_SGPIO4
SATA_SGPIO3
SATA_SGPIO2
SATA_SGPIO1
BAT1
M2_1
SLIM5_1
USB3.2 Gen1
Ports
(USB3_1_2)
PWR_BTN1
RST_BTN
IPMI_LAN1
X550_LAN2
BIOS
ROM
NUT80_1
NCSI1
ASPEED
2500
NUT110_1
111
1
1
NCSI_SEL1
NMI_BTN1
CHASSIS_ID0
CHASSIS_ID1
CHASSIS_ID2
1
RL_LED
DDR4_E1
DDR4_E2
DDR4_F1
DDR4_F2
DDR4_G1
DDR4_G2
DDR4_H1
DDR4_H2
DDR4_M1
DDR4_M2
DDR4_N1
DDR4_N2
DDR4_O1
DDR4_O2
DDR4_P1
DDR4_P2
DDR4_L2
DDR4_L1
DDR4_K2
DDR4_K1
DDR4_J2
DDR4_J1
DDR4_I2
DDR4_I1
USB3_7_8
ATX12V2
HDD_SYS_LED
NMI_BTN
UID1
X550_LAN1
USB3.2 Gen1
Ports
(USB3_3_4)
VGA1
FRNT_VGA1
Dr. Debug
CPLD
TPM_BIOS_PH1
ROME2D32GM-2T
1
PWM_CFG1
DDR4_D2
DDR4_D1
DDR4_C2
DDR4_C1
DDR4_B2
DDR4_B1
DDR4_A2
DDR4_A1
23 17
10
4
8
11
5
9
12
6
13
14
15
16
18
17
19
22
23
24
25
2829303132333436
46
35
21
20
3738
39
40
42
43
44
45
69
64
61
51
50
49
48
47
65
58
60
68
26
27
55
54
53
52
56
62
63
66
67
70
71
72
73
CPU2
CPU1
57
1
IPMI_LED1
41
1
LCM1
59
(ROME2D32GM-2T only)
ROME2D32GM-NL
(ROME2D32GM-2T only)

8 9
English
No. Description
1 ATX Power Connector (ATXPWR1)
2 System Fan Connector (FAN5)
3 ATX 12V Power Connector (ATX12V2)
4 System Fan Connector (FAN6)
5 4 x 288-pin DDR4 DIMM Slots (DDR4_I1, DDR_J1, DDR4_K1, DDR4_L1)*
6 4 x 288-pin DDR4 DIMM Slots (DDR4_I2, DDR_J2, DDR4_K2, DDR4_L2)*
7 System Fan Connector (FAN8)
8 System Fan Connector (FAN7)
9 SlimSAS Connector (SLIM9_1)
10 SlimSAS Connector (SLIM9_2)
11 SlimSAS Connector (SLIM8_1)
12 SlimSAS Connector (SLIM8_2)
13 SlimSAS Connector (SLIM7_1)
14 SlimSAS Connector (SLIM7_2)
15 SlimSAS Connector (SLIM6_1)
16 SlimSAS Connector (SLIM6_2)
17 umbscrew
18 SlimSAS Connector (SLIM4_1)
19 SlimSAS Connector (SLIM4_2)
20 SlimSAS Connector (SLIM3_1)
21 SlimSAS Connector (SLIM3_2)
22 SlimSAS Connector (SLIM2_1)
23 SlimSAS Connector (SLIM2_2)
24 SlimSAS Connector (SLIM1_1)
25 SlimSAS Connector (SLIM1_2)
26 System Fan Connector (FAN3)
27 System Fan Connector (FAN4)
28 4 x 288-pin DDR4 DIMM Slots (DDR4_E2, DDR_F2, DDR4_G2, DDR4_H2)*
29 4 x 288-pin DDR4 DIMM Slots (DDR4_E1, DDR_F1, DDR4_G1, DDR4_H1)*
30 Rear Panel LAN LED (RL_LED)
31 ATX 12V Power Connector (ATX12V1)
32 System Fan Connector (FAN2)
33 USB 3.2 Gen1 Header (USB3_5_6)

ROME2D32GM-2T
ROME2D32GM-NL
8 9
English
No. Description
34 System Fan Connector (FAN1)
35 IPMI LAN LED Header (IPMI_LED1)
36 System Panel Header (PANEL1)
37 Auxiliary Panel Header (AUX_PANEL1)
38 TPM Header (TPM1)
39 NCSI Mode Jumper (NCSI_SEL1)
40 Chassis ID Jumper (CHASSIS_ID2)
41 Intelligent Platform Management Bus Header (IPMB_1)
42 BMC SMBus Header (BMC_SMB_3)
43 BMC SMBus Header (BMC_SMB_2)
44 Chassis ID Jumper (CHASSIS_ID0)
45 BMC SMBus Header (BMC_SMB_1)
46 Chassis ID Jumper (CHASSIS_ID1)
47 Backplane PCI Express Hot-Plug Connector (CPU2_HSBP1)
48 Backplane PCI Express Hot-Plug Connector (CPU1_HSBP1)
49 SATA SGPIO Connector (SATA_SGPIO8)
50 SATA SGPIO Connector (SATA_SGPIO7)
51 SATA SGPIO Connector (SATA_SGPIO6)
52 SATA SGPIO Connector (SATA_SGPIO5)
53 SATA SGPIO Connector (SATA_SGPIO4)
54 SATA SGPIO Connector (SATA_SGPIO3)
55 SATA SGPIO Connector (SATA_SGPIO2)
56 SATA SGPIO Connector (SATA_SGPIO1)
57 Liquid Crystal Module Header (LCM1)
58 Non Maskable Interrupt Button (NMI_BTN1)
59 M.2 Socket (M2_1) (Type 2280/22110)
60 PWM Conguration Header (PWM_CFG1)
61 SlimSAS Connector (SLIM5_1)
62 4 x 288-pin DDR4 DIMM Slots (DDR4_A1 DDR_B1, DDR4_C1, DDR4_D1)*
63 4 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR_B2, DDR4_C2, DDR4_D2)*
64 4 x 288-pin DDR4 DIMM Slots (DDR4_M2, DDR_N2, DDR4_O2, DDR4_P2)*
65 4 x 288-pin DDR4 DIMM Slots (DDR4_M1, DDR_N1, DDR4_O1, DDR4_P1)*
66 TPM-SPI Header (TPM_BIOS_PH1)
67 NCSI Header (NCSI1)

10 11
English
No. Description
68 Front VGA Header (FRONT_VGA1)
69 SlimSAS Connector (SLIM10_2)
70 SlimSAS Connector (SLIM10_1)
71 COM Port Header (COM1)
72 USB 3.2 Gen1 Header (USB3_7_8)
73 PSU SMBus Header (PSU_SMB1)
* For DIMM installation and conguration instructions, please see p.20 (Installation of Memory Modules
(DIMM)) for more details.

ROME2D32GM-2T
ROME2D32GM-NL
10 11
English
1.5 Onboard LED Indicators
Dr. Debug
111
1
1
1
1
2
3
4
56
7
8
9
10
1
1

12 13
English
No. Item Status Description
1FAN_LED8 Red FAN8 failed
2FAN_LED7 Red FAN7 failed
3FAN_LED3 Red FAN3 failed
4FAN_LED4 Red FAN4 failed
5FAN_LED2 Red FAN2 failed
6FAN_LED1 Red FAN1 failed
7 SB_PWR1 Green STB PWR ready
8BMC_LED1 Green BMC heartbeat LED
9FAN_LED6 Red FAN6 failed
10 FAN_LED5 Red FAN5 failed

ROME2D32GM-2T
ROME2D32GM-NL
12 13
English
1.6 I/O Panel
5
48
39
6710 11
1 2
No. Description No. Description
1 USB 3.2 Gen1 Ports (USB3_1_2) 7 NMI Button (NMI_BTN)
2 USB 3.2 Gen1 Ports (USB3_3_4) 8 HDD/System Fault LED (HDD_SYS_LED)
3VGA Header (VGA1) 9 IPMI LAN Header (IPMI_LAN1)*
4 UID Switch (UID) 10 10G LAN RJ-45 Port (X550_LAN1)**
(ROME2D32GM-2T only)
5Power Switch/LED (PWR_BTN1) 11 10G LAN RJ-45 Port (X550_LAN2)**
(ROME2D32GM-2T only)
6 Reset Button (RST_BTN)
LAN Port LED Indications

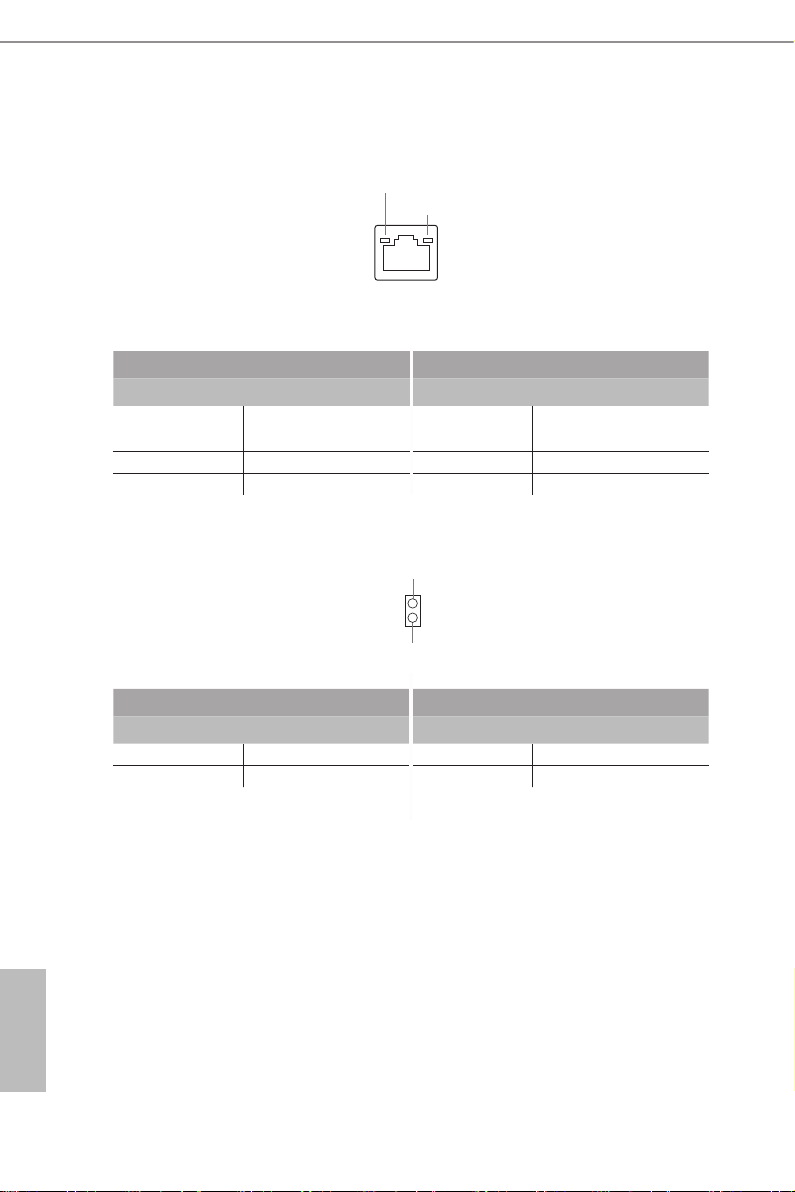

*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection or no
link
Blinking Yellow Data Activity Yellow 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

14 15
English
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
10G LAN Port (X550_LAN1, X550_LAN2) LED Indications (ROME2D32GM-2T only)
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps/100Mbps
connection or no link
Blinking Green Data Activity Orange 1Gbps connection
On Link Green 10Gbps connection
HDD/System Fault LED Indications
HDD LED SYS FAULT LED
Status Description Status Description
O HDD inactive O Normal
Green HDD active RED System Fault
ACT/LINK LED
SPEED LED
LAN Port
HDD LED
SYS FAULT LED
