ASROCK ROMED8-2T User manual

ROMED8-2T
ROMED8-NL
ROMED8-2T/BCM
User Manual
Version 1.0
Published February 2022
Copyright©2022 ASRock Rack INC. All rights reserved.

Version 1.0
Published August 2022
Copyright©2022 ASRock Rack INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Rack Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished
for informational use only and subject to change without notice, and should not
be constructed as a commitment by ASRock Rack. ASRock Rack assumes no
responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock Rack does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock Rack, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRock Rack has been advised of the possibility of such damages
arising from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
is equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. ese limits are designed to provide
reasonable protection against harmful interference in a residential installation. is
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock
Rack Tel : [phone] ext.123 (Standard International call charges apply)
ASRock Rack INC. hereby declares that this device is in compliance with the essential
requirements and other relevant provisions of related UKCA Directives. Full text of UKCA
declaration of conformity is available at: http://www.asrockrack.com
ASRock Rack INC. hereby declares that this device is in compliance with the essential re-
quirements and other relevant provisions of related Directives. Full text of EU declaration
of conformity is available at: http://www.asrockrack.com
ASRock Rack follows the green design concept to design and manufacture our products,
and makes sure that each stage of the product life cycle of ASRock Rack product is in line
with global environmental regulations. In addition, ASRock Rack disclose the relevant
information based on regulation requirements.
Please refer to https://www.asrockrack.com/general/about.asp?cat=Responsibility for
information disclosure based on regulation requirements ASRock Rack is complied with:
DO NOT throw the motherboard in municipal waste. is product has been
designed to enable proper reuse of parts and recycling. is symbol of the
crossed out wheeled bin indicates that the product (electrical and electronic
equipment) should not be placed in municipal waste. Check local regulations
for disposal of electronic products.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Unique Features 6
1.4 Motherboard Layout 7
1.5 Onboard LED Indicators 10
1.6 I/O Panel 12
1.7 Block Diagram 15
Chapter 2 Installation 17
2.1 Screw Holes 17
2.2 Pre-installation Precautions 18
2.3 Installing the CPU 19
2.4 Installation of Memory Modules (DIMM) 23
2.5 Expansion Slots (PCI Express Slots) 25
2.6 Jumper Setup 26
2.7 Onboard Headers and Connectors 28
2.8 Dr. Debug 34
2.9 Unit Identication purpose LED/Switch 40
2.10 Driver Installation Guide 40
2.11 Dual LAN and Teaming Operation Guide (ROMED8-2T only) 41
2.12 M.2 SSD Module Installation Guide 42
Chapter 3 UEFI Setup Utility 44
3.1 Introduction 44

3.1.1 UEFI Menu Bar 44
3.1.2 Navigation Keys 45
3.2 Main Screen 46
3.3 Advanced Screen 47
3.3.1 CPU Conguration 48
3.3.2 Chipset Conguration 49
3.3.3 Storage Conguration 52
3.3.4 ACPI Conguration 53
3.3.5 USB Conguration 54
3.3.6 Super IO Conguration 55
3.3.7 Serial Port Console Redirection 56
3.3.8 H/W Monitor 59
3.3.9 AMD CBS 61
3.3.10 AMD PBS 62
3.3.11 PSP Firmware Versions 63
3.3.12 Instant Flash 64
3.4 Server Mgmt 65
3.4.1 System Event Log 66
3.4.2 BMC Network Conguration 67
3.4.2 BMC Tools 69
3.5 Security 70
3.5.1 Key Management 71
3.6 Boot Screen 74
3.6.1 CSM Parameters 76

3.7 Event Logs 78
3.8 Exit Screen 80
Chapter 4 Software Support 81
4.1 Download and Install Operating System 81
4.2 Download and Install Software Drivers 81
4.3 Contact Information 81
Chapter 5 Troubleshooting 82
5.1 Troubleshooting Procedures 82
5.2 Technical Support Procedures 84
5.3 Returning Merchandise for Service 84

ROMED8-2T
ROMED8-NL
ROMED8-2T/BCM
PB 1
English
Chapter 1 Introduction
ank you for purchasing ASRock Rack ROMED8-2T / ROMED8-NL / ROMED8-
2T/BCM motherboard, a reliable motherboard produced under ASRock Rack’s
consistently stringent quality control. It delivers excellent performance with robust
design conforming to ASRock Rack’s commitment to quality and endurance.
In this manual, chapter 1 and 2 contains introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contains the conguration
guide to BIOS setup and driver installation.
1.1 Package Contents
• ASRock Rack ROMED8-2T / ROMED8-NL / ROMED8-2T/BCM Motherboard
(ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm)
• Quick Installation Guide
• 1 x I/O Shield
• 2 x Mini SAS HD to 4*SATA Cables (60cm)
• 2 x Screws for M.2 Sockets
If any items are missing or appear damaged, contact your authorized dealer.
Because the motherboard specications and the BIOS soware might be updated, the con-
tent of this manual will be subject to change without notice. In case any modications of
this manual occur, the updated version will be available on ASRock Rack website without
further notice. You may nd the latest memory and CPU support lists on ASRock Rack
website as well. ASRock Rack’s Website: www.ASRockRack.com
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
http://www.asrockrack.com/support/

2 3
English
1.2 Specications
ROMED8-2T / ROMED8-NL / ROMED8-2T/BCM
MB Physical Status
Form Factor ATX
Dimension 12'' x 9.6'' (30.5 cm x 24.4 cm)
Processor System
CPU AMD EPYC™ 7003/7002/7001 Series Processor Family
*e latest version of BIOS supports AMD EPYC™ 7003/7002 Series only.
Socket Single Socket SP3 (LGA4094)
Chipset System on Chip
System Memory
Type - Eight Channel DDR4 memory technology (1DPC)
- Supports DDR4 RDIMM, LRDIMM, and NVDIMM (Jump
Option)
DIMM Size Per
DIMM
- RDIMM: 64GB, 32GB, 16GB, 8GB
- LRDIMM: 128GB**, 64GB*, 32GB
- NV DIMM: 32GB
*64GB: wait for the device to be validated
**128GB: wait for the device to be validated
DIMM Frequency - RDIMM: 3200MHz
- LRDIMM: 3200MHz*
- NVDIMM: 3200MHz
*Wait for the device to be validated
Voltage 1.2V
Expansion Slot
PCIe 4.0 x 16 PCIE1: Gen4 x16 link
PCIE2: Gen4 x16 link (shared with M2_1/OCU1/OCU2/
SATA_4_7 by PE8_SEL/PE16_SEL jumpers)
PCIE3: Gen4 x16 link
PCIE4: Gen4 x16 link
PCIE5: Gen4 x16 link
PCIE6: Gen4 x16 link
PCIE7: Gen4 x16 link
(slot with latch, only for ROMED8-2T R1.03/ROMED8-2T/BCM)
Storage
SATA Controller 8 x SATA3 6.0 Gb/s (from 2x mini SAS HD)
M.2 Slot 2 (M2_1: 2230/2242/2260/2280, SATA3/PCIE4(X4); M2_2:
2230/2242/2260/2280/22110, SATA3/PCIE4(X4))
Ethernet
Interface ROMED8-2T:
10000/1000 /100 Mbps by Intel X550-AT2
ROMED8/BCM:
10000/1000 Mbps by BCM57416

ROMED8-2T
ROMED8-NL
ROMED8-2T/BCM
2 3
English
ROMED8-NL:
N/A
LAN Controller ROMED8-2T:
- 2 x RJ45 10G base-T by Intel® X550-AT2
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports Energy Ecient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI
ROMED8-2T/BCM:
- 2 x RJ45 10G base-T by Broadcom BCM57416
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports PXE
- LAN1 supports NCSI
ROMED8-NL:
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
Management
BMC Controller ASPEED AST2500
IPMI Dedicated
GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Features Watch Dog
NMI
Graphics
Controller ASPEED AST2500
Rear Panel I/O
VGA Port 1 x D-Sub
Serial port 1 x COM port
USB 3.2 Gen1 Port 2
USB 3.2 Gen2 Port ROMED8-2T:
1 (typeC)
ROMED8-NL / ROMED8-2T/BCM:
N/A
LAN Port ROMED8-2T / ROMED8-2T/BCM:
- 2+1 RJ45 Gigabit Ethernet LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
ROMED8-NL:
- 1 RJ45 Gigabit Ethernet LAN port
- LAN Pors with LED (ACT/LINK LED and SPEED LED)
UID 1

4 5
English
Internal Connector
Auxiliary Panel
Header
1 (includes chassis intrusion, location button & LED, and front
LAN LED)
System Panel 1 (rst, pwbtn, hddled, pwrled)
TPM Header 1
TPM-SPI Header 1
IPMB Header 1
Fan Header 7 Fans x 6-pin
ATX Power 1 x (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for
GPU for PCIE Slot)
USB 3.2 Gen1
Header
1 (supports 2 USB 3.2 Gen1 ports)
USB 3.2 Gen2 Type
C Header
ROMED8-2T:
1 (supports 1 USB 3.2 Gen2 port)
ROMED8-NL / ROMED8-2T/BCM:
N/A
M.2 2(M2_1: 2230/2242/2260/2280, SATA3/PCIE4(X4);
M2_2:2230/2242/2260/2280/22110, SATA3/PCIE4(X4))
OCulink 2
BMC SMB 1
PSU SMB 1
ermal Sensor
Header
ROMED8-2T (R1.03) / ROMED8-2T/BCM :
2
ROMED8-2T (R1.02 and below) / ROMED8-NL :
1
80 debug port LED 1
Speaker(4pin) 1
ClearCMOS 1
CPU1_HSBP1 1
NMI Header 1
Standby PWR LED
5vsb
1 (5VSB)
BMC heartbeat
LED
1
OH/FanFail LED 7 (only Fan Fail LED)
System BIOS
BIOS Ty pe 32MB AMI UEFI Legal BIOS
BIOS Features Plug and Play (PnP), ACPI 6.3 Compliance Wake Up Events,
SMBIOS 3.3.0, ASRock Rack Instant Flash

4 5
is motherboard supports Wake from on Board LAN. To use this function, please make
sure that the “Wake on Magic Packet from power o state” is enabled in Device Manager
> Intel® Ethernet Connection > Power Management. And the “PCI Devices Power On” is
enabled in UEFI SETUP UTILITY > Advanced > ACPI Conguration. Aer that, onboard
LAN1&2 can wake up S5 under OS.
If you install Intel® LAN utility or Marvell SATA utility, this motherboard may fail Win-
dows® Hardware Quality Lab (WHQL) certication tests. If you install the drivers only, it
will pass the WHQL tests.
Hardware Monitor
Temperature - CPU Temperature Sensing
- MB/TR1/TR2(for ROMED8-2T R1.03 and ROMED8-2T/BCM) / Card
side Temperature Sensing
- DDR4_A~DDR4_H Temperature Sensing
Fan - Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU
Temperature)
- Fan Multi-Speed Control
Voltage Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V,
+BAT, 3VSB, 5VSB, 1.8V, 1.8VSB, LAN_0.83V (ROMED8-2T
X550-AT2 Voltage), DVDD (ROMED8-2T/BCM Broadcom 57416 Voltage)
Support OS
OS Microso® Windows®
- Server 2016 (64 bit)
- Server 2019 (64 bit)
Linux®
- RedHat Enterprise Linux Server 8.0 (64 bit) / 7.6 (64 bit)
- CentOs 8.0 (64 bit) / 7.6 ( 64 bit)
- SUSE SLES 15.1 (64 bit) / 12.4 (64 bit)
- UBuntu 18.04.3 (64 bit) / 16.04.6 (64 bit)
- CITRIX Hypervisor 8.1
Virtual
- VMWare ESXi 6.5 u3 / 6.7 u3
- vSphere 6.5 u3/ / 6.7 u3
* e SUSE Enterprise Linux Server 15.1 (64 bit) / 12.4 (64 bit) system only
supports UEFI BOOT.
* Please refer to our website for the latest OS support list.
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation
temperature: -40°C ~ 70°C
NOTE: Please refer to our website for the latest specications.

6 7
English
1.3 Unique Features
ASRock Rack Instant Flash is a BIOS ash utility embedded in Flash ROM. is con-
venient BIOS update tool allows you to update system BIOS without entering operat-
ing systems rst like MS-DOS or Windows®. With this utility, you can press the <F6>
key during the POST or the <F2> key to enter into the BIOS setup menu to access
ASRock Rack Instant Flash. Just launch this tool and save the new BIOS le to your
USB ash drive, oppy disk or hard drive, then you can update your BIOS only in a
few clicks without preparing an additional oppy diskette or other complicated ash
utility. Please be noted that the USB ash drive or hard drive must use FAT32/16/12
le system.

ROMED8-2T
ROMED8-NL
ROMED8-2T/BCM
6 7
English
24.4cm (9.6 in)
30.5cm (12.0 in)
ATXPWR1
2
VGA1 COM1
DDR4_D1 (64 bit, 288-pin module)
DDR4_C1 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
DDR4_E1 (64 bit, 288-pin module)
DDR4_F1 (64 bit, 288-pin module)
DDR4_G1 (64 bit, 288-pin module)
DDR4_H1 (64 bit, 288-pin module)
ATX12V1
PCIE6
PCIE7
3
4
5
7
USB 3. 2 Ge n1
T: USB2
B: USB1
IPMI_LAN
LAN1
LAN2
UID1
USB3_3_4
OCU1
OCU2
SATA_0_3
SATA_4_7
GFX_12V1
PCIE4
PCIE5
PCIE2
PCIE3
PCIE1
M2_2 M2_1
NUT30
NUT42
NUT60
NUT80
NUT30_2
NUT42_2
NUT60_2
NUT80_2
BAT1
1
AUX_PANEL1
HDLED RESET
PLED PWRBTN
PANEL1
1
1
TPM1
1
SPEAKER1
1
T 1
R
1
1
IPMB1
NMI_BTN1
1
CHASSIS_ID0
1
BMC_SMB1
ASPEED
AST2500
RoHS
ROMED8-2T
ATX12V2
FAN1
FAN2
FAN3
FAN4
FAN5
FAN7
BMC
F/W
8
9
10
11
12
14
15
16
18
19
22
23
2428303134 32
36
37
38
40
41
Intel
X550
LGA4094
Socket SP3
CLRMOS1
33
1
PSU_SMB1
1
NUT110_2
Dr.
Debug
(NCSI)
17
FAN6
25
USB31_TC_1
USB31_TC_2
USB3.2 Gen2
13
11
PE16_SEL
PE8_SEL
27 26
1
TPM_BIOS_PH1
1
NV12V_2
1
NV12V_4
1
NV12V_3
1
NV12V_1
6
20
21
39
42
43
CPU1_HSBP1
BIOS
ROM
29
1
T 2
R
35
(ROMED8-2T
only)
ROMED8-2T/BCM
(ROMED8-2T only)
ROMED8-NL
ROMED8-2T/BCM
(Support ROMED8-2T only)
ROMED8-2T &
:ROMED8-2T/BCM Right Angle
ROMED8-NL: Vertical
Broadcom
BCM57416
OR
(Slot with latch,
only for
)
ROMED8-2T R1.03 &
ROMED8-2T/BCM
(support
)
ROMED8-2T R1.03 &
ROMED8-2T/BCM only

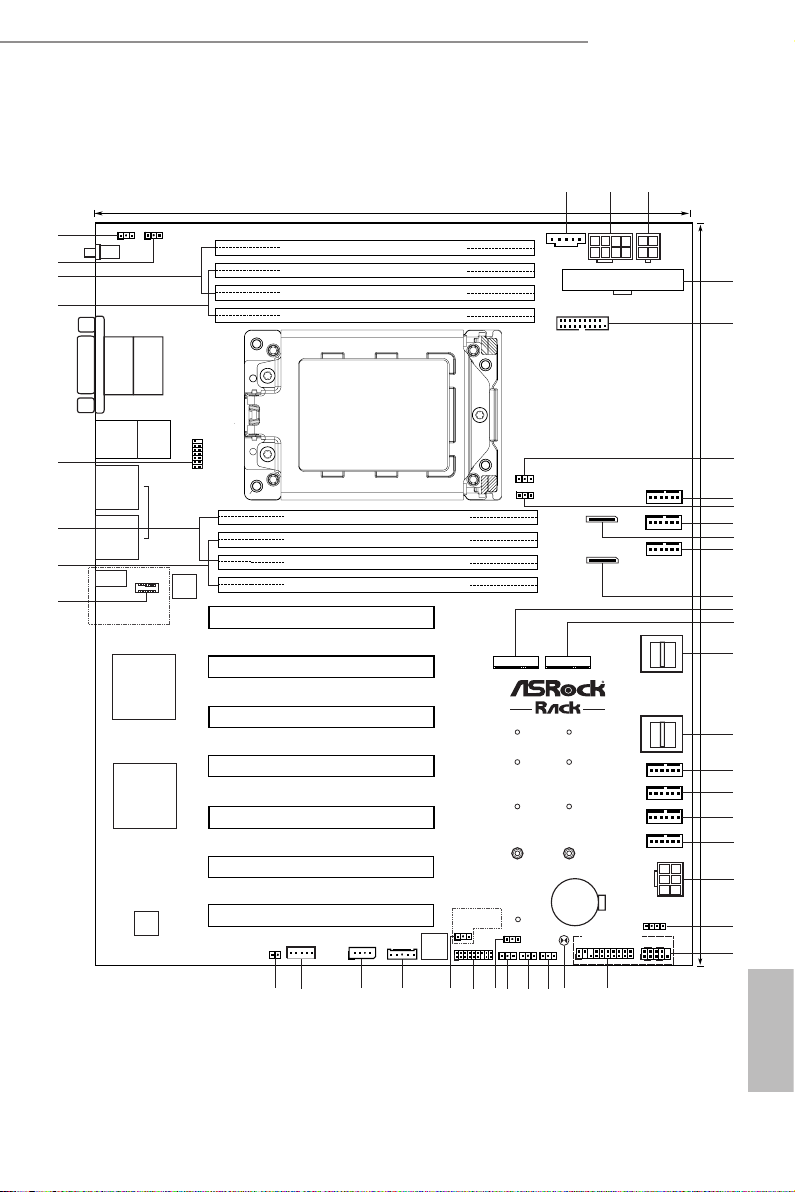

1.4 Motherboard Layout

8 9
English
No. Description
1 PSU SMBus Header (PSU_SMB1)
2 ATX 12V Power Connector (ATX12V1)
3 ATX 12V Power Connector (ATX12V2)
4 ATX Power Connector (ATXPWR1)
5 USB 3.2 Gen1 Header (USB3_3_4)
6 NVDIMM Power Support Jumper (NV12V_1)
7 System Fan Connector (FAN1)
8 NVDIMM Power Support Jumper (NV12V_3)
9 System Fan Connector (FAN2)
10 OCuLink x4 Connector (OCU1)
11 System Fan Connector (FAN3)
12 OCuLink x4 Connector (OCU2)
13 M.2 Socket (M2_2) (Type 2230/2242/2260/2280/22110)
14 M.2 Socket (M2_1) (Type 2230/2242/2260/2280)
15 Mini-SAS HD Connector (SATA_0_3)
16 Mini-SAS HD Connector (SATA_4_7)
17 System Fan Connector (FAN4)
18 System Fan Connector (FAN5)
19 System Fan Connector (FAN6)
20 System Fan Connector (FAN7)
21 Graphics 12V Power Connector (GFX_12V1)
22 Speaker Header (SPEAKER1)
23 System Panel Header (PANEL1)
24 Auxiliary Panel Header (AUX_PANEL1)
25 Clear CMOS Pad (CLRMOS1)
26 PCIE2 x16 Selection Jumper (PE16_SEL)
27 PCIE2 x8 Selection Jumper (PE8_SEL)
28 ermal Sensor Header (TR1)
29 Chassis ID Jumper (CHASSIS_ID0)
30 TPM Header (TPM1)
31 ermal Sensor Header (TR2)
32 BMC SMBus Header (BMC_SMB1)
33 Intelligent Platform Management Bus Header (IPMB1)

ROMED8-2T
ROMED8-NL
ROMED8-2T/BCM
8 9
English
No. Description
34 Backplane PCI Express Hot-Plug Connector (CPU1_HSBP1)
35 Non Maskable Interrupt Button (NMI_BTN1)
36 Front Panel Type C USB 3.2 Gen2 Header (USB31_TC_2)
(ROMED8-2T only)
37 2 x 288-pin DDR4 DIMM Slots (DDR4_B1, DDR4_D1)*
38 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_C1)*
39 TPM-SPI Header (TPM_BIOS_PH1)
40 2 x 288-pin DDR4 DIMM Slots (DDR4_E1, DDR4_G1)*
41 2 x 288-pin DDR4 DIMM Slots (DDR4_F1, DDR4_H1)*
42 NVDIMM Power Support Jumper (NV12V_4)
43 NVDIMM Power Support Jumper (NV12V_2)
*For DIMM installation and conguration instructions, please see p.21 (Installation of Memory Modules
(DIMM)) for more details.

10 11
English

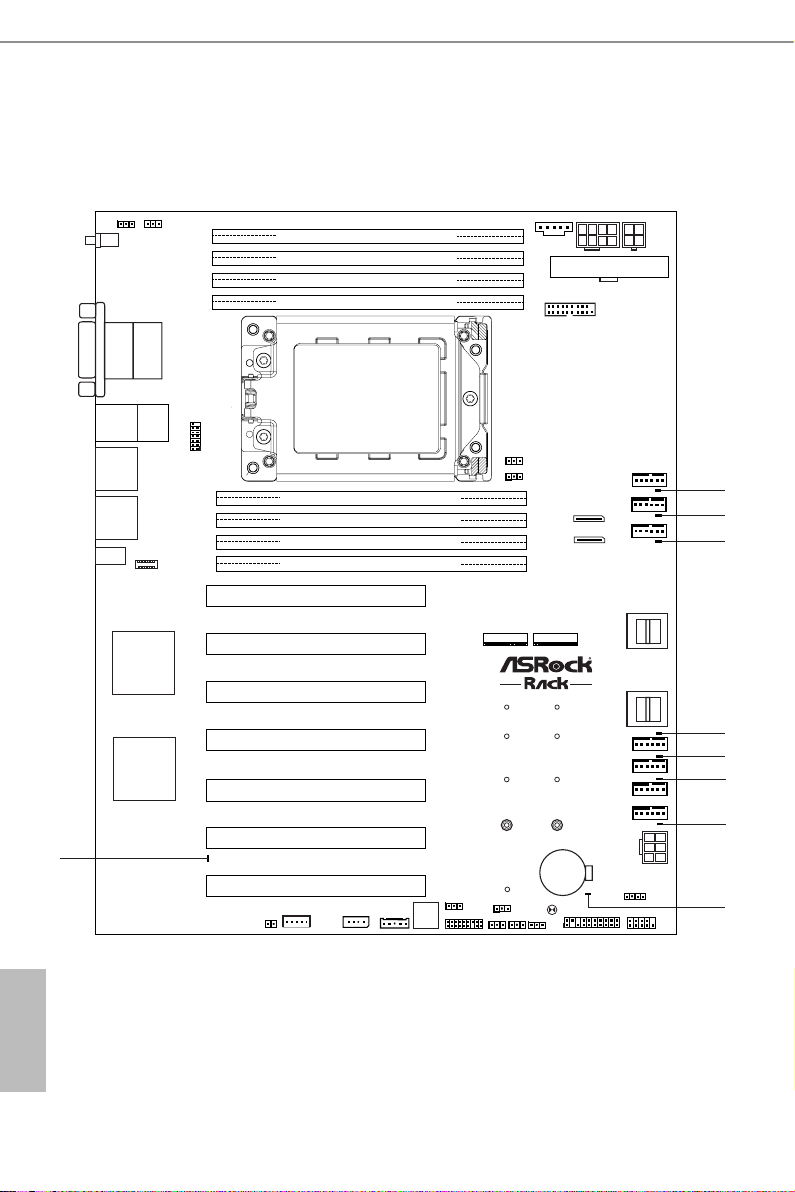

1.5 Onboard LED Indicators
DDR4_D1 (64 bit, 288-pin module)
DDR4_C1 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
DDR4_E1 (64 bit, 288-pin module)
DDR4_F1 (64 bit, 288-pin module)
DDR4_G1 (64 bit, 288-pin module)
DDR4_H1 (64 bit, 288-pin module)
NUT1
NUT2
NUT3
NUT4
NUT5
NUT6
NUT7
NUT8
RoHS
1
2
3
4
8
9
LGA4094
Socket SP3
5
6
7

ROMED8-2T
ROMED8-NL
ROMED8-2T/BCM
10 11
English
No. Item Status Description
1FAN_LED1 Amber FAN1 failed
2FAN_LED2 Amber FAN2 failed
3FAN_LED3 Amber FAN3 failed
4FAN_LED4 Amber FAN4 failed
5FAN_LED5 Amber FAN5 failed
6FAN_LED6 Amber FAN6 failed
7FAN_LED7 Amber FAN7 failed
8 SB_PWR1 Green STB PWR ready
9BMC_LED1 Green BMC heartbeat LED

12 13
English

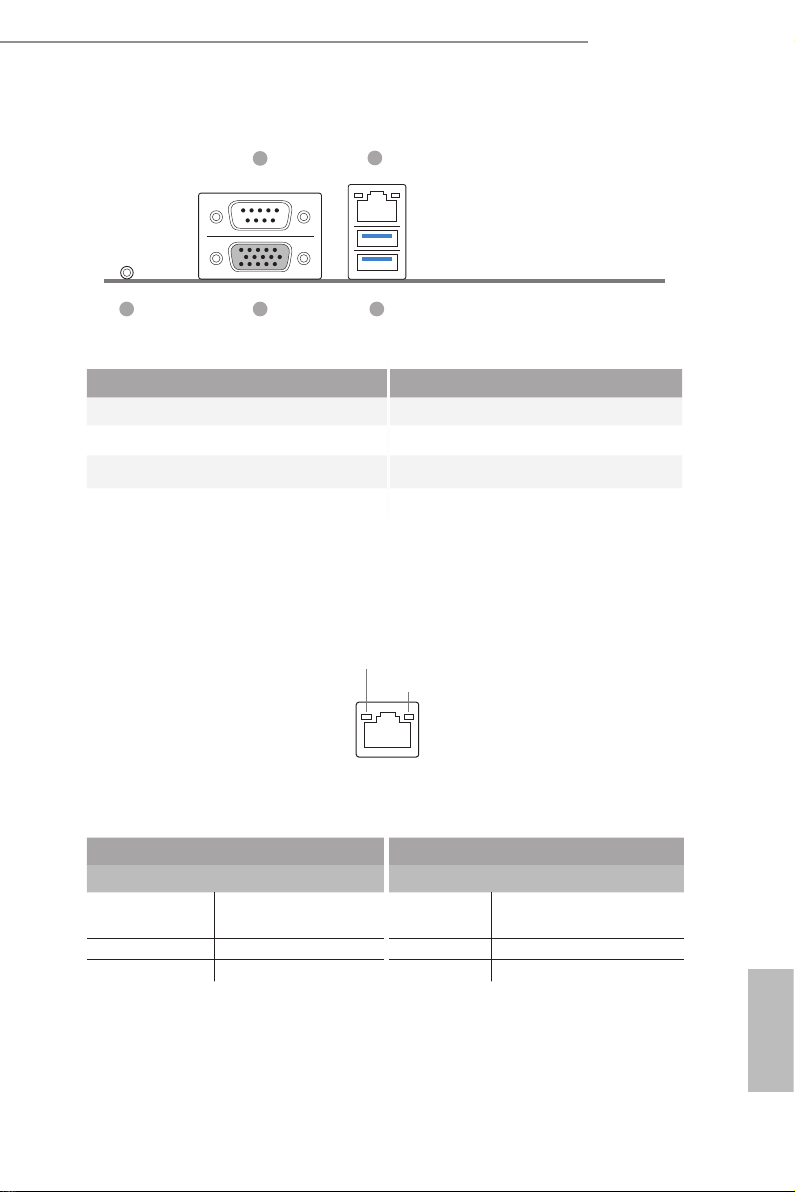

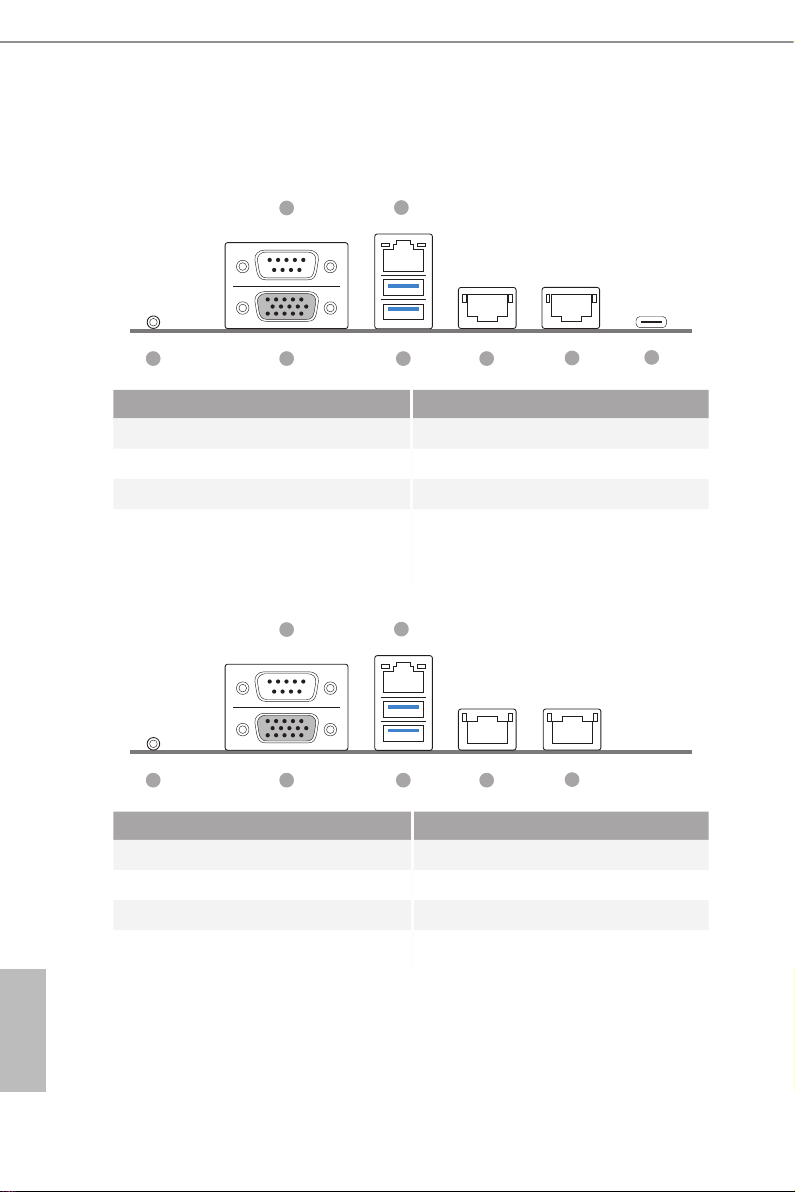

1.6 I/O Panel
ROMED8-2T
2
3
14
5
678
No. Description No. Description
1 UID Switch (UID1) 5 LAN RJ-45 Port (IPMI_LAN1)*
2VGA Port (VGA1) 6 10G LAN RJ-45 Port (LAN1)**
3 Serial Port (COM1) 7 10G LAN RJ-45 Port (LAN2)**
4 USB 3.2 Gen1 Ports (USB3_1_2) 8 USB 3.2 Gen2 Port (USB31_TC_1)
ROMED8-2T/BCM
2
3
14
5
67
No. Description No. Description
1 UID Switch (UID1) 5 LAN RJ-45 Port (IPMI_LAN1)*
2VGA Port (VGA1) 6 10G LAN RJ-45 Port (LAN1)**
3 Serial Port (COM1) 7 10G LAN RJ-45 Port (LAN2)**
4 USB 3.2 Gen1 Ports (USB3_1_2)

ROMED8-2T
ROMED8-NL
ROMED8-2T/BCM
12 13
English
ROMED8-NL
2
3
14
5
No. Description No. Description
1 UID Switch (UID1) 4 USB 3.2 Gen1 Ports (USB3_1_2)
2VGA Port (VGA1) 5 LAN RJ-45 Port (IPMI_LAN1)*
3 Serial Port (COM1)
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

14 15
English
ROMED8-2T only:
**ere are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.

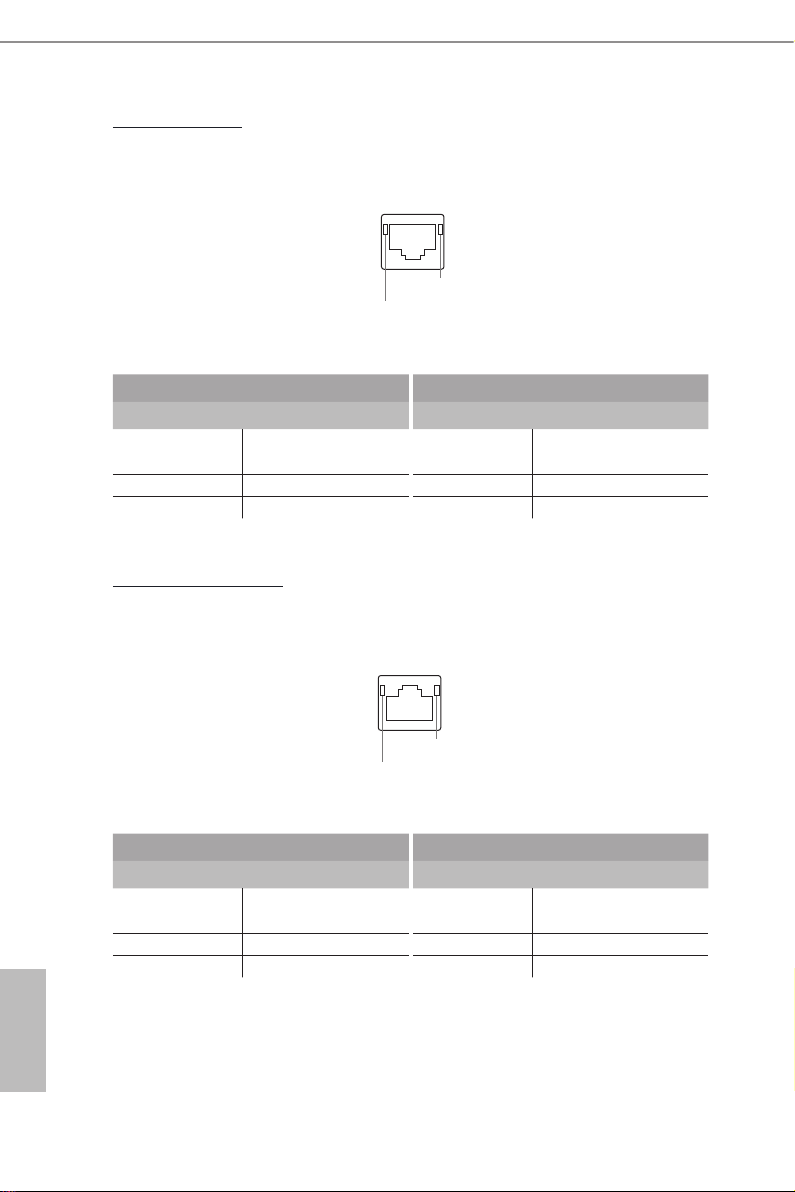

LAN Port (LAN1, LAN2) LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 100Mbps connection or
no link
Blinking Yellow Data Activity O 1Gbps connection
On Link Green 10Gbps connection
ROMED8-2T/BCM only:
**ere are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.
LAN Port (LAN1, LAN2) LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 100Mbps connection or
no link
Blinking Yellow Data Activity Yellow 1Gbps connection
On Link Green 10Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
ACT/LINK LED
SPEED LED
LAN Port
