Chapter 1 Introduction
ank you for purchasing ASRock H170M Pro4 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
In this documentation, Chapter 1 and 2 contains the introduction of the
motherboard and step-by-step installation guides. Chapter 3 contains the operation
guide of the soware and utilities. Chapter 4 contains the conguration guide of
the BIOS setup.
1.1 Package Contents
•ASRock H170M Pro4 Motherboard (Micro ATX Form Factor)
•ASRock H170M Pro4 Quick Installation Guide
•ASRock H170M Pro4 Support CD
•2 x Serial ATA (SATA) Data Cables (Optional)
•1 x I/O Panel Shield
•1 x Screw for M.2 Socket
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi-
cations of this documentation occur, the updated version will be available on ASRock’s
website without further notice. If you require technical support related to this mother-
board, please visit our website for specic information about the model you are using. You
may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock
website http://www.asrock.com.

2
English
1.2 Specications
Platform •Micro ATX Form Factor
•Solid Capacitor design
•High Density Glass Fabric PCB
CPU •Supports 6th Generation Intel® CoreTM i7/i5/i3/Pentium®/
Celeron® Processors (Socket 1151)
•Digi Power design
•6 Power Phase design
•Supports Intel® Turbo Boost 2.0 Technology
Chipset •Intel®H170
•Supports Intel® Small Business Advantage 4.0
Memory •Dual Channel DDR4 Memory Technology
•4 x DDR4 DIMM Slots
•Supports DDR4 2133 non-ECC, un-buered memory
•Max. capacity of system memory: 64GB
•Supports Intel® Extreme Memory Prole (XMP) 2.0
Expansion
Slot
•2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4
mode)
•2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
•Supports AMD Quad CrossFireXTM and CrossFireXTM
Graphics •Intel® HD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
•Supports Intel® HD Graphics Built-in Visuals : Intel® Quick
Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® HD Graphics 510/530
•Pixel Shader 5.0, DirectX 12
•Max. shared memory 1792MB
•Four graphics output options: D-Sub, DVI-D, HDMI and
DisplayPort 1.2
•Supports Triple Monitor
•Supports HDMI with max. resolution up to 4K x 2K
(4096x2304) @ 24Hz

3
English
H170M Pro4
•Supports DVI-D with max. resolution up to 1920x1200 @
60Hz
•Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
•Supports DisplayPort 1.2 with max. resolution up to 4K x 2K
(4096x2304) @ 24Hz or 4K x 2K (3840x2160) @ 60Hz
•Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI Port (Compliant
HDMI monitor is required)
•Supports Accelerated Media Codecs: HEVC, VP8, VP9
•Supports HDCP with DVI-D, HDMI and DisplayPort 1.2
Ports
•Supports Full HD 1080p Blu-ray (BD) playback with DVI-D,
HDMI and DisplayPort 1.2 Ports
Audio •7.1 CH HD Audio with Content Protection (Realtek ALC892
Audio Codec)
•Premium Blu-ray Audio support
•Supports Surge Protection (ASRock Full Spike Protection)
•ELNA Audio Caps
LAN •Gigabit LAN 10/100/1000 Mb/s
•Giga PHY Intel® I219V
•Supports Wake-On-LAN
•Supports Lightning/ESD Protection (ASRock Full Spike
Protection)
•Supports Energy Ecient Ethernet 802.3az
•Supports PXE
Rear Panel
I/O
•1 x PS/2 Mouse/Keyboard Port
•1 x D-Sub Port
•1 x DVI-D Port
•1 x HDMI Port
•1 x DisplayPort 1.2
•6 x USB 3.0 Ports (Supports ESD Protection (ASRock Full
Spike Protection))
•1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
•HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass
/ Line in / Front Speaker / Microphone

4
English
Storage •6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology
14 and Intel Smart Response Technology), NCQ, AHCI and
Hot Plug
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and
SATA3_1 will be disabled.
•1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module
and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
* Supports ASRock U.2 Kit
Connector •1 x Print Port Header
•1 x COM Port Header
•1 x TPM Header
•1 x Chassis Intrusion and Speaker Header
•1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
•2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed
Control)
•1 x 24 pin ATX Power Connector
•1 x 8 pin 12V Power Connector
•1 x Front Panel Audio Connector
•1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports
ESD Protection (ASRock Full Spike Protection))
•1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports
ESD Protection (ASRock Full Spike Protection))
BIOS
Feature
•128Mb AMI UEFI Legal BIOS with multilingual GUI sup-
port
•ACPI 1.1 Compliant wake up events
•SMBIOS 2.3.1 Support
•DRAM Voltage Multi-adjustment
Hardware
Monitor
•CPU/Chassis temperature sensing
•CPU/Chassis Fan Tachometer
•CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by
CPU temperature)
•CPU/Chassis Fan multi-speed control
•CASE OPEN detection
•Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU,
DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA

5
English
H170M Pro4
OS •Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-
bit
* To install Windows® 7 OS, a modied installation disk with
xHCI drivers packed into the ISO le is required. Please refer to
page 40 for more detailed instructions.
* For the updated Windows® 10 driver, please visit ASRock’s
website for details: http://www.asrock.com
Certica-
tions
•FCC, CE, WHQL
•ErP/EuP Ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

6
English
Intel
H170
Super
I/O
ATXPWR1
HDLED RESET
PLED PWRBTN
PANEL1
1
COM1
1
H170M Pro4
RoHS
2
CPU_FAN1
5
1
Audio
CODEC
PCIE1
PCI Express 3.0
TPMS1
1
1
1
USB1_2
USB 3.0
T: USB1
B: USB2
PS2
Keyboard
/Mouse
SPK_CI1
1
PCIE2
Front USB 3.0
14
15
16
17
18
19
20
21
CMOS
Battery
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module) DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
4
3
ATX12V1
11
8
SATA3 _2
SATA3 _3
USB3 _5 _6
12
13
SATA3 _4
SATA3 _5
128Mb
BIOS
CHA_FAN2
9
10
CLRMOS1
1
1
HD_AUDIO1
PCIE3
PCIE4
M2_1
CT2CT3CT1
DISPLAY1
Top:
RJ-45
USB 3.0
T: USB3
B: USB4
HDMI1
USB 3.0
T: USB7
B: USB8
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
CHA_FAN1
22 7
SATA3 _1
6
SATA3 _0
VGA1
DVI1
1.3 Motherboard Layout

7
English
H170M Pro4

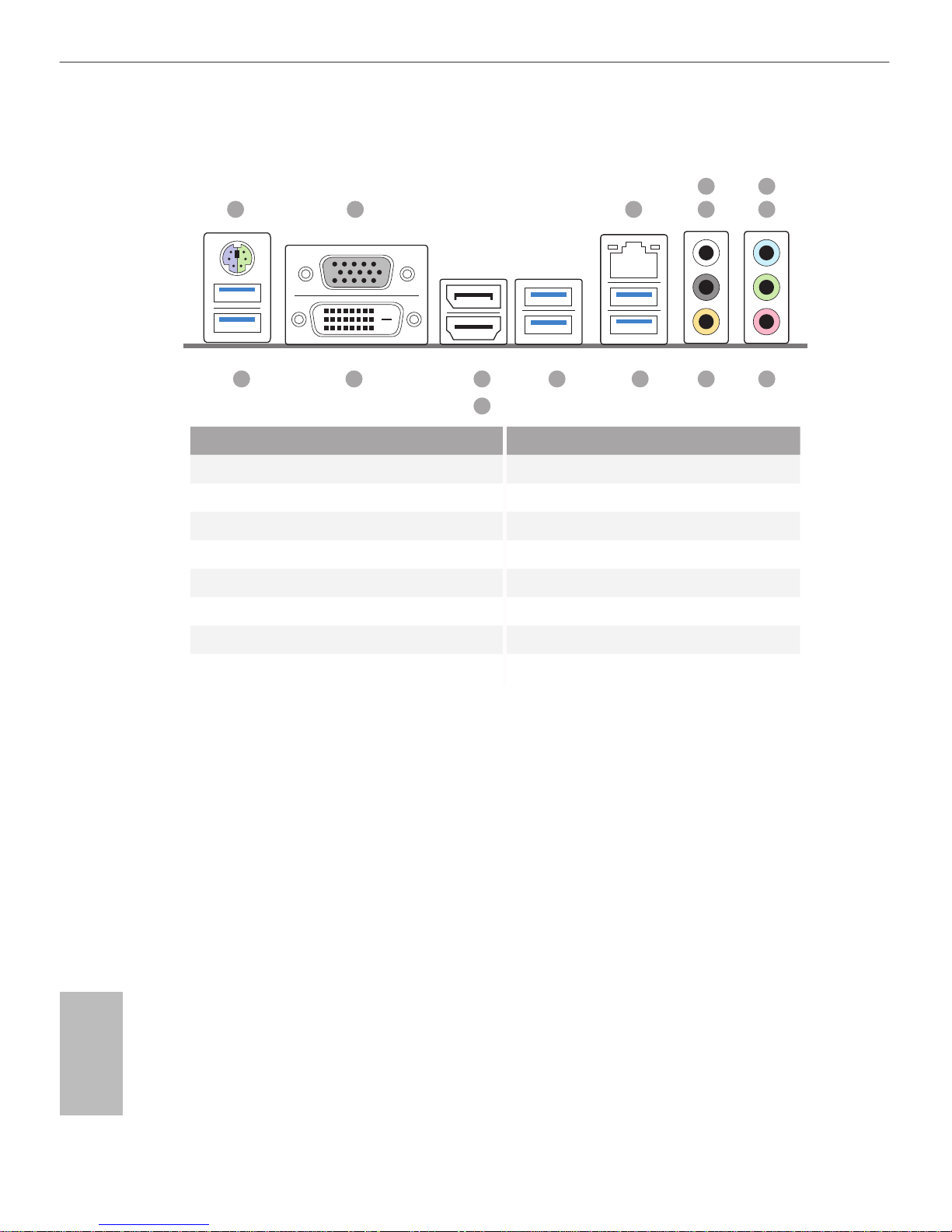

No. Description
1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
5 ATX Power Connector (ATXPWR1)
6 SATA3 Connector (SATA3_0)
7 SATA3 Connector (SATA3_1)
8 USB 3.0 Header (USB3_5_6)
9 Chassis Fan Connector (CHA_FAN2)
10 SATA3 Connector (SATA3_2)
11 SATA3 Connector (SATA3_3)
12 SATA3 Connector (SATA3_5)
13 SATA3 Connector (SATA3_4)
14 System Panel Header (PANEL1)
15 Chassis Intrusion and Speaker Header (SPK_CI1)
16 Clear CMOS Jumper (CLRMOS1)
17 USB 2.0 Header (USB1_2)
18 TPM Header (TPMS1)
19 Print Port Header (LPT1)
20 COM Port Header (COM1)
21 Front Panel Audio Header (HD_AUDIO1)
22 Chassis Fan Connector (CHA_FAN1)

8
English
1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 9 Central / Bass (Orange)
2D-Sub Port 10 USB 3.0 Ports (USB3_34)
3 LAN RJ-45 Port* 11 USB 3.0 Ports (USB3_7_8)
4 Side Speaker (Gray) 12 DisplayPort 1.2
5 Rear Speaker (Black) 13 HDMI Port
6 Line In (Light Blue) 14 DVI-D Port
7 Front Speaker (Lime)** 15 USB 3.0 Ports (USB3_12)
8Microphone (Pink)
1
15 1012
13
9 8
11
14
3 5
4
7
6
2

9
English
H170M Pro4
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection details in accordance with the type of speaker you use.
Audio Output
Channels
Front Speaker
(No. 7)
Rear Speaker
(No. 5)
Central / Bass
(No. 9)
Line In
(No. 6)
2V -- -- --
4V V -- --
6V V V --
8V V V V
To enable Multi-Streaming, you need to connect a front panel audio cable to the front
panel audio header. Aer restarting your computer, you will nd the “Mixer” tool
on your system. Please select “Mixer ToolBox” , click “Enable playback multi-
streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are
allowed to select “Realtek HDA Primary output” to use the Rear Speaker, Central/
Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use the front
panel audio.
ACT/LINK LED
SPEED LED
LAN Port

10
English
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
•Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
•In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
•Hold components by the edges and do not touch the ICs.
•Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
•When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

11
English
H170M Pro4

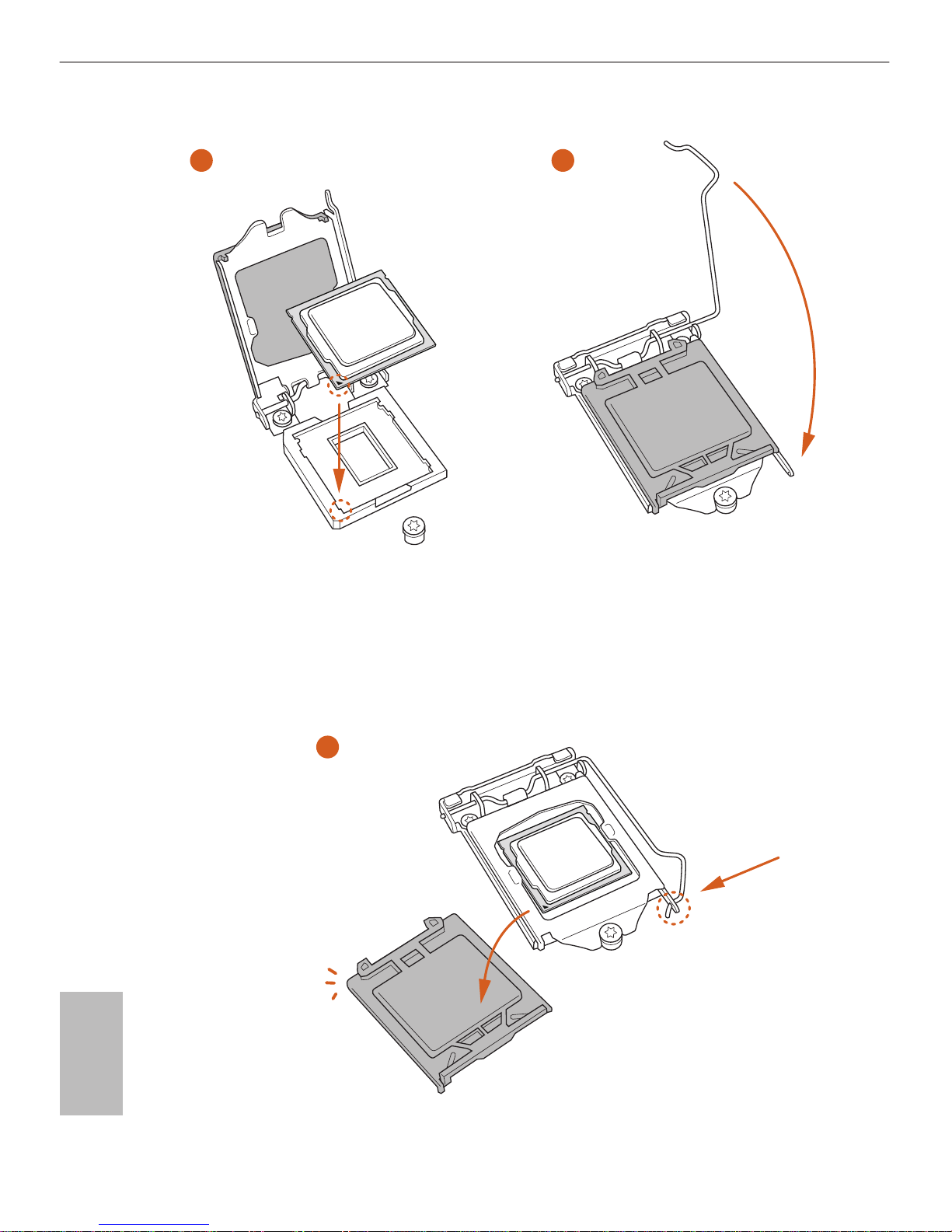

2.1 Installing the CPU
1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
A
B

12
English
4
5
3

13
English
H170M Pro4
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.

14
English
2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

15
English
H170M Pro4
2.3 Installing Memory Modules (DIMM)
is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
Dual Channel Memory Conguration
e DIMM only ts in one correct orientation. It will cause permanent damage to the
motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
Priority DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2
1Populated Populated
2Populated Populated
3Populated Populated Populated Populated
1. For dual channel conguration, you always need to install identical (the same brand,
speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory
module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot;
otherwise, this motherboard and DIMM may be damaged.
