ASROCK X299E-ITX/ac User manual

Version 1.1
Published October 2017
Copyright©2017 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel
: [phone] ext.123 (Standard International call charges apply)
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;
7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &
DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,
DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.
© DTS, Inc., All Rights Reserved.

1
English
X299E-ITX/ac
Motherboard Layout
2066 Socket
Intel
X299
X299E-ITX/ac
RoHS
CHA _FA N1 /W_ PU MP
VRO C1
1
M2_WIFI_1
REA R_ BT N
USB 3 .1 Gen2
T: USB31_ TA_1
B: USB3 1_ TC _1
Top:
LAN2
USB 3.1 Gen1
T: USB3
B: USB4
Top:
LAN1
USB 3.1 Gen1
T: USB1
B: USB2
Top:
Central/Bass
Cent er :
REAR S PK
Top:
LINE I N
Cent er :
FRON T
Bott om :
Opti ca l
SPDI F
Bott om :
MIC IN
1
HD_AUDIO1
ATX1 2V 1
ATXPWR1
FSB800
DDR4_A1 (64 bit, 260-pin module)
FSB800
DDR4_B1 (64 bit, 260-pin module)
FSB800
DDR4_D1 (64 bit, 260-pin module)
FSB800
DDR4_C1 (64 bit, 260-pin module)
RGB _LE D1
1
1
SPK _PL ED 1
HDL ED RE SET
PLE D PWR BTN
PANE L1
1
CPU _FA N1
CPU _O PT /W_ PU MP
PCIE1
REAR_IO
FRONT_IO1
1
TPM S1
AB
REAR _B TN _S EL 1
Top Side View

2
English
M2_2
M2_3

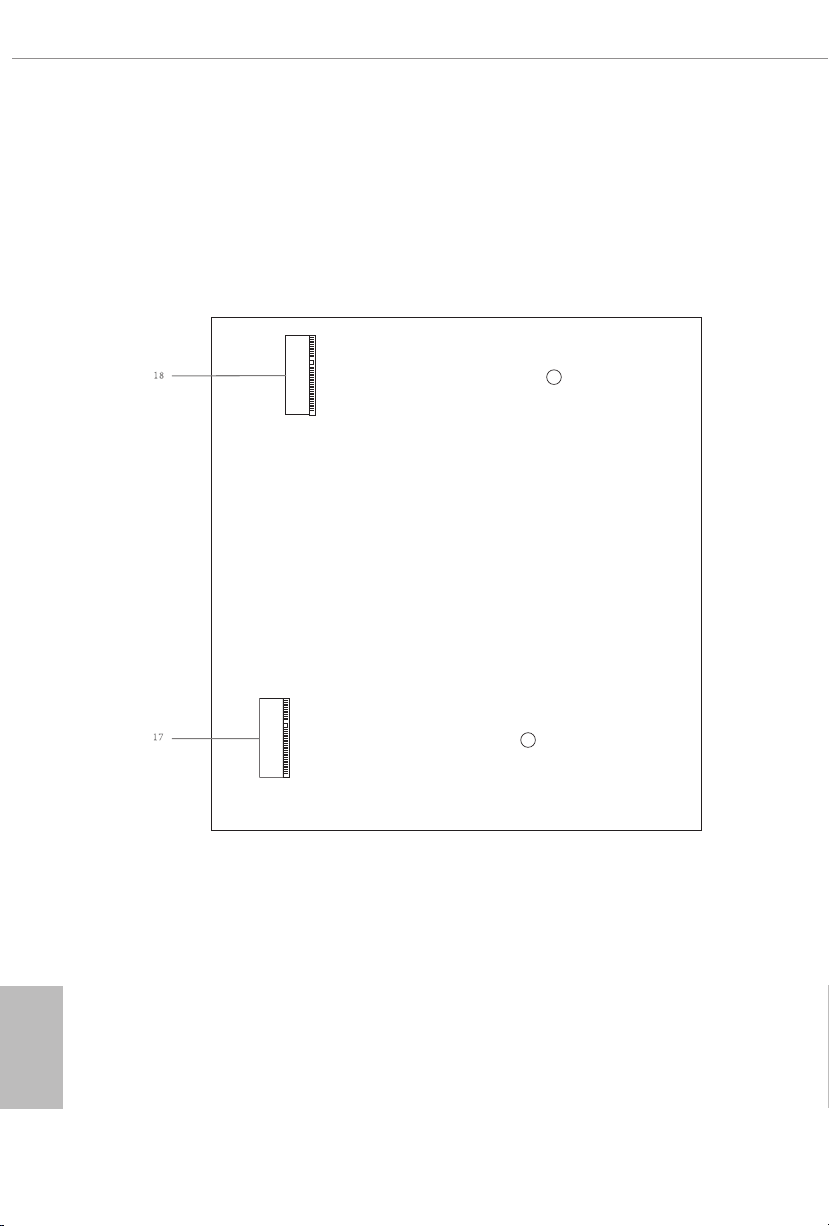

Back Side View

3
English
X299E-ITX/ac

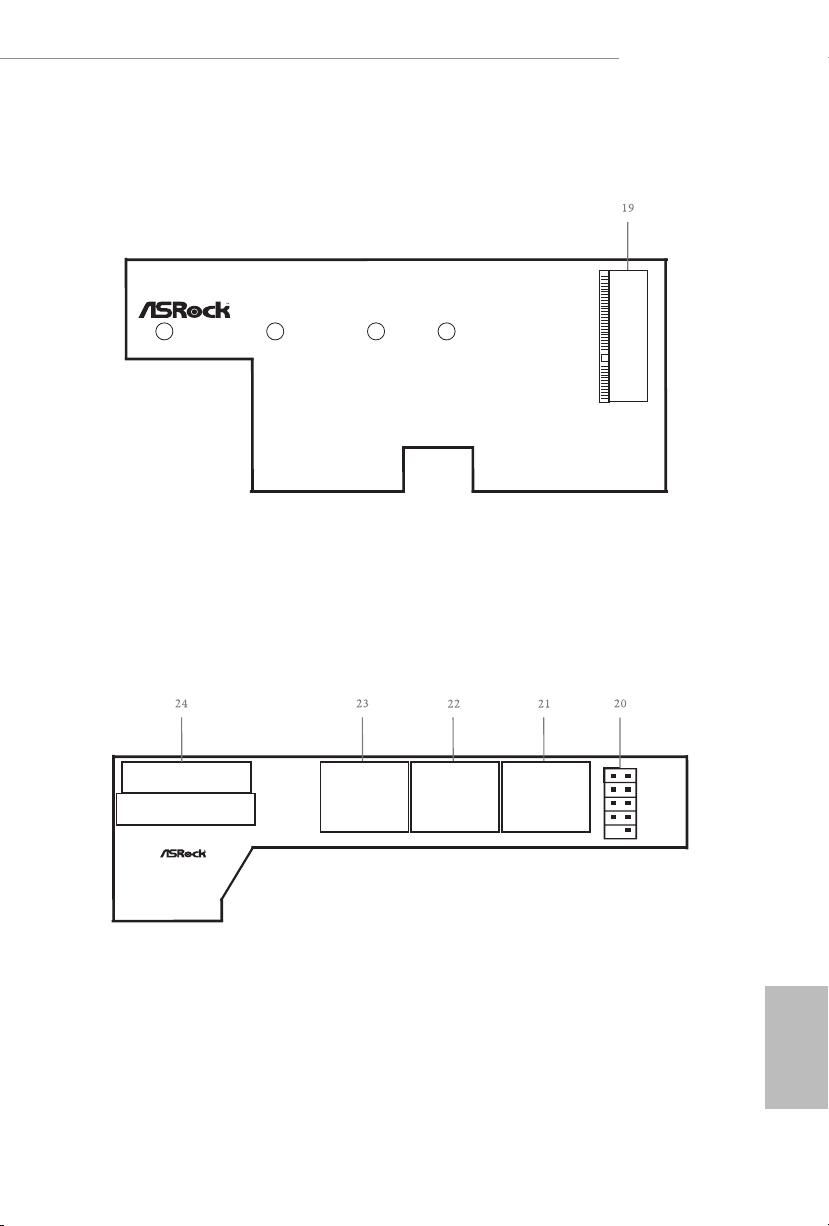

Front Card (For Front Socket)
Rear Card (For Rear Socket)
X299E-ITX FRONT
RoHS
1
USB_5_6
USB_7_8 SATA3_6_7 SATA3_4_5 SATA3_2_3
M2_1
CT11CT12CT13CT14
X299E-ITX REAR
RoHS

4
English
No. Description
1 Chassis Fan / Waterpump Fan Connector (CHA_FAN1/W_PUMP)
2 Virtual RAID On CPU Header (VROC1)
3 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_A1, DDR4_B1)
4 RGB LED Header (RGB_LED1)
5 System Panel Header (PANEL1)
6 ATX 12V Power Connector (ATX12V1)
7 Front Socket (FRONTI_IO1)
8 CPU Fan Connector (CPU_FAN1)
9 CPU Fan / Waterpump Fan Connector (CPU_OPT/W_PUMP)
10 Power LED and Speaker Header (SPK_PLED1)
11 ATX Power Connector (ATXPWR1)
12 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_C1, DDR4_D1)
13 Rear Button Switch (REAR_BTN_SEL1)
14 Front Panel Audio Header (HD_AUDIO1)
15 Rear Socket (REAR_IO)
16 TPM Header (TPMS1)
17 Ultra M.2 Socket (M2_3)
18 Ultra M.2 Socket (M2_2)
19 Ultra M.2 Socket (M2_1)
20 USB 2.0 Header (USB_5_6)
21 SATA3 Connectors (SATA3_2_3)
22 SATA3 Connectors (SATA3_4_5)
23 SATA3 Connectors (SATA3_6_7)
24 USB 3.1 Gen1 Header (USB_7_8)

5
English
X299E-ITX/ac
I/O Panel
No. Description No. Description
1 USB 3.1 Gen2 Type-A Port (USB31_TA_1) 8 Microphone (Pink)
2 LAN RJ-45 Port (Intel® I211AT)* 9 Optical SPDIF Out Port
3 LAN RJ-45 Port (Intel® I219V)* 10 USB 3.1 Gen1 Ports (USB_34)
4 Central / Bass (Orange) 11 USB 3.1 Gen1 Ports (USB_12)
5 Rear Speaker (Black) 12 USB 3.1 Gen2 Type-C Port (USB31_TC_1)
6 Line In (Light Blue) 13 Clear CMOS Button / Power Button***
7 Front Speaker (Lime)** 14 Antenna Ports
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
89
1114 12
5
4
7
6
21
10
3
13

6
English
** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection details in accordance with the type of speaker you use.
Audio Output
Channels
Front Speaker
(No. 7)
Rear Speaker
(No. 5)
Central / Bass
(No. 4)
Line In
(No. 6)
2V -- -- --
4V V -- --
6V V V --
8V V V V
*** Use the Rear Button Switch to adjust the function of this switch.
A: Clear CMOS Button (default); B: Power Button.
To enable Multi-Streaming, you need to connect a front panel audio cable to the
front panel audio header. Aer restarting your computer, you will nd the “Mixer”
tool on your system. Please select “Mixer ToolBox” , click “Enable playback
multi-streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then
you are allowed to select “Realtek HDA Primary output” to use the Rear Speaker,
Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use
the front panel audio.
AB

7
English
X299E-ITX/ac
ASRock WiFi 2.4/5 GHz Antenna
Intel® Dual Band Wireless-AC 8265 (AC Wave 2 + BLE BT4.2)
and ASRock WiFi 2.4/5 GHz Antenna
WiFi-802.11ac + BT Module
is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.2
module (pre-installed on the rear I/O panel) that oers support for WiFi 802.11 a/b/
g/n/ac connectivity standards and Bluetooth v4.2. WiFi + BT module is an easy-to-
use wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth
v4.2 standard features Smart Ready technology that adds a whole new class of
functionality into the mobile devices. BT 4.2 also includes Low Energy Technology
and ensures extraordinary low power consumption for PCs. e 2T2R WiFi
solution sets a WiFi high speed standard and oers max link rate up to 867Mbps.
* e transmission speed may vary according to the environment.

8
English
Chapter 1 Introduction
ank you for purchasing ASRock X299E-ITX/ac motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock X299E-ITX/ac Motherboard (Mini-ITX Form Factor)
• ASRock X299E-ITX/ac Quick Installation Guide
• ASRock X299E-ITX/ac Support CD
• 1 x I/O Panel Shield
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x ASRock WiFi 2.4/5 GHz Antenna (Optional)
• 3 x Screws for Ultra M.2 Sockets (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

9
English
X299E-ITX/ac
1.2 Specications
Platform • Mini-ITX Form Factor
• 10 Layer PCB
CPU • Supports Intel® CoreTM X-Series Processor Family (79xx,
78xx Series) for the LGA 2066 Socket
* Supports 28 and 44 PCIe lane processors (6-core and above)
only. 16 PCIe lane processors (4-core) are not supported. Please
refer to CPU Support List on ASRock’s website for more infor-
mation. (http://www.asrock.com/)
• Digi Power design
• 7 Power Phase design
• Supports Intel® Turbo Boost Max Technology 3.0
• Supports ASRock Hyper BCLK Engine III
Chipset • Intel® X299
Memory • Quad Channel DDR4 Memory Technology
• 4 x DDR4 SO-DIMM Slots
• Supports DDR4 4000+(OC)*/3866(OC)/ 3800(OC)/3733
(OC)/3600(OC)/3200(OC)/2933(OC)/2800
(OC)/2666/2400/2133 non-ECC, un-buered memory
* e maximum memory frequency supported may vary by
processor type.
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)
• Max. capacity of system memory: 64GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
Expansion
Slot
• 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
• 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-
802.11ac module (on the rear I/O)
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Audio • 7.1 CH HD Audio with Content Protection (Realtek
ALC1220 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection

10
English
• Supports Purity SoundTM 4
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Dierential Amplier
- NE5532 Premium Headset Amplier for Front Panel
Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- Impedance Sensing on Front Out port
- Gold Audio Jacks
- 15μGold Audio Connector
• Supports DTS Connect
LAN • Gigabit LAN 10/100/1000 Mb/s
• 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE
Wireless
LAN
• Intel® Dual Band Wireless-AC 8265
• Supports IEEE 802.11a/b/g/n/ac
• Supports Dual-Band (2.4/5 GHz with 80Mhz bandwidth and
MU-MIMO)
• Supports high speed wireless connections up to 867Mbps
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity
technology
• Supports Bluetooth 4.2 / 3.0 + High speed class II
Rear Panel
I/O
• 2 x Antenna Ports
• 1 x Optical SPDIF Out Port
• 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142)
(Supports ESD Protection)
• 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142)
(Supports ESD Protection)
• 4 x USB 3.1 Gen1 Ports (ASMedia ASM1074 Hub) (Supports
ESD Protection)*
• 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED
LED)*
* If you remove X299E-ITX REAR card, USB 3.1 Gen1 ports and
RJ-45 LAN Ports will not work.

11
English
X299E-ITX/ac
• 1 x Clear CMOS Button / Power Button
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone (Gold Audio Jacks)
Storage • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology
15 and Intel Smart Response Technology), NCQ, AHCI and
Hot Plug*
• 1 x Ultra M.2 Socket (M2_1), supports M Key type
2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2
PCI Express module up to Gen3 x4 (32 Gb/s)**
• 2 x Ultra M.2 Sockets (M2_2 and M2_3), support M Key
type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
** Supports Intel® OptaneTM Technology (M2_1)
** Supports NVMe SSD as boot disks
** Supports Virtual RAID On CPU (M2_2 and M2_3)
Connector • 1 x Virtual RAID On CPU Header
• 1 x TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip
• 1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.
• 1 x CPU Optional/Water Pump Fan Connector (4-pin)
(Smart Fan Speed Control)
* e CPU Optional/Water Pump Fan supports the water
cooler fan of maximum 1.5A (18W) fan power.
• 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Con-
trol)
* CPU_OPT/W_PUMP and CHA_FAN1 can auto detect if
3-pin or 4-pin fan is in use.
• 1 x 24 pin ATX Power Connector (Hi-Density Power Con-
nector)
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connec-
tor)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connec-
tor)

12
English
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports
ESD Protection)
• 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports)
(Supports ESD Protection)
• 1 x Rear Button (A: Clear CMOS Button; B: Power Button)
BIOS
Feature
• AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 6.1 Compliant wake up events
• SMBIOS 3.0 Support
• CPU, DRAM, PCH 1.0V, VCCIO,VCCSA,Voltage Multi-
adjustment
Hardware
Monitor
• Temperature Sensing: CPU, CPU Optional/Water Pump,
Chassis Fans
• Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis
Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU tempera-
ture): CPU, CPU Optional/Water Pump, Chassis Fans
• Fan Multi-Speed Control: CPU, CPU Optional/Water Pump,
Chassis Fans
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,
PCH 1.0V, VCCIO, VCCSA
OS • Microso® Windows® 10 64-bit
Certica-
tions
• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

13
English
X299E-ITX/ac
is is a Mini-ITX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

14
English
2.1 Installing the CPU
CAUTION:
Please note that X299 platform is only compatible with the LGA 2066 socket, which is
incompatible with the LGA 2011-3 socket (for X99 platform).
1. Before you insert the 2066-Pin CPU into the socket, please check if the PnP cap
is on the socket, if the CPU surface is unclean, or if there are any bent pins in the
socket. Do not force to insert the CPU into the socket if above situation is found.
Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
A
B
A
B
1
2

15
English
X299E-ITX/ac
4
A
3
B
5

16
English
Please save and replace the cover if the processor is removed. e cover must be
placed if you wish to return the motherboard for aer service.
6
A
B
8
B
7
A

17
English
X299E-ITX/ac
2.2 Installing the CPU Fan and Heatsink
CPU_FAN
1 2

18
English
2.3 Installation of Memory Modules (SO-DIMM)
is motherboard provides four 260-pin DDR4 (Double Data Rate 4) SO-DIMM slots, and
supports Quad Channel Memory Technology.
Quad Channel Memory Conguration
DDR4_A1 Populated
DDR4_B1 Populated
DDR4_D1 Populated
DDR4_C1 Populated
• If only two memory modules are installed in the DDR4 SO-DIMM slots, then Dual
Channel Memory Technology is activated. If three memory modules are installed, then
Triple Channel Memory Technology is activated.
1. For quad channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR4 SO-DIMM pairs.
2. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and SO-DIMM may be damaged.
3. e SO-DIMM only ts in one correct orientation. It will cause permanent damage
to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
