ASROCK X300D4-P1 User manual

Version 1.0
Published March 2021
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel
: [phone] ext.123 (Standard International call charges apply)
e terms HDMI® and HDMI High-Denition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 Front Panel 8
1.5 Rear Panel 9
Chapter 2 Installation 10
2.1 Installing the CPU 11
2.2 Installing the CPU Fan and Heatsink 13
2.3 Installing Memory Modules (SO-DIMM) 14
2.4 Jumpers Setup 17
2.5 Onboard Headers and Connectors 18
2.6 Power Button 20
2.7 M.2 WiFi/BT Module Installation Guide 21
2.8 M.2_SSD (NGFF) Module Installation Guide (M2_1) 23
Chapter 3 Software and Utilities Operation 27
3.1 Installing Drivers 27
Chapter 4 UEFI SETUP UTILITY 28
4.1 Introduction 28
4.1.1 UEFI Menu Bar 28
4.1.2 Navigation Keys 29

4.2 Main Screen 30
4.3 OC Tweaker Screen 31
4.4 Advanced Screen 35
4.4.1 CPU Conguration 36
4.4.2 Onboard Devices Conguration 37
4.4.3 Storage Conguration 39
4.4.4 ACPI Conguration 40
4.4.5 Trusted Computing 41
4.4.6 AMD Firmware Version 43
4.5 Tools 44
4.6 Hardware Health Event Monitoring Screen 45
4.7 Security Screen 46
4.8 Boot Screen 47
4.9 Exit Screen 49

PB 1
English
X300D4-P1
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice.
Chapter 1 Introduction
ank you for purchasing X300D4-P1 motherboard. In this documentation,
Chapter 1 and 2 contains the introduction of the motherboard and step-by-step
installation guides. Chapter 3 contains the operation guide of the soware and
utilities. Chapter 4 contains the conguration guide of the BIOS setup.
1.1 Package Contents
• X300D4-P1 Motherboard
• X300D4-P1 Quick Installation Guide
• X300D4-P1 Support CD
• 1 x Serial ATA(SATA) Data with Power Cable (Optional)
• 1 x Screw for M.2 Socket (M2*2) (Optional)
• 1 x Screw for WiFi Module (M2*2) (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice.

2 3
English
1.2 Specications
Platform • 6.7-in x 6.8-in, 17.0 cm x 17.2 cm
CPU • Supports AMD AM4 Socket CPUs (Renoir, Picasso, Raven
Ridge, up to 65W)
• Supports CPU up to 65W
• 4 Power Phase design
Chipset • AMD X300
Memory • Dual Channel DDR4 Memory Technology
• 2 x DDR4 SO-DIMM Slots
• AMD Renoir series APUs support DDR4
3200/2933/2667/2400/2133 non-ECC, un-buered memory*
• AMD Ryzen series CPUs (Picasso) support DDR4
2933/2667/2400/2133 non-ECC, un-buered memory*
• AMD Ryzen series CPUs (Raven Ridge) support DDR4
2933/2667/2400/2133 non-ECC, un-buered memory*
• Max. capacity of system memory: 64GB
• 15μ Gold Contact in SO-DIMM Slots
* Please refer to page 15 for DDR4 SO-DIMM maximum
frequency support.
Expansion
Slot
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe
WiFi module
Graphics • Integrated AMD RadeonTM Vega Series Graphics in Ryzen
Series APU*
* Actual support may vary by CPU
• DirectX 12, Pixel Shader 5.0
• Shared memory default 2GB. Max Shared memory supports
up to 16GB.
* e Max shared memory 16GB requires 32GB system memory
installed.

2 3
English
X300D4-P1
• ree graphics output options: D-Sub, DisplayPort 1.4 and
HDMI
• Supports Triple Monitor
• Supports HDMI 1.4 with max. resolution up to 4K x 2K
(4096x2160) @ 24Hz / (3840x2160) @ 30Hz
• Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
• Supports DisplayPort 1.4 with max. resolution up to 4K x 2K
(4096x2304) @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant
HDMI monitor is required)
• Supports HDCP 1.4 with HDMI and DisplayPort 1.4 Ports
• Supports Full HD 1080p Blu-ray (BD) playback with HDMI
and DisplayPort 1.4 Ports
Audio • Realtek ALC233 Audio Codec
• 1 x Headphone/Headset Jack
• 1 x MIC-In
LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111GN
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports PXE
Front
Panel I/O
• 1 x Power Button
• 1 x Headphone/Headset Jack
• 2 x USB 3.2 Gen1 Type-A Ports (Support ESD Protection)
• 2 x USB 3.2 Gen1 Type-C Ports (Support ESD Protection)
• 1 x Microphone Input Jack
Rear Panel
I/O
• 1 x DC Jack (Compatible with the 19V power adapter)*
* Please use 90W power adapter for 65W CPU and 65W power
adapter for 35W CPU.
• 1 x Headphone Jack
• 1 x D-Sub Port
• 1 x HDMI Port

4 5
English
• 1 x DisplayPort 1.4
• 2 x USB 2.0 Ports (Support ESD Protection)
• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
Storage • 1 x SATA3 6.0 Gb/s with Power Connector , support NCQ,
AHCI and Hot Plug
• 1 x Ultra M.2 Socket, support type 2280 M.2 SATA3 6.0 Gb/s
module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
* Supports NVMe SSD as boot disks
Connector • 1 x Chassis Intrusion Header
• 1 x CPU Fan Connector (4-pin)
• 1 x Mono-Out Header
• 1 x ROM Recovery Header
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• DRAM Voltage adjustment
Hardware
Monitor
• CPU Temperature Sensing
• CPU Fan Tachometer
• CPU Quiet Fan (Auto adjust chassis fan speed by CPU
temperature)
• CPU Fan Multi-Speed Control
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS • Microso® Windows® 10 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)

4 5
English
X300D4-P1
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.

6 7
English
RJ-45
T: USB 2.0
USB3
B: USB 2.0
USB4
2
4
5
Headset
8
6
DDR4_A1DDR4_A1 DDR4_B1
HP OUT
HDMI1
DP1
1
CI1
BIOS
ROM
M.2 WLAN
CPU_FAN1
3
ROM_R
SATA1
CLRMOS1
1
1
Mic In
Power
Button
1
M.2 SSD
7
MONO1
1
CMOS
Battery
DC Jack
BUZZER1
USB 3.2 Gen1
T: USB_TA_2
B: USB_TC_2
USB 3.2 Gen1
T: USB_5
B: USB_6
USB 3.2 Gen1
T: USB_TA_1
B: USB_TC_1
SOCKETAM4
X300D4-P1
VGA1
1
1.3 Motherboard Layout

6 7
English
X300D4-P1
No. Description
1 Clear CMOS Jumper (CLRMOS1)
2 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_A1, DDR4_B1)
3 CPU Fan Connector (CPU_FAN1)
4 2.5W Mono Out Speaker Header (MONO1)
5 SATA3 Connector (SATA1)
6 ROM Recovery Header (ROM_R)
7 Chassis Intrusion Header (CI1)
8VGA Header (VGA1)

8 9
English

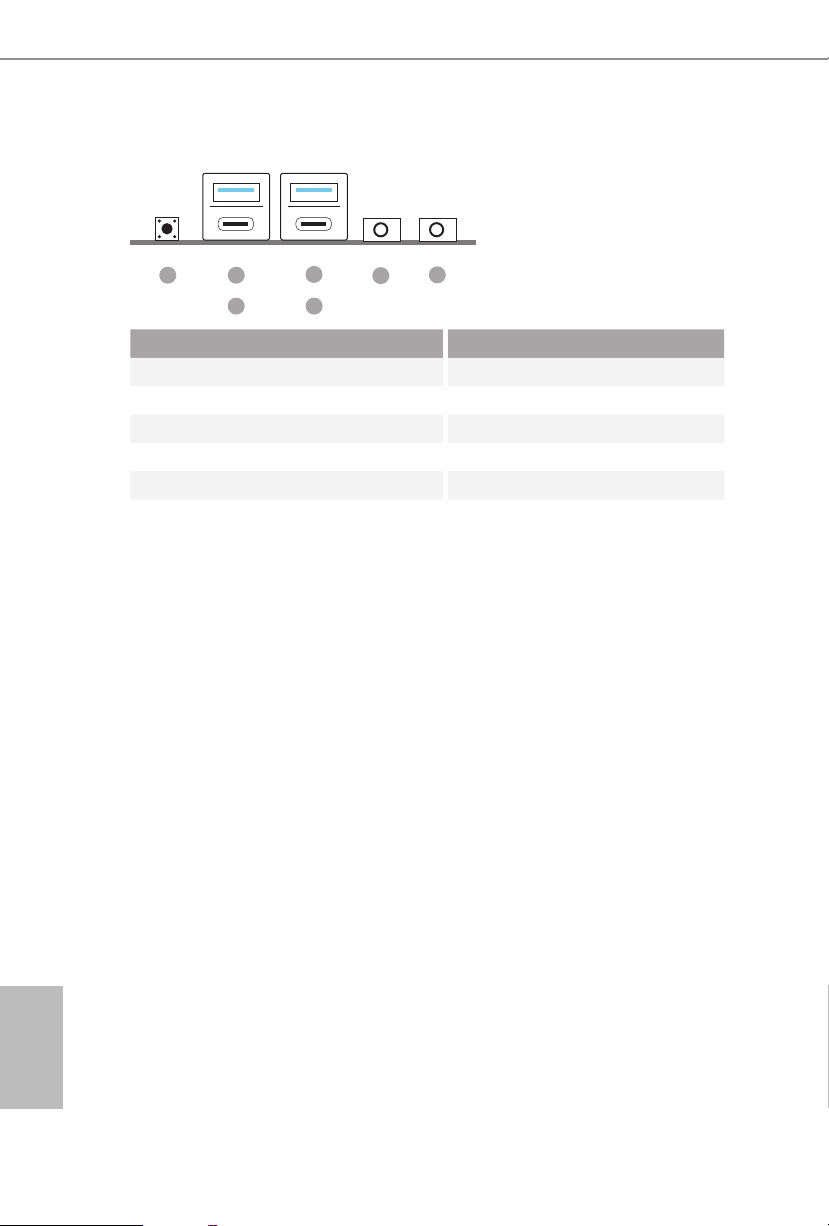

1.4 Front Panel
No. Description No. Description
1 Power Button (SW1) 4 USB 3.2 Gen1 Type-A Port
2 USB 3.2 Gen1 Type-A Port (USB_TA_2)
(USB_TA_1) 5 USB 3.2 Gen1 Type-C Port
3 USB 3.2 Gen1 Type-C Port (USB_TC_2)*
(USB_TC_1) 6 Microphone Input (AUDIO1)
7Headphone/Headset Jack
* Please note that if your motherboard, with a AMD Flavor 2 or Picasso Athlon CPU installed, is connected to
a D-Sub monitor, the USB 2.0 device on this Type-C port will be detected while the USB 3.0 device will not be
detected.
7
2
3 5
146

8 9
English
X300D4-P1
1.5 Rear Panel
No. Description No. Description
1 Headphone Jack 5 USB 2.0 Ports (USB_34)
2 Display Port 6 USB 3.2 Gen1 Ports
3 HDMI Port (USB_56)
4 LAN RJ-45 Port* 7 DC Jack
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Green 100Mbps connection
On Link Orange 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 2 3 4 5 6 7

10 11
English
is is a Proprietary form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

10 11
English
X300D4-P1

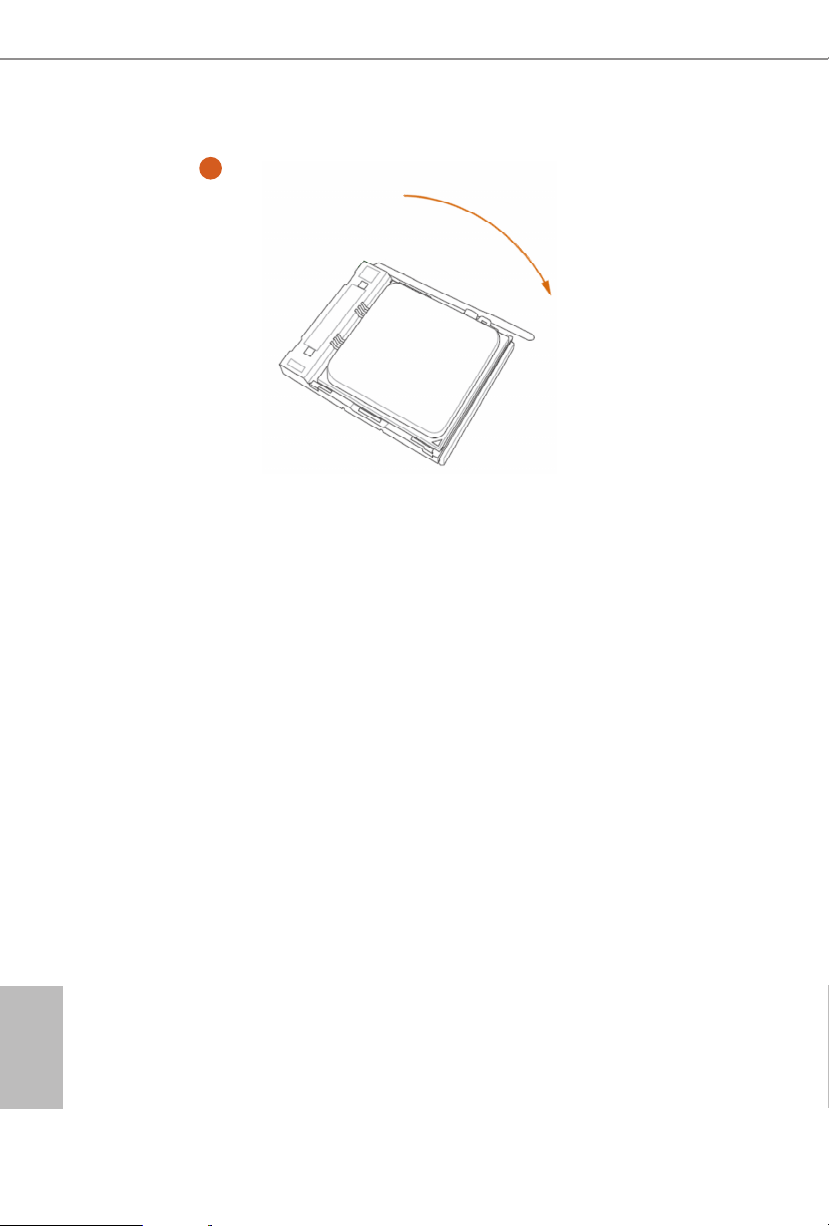

2.1 Installing the CPU
Unplug all power cables before installing the CPU.
2
1

12 13
English
3

12 13
English
X300D4-P1
2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

14 15
English

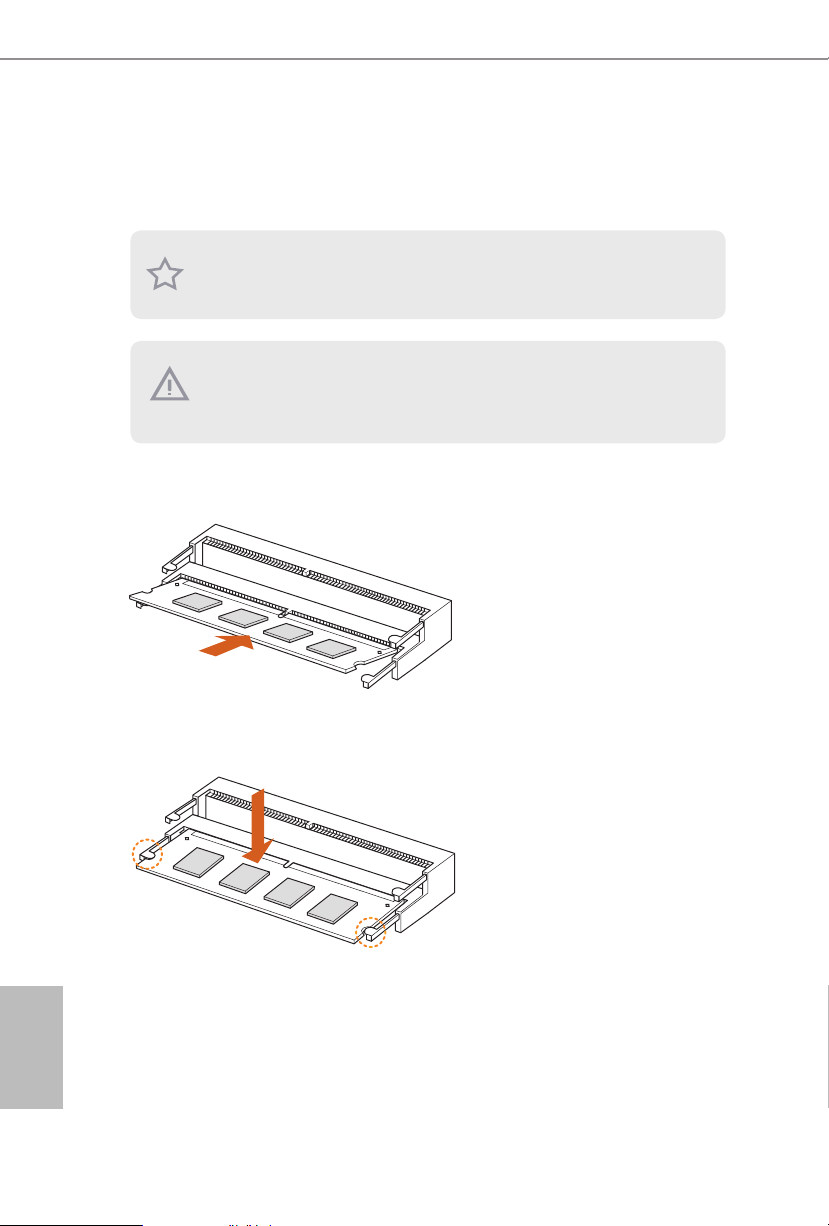

2.3 Installing Memory Modules (SO-DIMM)
is motherboard provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM
slots.
1. Carefully insert the SO-DIMM memory modules into the slot at a 30-degree angle.
2. Push down until the modules snap into place.
e SO-DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at incorrect
orientation.
It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot;
otherwise, this motherboard and SO-DIMM may be damaged.

14 15
English
X300D4-P1
DDR4 SO-DIMM Maximum Frequency Support
Ryzen Series APUs (Renoir):
Ryzen Series CPUs (Picasso):
SO-DIMM Memory Slot Frequency
(Mhz)
A1 B1
SR -3200
-SR 3200
DR -3200
-DR 3200
SR SR 3200
DR DR 3200
SO-DIMM Memory Slot Frequency
(Mhz)
A1 B1
SR -2933
-SR 2933
DR -2667
-DR 2667
SR SR 2933
DR DR 2667
