ASROCK PHANTOM GAMING Z790M PC LIGHTNING/D4 User manual

Contact Information
If you need to contact ASRock or want to know more about ASRock, you’re welcome
to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer
for further information. For technical questions, please submit a support request
form at https://event.asrock.com/tsd.asp
ASRock Incorporation
e-mail: [e-mail]
ASRock EUROPE B.V.
e-mail: [e-mail]
ASRock America, Inc.
e-mail: sa[email protected]
Scan the QR code to view more manuals and documents.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 I/O Panel 8
1.5 Block Diagram 9
Chapter 2 Installation 10
2.1 Installing the CPU 11
2.2 Installing the CPU Fan and Heatsink 13
2.3 Installing Memory Modules (DIMM) 14
2.4 Connecting the Front Panel Header 16
2.5 Installing the Motherboard 17
2.6 Installing SATA Drives 18
2.7 Installing a Graphics Card 20
2.8 Connecting Peripheral Devices 22
2.9 Connecting the Power Connectors 23
2.10 Power On 24
2.11 Jumpers Setup 25
2.12 Onboard Headers and Connectors 26
2.13 Post Status Checker 39
2.14 M.2 2230 WiFi/BT PCIe WiFi module Installatio Guide
(M2_3) 40

2.15 M.2 SSD Module Installation Guide (M2_1) 42
2.16 M.2 SSD Module Installation Guide (M2_2) 44

1
Z790M PG Lightning/D4
Chapter 1 Introduction
ank you for purchasing ASRock Z790M PG Lightning/D4 motherboard, a
reliable motherboard produced under ASRock’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRock’s commitment to quality and endurance.
1.1 Package Contents
• ASRock Z790M PG Lightning/D4 Motherboard (Micro ATX Form Factor)
• ASRock Z790M PG Lightning/D4 User Manual
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 3 x Screws for M.2 Sockets (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi-
cations of this documentation occur, the updated version will be available on ASRock’s
website without further notice. If you require technical support related to this mother-
board, please visit our website for specic information about the model you are using. You
may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock
website http://www.asrock.com.

2
1.2 Specications
Platform • Micro ATX Form Factor
CPU • Supports 13th Gen & 12th Gen Intel® CoreTM Processors
(LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® ermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
Chipset • Intel® Z790
Memory • Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
• Supports DDR4 non-ECC, un-buered memory up to
5333+(OC)*
1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.
2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
• Supports ECC UDIMM memory modules (operate in non-
ECC mode)
• Max. capacity of system memory: 128GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
Expansion
Slot
CPU:
• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
• 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
• 1 x PCIe 3.0 x1 Slot (PCIE2)*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe
WiFi module
* Supports NVMe SSD as boot disks
• Supports AMD CrossFireTM

3
Z790M PG Lightning/D4
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Intel® XeGraphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and
max. resolution up to 4K 60Hz
Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio
LAN • Gigabit LAN 10/100/1000 Mb/s
• Intel® I219V
USB • 1 x USB 3.2 Gen2 Type-A (Rear)
• 1 x USB 3.2 Gen2 Type-C (Rear)
• 1 x USB 3.2 Gen1 Type-C (Front)
• 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
Rear Panel
I/O
• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• 4 x USB 3.2 Gen1 Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage CPU:
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type
2242/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280
SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
• 4 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Volume Management Device (VMD)
* Supports NVMe SSD as boot disks

4
RAID • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe stor-
age devices*
* Requires additional M.2 NVMe expansion cards to support
RAID 10
Connector • 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)****
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)*****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connec-
tor)
• 1 x 4 pin 12V Power Connector (Hi-Density Power Connec-
tor)
• 1 x Front Panel Audio Connector
• 1 x underbolt AIC Connector (5-pin) (Supports ASRock
underbolt 4 AIC Card)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen1 Header
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect
if 3-pin or 4-pin fan is in use.

5
Z790M PG Lightning/D4
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
OS • Microso® Windows® 10 64-bit /11 64-bit
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

6
Intel
Z790
PCIE1
PCIE3
HDLED RESET
PLED PWRBTN
1
1
HD_AUDIO1
15
29
28
HDMI1
AUDIO
CODEC
18
23
RoHS
USB_3_4
SPK_CI1PANEL1
SPI_TPM_J1
27
T B1
1
14
16
SUPER
I/O
1
CLRMOS1
CHA_FAN3
/WP
Top:
RJ-45
USB 2.0
T: USB_1
B: USB_2
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
1
1
SATA3_2
SATA3_3
CHA_FAN2
/WP
1
ADDR_LED2
M2_2
M2_1
LAN
20
BIOS
ROM
17
CMOS
Battery
PCIE2
USB 3.2 Gen2
T:USB32_3
B: USB32_TC1
USB 3.2 Gen1
T:USB32_4
B: USB32_5
ATX12V1
CPU_FAN2
/WP CPU_FAN1
ATX12V2
12 6
7
4
3
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
Z790m PG
5
1
RG B_L ED 1
1
ADDR_LED1
8
ATXPWR1
9
USB32_TC2
10
1
USB32_6_7
21
26 25 24
USB_5_6
1922
CHA_FAN4/
WP
CHA_FAN1/
WP
1
ADDR_LED3
CPU
BOOT
VGA
DRAM
USB 3.2 Gen1
T:USB32_1
B: USB32_2
SATA3_1 SATA3_0
13
11
12
M2_3
1.3 Motherboard Layout

7
Z790M PG Lightning/D4
No. Description
1 8 pin 12V Power Connector (ATX12V1)
2 4 pin 12V Power Connector (ATX12V2)
3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
5 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
6 CPU Fan Connector (CPU_FAN1)
7 RGB LED Header (RGB_LED1)
8 Addressable LED Header (ADDR_LED1)
9 ATX Power Connector (ATXPWR1)
10 Front Panel Type C USB 3.2 Gen1 Header (USB32_TC2)
11 SATA3 Connector (SATA3_0)
12 SATA3 Connector (SATA3_1)
13 USB 3.2 Gen1 Header (USB32_6_7)
14 SATA3 Connectors (SATA3_2)(Upper), (SATA3_3)(Lower)
15 System Panel Header (PANEL1)
16 SPI TPM Header (SPI_TPM_J1)
17 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
18 Post Status Checker (PSC)
19 USB 2.0 Header (USB_5_6)
20 USB 2.0 Header (USB_3_4)
21 Clear CMOS Jumper (CLRMOS1)
22 5-pin underbolt AIC Connector (TB1)
23 Chassis Intrusion and Speaker Header (SPK_CI1)
24 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)
25 Addressable LED Header (ADDR_LED3)
26 Addressable LED Header (ADDR_LED2)
27 Front Panel Audio Header (HD_AUDIO1)
28 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
29 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)

8
1.4 I/O Panel
No. Description No. Description
1 LAN RJ-45 Port* 6 USB 3.2 Gen1 Ports (USB32_45)
2 Line In (Light Blue)** 7 USB 3.2 Gen2 Type-A Port (USB32_3)
3 Front Speaker (Lime)** 8 USB 3.2 Gen2 Type-C Port (USB32_TC1)
4 Microphone (Pink)** 9 HDMI Port
5 USB 2.0 Ports (USB_12) 10 USB 3.2 Gen1 Ports (USB32_12)
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
ACT/LINK LED
SPEED LED
LAN Port
6
1
4
3
2
10 59 7
8

9
Z790M PG Lightning/D4
1.5 Block Diagram
FLASH ROM 128Mb
Gen4 x4
Gen4 x4
M2_1(PCIe Gen4X4)
PCIE3 ( X16 Slot )(TBT4 AIC Support)
DDR4 Slot x2
PCIE1 (PCIe X16 Slot)
Gen4 X16
HDMI
DDI2
Gen3 x1
DMI Gen4 X8
USB3.2 Gen1 SuperSpeed USB 7 ports(2*Front Type A+1*Front Type C+4*Rear Type A)
5Gb/s
INTEL I219V(1G LAN)
Gen3 x1
SPI
Gen3 x4
TPM-S header
eSPI
SIO
Nuvoton NCT6796D-E
USB2.0 High-Speed USB 6 ports(4*Front Type A+2*Rear Type A)
Channel B
SATA3_2 SATA3_0
SATA3_3 SATA3_1
Intel Raptor Lake Processor Socket 1700
480Mb/s 24MHz
ALC 897 (3 jack Audio)
128-bit Dual-Channel Memory x 4 Slots
DDR4 Slot x2
Channel A
Intel 700 Series Chipset
6Gb/s Gen3 x1
M2_3(Key E)(PCIe WiFi module Only)
USB3.2 Gen2 SuperSpeed USB
2 ports(1*Rear Type A+1*Rear Type C)
10Gb/s
PCIE2 ( X1 Slot ) M2_2(PCIe Gen4X4)
FAN X6
H/W Montor

10
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

11
Z790M PG Lightning/D4
2.1 Installing the CPU
1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A
B
2 3

12
5
76
4
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.

13
Z790M PG Lightning/D4

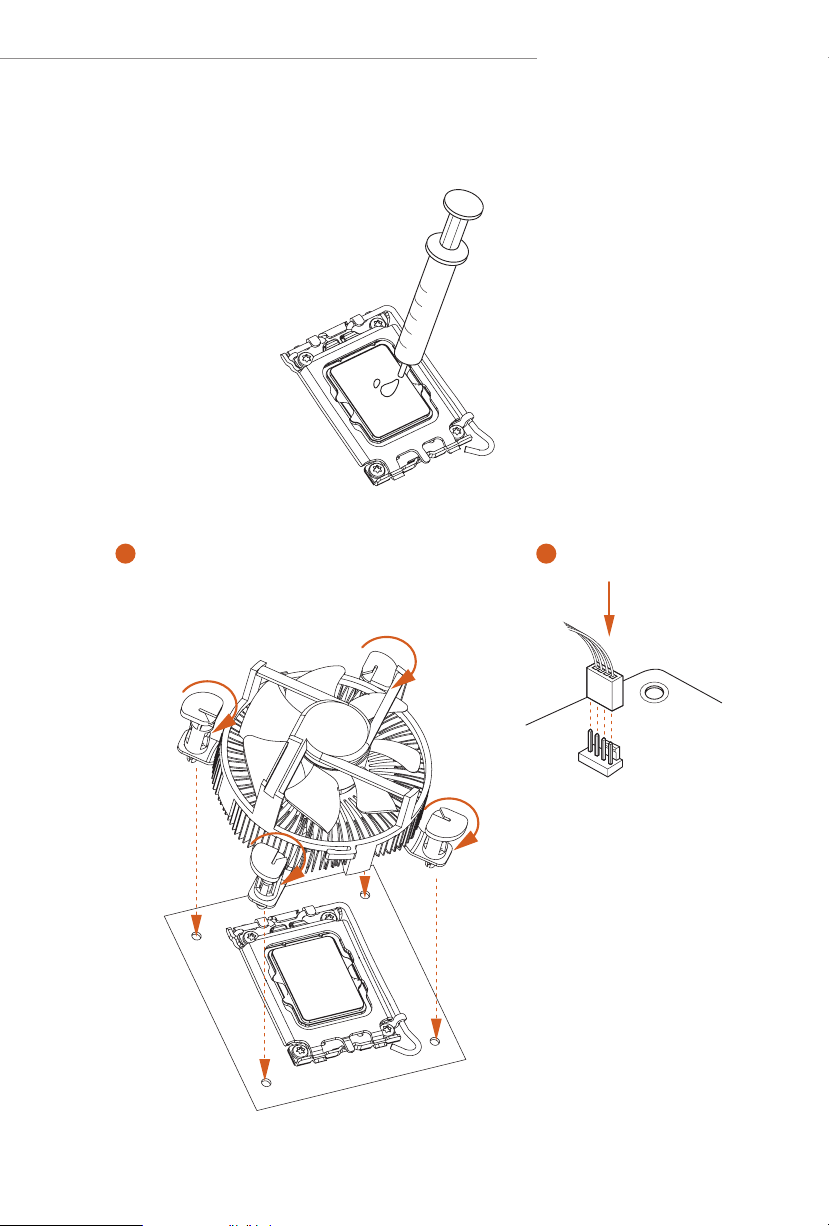

2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

14
2.3 Installing Memory Modules (DIMM)
is motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
Recommended Memory Conguration
1 DIMM
2 DIMMs
4 DIMMs
A1 A2 B1 B2
V
A1 A2 B1 B2
VV
A1 A2 B1 B2
VVVV
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three
memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.
4. e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.

15
Z790M PG Lightning/D4
1
2
3

16

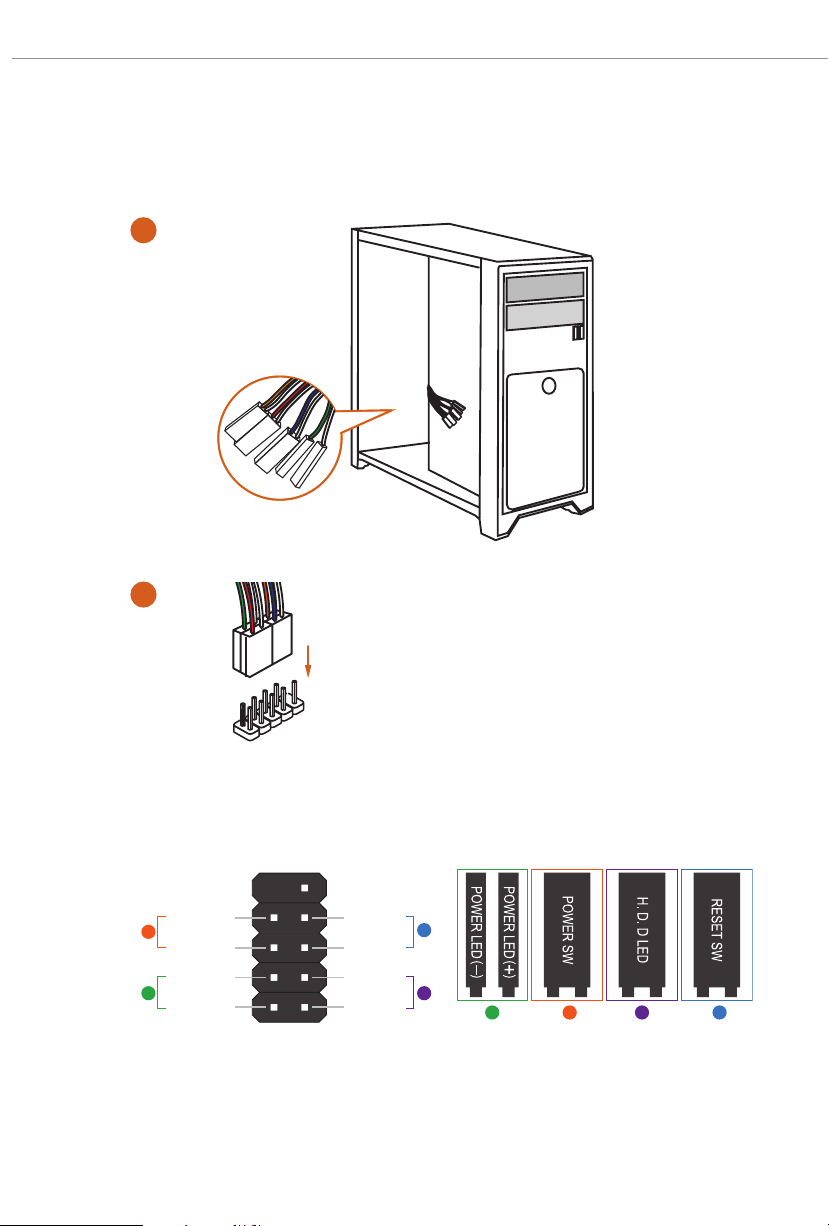

2.4 Connecting the Front Panel Header
ABC D
1
2
32:(56:
5(6(76:
32:(5/('
32:(5/('
+''/('
3$1(/
Power SW (-)RESET SW (+)
HDD LED (-)
HDD LED (+)
12
910
RESET SW (-)Power SW (+)
Power LED (-)
Power LED (+)
A
B
C
D
PANEL1
HDD LED
RESET SW
System Panel Header Front Panel Wires
