X470 Master SLI/ac / X470 Master SLI
Motherboard Layout
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module) DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
ATXPWR1
PCIE1
Top:
Central/Bass
Cen te r:
REA R SP K
Top:
LIN E IN
Cen te r:
FRO NT
Bot to m:
Opt ic al
SPD IF
Bot to m:
MIC I N
PCIE4
HDLE D RESE T
PLED P WRBT N
PANE L1
1
1
SPK _PL ED 1
COM 1
1
1
HD_ AUD IO 1
SATA3 _3_ 4
SATA3 _1_ 2
USB_1_2
1
USB _3_ 4
1
SATA3 _5_ 6
CMOS
Battery
M2_1
M2_2
USB 3_ 7_8
1
CPU_FAN1
1
TPM S1
Ul t r a M.2
PC Ie G e n3 x 4
CHA_FAN1/WP
USB3_9_10
1
AMD _FAN _LE D1
1
BIOS
ROM
RoHS
PCIE5
CHA _FAN 2/ WP
1
USB_5
RGB _LE D1
1
Supe r
I/O
PCIE6
CPU _FAN 2/ WP
CHA _FAN 3/ WP
Top:
RJ- 45
USB 3 .1 Gen1
T: USB5
B: US B6
USB 3 .1 Gen2
T: USB3 _TA_1
B: US B3_TC _1
USB 3 .1 Gen1
T: USB3
B: US B4
ADD R_L ED1
1
AMD
Promontory
X470
SOCKET AM4
HDMI1
PS2
Keyb oa rd/
Mous e
USB 3 .1 Gen1
T: USB1
B: US B2
ATX1 2V 1 ATX1 2V 2
CLRC MOS 1
1
PCIE2
PCIE3
M2_W IFI _1*
* e vertical M.2 socket (Key E) with the bundled WiFi-802.11ac module is for X470
Master SLI/ac only.

English
2

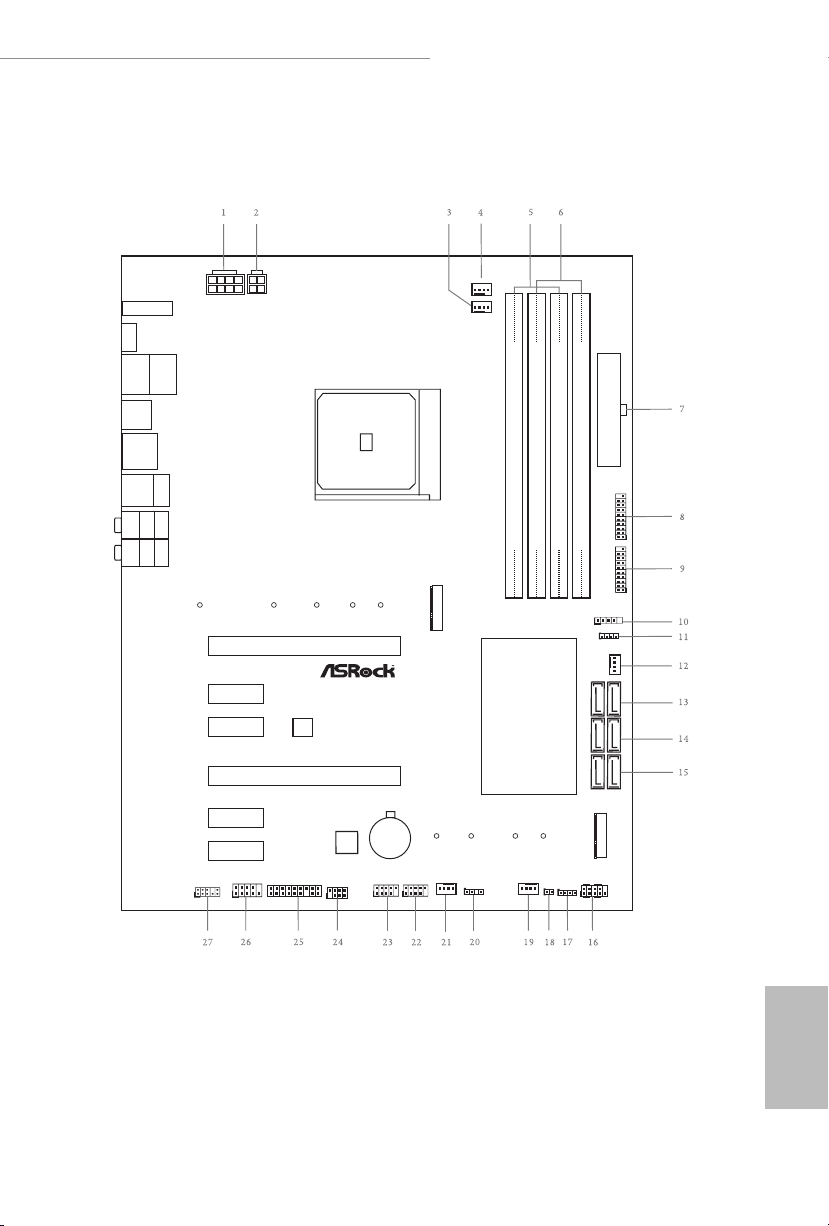

No. Description
1 ATX 12V Power Connector (ATX12V1)
2 ATX 12V Power Connector (ATX12V2)
3 CPU Fan Connector (CPU_FAN1)
4 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
6 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
7 ATX Power Connector (ATXPWR1)
8 USB 3.1 Gen1 Header (USB3_9_10)
9 USB 3.1 Gen1 Header (USB3_7_8)
10 AMD LED Fan USB Header (USB_5)
11 AMD Fan LED Header (AMD_FAN_LED1)
12 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
13 SATA3 Connectors (SATA3_5_6)
14 SATA3 Connectors (SATA3_3_4)
15 SATA3 Connectors (SATA3_1_2)
16 System Panel Header (PANEL1)
17 RGB LED Header (RGB_LED1)
18 Clear CMOS Jumper (CLRCMOS1)
19 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
20 Addressable LED Header (ADDR_LED1)
21 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)
22 USB 2.0 Header (USB_1_2)
23 USB 2.0 Header (USB_3_4)
24 Power LED and Speaker Header (SPK_PLED1)
25 TPM Header (TPMS1)
26 COM Port Header (COM1)
27 Front Panel Audio Header (HD_AUDIO1)

3
English
X470 Master SLI/ac / X470 Master SLI
I/O Panel
X470 Master SLI/ac
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 9 USB 3.1 Gen1 Ports (USB3_5_6)
2 LAN RJ-45 Port* 10 USB 3.1 Gen2 Type-A Port (USB3_TA_1)
3 Central / Bass (Orange) 11 USB 3.1 Gen2 Type-C Port (USB3_TC_1)
4 Rear Speaker (Black) 12 USB 3.1 Gen1 Ports (USB3_3_4)
5 Line In (Light Blue) 13 USB 3.1 Gen1 Port (USB3_1_2)
6 Front Speaker (Lime)** 14 HDMI Port (HDMI1)
7 Microphone (Pink) 15 Antenna Ports
8 Optical SPDIF Out Port
1
12 91014 13
2
11
78
4
3
6
5
15

English
4
X470 Master SLI
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 8 Optical SPDIF Out Port
2 LAN RJ-45 Port* 9 USB 3.1 Gen1 Ports (USB3_5_6)
3 Central / Bass (Orange) 10 USB 3.1 Gen2 Type-A Port (USB3_TA_1)
4 Rear Speaker (Black) 11 USB 3.1 Gen2 Type-C Port (USB3_TC_1)
5 Line In (Light Blue) 12 USB 3.1 Gen1 Ports (USB3_3_4)
6 Front Speaker (Lime)** 13 USB 3.1 Gen1 Port (USB3_1_2)
7 Microphone (Pink) 14 HDMI Port (HDMI1)
1
12 91014 13
2
11
78
4
3
6
5

5
English
X470 Master SLI/ac / X470 Master SLI
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection details in accordance with the type of speaker you use.
Audio Output
Channels
Front Speaker
(No. 6)
Rear Speaker
(No. 4)
Central / Bass
(No. 3)
Line In
(No. 5)
2V -- -- --
4V V -- --
6V V V --
8VVVV
ACT/LINK LED
SPEED LED
LAN Port

English
6
WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz Antennas
(for X470 Master SLI/ac only)
WiFi-802.11ac + BT Module
is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.2
module (pre-installed on the rear I/O panel) that oers support for WiFi 802.11 a/b/
g/n/ac connectivity standards and Bluetooth v4.2. WiFi + BT module is an easy-to-
use wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth
v4.2 standard features Smart Ready technology that adds a whole new class of
functionality into the mobile devices. BT 4.2 also includes Low Energy Technology
and ensures extraordinary low power consumption for PCs.
* e transmission speed may vary according to the environment.

7
English
X470 Master SLI/ac / X470 Master SLI

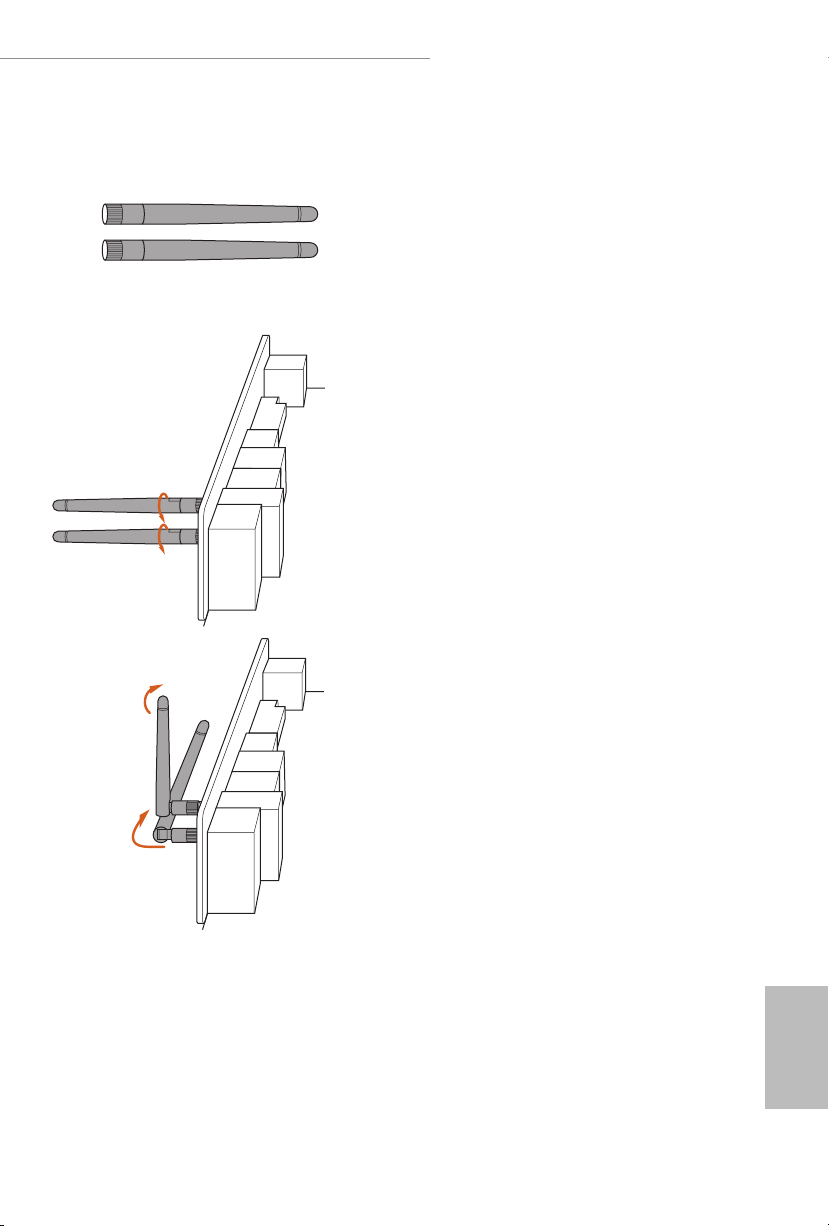

WiFi Antennas Installation Guide
Step 1
Prepare the WiFi 2.4/5 GHz Antennas that come
with the package.
Step 2
Connect the two WiFi 2.4/5 GHz Antennas to
the antenna connectors. Turn the antenna clock-
wise until it is securely connected.
Step 3
Set the WiFi 2.4/5 GHz Antenna as shown in the
illustration.
*You may need to adjust the direction of
the antenna for a stronger signal.

English
8
Chapter 1 Introduction
ank you for purchasing ASRock X470 Master SLI/ac / X470 Master SLI
motherboard, a reliable motherboard produced under ASRock’s consistently
stringent quality control. It delivers excellent performance with robust design
conforming to ASRock’s commitment to quality and endurance.
1.1 Package Contents
• ASRock X470 Master SLI/ac / X470 Master SLI Motherboard (ATX Form Factor)
• ASRock X470 Master SLI/ac / X470 Master SLI Quick Installation Guide
• ASRock X470 Master SLI/ac / X470 Master SLI Support CD
• 1 x I/O Panel Shield
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x ASRock SLI_HB_Bridge_2S Card (Optional)
• 2 x Screws for M.2 Sockets (Optional)
• 2 x ASRock WiFi 2.4/5 GHz Antennas (Optional) (for X470 Master SLI/ac only)
Because the motherboard specications and the BIOS soware might be updated, the
content of this manual will be subject to change without notice. In case any modica-
tions of this manual occur, the updated version will be available on ASRock’s website
without further notice. If you require technical support related to this motherboard,
please visit our website for specic information about the model you are using. You
may nd the latest VGA cards and CPU support list on ASRock’s website as well.
ASRock website http://www.asrock.com.

9
English
X470 Master SLI/ac / X470 Master SLI
1.2 Specications
Platform • ATX Form Factor
• 2oz Copper PCB
CPU • Supports AMD AM4 Socket Ryzen Series CPUs (Summit
Ridge, Raven Ridge and Pinnacle Ridge)
• Digi Power design (Intersil)
• 12 Power Phase design
• Supports 105W Water Cooling (Pinnacle Ridge); Supports
95W Water Cooling (Summit Ridge); Supports 65W Water
Cooling (Raven Ridge)
Chipset • AMD Promontory X470
Memory • Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
• AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4
3466+(OC)/3200(OC)/2933/2667/2400/2133 ECC & non-
ECC, un-buered memory*
• AMD Ryzen series CPUs (Summit Ridge) support DDR4
3466+(OC)/3200(OC)/2933(OC)/2667/2400/2133 ECC &
non-ECC, un-buered memory*
• AMD Ryzen series CPUs (Raven Ridge) support DDR4
3466+(OC)/3200(OC)/2933(OC)/2667/2400/2133 non-ECC,
un-buered memory*
* For Ryzen Series CPUs (Raven Ridge), ECC is only supported
with PRO CPUs.
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)
* Please refer to page 26 for DDR4 UDIMM maximum
frequency support.
• Max. capacity of system memory: 64GB
• 15μ Gold Contact in DIMM Slots
Expansion
Slot
• 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at
x8 (PCIE1) / x8 (PCIE4))*
* Supports NVMe SSD as boot disks
• 4 x PCI Express 2.0 x1 Slots

English
10
• Supports AMD Quad CrossFireXTM and CrossFireXTM
• Supports NVIDIA® Quad SLITM and SLITM
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Graphics • Integrated AMD RadeonTM Vega Series Graphics in Ryzen
Series APU*
* Actual support may vary by CPU
• DirectX 12, Pixel Shader 5.0
• Max. shared memory 2GB
• Supports HDMI with max. resolution up to 4K x 2K
(4096x2160) @ 30Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI Port (Compliant
HDMI monitor is required)
• Supports HDCP with HDMI Port
• Supports 4K Ultra HD (UHD) playback with HDMI Port
Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892
Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection
• Nichicon Fine Gold Series Audio Caps
LAN • Gigabit LAN 10/100/1000 Mb/s
• GigaLAN Intel® I211AT
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE
Wireless
LAN (for
X470 Mas-
ter SLI/ac
only)
• Intel® 802.11ac WiFi Module
• Supports IEEE 802.11a/b/g/n/ac
• Supports Dual-Band (2.4/5 GHz)
• Supports high speed wireless connections up to 433Mbps
• Supports Bluetooth 4.2 / 3.0 + High speed class II

11
English
X470 Master SLI/ac / X470 Master SLI
Rear Panel
I/O
• 2 x Antenna Ports (for X470 Master SLI/ac only)
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD
Protection)
• 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD
Protection)
• 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone (Gold Audio Jacks)
Storage • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• 1 x Ultra M.2 Socket (M2_1), supports M Key type
2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module
and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
• 1 x M.2 Socket (M2_2), supports M Key type
2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2
PCI Express module up to Gen2 x2 (10 Gb/s)*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
Connector • 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED and Speaker Header
• 1 x AMD Fan LED Header
* e AMD Fan LED Header supports LED strips of maximum
load of 3A (36W) and length up to 2.5M.
• 1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip
• 1 x Addressable LED Header
* Supports in total up to 5V/3A, 15W LED Strip
• 1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)

English
12
* e CPU/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and
CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
• 1 x 24 pin ATX Power Connector (Hi-Density Power Con-
nector)
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connec-
tor)
• 1 x 4 pin 12V Power Connector (Hi-Density Power Connec-
tor)
• 1 x Front Panel Audio Connector
• 1 x AMD LED Fan USB Header
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports
ESD Protection)
• 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports)
(Supports ESD Protection)
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
• Supports “Plug and Play”
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V,
VDDP, PROM 2.5V, Voltage Multi-adjustment
Hardware
Monitor
• Temperature Sensing: CPU, CPU/Water Pump, Chassis/Wa-
ter Pump Fans
• Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water
Pump Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU tempera-
ture): CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/
Water Pump Fans
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_
NB, DRAM, PCH 1.05V, +1.8V, VDDP

13
English
X470 Master SLI/ac / X470 Master SLI
OS • Microso® Windows® 10 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

English
14
is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard.
Failure to do so may cause physical injuries to you and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

15
English
X470 Master SLI/ac / X470 Master SLI
2.1 Installing the CPU
Unplug all power cables before installing the CPU.
2
1

English
16
3
