ASROCK 4Core1333-FullHD User manual

1
ATI RAID Installation Guide
1. ATI BIOS RAID Installation Guide …………………………………………………………. 2
1.1 Introduction to RAID …………………………………………………………………… 2
1.2 RAID Configurations Precautions ……………………………………………………. 2
1.3 Create Disk Array ……………………………………………………………………… 3
2. ATI Windows RAID Installation Guide …………………………………………………….. 8
2.1 Components of WebPAM Installation Software ……………………………………. 8
2.2 Browser Support ………………………………………………………………………. 8
2.3 Installing WebPAM ……………………………………………………………………. 8
2.4 Log-in to WebPAM ……………………………………………………………………. 11
2.5 Create RAID in WebPAM ……………………………………………………………. 12

2
1. ATI BIOS RAID Installation Guide
ATI BIOS RAID Installation Guide is an instruction for you to configure RAID functions by using the onboard FastBuild
BIOS utility under BIOS environment. After you make a SATA / SATAII driver diskette, press <F2> to enter BIOS setup
to set the option to RAID mode by following the detailed instruction of the “User Manual” in our support CD or “Quick
Installation Guide”, then you can start to use the onboard FastBuild BIOS utility to configure RAID.
1.1 Introduction to RAID
The term “RAID” stands for “Redundant Array of Independent Disks”, which is a method combining two or more hard
disk drives into one logical unit. For optimal performance, please install identical drives of the same model and
capacity when creating a RAID set.
RAID 0 (Data Striping)
RAID 0 is called data striping that optimizes two identical hard disk drives to read and write data in parallel, interleaved
stacks. It will improve data access and storage since it will double the data transfer rate of a single disk alone while the
two hard disks perform the same work as a single drive but at a sustained data transfer rate.
WARNING!!
Although RAID 0 function can improve the access performance, it does not provide any fault tolerance. Hot-Plug any HDDs of the
RAID 0 Disk will cause data damage or data loss.
RAID 1 (Data Mirroring)
RAID 1 is called data mirroring that copies and maintains an identical image of data from one drive to a second
drive. It provides data protection and increases fault tolerance to the entire system since the disk array
management software will direct all applications to the surviving drive as it contains a complete copy of the data in
the other drive if one drive fails.
RAID 10 (Stripe Mirroring)
RAID 0 drives can be mirrored using RAID 1 techniques, resulting in a RAID 10 solution for improved performance
plus resiliency. The controller combines the performance of data striping (RAID 0) and the fault tolerance of disk
mirroring (RAID 1). Data is striped across multiple drives and duplicated on another set of drives.
1.2 RAID Configurations Precautions
1. Please use two new drives if you are creating a RAID 0 (striping) array for performance. It is recommended
to use two SATA drives of the same size. If you use two drives of different sizes, the smaller capacity hard
disk will be the base storage size for each drive. For example, if one hard disk has an 80GB storage

3
capacity and the other hard disk has 60GB, the maximum storage capacity for the 80GB-drive becomes
60GB, and the total storage capacity for this RAID 0 set is 120GB.
2. You may use two new drives, or use an existing drive and a new drive to create a RAID 1 (mirroring) array
for data protection (the new drive must be of the same size or larger than the existing drive). If you use two
drives of different sizes, the smaller capacity hard disk will be the base storage size. For example, if one
hard disk has an 80GB storage capacity and the other hard disk has 60GB, the maximum storage capacity
for the RAID 1 set is 60GB.
3. Please verify the status of your hard disks before you set up your new RAID array.
WARNING!!
Please backup your data first before you create RAID functions. In the process you create RAID, the system will ask if you
want to “Clear Disk Data” or not. It is recommended to select “Yes”, and then your future data building will operate under a
clean environment.
1.3 Create Disk Array
Power on your system. If this is the first time you have booted with the disk drives installed, the ATI onboard BIOS will
display the following screen.
AHCI (tm) BIOS Version 2.5.1540.12
(c) 2004-2005 ATI Technology, Inc. All rights reserved.
No Array is defined...
Press <Ctrl-F> to enter FastBuild (tm) Utility...

4

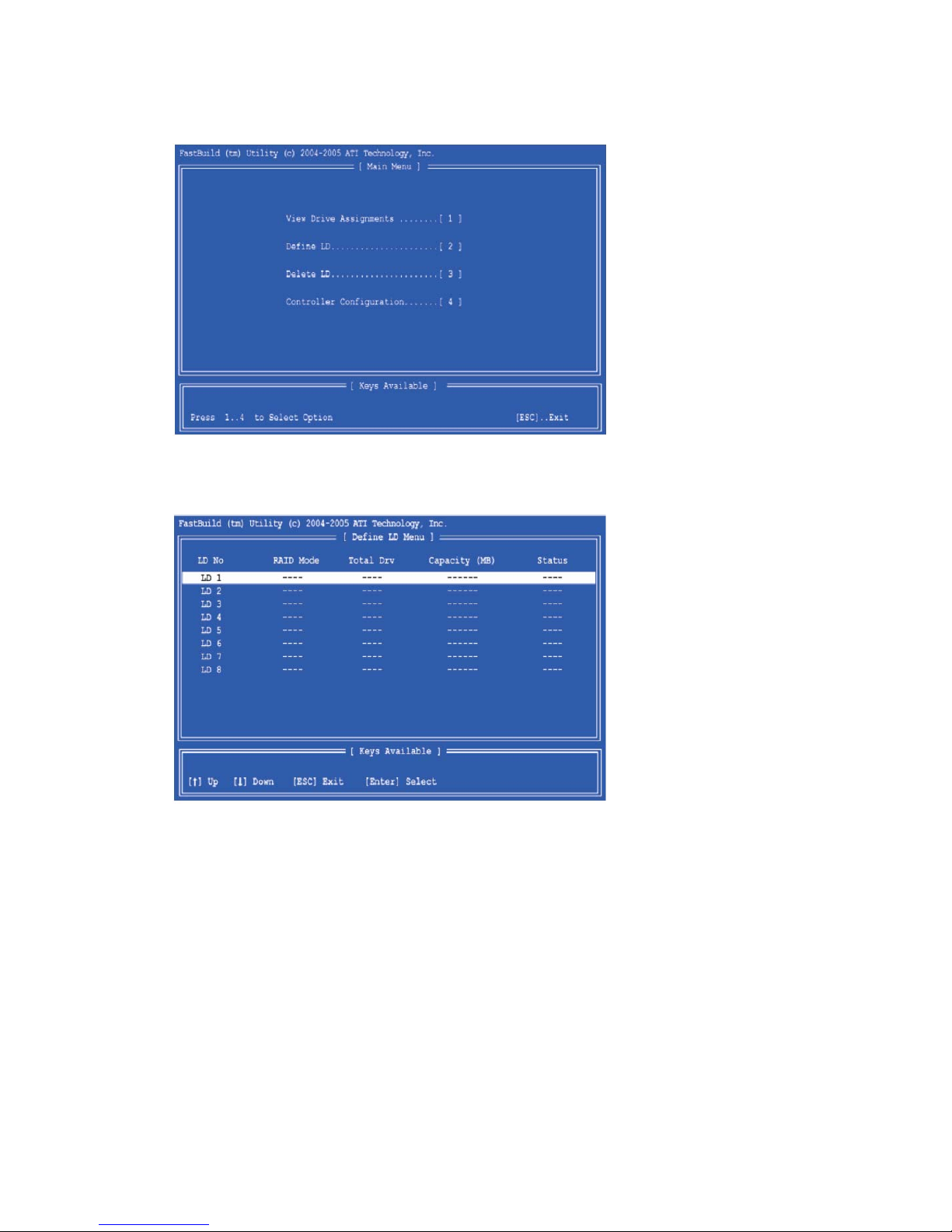

Press <Ctrl+F> keys, then the FastBuild Utility Main Menu appears.
Press 2 on the Main Menu screen to display the Define LD Menu.

5
Press the arrow keys to highlight a logical drive number you want to define and press <Enter> to select it. The Define
LD Menu for the logical drive number you selected will next appear.
Choose the RAID level you want. In the Define LD Menu section, press the spacebar to cycle through logical drive
types, including RAID 0, RAID 1, and RAID 10.
WARNING!!
While you are allowed to use any available RAID level for your bootable logical drive, it is recommended to use RAID 1 for most
applications.

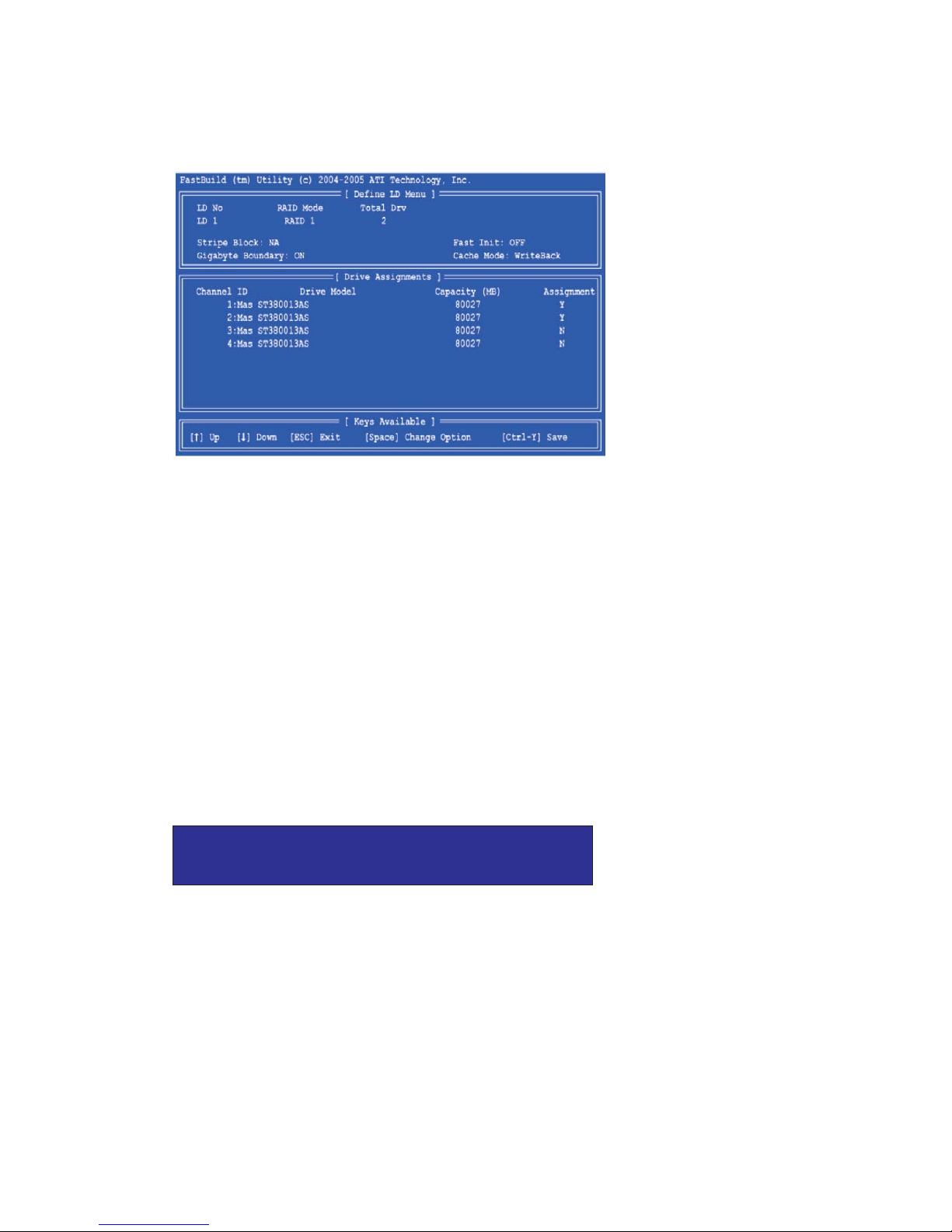

Press the arrow key to move to Disk Assignments. Press the spacebar to toggle between N and Y for each available
drive. Y means this disk drive will be assigned to the logical drive.Assign the appropriate number of disk drives to your
logical drive. Then press <Ctrl-Y> to save your logical drive configuration. You have the option of using all of the disk
drive capacity for one logical drive or allocating a portion to a second logical drive.
Press Ctrl-Y to Modify Array Capacity or press any
other key to use maximum capacity...
Choose one of the following actions:
1. Use the full capacity of the disk drives for a single logical drive: Please read “One Logical Drive” below.
2. Split the disk drives among two logical drives: Please read “Two Logical Drives” below.
One Logical Drive
After selecting the logical drive in DiskAssignments as the above-mentioned procedures, press any key (except for
<Ctrl-Y>) to use the full portion of the logical drive for one logical drive. Then please follow the steps below:
1. Press <Esc> to exit to the Main Menu.

6
2. Press <Esc> again to exit the Utility.
3. Press <Y> to restart your computer.
You have successfully created a new RAID logical drive. Please install the operating system to your computer by
following the detailed instruction of the “User Manual” in our support CD or “Quick Installation Guide”.
Two Logical Drives
After selecting the logical drive in DiskAssignments as the above-mentioned procedures, press <Ctrl-Y> to allocate a
portion of the disk drives to the first logical drive. Then please follow the steps below.

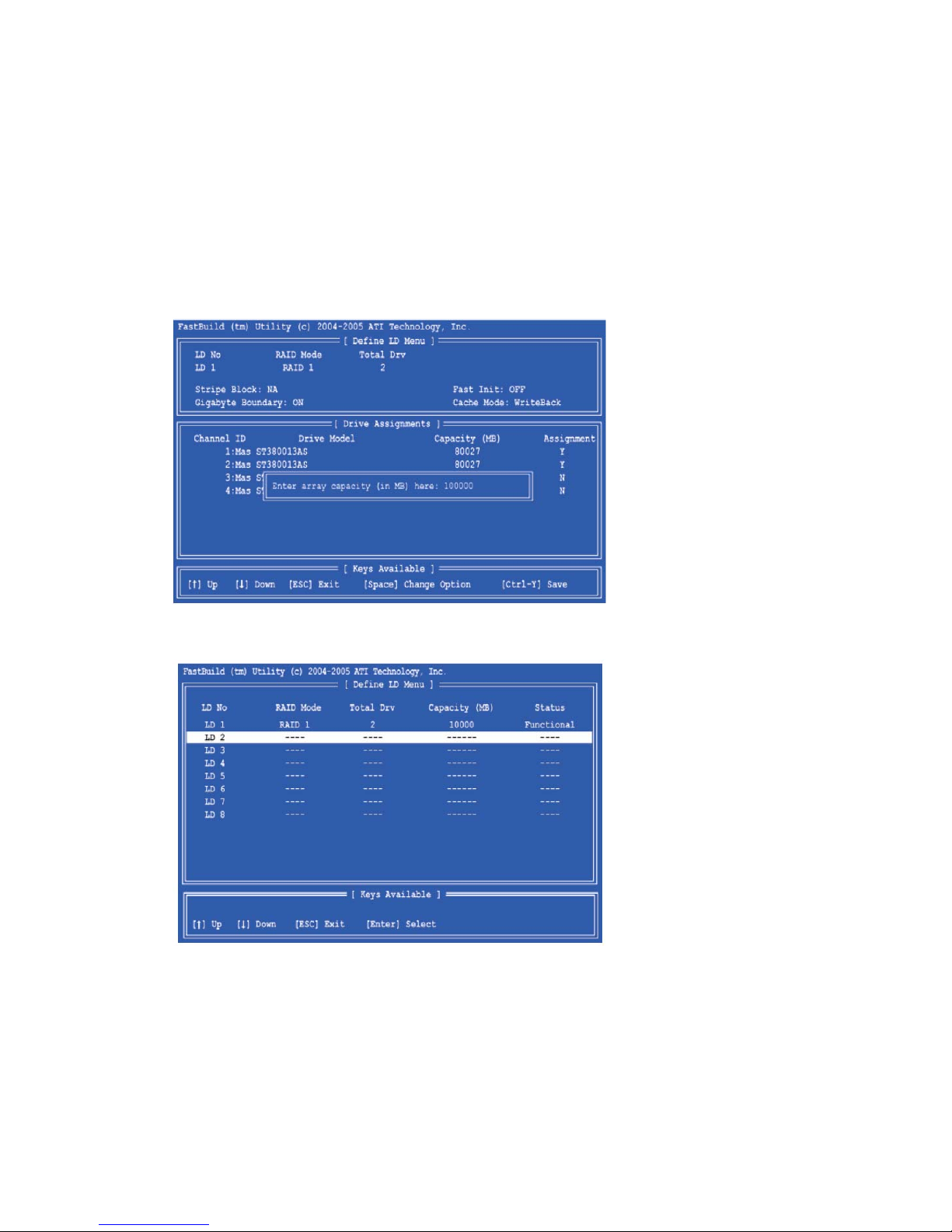

1. Enter the desired capacity (MB) for the first logical drive and press <Enter>. The Define LD Menu displays again.

7

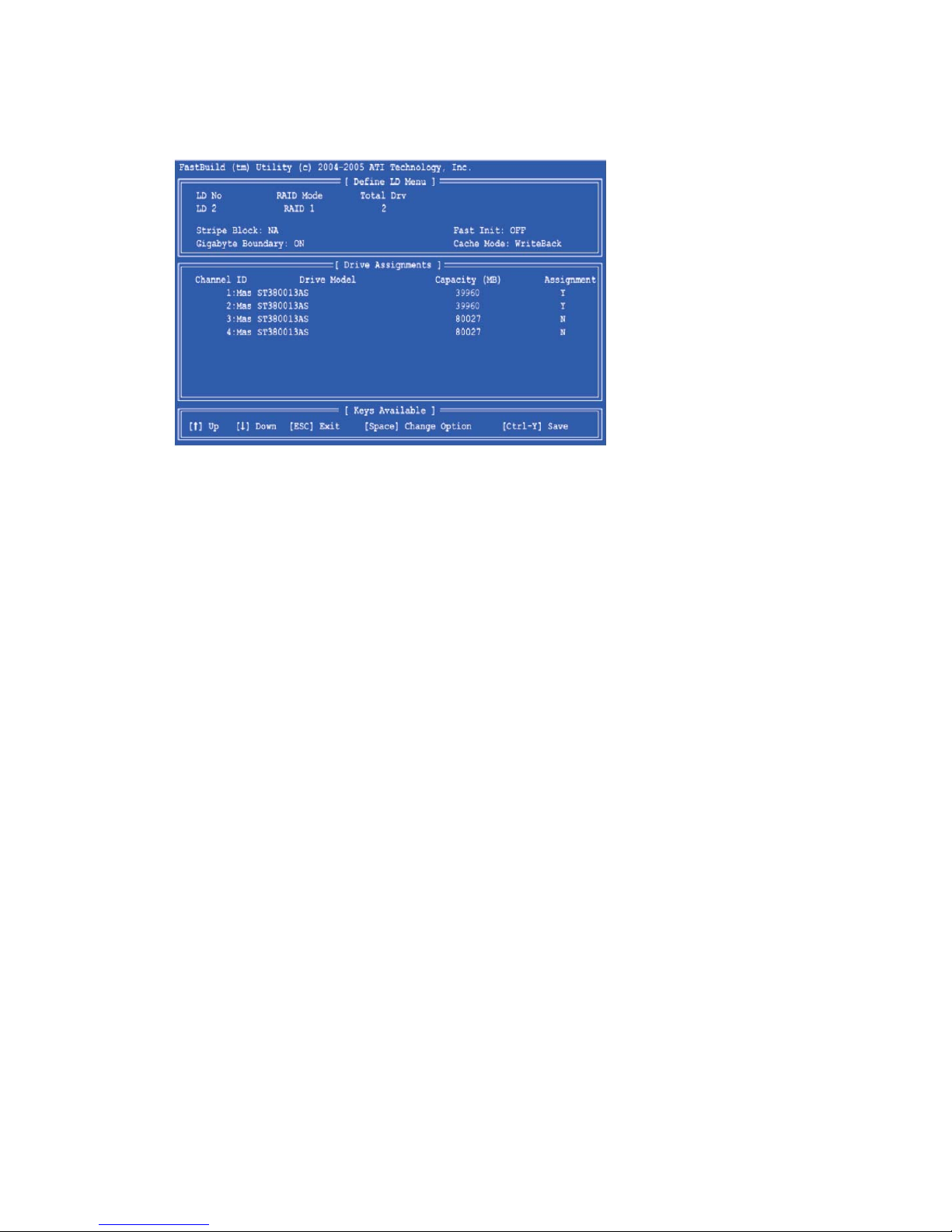

2. Press the up and down arrow keys to select an available logical drive number and press <Enter>.
3. Choose the RAID level and options for the second logical drive. Note that the disk drives in Channels 1 and 2
reflect smaller capacities because a portion of their capacity belongs to the first logical drive. In this example the
disk drives in Channels 3 and 4 are not assigned to a logical drive.
4. Press <Ctrl-Y> to save your logical drive configuration.
5. Press <Esc> to exit to the Main Menu. Press <Esc> again to exit the Utility.
6. Press <Y> to restart the computer.
You have successfully created a new RAID logical drive. Please install the operating system to your computer by
following the detailed instruction of the “User Manual” in our support CD or “Quick Installation Guide”.

8
2. ATI Windows RAID Installation Guide
ATI Windows RAID Installation Guide is an instruction for you to configure RAID functions by using WebPAM RAID
management software under Windows environment. The WebPAM (Web-Based Promise Array Management)
software offers local and remote management and monitoring of all ATI SB600 SATA logical drives that exist
anywhere on a network. Its browser-based GUI provides email notification of all major events/alarms, memory cache
management, drive event logging, logical drive maintenance, rebuild, and access to all components in the RAID
configuration (server, controller, logical drives, physical drives, and enclosure). WebPAM is designed to work with ATI
SB600 SATA RAID controllers. Other brands of RAID controllers are not supported. Please read this guide carefully
and follow the instructions below to configure and manage RAID functions.
2.1 Components of WebPAM Installation Software
WebPAM installation software will install two major components to your system:
1. WebPAM RAID management software: The WebPAM software installs on the PC with the ATI SB600 SATA
RAID Controller (the “Host PC”).
2. Java Runtime Environment (in a private folder): The WebPAM installation program installs a private JRE in folder
_jvm under the same directory where WebPAM is installed. WebPAM uses this private JRE to avoid
incompatibility issues with any other JREs that may be present on your system.
2.2 Browser Support
On the Host PC with the ATI SB600 Controller, where you install WebPAM, you must have one of the following
browsers: Internet Explorer 6.0, Mozilla Suite 1.7, Mozilla Firefox 1.0, or Netscape Navigator 7.1.
If you do not have one of the above browsers, install the browser first and make it the default browser. Then install
WebPAM. You must use one of the browsers listed above on your networked PC in order to access WebPAM over the
network.
2.3 Installing WebPAM
Follow these steps to install WebPAM on your Windows-based PC or Server.
1. Boot up the PC/server and launch Windows. If the computer is already running, exit all programs.
2. Insert the software CD into your CD-ROM drive.
3. Double-click on the Install CD’s icon to open it.
4. Double-click on the Installer icon to launch it. The first WebPAM installation dialog box appears.

9

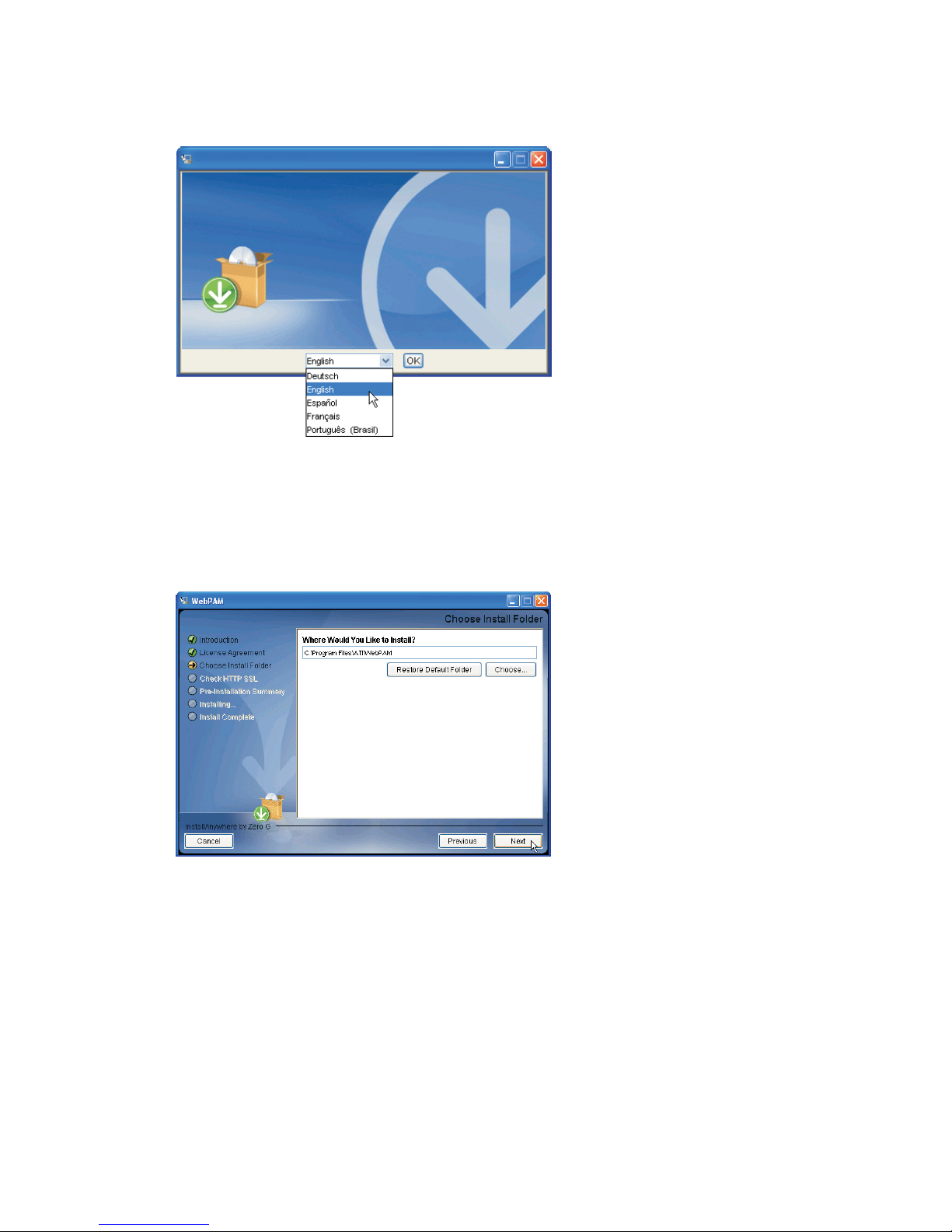

5. Follow the prompts in the installation dialog box. The first WebPAM installation dialog box appears as shown below.
6. Select an installer language from the dropdown menu and click the OK button.
7. Click the Next button when the Introduction screen appears.
8. Click on the “I accept the terms of the license agreement” option to proceed with installation when the License
agreement screen appears. If you select the “I do not accept the terms of the license” option, the installation will quit.
Click the Next button when you are finished.
9. When the Choose Install Folder screen appears, select a folder for the WebPAM applications you are installing. For
example, the Windows default folder is C:\Program Files\ATI\WebPAM. If you want a different folder, type its
location or click the Choose... button and select a new location. If you change your mind and want the default
location, click on the Previous button, then the Next button. Click the Next button when you are finished.

10
10. When the Check HTTP SSL screen appears, you can choose External Security. An explanation follows. External
SSL Security – Applies security to all connections involving the Internet or outside your company firewall. Security
options are invisible to authorized users. ATI provides a default certificate for the server as well as for internal data
communication. However, in some cases it is always better to install and verify your own certificate for the
webserver. And, and if possible, verify certificate by certificate authority like Verisign or Thwate. See your MIS
Administrator for guidance. Click the Next button when you have made your choice.
11. Review your choices when the Pre-Installation Summary screen appears. Click the Previous button to make
changes or click the Installation button to continue.
12. When the Install Complete screen appears, click the Done button. This completes the WebPAM installation. Then
you can start to log-in to WebPAM. Please read the instruction below for details.

11
2.4 Log-in to WebPAM
Double-click on the WebPAM icon on your Windows desktop. Or you may launch your Browser to type
the entry in the Browser address field. If you did not choose the External Security option during WebPAM installation,
use the Regular connection. If you chose the External Security option during WebPAM installation, use the Secure
connection.
Regular connection:http://127.0.0.1:8080/ati or http://localhost:8080/ati
Secure connection: https://127.0.0.1:8443/ati or https://localhost:8443/ati
Please note that the IP address shown above applies to a log-in at the Host PC. When you log in over a network, enter
the Host PC’s actual IP address or hostname.
When the opening screen appears:
1. Type admin in the Login ID field.
2. Type admin in the Password field.
3. Click the Sign in button. This is the default login for the Administrator. The Login ID and Password are case
sensitive. Click the WebPAM online help for instructions on adding users and changing passwords.

12
4. After you successfully log-in to WebPAM, you are allowed to click the button on the top such as “Language”, “Help”,
or “Logout” for other requirement.
2.5 Create RAID in WebPAM
After you log-in to WebPAM, you can click the button on the left. Click 127.0.01., ATI SB600 SATA Controller, and
then Controller 1 to view the controller information.

13

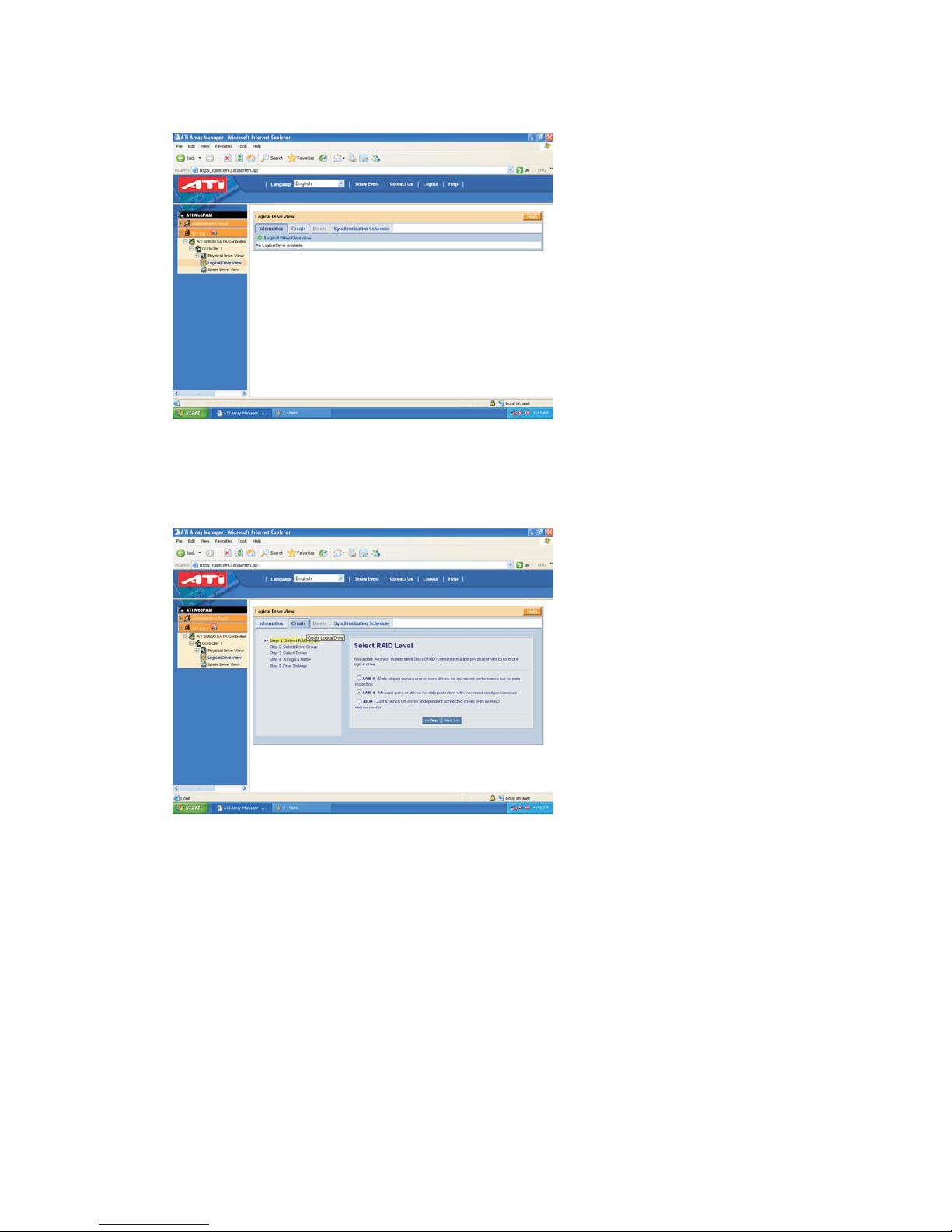

Click Logical Drive View.
Click the Create button to create RAID array. Then you can start to select RAID level. After selecting the RAID level
that you wish, click Next for the next page. Here we take RAID 1 for example.

14
You can select drive group. Please select a free drive(s) for one logical drive that has free space. Click Next.
Select drives. You can choose to use maximum capacity or key in the logical drive size in (GB). Then select the drives
that you plan to create RAID. Click Next for the next page.

15

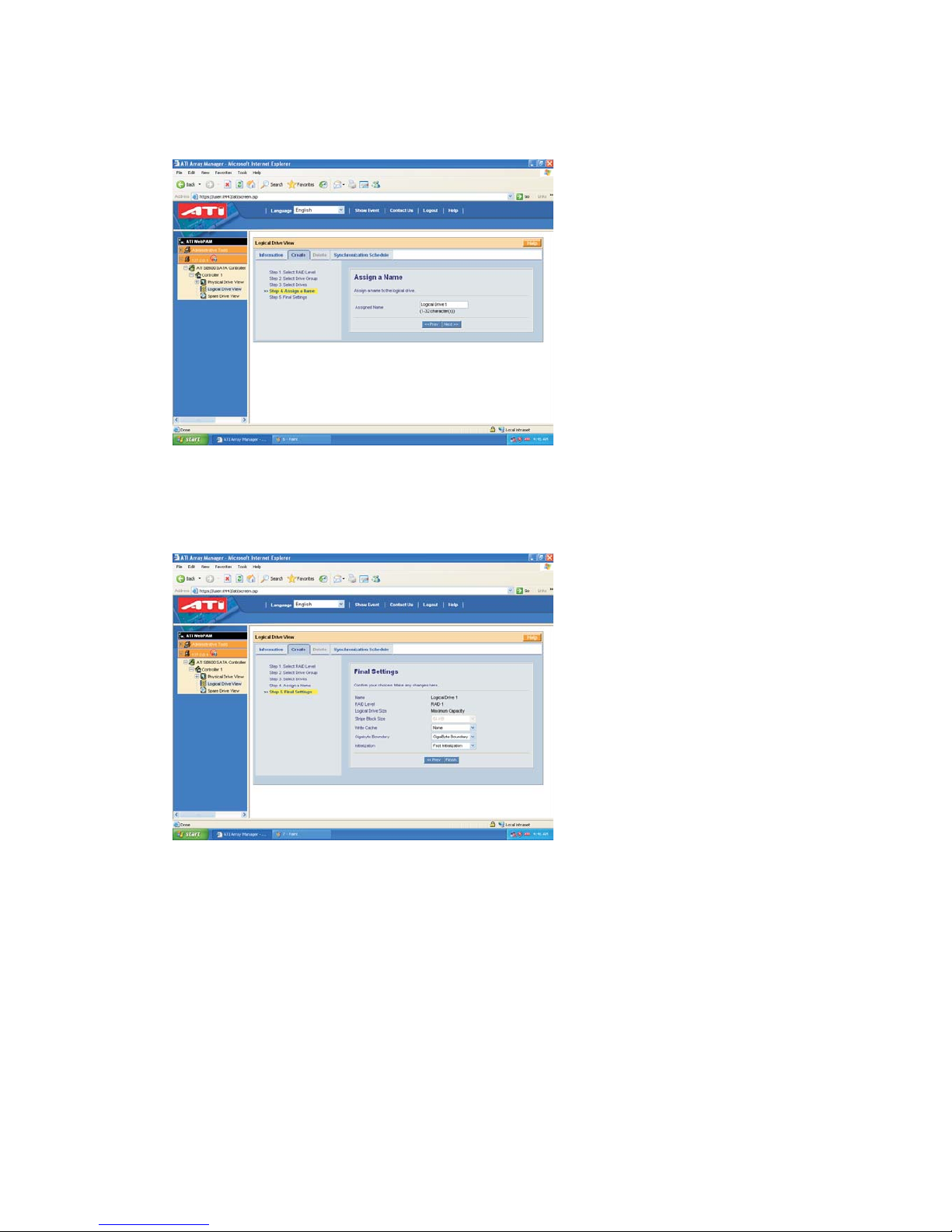

Assign a name for to the logical drive. The logical drive name that you assign is supposed to contain 1 to 32
characters. After that, please click Next.
In the Final Settings page, please confirm your choices in the following list. Or you may make any changes here. If you
have confirmed the information in the list, click Finish.

16

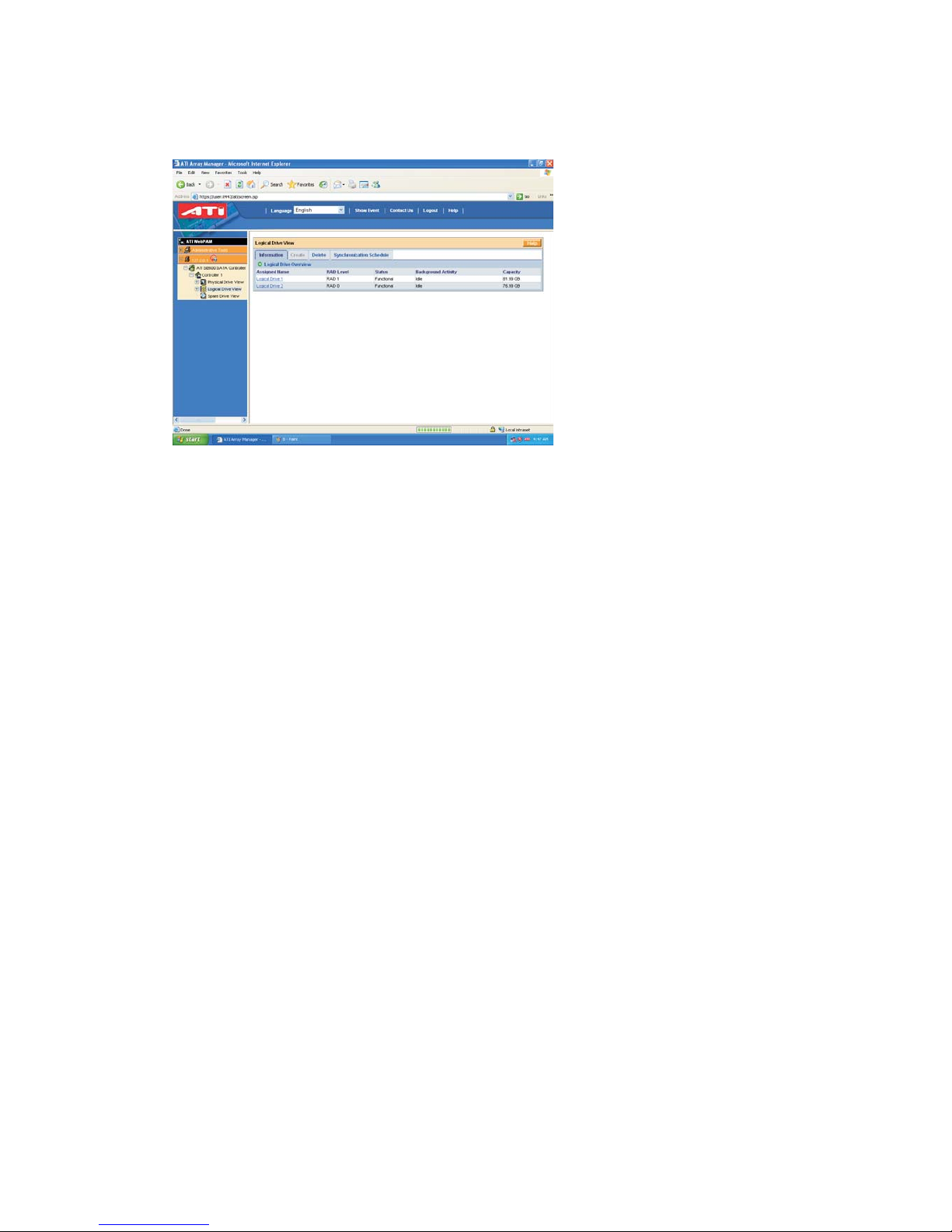

Finally, in Logical Drive Overview page, you can see the RAID configuration you just made on your system, including
Assigned Name, RAID Level, Status, Background Activity, and Capacity.
In the future, if you plan to configure other RAID functions, you may click the Delete or Synchronization Schedule on
the top to meet your RAID requirement.
