ASTEL TSA 082N User manual

TSA 082N
VIDEO
ALARM
SEQUENTIAL
SWITCHER
Operating
Instructions

2
CONTENTS
Safety precautions....................................................................................................................................2
Preface.....................................................................................................................................................3
Features...................................................................................................................................................3
Precautions ..............................................................................................................................................3
Controls and connectors .......................................................................................................................... 4
Connections .............................................................................................................................................5
Alarm / Remote control connection.......................................................................................................... 7
VCR CLOCK connection.......................................................................................................................... 7
Vertical interval switching.........................................................................................................................7
Alarm specification...................................................................................................................................7
Remote control.........................................................................................................................................7
On-screen display ....................................................................................................................................7
Set-up.......................................................................................................................................................8
Standard setting.....................................................................................................................................11
Self test ..................................................................................................................................................11
Installation ..............................................................................................................................................11
Appearance............................................................................................................................................ 12
Specifications.........................................................................................................................................12
Optional accessory.................................................................................................................................13
SAFETY PRECAUTIONS
In order to prevent any fatal accidents
caused by misoperation or mishandling of the
video switcher, be fully aware of all the
following precautions.
WARNING:
THIS APPARATUS MUST BE EARTHED
WARNING:
This is a Class A product. In a domestic
environment this product may cause radio
interference in which case the user may
be required to take adequate measures.
WARNING:
To prevent fire or shock hazard, do not
expose this appliance to rain or moisture.
This unit is produced to comply with
Directives 93/68/EEC (IEC Publ.65) and
89/336/EEC.

3
PREFACE
The TSA 082N is a high quality microprocessor
based video switcher which is suitable to
connect up to eight cameras or other video
sources. Two independent outputs allow to
connect the main monitor and the video tape
recorder with optional clock output. Alarm input
is suitable to connect eight alarm sensors. On-
screen display function allows higher operational
efficiency.
Standard BNC-type input and output connectors
enables the TSA 082N to be used with other
CCTV switchers, cameras, monitors and video
tape recorders.
FEATURES
•Microprocessor based
•8 video inputs
•2 video outputs
•8 alarm inputs
•Alarm output
•VCR-CLOCK input
•Frame-by-frame switching
•Vertical interval switching
•Built-in buzzer
•Nonvolatile RAM backup
•Remote control possibility
•On-screen camera/alarm identification
•Multi-language on-screen SET-UP
•Rack mountable using optional rack mount kit
PRECAUTIONS
•Use only the power source specified on the
rating label located on rear of the cabinet.
•When not using this unit for a long period of
time, or when cleaning it, be sure to
disconnect the power plug from the AC outlet.
•Do not drop metallic parts through slots. This
action could permanently damage this unit. Do
turn power off immediately and refer servicing
to qualified service personnel.
•Avoid using this unit under the following
conditions:
-in extremely hot, cold or humid places,
-in dusty places,
-near appliances generating strong magnetic
fields,
-in places subject to direct sunlight, and
-in badly ventilated places.
•Unplug this unit from the AC outlet and refer
servicing to qualified service personnel under
the following conditions:
-when the power cord is frayed or plug is
damaged
-if the unit does not operate normally following
the operating instructions
-if the unit has been dropped or the cabinet
has been damaged
-when the unit exhibits a distinct change in
performance.

4
CONTROLS AND CONNECTORS
FRONT PANEL
51 2 3 4
(1) CH B - TIME
LED display to show the sequence of
the CHANNEL B or the sequential time of the
CHANNEL A.
When the VCR CLOCK is selected the display
shows C. When the frame-by-frame mode is
selected the display shows F. When one of the
TIME keys is pressed a decimal point lights and
the display shows the selected sequential time -
0 for 1 to 9 seconds, 1 for 10 to 19 seconds etc.
When an alarm occurs and the CHANNEL B is
selected the decimal point blinks.
(2) MODE - ALARM STOP
Key to select operating mode - auto (sequential)
or manual - or to reset the alarm.
(3) TIME
Keys to adjust the sequential time from 1 to 90
seconds.
(4) CHANNEL A
Keys to select the input signals in manual mode
or to eliminate the inputs in auto (sequential)
mode.
In manual mode red LED lights at selected input,
in auto (sequential) mode red+green LED lights
at selected input. If all the inputs are eliminated,
the switcher automatically switches the first
input.
(5) POWER
Switch to turn the power on / off - lights in the
power on position.

5
REAR PANEL
1
4
8
3
FUSE
7
2
5
6
MODEL No. TSA 082N
(1) FUSE T 315 mA
Fuse socket.
(2) CH A
BNC video output connector of the CHANNEL A.
It is suitable to connect the main monitor. On-
screen display shows the number of selected
input and sequential time adjusting.
(3) CH B
BNC video output connector of the CHANNEL B.
It is suitable to connect the video tape recorder
optionally with CLOCK output.
(4) ALARM IN
Alarm input / remote control connector (D-9F). It
allows to connect up to eight alarm sensors.
When the remote control possibility is used all
the alarm inputs are inactive.
(5) CLK
VCR-CLOCK input connector (terminal block).
When the video tape recorder with CLOCK
output is used and connected to the VCR-CLK
input, the sequence of the CHANNEL B will
depend on the CLOCK pulse. In the SET-UP,
VCR-CLOCK input has to be selected.
(6) ALM
Alarm output connector (terminal block), open
collector output. It is suitable to connect the
video tape recorder with alarm input.
(7) VIDEO IN
BNC video input connectors. They allow to
connect up to eight video cameras or other
video sources.
(8) AC IN
Power cord.

6
CONNECTIONS
•Be sure to disconnect the power plug from the
AC outlet before connecting to other
equipment.
•Also refer to the instruction manual of the
equipment to be connected.
FUSE
VCR
MON
AC MAINS
ALARM
SENSORS
or
REMOTE
KEYBOARD
CAM 8
CAM 2
CAM 4
CAM 6
CAM 1
CAM 3
CAM 5
CAM 7
MODEL No. TSA 082N

7
ALARM / REMOTE CONTROL CONNECTION
Connection diagram:
Notes:
•Negative triggering - all alarm switches must
be opened, in case of alarm they are closed.
•Positive triggering - all alarm switches must be
closed, in case of alarm they are opened.
Notes:
•T1 - start/stop key
•T2 - manual scan key
VCR-CLOCK CONNECTION
The VCR-CLK input is a standard TTL negative
triggered input (5V to 0V)
Note:
•If the VCR CLOCK pulse is 12V, set the
jumper J2 to 12V position.
VERTICAL INTERVAL
SWITCHING
This unit includes an electronic circuit which
allows smooth switchings without picture roll or
flutter. When the cameras and this unit are line-
locked this function appears. Line-lock phase is
adjustable in ±127 steps. (±2.2 ms)
ALARM SPECIFICATION
When only one alarm input is activated, the
alarmed video input appears on the CHANNEL
A or CHANNEL B. On the CHANNEL A the
"ALARM" message is on the screen. Buzzer is
activated. On the CHANNEL A auto and manual
LEDs blink. When the CHANNEL B is selected
the decimal point on the LED display blinks.
Alarm output is activated (switched to the
ground). When more then one alarm input is
activated, the alarmed video inputs appear on
the CHANNEL A or CHANNEL B sequentially.
The CHANNEL B is automatically switched from
sequential mode to frame-by-frame mode when
the ALARM FRAME SWITCHING is enabled.
This function is disabled when the VCR CLOCK
is selected.
Alarm sequential time and alarm duration time
are adjusted in the SET-UP. With pressing the
key ALARM STOP manual reset of alarm is
achieved on the CHANNEL A.
REMOTE CONTROL
Remote control possibility on the CHANNEL A
appears when the auto (sequential) mode is
selected. Key T1 is used to stop and start the
auto sequence. When it is stopped key T2 is
used for manual scan. In the set-up, REMOTE
CONTROL has to be selected.
ON-SCREEN DISPLAY
For enhanced operational efficiency, the
TSA 082N has an multi-language on-screen
display function on the CHANNEL A in English,
Italian and German language. The characters
are displayed as white characters with black
edging, thus allowing easy reading against any
contrast background. The number of input is
displayed in the right corner and the sequential
time in the left corner below.

8
SET - UP
Switch off the unit. Press the key "8" and turn the power on. All LED lamps go off, power switch lights.
Language menu is on the screen:
>> ENGLISH
ITALIANO
DEUTSCH
Press the keys "∧" and "∨" to move the selector up and down and key "•" as enter.
Main menu is on the screen
SET - UP
>> CHANNEL B
ALARM
REMOTE CONTROL
LINE - LOCK
ON - SCREEN
EXIT
Press "•":
CHANNEL B (CHANNEL B set-up)
>> MODE
SEQ. TIME
INPUTS
FRAMES
EXIT
Press "•":
CH-B MODE (CHANNEL B mode - press "•" to move the "∗" on the selector line)
>∗SEQUENTIAL
VCR CLOCK
FRAME
EXIT
Press "∨" to exit, then "•".
Press "∨", then "•".
CH-B SEQ. TIME (sequential time of CHANNEL B)
>> TIME Sec. 01
EXIT
Press "•"
CH-B SEQ. TIME
TIME Sec. 01 << (adjust sequential time with up/down selectors)
EXIT
Press "•":

9
CH-B SEQ. TIME
>> TIME Sec. 12
EXIT
Press "∨", then "•":
Press "∨", then "•":
CH-B INPUTS (number of inputs on CHANNEL B)
>> NUMBER 8
EXIT
Press "•" and use up/down selectors to select the number.
Press "∨", then "•":
Press "∨", then "•":
CH-B FRAMES
>> NUMBER 01 (number of frames on CHANNEL B)
EXIT
Press "•" and use up/down selectors to select the number.
Press "•", then "∨".
Press "•", then "∨", the main menu is on the screen. Use up/down selectors to select the next menu:
ALARM (alarm set-up)
>> ACTIVITY
SEQ. TIME
DURATION
FRAME SWITCH
TRIGGER
EXIT
ALARM ACTIVITY (alarm activity)
>>∗∗CH-A
CH-B
OFF
EXIT
ALARM SEQ. TIME (time between two or more alarms in the sequence)
>> TIME Sec. 01
EXIT
ALARM DURATION (time of alarm duration)
>> TIME Sec. 01
EXIT
ALARM FRAME SW. (frame-by-frame switching on CHANNEL B)
>>∗∗ON
OFF
EXIT

10
ALARM TRIGGER (positive or negative alarm input signal triggering)
>>∗∗POSITIVE
NEGATIVE
EXIT
In main menu select the next menu:
REMOTE CONTROL (remote control possibility)
>>∗∗ON
OFF
EXIT
Next menu:
LINE - LOCK (line-lock phase from -127 to +127)
>> NUMBER 000
EXIT
Next menu:
ON - SCREEN (on-screen displaying - CHANNEL A)
>> NUMBER DISPLAY
TIME DISPLAY
EXIT
NUMBER DISPLAY (displaying the number of input)
>>∗∗ON
OFF
EXIT
TIME DISPLAY (displaying the sequential time)
>>∗∗ON
OFF
EXIT
Next menu:
SAVE (saving the new set-up, select SET-UP for main menu)
>>YES
NO
SET - UP

11
STANDARD SETTING
Switch off the unit. Press the key "1" and turn
the power on. All settings are as follows:
CHANNEL A: -auto (sequential) mode
-8 inputs
-seq. time - 1 sec.
CHANNEL B: -sequential mode
-seq. time - 1 sec.
-8 inputs
-1 frame
ALARM: -activity - off
-seq. time - 1 sec.
-duration time - 20 sec.
-frame sw. - off
-trigger - negative
REMOTE CONTROL: -off
LINE-LOCK: -phase - 0
ON-SCREEN: -number display - on
-time display - on
SELF TEST
Switch off the unit. Press the key "4" and turn
the power on. All video inputs are sequentially
switched to the both output channels
accompanied with blinking LEDs. Buzzer is
activated, SELF-TEST message is on the
screen.
INSTALLATION
This unit is fully assembled prior to shipment,
and is ready to operate immediately after
unpacking.
If there are any problems in ground loop-through
between video sources (cameras, VCR etc.) and
this unit, remove the seven screws on the
cover′s upper panel and open the upper lid.
Then remove the GND connector from PCB.
The video switcher ground will be separated
from the cover and earth.
Note:
•When the GND connector is removed it has to
be isolated.
TABLETOP UNIT
This unit is fitted with rubber feet on the base
plate for use as a tabletop unit.
RACK MOUNTING
For rack mounting, remove the rubber feet and
use the optional rack mounting kits.

12

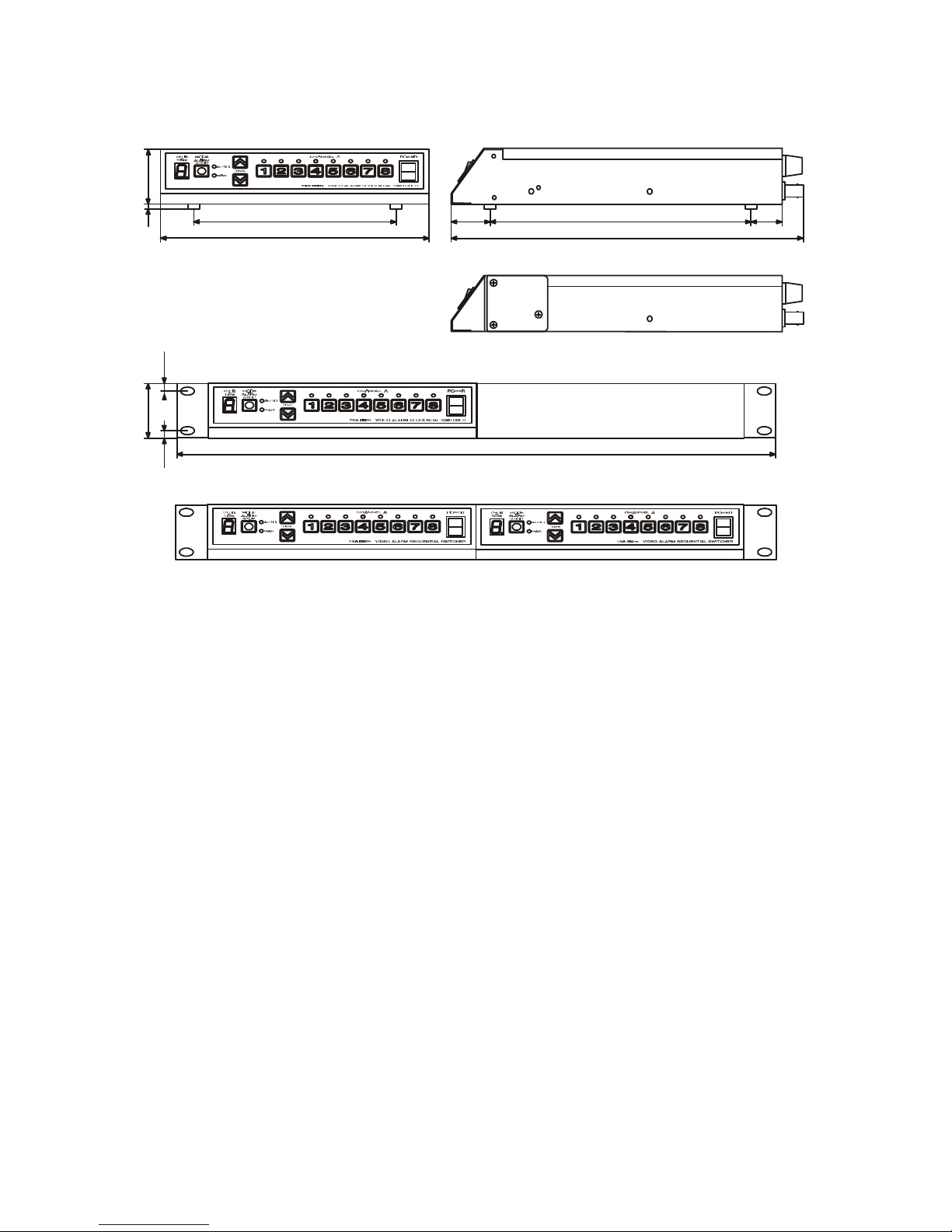

APPEARANCE
44
216
163 210
283
4
32 25
One unit
482
44
5.95.9
Two units
SPECIFICATIONS
Video inputs 8
1 Vpp / 75 Ω, BNC
Video outputs 2
1 Vpp / 75 Ω, BNC
Video bandwidth 10 MHz ±3 dB
Signal / noise ratio >60 dB
Crosstalk 56 dB (4.5 MHz)
Switching interval adjustable, 1 to 90 sec. (CH A, CH B, alarm)
VCR clock input TTL, negative triggered, terminal block
Frame switching 1 - 99 frames
Line-lock phase -2.2ms to +2.2ms (-127 steps to +127 steps)
Alarm inputs 8
activity adjustable, D-9F connector
Alarm output low-active, open collector, terminal block
Alarm duration adjustable, 1 to 90 sec. or manual reset
On - screen display input number, seq. time, alarm, set-up
Nonvolatile RAM backup 100 years data retention.
Power requirement 230 V, 50 Hz
Power consumption max. 8 W
Dimensions (W x H x D) 216 x 44 x 240 mm
Weight 2.5 kg

13
PIN ASSIGNMENT
Alarm input / remote control connector D-9F:
PIN No. ALARM REMOTE
1ALARM 1 T1
2ALARM 2 T2
3ALARM 3 n.c.
4ALARM 4 n.c.
5ALARM 5 n.c.
6ALARM 6 n.c.
7ALARM 7 n.c.
8ALARM 8 n.c.
9GND GND
Alarm output / VCR Clock connector:
PIN
1ALARM OUT
2GND
3VCR CLOCK
OPTIONAL ACCESSORY
Rack mount kit
