GoMax Electronics SP-5105KC User manual

1x4 HDMI & Full 3D support over Single CAT5
Distribution Amplifier with Local Output
User Manual
To avoid EMI issue, complete STP Cat6 cable is strongly recommended!
rev: 131028
Made in Taiwan
S
SP P- -5 51 10 05 5K KC C

The SP-5105KC 1x4 HDMI & Full 3D support over Single CAT5 Distribution Amplifier with
Local Output has been tested for conformance to safety regulations and requirements, and has
been certified for international use. However, like all electronic equipments, the SP-5105KC should
be used with care. Please read and follow the safety instructions to protect yourself from possible
injury and to minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION.....................................................................................................................1
FEATURES..............................................................................................................................1
PACKAGE CONTENTS ..........................................................................................................1
SPECIFICATIONS...................................................................................................................2
PANEL DESCRIPTIONS.........................................................................................................3
SWITCH SETTING..................................................................................................................4
EDID LEARNING.....................................................................................................................4
HARDWARE INSTALLATION.................................................................................................4
CONNECTION DIAGRAM ......................................................................................................5
PIN DEFINITION .....................................................................................................................6
NOTICE ...................................................................................................................................7
WARRANTY............................................................................................................................8

1
INTRODUCTION
The SP-5105KC 1x4 HDMI & Full 3D support over Single CAT5 Distribution Amplifier with
Local Output provides the most flexible solution by which the high definition video and high quality audio
can be transmitted to different locations over a long distance. The devices are cascadable, allowing you
to extend HDMI compliant displays almost anywhere. The input HDMI source can be duplicated and
distributed to up to 4 HDMI enable displays through cost effective Cat-5/5e/6 cables with HDMI over
CAT5 receivers (CV-735 and/or CV-715s). For convenience, SP-5105KC is also equipped a local HDMI
output for monitoring. With the built in equalization, the input HDMI cable can be extended up to 20
meters (66 feet) long under Full HD, and make the overall transmission distance superior than regular
HDMI splitters or matrix switches in the market.
FEATURES
●Support HDMI Deep Color & full 3D
●HDCP compliant
●Regenerates the HDMI signal
●HDMI local output for monitoring
●Supports default HDMI EDID and has the ability to learn the EDID of displays
●Extends up to 20m (66ft) of input HDMI cable
●Extends up to 60m (200ft) of output Cat-5/5e/6 solid UTP cable under HD (720p / 1080i)
●Extends up to 40m (130ft) of output CAT-5/5e/6 solid UTP cable under Full HD (1080p)
●Pure unaltered uncompressed 7.1ch digital HDMI over CAT5e/6 cable transmission
●Allows cascading
●Perfectly integrated with other HDMI over CAT5 series products
PACKAGE CONTENTS
●1x SP-5105KC
●1x DC 5V 4A wall wart
●1x User Manual
The length depends on the characteristics and quality of the cables. Higher resolutions and
longer transmission distances require low skew cables (<25ns/100m) for best performance.
Unshielded CAT6 with metal RJ-45 connectors is recommended.

2
SPECIFICATIONS
Model Name
SP-5105KC
Technical
Role of usage
1x4 Distribution Amplifier Transmitter [TX]
HDMI compliance
HDMI Deep Color & full 3D
HDCP compliance
Yes
Video bandwidth
Single-link 225MHz [6.75Gbps]
Video support
480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color
Transmission over
UTP [24-bit color]
Full HD (1080p)-40m (130ft) [CAT.X]
HD (720p/1080i)-50m (165ft) [CAT.X]
Audio support
Surround sound (up to 7.1ch) or stereo digital audio
Equalization
Built-in
Input TMDS signal
1.2 Volts [peak-to-peak]
Input DDC signal
5 Volts [peak-to-peak, TTL]
ESD protection
[1] Human body model —±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset —±8kV
PCB stack-up
4-layer board [impedance control —differential 100Ω; single 50Ω]
Input
1x HDMI
Output
4x RJ-45 + 1x HDMI
HDMI connector
Type A [19-pin female]
RJ-45 connector
WE/SS 8P8C
Rotary control switch
None
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
194 x 110 x 27mm [7.6" x 4.3" x 1.1"]
Package
270 x 175 x 80mm [10.6" x 6.9" x 3.1"]
Carton
450 x 370 x 300mm [1'6" x 1'3" x 11.8"]
Weight
Model
588g [1.3 lbs]
Package
1000g [ 2.2 lbs]
Fixedness
1U rack-mounting with ears
Power supply
5V 4A DC
Power consumption
13 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]

3

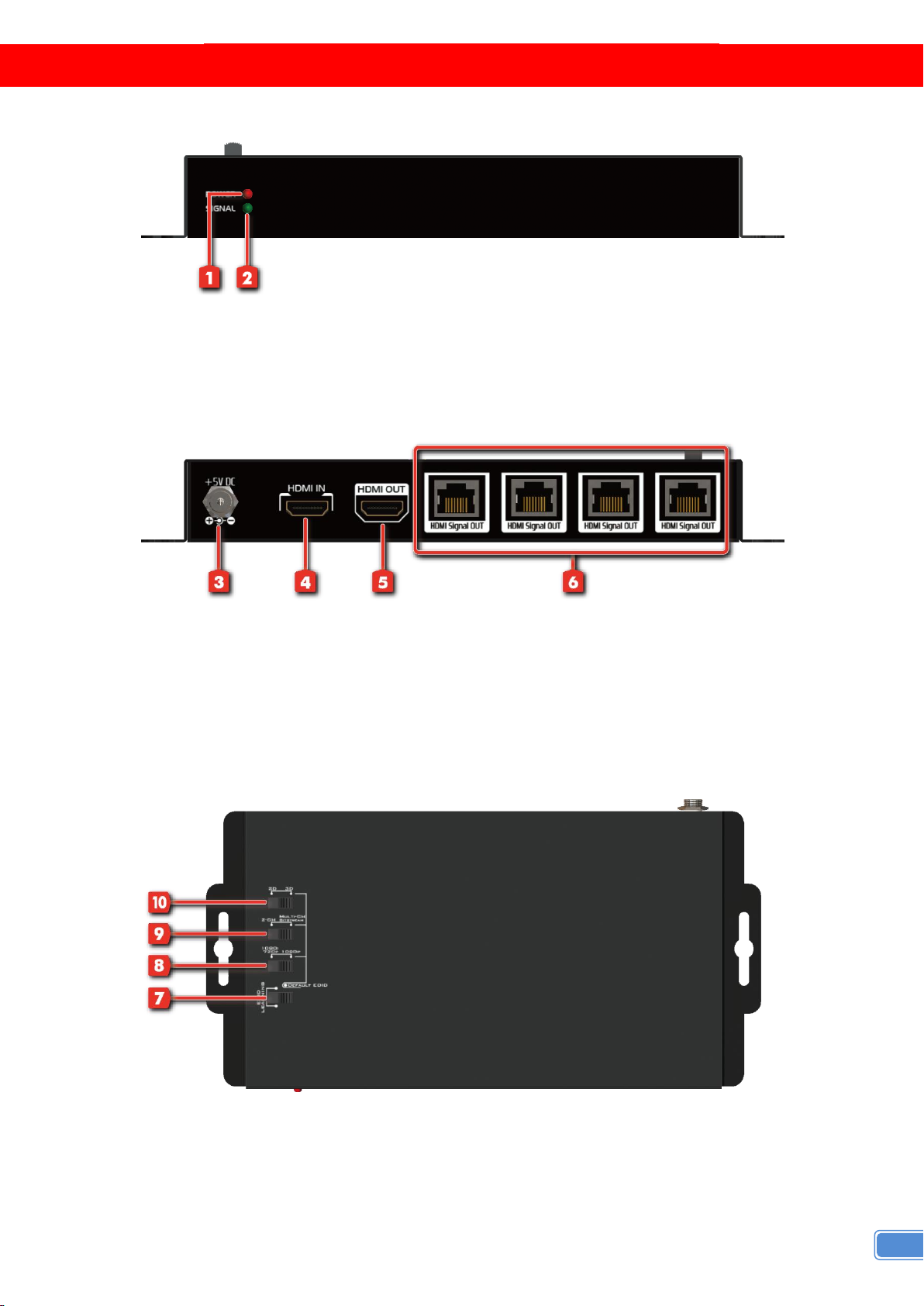

PANEL DESCRIPTIONS
Front Panel
1.POWER: bright - power on; dark - power off.
2.SIGNAL: bright - HDMI source signal is detected; dark - no HDMI signal.
Rear Panel
3.+5V DC power: connect to 5V 4A DC interlocking power adapter
4.HDMI INPUT: connected to HDMI source
5.HDMI OUTPUT: HDMI output for local monitor
6.CAT.X OUTPUT 1~4: CAT output
Top Panel
7.SW1: EDID Mode
8.SW2: EDID - Full HD/HD Selection
9.SW3: EDID - Audio Selection
10.SW4: EDID - 3D/2D Selection

4
SWITCH SETTING
Left Position
Right Position
SW1
EDID Learning
Default EDID
SW2
HD
Full HD
SW3
Audio –2 Channel
Audio - Multi Channel
SW4
2D
3D
EDID LEARNING
1. Power up the SP-5105KC. Connect to HDMI OUTPUT with the display you want the SP-5105KC to
learn its EDID.
2. To learn the display's EDID for source device connected to HDMI OUTPUT, Set SW1 to left Position.
Power on and wait for about 5 seconds to complete the EDID learning process.
HARDWARE INSTALLATION
Broadcasts HDMI signals to four remote displays with a local port
1. Turn off all devices, including sources and displays.
2. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI INPUT port.
3. Connect the receivers (CV-735 or CV-715s) via Cat-5/5e/6 cables to each HDMI Signal OUTPUT
port.
4. Connect the local HDMI equipped monitor.
5. Plug in 5V 4A DC power supply.
6. Power on the HDMI displays.
7. Power on the HDMI source device.
The instant switching enables only when the video and audio setting of the source has been
adjusted to "Auto" or "Pass-through"

5
CONNECTION DIAGRAM

6

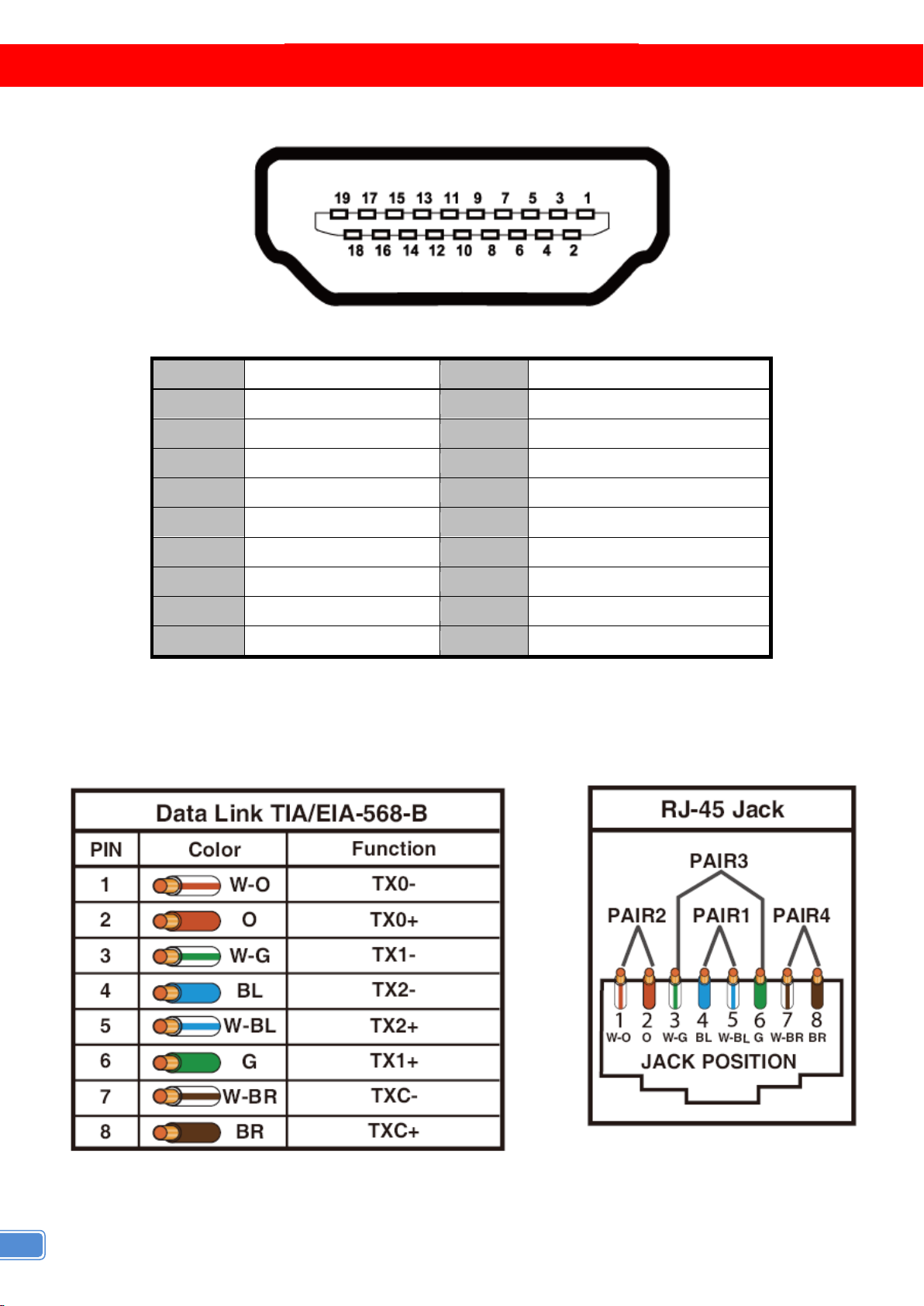

PIN DEFINITION
HDMI
Type A (Receptacle) HDMI
Pin 1
TMDS Data2+
Pin 11
TMDS Clock Shield
Pin 2
TMDS Data2 Shield
Pin 12
TMDS Clock–
Pin 3
TMDS Data2–
Pin 13
NC
Pin 4
TMDS Data1+
Pin 14
Reserved (N.C. on device)
Pin 5
TMDS Data1 Shield
Pin 15
SCL
Pin 6
TMDS Data1–
Pin 16
SDA
Pin 7
TMDS Data0+
Pin 17
DDC/CEC Ground
Pin 8
TMDS Data0 Shield
Pin 18
+5V Power
Pin 9
TMDS Data0–
Pin 19
Hot Plug Detect
Pin 10
TMDS Clock+
RJ45 / Cat.X

7
NOTICE
1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve
and provide DVI or HDMI display EDID information.
2. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP
cable and ASTRODESIGN Video Signal Generator VG-859C & VG-870B.
3. The transmission length is largely affected by the type of Cat-5/5e/6 cables, the type of HDMI sources,
and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 300m
[1,000ft] bulk cables) can transmit a lot longer signals than stranded UTP cables (usually in the form of
fixed length patch cords). Shielded STP cables are better suited than unshielded UTP cables. A solid
UTP Cat-5e cable shows longer transmission range than stranded STP Cat-6 cable. For long
extension applications, solid UTP/STP cables are the only viable choice.
4. EIA/TIA-568-B termination (T568B) for Cat-5/5e/6 cables is recommended.
5. To reduce the interference among the unshielded twisted pairs of wires in Cat-5/5e/6 cable, one can
use double shielded STP cables to improve EMI problems, which is worsen in long transmission.
6. Because the quality of the category cables has the major effect on how long the transmission limit can
achieve and how good is the received picture quality, the actual transmission range is subject to one's
choice of Cat-5/5e/6 cables. For desired resolutions greater than 1080i or 1280x1024, a Cat-6 cable is
recommended.
7. If your HDMI display has multiple HDMI inputs, it is found that the first HDMI input [HDMI input 1]
generally can produce better transmission performance among all HDMI inputs.

8
WARRANTY
The SELLER warrants the SP-5105KC 1x4 HDMI & Full 3D support over Single CAT5
Distribution Amplifier with Local Output free from defects in the material and workmanship for 1 year
from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good
working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit,
provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized
modifications including static discharge and power surge. This warranty is offered by the SELLER for its
BUYER with direct transaction only. This warranty is void if the warranty seal on the metal housing is
broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the SP-5105KC features and specifications is subject to
change without further notice.
