Welcome
Welcome to your new Aston Martin Valkyrie.
This Owner’s Handbook has been designed to explain the
vehicle’s operation and to make the control of its systems easy to
understand and operate. All new owners are recommended to
read the Owner’s Handbook prior to driving. This Owner’s
Handbook forms part of the essential vehicle equipment for
homologation purposes and must stay with the vehicle at all
times.
Warnings, Cautions and Notes
The following Warnings, Cautions and Notes are used within this
Owner’s Guide to call your attention to specific types of
information.
Warning: Provided to show procedures which must be
followed precisely to help avoid the risk of personal injury.
Caution: Provided to show procedures which must be
followed precisely to reduce the possibility of damage to your
vehicle.
Provided to show procedures which will help to avoid
difficulties in the operation of your vehicle.
KY9Y-19A321-AA.book Page 2 Wednesday, November 3, 2021 8:41 AM

Vehicle Identification
The Vehicle Identification Number (VIN) is shown in the left side
bottom corner of the windscreen.
The VIN can also be found on the build labels behind the seats
and right side door shut, as well as the engine and the
transmission.
Data Telematics
This vehicle uses telematics to monitor various systems and
parameters on the vehicle to aid remote diagnosis such as:
• Information about the performance of various systems and
modules in the vehicle.
• Information related to engine, throttle, steering, brake, high
voltage battery or other system status.
Any of these systems can include information on how the driver
operates the vehicle, measuring vehicle speed, steering input,
brake and throttle application. This information will be
monitored and may be stored under regular operation, in a crash
or in a near crash event.
This information can be read and used by:
• Aston Martin
• Rimac Automobil
• Service and repair facilities
• Law enforcement or government agencies
• Others who may assert a right or obtain your consent to know
such information.
Customer Privacy
The telematics program is automatically included with the
vehicle, however you may opt out at any time. To have the
telematics monitoring function on your vehicle disabled, contact
an Aston Martin Dealer.
KY9Y-19A321-AA.book Page 3 Wednesday, November 3, 2021 8:41 AM

Reporting Safety Defects
If you believe that your vehicle has a safety defect which could
cause a crash or could cause injury or death, you should
immediately inform your Aston Martin Dealer or the Aston
Martin Client Services at the address shown.
UK
Aston Martin Lagonda Limited
Client Services
Banbury Road
Gaydon
Warwick
CV35 0DB
England
Telephone:
[phone]
European Representative
Aston Martin Lagonda of Europe GmbH
Unterschweinstiege 2-14
60549 Frankfurt
Germany
Driving Safety
• Always wear your seat belt.
• Never drive under the influence of alcohol or drugs.
• Always obey all speed and traffic laws and regulations. Never
drive faster than the posted speed limit or than conditions
allow.
• Be particularly careful driving on slippery or wet surfaces.
• This vehicle is a high performance vehicle and has handling
characteristics you may not be accustomed to. Familiarise
yourself with the vehicle and always drive prudently, being
aware of your own limitations and the limitations of the
vehicle. As with other vehicles of this type, failure to operate
the vehicle correctly can result in accident and injury.
• Follow the maintenance schedule approved in this guide.
• Never allow the vehicle to be driven by inexperienced
drivers.
Make sure that you are wearing appropriate footwear to
efficiently operate the control pedals. Make sure that pedal
movement is not restricted by floor mats or other objects trapped
beneath pedals.
KY9Y-19A321-AA.book Page 4 Wednesday, November 3, 2021 8:41 AM

Aston Martin Heritage Trust
The Aston Martin Heritage Trust is an educational charity
dedicated to the preservation, promotion and enhancement of
over 100 years of history of Aston Martin. Its world class
collection comprising the automotive museum, substantial
archive and collection of historical artefacts is housed in the
magnificently restored Grade II* listed barn in Oxfordshire which
it shares with the Owners' Club. As a member of the Owners’
Club you become a member and supporter of the Trust, so please
log on to our web site for more information, or better still pay us
a visit and see the collection for yourself.
Aston Martin Heritage Trust
Drayton St. Leonard
Wallingford
Oxfordshire
England
OX10 7BG
Telephone: [phone]
E-Mail: [email protected]
Website: www.amht.org.uk
KY9Y-19A321-AA.book Page 3 Wednesday, November 3, 2021 8:41 AM

Aston Martin Owners' Club (AMOC)
An invitation to join the Aston Martin Owners' Club
The sporting spirit of the 1930s exists today in one of the world’s
most exclusive car clubs. Enthusiasts in nearly 60 countries are
united by an interest in iconic cars with an enviable pedigree.
Enjoy the company of like-minded owners in a wide range of
activities: social evenings, weekends away or motoring tours.
Something more competitive? AMOC Concours are a benchmark
for connoisseurs of fine motorcars. A need for speed? We
organise track days, sprints and hill climbs as well as circuit racing
in venues such as Silverstone, Goodwood and Lime Rock in the
USA.
Aston Martin Owners' Club
Drayton St. Leonard
Wallingford
Oxfordshire
England
OX10 7BG
[phone]
E-Mail: [email protected]
Website: www.amoc.org
KY9Y-19A321-AA.book Page 2 Wednesday, November 3, 2021 8:41 AM

Produced by the Technical Publications Department
Aston Martin Lagonda Limited
Banbury Road
Gaydon
Warwick
CV35 0DB
England
Telephone:
[phone]
Issue 3: October 2021
Part Number: KY9Y-19A321-AA
Barcodes conform to AML specification AMES000043
KY9Y-19A321-AA.book Page 5 Wednesday, November 3, 2021 8:41 AM

Before Driving........................................................................ 1
Controls ................................................................................. 2
Driving................................................................................... 3
Infotainment System............................................................... 4
Climate Control...................................................................... 5
Maintenance and Technical Data ........................................... 6
Service...................................................................................A
Aston Martin Warranty ........................................................... B
Aston Martin Assistance..........................................................C
Alphabetical Index ................................................................ D
Every effort has been made to make sure that the information
provided in this Owner’s Handbook is accurate and up-to-date.
However, neither the manufacturer or the Dealer, by whom this
Owner’s Handbook is supplied, will in any circumstances be held
responsible for any inaccuracy or the consequences thereof.
Software instructions in this handbook are correct at time of print.
However, these may be subject to change due to ongoing
software updates during the vehicle’s lifetime. Contact your
Aston Martin Dealer for further information.
© Copyright Aston Martin Lagonda Limited, 2021. All Rights
Reserved. This publication is provided with your vehicle for your
personal, private and non-commercial use. No part of this
publication may be reproduced, stored in a retrieval system or
transmitted, in any form, electronic, mechanical, photocopying,
recording or other means without prior written permission from
Aston Martin Lagonda Limited.
The manufacturer reserves the right to vary specifications without
notice in accordance with its policy of continual product
improvement.
KY9Y-19A321-AA.book Page 4 Wednesday, November 3, 2021 8:41 AM

Before Driving
Vehicle Key ......................................................................... 1.2
Unlocking and Opening ...................................................... 1.3
Checks Before Driving ......................................................... 1.5
Cabin Features .................................................................... 1.6
Camera Monitoring System ................................................. 1.7
High Voltage Systems ........................................................ 1.11
Safety Systems ................................................................... 1.14
Child Safety....................................................................... 1.18
KY9Y-19A321-AA.book Page 1 Wednesday, November 3, 2021 8:41 AM

1.2 Before Driving
Vehicle Key
The vehicle is supplied with two primary keys. Keep the second
key in a safe place. Do not leave a vehicle key in the vehicle
when unattended.
Warning: The engine can be started by any person in the
vehicle if the brake pedal is pressed down and the start
button is pressed. Care should be taken that the vehicle key
is not left in the vehicle with only occupants such as young
children or pets inside.
If a vehicle key is lost, contact your Aston Martin Dealer.
Vehicle Key Functions
[1] UNLOCK: Press and release to unlock the vehicle.
[2] LOCK: Press and release to lock the vehicle and arm
the security system.
Vehicle Key Battery
Warning: The vehicle key contains a small cell battery. Do
not ingest or swallow the battery. If the battery is swallowed,
there is a risk of choking, severe internal chemical burns or
death. Always keep both new and used batteries away from
children and do not allow children to use the vehicle key. If
you suspect a battery has been swallowed, immediately seek
medical attention.
Battery Replacement
To replace the vehicle key's battery:
1. Remove the screw (A) and lift the cover.
KY9Y-19A321-AA.book Page 2 Wednesday, November 3, 2021 8:41 AM

Before Driving 1.3
2. Remove the battery from the key.
3. Insert a new CR2032 battery with the positive (+) side
facing up.
4. Fit the lower cover back on to the key.
5. Install and tighten the screw.
Unlocking and Opening
Unlocking The Vehicle
With Vehicle Key
Stand within approximately 10 m (32 ft) of the vehicle, and press
. To show that the security system has been disarmed and
the vehicle unlocked, the direction indicators will flash once.
With Keyless Entry
To unlock the vehicle with keyless-entry, operate the door switch
with the vehicle key within 1.5 m (5 ft) of the vehicle.
KY9Y-19A321-AA.book Page 3 Wednesday, November 3, 2021 8:41 AM

1.4 Before Driving

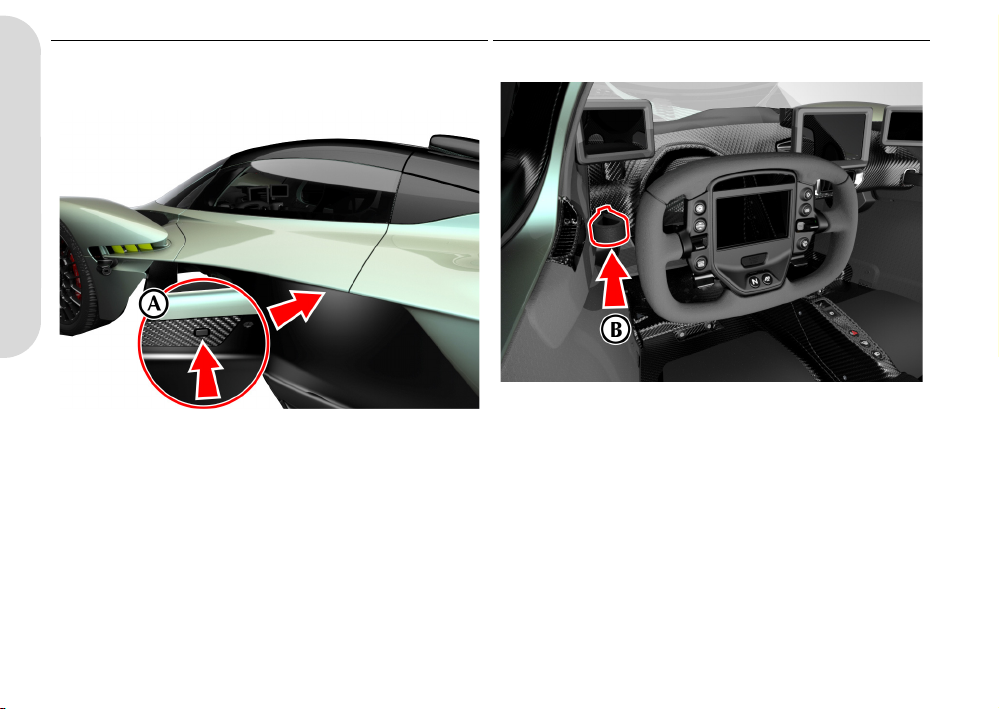

Opening The Doors
To open the door, press the button (A) and lift the door.
To open a door from inside, pull the release handle (B).
KY9Y-19A321-AA.book Page 4 Wednesday, November 3, 2021 8:41 AM

Before Driving 1.5
Vehicle Locking
Keyless entry does not lock the vehicle once the key is out of
range.
To lock the vehicle, stand within 10 m (32 ft) and press on
the vehicle key. To show that the security system has been armed
and the vehicle locked, the direction indicators will flash twice.
The vehicle can also be locked internally through the
infotainment screen, and will also be set to lock automatically
when the vehicle is driven away.
Checks Before Driving
Inspect your vehicle to make sure that everything is according to
the information and specifications in this Owner’s Guide.
Outside the Vehicle:
• Visually check the road wheels, wheel nuts and tyres.
• Check that all windows, rear view cameras and lamps are
clear and unobstructed.
• Check the operation of all lamps.
Once Inside the Vehicle:
• Check that the doors are securely closed.
• Check that all gauges and symbols are reading correctly and
steering wheel is correctly adjusted.
• Check that all passengers have fastened their seat harnesses.
KY9Y-19A321-AA.book Page 5 Wednesday, November 3, 2021 8:41 AM

1.6 Before Driving
Cabin Features
Driving Position Adjustment
Steering Wheel

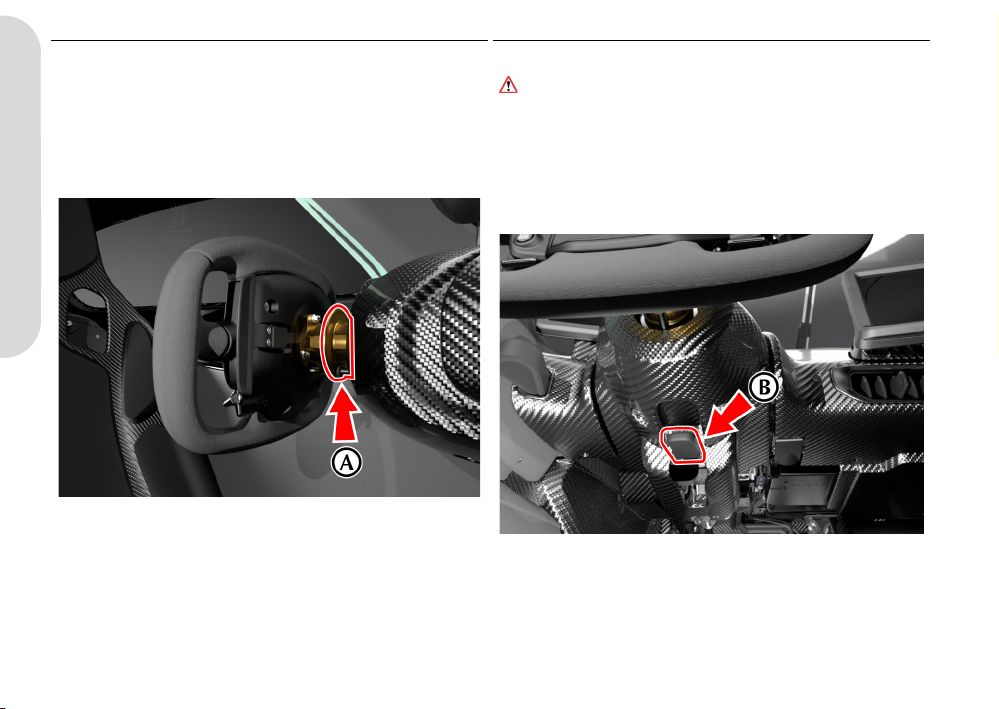

The steering wheel uses a quick release boss so that the steering
wheel can be removed.
To release the steering wheel, pull on the release ring (A) and pull
the wheel away from the steering column.
To attach the wheel, push the wheel onto the boss until it
engages. If necessary, rotate the wheel until it engages with the
steering column.
Steering Column
Warning: Do not adjust the steering wheel whilst driving.
The reach and tilt angle of the steering column can be manually
adjusted. To unlock the steering column, pull the release lever (B)
down. Pull the steering wheel backwards or forwards to adjust
the reach. Lift the wheel up or down to adjust the steering angle.
Raise the lock lever back into position to lock the steering column
into position.
KY9Y-19A321-AA.book Page 6 Wednesday, November 3, 2021 8:41 AM

Before Driving 1.7
Pedal Adjustment
Warning: Do not adjust the pedals whilst driving.
To reach a comfortable driving position the pedal box can be
adjusted forwards or backwards. To unlock the pedal box, pull
the release lever (C) down. Once unlocked, the pedal box
assembly can slide forwards or backwards. Raise the lock lever
back into position to lock the pedal box into position.
Camera Monitoring System
Warning: Care should be taken when the cameras see
intense bright light such as direct sunlight or vehicle
headlamps. This can briefly disrupt the display whilst the
contrast is adjusted. It is also possible that brightness in each
camera display may be different due to lighting conditions. It
is the driver’s responsibility for awareness of surrounding
objects and vehicles.
Warning: The display mirror has a limited field of view. It
is the driver’s responsibility for awareness of surrounding
objects and vehicles. Failure to be aware of the vehicle
surrounds can cause accidents resulting in injury and death.
Mirror display brightness is synchronised with the
infotainment and instrument cluster screen brightness.
KY9Y-19A321-AA.book Page 7 Wednesday, November 3, 2021 8:41 AM

1.8 Before Driving
External Mirrors
Warning: The driver must always drive in such a way that
if the display contents are unclear or the camera system fails,
no other road users or property will be endangered or
injured. It is the driver’s responsibility for awareness of
surrounding objects and vehicles.
Unlike standard road car mirrors, the camera display system
does not change perspective when the driver moves their head.
There may be some initial familiarisation when the system is first
used.
The mirrors for this vehicle consist of externally mounted cameras
and display screens and are always on with the ignition or when
a door is opened.
The screens are not adjustable but provide a wide field of view.
Heated Camera
Caution: Do not manually attempt to remove ice from the
camera lens. This can scratch or otherwise damage the
camera lens and affect the quality of the display image.
The external cameras have a built in heating element which will
automatically remove any moisture and ice at low temperatures.
Decreasing Accommodation
The ability for a drivers eyes to accommodate different
information between forward traffic and rearward traffic shown
in the camera display system is crucial. The eyes capacity to do
this can decrease over time such as on long journey's or due to
age.
To reduce the effects of decreasing eye accommodation, regular
breaks should be taken during long journeys. To reduce the
effects of permanently decreased eye accommodation, regular
eye health checks are recommended.
KY9Y-19A321-AA.book Page 8 Wednesday, November 3, 2021 8:41 AM

Before Driving 1.9
Interior Rear View Display
Caution: Do not spray glass cleaner or other liquid directly
onto the mirror. Only use a paper towel or similar that has
been dampened with glass cleaner. This will help prevent
damage to the electronic components in the mirror.
The interior display mirror uses a video feed from a camera
located above the engine cover to display behind the vehicle.
The display mirror can also be used as a traditional mirror.
Automatic Dim
The interior display mirror will increase or decrease brightness
automatically based on ambient light outside the vehicle.
Mirror Menu
To adjust settings for the mirror use the buttons on the right side
of the mirror.
[1] : Mode Switch
[2] : Menu button.
[3] : Left navigation button.
[4] : Right navigation button.
Use the mode switch (1) to change between and mirror mode
and display mode. Use the mirror menu and navigation buttons
to adjust brightness and vertical adjustment.
KY9Y-19A321-AA.book Page 9 Wednesday, November 3, 2021 8:41 AM

1.10 Before Driving
Maintenance
Cameras
If the camera lens is dirty it should be rinse with clear water. Do
not apply pressure to the lens or scratch the lens as this will
directly affect the field of view or contrast of the display screen.
Displays
Caution: Do not spray glass cleaner or other liquid directly
onto the mirror. This will help prevent damage to the
electronic components in the mirror.
Exterior Mirror Displays: Clean using a soft cotton or chamois
leather cloth. This may be dry or slightly wetted with clean water
or a mixture with glass cleaner.
Interior Mirror Display: Only use a paper towel or similar that
has been dampened with glass cleaner.
Fault Conditions
Mirror Reset
In the event that a mirrors has a fault, such as a brightness not
adjusting from a bright light source, the mirror displays can be
reset by turning the vehicle ignition off and back on. If the fault
persists the vehicle should not be driven. Contact your Aston
Martin Dealer.
Pixel Damage
If a mirror display screen shows any missing pixels, the mirror can
still be used but should be repaired as soon as possible. If larger
areas of the camera display have damaged pixels to the point it
that larger display areas are not visible, this should be treated as
a displayed warning and the vehicle should not be used. Contact
your Aston Martin Dealer.
Fogged Display
If a camera display shows a foggy or blurred appearance for an
extended period over 15 minutes, it is possible that the camera
display may be malfunctioning. Clean the affected camera for the
display. If the fault persists, contact your Aston Martin Dealer.
Centre Mirror
If there is a fault with the camera for the centre display mirror, a
warning symbol will be shown in the camera display. Contact
your Aston Martin Dealer.
Side Camera Display
If there is a fault with the camera or the side camera display
displays, a warning message will be given in the infotainment
screen and a warning symbol will be shown in the affected
camera display where applicable. Contact your Aston Martin
Dealer.
KY9Y-19A321-AA.book Page 10 Wednesday, November 3, 2021 8:41 AM

Before Driving 1.11
High Voltage Systems
This vehicle is a parallel hybrid vehicle. This means that drive is
provided by both a traditional internal combustion engine and
high voltage electric motor, both of which are connected directly
to the transmission.
The electric motor is between the engine and gearbox and is also
used as a generator, transmission gear synchronisation, reverse
gear and pull away. As a high voltage system is also available, the
air conditioning compressor, cabin heater are electrically
operated rather than engine driven. The power steering pump is
also electrically driven rather than engine driven.
E-Motor
This vehicle features an electric motor that is used to perform
multiple functions on the vehicle to improve performance and
reduce engine load.
Starter Motor
The electric motor itself is used as the starter motor for the
engine. When the engine is first started, this will also synchronise
the engine, electric motor and transmission.
Initial Pull Away
To allow for smoother pull offs, the electric motor allows the
vehicle to move from a stop in first gear up to speeds of 10-15
km/h (6-10 mph) before the clutch is engaged and engine power
applied.
Reverse Gear
The transmission itself does not contain a traditional physical
reverse gear. Instead, first gear is selected and the electric motor
is run backwards to achieve reverse.
Transmission Synchronisation
The electric motor is used to synchronise the speed of the
transmission input shaft to the engine speed.
KY9Y-19A321-AA.book Page 11 Wednesday, November 3, 2021 8:41 AM

1.12 Before Driving
Generator
To increase engine efficiency, the engine does not have a belt
driven alternator. When excess torque is generated from the
engine, the electric motor is used to charge the battery.
Torque Infill
During gear changes or other areas in the torque curve where
there would usually be a drop in torque, the electric motor
supplies torque to compensate and provide a smoother and more
consistent supply of torque.
Regenerative Engine Braking
When the throttle is lifted, a negative torque is generated to slow
the engine and provide an additional braking effect. The electric
motor amplifies the effect of this negative torque, increasing
aggressiveness depending on the handling mode selected.
ERS Boost
(Track Mode Only)
The Energy Recovery system (ERS) boost can temporarily provide
an on-demand increase of up to 100 Nm operated from the
steering wheel (Refer to ’ERS Boost’, page 3.18).
High Voltage (HV) Safety
Warning: Failure to follow warnings during normal use
and emergency rescue procedures can cause severe or fatal
burns or electric shock. Please read this manual thoroughly
to fully understand the features of this vehicle and to be able
to act correctly in the event of this vehicle being involved in
an accident.
Warning: This vehicle is equipped with systems that make
it possible to access the vehicle safely in special conditions.
However, you must always assume that the high voltage
system in the vehicle is live when approaching a hybrid
vehicle that is damaged, has been involved in an accident or
fire, or in the event or rescue or recovery.
Warning: Never assume that the vehicle ignition system is
off because the engine is quiet. The high voltage system can
be live without the internal combustion engine running.
KY9Y-19A321-AA.book Page 12 Wednesday, November 3, 2021 8:41 AM
