PEUGEOT 207 Spider Owner's manual

TECHNICAL INSTRUCTIONS

Ce document est la propriété de Peugeot Sport et ne peut être reproduit ou communiqué sans autorisation.
This document is the property of Peugeot Sport and may not be copied or circulated without permission.
1
207 Spider Technical Instructions
NOT 207 SPI-80
TECHNICAL INSTRUCTIONS
TECHNICAL INSTRUCTIONS
StudyVer.
Date
Pages
4039383736353433323130292827262524232221
E
D
I
T
I
O
N
S
0101010101010101010101010101010101010101
W.Briand01StudyVer.
14/03/2007Date
?OCM
2019181716151413121110987654321
E
D
I
T
I
O
N
S
01010101010101010101010101
01010101010101
OCM
Pages

Ce document est la propriété de Peugeot Sport et ne peut être reproduit ou communiqué sans autorisation.
This document is the property of Peugeot Sport and may not be copied or circulated without permission.
2
207 Spider Technical Instructions
NOT 207 SPI-80
0101
Pages
7776757473727170696867666564636261
E
D
I
T
I
O
N
S
0101010101010101010101010101010101
6059585756555453525150494847464544434241
E
D
I
T
I
O
N
S
010101010101010101010101010101010101
Pages
01Ed. :

Ce document est la propriété de Peugeot Sport et ne peut être reproduit ou communiqué sans autorisation.
This document is the property of Peugeot Sport and may not be copied or circulated without permission.
3
207 Spider Technical Instructions
NOT 207 SPI-80
Table of contents
General points page 4
Equipment page 13
Body page 17
Electrical page 24
Engine page 43
Gearbox page 50
Running gear page 58
Steering page 66
Brakes page 68
Roadholding page 74
01Ed. :

Ce document est la propriété de Peugeot Sport et ne peut être reproduit ou communiqué sans autorisation.
This document is the property of Peugeot Sport and may not be copied or circulated without permission.
4
207 Spider Technical Instructions
NOT 207 SPI-80
General points
WaterCooling
Wet sump with anti-buoyancy metal panelLubrication
Direct injection/BOSCH MED 17.4Type of
injection/control
Chain-driven/2 ACC (variable intake timing device/hydraulic tappetsTiming
16No. of valves
4No. of cylinders
6,500rpmMax engine speed
240 N.mMax torque
128kWPower
1598 cm3CC:
Twin scroll, fixed-geometry
Type of turbo
EP6DTS Central rear transverse positionType/Positioning
ENGINE
Front and rearAnti-roll bars
Combined spring-shock absorber unit with adjustable rocker arms and tie rodsFront/rear shock absorber
Double-wishboneFront and rear axle

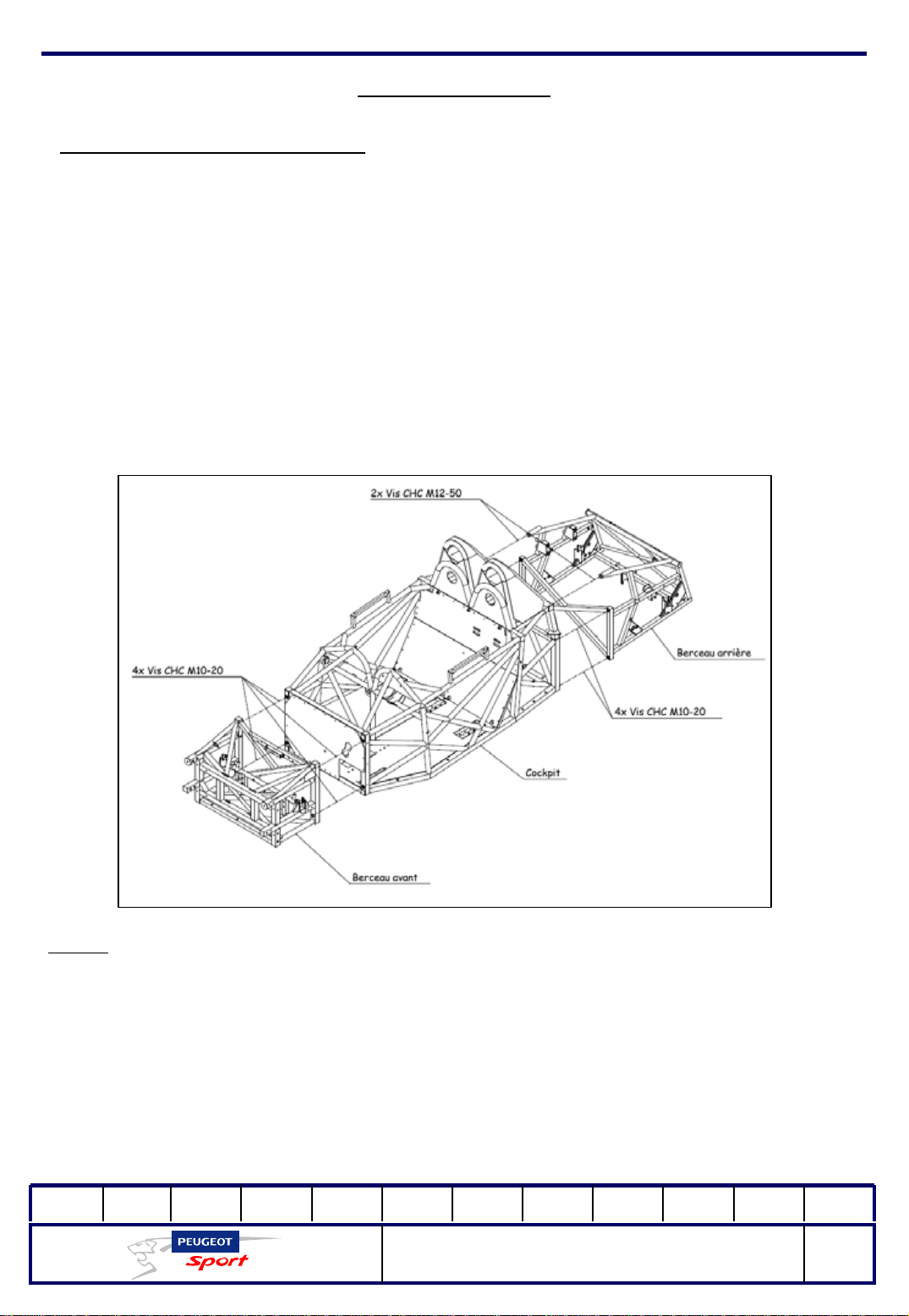

Three-part tubular chassis (front cradle, cockpit chassis, rear cradle)
Structure
Two-seater, bucket seatsType
CHASSIS
207 SPIDER TECHNICAL SPECIFICATIONS
01Ed. :

Ce document est la propriété de Peugeot Sport et ne peut être reproduit ou communiqué sans autorisation.
This document is the property of Peugeot Sport and may not be copied or circulated without permission.
5
207 Spider Technical Instructions
NOT 207 SPI-80
General points
60-litre petrolTank capacity
720 kg
Minimum unladen weight
2,600 mmWheelbase
1,505 mm/1,615 mm
Front/rear axle
assembly
953 mm/578 mmFront/rear overhang
4,131 mm/1,854 mm
Overall length/Overall
width
DIMENSIONS / WEIGHT / CAPACITY
Standard mechanism and single fritted diskClutch
Self-locking, three-disk, 45°/80°slopesDifferential
Sequential using steering-wheel mounted paddlesGear changes
Sadev ST75-14 + Mar 6-speed, dog clutchGearbox
Two drive wheels/rear wheel driveTransmission
TRANSMISSION
MICHELIN 21/65-18: slick S8B - rain P2CFront/rear tyres
8J x 18''Single-unit, aluminium
wheel rims
Ventilated disk Ø 283mm/26 mm thick/single-piston calliperFront and rear brakes
Assisted steering rack as standardSteering
STEERING/BRAKES
207 SPIDER TECHNICAL SPECIFICATIONS
01Ed. :

Ce document est la propriété de Peugeot Sport et ne peut être reproduit ou communiqué sans autorisation.
This document is the property of Peugeot Sport and may not be copied or circulated without permission.
6
207 Spider Technical Instructions
NOT 207 SPI-80
General points
The left-hand drive 207 Spider meets the requirements of FIA regulations.
It is sold by the Peugeot Sport Boutique and intended exclusively for use on
competitive racing circuits.
The Peugeot plate is compulsory on the 207 Spider and is welded onto the
cockpit chassis directly opposite the multifunction screen.
The example above illustrates the manufacturer's plate on 207 Spider with:
- the name of the car
- the year of manufacture
- chassis number
01Ed. :

Ce document est la propriété de Peugeot Sport et ne peut être reproduit ou communiqué sans autorisation.
This document is the property of Peugeot Sport and may not be copied or circulated without permission.
7
207 Spider Technical Instructions
NOT 207 SPI-80
General points
In addition to the manufacturer's plate, the serial numbers given below must be
legible on a permanent basis:
- engine serial number
- gearbox serial number
- engine ECU serial number
- gearbox ECU serial number
- data logger serial number
Worn or damaged parts must be replaced with Genuine PEUGEOT or PEUGEOT
SPORT parts, referenced by AUTOMOBILES PEUGEOT or PEUGEOT SPORT (see the
207 Spider Spare Parts catalogue.
The methods specified by AUTOMOBILES PEUGEOT or PEUGEOT SPORT as well as
the technical regulations must be followed for all work or repairs carried out on
the car.
The car must be presented for each race in meticulous
condition and meeting the requirements in terms of
mechanics, body and identification.
01Ed. :

Ce document est la propriété de Peugeot Sport et ne peut être reproduit ou communiqué sans autorisation.
This document is the property of Peugeot Sport and may not be copied or circulated without permission.
8
207 Spider Technical Instructions
NOT 207 SPI-80
General points

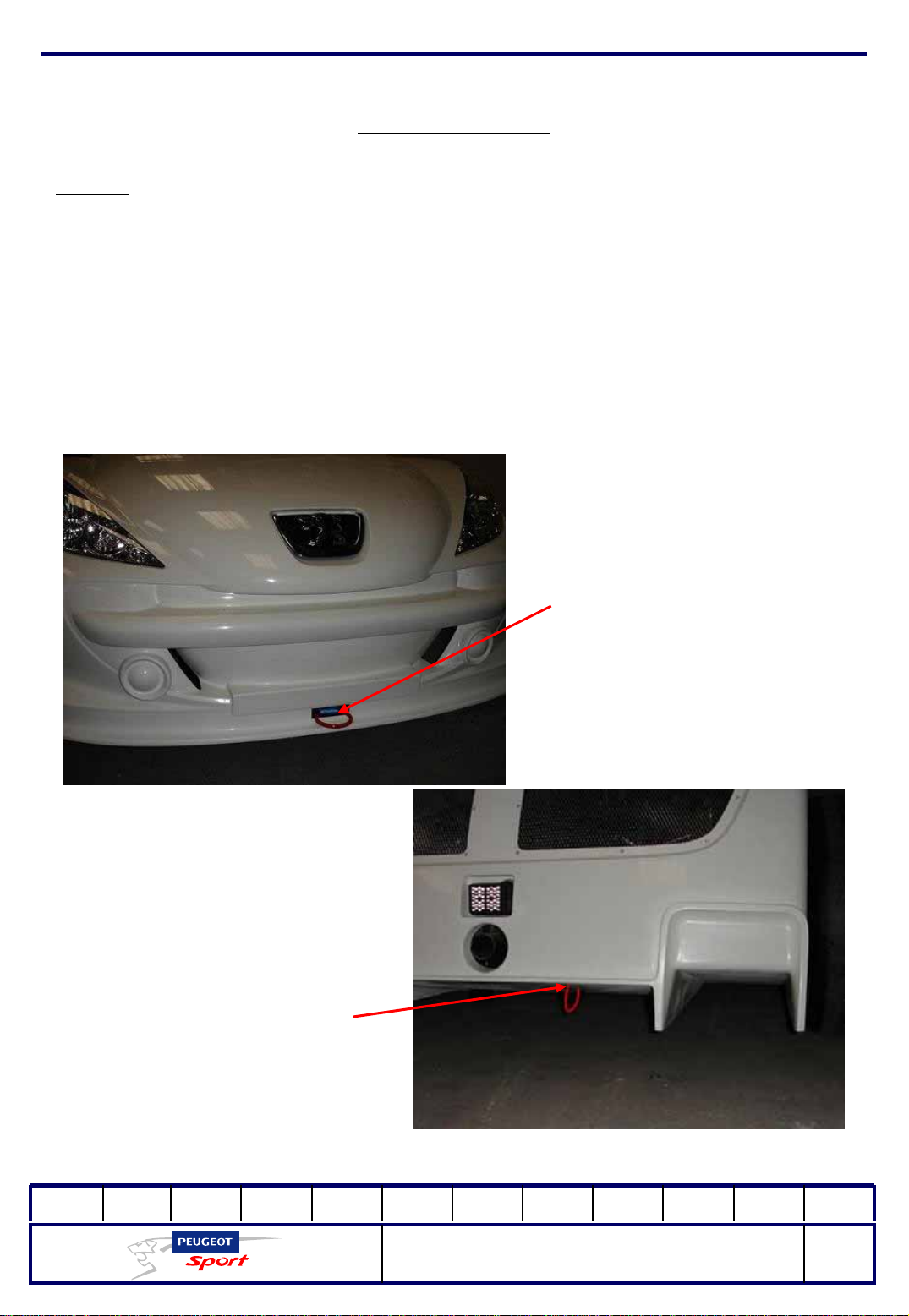

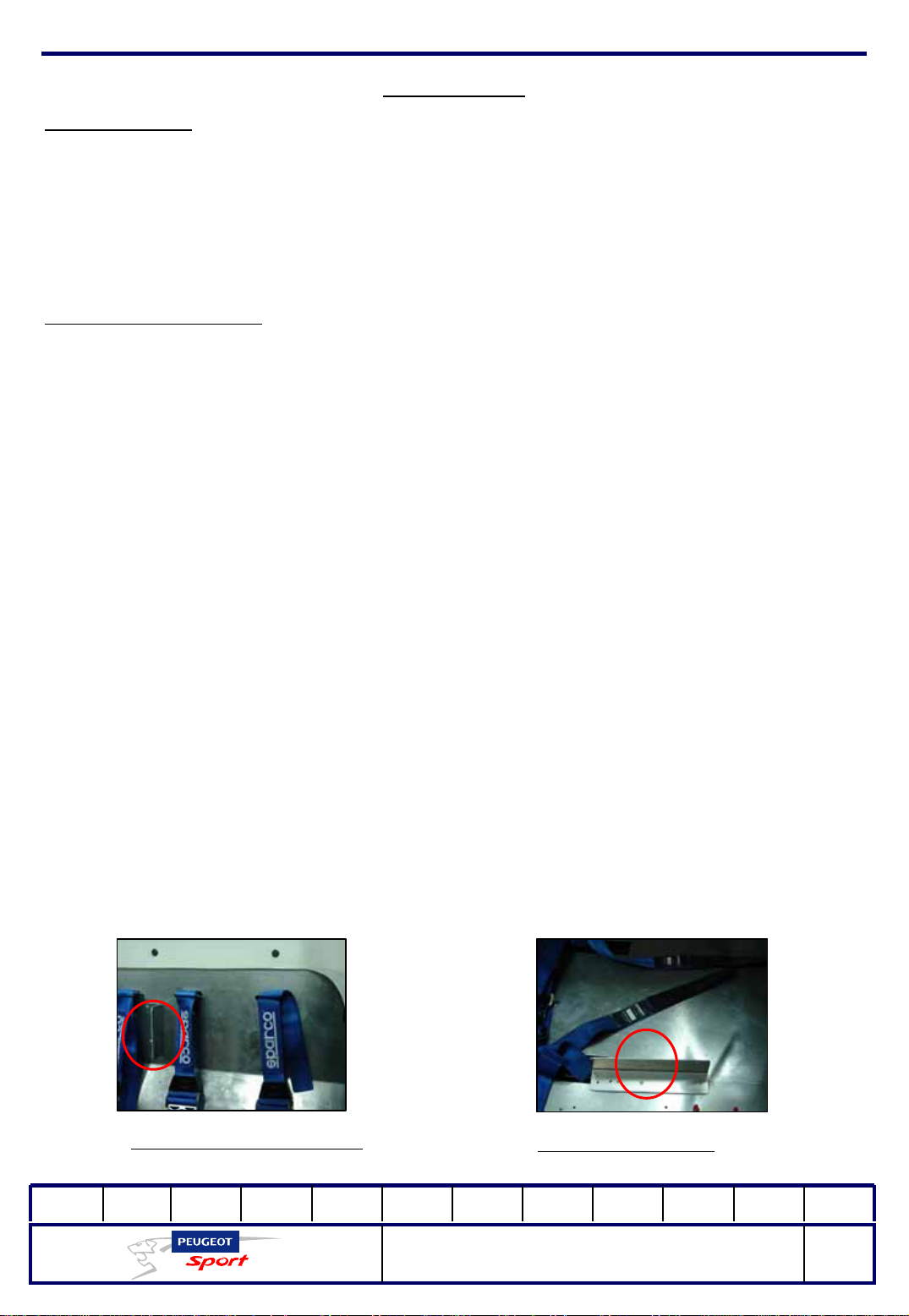

Towing:
207 Spider has two towing rings:
- in the front, fixed to the chassis with a strap.
- at the rear, located under the diffuser (on the right).
These rings must be identified with stickers approved by the FIA and must be
legible at all times.
Front ring
Rear ring
01Ed. :

Ce document est la propriété de Peugeot Sport et ne peut être reproduit ou communiqué sans autorisation.
This document is the property of Peugeot Sport and may not be copied or circulated without permission.
9
207 Spider Technical Instructions
NOT 207 SPI-80
General points
Lifting:
The Spider can be raised with a jib crane, by passing a strap through the
opening of the two main arches or with a "quick lift" (sold separately), following
the areas shown below.
Lifting from the
rear Lifting from the front
