Astra GAMP-2000 User manual

VERSION
DESCRIPTION
DATA
1.0
First release
February 2016

NOTES :……………………………………………………………………………………………

Contents
Quick Introduction.............................................................................................................................................. 1
GAMP-2000 and App Esa Regatta.....................................................................................................................2
Information for the user.....................................................................................................................................3
Symbology .......................................................................................................................................................... 3
Precautions antistatic propeties................................................................................................................ 4
Input supply connection and other equipment.......................................................................................... 4
Installation................................................................................................................................................. 5
Ventilation................................................................................................................................................. 5
Maintenance ............................................................................................................................................. 5
Cleaning.................................................................................................................................................... 5
Warranty .............................................................................................................................................................. 6
CE Certificate ......................................................................................................................................................6
RAEE.................................................................................................................................................................... 6
RoHS....................................................................................................................................................................6
Rules used in this manual ................................................................................................................................. 6
The “Mode” of Windows registry:.............................................................................................................. 6
Hexsadecimalnumbering:......................................................................................................................... 6
Symbols and text used the pinout tables:................................................................................................. 6
Tecnical Support.................................................................................................................................................7
Carriage.................................................................................................................................................... 7
PART 1 - INTRODUCTION.................................................................................................................................. 8
General description............................................................................................................................................9
Connectors Interfaces......................................................................................................................................10
Meaning of LEDs.................................................................................................................................... 11
Front interfaces................................................................................................................................................. 11
Power specifications........................................................................................................................................ 12
Mechanical properties......................................................................................................................................13
Protection level (IP Rating)..............................................................................................................................13
PART 2 –FUNCTIONALITY AND SYSTEM CONFIGURATION......................................................................14
Step 1: Configuring GAMP-2000 ..................................................................................................................... 15
Step 1.1: Turn on the Sysyem....................................................................................................................15
Meaning of LEDs.................................................................................................................................... 15
Step 1.2: Connect Magneto System to the Host PC................................................................................15
1.2.2 Select WiFi channel.................................................................................................................................17
1.2.2.1 Firmware Update................................................................................................................................... 17
1.2.2.2 Software Versions ................................................................................................................................18
1.2.3 Baud Rate...............................................................................................................................................19
1.2.5 Filtering sentences................................................................................................................................20
1.2.16 Internal GPS Setting & ESA Setting...................................................................................................29
Step 2: Third-party Software Link..................................................................................................................32
Step 3: Hardware connections................................................................................................................... 33
Step 4: SD Data Logger Managment (ADR) ..................................................................................................34
5 NMEA 2000 - 0183 Conversion Tabe.......................................................................................................... 38

1
Quick Introduction
With GAMP-2000 you can connect various NMEA 0183 and NMEA 2000 based system. Boat
instruments, GPS, AIS, PC, Autopilot are connected together and the data are sent even
through the NMEA 0183 ports, NMEA 2000 port or the Wi-Fi connection.
It is possible to connect via Wi-Fi up to 4 devices capable to receive and transmit NMEA 0183
data, such as iPhone, iPad, iPod touch and Android devices.
The GAMP-2000 have an NMEA 2000 port capable of communicating on an NMEA 2000
network. NMEA 2000 messages (called PGN’s) are translated into NMEA 0183 sentences. The
GAMP 2000 also translate NMEA 0183 sentences into NMEA 2000 PGN’s.
Unique worldwide, it allows saving navigation data by command; the management is made by
an app (iOs, in the future Android as well) which activates the recording, stops it and allows
transmitting the registrations on your portable device via Wi-Fi .
Available version which allows the use of “esa regatta” and “esa training” apps.
Esa GAMP-2000 multiplexer has three or four, depending on the version, opto-isolated inputs to
connect data sending davices, called Talkers, two outputs, to connect multiple reciving devices, called
Listeners and one NMEA 2000 interface to connect to an NMEA 2000 backbone.
Esa GAMP-2000 syncronise the NMEA sentences from different talkers and send them to the outputs.
Esa GAMP-2000 also translate NMEA 2000 messages (PGN’s) into NMEA 0183 sentences and vice
versa.
The way the sentensece are combined, is completely manageable by the user through the ‘Esa
configuration manager’ software supplied with the GAMP.
The particularity of Esa GAMP-2000, compared the standard multiplexers on the market, is that it is
not limited to output NMEA 0183 strings and NMEA 2000 PGN’s, which compared the information they
carry, have a considerable amount of data to send, but also transmit data for the navigation software
Esa Regatta, with a proprietary protocol much lighter to send thereby reducing delays introduced by
the multiplexer itself.
Is still maintained the possibility to send output Wi-Fi both NMEA 0183 and Esa sentences, for a
combined use of Esa Regatta and third-party applications.
Another unique feature of the GAMP-2000 is that inside housed a MicroSD card connector (optional
memory card not included) to be used as a data logger, a tool, that is able to record in its internal
memory all navigation data every second, to use them for subsequent analysis.
To manage the operations of reading / writing / storing these files was created an app, a free
download from the Apple Store, which is described in this manual in Section 4.

2
GAMP-2000 and App Esa Regatta
The “GAMP-2000-esa” comes already configured for use with App Esa Regatta, downloadable from the
Apple Store.

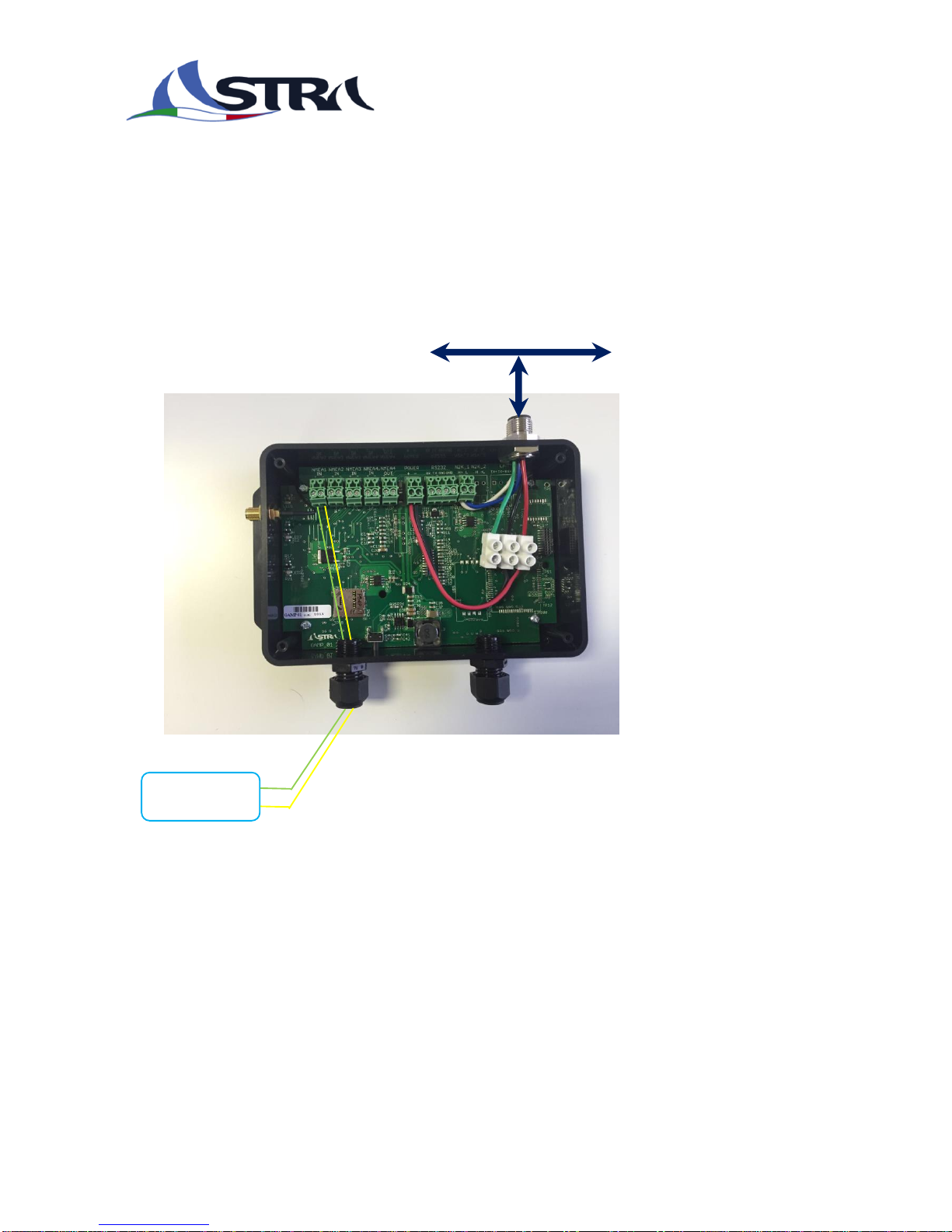

We recommend you to connect the output of your network NMEA instruments to In1 input of GAMP and
connect to an NMEA 2000 network with the NMEA 2000 connector, as shown in the following figure.
Note: if the GAMP-2000 is connected to an NMEA 2000 network no additional external power supply is
needed, otervise and adittional external powers suplay of 12V-24V is needed.
Once on the system Esa-GAMP-2000, scan WiFi networks with your Apple device in which you
installed Esa Regatta, then:
1. Connect to the network ESA_GAMP_2k and enter, when prompted, the password FAE95A0697
2. Enter the IP address: 192.168.1.3.
3. Launch Esa Regatta.
And advisable to change the network name and password to have no trouble connecting with other
systems GAMP-2000 that they are nearby. (see section 1.2.1 Customizing network name and
password).
A/+
B/-
NMEA Out
Instruments
NMEA 0183
Instruments
NMEA 2000
NMEA 2000 backbone

3
Information for the user
Read carefully and understand the instructions in this manual before any use of the device.
Whenever doubts arise regarding the operation of the product, consult this manual or contact the
technical support (i[email protected])
Keep this manual for future reference.
In order to reduce the risk of personal injury, electrical shock, fire or damage to the equipment,
users must observe the following precautions, as well as exercising careful judgment,
whenever it is necessary to install or use the product described in this manual.
Although every attempt has been made to ensure the accuracy of this manual, AstraYacht s.r.l
declines any liability arising from any errors or omissions, or use of the information contained in this
manual.
AstraYacht reserves the right to modify or correct the content this manual at any time, without notice.

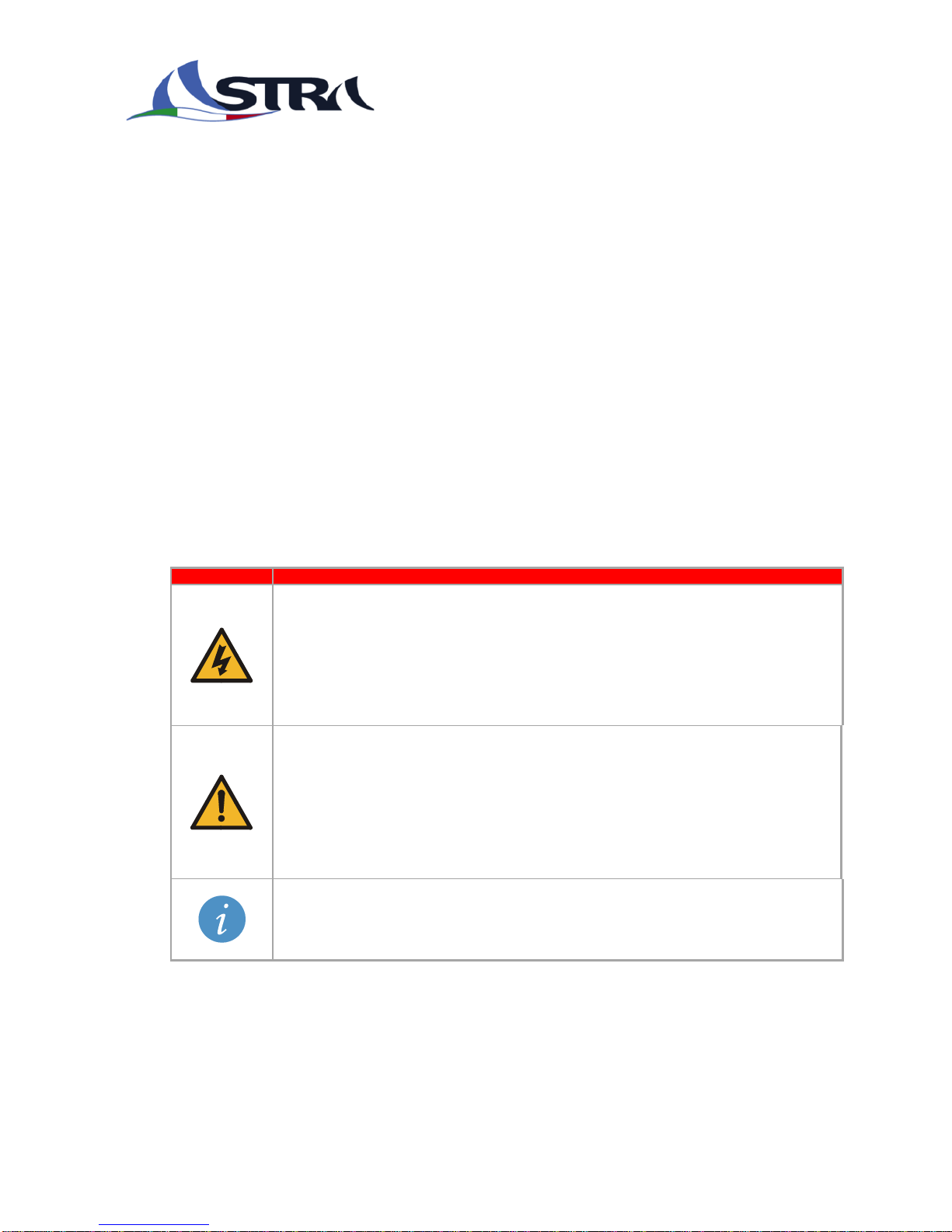

Symbology
To facilitate the understanding of the contents of this manual have been used these symbols:
SYMBOL
MEANING
DANGER!
This symbol indicates the risk of electric shock and severe injury or death if safety instructions are not
followed.
Use precautions for their own safety and others, making sure that you meet the requirements for the
environment where the product is used.
ATTENTION!
This symbol indicates the user:
The presence of a hazard that may result in death or serious injury if the safety instructions are not
observed
That a misuse of the equipment or failure to follow instructions could damage things or the same
equipment
Use precautions for their own safety and others, making sure that you meet the requirements for the
environment where the product is used.
NOTE:
This symbol indicates a suggestion or a tip that helps you make better use of the equipment.

4
Care and warnings for safe operation
The user must observe the precautions and warnings in this manual during all phases of installation,
service and repair of the product. Failure to follow these precautions and warnings violate the safety
standards of design, manufacture and planned usage of the product.
AstraYacht srl declines any responsibility for failure by the user of the precautions and warnings given
in this manual.
The safety precautions listed below represent some warnings AstraYacht srl knows. The user shall
observe these warnings and every other precaution is necessary to the proper functioning of the
product, even if not expressly stated in this manual.
Prohibition on the use in explosive environments
ATTENTION!
You may not use the equipment:
Inplaces with the presence of toxic substances, gases or flammable liquids and/or explosives
in pros itself of heat sources and naked flames
Precautions antistatic propeties
ATTENTION!
In order to prevent irreversible damage due to ESD (electrostatic discharge), it's a good idea to take
all the necessary precautions (e.g. use a grounded wrist strap) before handling the equipment.
Input supply connection and other equipment
DANGER!
Failure to observe the following precautions may result in damage, fire or electric shock, with
possible serious injuries.
To avoid personal injury, always disconnect the power and discharge equipment circuits
before touching the latter
Use a power supply whose voltage and frequency correspond to those indicated on the
label of the appliance. In case of doubt contact support AstraYacht Technician (see third
and fourth of the cover of this manual for more details) or Manager for electricity
Before making connections to other equipment to read the instructions for use of the same
equipment
Always unplug the power to the equipment before making connections or disconnections
Do not attach/detach operations with damp or wet hands
Before using the appliance check that the power cables and connection are not damaged,
knotted or crushed
Do not route the power cables and connection through areas where they can be crushed or
damaged
Supplying power to the equipment only after having performed and checked all connections,
avoiding overruns
Do not tamper with the power connections.

5
Installation
ATTENTION!
Do not place the unit on unstable or sloping surface upon which it may fall causing serious
injury to people.
Do not bring the equipment to heat sources and naked flames.
NOTE:
If the appliance must be moved from one place to another with different ambient temperature, before
connecting it to the power, wait a few minutes to allow the unit to reach the new ambient temperature.
Ventilation
ATTENTION!
To avoid overheating, we must ensure proper ventilation equipment.
Follow the instructions below:
If you install the appliance in a cupboard, rack or other enclosed space, be sure to leave
sufficient space around the appliance to allow adequate air circulation and a more simple link
management
Do not cover any ventilation openings of the equipment.
Maintenance
DANGER!
NEVER OPEN THE WORKING DEVICE!
DO NOT ATTEMPT TO REPAIR OR DISASSEMBLE THIS EQUIPMENT!
For any maintenance and/or repair of the equipment require the intervention of qualified personnel
authorized by AstraYacht.
If the equipment is not working properly, particularly if unusual odor emanates, unplug it immediately
and contact support AstraYacht Technician (see third and fourth of the cover of this manual for more
details).
Cleaning
ATTENTION!
Disconnect the equipment from the power supply before cleaning.
To remove dust and fingerprints from the outer surfaces of the product:
  Use a soft, dry cloth
DO NOT use cleaning agents, solvents, powders or abrasive sponges

6
Warranty
Contact the nearest Sales Office AstraYacht (see the third and fourth of the cover of this manual for
more details) for the warranty terms.
CE Certificate
This product carries a CE mark.
The CE mark on this product indicates that the system has been tested and complies with EMC
Directive 2004/108/EC and the low voltage Directive 2006/95/EC.
AstraYacht is not responsible for the use of its products together with equipment (e.g.: power supplies,
personal computers, etc.) that are not marked EC and complying with the technical requirements set
out in this manual
RAEE
The information below is provided in compliance with the laws in force on waste disposal electrical
and electronic equipment (RAEE).
The symbol at the side shows the equipment/packaging/instructions/warranty
sheetindicates that the product (including all components, subassemblies and
consumables which are part of the product), is regarded as ' waste electrical and
electronic equipment WEEE or '. Atthe end of his life the useful must be collected and
disposed of separately from other waste.
Because of substances in electrical and electronic equipment, improper use or incorrect disposal
can cause damage to human health and the environment.
For WEEE has the obligation not to dispose of as municipal waste and such waste, to
aseparate collection.
Please inform yourself about the local separate collection system for WEEE
In case of abusive disposal of such wastes are sanctions for transgressors.
RoHS
This equipment, including all components, subassemblies and consumables which are part of the
product, in compliance with current legislation, conforms to normativaeuropea 2002/95/EC (also
known as RoHS, Restriction on the use of certain Hazardous Substances) on the restriction of use of
certain hazardous substances in electrical and electronic equipment (EEE).
Rules used in this manual
In the manual the following conventions are used:
The “Mode” of Windows registry:
SIMBOL/ TEXT
DEFINITION
RW
Readable and Writable register
RO
Read only register
W
Meaning of the register when written
R
Meaning of the register when read
Hexsadecimalnumbering:
Hexadecimal numbers are marked with an "h” suffix (for example: 11Ch)
Symbols and text used the pinout tables:
SIMBOL/ TEXT
DEFINITION
◄
Input
