Astria Rhapsody42TEN User manual

P900077-05
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
DANGER
HOT GLASS WILL CAUSE BURNS. DO NOT
TOUCH GLASS UNTIL COOLED. NEVER
ALLOW CHILDREN TO TOUCH GLASS.
• Fireplaces surfaces get EXTREMELY HOT!
• Install only when fireplace is OFF and COLD.
• The glass on the front of the fireplace reaches
EXTREMELY HIGH temperatures and can cause severe
burns if touched. Even after the gas is turned off,
fireplace surfaces remain extremely hot.
• Keep children away from an operating fireplace. Closely
supervise children in any room where a fireplace is
operating to prevent contact with glass.
CAUTION
RISK OF PERSONAL INJURY OR PROPERTY DAMAGE.
• Never operate fireplace without liner panels installed. These
appliances are NOT approved for operation without liner panels.
• Do NOT abuse glass doors by striking or slamming shut
• Never operate fireplace with glass door assembly removed.
• Handle glass door assembly with extreme care.
Replace damaged glass door assembly with approved
replacement assembly only.
• Use only media approved for use with these fireplaces
(as applicable). Failure to use approved media may result
in sooting, delayed ignition, or other improper fireplace
operation, and may void the warranty.
NOTICE
• Read all steps before starting installation.
• LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE.
• All warnings, precautions, and instructions in the Installation
Instructions and Care and Operation Instructions provided
with the appliance also apply to these instructions.
• If you encounter any problems, need clarification of these
instructions, or are not qualified to properly install this
kit, contact your local distributor or dealer.
Figure 1: 54 in. DRL and Rhapsody linear gas fireplaces
with designer floor kit and Illusion Cityscape
firebox liner kit (both in black porcelain).
HEARTH PRODUCTS
KITS AND ACCESSORIES
P/N 900077-05
Rev. NC 09/2014
LINEAR DIRECT VENT FIREPLACES
ACCESSORY KITS
INSTALLATION INSTRUCTIONS FOR REQUIRED AND OPTIONAL ACCESSORIES
FOR USE ON 42- AND 54-INCH LINEAR DIRECT VENT GAS FIREPLACES
[FIREPLACE MODELS: Rhapsody42TEN and Rhapsody54TEN]
GENERAL INFORMATION
This document contains installation instructions for the
following required and optional accessories for Rhapsody®
linear direct vent gas fireplaces manufactured by INNOVATIVE
HEARTH PRODUCTS.
Kit descriptions, catalog/model numbers, and contents are
listed on the next page.
Required Accessory Kits
The following accessory kits are REQUIRED for complete
fireplace installation.
NOTE: Ensure these kits are available before installing
the fireplace.
• Firebox Liner Kit
• Floor Kit
• Media Kit *
*Media kit required with “Designer" style floor kits only.
Optional Accessory Kits
The following accessories are OPTIONAL. However, to minimize
required labor, all options should be installed at time of
fireplace installation, if possible.
• Surround Kit
• Bezel Kit
• Firebox Backlight Kit **
• Power Vent Kit
(see manual 506022-01 for installation instructions)
** Firebox backlight kit for use with "Cityscape" and "Illusion" style firebox
liner kits.
REQUIRED TOOLS
NOTE: Power tools are NOT recommended when installing
fireplace accessories, especially porcelain firebox liners.
• 5/16 in. Hex-head Nut Driver
• #3 Phillips Head Screwdriver
(for fireplace door removal/installation)
• Glass Cleaner (non-ammoniated)
• Non-abrasive rag
• High-temperature sealant
(e.g., Mill-Pac®; if installing firebox backlight kit)
• Safety Glasses
• Protective Work Gloves

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
INNOVATIVEHEARTHPRODUCTS•LINEARGASFIREPLACES•REQUIREDANDOPTIONALACCESSORIES
2

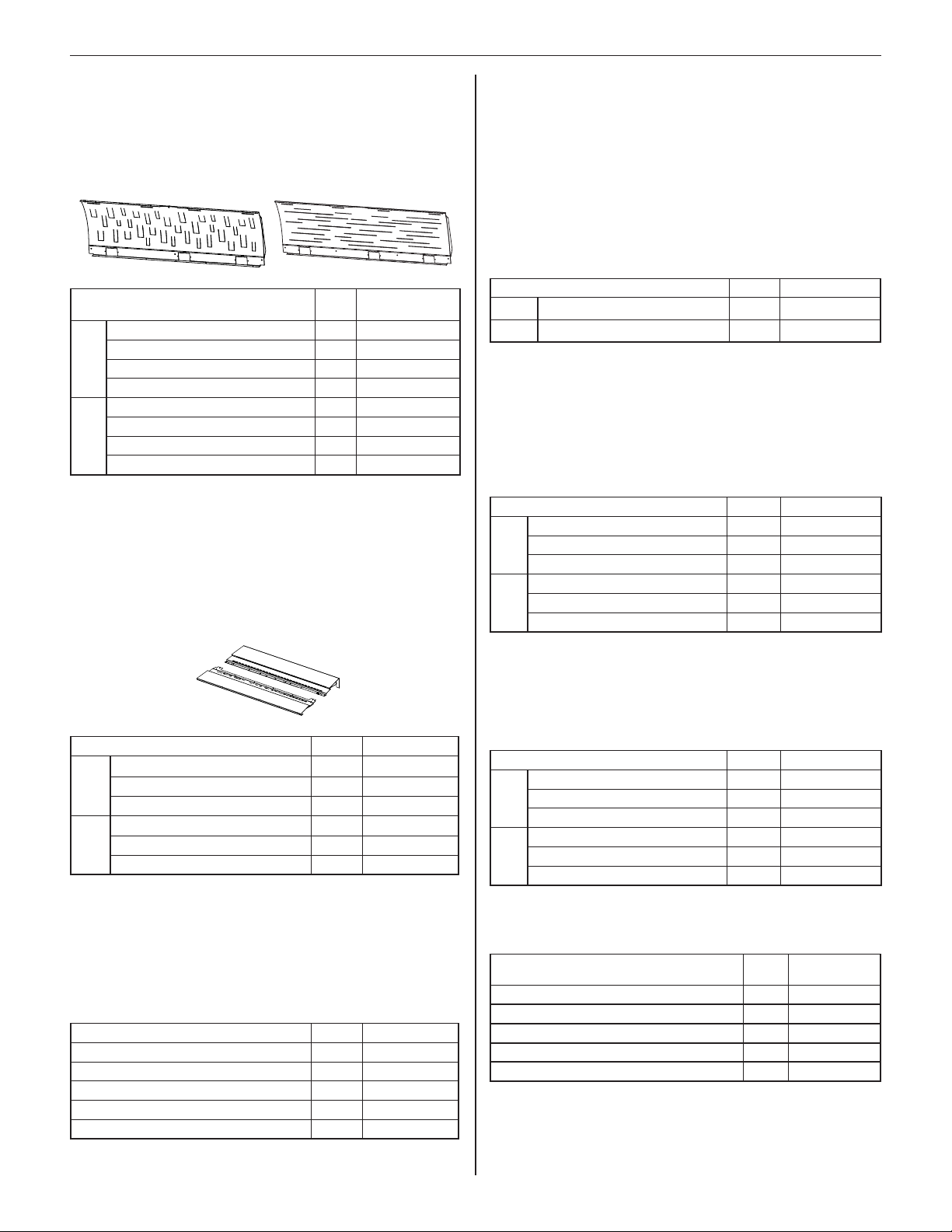

REQUIRED ACCESSORIES
Firebox Liner Kits
• (13) #10-16 x 3/8 Hex-head Sheet Metal Screws
• (2) Side Panels
• (1) Back Panel
Illusion Cityscape Back Panel Illusion Metroscape Back Panel
Rhapsody Linear Panel Kit:
ILLUSION CITYSCAPE
Rhapsody Linear Panel Kit:
ILLUSION METROSCAPE
Description Cat.
No. Model No.
42 in.
Illusion Cityscape—Black Porcelain * H8832 IPK-CBLKP-RAP42
Illusion Metroscape—Black Porcelain * H8833 IPK-MBLKP-RAP42
Nake—Black Porcelain H8834 NPK-BLP-RAP42
Nake—Black Satin Paint H8835 NPK-BLS-RAP42
54 in.
Illusion Cityscape—Black Porcelain * H8420 IPK-CBLKP-RAP54
Illusion Metroscape—Black Porcelain * H8421 IPK-MBLKP-RAP54
Nake—Black Porcelain H8422 NPK-BLP-RAP54
Nake—Black Satin Paint H8423 NPK-BLS-RAP54
* “Illusion” and "Cityscape" style Firebox Liner Kits are designed for use
with the Illusion and Cityscape Firebox Liner Backlight Kits.
Table 1: Required Firebox Liner Kits
Floor Kits
• (4) #10-16 x 3/8 Hex-head Sheet Metal Screws
• (1) Rear Floor Section
• (1) Front Floor Section
Designer Floor Kit
Description Cat. No. Model No.
42 in.
Reflection—Black Porcelain H8836 RFK-BLP-RAP42
Designer—Black Porcelain ** H8838 DFK-BLP-RAP42
Designer—Black Satin ** H8837 DFK-BLS-RAP42
54 in.
Reflection—Black Porcelain H8425 RFK-BLP-RAP54
Designer—Black Porcelain ** H8427 DFK-BLP-RAP54
Designer—Black Satin ** H8426 DFK-BLS-RAP54
** Designer floor kits require one media kit.
Table 2: Required Floor Kits
Media Kits
• (1) Media, 5 lb bag
NOTE: See media kit instructions (P/N 506019-86).
Description Cat. No. Model No.
Reflective Black H8412 CRSHGL-RBLK
Reflective Blue H8424 CRSHGL-RBLU
Platinum H8413 CRSHGL-P
Goldfinger H8538 CRSHGL-GF
Copper H8539 CRSHGL-C
Table 3: Required Media Kits
OPTIONAL ACCESSORIES
Firebox Liner Backlight Kits
• (1) Left Lamp Bracket
• (2) Right Lamp Brackets
• (3) Lamps
• (1) Multi-Wire Harness
• (1) Proflame I Power Harness
• (1) SimFlame™ I Assembly
• (1) Reflector Panel
• (1) ProFlame™ II Light Wire Harness
Description Cat. No. Model No.
42 in. Illusion Firebox Liner Backlight Kit *** H8866 IPBLK-RAP42
54 in. Illusion Firebox Liner Backlight Kit *** H8429 IPBLK-RAP54
*** "Cityscape" and "Illusion" firebox backlight kit is designed for use with
Citystape and Illusion style Firebox Liner Kits.
Table 4: Optional Firebox Backlight Kits
Surround Kits
• (9) #10-16 x 3/8 Hex-head Sheet Metal Screws
NOTE: Surround and bezel should be installed together.
Description Cat. No. Model No.
42 in.
Black Satin H8825 CS-BLS-RAP42
Carbon Fiber H8826 CS-CF-RAP42
Wood Grain H8827 CS-WG-RAP42
54 in.
Black Satin H8414 CS-BLS-RAP54
Carbon Fiber H8415 CS-CF-RAP54
Wood Grain H8416 CS-WG-RAP54
Table 5: Optional Surround Kits
Bezel Kits
• (1) Bezel Assembly
NOTE: Surround and bezel should be installed together.
Description Cat. No. Model No.
42 in.
Black Satin H8831 BZL-BLS-RAP42
Black Nickel H8830 BZL-BLNI-RAP42
Brushed Nickel H8829 BZL-BRNI-RAP42
54 in.
Black Satin H8419 BZL-BLS-RAP54
Black Nickel H8418 BZL-BLNI-RAP54
Brushed Nickel H8417 BZL-BRNI-RAP54
Table 6: Optional Bezel Kits
Other Optional Accessories
Description Cat. No. Model No.
Power Vent Kit (manual P/N 5060232-01) H7387 LPVK-110****
Power Vent Adapter Kit RAP54 (manual P/N 506019-82) H8574 PVK-RAP54 ****
Gas Conversion Kit, NG to LP (manual P/N 506019-90) H8540 GCK-RAPNP
Safety Guard, Linear 42 (manual P/N 506019-91) H8565 SG-26
Safety Guard, Linear 54 (manual P/N 506019-91) H8541 SG-RAP-LDV-54
**** For use with 42 in. and 54 in. models.
Table 7: Other Optional Accessories

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
INNOVATIVEHEARTHPRODUCTS•LINEARGASFIREPLACES•REQUIREDANDOPTIONALACCESSORIES
3
INSTALLATION INSTRUCTIONS
Complete all steps in the order shown, including the installation
of optional accessories (if applicable).
Remove bezel (from optional bezel kit), if installed
1. Gently pull out the lower edge of the bezel to detach it from
the lower edge of the glass door assembly.
2. Swing the lower edge of the bezel away from the door, then
lift up to unhook the bezel upper flange from the top edge
of the glass door assembly (Figure 2).
[CROSS-SECTION]
Bezel Upper
Flange
Glass Door
Assembly
Bezel Lower Flange
Figure 2: Removing the bezel
Remove glass door assembly
1. Remove the three (3) screws securing the lower edge of the
glass door assembly to the fireplace (Figure 3).
2. Grasp the glass door assembly by the sides, swing the lower
edge out, and then lift up to unhook it from the fireplace.
NOTE: Take care not to damage the glass.
3. Set aside the screws and glass door assembly in a secure
location for later reinstallation.
Glass Door Assembly
Figure 3: Removing the glass door assembly
Remove baffle from fireplace floor, if installed
1. If unpacking the fireplace for the first time, remove the
baffle from fireplace floor, where it is packed for shipping
(Figure 4).
2. Set aside the baffle in a secure location for later installation.
Baffle (as shipped)
Figure 4: Removing the baffle
Access the control compartment
1. Remove the two (2) screws securing the burner assembly
to the burner brackets. Carefully slide the burner to the left,
to clear the venturi from the orifice. Rotate the burner to
release the air shutter adjustment rod from the air shutter
lever (Figure 5). Lift and remove the burner assembly,
and set aside the screws and burner assembly in a secure
location for later reinstallation.
Air Shutter Rod
Figure 5: Releasing the air shutter adjustment rod
2. Remove the control compartment access door and gasket
by removing the twelve (12) screws securing it. Set
aside the screws, door, and gasket for later reinstallation
(Figure 6).

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
INNOVATIVEHEARTHPRODUCTS•LINEARGASFIREPLACES•REQUIREDANDOPTIONALACCESSORIES
4

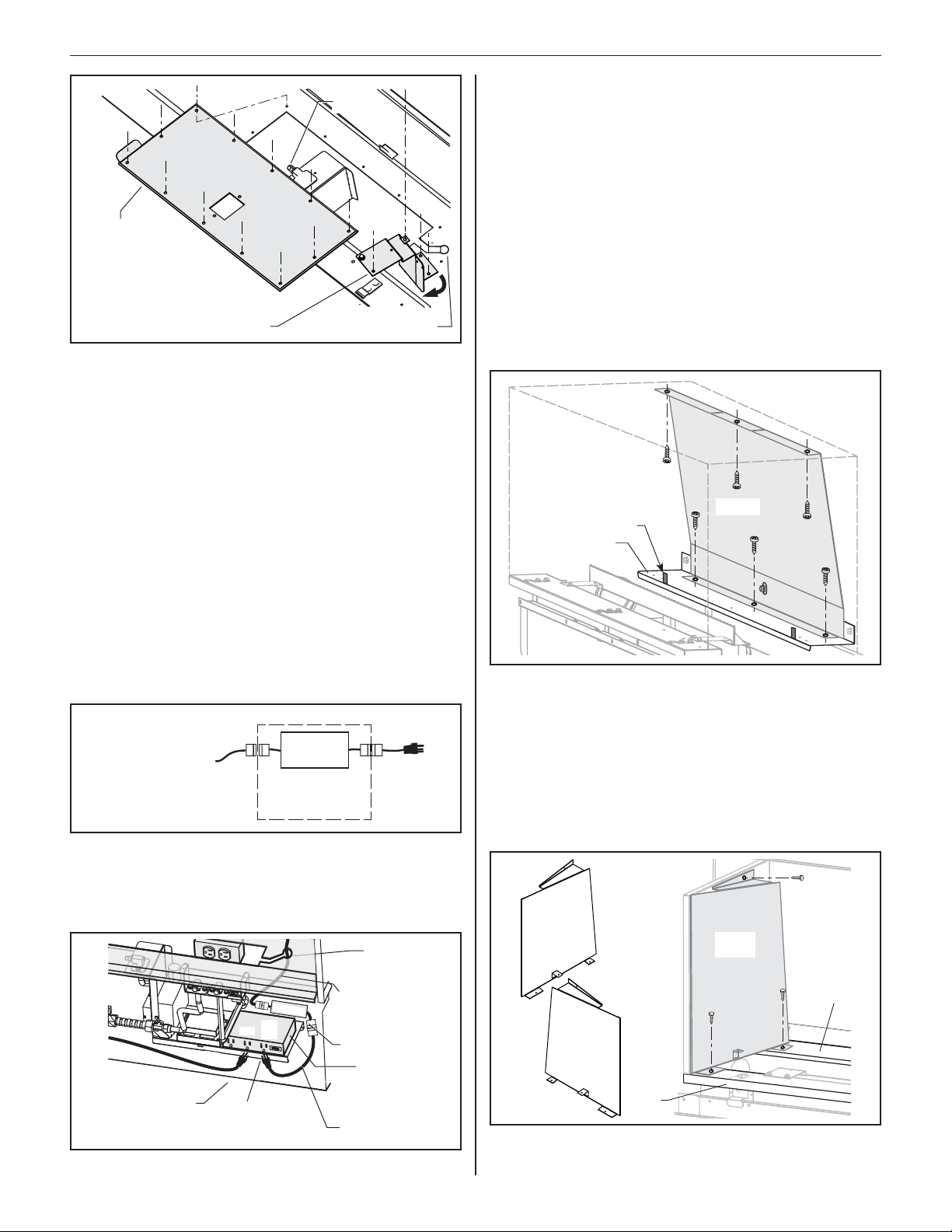

Control Compartment
Access Panel
and Gasket
Right Burner Bracket
Orifice
Slot
Figure 6: Accessing the control compartment
3. Loosen the front left screw of the right burner bracket.
Remove the other three screws, and rotate the bracket
clockwise to uncover the slot in the firebox floor (Figure 6).
Connect wiring harnesses for blower and optional
firebox liner backlight kit - PF1 System*
NOTE: Use only original, factory-supplied wiring inside fireplace.
1. In the control compartment, use a screwdriver or other
blunt object to carefully break the sealant around the wires.
NOTE: Be careful not to damage the wires.
2. Plug the multiwire harness (provided with the firebox liner
backlight kit) into the SimFlame™ (flicker) module port with
the red wires (Figure 7).
NOTE: If not installing the SimFlame module, plug the
multiwire harness directly into the power harness (omit the
components outlined in Figure 7) and skip step 3.
Multiwire Harness from
Panel Backlighting Kit
SimFlame
Module (Plug into
AUX OUT
on Control
Module)
Power
Harness
If not using SimFlame
(flicker) module, omit
outlined components.
Figure 7: Connecting multiwire harness and flicker module
3. Plug the power harness (provided with the firebox liner
backlight kit) into the SimFlame Module port with the black
and white wires (Figure 8).
Slot
FAN AUX
OUT
SimFlame
SimFlame
Module
Fan Control
Module
Plug blower
into FAN port Plug lights into
AUX OUT port
Figure 8: Connecting the lights and blower
4. Route the lighting wiring up through the access opening,
and slide it into the slot (Figure 8).
5. Plug the power plug end of the power harness into the AUX
OUT port on the fireplace fan control module (Figure 8).
Install reflector (from optional firebox liner backlight kit)
1. Insert the bottom edge of the reflector (provided with the
firebox backlight kit) into the fireplace first. Then, push the
top edge into rear of fireplace (Figure 9).
NOTE: Lift the reflector over the tabs on the rear ledge of the fireplace
2. Align the large hole in the lower face of the reflector over
the screw in the firebox rear wall.
3. Align the screw holes in the top and bottom edges of reflector
with the rearmost holes in the fireplace ceiling and rear ledge.
Secure the reflector using six (6) #10-16 x 3/8 hex-head sheet
metal screws provided with the firebox liner backlight kit.
~
Reflector
Fireplace
Front
Tab
Rear Ledge
Figure 9: Installing the reflector
Install side panels (from required firebox liner kit)
1. Align the screw hole in the top flange of the side panel with
the upper hole in the inside wall of the fireplace (Figure 10).
2. Align the screw holes in the bottom flanges of the side
panel with the holes in the front and rear ledges.
3. Secure each panel with three (3) #10-16 x 3/8 hex-head
sheet metal screws provided with the firebox liner kit.
Left Side
Panel
Right
Side
Panel
~
Left Side
Panel
Front
Ledge
Rear
Ledge
~
Figure 10: Installing the side panels
Multiwire
Harness
Power
Harness
*For PF2 System, see Page 5 and Figure 7a..

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
INNOVATIVEHEARTHPRODUCTS•LINEARGASFIREPLACES•REQUIREDANDOPTIONALACCESSORIES
5
Install back panel (from required firebox liner kit)
1. Insert the bottom edge of the back panel into the fireplace
first, then position it in front of the previously installed
reflector (Figure 11).
NOTE: Lift the back panel over the tabs on the rear ledge of the fireplace.
2. Align the screw holes in the top and bottom edges of the
back panel with the holes in the fireplace ceiling and rear
ledge. Secure using seven (7) #10-16 x 3/8 hex-head sheet
metal screws provided with the firebox liner kit.
~
Fireplace
Front
Left Side
Panel
Back Panel
Reflector
Tab
Rear Ledge
Figure 11: Installing the back panel
Route wiring for optional blower kit
NOTE: Use only original, factory-supplied wiring inside the
fireplace. See the wiring diagrams on Page 9.
1. Route the wiring per the instructions (P/N 750028M).
Route wiring for optional power vent kit
NOTE: Use only original, factory-supplied wiring inside the
fireplace. See the wiring diagrams on Page 9.
1. Route the wiring per instructions (P/N 506022-01).
Determine optional firebox liner backlight kit wire
routing method
There are two approved methods for routing the wiring for the
optional firebox liner backlight kit.
The preferred method is outlined in the following sections. The
alternate method is included for installations where the firebox
rear ledge does not have backlight wire routing holes, and is
described in the Appendix section Route and connect optional
firebox liner backlight kit wiring and install lamp assemblies
on Page 10.
1. Determine whether the firebox rear ledge has backlight wire
routing holes (Figure 12).

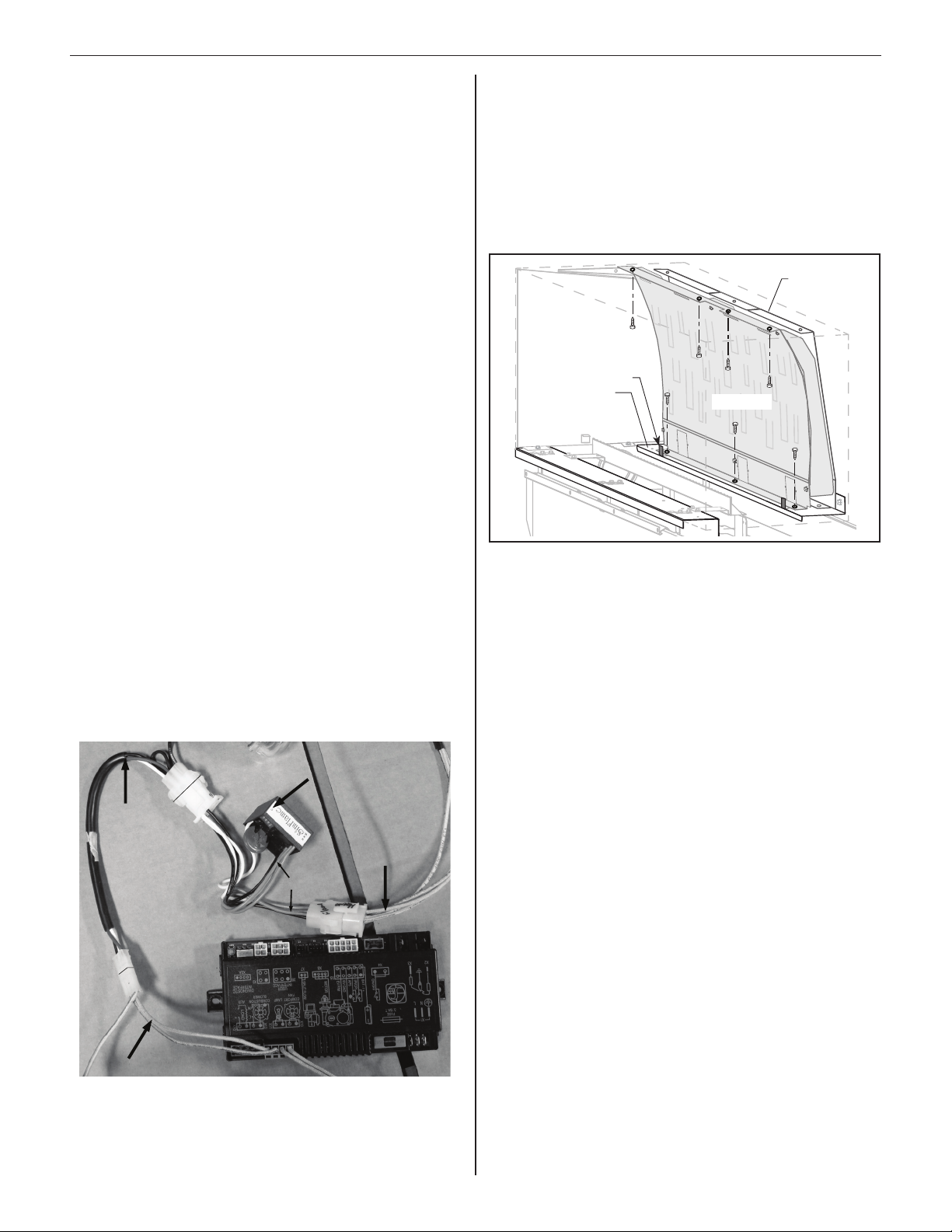

CONNECTION AND ROUTE WIRING FOR OPTIONAL PANEL
BACKLIGHT KIT - SIT PROFLAME II SYSTEM
1. After accessing the control compartment (see Page 4, Step
1), use a screwdriver or similar object to carefully break the
sealant around the wires, taking care not to nick the wires.
2. Plug in the Multi-wire Harness (provided with the Panel
Backlight Kit) into the SimFlame module port with the red
wires (Figures 7 and 7a)and the light wire harness into the
light module harness.
3. Plug in the light wire harness (provided with the Panel
Backlight Kit) into the SimFlame Module port with the black
and white wires.
NOTE: If NOT installing the SimFlame (flicker) Module,
plug the Multi-Wire Harness directly into the light wire
harness (omitting the components outlined in Figure 7a)
4. Route the wiring up through the access opening and slide it
into the slot (Figure 8).
5. Attach the wiring to each lamp assembly as described
below and shown in Figure 13:
a. Route one set of three leads (white/green/black)
through the hole in the front of the bracket.
b. Connect the green wire as shown in Figure 14.
c. Insert the lamp (with green wire attached) into the
bracket until the spring clip is engaged.
d. Attach the white (neutral) and black (hot) wires as
shown in Figure 15
6. Carefully lay the Panel Backlight lamp assemblies and
wiring on the fireplace floor. The lamp assemblies will not
be installed until the back panel is installed (In Step 9,
Figure 16).
Light Wire Harness
Light Module Harness
PF2 Module
SimFlame Module
Multi-Wire Harness
Figure 7a: Connecting the SIT PF II Module
Red Wires

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
INNOVATIVEHEARTHPRODUCTS•LINEARGASFIREPLACES•REQUIREDANDOPTIONALACCESSORIES
6

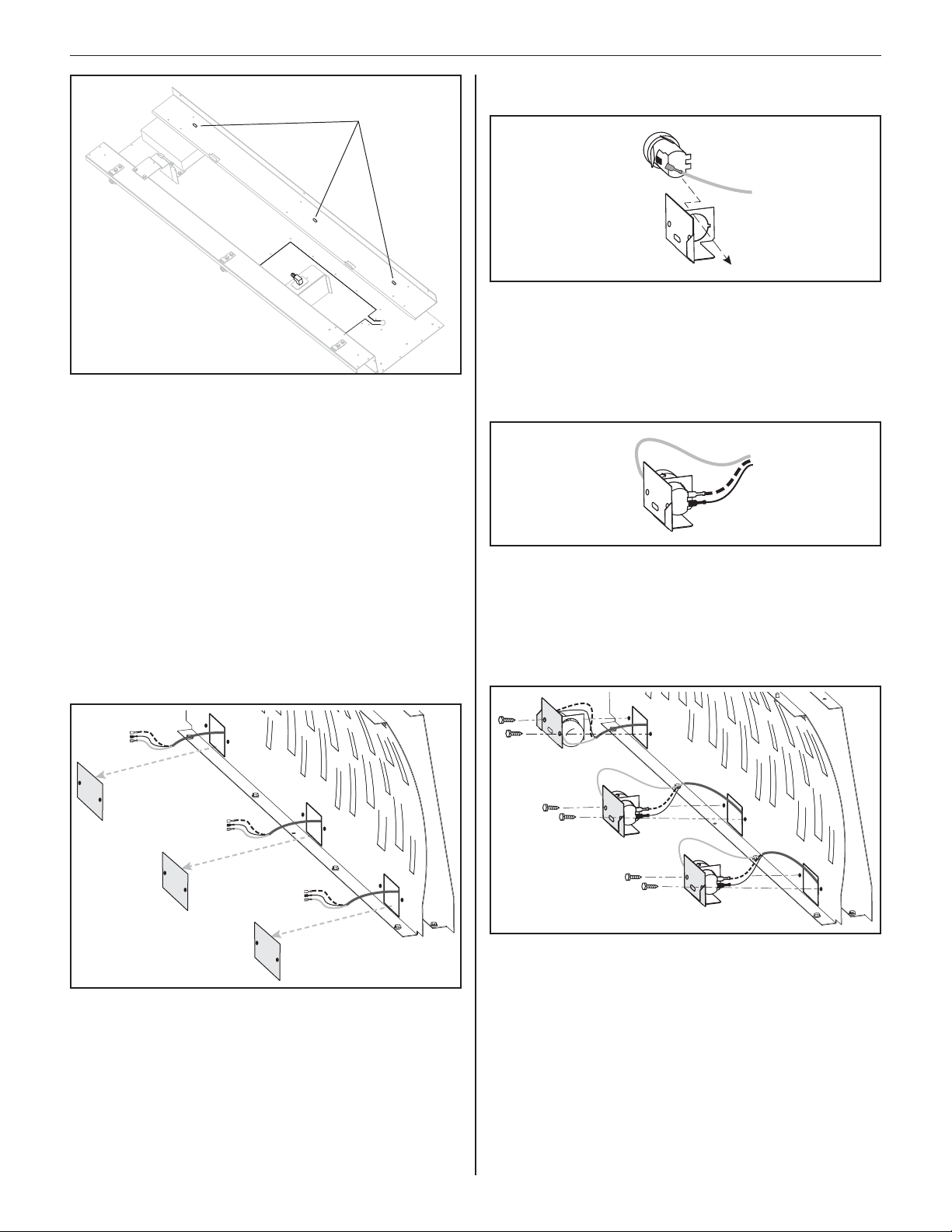

7. With one set of three leads, connect the green wire to a
lamp (Figure 14).
Figure 14: Attaching green wire to firebox liner backlight kit
lamp, and inserting lamp into bracket
8. Insert the lamp (with green wire attached) into a bracket
until the spring clip is engaged (Figure 14).
9. Connect the white (neutral) wire and black (hot) wire
(Figure 15).
Figure 15: Attaching black and white wires to firebox liner
backlight kit lamp
10. Repeat the process in step 4 through step 6 for the two
remaining lamp assemblies.
11. Insert the three (3) lamp assemblies in the exact orientation
shown (Figure 16).
Figure 16: Installing the lamp assemblies
12. Secure the lamp assemblies using the six (6) previously
removed screws from the cover plates (Figure 16).
Backlight Wire
Routing Holes
Figure 12: Routing wiring
2. If the firebox rear ledge has backlight wire routing holes,
proceed with the instructions in Route and connect
optional firebox liner backlight kit wiring and install lamp
assemblies below.
If the rear ledge does not have backlight wire mounting
holes, follow the instructions detailed in Route and connect
optional firebox liner backlight kit wiring and install lamp
assemblies on Page 10.
Route and connect optional firebox liner backlight kit
wiring and install lamp assemblies
1. Remove the three (3) cover plates in the lower front face
of the back panel. Discard the cover plates, but retain
the screws.
Figure 13: Removing the cover plates, and routing the wiring
2. Route one set of three leads (white/green/black) through
each backlight wire routing hole in the rear ledge
(Figure 12).
3. Route one set of three leads (white/green/black) through
each hole in the lower front face of the back panel
(Figure 13).

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
INNOVATIVEHEARTHPRODUCTS•LINEARGASFIREPLACES•REQUIREDANDOPTIONALACCESSORIES
7
Gather and reseal all wiring
1. Gather all wiring and pilot connections together at the end
of the slot, and reseal with high-temperature sealant, such
as Mill-Pac®(not provided) (Figure 8).
2. Reposition the right burner bracket and secure with the
three (3) previously removed screws; tighten the fourth
screw (Figure 6).
3. Replace the control compartment access door and gasket,
and secure with the twelve (12) previously removed screws
(Figure 6).
4. Carefully slide the burner assembly venturi onto the orifice.
While placing the burner assembly onto the brackets,
reinstall the air shutter adjustment lever (Figure 5).
Secure the burner assembly with the two (2) previously
removed screws.
Install rear floor section (from required floor kit)
1. Place lower back edge of rear floor section on rear ledge of
fireplace, behind the tabs (Figure 17).
2. Align outermost front hole on either side of rear floor
section with hole in center lower tab in each side panel.
Pull rear floor section forward until it butts against the
burner, and secure using two (2) #10-16 x 3/8 hex-head
sheet metal screws provided with the floor kit (one screw
per side).
Rear
Floor
Section
Rear
Ledge
Tab
~
Side Panel
(Center Lower Tab)
Figure 17: Installing the rear floor section
Install front floor section (from required floor kit)
1. Engage the lower front lip of the front floor section under
the locking clips attached to the fireplace front ledge, and
then slide it back (Figure 18).
2. Align the notches in the back edge of the front floor section
over the holes in the rear floor section. Push the front floor
section backward until it butts against the burner, and
secure it using two (2) #10-16 x 3/8 hex-head sheet metal
screws provided with the floor kit (one screw per side).
Locking Clip
Front
Ledge
Notch
Rear
Floor
Section
Front
Floor
Section
Lip
Figure 18: Installing the front floor section
Install media (from optional media kit)
WARNING
• Handle media only when cool. Turn OFF all electricity to
the appliance before installing media. Media gets very
HOT during fireplace use and will remain hot up to ONE
HOUR after the gas supply is turned off.
• Any attempt to use media not specified for your fireplace
configuration will result in incomplete combustion, sooting,
and poor flame quality, and will void the warranty.
• Do NOT mound up media, especially on the burner.
• If using multiple colors of media, NEVER use more than
five (5) pounds total (approximately) at one time.
1. If installing a floor kit that requires media, place an even
layer of media in the recessed area around the burner (see
bold outlined area in Figure 19; also refer to Figure 1).
Figure 19: Placement of media

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
INNOVATIVEHEARTHPRODUCTS•LINEARGASFIREPLACES•REQUIREDANDOPTIONALACCESSORIES
8

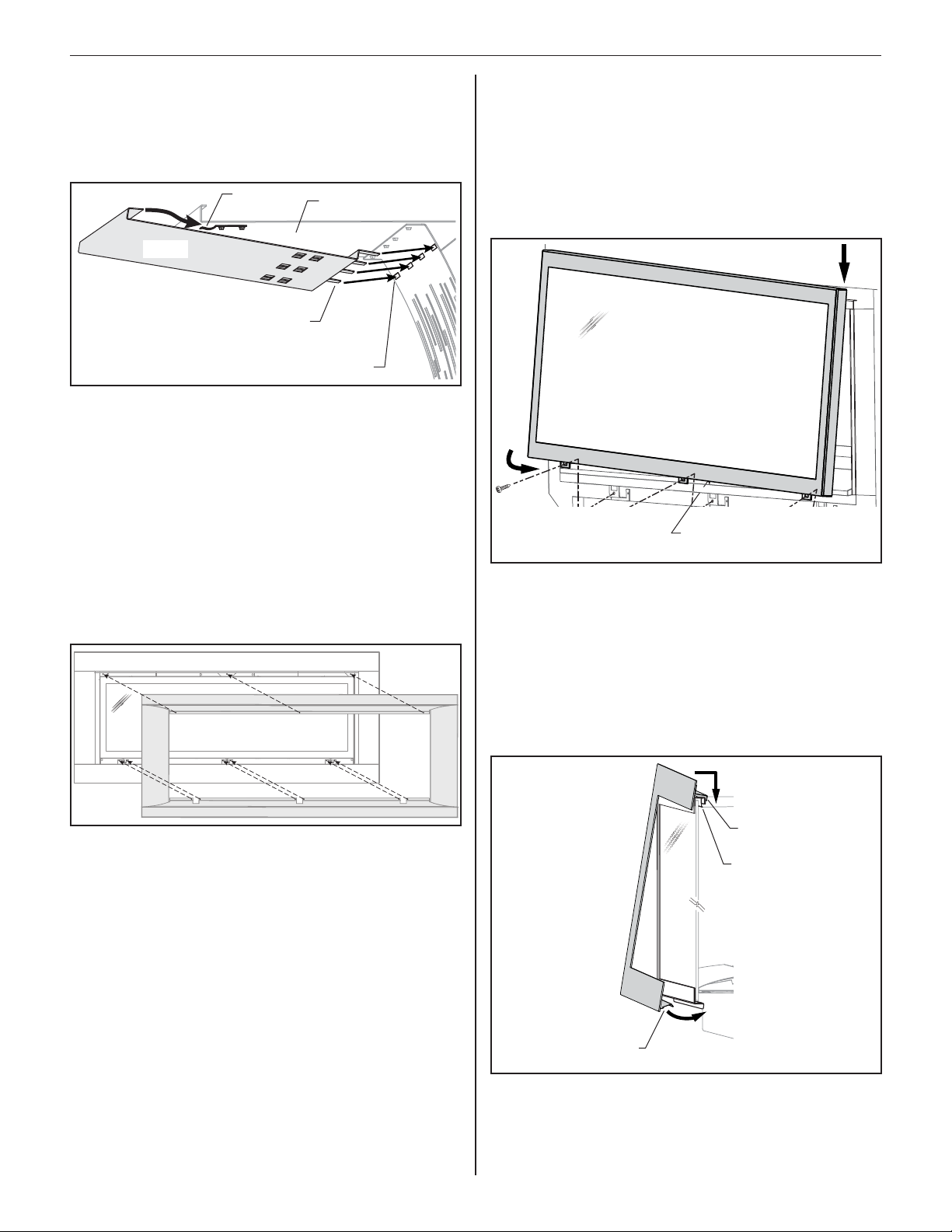

Install glass door assembly
1. Hold the glass door assembly by the sides, and hook the
top edge to the fireplace. Then swing the bottom edge in
toward the fireplace (Figure 22).
NOTE: Be careful not to damage the glass.
2. Align the screw holes below the door assembly with
the holes in the fireplace, and secure using the (3)
provided screws.
Glass Door Assembly
Rating plate and lighting instructions
are attached to door bracket.
Figure 22: Installing the glass door assembly
Attach optional bezel
1. Hook the bezel upper flange to the top edge of the glass
door assembly, and then swing the lower edge of the bezel
toward the door (Figure 23).
2. Gently push the lower edge of the bezel to attach the bezel
lower flange to the lower edge of the glass door frame.
Bezel Upper
Flange
Bezel Lower
Flange [CROSS-SECTION]
Glass Door
Assembly
Figure 23: Installing the optional bezel
Install baffle (provided with fireplace)
1. With the baffle oriented as shown (Figure 20), slide the rear
tabs into the slots in the back panel.
2. While sliding the tabs into the slots, engage the front lip of
the baffle under the spring clips in the firebox ceiling.
Baffle
Slots in
Back Panel
Spring Clip Firebox Ceiling
Tabs
Figure 20: Installing the baffle
Clean porcelain panels (if applicable)
1. If applicable, use non-ammoniated glass cleaner and a soft
rag to remove fingerprints and smudges from porcelain
panels and floors.
Install optional surround
1. Attach the surround and secure it using the nine (9) screws
provided with the surround kit (Figure 21).
Figure 21: Installing optional surround

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
INNOVATIVEHEARTHPRODUCTS•LINEARGASFIREPLACES•REQUIREDANDOPTIONALACCESSORIES
9
CAUTION
Ground supply lead must be connected to the wire attached to the green ground screw located on the outlet box. Failure to do
so will result in a potential safety hazard. The appliance must be electrically grounded in accordance with local codes, or in the
absence of local codes, the National Electrical Code, ANSI/NFPA 70, latest edition (in Canada, the current CSA C22-1 Canadian
Electrical Code).
Green
Ground
Screw
Black
Hot Side of
Receptacle
Tab Cut
Tab Intact
Green White
Neutral Side
of Receptacle
120 VAC—Black
Neutral—White
Ground—Green
J-BOX / RECEPTACLE
WIRING
120V, 60HZ, 1PH
Junction Box
Field Wired
Factory Wired
(Power Supply
Unswitched)
Figure 24: Junction Box Wiring
Pilot Tube
COLOR CODE:
B = BLACK
BB = BROWN W/BLACK STRIPE
BG = BROWN W/GREEN STRIPE
BL = BLUE
BR = BROWN
G = GREEN
GY = GRAY
O = ORANGE
R = RED
W = WHITE
Y = YELLOW
Spark Electrode
Flame Sensor
IPI Pilot
885 Valve Optional
Split Flow
BL
W
Y
Y
BR
G
O
O
R
R
B
B
GY
GY
R
B
BL
W
B
BB
B
BR
BB
BG
W
W
G
Battery Holder w/Switch
ON/ Remote
/OFF
Battery Holder
Wire Harness
Reset Switch
“see instructions”
Optional Variable Light
Power Vent Blower
Power Vent
Models Only
Optional Circulation
Blower
Air Pressure Switch
Power Vent Only
Models w/o pressure switch have
these connectors plugged together
Main Wire
Harness
Main Power Cord
Control Module
G
B
G
W
B
Fuse
BG
BG
ELECTRONIC WIRING DIAGRAM
Ground Y
B
Schematic Representation Only
Battery Holder w/Switch
ON/Remote/Off
Figure 25: Gas Valve Electronic Wiring Diagram - SIT ProFlame II
Red

INNOVATIVEHEARTHPRODUCTS•LINEARGASFIREPLACES•REQUIREDANDOPTIONALACCESSORIES
Printed in U.S.A. © 2014 Innovative Hearth Products
P/N 900077-05 Rev. NC 09/2014 1508 Elm Hill Pike, Suite 108, Nashville, TN 37210
www.IHP.US.com
Innovative Hearth Products reserves the right to make changes at any time, without notice, in
design, materials, specifications, prices and also to discontinue colors, styles, and products.
Consult your local distributor for fireplace code information.
P900077-05

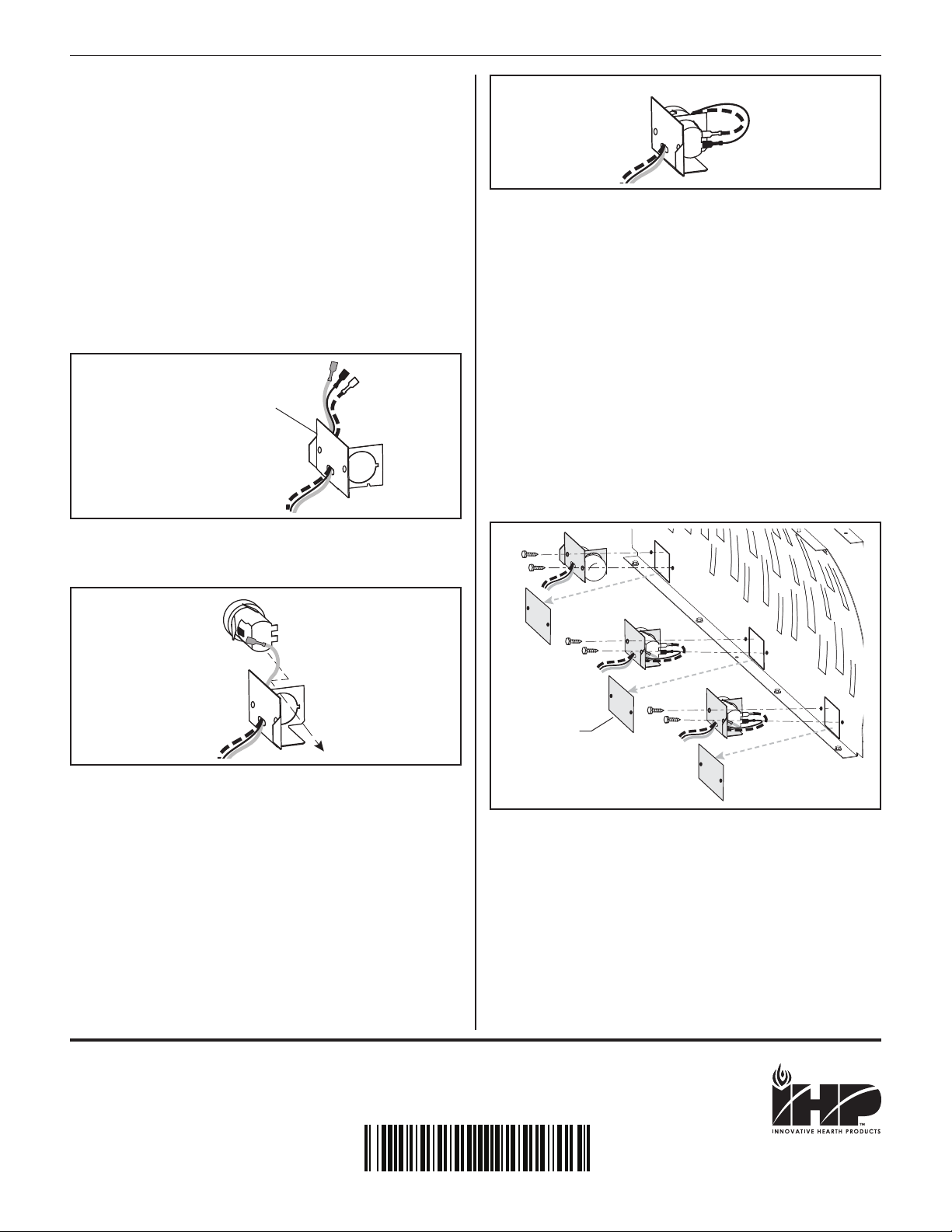

APPENDIX: ALTERNATE INSTALLATION INSTRUCTIONS
Route and connect optional firebox liner backlight
kit wiring and install lamp assemblies
NOTE: These instructions should be used in place of Route
and connect optional firebox liner backlight kit wiring and
install lamp assemblies on Page 6, for fireplaces without
backlight wiring kit routing holes as shown in Figure 12 on
Page 6.
1. Route one set of three leads (white/green/black) through
the hole in the front of the bracket (Figure 26).
Front of Mounting Bracket
Figure 26: Routing wires through lamp bracket
2. Connect the green wire to the lamp (Figure 27).
Figure 27: Attaching green wire to firebox liner backlight kit
lamp, and inserting lamp into lamp bracket
3. Insert the lamp (with green wire attached) into bracket until
the spring clip is engaged (Figure 27).
4. Connect the white (neutral) wire, and black (hot) wire
(Figure 28).
Figure 28: Attaching black and white wires to firebox liner
backlight kit lamp
5. Repeat the process in step 1 through step 4 for the two
remaining lamp assemblies.
6. Carefully lay the firebox backlight lamp assemblies and
wiring on the fireplace floor. The lamp assemblies will not
be installed until the back panel is installed (in a later step).
7. Remove the three (3) cover plates in the lower front face
of the back panel. Discard the cover plates, but retain the
screws.
8. Insert the three (3) previously assembled lamp assemblies
in the orientation shown (Figure 29).
NOTE: The wires will be routed under the rear floor section
in the next step.
9. Secure the lamp assemblies using the six (6) previously
removed screws from the cover plates.
Cover Plate
Note orientation of each
lamp assembly.
Figure 29: Installing the lamp assemblies
NOTE: When installing the rear floor, route the firebox
backlight wiring through the notches under the rear floor
section. Be careful not to pinch or damage the wires.
