Astria Georgian Cat 50 User manual

Installation and Operation Instructions
Astria® Indoor Fireplace with Catalyst
Models
Georgian Cat 42 Georgian Cat 50
PFS
®
USC
P/N 126640-01 Rev. D 10/2015 REPORT NO. F09-095
P126640-01
SAVE THIS BOOK
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also
contains information that will enable you to obtain replacement parts or accessory items when needed. Keep
it with your other important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Installateur : Laissez cette notice avec l’appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
This wood burning fireplace complies with UL127
CAN/ULC-S610-M87 standard as a FACTORY
BUILT FIREPLACE.
Ce foyer au bois est conforme aux UL 127 CAN/ULC-
S610-M87 norme comme une USINE CONSTRUITE
CHEMINÉE.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to
ANSI Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard .
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a permit.
POUR LE CANADA: L’autorité compétente (comme le
service municipal du bâtiment, les pompiers, etc.) doit
être contacté avant l’installation afin de déterminer la
nécessité d’obtenir un permis.
These models meet the EPA Wood Burning Fireplace Program Phase 2 emission level. NOTE: To ensure proper
fireplace operation, the catalyst should be replaced at a minimum of 3 years and a maximum of 5 years.
This installation manual will enable you to obtain a safe, efficient and dependable installation of your fireplace
system. Please read and understand these instructions before beginning your installation.
Do not alter or modify the fireplace or its components under any circumstances. Any modification or alteration of
the fireplace system, including but not limited to the fireplace, chimney components and accessories, may void the
warranty, listings and approvals of this system and could result in an unsafe and potentially dangerous installation.
IMPORTANT! TO ASSURE PROPER ALIGNMENT OF GLASS DOORS: INSTALL THIS FIREPLACE IN A SQUARE
AND PLUMB CONDITION, USING SHIMS AS NECESSARY AT SIDES AND/OR BOTTOM.

Astria.US.com 126640-01D2
SAFETY
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury
or property damage. Refer to this manual for correct
installation and operational procedures. For assis-
tance or additional information consult a qualified
installer, service agency or the gas supplier.
IMPORTANT: Check local codes before installing this
fireplace.
Before beginning the installation of the fireplace, read these instruc-
tions through completely.
• ThisINNOVATIVEHEARTHPRODUCTS,LLC(IHP)replaceand
its components are safe when installed according to this installa-
tionmanual.UnlessyouuseIHPcomponents,whichhavebeen
designed and tested for the fireplace system, you may cause a
fire hazard.
• TheIHPwarrantywillbevoidedbyandIHPdisclaimsanyre-
sponsibility for the following actions.
a. Modification of the fireplace, components, doors, air inlet
system and damper control.
b.Useofanycomponentpartnotmanufacturedorapprovedby
IHPincombinationwithanIHPreplacesystem.
Proper installation is the most important step in ensuring safe and
continuousoperationofthereplace.Consultthelocalbuildingcodes
as to the particular requirements concerned with the installation of
all factory built fireplaces.
WARNING: Do not install a fireplace insert in this
box unless the manufacturer's instructions with the
insert specifically state this fireplace has been tested
for use with this insert.
FOR YOUR SAFETY
•Donotstoreorusegasolineoranyotherammable
vapors or liquids in the vicinity of this or any other
appliance.
•Duetohightemperatures,theapplianceshouldbe
located out of traffic and away from furniture and
draperies.
•Donotplaceclothingorotherammablematerials
on or near the appliance.
•Never leave children unattended when a re is
burning in the fireplace.
WARNING: Use solid wood or processed solid fuel
firelogs only. When processed wood fuel fire logs are
used, do not poke or stir the logs while they are burning.
Use only fire logs that have been evaluated for the ap-
plication in fireplace and refer to fire log warnings and
caution markings on packaging prior to use.
This fireplace is not intended to be used as a substitute
for a furnace to heat an entire home. Use for supple-
mental heat only.
Safety.............................................................................................2
Specications.................................................................................4
FireplaceInstallation ......................................................................6
VentingInstallation ........................................................................8
MosaicBrickPanelandEstateRefractoryPanelInstallation........13
OptionalGasLineInstallation ......................................................15
PureFireHoodInstallation...........................................................16
AirDeectorandGlassDoorInstallation......................................16
OperationandMaintenanceGuidelines........................................17
PureFireEmissionsControlSystem............................................18
TechnicalService .........................................................................19
ReplacementParts.......................................................................19
Parts ............................................................................................20
Accessories..................................................................................24
Warranty ......................................................................................27
Thank you for your purchase. We appreciate your
business!
Please carefully read and follow all instructions in this manual. Pay
special attention to all warnings and safety information.
Following these safety, care, and operation instructions will help
ensure many years of dependable and enjoyable service from your
fireplace.
Register your product online today!
To help us keep you up-to-date on product information and of-
fers, please take a few moments to register your product online
atAstria.US.com
Please read and understand these instructions before installing
or operating.
TABLE OF CONTENTS

Astria.US.com126640-01D 3
SAFETY Continued
Overfiring of a fireplace is a condition where excessive
temperaturesarereached,beyondthedesigncapabilities
of theappliance. Thedamage thatoccursfrom overfiring
isnotcoveredunderthemanufacturer’slimitedwarranty.
WARNING: CONTINUED OVERFIRING CAN PER-
MANENTLY DAMAGE YOUR FIREPLACE SYSTEM.
SOME EXAMPLES OF CONDITIONS THAT COULD
CAUSE OVERFIRING ARE:
• BURNINGQUANTITIESOFSCRAPLUMBER,PINE
BRANCHES, PAPER OR CARDBOARD BOXES
WHICHEXCEEDTHEVOLUMEOFTHENORMAL
LOGFIRE.
• BURNINGTRASH,CHEMICALS ORCHEMICALLY
TREATEDCOMBUSTIBLES.
Disposal of Ashes
Ashes should be placed in a metal container with a tight-
fittinglid. Theclosed containerofashes shouldbe placed
onanoncombustibleoororontheground,wellaway
from all combustible materials, pending final disposal.
If the ashes are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in the closed
container until all cinders have thoroughly cooled.
WHEN USING THE DECORATIVE APPLIANCE, THE
FIREPLACE DAMPER MUST BE SET IN THE FULLY
OPEN POSITION.
Never use gasoline, gasoline-type lantern fuel, kero-
sene,charcoallighteruid,orsimilarliquidstostart
or ’freshen up’ a fire in this fireplace. Keep all such
liquids well away from the fireplace while it is in use.
Use SOLID WOOD only for fuel. It is best to use dry
and well seasoned hardwood. Softwoods tend to burn
veryquickly.DONOTusetreatedwood,charcoal,coal,
trash, driftwood or woods that have been dipped in
tar,pitch,pinetar,creosote,etc.Woodproductsmade
with synthetic binders, such as plywood, produce ab-
normally high temperatures and sputtering, smoking
fires. When burning artificial logs, please read and
follow the instructions provided by the manufacturer.
Never burn treated construction lumber or scraps.
These woods burn excessively hot and may contain
chemicals used to treat insects and fungus. When
burned,thesechemicalscanposeasignificanthazard.
WARNING:BURNING IMPROPERFUEL(I.E.CHAR-
COAL) CAN RESULT IN CARBON MONOXIDE POISON-
ING, WHICH MAY LEAD TO DEATH!
Carbon Monoxide Poisoning – Early signs of carbon
monoxidepoisoningresembletheuwithheadaches,
dizziness, or nausea. If you have these signs, get
fresh air at once! Have the appliance inspected by a
qualifiedservicetechnician. Somepeoplearemoreaf-
fectedbycarbonmonoxidethanothers. Theseinclude
pregnant women, people with heart or lung disease
oranemia,thoseundertheinuenceofalcohol,and
those at high altitudes.
Ventilation Requirements - Provide adequate air for
combustion. The fresh air requirements of this ap-
pliance must be met within the space where it will
be installed.
Smoke Detectors - Since there are always several
potential sources of fire in any home, we recommend
installing smoke detectors. If possible, install the
smoke detector in a hallway adjacent to the room (to
reduce the possibility of occasional false activation
from the heat produced by the appliance). If your local
coderequires a smokedetector be installedwithin the
same room, you must follow the requirements of your
local code. Check with your local building department
for requirements in your area.
Creosote – Formation and Need for Removal
When wood is burned slowly, it produces tar and other
organic vapors, which combine with expelled mois-
ture to form creosote. The creosote vapors condense
intherelativelycoolchimneyueofaslow-burning
fire. As a result, creosote residue accumulates on
theuelining.Whenignitedthiscreosotemakesan
extremely hot fire.
The chimney shall be inspected at least twice a year
duringtheheatingseasontodeterminewhenacreosote
builduphasoccurred.Whencreosotehasaccumulated
(1/8" [3 mm] or more) it shall be removed to reduce
the risk of a chimney fire.
WARNING: Children and adults should be alerted
to the hazards of high surface temperatures and to
stay away to avoid burns or clothing ignition. Young
children should be carefully supervised when in the
same room as fireplace.

Astria.US.com 126640-01D4
SPECIFICATIONS Continued
42" MODEL
22 3/4"
30 1/2"
29"
4 3/8"
15 3/4"
5/8"
17 5/8"
67"
61"
49"
7"
1"
30"
11"
58"
42"
51 1/8"
4 1/2"
3 1/2"
9 1/2"
10 1/2"
81/2"
13"
17"
OUTSIDE
AIR
ACCESS
GAS LINE
ACCESS
42" HEARTH
1 1/4"
23"
(Ref.)
41 3/8"
26 3/8"
21 3/4"
Figure 1 - 42" Model Georgian Cat 42

Astria.US.com126640-01D 5
SPECIFICATIONS Continued
50" MODEL
Figure 2 - 50" Model Georgian Cat 50
38 1/2"
28 1/2"
43/8"
17 5/8"
19 1/4"
24"
49"
30"
11"
61"
67" 58"
7"
1"
59"
50" 4 1/2"
3 1/2"
9 1/2"
10 1/2"
8 1/2"
13"
17"
GAS LINE
ACCESS
OUTSIDE
AIR
ACCESS
50" HEARTH
1 1/4"
23"
(Ref.)
49 3/8"
34 3/8"
21 3/4"

Astria.US.com 126640-01D6
FIREPLACE INSTALLATION
SELECTING LOCATION
To determine the safest and most efficient location for the fireplace,
you must take into consideration the following guidelines:
1. Thelocationmustallowforproperclearances(seeFigures3and
4).
2. Consideralocationwherereplacewillnotbeaffectedbydrafts,
air conditioning ducts, windows or doors.
3. Alocationthatavoidscuttingofjoistsorroofrafterswillmake
installation easier.
4. An outside air kit is available with this replace (see Optional
OutsideAirKitonpage8).
MINIMUM CLEARANCE TO COMBUSTIBLES
Backandsidesofreplace11/2" min.
Front of fireplace 48" min.
Floor** 0" min.
Perpendicularwalltoopening18"min.
Top spacers 0" min.
Mantel clearances see Mantels,page7
Chimneyouterpipesurface2"min.
*Notrequiredatnailinganges
**Seestep2ofFraming
WARNING: Do not pack required air spaces with
insulation or other materials.
Minimum/MaximumChimneyHeightforResidentialInstallation
Minimum height of chimney, measured from base of fireplace to flue
gasoutletoftermination,is16feetforstraightueorauewithone
elbow set. Maximum distance between elbows is 6 feet. For systems
with two elbow sets, minimum height is 22 feet. Maximum height of
anysystemis50feet.Thismeasurementincludesreplace,chimney
sections and height of termination assembly at level of the flue gas
outlet(seeFigure14,page10).
FRAMING
1. FrameopeningforreplaceusingdimensionsshowninFigures3
and 4.
2. If replace is to be installed directly on carpeting, tile or any
combustible material other than wood flooring, fireplace must
be installed upon a metal or wood panel extending full width and
depth of fireplace.
3. Setreplacedirectlyinfrontofthisopeningandslideunitback
until nailing flanges touch side framing.
4. Checklevelofthereplaceandshimwithsheetmetalifnecessary.
5. Before securing replace to prepared framing, ember protector
(provided) must be placed between hearth extension (not sup-
plied)andunderbottomfrontedgeofreplacetoprotectagainst
glowingembersfallingthrough.Ifreplaceistobeinstalledona
raisedplatform,aZ-typeemberprotector(notsupplied)mustbe
fabricated to t your required platform height. Ember protector
shouldextendunderreplaceaminimumof11/2".Emberprotector
shouldbemadeofgalvanizedsheetmetal(28gaugeminimumto
prevent corrosion.
6. Usingscrewsornails,securereplacetoframingthroughanges
located on sides of fireplace.

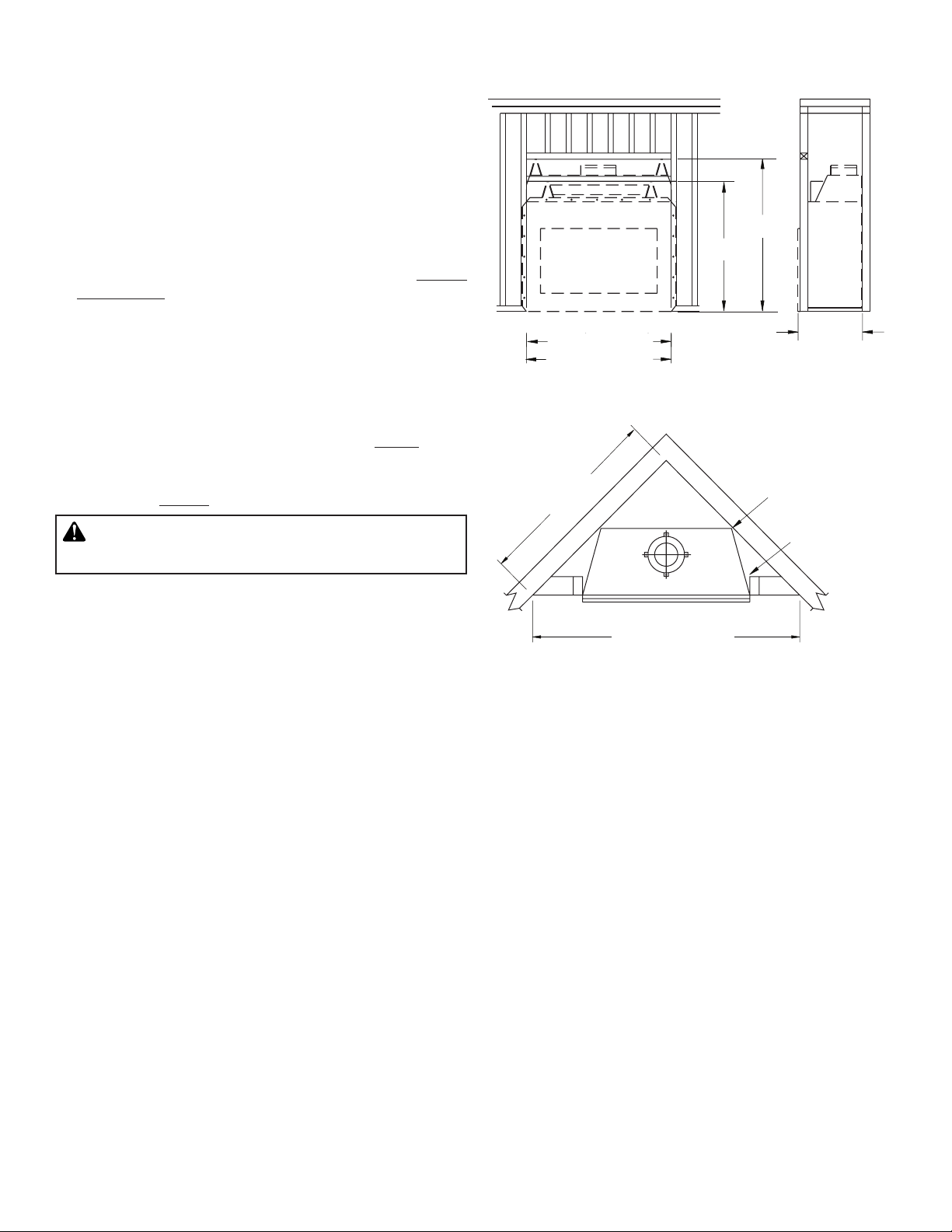

Figure 3 - Framing Dimensions
Figure 4 - Corner Installation
59 1/8" (50'' Models)
58 1/8"
30 1/8"
67 1/8"
51 1/4" (42'' Models)
45 1/4" (36'' Models)
28 1/4" (36'' Models)
71" (50" Models)
100" (50" Models)
65" (42" Models)
92" (42" Models)
86 1/2" (36" Models)
61" (36" Models)
Maintain 1 1/2"
Clearance
at Sides and
Back of Fireplace
1 1/2" Clearance
Not Required at
Nailing Flanges

Astria.US.com126640-01D 7
FIREPLACE INSTALLATION Continued
HEARTH EXTENSION
A hearth extension projecting a minimum of 20" in front of and a
minimumof12"beyondeachsideofreplaceopeningisrequired
to protect combustible floor construction in front of fireplace. Fabri-
cate a hearth extension using a material which meets the following
specifications: a layer of noncombustible, inorganic material having a
thermalconductivityofk=0.84BTUIN/FT,HR.F(orless)at1"thick.
Forexample,ifthematerialselectedhasakfactorof0.25,suchas
glass fiber, the following formula would apply:
0.25x1.0"=0.30"thicknessrequired
0.84
Thermal conductivity "k" of materials can be obtained from manufac-
turerorsupplierofnoncombustiblematerial.Ifhearthextensionis
to be covered, use noncombustible material such as tile, slate, brick,
concrete, metal, glass, marble, stone, etc. Provide a means to prevent
hearth extension from shifting and seal gap between fireplace frame
andhearthextensionwithanoncombustiblematerial(seeFigure5).
WARNING: Hearth extension is to be installed only
as shown in Figure 5.
Figure 5 - Hearth Extension
Seal Gap
Fireplace Front
Ember Protector
Fireplace Front
Raised Hearth
Fireplace Front
Elevated
Ember Protector
Ember Protector
Seal Gap
Hearth
Extension
MANTELS
Amantelmaybeinstalledifdesired(seeFigure6).Woodworksuch
as wood trims, mantels or any other combustible material projecting
from front face must not be placed within 18" of replace opening.
Combustiblematerialsabove18"andprojectingmorethan11/2" from
replacemustnotbeplacedlessthan21"fromthetopopeningofthe
replace(NFPA211,Section-ClearancefromCombustibleMaterial).
Mantels or any other combustible material also may come up to side
edge of black metal face of fireplace as long as projections from front
face fall within limit shown in Figure 6.
Figure 6 - Mantel Clearances to Combustible Material
12 1/4" Ref.
6"
Ref.
21" Min.
18" Min.
11/2" Max.
3" Nom.
33°
Combustible
Material
Safe
Zone for
Projection of
Combustible
Materials
Fireplace Opening
Upper
Section of
Fireplace
FIREBOX
SAFE ZONE
Top View of Fireplace
3" Max.
4.5"
18" Min. to
Perpendicular
Side Wall
11.5"
33° Combustible
Material Must
Not Overlap
Front Face

Astria.US.com 126640-01D8
VENTING INSTALLATION
OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F)
The installation of an outside air kit should be performed during
the rough framing of the fireplace due to the nature of it's location.
Outsidecombustionairisaccessedthroughaventedcrawlspace
(AK4F)orthroughasidewall(AK4).
CAUTION: Combustion air inlet ducts shall not
terminate in attic space.
The maximum height for the air vent can not exceed
3feetbelowtheuegasoutletofthetermination.
Figure 7- Outside Air Kit
CHIMNEY PIPE
WARNING: Label part number 900599-01 must
be applied by the installer to all chimney pipe
sections but is not required on sections that will
be visible after the installation is complete. Label
must wrap around the circumference of the pipe.
See accessories, page 24 for Kit F2659.
TheIHPchimneysystemconsistsof12",18",24",36"and48"snap-
lock, double-wall pipe segments, planned for maximum adaptability
to individual site requirements. Actual lengths gained after fitting
overlaps must be taken into consideration (lineal gain) and are
giveninthelinealgainchart(seeFigure8).LinealGainistheactual
measurable length of a part after two or more parts are connected.
ForCanada,usechimneypartsdesignated"HT".
WARNING: The opening in the collar around the
chimney at the top of the fireplace must not be ob-
structed.Neveruseblowninsulationtofillthechimney
enclosure.
Figure 8- Lineal Gain
LINEAL GAIN
PART NO. DESCRIPTION GAIN
Signature Fireplace 66 1/2 "
12-12DM
12-12HT PipeSection 105/8
"
18-12DM
18-12HT PipeSection 165/8
"
24-12DM
24-12HT PipeSection 235/8
"
36-12DM
36-12HT PipeSection 345/8
"
48-12DM
48-12HT PipeSection 46 5/8
"
RLT-12D
RLT-12HT
RoundTermina-
tion 73/4
"
*
STL-12D
SquareChase-
TopwithSlip
Section
7 " to15 " *
* The lineal gain for the terminations is measured to
the ue gas outlet height.
Hemmed
End
12 3/8"
Stainless
Inner Pipe
15" Galvanized
Outer Pipe
ASSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY
SYSTEM
Eachdoublewallchimneysectionconsistsofagalvanizedouterpipe,a
stainless steel inner flue pipe and a wire spacer. The pipe sections must
be assembled independently as the chimney is installed. When connect-
ing chimney directly to the fireplace, the inner flue pipe section must be
installed first with the lanced side up. The outer pipe section can then
beinstalledover5theuepipesectionwiththehemmedendup.Press
down on each pipe section until the lances securely engage the hem on
the fireplace starter. The wire will assure the proper spacing between the
inner and outer pipe sections.
Continuetoassemblechimneysectionsasoutlinedabove,making
sure that both the inner and outer pipe sections are locked together.
When installing double wall snap-lock chimney together, it is impor-
tanttoassurethejointbetweenthechimneysectionsislocked.Check
by pulling chimney upward after locking. The chimney will not come
apartifproperlylocked.Itisnotnecessarytoaddscrewstokeepthe
chimneytogether(exception,seeFigure9,page9).
The height of a vertical chimney pipe supported ONLY by the fire-
place,mustnotexceed20feet.Chimneyheightsabove20feetmust
be supported.
Secure to Collars with Metal Tape, Screws
or Straps (Min. of 1/4" x 20" in size)
Air Inlet
Location
Must Allow
For Bushes
or Snow
Vent Hood
Required
for Wall
Installation
Air Inlet
Eyebrow
Vented
Crawl Space
(Check Local
Codes Before
Installing in a
Vented Crawl
Space)

Astria.US.com126640-01D 9
VENTING INSTALLATION Continued
OFFSET RISE CHIMNEY LENGTH
A B 12" 18" 24" 36" 48"
4 3/8"163/8" ELBOWSETONLY
93/4"251/2" 1
123/4"303/4" 1
15" 343/4" 1
18" 40" 1 1
211/4" 46 1/4" 1
233/4"491/4" 1 1
273/4"563/4" 1
30" 60 3/4" 1 1
33" 66" 1
36" 71" 1 1
381/4"75" 2
411/4" 80 1/4" 1 1 1
45" 86 3/4" 2
46 3/4"891/2" 1 1 1
51" 97" 1 1
531/4"101" 2
561/4"1061/4" 2
591/4"1111/2" 1 1 1
613/4"1151/2" 12
64 3/4"1203/4" 12
68 1/4"127" 21
70" 130" 1 1 2
741/4"1371/2" 121
763/4"1411/2" 121
793/4"1463/4" 4
OFFSET CHART (22-50 FT. SYSTEM HEIGHT)

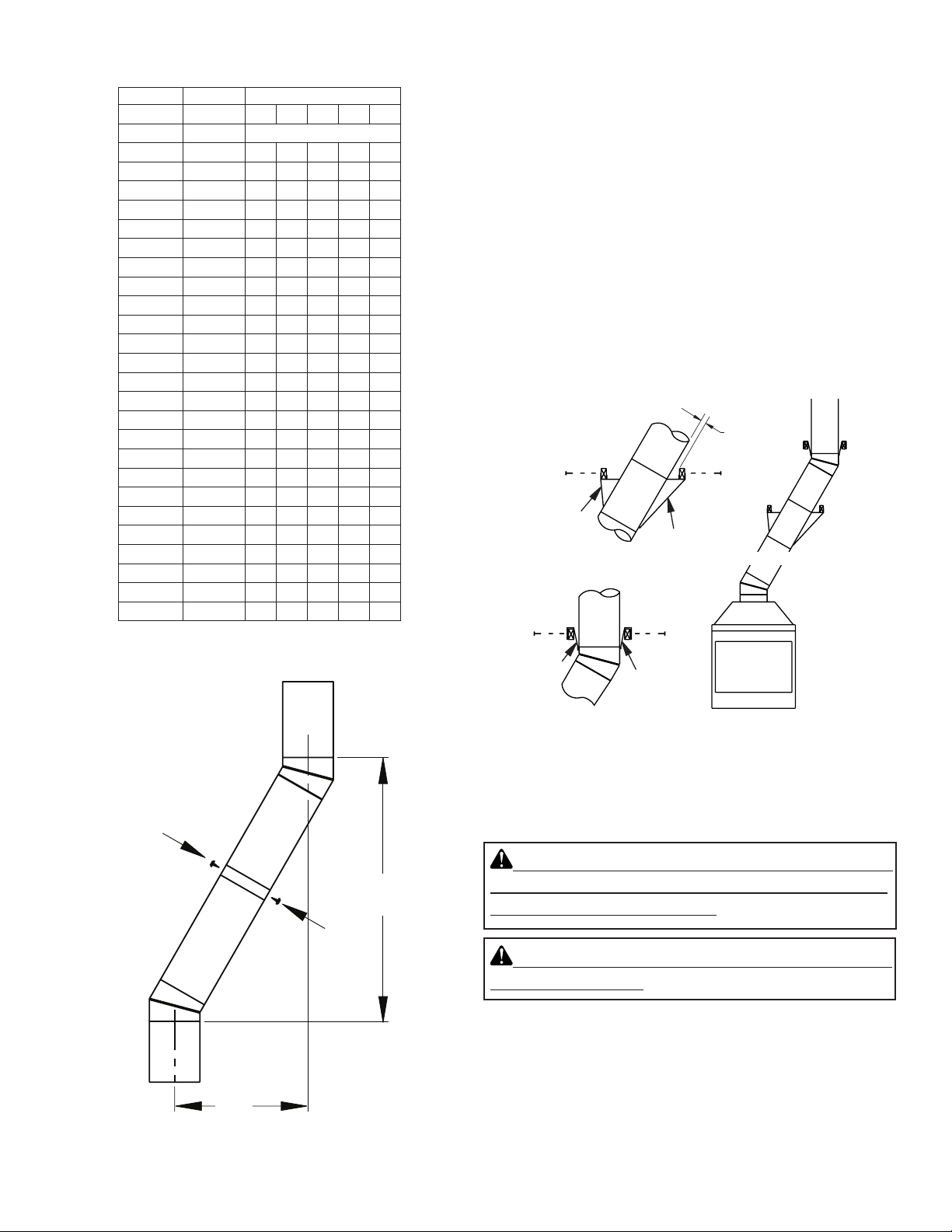

Figure 9 - Elbow Offset
USING ELBOW OFFSETS (30E-12DM)
1. Toachievedesiredoffset,youmayinstallcombinationsof12",
18",24",36"and48"lengthofdoublewallpipe(seeoffsetchart
andFigure9).
2. Chimneyweightaboveoffsetrestsonreturnelbow.Strapsmust
besecurelynailedtoraftersorjoists(seeFigure10,detailsAand
B).
3. Maximum length of pipe between supports (return elbow or
12S-12DM)is6'ofanglerun.Maximumoftwo6'anglerun
sectionsperchimneysystem(seeFigure11,page10).
4. All pipe connections between the offset and return must be
securedwithtwoscrewsontheouterpipeonly(seeFigure
10).Donotpenetratetheinnerstainless.
Figure 10 - Ceiling Support Pipe 12S-12DM
2" Min.
Straps
Straps
Straps
Straps
DetailA
Return Elbow
DetailB
Angle Firestop
See Detail A
See Detail B
CAUTION: THE STRUCTURAL INTEGRITY OF THE
MANUFACTUREDHOMEFLOOR,WALL,ANDCEILING/
ROOF MUST BE MAINTAINED.
WARNING: DO NOT INSTALL IN SLEEPING ROOM
OF MOBILE HOMES.
B
A
Screws

Astria.US.com 126640-01D10
VENTING INSTALLATION Continued
FIRESTOP SPACERS (FS-10, 1100EFS-10DM FOR 36" MODELS)
Figure 11 - Typical Offset Terminations
Return
Elbow
Offset
Elbow
Return
Elbow
Offset
Elbow
6' Max.
6' Max.
6' Max.
6' Max.
6' Max.
6' Max.
Return
Elbow
Offset
Elbow
Offset
Elbow
Return
Elbow
ABC
Offset
Elbow
Ceiling
Support Pipe
12S-12DM
Return
Elbow
Figure 12 - Firestop Spacer with Living Space Above Ceiling
Figure 13 - Firestop Spacer with Attic Space Above Ceiling
Existing
Ceiling
Frame
Firestop
Spacer
Screws or
Staples
(Min. of 8)
Firestop
Spacer
Screws or Staples
(Min. of 8)
Existing
Ceiling
Frame
Firestop spacers are required at each point where the chimney penetrates
a floor space. Their purpose is to establish and maintain the required
clearance between the chimney and the combustible materials. When the
pipe passes through a framed opening into a living space above, the fire-
stopmustbeplacedontotheceilingfrombelowasshowninFigure12.
They also provide complete separation from one floor space to another
or attic space as required by most codes. When the double wall pipe
passes through a framed opening into an attic space, the firestop must
beplacedintoanatticoorasshowninFigure13.
Firestop Thimble FST10
Figure 13a - Firestop Thimble
IMPORTANT NOTICE
When penetrating a ceiling into an attic, a firestop
thimble (FST10) is required to avoid intrusion by insu-
lation and recommended to negotiate a joist.

Astria.US.com126640-01D 11
VENTING INSTALLATION Continued
PENETRATING ROOF
To maintain a 2" clearance to the pipe on a roof with a pitch, a rect-
angular opening must be cut.
1. Determinecenterpointthroughwhichpipewillpenetrateroof.
2. Determine center point of roof. Pitch is distance the roof drops
overagivenspan,usually12".A6/12pitchmeansthatroofdrops
6"foreach12"measuredhorizontallydownfromroofrafters.
3. Useroofopeningchart(Figure14)todeterminecorrectopening
length and flashing required.
4. Removeshinglesaroundopeningmeasured.Cutoutthissection.
5. Addnextsectionsofpipeuntilendpenetratesroofline.Check
toseethatproperclearancesaremaintained.Extendchimneyby
addingsectionsofdoublewallpipeuntilpipeisminimumof30"
above highest point of roof cutout. Termination and chimney must
extendaminimumof36"abovehighestpointwhereitpasses
through roof.
Roof Opening 42" and 50" Models
Pitch Slope Opening
"A" Max.
Used Flashing
Model No.
Flat 0° 19.5" V6F-10DM
0-6/12 26.6° 22' V6F-10DM
6/12-
12/12 45.0° 27" V12F-10DM
19.5" Min. 30" Min.
2" Min.
2" Min.
2" Min.
Opening "A"
Figure 14 - Roof Opening Measurements
Nail Only
Outer
Perimeter
of Flashing
Storm Collar
Flashing
Cone
Underlap Shingles
at Bottom
Overlap
Shingles Top
and Sides Only
Figure 15 - Flashing Installation
Figure 16 - Storm Collar
Chimney
Pipe
Waterproof
Caulk
Storm
Collar Flashing
FLASHING INSTALLATION (V6F-10DM OR V12F-10DM)
Determinetheashingtobeusedwiththeroofopeningchart.Slide
ashingoverpipeuntilbaseisatagainstroof.Replaceasmany
shinglesasneededtocoverexposedareaandashingbase.Secure
inpositionbynailingthroughshingles(seeFigure15).DONOTNAIL
THROUGHFLASHINGCONE.
Installing Flashing on a Metal Roof
When installing the flashing on a metal roof, it is required that putty
tape be used between the flashing and the roof. The flashing must be
securedtotheroofusing#8x3/4"screwsandthensealedwithroof
coating to prevent leakage through the screw holes. A roof coating
must also be applied around the perimeter of the flashing to provide
a proper seal.
Storm Collar Installation (SC2-1)
Place storm collar over pipe and slide down until it is snug against
theopenedgeoftheashing(seeFigure16).Applywaterproofcaulk
around the perimeter of the collar to provide a proper seal.

Astria.US.com 126640-01D12
VENTING INSTALLATION Continued

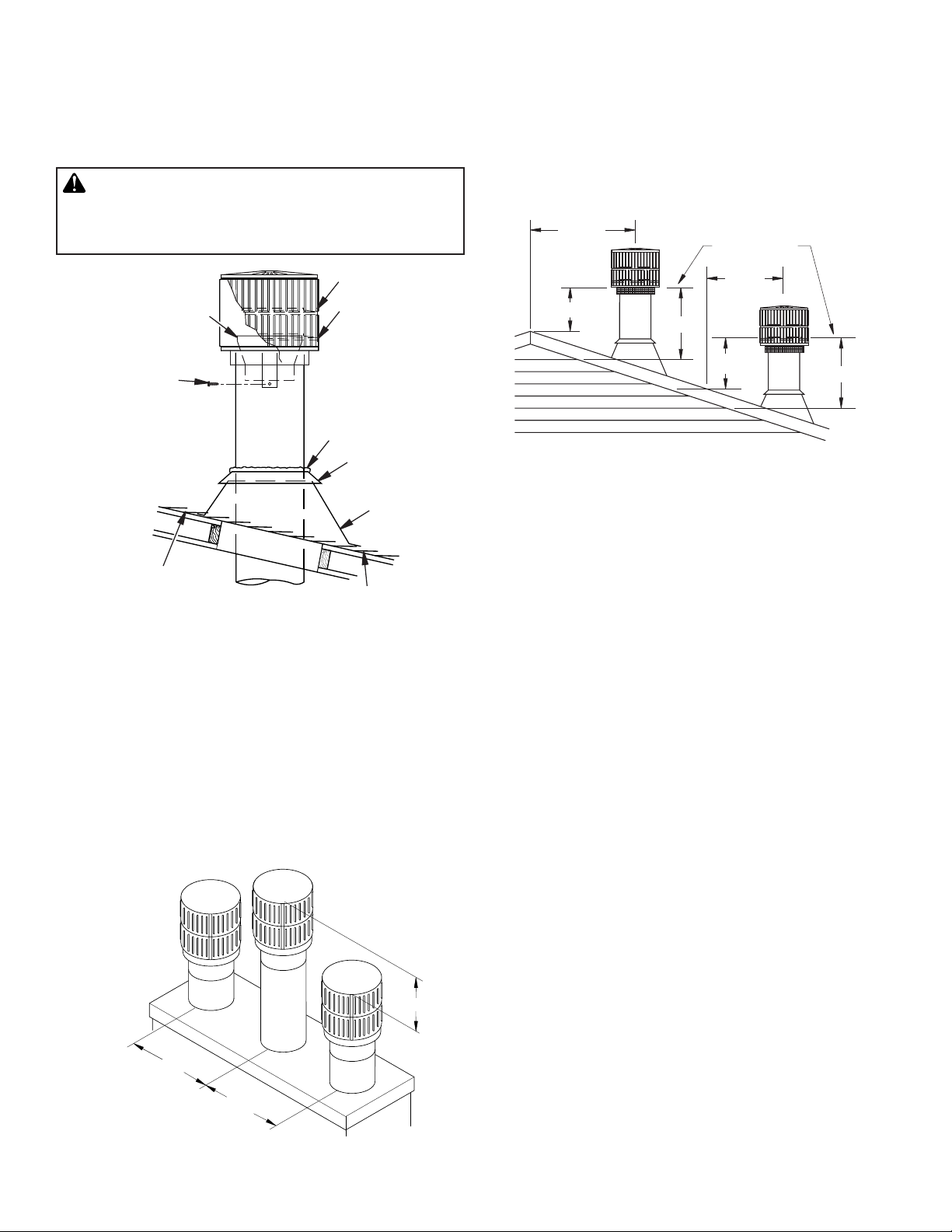

Terminations/Spark Arrestor
The fireplace system must be terminated with the listed round top or
chaseterminations.Inanycase,refertotheinstallationinstructions
supplied with the termination.
CAUTION: Do not seal openings on the rooftop
ashing.Followtheinstallationinstructionsprovided
with the termination being used.
24" Min.
24" Min.
18"
Min.
Typ.
Figure 18 - Multiple Chase Installation
10'
2' Min.
10'
3' Min.
2' Min. 3' Min.
Level of
Flue Gas
Outlet
Figure 19 - 10 Foot Rule
Figure 17 - Termination
RLT-12D
Level of
Flue Gas
Outlet
Stainless
Inner Flue
Pipe
Waterproof
Caulking
Storm
Collar
Flashing
Underlap
Shingles
Overlap
Shingles (Top
and Sides of
Flashing Base)
Secure
Termination
to Outer
Pipe with 3
Screws
CHASE INSTALLATIONS
Instructionsforchaseinstallationsareincludedwiththechasestyle
terminationchosen.Inamultiplechaseinstallation,besuretoprovide
adequate distance between terminations to prevent smoke spillage
from one termination to another. We suggest that terminations be
separated at least 24", center to center and stacked at a vertical height
differenceof18"(seeFigure18).
Note:Ifadecorativeshroudistobeinstalled,contactthemanufacturer
for specifications.
10 FOOT RULE
All flue gas outlet chimney terminations must extend a minimum of
3feetinheightabovethehighestpointwhereitpassesthroughthe
roof and must be at least 2 feet above the highest point of the roof
thatiswithinahorizontaldistanceof10feet(seeFigure19).
FINISHING FIREPLACE
Combustiblematerials,suchaswallboard,sheetrock,drywall,plywood,
etc. may make direct contact with sides and top around the fireplace
face.Itisimportantthatcombustiblematerialsdonotoverlaptheface
itself. Brick, glass, tile or other noncombustible materials may overlap
the front face provided they do not obstruct essential openings like
louvered slots or any other opening. When overlapping with a noncom-
bustible facing material, use only noncombustible mortar or adhesive.

Astria.US.com126640-01D 13
MOSAIC MASONRY BRICK PANELS AND ESTATE REFRACTORY PANELS INSTALLATION
NOTE:AMosaicMasonryorEstatelinerisrequiredforusewithyour
GeorgianCat42,orGeorgianCat50Firebox.(Notsupplied,seepage
22formodelsavailable).
MOSAIC MASONRY BRICK INSTALLATION
IMPORTANT: Installation of brick panels should be
done after the fireplace is placed in a permanent
location.
Note:Removegrate,screenassembliesandallhardwarecomponents
out of the box prior to installation.
INSTALLATION

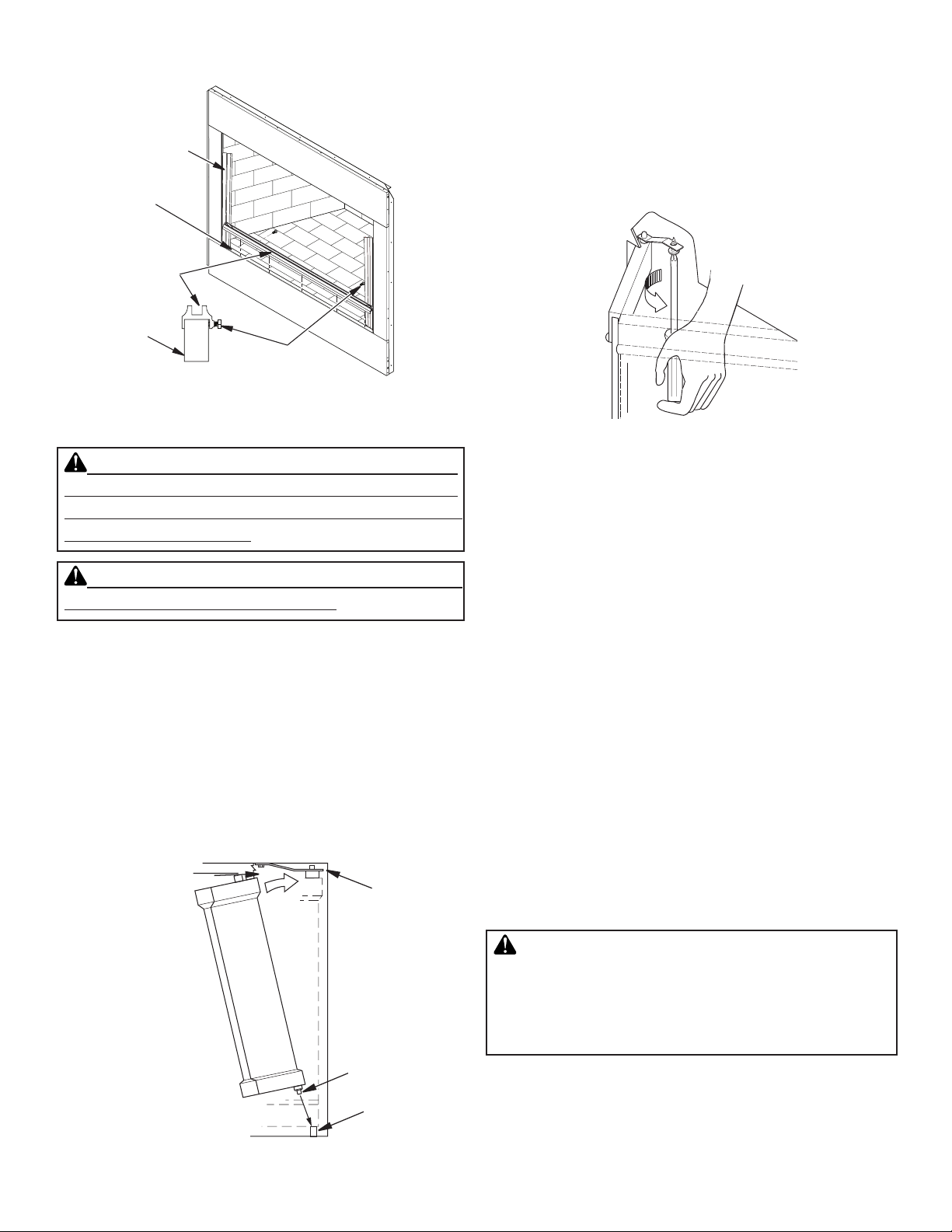

1. Installbottombrickpanel.Usingatleasttwopeople,holdbot-
tom brick panel by its side edges. Place the back edge of bottom
panel into the firebox first and carefully lower the front edge of
panel. Make sure bottom panel is centered in the firebox and
flush with the front of the fireplace. Be careful not to pinch your
ngersbetweenthepanelandrebox(Figure20).
2. Installtheleftandrightsideleadingbricks(Figure20).
WARNING
LIFTING HAZARD
SINGLE -PERSON LIFT COULD
CAUSE INJURY.
USE ASSISTANCE WHEN MOVING
OR LIFTING.
Figure 20 - Installing Hearth and Leading Brick panels
HearthPanel
Side leading
brick Panel
3. Installtheleftandrightrebrickwalls.Thereisabracketwith2
tabs on the bottom of each firebrick wall. Angle the wall into the
replaceopeningandintotheslotsonthesideofthehearth(Fig-
ure21),thentiltthetopofthepaneltowardthereboxsurround.
Figure 21 - Slots for Firebrick Walls
Figure 22 - Installing Side Walls
Retaining
Bracket
Leading
Brick
RightWall
Slot RightFace
Hearth
4. Securetherebrickwallusing2oftheretainersprovided.The
bracket will slip underneath the metal lip on the top of the wall
andscrewintotheinnerdomeofthereplace(Figure22).
5. Installtherearrebrickwalllast.Placethewallfacesidedown
on the hearth with the bottom of the wall toward the rear of the
firebox and the top toward the front of the fireplace. Tilt the wall
uptowardthebackoftherebox.Securewith2rearretaining
bracketsprovided(Figure23,page14).
6. Itisrecommendedthatthejointsbetweenallrebrickwalls
be grouted for a more finished look, see grouting instruc-
tions. For more information and to watch a how to video go
to Astria.US.comandselectTechnicalSupport.

Astria.US.com 126640-01D14
Figure 23 - Installing Rear Wall
RetainingBracket
Figure 25 - Installing Grate Retainers
Figure 24 - Installing Fireplace Screen
RatingPlate HoleforScreenRod
Leading
Bricks
GROUTING INSTRUCTIONS
Note: Grouting material provided with mosaic brick kit
1. Moisten brick surface with damp sponge or spray bottle just prior
to application. When bricks are wet, any excess grout mixture
on bricks will easily wipe off.
2. Inaheavydutymixingbucket,addequalpartscementandsand.
Add enough water and mix together well using a power drill with
mixingwandattachmenttoayogurtlikeconsistency.Notadding
enough water can lead to grout falling out after burning.
3. Theoveralllengthofpipingbagshouldbeabout16".Ifthebagis
longerthan16",cutitdowntosizebyremovingendwithlarger
opening. This will make the bag easier to handle.
4. Put grout mixture into piping bag making sure the smaller
opening is downward and over a moist towel to avoid spilling.
Place a wet towel over the bucket making sure it is directly on
the surface of grout mixture. This will keep the mixture moist
and it will not dry out before use.
5. Groutalljointswheretworebrickwallscometogether.
6. Usingatrowel,removeexcessgroutmixturebymovingtrowel
inthedirectionofthejoint.Groutmixtureinthejointshouldnow
beushwithbricksurface.Ifnotenoughgroutisappliedinto
each space, grout may fall out after burning.
7. Using a joint striker, smooth out grout line. Allow 72 hours
before operating fireplace.
INSTALLING GRATE RETAINERS
1. Place the provided grate retainers on the hearth as shown in Fig-
ure25.Thebackoftheretainerwillbeushwiththerearrebrick
wall. Mark the center of the hole on the hearth with a marker.
2. Drill two holes in the hearth in the marked locations using a
masonry3/16"drillbit.
3. Securegrateretainerwithmasonryscrewsprovided.
WARNING: Risk of fire! Replace grate with IHP
approved grate only. The grate has been designed
to keep the operation of your fireplace safe and
efficient.
INSTALLING SCREEN
1. Slideroundendofscreenrodintoringsattopofscreen.Attach
one push-on nut to end of rod before attaching last ring of screen.
2. Inserttheroundendscreenrodintoholeontheleftandright
sideofsmokeshelf(Figure24).
3. Mountatendofscreenrodwith#10x5/8"tocenterofsmoke
shelf.
4. Installotherscreenrodinsamemanner.
MOSAIC MASONRY BRICK PANELS AND ESTATE REFRACTORY PANELS INSTALLATION Continued

Astria.US.com126640-01D 15
ESTATE REFRACTORY PANELS INSTALLATION
Note:Removegrate,screenassembliesandallhardwarecomponents
out of the box prior to installation.
1. Installbottombrickpanel.Usingatleasttwopeople,holdbot-
tom brick panel by its side edges. Place the back edge of bottom
panel into the firebox first and carefully lower the front edge of
panel. Make sure bottom panel is centered in the firebox and
flush with the front of the fireplace. Be careful not to pinch your
fingers between the panel and firebox.
2. Position "Z" shape retaining brackets on top of the notched area
towardtherearofthebottombrickpanel.Grateretainingbracket
shouldbepositionedasshowninFigure25,page14.
3. Installrearbrickpanel.Thispanelhasatopandbottomside.
To determine correct position, match up the pattern on the rear
panel with the right and left brick panels before installing. Make
sure rear panel is centered before continuing.
4. Installtherightandleftbrickpanelswiththegaslineknockouts
placed down toward the bottom refractory. Align the right an left
brick panels with the rear panel so the grout lines line up.
5. Installuppercornerbracketsandtightensetscrews(seeFigure
26).
6. Installgratebyplacingrearlegsintoslotsinthegrateretainer
(seeFigure26)
MOSAIC MASONRY BRICK PANELS AND ESTATE
REFRACTORY PANELS INSTALLATION Continued
Figure 26- Installing Refractory Panels
LEFT BRICK
PANEL
PANEL
RIGHT BRICK
REAR BRICK
PANEL
BOTTOM
BRICK PANEL
GRATE GRATE RETAINER
ASH PANEL
BRACKET (2x)
UPPER CORNER
BRACKET (2x)
OPTIONAL GAS LINE INSTALLATION
Gas line hook up should be done by your supplier or a qualied
service person.
Note: Before you proceed, make sure your gas supply is turned off.
Useonlya1/2"blackironpipeandappropriatettings.
1. Removeknockoutindentationonrefractoryorrebrickwalllo-
catedaboverefractoryhearthoor.Knockoutindentationmustbe
rmlytappedwithanysolidobjectsuchasa1/2"doweluntilitis
released.Removefragmentedportionsofrefractory(seeFigure
27).
2. Removegaslinecoverplatelocatedoneithersideofreplaceand
pulloutinsulationfromgaslineconduitsleeve.Saveinsulationfor
reuse.Replacescrews.
3. Runa1/2"blackirongaslineintoreplacethroughtherearatgas
lineconduitsleeve(ifusingaraisedplatform,addheight).Provide
sufcientgaslineintoreplacechamberforttingconnection(see
Figure28,page16).
Note:Secureincominggaslinetowoodframingtoproviderigidityfor
threaded end.
4. Repackinsulationaroundgaslineandintosleeveopening.Sealany
gaps between gas line and refractory knockout hole with refractory
cementorcommercialfurnacecement,Installthegasapplianceor
cap-off gas line if desired.
CAUTION: All gas piping and connections must be
tested for leaks after the installation is completed.
After ensuring that the gas valve is on, apply soap and
water solution to all connections and joints. Bubbles
formingshowa leak.Correctallleaks atonce.DONOT
USEAN OPENFLAME FORLEAK TESTINGAND DONOT
OPERATE ANY APPLIANCE IF A LEAK IS DETECTED.
LEAK TESTING SHOULD BE DONE BY A QUALIFIED
SERVICE PERSON.
WARNING: Do not operate an unvented gas log set in
this fireplace with the chimney removed.
Figure 27 - Gas Line Access
Side
Firebrick
Finished
Side
Brick with
Access
Hole
Outside of
Fireplace
Gas Line
Conduit
Insulation
Gas
Conduit
Cover
1/2" Dowel
Remove
Knockout

Astria.US.com 126640-01D16
AIR DEFLECTOR AND GLASS DOOR INSTALLATION
INSTALLING AIR DEFLECTORS (42" MODELS ONLY)
Slideairdeectorinbetweenthefrontsidefaceandsidebrickpanel
(seeFigure31,page17).Thenotchedendofthedeectorsitson
bottom hearth. Air deflector does not require any fastening.
The front side faces and side brick panels will hold the deflector in
place(seeFigure31,page17).
DOOR FRAME MODELS
BDMO42E/G/C AND BDMO50E/G/C
Installation
1. Removescrewsfromsmokeshelf(seeFigure30).
2. Mount top door frame and secure with screws provided (see
Figure30).
3. Placebottomdoorframeontopofashlipatfrontofreplace
(seeFigure31,page17).
4. Securebottomdoorframetobrickwithtwohexscrewsprovided
asshowninFigure31,page17usinga7/16"openendoradjust-
able wrench.
Figure 30 - Installing Top Door Frame
Top Door
Frame
Smoke
Shelf
OPTIONAL GAS LINE INSTALLATION Continued
Seal
Opening
with
Refractory
Cement
Outside of
Fireplace
Gas Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
Provide Enough
Threaded
End for Fitting
Connection
Figure 28 - Gas Line Installation
A gas line or gas log lighter may be installed for the purpose of installing
a vented or vent-free decorative gas appliance incorporating an automatic
shutoffdeviceandcomplyingwiththeStandardforDecorativeGasAp-
pliancesforInstallationinVentedFireplaces,ANSIZ21.60orAmerican
GasAssociationdraftrequirementsforGasFiredLogLightersforWood
BurningFireplaces,DraftNO.4datedAugust,1993.
Ifyouinstalladecorativegasappliance(ventedgaslog),thedeco-
rativegasappliancemustcomplywiththeStandardforDecorative
GasApplianceforInstallationinSolidFuelBurningFireplaces,ANS
Z21.60orZ21.84andshallalsobeinstalledinaccordancewiththe
NationalFuelGasCode,ANSI7223NFPA54latestedition.
Ifyouwishtoinstallanunvented(vent-free)gaslogset,onlyunvented
gas log sets which have been found to comply with the standard for
unventedroom heaters, ANSI Z21.11.2 aretobe installed in this
fireplace.
WARNING: If the fireplace has been used for wood
burning, the firebox and chimney must be cleaned
of soot, creosote and ashes be a qualified chimney
cleaner. Creosote will ignite if heavily heated.
WARNING: When using a decorative vented gas log,
the damper must be removed or permanently locked in
the fully open position and the glass doors must be in
the fully open position.
PUREFIRE HOOD INSTALLATION
1. The PureFire hood supplied with this fireplace is packaged in a
separate box and placed in the firebox during shipping.
2. Removehoodfrombox.Locatebrackets(quantity2)andscrews
(quantity4)forhoodinstallationinthehardwarebag.
3. Usingscrewsprovided,securethebrackettotheinnerdomeof
thereplaceasshowninFigure29.Theleftandrightbracketare
different. The edge that is straight will be closer to the fireplace
opening.
4. Lift hood up into the replace and place it on the retaining
brackets(Figure29).Therearofthehoodwilltouchingtherear
of the fireplace.
Figure 29 - Installing PureFire Hood

Astria.US.com126640-01D 17
INSTALLING GLASS DOORS
Spring clips have been installed but some adjustments may be
needed.Installthedoorsusingthefollowingsteps:
1. Withbifolddoorscompletelyfolded,insertbottompivotpininto
pivot hole located near bottom corner of front face opening and
swing door to vertical position making sure top pins slide into door
track. Door is installed when top door pin snaps into spring clip.
2. Repeatstep1forremainingdoor.
Ifyoundthedoorsdonotcloseproperlyordonotappearlevelor
straight, proceed with section on door adjustment,
DOOR ADJUSTMENT
Removedoorsandslightlyloosenlowerpivotclipsandupperspring
clips.Replacedoorsandfullyclosethem.Use1/8"shims(anymate-
rial)toleveldoors.Oncepropersettingisachieved,carefullyopen
doors enough so that you can access spring clips with a phillips
screwdriver.Tightenscrews.SeeFigure33.
Figure 32 - Installing Bi-Fold Doors
Spring
Clip
Insert Pin
into Spring
Clip
Pivot
Hole
Insert
Bottom
Pivot Pin
into Hole
Fold Door
and Slide
Top Pins
Into Track
Figure 33 - Adjusting Bi-Fold Doors
AIR DEFLECTOR AND GLASS DOOR INSTALLATION Continued
WARNING: Discontinue use of the appliance im-
mediately if doors are damaged and contact a quali-
fied installer for repair. Only doors certified with the
appliance shall be used.
WARNING: Do not slam or strike doors. Damage
can result in a hazardous condition.
Figure 31 - Installing Bottom Door Frame and Air Deflector
Hex
Screw
Bottom
Door
Frame
Ash Lip
Ash Lip
Air
Deector
OPERATION AND MAINTENANCE GUIDELINES
GLASS DOORS
Glassdoorsareoptionalwiththereplace.Whenreplaceisinoperation,
doors must be fully opened or fully closed position only or a fire hazard
maybecreated(seeFigure34).
A fireplace equipped with glass doors operates much differently than a
fireplace with an open front. A fireplace with glass doors has a limited
amount of air for combustion.
Excessiveheatwithinthereplacecanresultiftoolargeareisbuiltor
if combustion air gate is not completely open. The following tips should
be followed to assure that both the fireplace and glass door retain their
beauty and function properly. Both the flue damper and glass doors
must be fully opened before starting fire. This will provide sufficient
combustion air and maintain safe temperatures in firebox.
IMPORTANT: The glass must be allowed to warm slowly and evenly.
Thetemperedglasswillwithstandagradualtemperatureriseto550°F,
whichismorethananormalrewillgenerate.Suchmaterialsaspitch/
wax laden logs, very dry mill end lumber and large amounts of paper or
cardboard boxes can create an excessively hot fire and should not be
burned in this fireplace. Always keep the fire well back from the doors
and never allow flames to contact the glass.
WARNING: Fireplaces equipped with glass doors
should be operated only with doors fully opened or
doorsfullyclosed. Doors,ifleftpartly open,maydraw
gasandameoutofthereplaceopeningcreating
risks of both fire and smoke.

Astria.US.com 126640-01D18
PUREFIRE EMISSION CONTROL SYSTEM
ThisreplaceisequippedwithaPureFireEmissionControlSystem.
TheCatalyticHoodsystemreducesparticulatesemissionsinawood
burningreplacetomeettheEPAWood-BurningFireplaceProgram
Phase 2 emission level.
TheEPAqualifyinglabel,shownonpage19,willbeafxedtothe
catalyst. Before lighting the first fire, remove and maintain this label
in a safe place if needed for permits or building inspection. Prior to
beginning installation, contact your local building official to determine
the need to obtain a permit. For proper operation, catalyst must be
replaceevery3to5years.
FUELING GUIDELINES
The fireplace grate must always be secured to the retaining brackets
provided. The position of the grate must be centered against the back
wall of the firebox.
Burnonlydry,seasoned(cured)woodwithlessthan20%moisture.
Avoidtheuseoftreated,paintedandlaminatedwood.Neverburn
garbage or other foreign materials. Do not use artificial logs, colored
newspaper or petroleum based fire starters. Avoid wood with high
salt content. All of these materials may contain compounds which can
shorten the life of the catalyst. Wet or unseasoned wood may lower
catalytic temperatures and result in inefficient operation.
The catalyst is designed to function at optimum efficiency when the
fireplace is burning clean, dry, cord wood as fireplace fuel. A simple
visual inspection of the chimney during the wood burning process
will determine catalyst performance.
The fuel load should always be placed on the back of the grate.
Usecleandrywood,seasonedcordwoodisthebestchoice.Never
burn trash, plastics, gasoline, rubber, industrial solvents, flammable
liquids, naptha, household garbage, material treated with petroleum
products, leaves, paper products, cardboard or salt driftwood.
RefertoyourINNOVATIVEHEARTHPRODUCTS(IHP)Homeowner's
Guideincludedwithyourreplaceforproperrebuildingtechnique
and ash removal procedures. These fueling guidelines must be fol-
lowed in order to achieve maximum emissions performance from
thePureFireSystem.
OPERATION
The proper use of a wood burning fireplace equipped with the catalyst
willsignicantlyreducetheemissionsthatitproduces.Simplefuel
considerations with regard to moisture content, size, and quality of
fuel will help control the production of wood smoke and improve the
performance of the catalyst and fireplace efficiency. With proper care,
the catalyst will provide years of fuel savings and lowered emissions.
By following some simple guidelines, you will ensure maximum
performance and longevity.
The smoke that is usually seen coming out of a chimney is essentially
acombinationofunburnedfuel(carbonandhydrogen)andmoisture
in the form of water vapor. The catalyst is a technology that provides
secondary combustion for the wood burning process.
MAINTENANCE
ThePureFireSystemisamaintenancefreetechnology.Donotattempt
to remove or clean the combustor. The direct flame from the fire will
cleanthecombustor.Onlyacertiedtechnicianshouldremovethe
unit.Toensureproperreplaceoperation,thePureFireSystemshould
bereplacedevery3to5years(seePartsonpage20).

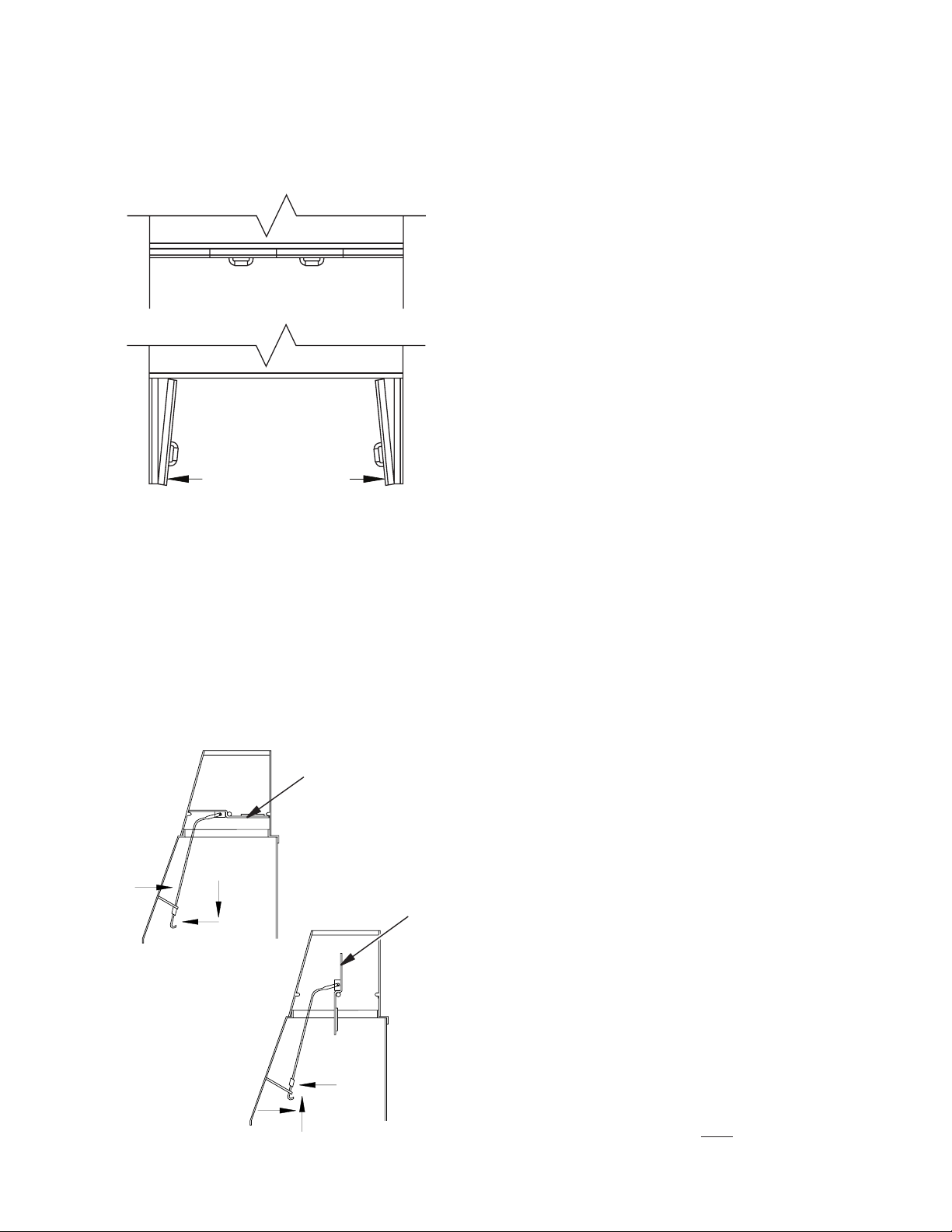

Figure 34 - Bi-Fold Glass Doors
Doors Fully Closed
Fireplace Front
Doors
Fully Opened
Fireplace Front
Cleaning Glass
Cleanglasswithanycommercialglasscleanerorsoapandwater.Do
not use any abrasive material to clean glass. Do not clean glass with any
cool water if glass is still hot from the fire and smoke.
OUTSIDE AIR AND DAMPER HANDLE OPERATION
The damper handle, which opens and closes the damper blade, is
located in the upper front face of the fireplace. Pushing the handle
forward and up through the keyway slot will free damper blade to
automatically open. Pushing the handle forward and down will lock
damperbladeclosed(seeFigure35).Dampermustbelockedinthe
fullopenpositionbeforeoperatingreplace(seeFigure35).
Figure 35 - Operating Damper Handle
Damper
Weight
To Close
Damper
To Open
Damper
Damper
Weight
OPERATION AND MAINTENANCE GUIDELINES
Continued

Astria.US.com126640-01D 19
PUREFIRE EMISSION CONTROL SYSTEM Continued
NOTE:Chimneysmokemaybevisibleduringtherst8to10minutes
of fireplace operation when the fire is first getting started and the
nal8to10minutesofoperationwhilethereisdissipating.Under
normal operating conditions, you should see little or no smoke coming
outofthechimney.Ifcontinuoussmokeisvisible,makesureonly
dryseasonedwoodisbeingburned.Ifvisiblesmokecontinues,the
combustorhasceasedtofunctionorthereisthermalcrumbling.Call
yourIHPdistributorordealerfor replacement parts.
MANUFACTURER: INNOVATIVE HEARTH PRODUCTS, LLC
MODEL NO: GEORGIAN CAT 50
PARTICLE EMISSIONS: 4.4 GRAMS/KG OF WOOD BURNED
FIREPLACE
SMOKE EMISSIONS RANGE
Higher Emissions
Lower Emissions
012.0
THIS MODEL
EPA PHASE 2 EMISSIONS LEVEL
4.4 5.1
Better Worse
U.S. Environmental Protection Agency
Wood-burning Fireplace Program
Phase 2 Qualified models are cleaner and pollute less than those models that
have not met this emissions level. Exposure to smoke has been associated with
respiratory illness and other health problems. Models that have lower smoke
emissions may reduce your risk.
PHASE 2 QUALIFIED
For more information go to www.epa.gov/burnwise
Fireplaces with lower emissions produce less smoke when installed and operated properly.
* EPA has determined, based on testing by an accredited independent laboratory and a certification
of conformity by a nationally recognized certification body, that this model qualifies at the Phase 2
emissions level for U.S. EPA's Voluntary Fireplace Program.
For proper operation, catalyst must be replaced every 3 to 5 years.
127095-01
For more information go to www.epa.gov/burnwise
U.S. Environmental Protection Agency
Wood-burning Fireplace Program
Phase 2 Qualified models are cleaner and pollute less than those models that
have not met this emissions level.Exposure to smoke has been associated with
respiratory illness and other health problems. Models that have lower smoke
emissions may reduce your risk.
MANUFACTURER: INNOVATIVE HEARTH PRODUCTS, LLC
MODEL NAME: GEORGIAN CAT 42
PARTICLE EMISSIONS: 4.4 GRAMS/KG OF WOOD BURNED
* EPA has determined, based on testing by an accredited independent laboratory and a certification
of conformity by a nation ally recognized certification body, that this model qualifies at the Phase 2
emissions level for U.S. EPA’s Voluntary Fireplace Program.
Better Worse
FIREPLACE
SMOKE EMISSIONS RANGE
Higher Emissions
Lower Emissions
012.0
THIS MODEL
EPA PHASE 2 EMISSIONS LEVEL
4.4
5.1
Better Worse
Fireplaces with lower emissions produce less smoke when installed and operated properly.
127094-01
WARRANTY
INNOVATIVEHEARTHPRODUCTS(IHP)warrantyobliga-
tionsforthePureFireEmissionsControlSystemarelimited
to the terms set forth below.
IHPwarrantstotheconsumerwhopurchasesanewsolid
fuel burning replace containing a PureFire Emissions
ControlSystemasanewcomponent,toreplacethecatalyst
at no charge should it cease to function within three years
from the date of purchase. The PureFire Catalytic Com-
ponent is designed to perform efficiently for three years
of replace operation. ONLY recommended fuels should
be burned. Follow the fueling directions in manufacturers
operation manual. For warranty purposes, proof of fireplace
purchasesisrequired.Laborforremovaland/orinstallation
of the catalytic component is not the responsibility of the
manufacturer.
NeitherIHPnorthedealerwhosellsthePureFireEmissions
ControlSystemisresponsibleforindirect,incidental,spe-
cial, punitive or consequential damages arising out of the
improper use of this product or the continued use of this
product beyond the required replacement period.
TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting.PleasecontactyourIHPdealerforanyquestions
or concerns a. When contacting your dealer please have your model
andserialnumbersofyourreplaceready.Youcanalsovisitour
websiteatAstria.US.com.
REPLACEMENT PARTS
SeePages20TO22foracompletereplacementpartslist.Useonly
parts supplied from the manufacturer.
Normally,allpartsshouldbeorderedthroughyourIHPdistributor
or dealer. Parts will be shipped at prevailing prices at time of order.
When ordering repair parts, always give the following information:
1.Themodelnumberofthereplace.
2. The serial number of the fireplace.
3.Thepartnumber.
4. The description of the part.
5.Thequantityrequired.
6. The installation date of the fireplace.
Ifyouencounteranyproblemsorhaveanyquestionsconcerningthe
installation or application of this fireplace, please contact your dealer.
IHP
1508 Elm Hill Pike, Suite 108
Nashville, TN 37210
Visit us at Astria.US.com

Astria.US.com 126640-01D20

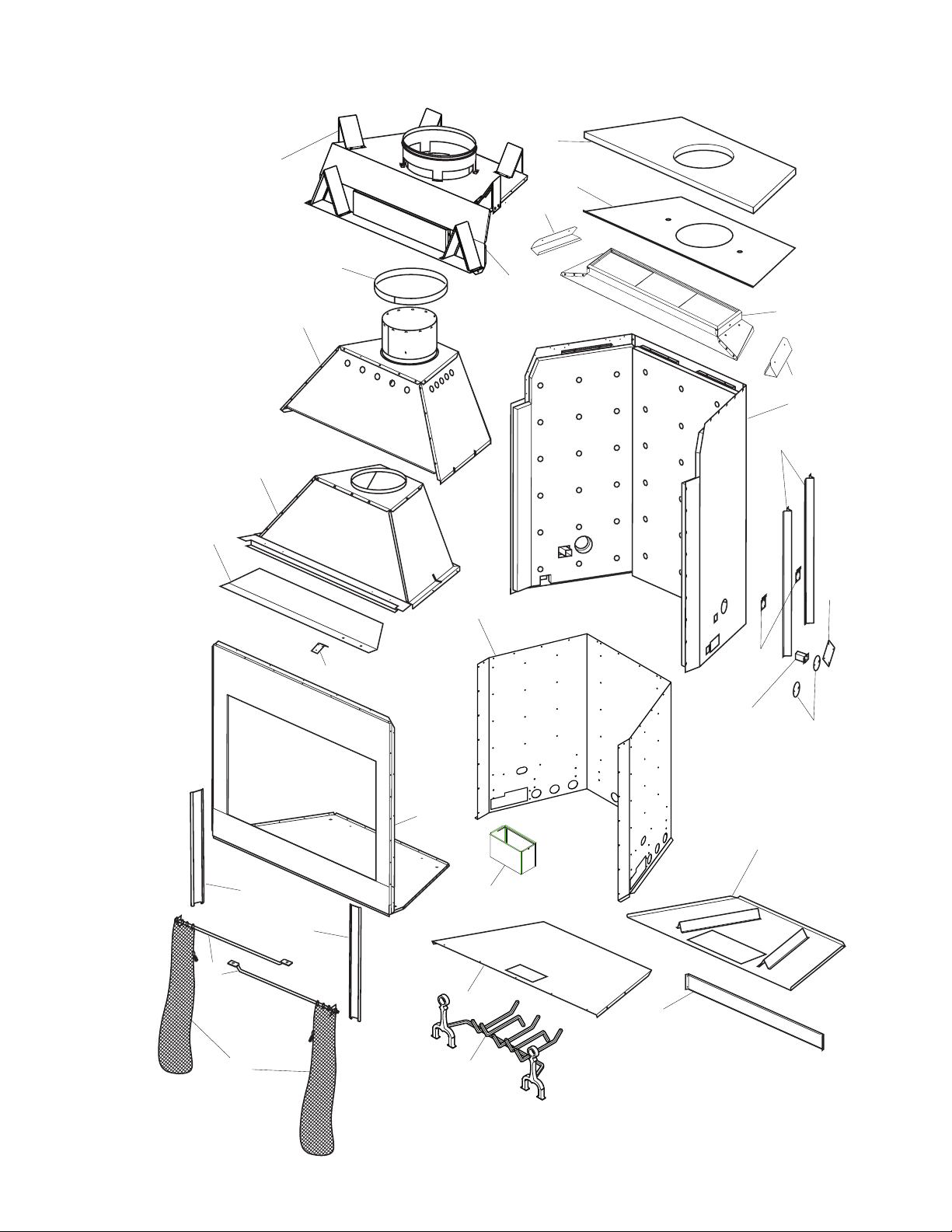

PARTS
MODELS 42", AND 50"
1
21
20
5
6
7
10
9
11
12
13
16/17
15
14
8
24
23
3
25
18
2
22
19
4
26
27
28
29
30
