Asus Portable AiO P1802-T Series User manual

English
User Manual
ASUS Portable AiO
P1802-T Series
First Edition
January 2014
E8685

English
P1802-T ASUS Portable AiO can be used with P1802 ASUS All-in-One PC
COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in
a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO
EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA,
INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING
FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective
companies, and are used only for identication or explanation and to the owners’benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE
SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS
ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING
THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’part or other liability, you are entitled to recover damages from
ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no
more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other
actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the
listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this
Warranty Statement.
This limit also applies to ASUS’suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are
collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR
DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR
ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR
RESELLER IS INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at http://support.asus.com

English
3 ASUS Portable AiO
Table of Contents
About this manual ................................................................................................................................................ 5
Conventions used in this manual ....................................................................................................................... 5
Typography................................................................................................................................................................. 5
Safety information ................................................................................................................................................ 6
Setting up your system...........................................................................................................................................6
Care during use......................................................................................................................................................... 6
Sound Pressure Warning........................................................................................................................................ 7
Package contents.................................................................................................................................................. 8
Chapter 1: Hardware Setup
Getting to know your ASUS Portable AiO .................................................................................................... 9
Front view.................................................................................................................................................................... 9
Chapter 2: Using your ASUS Portable AiO
Placing your ASUS Portable AiO on the table or desk ............................................................................. 15
Charging your ASUS Portable AiO .................................................................................................................. 16
Using touch screen gestures on Android™................................................................................................. 17
Chapter 3:Working with Android™
Starting up for the first time.............................................................................................................................. 21
Android™ lock screen.......................................................................................................................................... 22
Unlocking your device............................................................................................................................................ 22
Entering Google Now..............................................................................................................................................22
Home Screen........................................................................................................................................................... 23
Screen views............................................................................................................................................................... 23
Connecting to the world .................................................................................................................................... 24
Connecting to Wi-Fi networks .............................................................................................................................24
Using Bluetooth ........................................................................................................................................................ 25
Managing Apps...................................................................................................................................................... 27
Creating app shortcuts........................................................................................................................................... 27
Removing an app from the Home Screen....................................................................................................... 27
Viewing app info....................................................................................................................................................... 27
Creating app folder.................................................................................................................................................. 28
Viewing apps under the Recents screen.......................................................................................................... 29
Task Manager ............................................................................................................................................................. 30
File Manager .......................................................................................................................................................... 31
Accessing the internal storage ............................................................................................................................ 31
Accessing the external storage device ............................................................................................................. 31

English
4 ASUS Portable AiO
Table of Contents
Settings..................................................................................................................................................................... 33
Gallery ....................................................................................................................................................................... 34
Gallery main screen ................................................................................................................................................. 34
Sharing and deleting albums............................................................................................................................... 35
Sharing, editing and deleting images ............................................................................................................... 35
Using the wireless display feature................................................................................................................... 38
Using screen sharing mode .................................................................................................................................. 39
Turning your ASUS Portable AiO off............................................................................................................... 40
Putting your ASUS Portable AiO to sleep.........................................................................................................40
Appendices
Notices ...................................................................................................................................................................... 41
REACH........................................................................................................................................................................... 41
ASUS Recycling/Takeback Services.................................................................................................................... 41
COATING NOTICE ...................................................................................................................................................... 41
Federal Communications Commission Statement....................................................................................... 41
RF exposure warning...............................................................................................................................................42
Canadian Department of Communications Statement..............................................................................42
Canada, Industry Canada (IC) Notices ............................................................................................................... 42
Declaration of Conformity (R&TTE directive 1999/5/EC)............................................................................ 44
CE Mark Warning....................................................................................................................................................... 44
CE marking for devices without wireless LAN/Bluetooth.......................................................................... 44
CE marking for devices with wireless LAN/ Bluetooth................................................................................ 45
Wireless Operation Channel for Different Domains.....................................................................................45
VCCI: Japan Compliance Statement................................................................................................................... 45
France Restricted Wireless Frequency Bands ................................................................................................. 46
Band 5G restriction .................................................................................................................................................. 46
Prevention of Hearing Loss .................................................................................................................................. 48
Global Environmental Regulation Compliance and Declaration ........................................................... 49
ENERGY STAR complied product ........................................................................................................................ 49

English
5 ASUS Portable AiO
About this manual
This manual provides information about the hardware and software features of your ASUS
Portable AiO, organized through the following chapters:
Chapter 1: Hardware Setup
This chapter details the hardware components of your ASUS Portable AiO.
Chapter 2: Using your ASUS Portable AiO
This chapter provides you with information on using your ASUS Portable AiO.
Chapter 3: Working with Android™
This chapter provides an overview of using Android™ in your ASUS Portable AiO.
Conventions used in this manual
To highlight key information in this manual, some text are presented as follows:
IMPORTANT! This message contains vital information that must be followed to complete a task.
NOTE: This message contains additional information and tips that can help complete tasks.
WARNING! This message contains important information that must be followed to keep you safe
while performing tasks and prevent damage to your ASUS Portable AiO's data and components.
Typography
Bold This indicates a menu or an item that must be selected.
Italic This indicates sections that you can refer to in this manual.
All illustrations and screenshots in this manual are for reference only. Actual product
specications and software screen images may vary with territories. Visit the ASUS
website at www.asus.com for the latest information.

English
6 ASUS Portable AiO
Safety information
Your ASUS Portable AiO is designed and tested to meet the latest standards of safety for
information technology equipment. However, to ensure your safety, it is important that you
read the following safety instructions.
Setting up your system
Read and follow all instructions in the documentation before you operate your system.
Do not use this product near water or a heated source such as a radiator.
Set up the system on a stable surface.
Openings on the chassis are for ventilation. Do not block or cover these openings. Ensure
that you leave plenty of space around the system for ventilation. Never insert objects of any
kind into the ventilation openings.
Use this product in environments with ambient temperatures between 0˚C and 35˚C.
If you use an extension cord, ensure that the total ampere rating of the devices plugged
into the extension cord does not exceed its ampere rating.
Care during use
Do not walk on the power cord or allow anything to rest on it.
Do not spill water or any other liquids on your system.
When the system is turned o, a small amount of electrical current still ows. Always
unplug all power, modem, and network cables from the power outlets before cleaning the
system.
The touch screen requires periodic cleaning to achieve the best touch sensitivity. Keep the
screen clean from foreign objects or excessive dust accumulation. To clean the screen:
Turn o the system and disconnect the power cord from the wall.
Spray a small amount of a household glass cleaner onto the supplied cleaning cloth
and gently wipe the screen surface.
Do not spray the cleaner directly on the screen.
Do not use an abrasive cleaner or a coarse cloth when cleaning the screen.
If you encounter the following technical problems with the product, unplug the power cord
and contact a qualied service technician or your retailer.
The power cord or plug is damaged.
Liquid has been spilled into the system.
The system does not function properly even if you follow the operating instructions.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

English
7 ASUS Portable AiO
The system was dropped or the cabinet is damaged.
The system performance changes.
Sound Pressure Warning
Excessive sound pressure from earphones or headphones can cause hearing damage or loss.
Adjustment of the volume control as well as the equalizer to settings other than the center
position may increase the earphones or headphones output voltage and the sound pressure
level.
•
•

English
8 ASUS Portable AiO
Package contents
NOTES:
• Contact your retailer if any of the items are damaged or missing.
• Contents may vary per country or region.

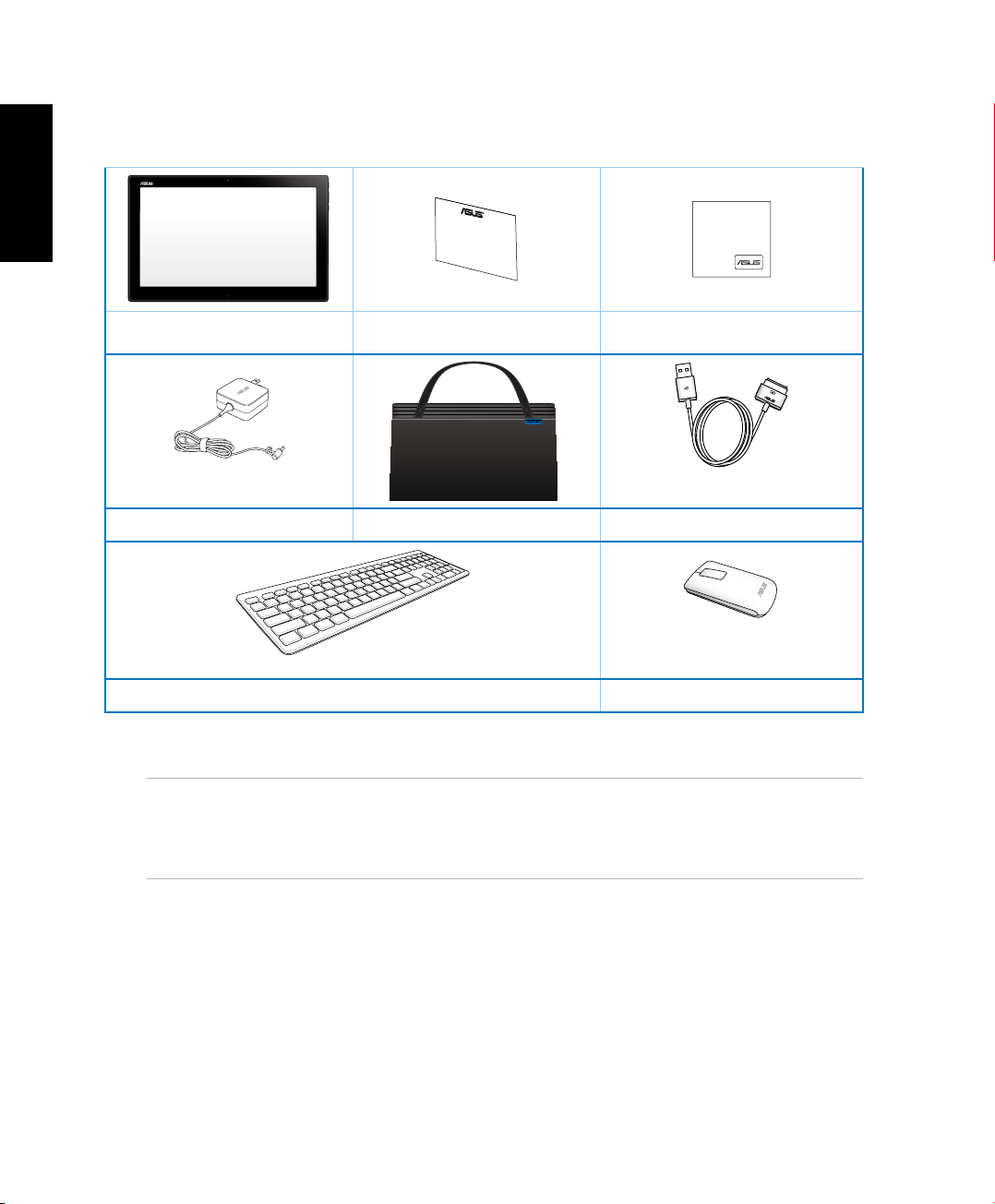

ASUS Portable AiO warranty card cleaning cloth
power adapter ASUS Portable AiO bag USB connection cable
Wireless keyboard Wireless mouse

English
9 ASUS Portable AiO
Chapter 1: Hardware Setup
Getting to know your ASUS Portable AiO
Front view
Webcam
The built-in webcam allows you to start video chats online.
Touch screen panel
This high-denition touch screen panel provides excellent viewing features for photos,
videos, and other multimedia les on your ASUS All-in-One PC. It also allows you to
operate your ASUS Portable AiO using touch gestures.
NOTE: To know more about using touch screen panel gestures when operating your
ASUS Portable AiO, refer to the Using touch screen gestures on Android™ section in this
manual.

English
10 ASUS Portable AiO

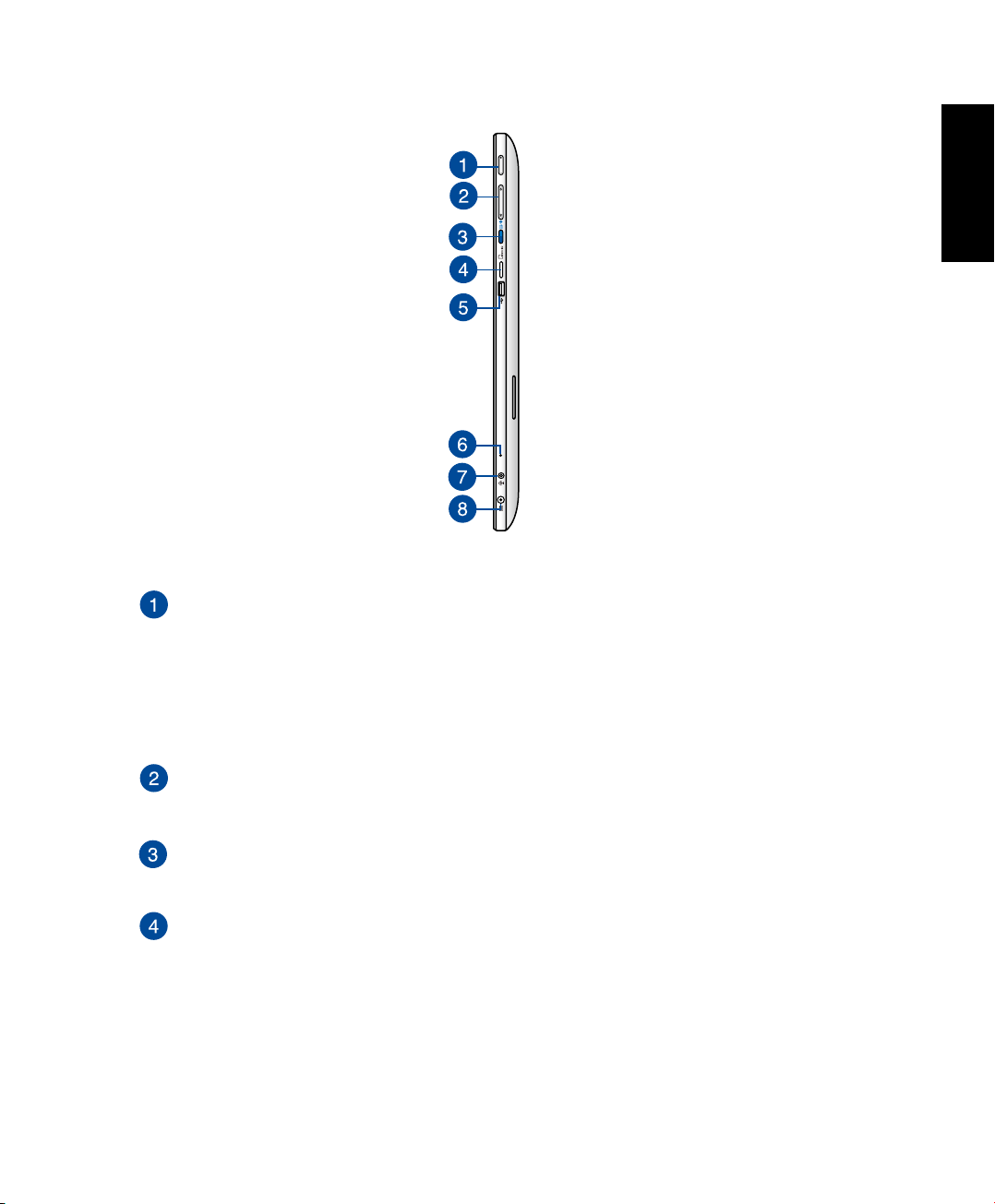

Left Side
Kensington® lock port
The Kensington® lock port allows you to secure your ASUS Portable AiO using
Kensington® compatible security products.

English
11 ASUS Portable AiO
Power button
Press the power button to turn your ASUS Portable AiO on or o. You can also use the
power button to put your ASUS Portable AiO to sleep or hibernate mode and wake it
up from sleep or hibernate mode.
In the event that your ASUS Portable AiO becomes unresponsive, press and hold the
power button for about four (4) seconds until your ASUS Portable AiO shuts down.
Volume control
Press to turn the volume up/down for the current operating system being used.
Mode button
Press this button to switch your operating system from Windows® 8.1 to Android™.
MicroSD card reader
Your ASUS Portable AiO comes with an additional built-in memory card reader that
supports microSD and microSDHC card formats.
Right Side

English
12 ASUS Portable AiO
USB 2.0 port
This Universal Serial Bus (USB) 2.0 port allows you to connect compatible USB 2.0 or
USB 1.1 devices to your ASUS Portable AiO.
Microphone
The built-in microphone can be used for video conferencing, voice narrations, or
simple audio recording.
Headphone output/microphone input combo port
This port allows you to connect your ASUS Portable AiO to amplied speakers or
headphones. You can also use this port to connect your ASUS Portable AiO to an
external microphone.
Power input
The supplied power adapter converts AC power to DC power for use with this jack.
Power supplied through this jack supplies power to the ASUS Portable AiO. To prevent
damage to the ASUS Portable AiO, always use the supplied power adapter.
WARNING! The power adapter may get warm or hot when in use. Do not cover the
adapter and keep it away from your body.

English
13 ASUS Portable AiO
Bottom view
PC Station slots
Align and insert the PC Station tabs into these slots to securely attach the ASUS
Portable AiO to the PC Station.
ASUS Portable AiO connector
This connects the ASUS Portable AiO to your PC Station and transforms both devices
into an ASUS All-in-One PC. While connected to the PC Station, the ASUS Portable AiO
serves as a touchscreen display panel to your ASUS All-in-One PC and also allows you
to access and switch between using Windows® 8.1 and Android™.Windows® 8.1 and Android™.

English
14 ASUS Portable AiO
Rear view
Audio speakers
Your ASUS Portable AiO is equipped with built-in high quality speakers.
ASUS Portable AiO stand
Pull out and adjust the stand to provide stable support for your ASUS Portable AiO
when it is placed on a table or desk.
ASUS Portable AiO handle
Carry the ASUS Portable AiO easily using the ergonomic ASUS Portable AiO handle.
NOTES:
• When docking your ASUS Portable AiO to your PC Station, ensure that your ASUS Portable AiO
stand is returned to its original position.
• The magnet at the back of your ASUS Portable AiO helps you to dock it into your PC Station.
This magnet may de-magnetize nearby objects.

English
15 ASUS Portable AiO
Chapter 2: Using your ASUS Portable AiO
Placing your ASUS Portable AiO on the table or
desk
To place your ASUS Portable AiO on the table or desk:

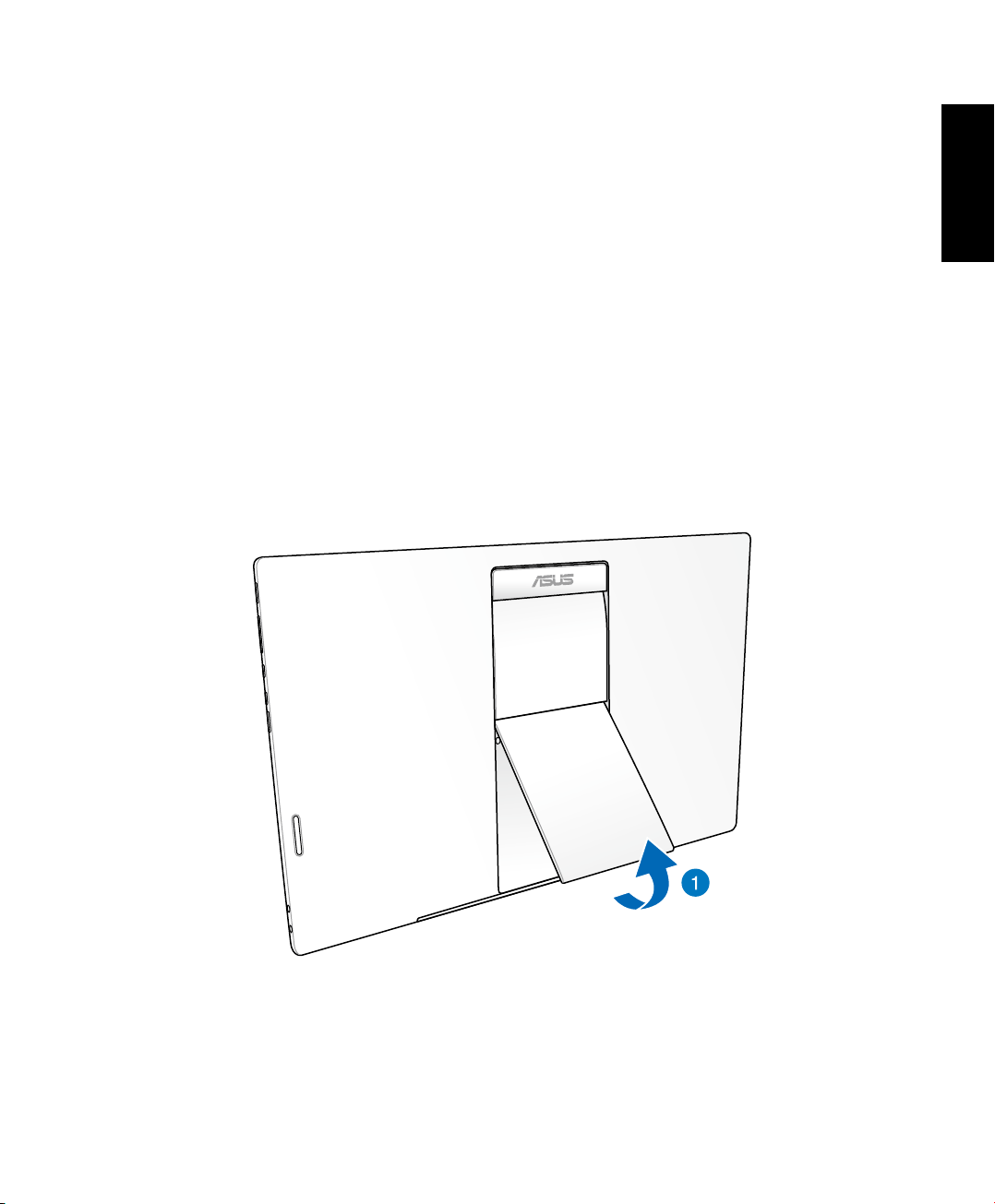

1. Pull and adjust the ASUS Portable AiO stand.
2. Place your ASUS Portable AiO on a at surface such as a table or desk.

English
16 ASUS Portable AiO
Charging your ASUS Portable AiO
110V-220V

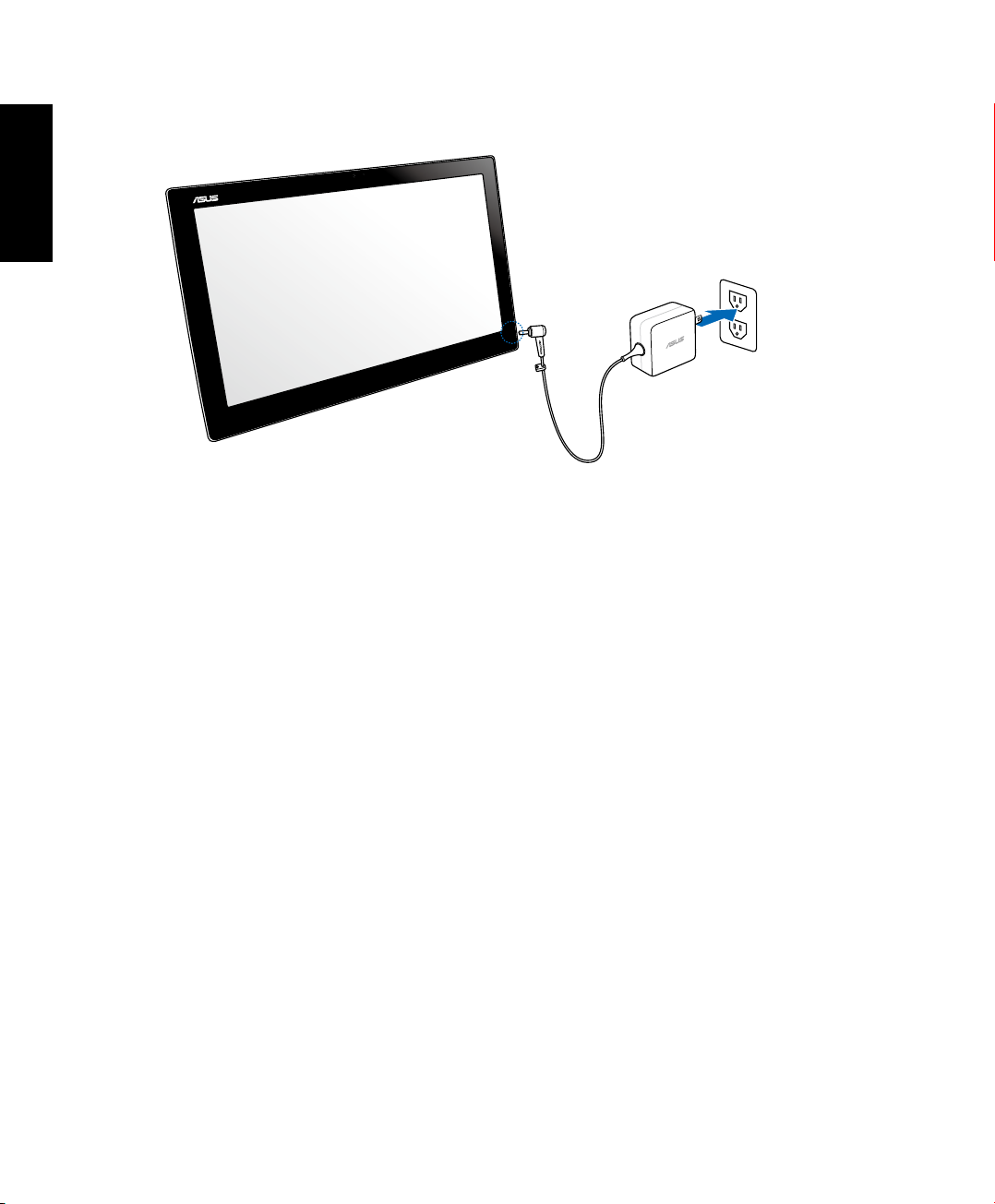

Connect the power adapter to your ASUS Portable AiO’s DC-in port and plug to the correct
socket outlet with the correct input rating. The input voltage of the adapter is 100Vac~240Vac.

English
17 ASUS Portable AiO
Using touch screen gestures on Android™
Use the following touch screen gestures to launch programs and access the settings of your
ASUS Portable AiO. These touch screen gestures can be activated using your ASUS Portable
AiO’s touch screen panel.
To move an app, tap and hold the app and drag it to a new location. •
To delete an app from the main screen, tap and hold the app and drag it up to the top
side of the screen.
•
To capture a screen image, tap and hold .
NOTE: To enable this setting, go to
Settings
> ASUS Customized Setting then tick
Capture screenshots by holding the Recent Apps Key.
•

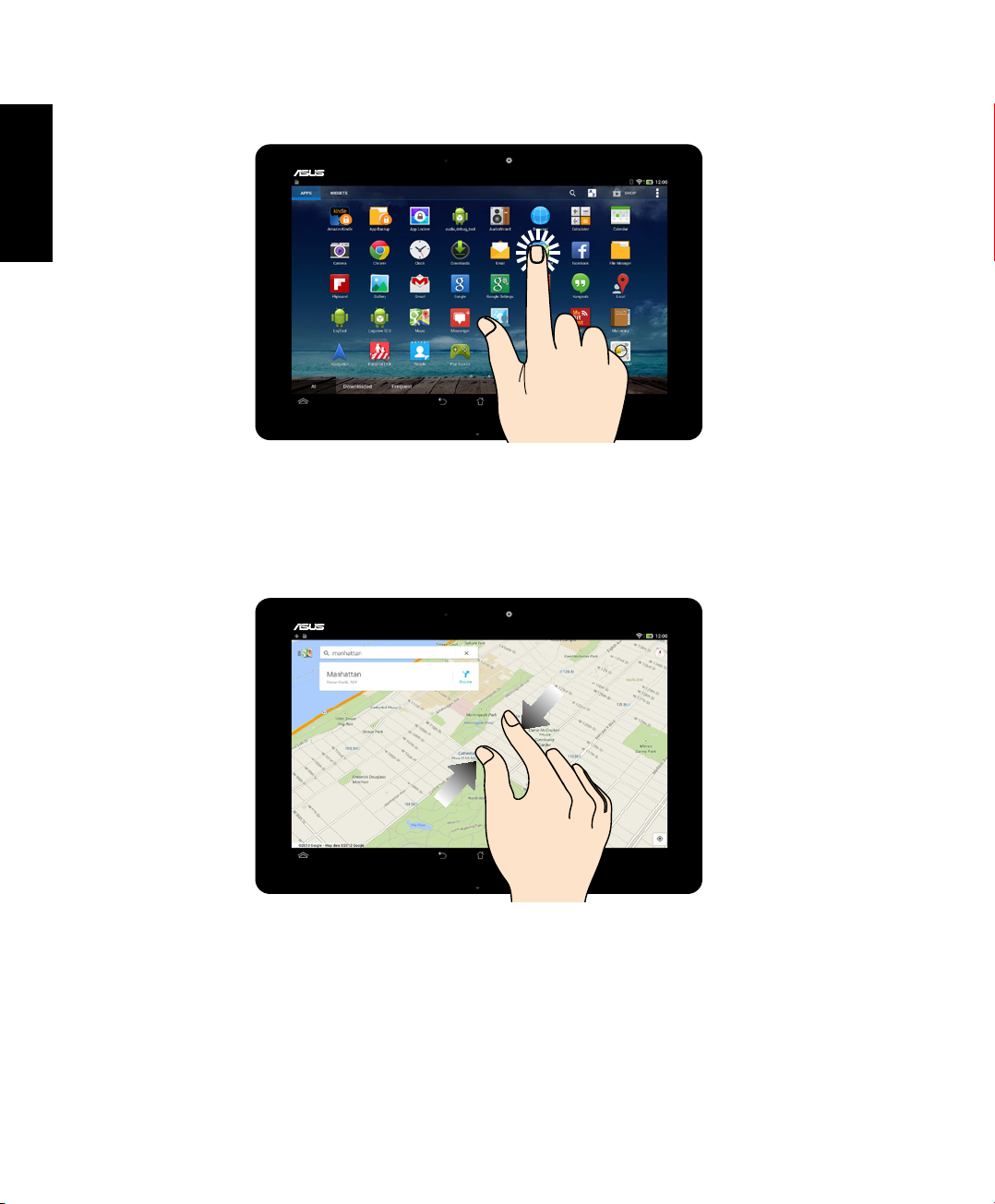

Tap and hold/Long press

English
18 ASUS Portable AiO
Tap an app to launch it. •
In the File Manager app, tap to select and open a le. •
Tap/touch
Zoom out
Bring together your two ngers on the touch screen panel to zoom out an image in Gallery,
Maps or Places.

English
19 ASUS Portable AiO

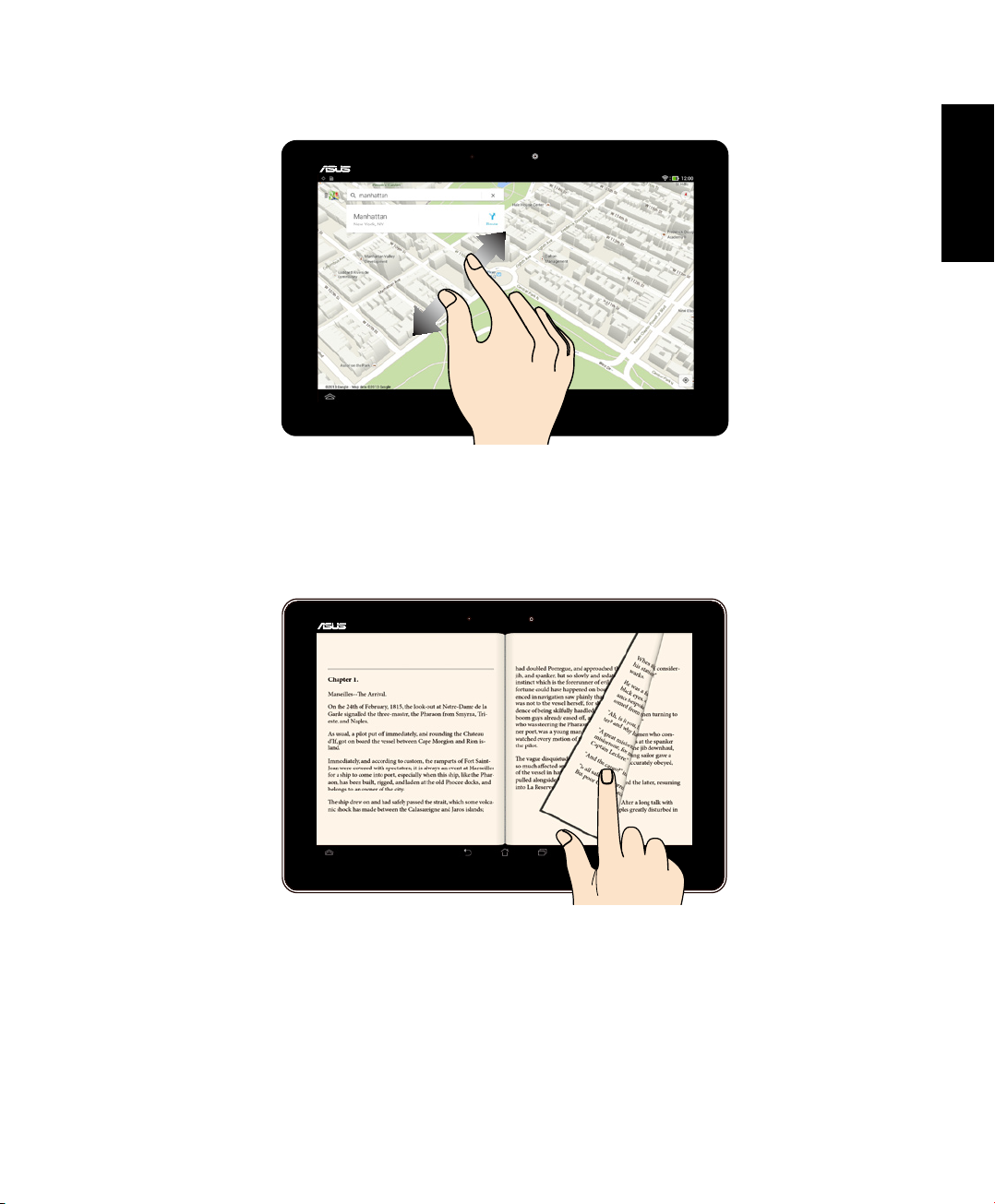

Zoom in
Spread apart your two ngers on the touch screen panel to zoom in an image in Gallery, Maps
or Places.
Swipe
Swipe your nger to the left or to the right on the touch screen panel to switch between
screens or to ip through the pages of an e-book or a gallery of images.

English
20 ASUS Portable AiO
