VivoPC Barebone
User Manual

COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK COMPUTER INC.
(“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS,
ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN
IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identication or
explanation and to the owners’ benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’part or other liability, you
are entitled to recover damages from ASUS. In each such instance, regardless of the basis
on which you are entitled to claim damages from ASUS, ASUS is liable for no more than
damages for bodily injury (including death) and damage to real property and tangible
personal property; or any other actual and direct damages resulted from omission or failure of
performing legal duties under this Warranty Statement, up to the listed contract price of each
product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in
contract, tort or infringement under this Warranty Statement.
This limit also applies to ASUS’suppliers and its reseller. It is the maximum for which ASUS, its
suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-
PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS
OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC
CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS
SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at http://support.asus.com
First Edition
August 2014
E9627

VivoPC Barebone
3
Contents
About this manual ............................................................................................. 4
Conventions used in this manual ............................................................... 4
Typography......................................................................................................... 4
Package contents............................................................................................... 5
Getting to know your VivoPC 7
Features ................................................................................................................. 8
Front panel.......................................................................................................... 8
Left side ............................................................................................................... 9
Rear panel .........................................................................................................10
Using your VivoPC 13
Getting started..................................................................................................14
Connecting the AC power adapter ..........................................................14
Connecting a display panel ........................................................................16
Connecting USB keyboard or mouse ......................................................17
Turning on your VivoPC................................................................................18
Turning off your VivoPC.................................................................................19
Putting your VivoPC to sleep .......................................................................19
Entering the BIOS Setup ................................................................................19
Quickly enter the BIOS..................................................................................20
Installing system components 21
Installing memory modules .........................................................................22
Installing storage devices..............................................................................27
Installing 2.5-inch HDDs/SSDs ...................................................................27
Installing a 3.5-inch HDD .............................................................................34
Appendix 39
Safety information ...........................................................................................40
Setting up your system.................................................................................40
Care during use...............................................................................................40
Regulatory notices...........................................................................................42
ASUS contact information ............................................................................48

4
VivoPC Barebone
About this manual
This manual provides information about the hardware and software
features of your PC, organized through the following chapters:
Chapter 1: Getting to know your VivoPC
This chapter details the hardware components of your VivoPC.
Chapter 2: Using your VivoPC
This chapter provides you with information on using your
VivoPC.
Chapter 3: Installing system components
This chapter provides you with information on how to install
new components to your VivoPC barebone.
Appendices
This section includes notices and safety statements your VivoPC.
Conventions used in this manual
To highlight key information in this manual, some text are presented
as follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that
can help complete tasks.
WARNING! This message contains important information that must
be followed to keep you safe while performing certain tasks and
prevent damage to your VivoPC's data and components.
Typography
Bold text Indicates a menu or an item to select.
Italic This indicates sections that you can refer
to in this manual.

VivoPC Barebone
5
Package contents
NOTES:
• Actualproductspecicationsandpackagecontentsmay
vary depending on the model type, country, or region.
• Theavailabilityandquantityoftheseitemsvarywithyour
VivoPC package.
• Ifthedeviceoranyofitscomponentsfailormalfunction
during normal or proper use and it is still within the warranty
period, bring the device and the warranty card to you
nearest ASUS Service Center.

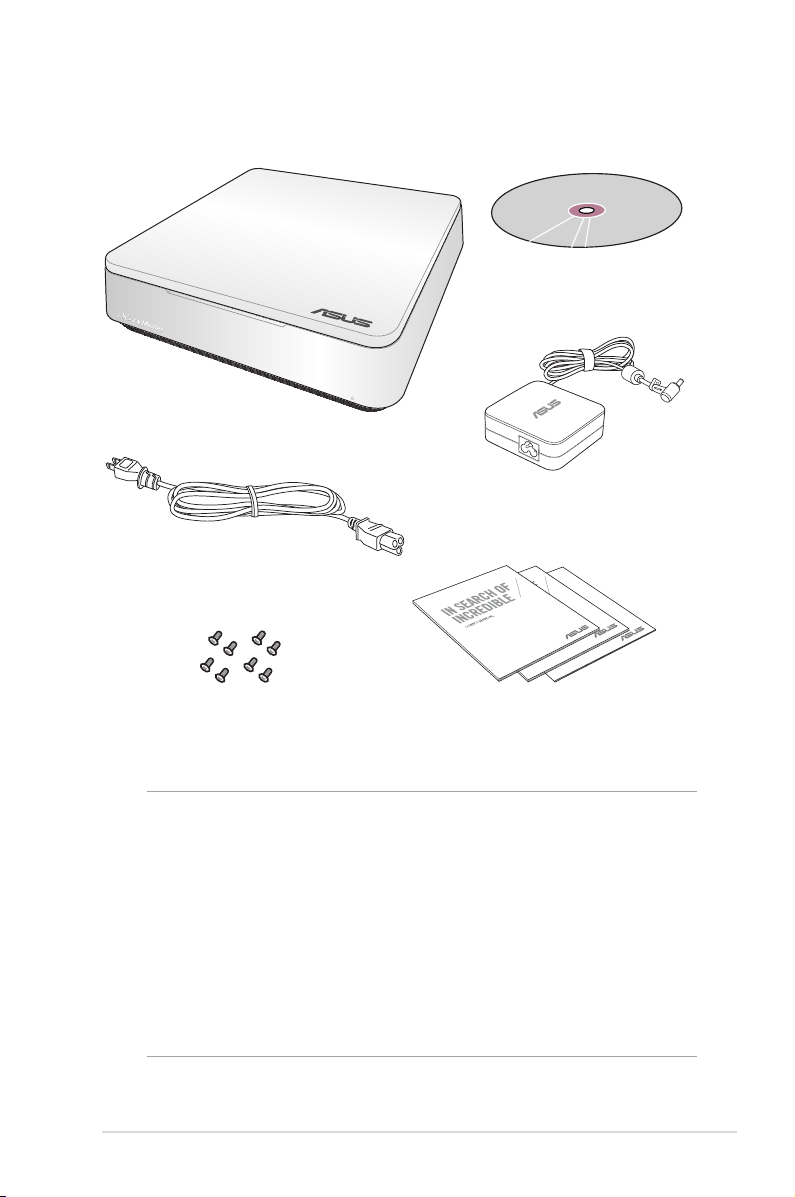

Your VivoPC package contains the following items:
VivoPC Barebone
Power cable
AC power adapter
Driver DVD
8 pcs. screws Technical documentations

6
VivoPC Barebone

1
Getting to know your VivoPC

8
VivoPC Barebone
Features

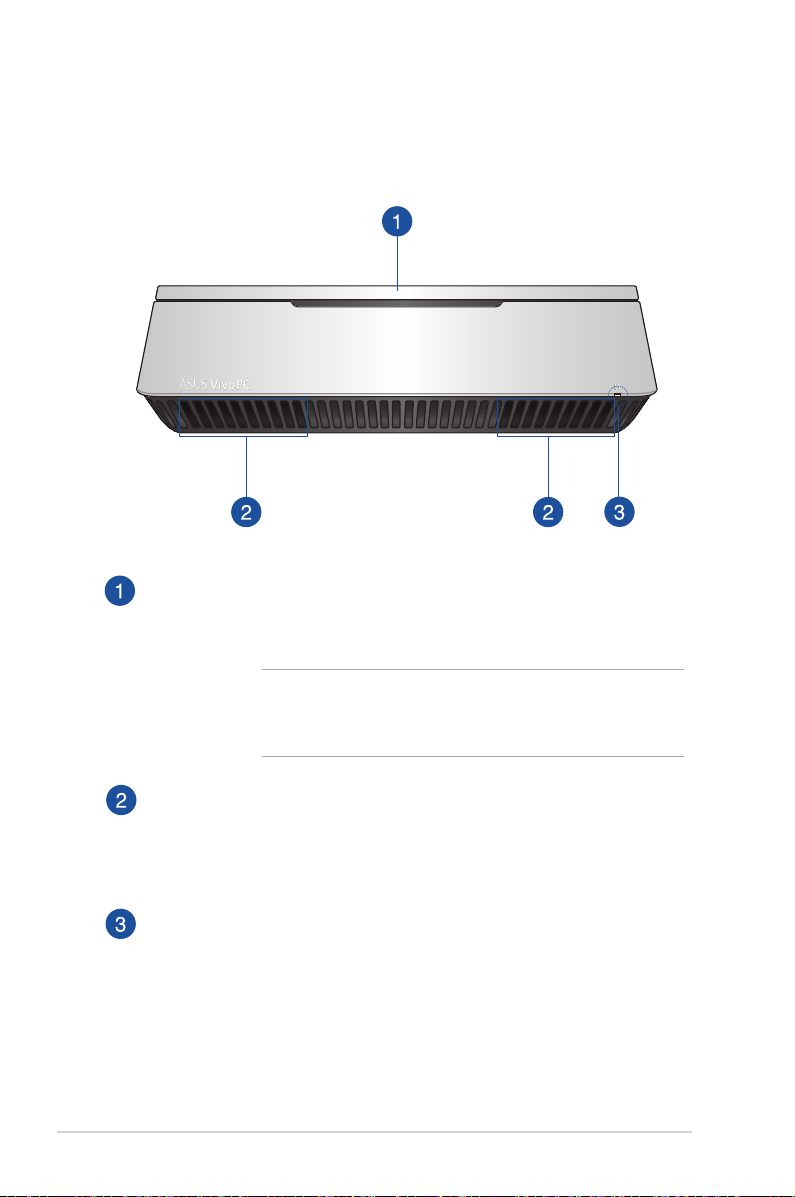

Front panel
Top cover
The removable top cover allows you access to the storage
devices and the memory modules.
IMPORTANT! Before removing the top cover, turn
o your VivoPC and disconnect the power cable and
other peripherals.
Audio speakers
Your VivoPC uses SonicMaster technology to provide hi-
soundquality,withricherbasssounds,straightfromthe
built-in audio speakers.
Drive activity indicator
This indicator lights up when your VivoPC is accessing the
internal storage drive.

VivoPC Barebone
9

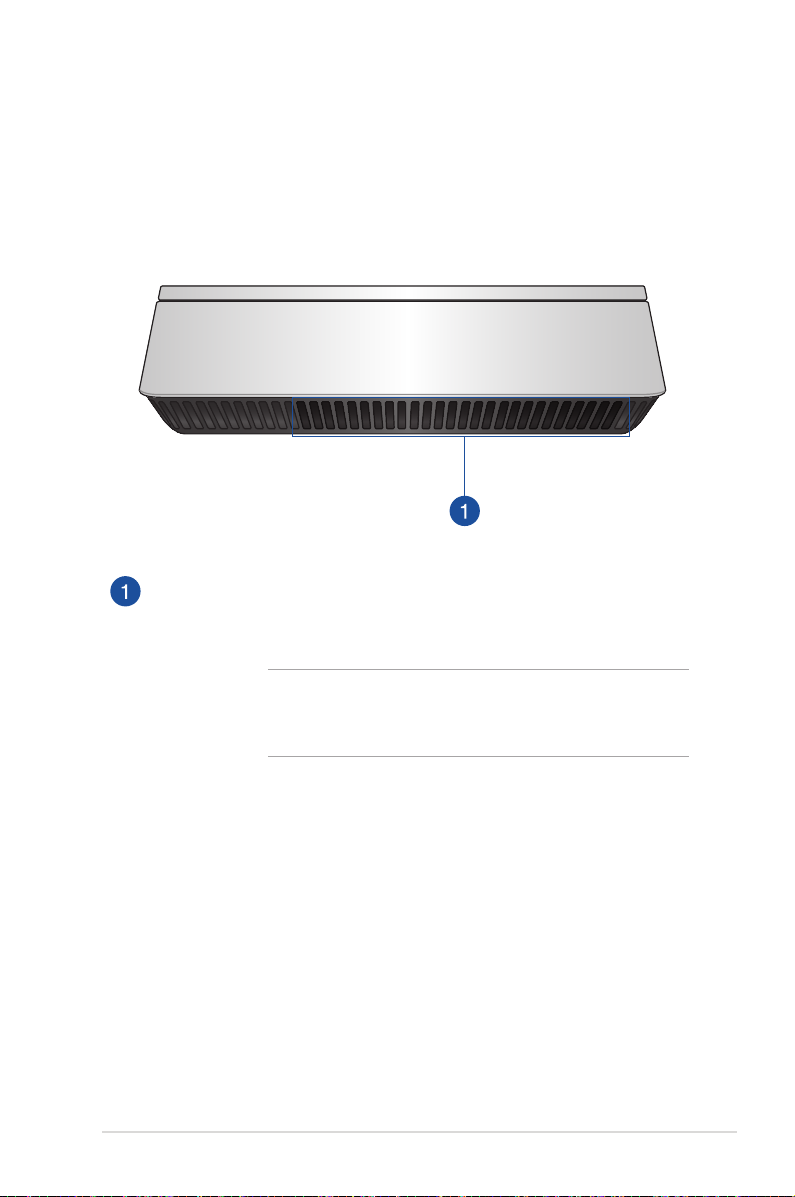

Left side
Air vents
The air vents on the left side allow cooler air to enter your
VivoPC chassis.
IMPORTANT! For optimum heat dissipation and air
ventilation, ensure that the air vents are free from
obstructions.

10
VivoPC Barebone

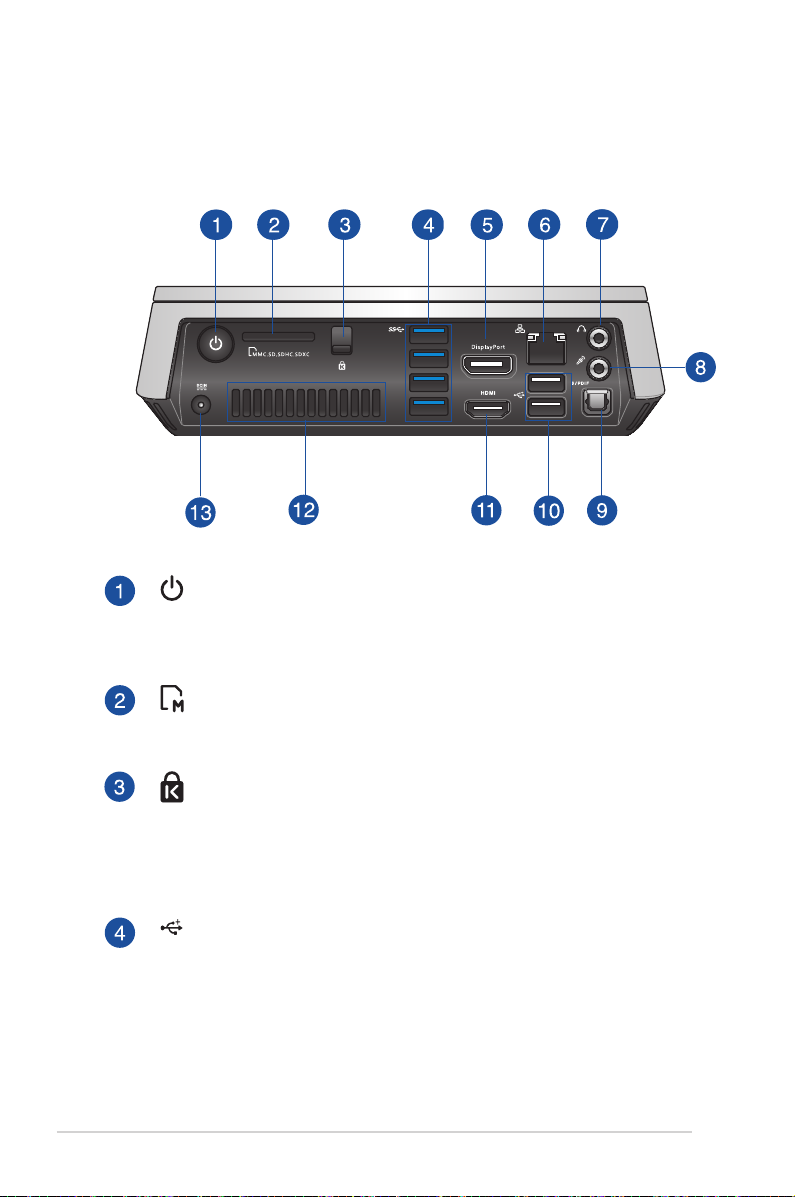

Power button
The power button allows you to turn the VivoPC on or
o. You can also press the power button once to put your
VivoPC to sleep mode.
Memory card slot
The built-in memory card reader enables your VivoPC to
read and write data to and from MMC/SD cards.
Top cover lock latch + Kensington security slot
The top cover lock latch fastens the top cover on your
VivoPC.
The Kensington security slot allows you to secure your
VivoPC using Kensington® security products.
USB 3.0 ports
These Universal Serial Bus 3.0 (USB 3.0) ports provide a
transfer rate of up to 5 Gbit/s and are backward compatible
with USB 2.0.
Rear panel

VivoPC Barebone
11
DisplayPort port
Use this port to connect your VivoPC to a DisplayPort or
VGA, DVI, or HDMI external display.
LAN port
The 8-pin RJ-45 LAN port supports a standard Ethernet
cable for connection to a local network.
Headphone/Audio Out jack
The stereo headphone jack is used to connect the system’s
audio out signal to amplied speakers or headphones.
Microphone jack
The microphone jack is designed to connect the
microphone used for video conferencing, voice narrations,
or simple audio recordings.
Digital audio out port (S/PDIF optical)
The Sony/Philips Digital Interface (S/PDIF) optical out port
allows you to transfer digital audio from your VivoPC into
an amplier or your TV.
USB 2.0 ports
The USB (Universal Serial Bus) 2.0 ports are compatible
with USB 2.0/1.1 devices such as keyboards, mouse
devices, cameras, and hard disk drives. USB allows many
devices to run simultaneously on a single computer, with
some peripheral acting as additional plug-in sites or hubs.
HDMI port
The HDMI (High Denition Multimedia Interface) port
supports a Full-HD device such as an LCD TV or monitor to
allow viewing on a larger external display.

12
VivoPC Barebone
Rear air vents
The air vents on the rear allow warm air to exit the VivoPC.
IMPORTANT! For optimum heat dissipation and air
ventilation, keep the air vents at least 10 cm away
from any obstructions.
Power input (DC 19V)
The supplied power adapter converts AC power to DC
power for use with this jack. Power supplied through this
jack supplies power to the VivoPC. To prevent damage to
the VivoPC, always use the bundled power adapter.
WARNING! The power adapter may become warm
to hot when in use. Do not cover the adapter and
keep it away from your body.

2
Using your VivoPC

14
VivoPC Barebone
Getting started
Connecting the AC power adapter
To connect the AC power adapter to your VivoPC:
A. Connect the AC power cord to the AC/DC adapter.
B. Plug the AC power cord into a 100 V~240 V power source.
C. Connect the DC power connector into your VivoPC’s power (DC)
input port.
NOTE: The power adapter may vary in appearance depending on the
model or region.

VivoPC Barebone
15
NOTE:
Power adapter information:
• Inputvoltage:100Vac-240Vac
• Inputfrequency:50Hz-60Hz
• Ratingoutputcurrent:3.42A(65W)or4.74A(90W)(varies
per model)
• Ratingoutputvoltage:19V
IMPORTANT!
• WestronglyrecommendthatyouuseonlytheACpower
adapter and cable that came with your VivoPC.
• Westronglyrecommendthatyouuseagroundedwall
socket while using your VivoPC.
• Thesocketoutletmustbeeasilyaccessibleandnearyour
VivoPC.
• TodisconnectyourVivoPCfromitsmainpowersupply,
unplug your VivoPC from the power socket.

16
VivoPC Barebone
Connecting a display panel
You can connect a display panel or projector to your VivoPC that has
the following connectors:
• HDMIconnector
• DisplayPortconnector
• VGAconnector(usewithaDisplayPorttoVGAadapterorHDMI
to VGA adapter)
• DVIconnector(usewithanHDMItoDVIadapter)
NOTE: The HDMI to DVI adapter, DisplayPort to VGA adapter, or
HDMI to VGA adapter are each sold separately.
To connect a display panel to your VivoPC:
Connect a display cable either to the HDMI or DisplayPort port.
Connecting display via HDMI port
Connecting display via DisplayPort port

VivoPC Barebone
17
Connecting USB keyboard or mouse
You can connect generally any USB keyboard and mouse to your
VivoPC. You can also connect a USB dongle for a wireless keyboard
and mouse set.
To connect a keyboard and mouse to your VivoPC:
Connect the USB cable from your keyboard and mouse to any of the
USB 2.0 ports of your VivoPC.
Connecting keyboard or mouse via USB 2.0 port

18
VivoPC Barebone

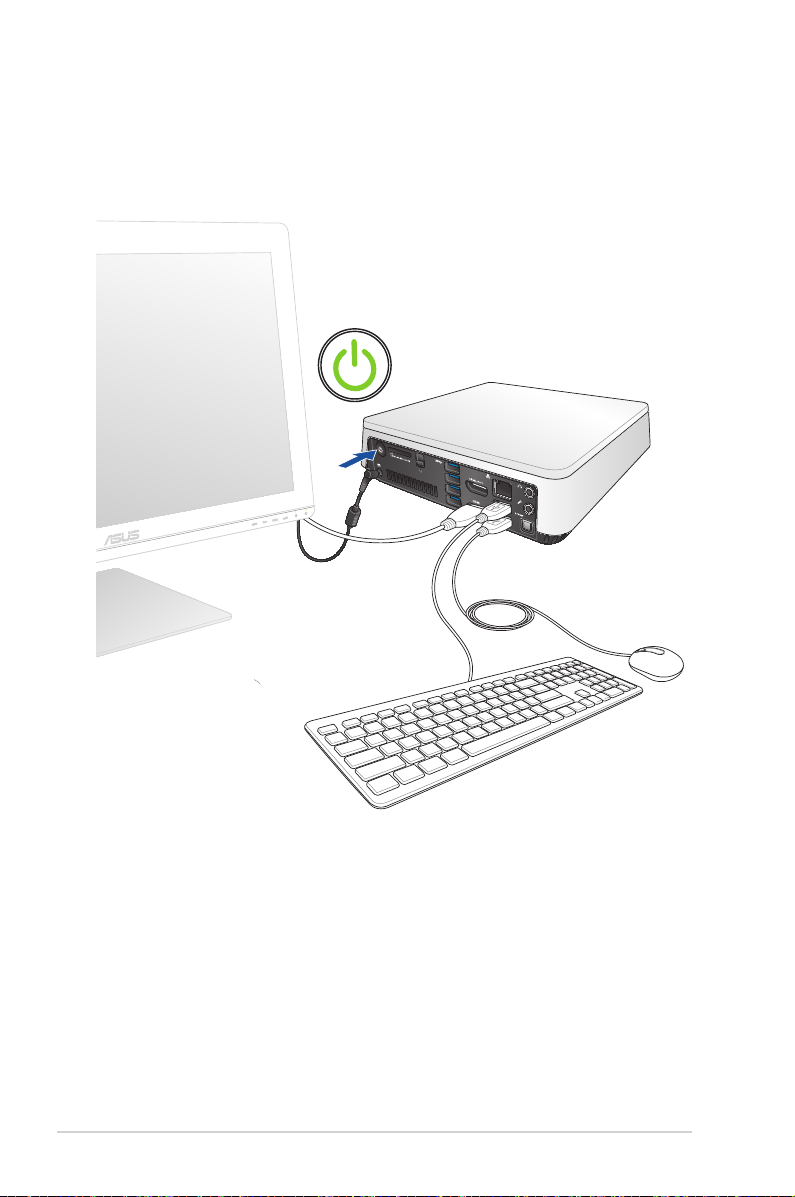

Turning on your VivoPC
Press the power button to turn on your VivoPC.

Turning off your VivoPC
If your VivoPC is unresponsive, press and hold the power button for
at least four (4) seconds until your VivoPC turns o.
Putting your VivoPC to sleep
To put your VivoPC on Sleep mode, press the Power button once.
Entering the BIOS Setup
BIOS (Basic Input and Output System) stores system hardware
settings that are needed for system startup in the VivoPC.
In normal circumstances, the default BIOS settings apply to most
conditions to ensure optimal performance. Do not change the
default BIOS settings except in the following circumstances:
• Anerrormessageappearsonthescreenduringthesystem
bootupandrequestsyoutoruntheBIOSSetup.
• Youhaveinstalledanewsystemcomponentthatrequiresfurther
BIOS settings or update.
WARNING! Inappropriate BIOS settings may result to instability
or boot failure. We strongly recommend that you change the BIOS
settings only with the help of a trained service personnel.

Quickly enter the BIOS
ToquicklyentertheBIOS:
• Pressthepowerbuttonforatleastfour(4)secondstoshutdown
your VivoPC, then press the power button again to turn your
VivoPC back on, then press <F2> or <Del> during POST.
• WhenyourVivoPCiso,disconnectthepowercordfromyour
VivoPC’s power connector. Reconnect the power cable and press
the power button to turn on your VivoPC. Press <F2> or <Del>
during POST.
NOTE: POST (Power-On Self Test) is a series of software controlled
diagnostic tests that run when you turn on your PC.
