Service Manual ASUS VS239H
1
LCD Monitor Service Manual
Model: ASUS VS239H
D
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATION USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND
SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMENS NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCT AND SOFTWARE DESCRIBED IN IT.

Service Manual ASUS VS239H
2
Index
Revision Lists………………………………….............................................................................. 3
Important Safety Notice................................................................................................................4
1. Monitor Specifications ..............................................................................................................6
2. Operation Instruction................................................................................................................8
2.1 General Instructions ...........................................................................................................8
2.2 Control Button ....................................................................................................................8
2.3 OSD Menu........................................................................................................................10
3. Input/Output Specification…………………….......................................................................... 14
3.1 Input Signal Connector .....................................................................................................14
3.2 Power Supply Requirements ............................................................................................15
3.3 Factory Preset Display Modes..........................................................................................16
4. Block Diagram........................................................................................................................ 17
4.1 Main Board .......................................................................................................................17
4.2 Power Board.....................................................................................................................18
5. Schematic ..............................................................................................................................19
5.1 Main Board .......................................................................................................................19
5.2 Power Board...……...................................................................................................... 25
5.3 Key Board...…….......................................................................................................... 27
6. PCB layout .............................................................................................................................28
6.1 Main Board .......................................................................................................................28
6.2 Power Board.....................................................................................................................31
6.3 Key Board.........................................................................................................................32
7. Disassemble & Assemble SOP.……………….. ............................................................... …..33
8. ISP Instruction........................................................................................................................42
9. DDC Instruction......................................................................................................................52
10. Color/White Balance Adjustment..........................................................................................58
11. Trouble Shooting ..................................................................................................................60
12. Exploded View .....................................................................................................................64
13. BOM List ..............................................................................................................................66

Service Manual ASUS VS239H
3
Revision Lists
Version Release Date Revision History Customer Model TPV Model Name
A00 Jul.12.2011 Initial release VS239H
HDBGAP2BACU1HC
HDBGAP2EACU1HC

Service Manual ASUS VS239H
4
Important Safety Notice
Safety information
Before setting up the monitor, carefully read all the documentation that came with the package.
To prevent fire or shock hazard, never expose the monitor to rain or moisture.
Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious
physical injury.
If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If
you detect any damage, contact your dealer immediately.
Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never
place this product near or over a radiator or heat source unless proper ventilation is provided.
The monitor should be operated only from the type of power source indicated on the label. If you are not sure of
the type of power supply to your home, consult your dealer or local power company.
Use the appropriate power plug which complies with your local power standard.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet.
Place the monitor on a stable surface.
Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the
monitor from damage due to power surges.
Never push objects or spill liquid of any kind into the slots on the monitor cabinet.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate
configured receptacles marked between 100-240V AC.
If you encounter technical problems with the monitor, contact a qualified service technician or your retailer.
Care & Cleaning
Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct
lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the
monitor. Do not lift the display by the stand or the cord.
Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free,
non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner.
Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray
cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock.
The following symptoms are normal with the monitor
The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the Power Switch
and turn it on again to make sure that the flicker disappears.
You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
When the same image is display for hours, an afterimage of the previous screen may remain after switching the
image. The screen will recover slowly or you can turn off the Power Switch for hours.
When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix
it. Do not repair the screen by yourself!

Service Manual ASUS VS239H
5
Conventions used in this guide
WARNING: Information to prevent injury to yourself when trying to complete a task.
CAUTION: Information to prevent damage to the components when trying to complete a task.
IMPORTANT: Information that you MUST follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.

Service Manual ASUS VS239H
6
1. Monitor Specifications
Model VS239H
Panel Size 23”W (58.4 cm)
Max. Resolution 1920 x 1080 (FHD)
Backlight Tech. LED Backlight Technology
Brightness (Typ.) 250cd/m2
Intrinsic Contrast Ratio (Typ.) 1000:1
Viewing Angle (CR=10) ≧178°(H) / ≧178°(V)
Display Colors 16.7M
Response Time 14ms
Earphone Output Yes
Sound from HDMI Yes
HDMI input (HDMI 1.3) Yes
DVI Input Yes
D-Sub Input Yes
Power ON Consumption Compliant with Energy Star 5.0
Power Saving Mode < 1W
Power OFF Mode < 1W
Tilt -5° ~ +20°
VESA Wall Mounting Yes (100mm x 100mm)
Phys. Dimension (WxHxD) 552 x 400 x 200 mm
Box Dimension (WxHxD) 608 x 460 x 130 mm
Net Weight (Esti.) 3.5 kg
Gross Weight (Esti.) 5.9 kg
Voltage Rating AC 100~240V(Built-in)
Temperature
Operating 0°C - +35°C
Storage -20°C - +60°C
Humidity
Operating 10% - 80%
Storage 5% - 90%
Altitude
Operating 12,000 feet (3,658m)
Storage 40,000 feet (12,192m)

Service Manual ASUS VS239H
7
Dimension of Monitor
Dimension VS239H
with stand 552.00(W)x 400.30(H) x 199.89(D) (mm)
without stand 552.00(W)x 334.14(H) x 45.00(D) (mm)

Service Manual ASUS VS239H
8
2. Operation Instruction
2.1 General Instructions
Press the power button to turn the monitor on or off. The other control buttons are located at the front of the
panel of the monitor.

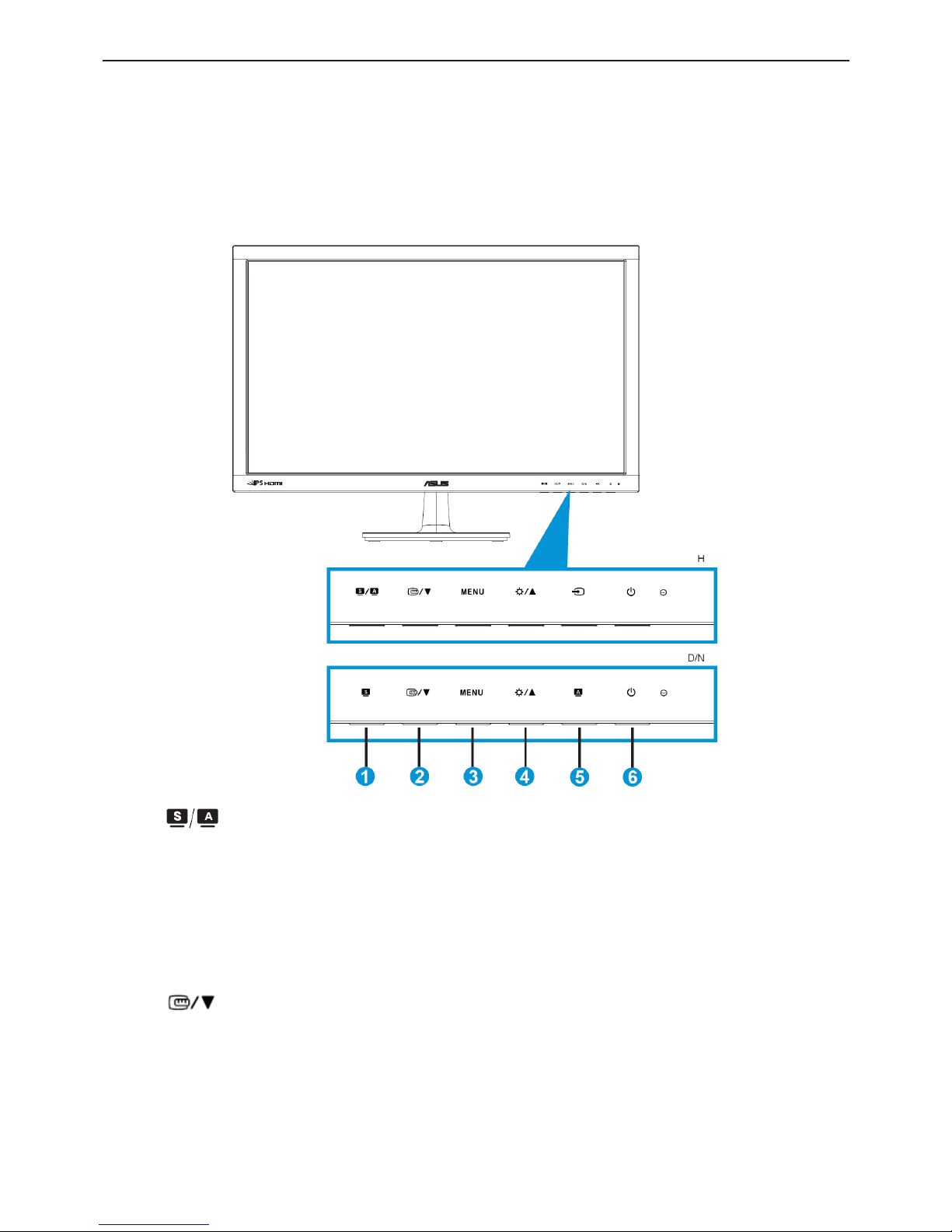

2.2 Control Button
Front View
1. Button：
Automatically adjust the image to its optimized position, clock and phase by long pressing this
button for 2-4 seconds (for VGA mode only).
Use this hotkey to switch among six video preset modes (Scenery, Standard, Theater, Game, Night
View, and sRGB Mode) with SPLENDIDTM Video Enhancement Technology.
Exit the OSD menu or go back to the previous menu as the OSD menu is active.
2. Button:
Press this button to decrease the value of the function selected or move to the next function.
This is a hotkey to activate the QuickFit function designed for alignment.
The QuickFit function contains 7 pages of common grid patterns, paper sizes, and photo sizes.
(Please refer to QuickFit Function).

Service Manual ASUS VS239H
9
3. MENU Button:
Press this button to enter the OSD menu.
Press this button to enter/select the icon (function) highlighted while the OSD is activated.
4. Button:
Press this button to increase the value of the function selected or move right/up to the next function.
This is also a hotkey for Brightness adjustment.
5. Input Select Button
This button is available for model VS229H/VS239H only.
Use this hotkey to switch among VGA, DVI, or HDMI inputs.
6. Power button/ Power Indicator
Press this button to turn the monitor on/off.
The color definition of the power indicator is as the table below.
Rear View
1. AC-In
2. HDMI-In (Available for model VS229H, VS239H only)
3. DVI-In (Available for model VS229N/H, VS239N/H only)
4. VGA-In
5. Earphone-Out (Available for model VS229H, VS239H only)

Service Manual ASUS VS239H
10
2.3 OSD Menu
2.3.1 How to reconfigure
1. Press the [MENU] button to activate the OSD menu.
2. Press and to navigate through the functions. Highlight and activate the desired function by pressing the
[MENU] button. If the function selected has a sub-menu, press and again to navigate through the
sub-menu functions. Highlight and activate the desired sub-menu function by pressing the [MENU] button.
3. Press and to change the settings of the selected function.
4. To exit the OSD menu, press the button. Repeat step 2 and step 3 to adjust any other function.
2.3.2 OSD Function Introduction
1. Splendid
This function contains six sub-functions that you can select for your preference. Each mode has the Reset selection,
allowing you to maintain your setting or return to the preset mode.
Scenery Mode: This is the best choice for scenery photo displaying with SPLENDID™ Video Enhancement.
Standard Mode: This is the best choice for document editing with SPLENDID™ Video Enhancement.
Theater Mode: This is the best choice for movie watching with SPLENDID™ Video Enhancement.
Game Mode: This is the best choice for game playing with SPLENDID™ Video Enhancement.

Service Manual ASUS VS239H
11
Night View Mode: This is the best choice for playing dark-scene game or watching dark-scene movie with
SPLENDID™ Video Enhancement.
sRGB: This is the best choice for viewing photos and graphics from PCs.
In the Standard Mode, the Saturation, Skin Tone, Sharpness, and ASCR functions are not
user-configurable.
In the sRGB, the Brightness, Contrast, Saturation, Color Temp., Skin Tone, Sharpness, and
ASCR functions are not user-configurable.
2. Color
Select the image color you like from this function.
Brightness: The adjusting range is from 0 to 100. The button is also a hotkey to activate this function.
Contrast: The adjusting range is from 0 to 100.
Saturation: The adjusting range is from 0 to 100.
Color Temp.: Contain three preset color modes (Cool, Normal, Warm) and one User Mode.
Skin Tone: Contain three color modes including Reddish, Natural, and Yellowish.
Smart view: Enable a clearer visibility after tilted the screen.
In the User mode, colors of R (Red), G (Green), and B (Blue) are user configurable; the adjusting range
is from 0~100.

Service Manual ASUS VS239H
12
3. Image
You can adjust the image Sharpness, Aspect Control, Position (VGA only), and Focus (VGA only) from this main
function.
Sharpness: Adjust the picture sharpness. The adjusting range is from 0 to 100. (Only available for selecting
“Standard Mode” in Splendid menu)
Trace Free: Speeds up the response time by Over Drive technology. The adjusting range is from lower 0 to faster
100. (Available for model VS229H-P, VS239H-P only).
Aspect Control: Adjust the aspect ratio to “Full”, “4:3”, or “Over Scan”. (The “Over Scan” ratio is only available
for HDMI input.).
ASCR: Select ON or OFF to enable or disable dynamic contrast ratio function. (ASCR: ASUS Smart Contrast
Ratio. Disabled at “Standard Mode”.)
Position: Adjust the horizontal position (H-Position) and the vertical position (V-Position) of the image. The
adjusting range is from 0 to 100. (Only available for VGA input)
Focus: Reduces Horizontal-line noise and Vertical-line noise of the image by adjusting (Phase) and (Clock)
separately. The adjusting range is from 0 to 100. (Only available for VGA input)
4. Input Select

Service Manual ASUS VS239H
13
Select the input source from VGA, DVI, or HDMI.
DVI: Available for model VS229N/H, VS239N/H only.
HDMI: Available for model VS229H, VS239H only.

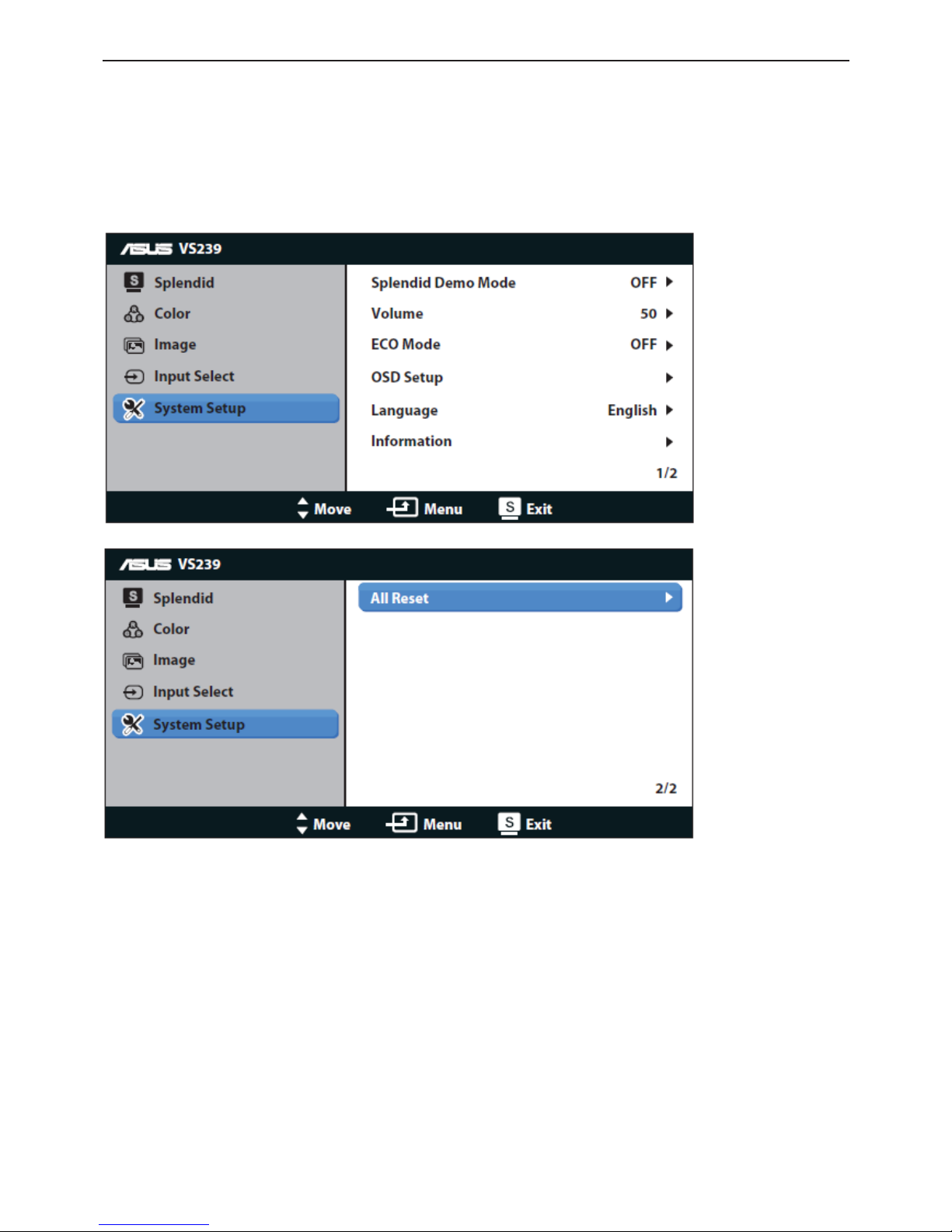

5. System Setup
Adjusts the system configuration.
Splendid Demo Mode: Activate the demo mode for the Splendid function.
Volume: Adjust the earphone output volume level. The adjusting range is from 0 to 100.(Available for model
VS229H, VS239H only.)
ECO Mode: Activate the ecology mode for power saving. (Some gray levels may not be distinguished if ECO is
ON. Its brightness is lower than that when setting the Contrast Ratio to 100.)
OSD Setup: Adjust the horizontal position (H-Position), vertical position (V-Position), OSD Timeout, DDD/CI, and
Transparency of the OSD screen.
Language: Select OSD language. The selections are English, French, German, Spanish, Italian, Dutch, Russian,
Traditional Chinese, Simplified Chinese, and Japanese.
Information: Display the monitor information of Input Port, Resolution, H-freq., V-freq, and Model Name.
All Reset: Set to “Yes” to revert all settings to the factory default status.

Service Manual ASUS VS239H
14
3. Input/Output Specification
3.1 Input Signal Connector
VGA connector
1 Red Video 8 Blue Ground
2 Green Video 9 +5V Supply
3 Blue Video 10 Logic Ground
4 Monitor Ground 11 Monitor Ground
5 DDC-Return 12 DDC-Serial Data
6 Red Ground 13 H-Sync.
7 Green Ground 14 V-Sync.
15 DDC-Serial Clock
DVI connector
Pin Signal Pin Signal Pin Signal
1 RX2- 9 R X1- 17 RX0-
2 RX2+ 10 RX1+ 18 RX0+
3 RX2 Shield 11 RX1 Shield 19 RX0 Shield
4 NC 12 NC 20 NC
5 NC 13 NC 21 NC
6 DDC Clock 14 +5V Power 22 RX Clock Shield
7 DDC Data 15 Ground 23 RX Clock+
8 NC 16 Hot Plug Detection 24 RX Clock-

Service Manual ASUS VS239H
15
HDMI connector
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock
3 TMDS Data2- 13 CEC
4 TMDS Data1+ 14 Reserved(N.C. on device)
5 TMDS Data1 Shield 15 SCL
6 TMDS Data1- 16 SDA
7 TMDS Data0+ 17 DDC/CEC Ground
8 TMDS Data0 Shield 18 +5V
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
3.2 Power Supply Requirements
A/C Line voltage range 100 V ~ 240 V
A/C Line frequency range 50 3Hz, 60 3Hz
Input Voltage transients 90-264 voltage AC for 10 sec @40℃
Current 1.5A max at 100V; 0.8A max at 240 V
Peak surge current < 60A peak at 240 VAC and cold starting
< 30A peak at 100VAC and cold starting
Leakage current < 3.5mA
Power line surge No advance effects (no loss of information or defect)
with a maximum of 1 half-wave missing per second

Service Manual ASUS VS239H
16
3.3 Factory Preset Display Modes

Service Manual ASUS VS239H
17
4. Block Diagram
4.1 Main Board
+5V_AUD IO
PA[0..9]
PB[0..9]
ESD_5V
ESD_5V
VCC3.3
TSUMU88MWDT3-LF-1
DVI5V
+5V_EDID
HDMI_+5V
HDMI_+5V
DVI5V+5V_EDID
+5V_EDID
VCC3.3
HDMI INPUT 6.HDMI INPUT
HDMI_SDA1
HDMI_SCL1
HD1-
HD1+
+5V
HCK-
HCK+
DDC_WP
HD2+
HD2-
HD0+
HD0-
CEC_CTRL
HDMI_HPD_SW
HDMI_DET
+5V_EDI D
VCC3.3
HDMI_+5V
DET_HDMI5V
INPUT 3.INPUT
RIN
GIN
BIN
VSYNC
GNDR
GNDG
GNDB
HSYNC
SOG
VGA_SDA1
VGA_SCL1
VGA_DET
DVI5V
DVI_SDA1
DVI_SCL1
DD2+
DD2-
DD1+
DD1-
DD0+
DD0-
DCK+
DCK-
ESD_5V
+5V_EDI D
DDC_WP
DVI_DET
DVI_HPD_SW
SCALER
4.SC ALER
VCC3.3
VCC1.8
PB[0..9]
HSYNC
GIN
SOG
VSYNC
GNDG
BIN
GNDR
RIN
GNDB
VGA_SDA1
VGA_SCL1
HDMI_SDA1
HDMI_SCL1
HD2-
HD0+
HD2+
HD0-
HCK+
HCK-
HD1+
HD1-
on_PANEL
+5V
PA[0..9]
HDMI_DET
on_BACKLIGHT
adj_BACKLIGHT
DDC_WP
CEC_CTRL
MU TE
Volume
HDMI_HPD_SW
VGA_DET
DCK-
DCK+
DD0+
DD0-
DD1-
DD1+
DD2+
DD2-
DVI_SCL1
DVI_SDA1
AC2DC_CTRL
INL
INR
AULIN
AURIN
DVI_DET
DVI5V
HDMI_+5V
DET_HDMI5V
DVI_HPD_SW
Amp_SD
PANEL INTERFACE
5.PANEL IN TERF AC E
PB[0..9]
PA[0..9]
VLCD
AUDIO
7.AUDIO
+5V_AUDIO
MUTE
Volume
INL
INR
AULIN
AURIN
VCC3.3
Amp_SD
POWER
2.POWER
on_PANEL
VLCD
VCC1.8
VCC3.3
+5V
on_BACKLIGHT
adj_BACKLIGHT
+5V_AUD IO
ESD_5V
+5V_EDID
AC2DC_CTRL
VCC1.8
+5V
VCC3.3
+5V VCC1.8
VLCD
+5V
VLCD
+5V_AUDIO
VCC3.3

Service Manual ASUS VS239H
18
4.2 Power Board
ZD801
LED
(CN802)
PWM Control
OZ9998AGN
(IC801)
16V
DIM
ON/OFF
L801
Q801
EMI filter
Start Resistor
(R905,R908,R909)
PWM Control
(IC901)
Transformer
AC input 16V
Bridge
Rectifier
and Filter
Feedback
Circuit
Rectifier
diodes
Power Switch
(Q901)
Photo coupler
(IC902)
5V

ServiceManual ASUSVS239H
19
5. Schematic
5.1 Main Board
715G4280M02000004I
C108
100N16V
R110
NC/82K 1%
1 2
FB101
120 OHM
R104
10K 1/16W 5%
C104
100N16V
Q103
LMBT3904LT1G
on_Panel5
VLCD
6
on_BACKLIGHT 5
Adj_BACKLIGHT 5
+5V 5, 7
VCC3.3 5
R115 NC/0R 05 1/16W
+5V
VLCD
C124
220N16V
C117
NC
+5V
VCC3.3
R1124.7 OHM +-5% 2WS
VI
3VO 2
GND
1
4
4
U102
NC/AP2114H-1.8TRG1
R113
1K 1/16W 5%
R111
10K 1/10W 5%
C110
100N16V
ON/OFF
+
C103
220uF 16V
Q102
NC/AO3401
AC2DC_CTRL 5
VCC3.3
VCC3.3
R1144.7 OHM +-5% 2WS
VCC 3.3
1 2
FB102
300 OHM
Q101
LMBT3904LT1G
DIM
+5V
C118
100N16V
R102 100R 1/16W 5%
+
C107
100UF16V
R109 22K 1/ 16W 5%
R108
56KOHM 1/16W
VIN
3VOUT 2
GND
1
U106
R106
10K 1/16W 5%
GND
1
VOUT(heat sink) 2 VIN
3
4
4
U101 NC/ AME8815BEGT330Z
VIN
3VOUT 2
GND
1
U103
R107
4K7 1/16W 5%
R180
NC/100K 1/16W 5%
+5V
1
2
3
4
5
6
7
8
9
10
CN101
CONN
+5V
OEM MODEL
Size
Rev
Date Sheet of
TPV MODEL
PCB NAME 称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 C
B
38Saturday , December 25, 2010
G4280-M0C-000-0040 <
称爹 >
2.0.POWER
G4280-M0C-AUS-X-1-101108
ESD_5V
ESD_5V
+5V
R105
22K 1/16W 5%
R103
10K 1/16W 5%
S1
S2
S3
G4
D
8D
7D
6D
5
Q104
AO4411
C121
100N16V
VIN
3VOUT 2
GND
1
U105
NC/AP2114D-3.3TRG1
+
C112
100UF16V
R101
10K 1/16W 5%
C113
100N16V
ADJ
1
Vout 2 Vin
3
U104 NC/AIC1117A-18PE
+5V_AUDI O
8
C114
100N16V
+
C111
100UF16V
VCC1.8 4
1 2
FB107
120 OHM
1.8V
+5V_EDID
C105
100N16V
+5V_EDID

ServiceManual ASUSVS239H
20
1
23
Q406
NC/LMBT3906LT1G
1 2
ZD407
RLZ5.6B
12
FB408
120 OHM
A0 1
A1 2
A2 3
GND 4 SDA
5SCL
6WP
7VCC
8
U407
FM24C02A
Close to CN101
OEM MODEL Size
Rev
Date Sheet of
TPV MODEL
PCB NAME 称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 C
B
48Wednesday , April 06, 2011
G4280-M0C-000-0040 <
称爹 >
3.0. INPU T
G4280-M0C-AUS-X-1-101108
VGA_SCL
DVI_DET 5
A0 1
A1 2
A2 3
GND 4 SDA
5SCL
6WP
7VCC
8
U406
FM24C02A
RED+
R480
NC/0R05 1/16W
DDC_WP 5
DVI_DET
RED-
GREEN-
R459 10R 1/16W 5%
R465
75R 1/16W 1%
R458 10R 1/16W 5%
BLUE-
R476
2K2 1/16W 5%
R478 100R 1/16W 5%
R463 47R 1/16W 5%
R462 47R 1/16W 5%
DVI_DET
C449
100N16V
C441 1NF 50V
DDC_WP 5
R461 470R 1/16W 5%
GREEN +
R466
75R 1/16W 1%
R467
75R 1/16W 1%
C438 47N16V
R477 100R 1/16W 5%
DVI_HPD
DVI5V_IN
R460 10R 1/16W 5%
R484 100R 1/16W 5%
ESD_5V
R464 47R 1/16W 5%
R469 1K 1/16W 5%
R468 1K 1/16W 5%
DVI_SCL
R475
2K2 1/16W 5%
3
1 2
D413
BAV70
C454
220nF 10V
R481
4K7 1/16W 5%
R483
10K 1/16W 5%
R482
4K7 1/16W 5%
R485 100R 1/16W 5%
DVI5V
DDC_WP
RIN 5
GNDR 5
VSYNC 5
BIN 5
GIN 5
HSYNC 5
GNDB 5
GNDG 5
SOG 5
DD0+ 5
DD1- 5
DD1+ 5
DCK+ 5
DD2- 5
DD0- 5
DCK- 5
DVI5V
VGA5V
VGA5V
I/O1
1
GND
2
I/O2
3I/O3 4
VDD 5
I/O4 6
U410
AZC 399-04S
RED+
C446
22P 50V
1 2 FB406 120 OHM
BLUE+
1 2
FB103
300 OHM
DVI_SDA
HSI
1 2
ZD408
RLZ5.6B
VSI
DVI_SCL1
5
DVI_SDA1
5
DVI_SCL
DVI_SDA
Close to CN102
C450
NC /100N16V
VGA_DET
20101028 by Jack
IN1
1
IN2
2
GND
3
IN3
4
IN4
5NC 6
NC 7
GND
8
NC 9
NC 10
U404
AZ1045-04F. R7G
VGA_SCL
DAT0+
R495
NC/10K 1/16W 5%
DD2+ 5
GREEN+
+5V_EDID
1 2
FB416 120 OHM
DAT1+
DAT0-
DAT1-
DCLK+
DAT2+
DAT2-
DCLK-
DVI_HPD_SW
5
R486 NC/22K 1/16W 5%
VGA_SDA
VGA_SDA
1 2
FB411 BEAD
1 2
FB412 BEAD
+5V_EDID 1
1
6
2
7
3
8
4
9
5
11
12
13
14
15
10
1716
CN 404
D-SUB 15P
C453
NC/100N16V
DVI5V 4
VGA_DET 5
ESD_5V
DAT2- 1
DAT2+ 2
2/4s hield 3
DAT4- 4
DAT4+ 5
DDC SCL 6
DDC SDA 7
VSY NC 8
DAT1- 9
DAT1+ 10
1/3s hield 11
DAT3- 12
DAT3+ 13
+5V 14
SYNC GND 15
HPD 16
DAT0- 17
DAT0+ 18
0/5s hield 19
DAT5- 20
DAT5+ 21
clk shield 22
clk+ 23
clk- 24
GND
26
GND
25
CN405
JACK
C439 47N16V I/O1
1
GND
2
I/O2
3I/O3 4
VDD 5
I/O4 6
U409
AZC399-04S
1 2
FB417 120 OHM
+5V_EDID 1
C440 47N16V
C123
1NF 50V
ESD_5V
DDC_WP
3
1 2
D407
BAV70
C452
220nF 10V
R470
4K7 1/16W 5%
R472
10K 1/16W 5%
R471
4K7 1/16W 5%
VGA5V
HSI
VSI
C456NC/5P50V C457NC/5P50V C458NC/5P50V
C442 47N16V
ESD_5V 3
VGA_SDA1
5VGA_SCL1
5
C443 47N16V
1 2
FB410 BEAD
R488 10R 1/16W 5%
C444 47N16V
R489 10R 1/16W 5%
R490 10R 1/16W 5%
R491 10R 1/16W 5%
R492 10R 1/16W 5%
R493 10R 1/16W 5%
I/O1
1
GND
2
I/O2
3I/O3 4
VDD 5
I/O4 6
U411
AZC 399-04S
R494 10R 1/16W 5%
DVI_HPD
C119
100N16V
IN1
1
IN2
2
GND
3
IN3
4
IN4
5NC 6
NC 7
GND
8
NC 9
NC 10
U405
AZ1045-04F. R7G
BLUE+
C447
22P 50V
R487 10R 1/16W 5%
C120
100N16V
VGA_DET
R473 1K 1/16W 5%
C448
NC/100N16V
+5V_EDID
