Asus VS24AHL User manual

VS24AxL Series
LCD Monitor
User Guide

ii
E6235
First Edition
July 2013
Copyright © 2013 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or alered, unless
such repair, modication of alteration is authorized in writing byASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM
ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN
THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation nd to the
owners’ benet, without intent to infringe.

iii
Contents
 
 
 
 

  
  
  
1.3.1 Front view ....................................................................... 1-2
1.3.2 Back view ........................................................................ 1-3
1.3.3 QuickFit Function ............................................................ 1-4

  
  
  
  
  

  
3.1.1 How to recongure .......................................................... 3-1
3.1.2 OSD function introduction ............................................... 3-1
  
  
  

iv
Notices

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with manufacturer’s
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is
required to assure compliance with FCC regulations. Changes or modications
to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
As an Energy Star® Partner, our company has determined that this
product meets the Energy Star® guidelines for energy efciency.

This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
This Class B digital apparatus meets all requirements of the Canadian Interference
- Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du
Réglement sur le matériel brouiller du Canada.

v
Safety information
• Before setting up the monitor, carefully read all the documentation that came
with the package.
• To prevent re or shock hazard, never expose the monitor to rain or moisture.
• Never try to open the monitor cabinet. The dangerous high voltages inside the
monitor may result in serious physical injury.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied
service technician or your retailer.
• Before using the product, make sure all cables are correctly connected and the
power cables are not damaged. If you detect any damage, contact your dealer
immediately.
• Slots and openings on the back or top of the cabinet are provided for
ventilation. Do not block these slots. Never place this product near or over a
radiator or heat source unless proper ventilation is provided.
• The monitor should be operated only from the type of power source indicated
on the label. If you are not sure of the type of power supply to your home,
consult your dealer or local power company.
• Use the appropriate power plug which complies with your local power
standard.
• Do not overload power strips and extention cords. Overloading can result in
re or electric shock.
• Avoid dust, humidity, and temperature extremes. Do not place the monitor in
any area where it may become wet. Place the monitor on a stable surface.
• Unplug the unit during a lightning storm or if it will not be used for a long period
of time. This will protect the monitor from damage due to power surges.
• Never push objects or spill liquid of any kind into the slots on the monitor
cabinet.
• To ensure satisfactory operation, use the monitor only with UL listed
computers which have appropriate congured receptacles marked between
100-240V AC.
• If you encounter technical problems with the monitor, contact a qualied
service technician or your retailer.
This symbol of the crossed out wheeled bin indicates that the product (electrical,
electronic equipment, and mercury-containing button cell battery) should not
be placed in municipal waste. Please check local regulations for disposal of
electronic products.

vi
Care & Cleaning
• Before you lift or reposition your monitor, it is better to disconnect the cables
and power cord. Follow the correct lifting techniques when positioning the
monitor. When lifting or carrying the monitor, grasp the edges of the monitor.
Do not lift the display by the stand or the cord.
• Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor
surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed
with a cloth dampened with mild cleaner.
• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended
for use with the monitor. Never spray cleaner directly on the screen, as it may
drip inside the monitor and cause an electric shock.

• You may nd slightly uneven brightness on the screen depending on the
desktop pattern you use.
• When the same image is displayed for hours, an afterimage of the previous
screen may remain after switching the image. The screen will recover slowly or
you can turn off the Power Switch for hours.
• When the screen becomes black or ashes, or cannot work anymore, contact
your dealer or service center to x it. Do not repair the screen by yourself!

WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when trying
to complete a task.
IMPORTANT: Information that you MUST follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.

vii

Refer to the following sources for additional information and for product and
software updates.
 
The ASUS websites worldwide provide updated information on ASUS
hardware and software products. Refer to http://www.asus.com
 
Your product package may include optional documentation that may have
been added by your dealer. These documents are not part of the standard
package.
Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest
standards for protecting our environment. We believe in providing solutions for
our customers to be able to responsibly recycle our products, batteries and other
components as well as the packaging materials.
Please go to http://csr.asus.com/english/Takeback.htm for detail recycling
information in different region.

viii

1-1ASUS VS24AxL Series LCD Monitor
1.1 Welcome!
Thank you for purchasing the ASUS® LCD monitor!
The latest widescreen LCD monitor from ASUS provides a broader, brighter and
crystal-clear display, plus a host of features that enhance your viewing experience.
With these features, you can enjoy the convenience and delightful visual
experience that the monitor brings to you!
1.2 Package contents
Check your package for the following items:
LCD monitor
Monitor base
Quick start guide
Warranty card
Power cord
VGA cable
DVI cable
If any of the above items is damaged or missing, contact your retailer
immediately.

1-2 Chapter 1: Product introduction

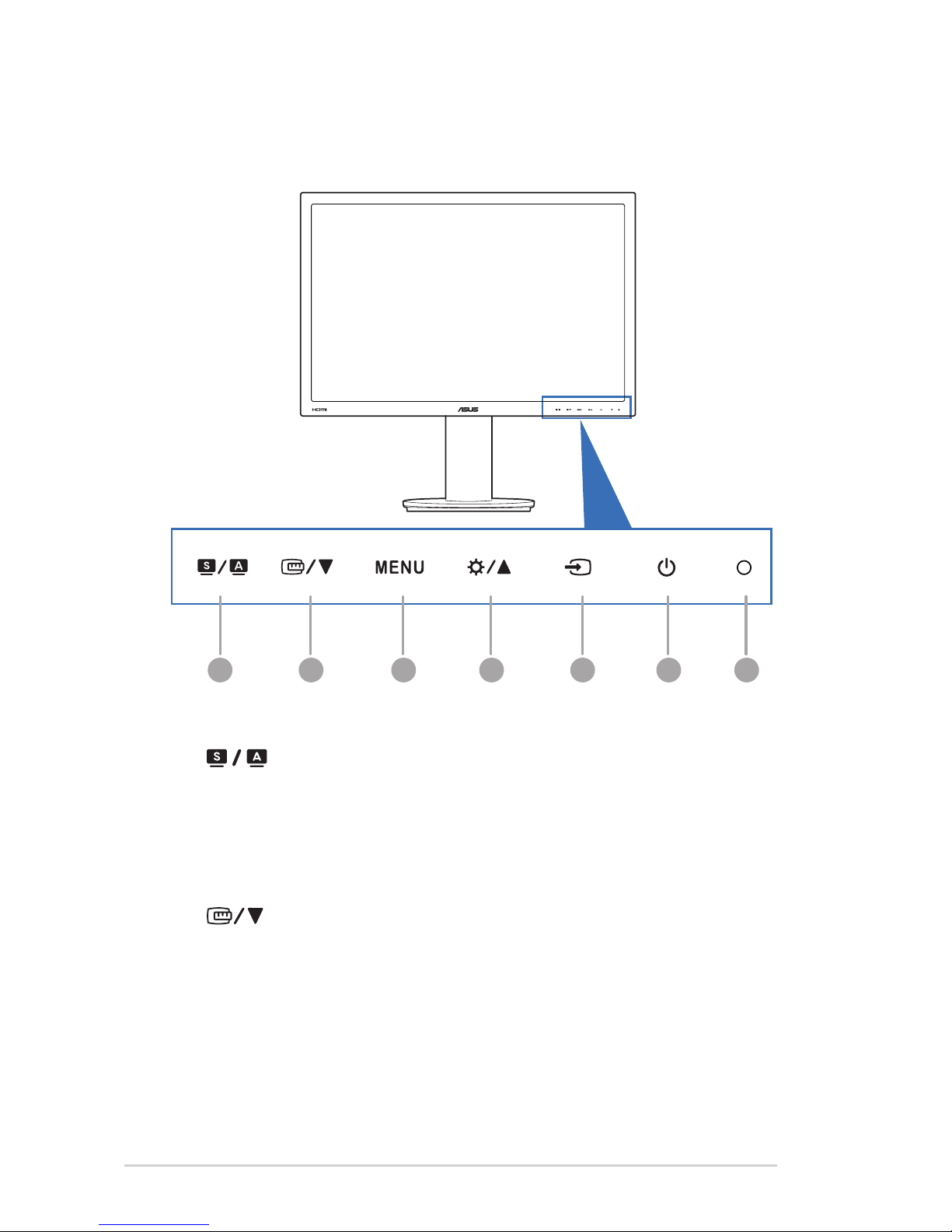

1.3 Monitor introduction
 
1 2 6 643 5
1. button:
• Selects a desired preset mode.
• Exits the OSD menu or goes back to the previous menu when the OSD
menu is active.
• Automatically adjusts the image to its optimized position, clock, and phase
by pressing this button for 2-4 seconds (for VGA mode only).
2.
• Decreases values or moves your selection left/down.
• QuickFit hotkey. (Please refer to 1.3.3 QuickFit function)
3. MENU button:
• Turns on the OSD menu. Enacts the selected OSD menu item.

1-3ASUS VS24AxL Series LCD Monitor
4.
• Increases values or moves your selection right/up.
• Brightness hotkey
5. button:
• Selects an available input source.
6. Power button/power indicator
• Turns the monitor on/off.
• The color denition of the power indicator is as the below table.
 
Blue ON
Amber Standby mode
OFF OFF
 

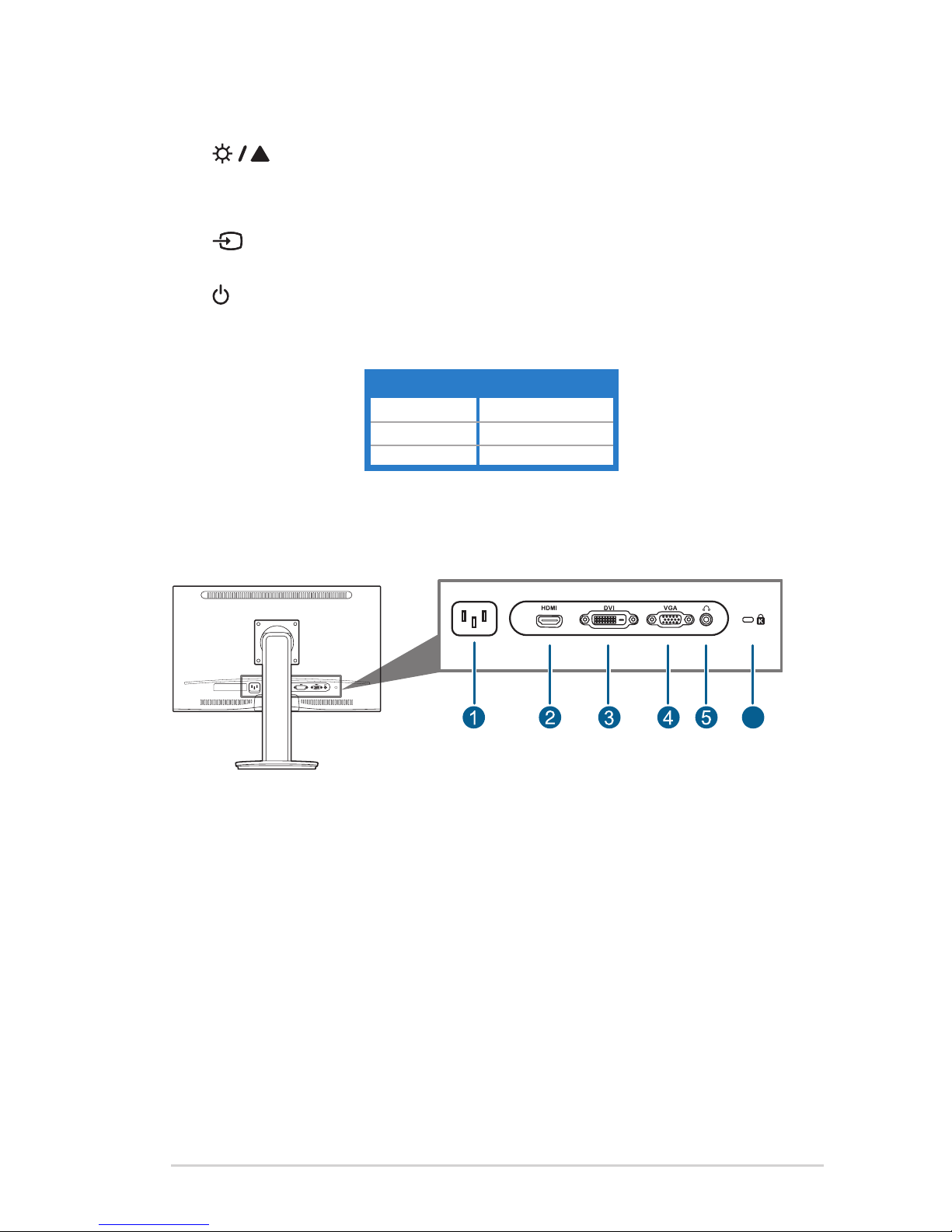

6

 . This port connects the power cord.
2. . This port is for connection with an HDMI compatible device.
3. . This 24-pin port is for PC (Personal Computer) DVI-D digital signal
connection.
4. . This 15-pin port is for PC VGA connection.
5.  . This port is only available when an HDMI cable is
connected.
6. .

1-4 Chapter 1: Product introduction
 
The QuickFit function contains three kinds of patterns: (1) Grid patterns (2) Paper
size (3) Photo size. To activate QuickFit, press the QuickFit hotkey, and then press
the MENU key to switch between different pattern sizes.
1. Grid patterns
The grid patterns facilitate designers and users to organize content and layout on a
page and achieve a consistent look and feel.
Alignment Grid
2. Paper size
QuickFit provides numerous commonly used standard paper sizes for users to view
their documents in real size on the screen.
A4 Letter

1-5ASUS VS24AxL Series LCD Monitor
3. Photo size
The various real photo sizes displayed in the QuickFit function provides
photographers and other users to accurately view and edit their photos in real size
on the screen.
Photo 4x6, 3x5, 2x2 Photo 8x10, 5x7
When QuickFit is activated, press the control buttons on the front panel to make
adjustments. The QuickFit OSD displayed in the lower right corner of the screen
will guide users to make selections.
The QuickFit OSD shown on the screen is not accessible by tapping on it.

1-6 Chapter 1: Product introduction

2-1ASUS VS24AxL Series LCD Monitor
2.1 Assembling the monitor arm/base
To assemble the monitor base:
1. Have the front of the monitor face down on a table.
2. Rotate the arm anti-clockwise 90 degrees. (Figure 1)
3. Fix the base to the arm by fastening the bundled screw. (Figure 2) (Figure 3)
4. Align the triangle mark on the base with the two screws to allow 160 degrees
swivel from either left or right. (Figure 4)
We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
160˚
160˚
0˚
Figure 1
Figure 3 Figure 4
Figure 2

2-2 Chapter 2: Setup
2.2 Adjusting the monitor
• For optimal viewing, we recommend that you look at the full face of the
monitor, then adjust the monitor to the angle that is most comfortable for you.
• Hold the stand to prevent the monitor from falling when you change its angle.
• The recommended adjusting angle is +22˚ to -5˚ (for tilt)/+160˚ to -160˚ (for
swiveling/ +110 mm (for height adjustment)/90˚ (for portrait view).
160˚ 160˚
0˚
+22˚~-5˚

1. Lift the monitor to the highest position.
2 Tilt the monitor to its maximum angle.
3. Pivot the monitor clockwise to the angle you need.
+22˚~-5˚
It is normal that the monitor slightly shakes while you adjust the viewing angle.
(Tilt) (Swivel) (Height adjustment)

2-3ASUS VS24AxL Series LCD Monitor

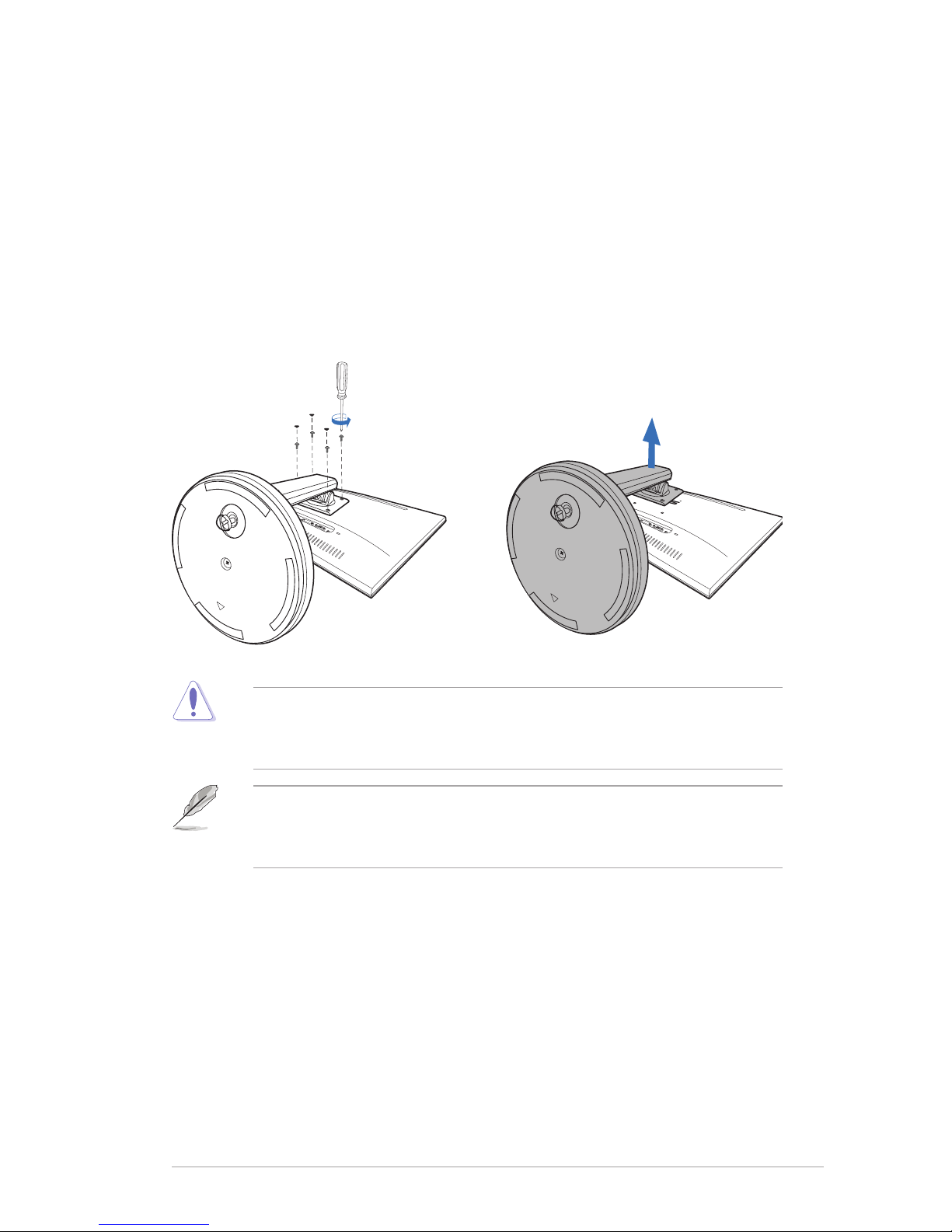

2.3 Detaching the arm/base (for VESA
wall mount)
The detachable arm/base of this monitor is specially designed for VESA wall
mount.
To detach the arm/base:
1. Have the front of the monitor face down on a table.
2. Use a screwdriver to remove the four screws on the arm (Figure 1), and then
detach the arm/base from the monitor (Figure 2).
• We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
• Hold the stand while removing the screws.
• The VESA wall mount kit (100 x 100 mm) is purchased separately.
• Use only the UL Listed Wall Mount Bracket with minimum weight/load
22.7kg (Screw size: M4 x 10 mm)
Figure 1 Figure 2

2-4 Chapter 2: Setup

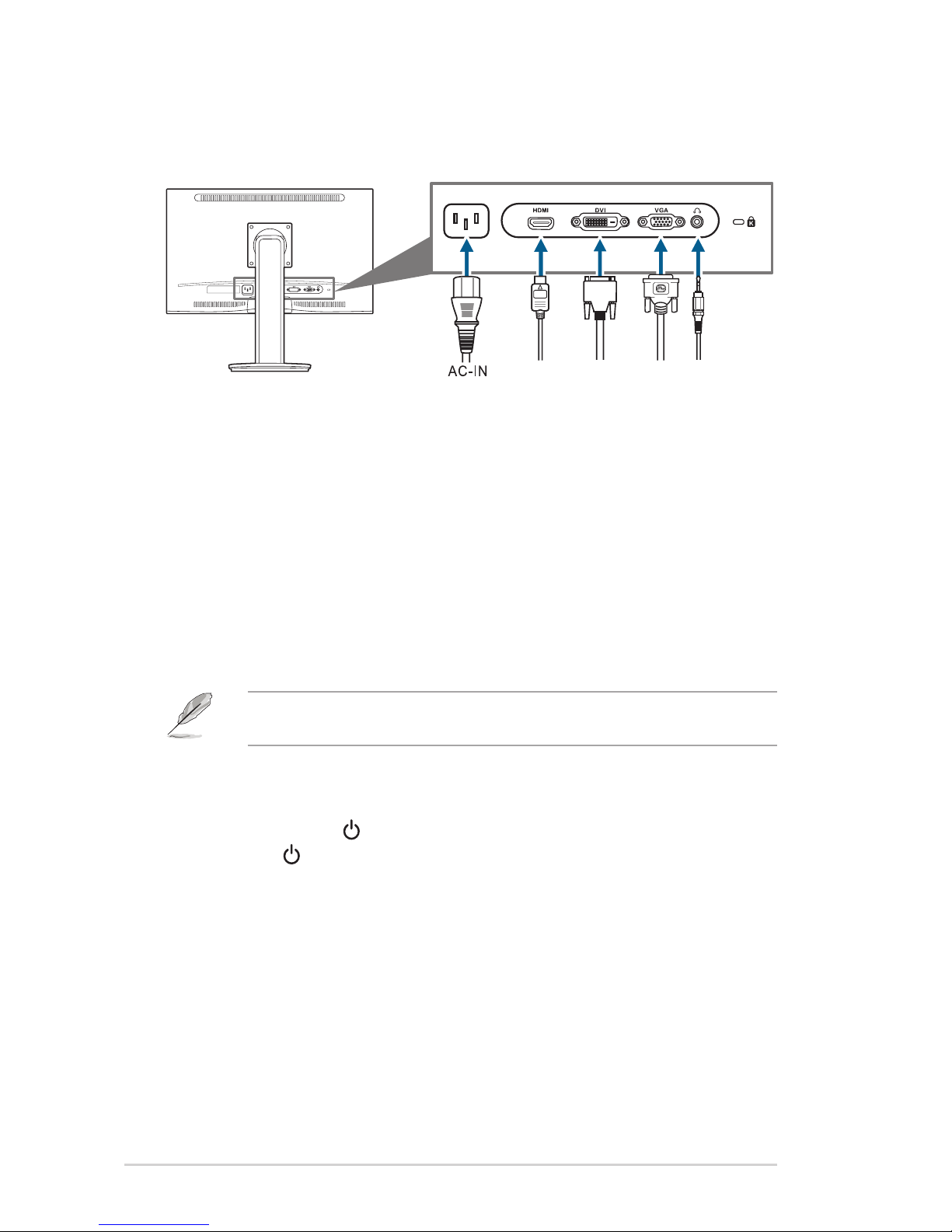

2.4 Connecting the cables
1. Connect the cables as the following instructions:
VGADVIHDMI Earphone jack
 : connect one end of the power cord securely to
the monitor’s AC input, the other end to a power outlet.
 :
a. Plug one end of the VGA/DVI/HDMI cable to the monitor’s VGA/DVI/
HDMI port.
b. Connect the other end of the VGA/DVI/HDMI cable to your computer’s
VGA/DVI/HDMI port.
c. Tighten the two screws to secure the VGA/DVI connector.
 : connect the
end with plug type to the monitor’s earphone jack.
When these cables are connected, you can choose the desired signal from the
Input Select item in the OSD menu.
2.5 Turning on the monitor
Press the power button . See page 1-2 for the location of the power button. The
power indicator lights up in blue to show that the monitor is ON.

2-5ASUS VS24AxL Series LCD Monitor

2-6 Chapter 2: Setup
