1-1 Chapter 1: Product Introduction
1.1 Welcome!
Thank you for purchasing the ASUS® LCD monitor!
The latest widescreen LCD monitor from ASUS provides a crisper,
broader, and brighter display, plus a host of features that enhance your
viewing experience.
With these features, you can enjoy the convenience and delightful visual
experience that the monitor brings to you!
1.2 Package Contents
Check your package for the following items:
•If any of the above items is damaged or missing, contact your retailer
immediately.
CAUTION
LCD monitor Monitor
Base
Quick Start Guide
Warranty Card
Adaptor
Power Cord
HDMI cable (optional)
DP cable (optional)

1-2
ASUS LCD Monitor VZ2491R Series
1.3 Assembling the Monitor Base
1. Have the front of the monitor face down on a table.
2. Attach the base to the arm.
3. Turn the screw clockwise to secure the base. Then adjust the monitor
to the angle that is most comfortable for you.
•We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
-5 ~ 22

1-3 Chapter 1: Product Introduction
1.4 Connect Cables

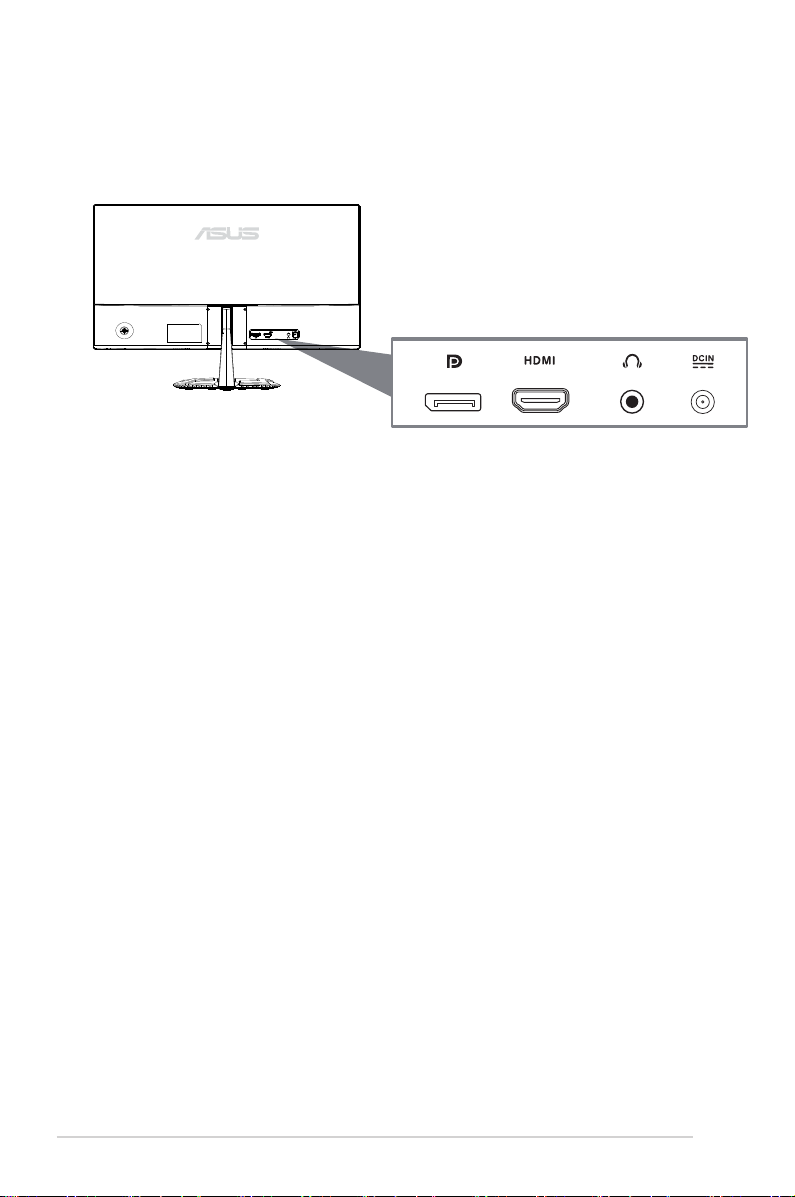

1.4.1 Rear of the LCD Monitor
1. DC-IN Port
2. Audio-out Port
3. HDMI Port
4.DP Port

1-4
ASUS LCD Monitor VZ2491R Series
1.5 Monitor Introduction
1.5.1 Using the Control Buttons
Use the control button on the back of the monitor to adjust the
image settings.
Menu
Close
Power Off
GamePlus
Splendid
1. Power Indicator:
• The color definition of the power indicator is as the below table.
Status Description
White ON
Amber Standby mode
OFF OFF
2. Central button:
• Press this button to enter the OSD menu.
• Press this button to turn on the monitor when turned off.
3. Left key:
• Exit the OSD menu or return to the previous layer.
4. Right key:
• Power Off shortcut key.
• Enter the option of the next layer.
5. Up key:
• Use this hotkey to GamePlus.
• Move the option upwards or increase the option value.
6. Down key:
• Use this hotkey to Splendid.
•Move the option downwards or decrease the option value.
• Key Lock shortcut key. Press and hold it for 5 seconds to
enable/disable Keys Lock.

1-5 Chapter 1: Product Introduction
1.5.2 QuickFit Function
The QuickFit function contains three patterns: (1) Grid (2) Paper size
(3) Photo size.
1. Grid pattern: Facilitates designers and users to organize content and
layout on one page and achieve a consistent look and feel.
2. Paper size: Provides users to view their documents in real size on the
screen.
B5 Letter
B5 Letter
EXIT
3. Photo size: Provides photographers and other users to accurately
view and edit their photos in real size on the screen.
8x10 5x7 3x5 2x2
4x6
Alignment Grid 2Alignment Grid 1

2-1 Chapter 2: Setup
2.1 Adjusting the Monitor
• For optimal viewing, we recommend that you look at the full face of the
monitor, then adjust the monitor to the angle that is most comfortable
for you.
• Hold the stand to prevent the monitor from falling while changing its
angle.
•Youcanadjustthemonitor’sanglefrom-5˚to22˚.
-5˚ to +22˚
•It is normal that the monitor slightly shakes while you adjust the viewing
angle.

2-2
2.2 Detaching the arm/stand (for wall mount)
（wall mount only for HDMI Port）
The detachable stand of this monitor is specially designed for wall
mount.
To detach the arm/stand
1. Disconnect power and signal cables. Carefully put the front of the
monitor face down on a clean table.
2. Use a screwdriver to remove the two screws on the arm (Figure 1),
and then detach the arm/stand from the monitor (Figure 2).
• We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
• Hold the stand of the monitor while removing the screws.
•
The wall mount kit ( 75 x 75 mm) is purchased separately.
• Use only the UL Listed Wall Mount Bracket with minimum weight/load 12 kg
(Screw size: M4 x 10 mm).
ASUS LCD Monitor VZ2491R Series
Figure 1 Figure 2
VGA
VGA

3-1
ASUS LCD Monitor VZ2491R Series
3.1 OSD (On-Screen Display) Menu
3.1.1 How to Reconfigure
1. Press the MENU button to activate the OSD menu.
2. Press the  and  buttons to toggle between options in the
Menu. As you move from one icon to another, the option name is
highlighted.
3. To select the highlighted item on the menu press the button.
4. Press the  and  buttons to select the desired parameter.
5. Press the
•
button to enter the slide bar and then use the  or
buttons, according to the indicators on the menu, to make your
changes.
6. Select the to return to previous menu or to accept and return to
previous menu.
•
•
Splendid
Scenery mode
Standard Mode
Theater Mode
Game Mode
Night View Mode
sRGB Mode
Reading Mode
Darkroom Mode
ASUS VZ249QG1R
Standard Mode HDMI 1920 x 1080 @ 60Hz

3-2 Chapter 3: General Instruction
3.1.2 OSD Function Introduction
1. Splendid
This function contains eight sub-functions that you can select for
your preference. Each mode has the Reset selection, allowing you to
maintain your setting or return to the preset mode.
• Standard Mode: This is the best choice for document editing
with SPLENDID™ Video Intelligence Technology.
•sRGB Mode: This is the best choice for viewing photos and
graphics from PCs.
•Scenery mode: This is the best choice for scenery photo
displaying with SPLENDID™ Video Intelligence Technology.
• Theater Mode: This is the best choice for movie watching with
SPLENDID™ Video Intelligence Technology.
• Game Mode: This is the best choice for game playing with
SPLENDID™ Video Intelligence Technology.
• NightView Mode: This is the best choice for playing dark-scene
game or watching dark-scene movie with SPLENDID™ Video
Intelligence Technology.
• Reading Mode: This is the best choice for book reading with
SPLENDID™ Video Intelligence Technology.
•Darkroom Mode: This is the best choice for a weak ambient
light environment with SPLENDID™ Video Intelligence
Technology.
Splendid
Scenery mode
Standard Mode
Theater Mode
Game Mode
Night View Mode
sRGB Mode
Reading Mode
Darkroom Mode
ASUS VZ249QG1R
Standard Mode HDMI 1920 x 1080 @ 60Hz

3-3
ASUS LCD Monitor VZ2491R Series
• In the Standard Mode, the Saturation, Skin Tone, Sharpness, and ASCR
functionsarenotuser-configurable
• In the sRGB, the Saturation, Color Temp., SkinTone, Sharpness,
Brightness,Contrast,andASCRfunctionsarenotuser-configurable
• In the Reading Mode, the Saturation, SkinTone, ASCR, Contrast, and Color
Temp.functionsarenotuser-configurable
2. Blue Light Filter
Reduce the energy level of blue light emitted from LED backlight.
Blue Light Filter
Level 0
Level 1
Level 2
Level 3
Level 4
• Level 0: No change.
• Level 1~4: The higher the level, the more blue light will be
reduced.
• When Blue Light Filter is activated, the default settings of Standard Mode
will be automatically imported.
• BetweenLevel1toLevel3,theBrightnessfunctionisuser-configurable
• Level 4 is optimized setting. It is compliance with TUV Low Blue Light
Certification TheBrightnessfunctionisnotuser-configurable
• Toalleviateeyestrain,restyoureyesforfiftee minutesforeverytwo
hours spent in front of the screen. Frequent blinking and eye exercise helps
keep your eye moist to prevent them from drying out. In addition, your
computer screen should be placed 20 to 28 inches (50-70cm) away from
you.
ASUS VZ249QG1R
Standard Mode HDMI 1920 x 1080 @ 60Hz

3-4 Chapter 3: General Instruction
3. Color
Select the image color you like from this function.
Color
Brightness
Contrast
Saturation
Color Temp.
Skin Tone
• Brightness: Adjust the brightness level. The adjusting range is
from 0 to 100.
• Contrast: Adjust the contrast level. The adjusting range is from
0 to 100.
• Saturation: Adjust the saturation level. The adjusting range is
from 0 to 100.
•ColorTemp.: Select the desired color temperature. Available
options: Cool, Normal, Warm, and User Mode.
• In the User Mode, colors of R (Red), G (Green), and B (Blue) are user-
configurable theadjustingrangeisfrom0~100.
•SkinTone: Select the desired skin color. Available options:
Reddish, Natural, and Yellowish.
ASUS VZ249QG1R
Standard Mode HDMI 1920 x 1080 @ 60Hz

3-5
ASUS LCD Monitor VZ2491R Series
4. Image
You can adjust the image Sharpness, Trace Free, Aspect Control,
VividPixel, ASCR, FreeSync (for HDMI only), ELMB,Shadow
Boost ,Position, Focus, and Auto Adjust from this main function.
Sharpness
VividPixel
ASCR
FreeSync
ELMB
Shadow Boost
Trace Free
Aspect Control
ASUS VZ249QG1R
Standard Mode HDMI 1920 x 1080 @ 60Hz
• Sharpness: Adjust the picture sharpness. The adjusting range
is from 0 to 100.
• Trace Free: Speed up the response time by Over Drive
technology. The adjusting range is from lower 0 to faster 100.
• Aspect Control: Adjust the aspect ratio to “Full”, “4:3”, or
“OverScan”.
• 4:3 is only available when the input source is in 4:3 format.
• OverScan is only available for HDMI input.
• VividPixel: ASUS Exclusive Technology that brings lifelike
visuals for crystal-clear and detail-oriented enjoyment. The
adjustingrangeisfrom0~100.
• ASCR: Select ON or OFF to enable or disable dynamic contrast
ratio function.
•FreeSync (for HDMI only): Select ON or OFF to enable or
disable the dynamic refresh rate range from 48Hz to 75Hz .
•ELMB:Allows you to turn on the function when
FreeSync is Off. This function eliminates screen tearing, reduces
ghosting and motion blur when playing games.
•Shadow Boost:Dark color enhancement adjusts monitor gamma
curve to enrich the dark tones in an image, making dark scenes
and objects much easier to be seen.

3-6 Chapter 3: General Instruction
5. Input Select
Select the input source.
Input Select
HDMI
DP
ASUS VZ249QG1R
Standard Mode HDMI 1920 x 1080 @ 60Hz
