VG248QE
Media Review Kit
144HZ Fast Gaming Monitor

Rich I/O ports
Dual HDMI 1.4, DVI-D,
D-sub, PC audio-in jack, Earphone Jack
VG248QE DESIGN AT A GLANCE
•World’s 1st 144Hz rapid refresh rate*
with 1ms (GTG) response time
•24” Full HD 1920 x 1080 LED backlit
display for lifelike visuals
•NVIDIA® 3D VISION™ 2 and NVIDIA®
3D LIGHTBOOST Technology
compatibility
•Superb ASUS Smart Contrast Ratio
(ASCR) of 80,000,000:1 and
350cd/m² brightness
•ASUS exclusive GamePlus and Splendid
Video Intelligence Technologies
•Extensive connectivity via DisplayPort,
HDMI, Dual-link DVI, 3.5mm Mini-jack
•Ergonomic design with tilt, swivel,
pivot and height adjustment plus cable
management
*144Hz in 2D visuals only.
2W 2W
Dual 2W stereo speakers
Hassle-free
Cable management
DisplayPort HDMI
Dual-Iink
DVI
Pivot Height
Adjustment
Tilt
Inspiring Innovation
•Persistent Perfection Confidential

*NVIDIA®3D Vision™ 2 kit sold separately.
Inspiring Innovation
•Persistent Perfection Confidential
ASUS EXCLUSIVE
INNOVATIONS
•Dedicated GamePlus hotkey with
crosshair (aimpoint) and timer for
enhanced combat
•80,000,000:1 ASUS Smart Contrast
Ratio (ASCR) achieves darkest black
and brightest white –delivering lifelike
images
•Splendid™ Video Intelligence
Technology ensures vivid color in
every usage
ULTRA-SMOOTH ACTION,
TRUE-TO-LIFE
GAMING EXPERIENCE
• 24” Full HD 1920 x 1080 resolution
with 350cd/m²brightness
•Capacity to handle frame rates of up
to 144FPS for smooth gameplay
•Delivers a 1ms (GTG) response time
to eliminate tracers
•Enabled stereoscopic 3D experience
thanks to NVIDIA® 3D VISION™ 2*
•Built-in Dual 2W stereo speakers
EXTENSIVE
CONNECTIVITY
•DisplayPort, HDMI, and Dual-link
DVI-D ports ensure extensive
connectivity and compatibility
•Compatible with NVIDIA®3D VISION™
2* through DisplayPort and dual-link
DVI, providing support across three
Full HD displays for an immersive
multi-display 3D gaming experience
VG248QE
144Hz Fast Gaming LED Backlit Monitor
USER-FRIENDLY DEISGN
KEY PRODUCT FEATURES OVERVIEW
Ergonomic design for tilt, swivel, pivot, and height adjustment plus cable management

ULTRA-SMOOTH ACTION,
TRUE-TO-LIFE GAMING EXPERIENCE
EXTENSIVE
CONNECTIVITY &
USER-FRIENDLY
DEISGN
ASUS EXCLUSIVE
INNOVATIONS
The VG248QE is the world’s first 144Hz* rapid refresh
rate display with 1ms (GTG) response time for super-
fast frame rates, reduced input lag and motion blur to
deliver smooth visuals in Full HD 1920 x 1080
resolution. This gives gamers a competitive edge when
it comes to first-person shooter, racing, or real-time
strategy games.
ULTRA-SMOOTH ACTION,
TRUE-TO-LIFE GAMING EXPERIENCE
Inspiring Innovation
•Persistent Perfection Confidential
*To activate 144Hz function (2D only), both DisplayPort (or Dual-
link DVI) and a specific graphics card with the latest driver are
required. Should you have any questions regarding to the 144Hz
refresh rate, please consult with the local service team for more
details.

WORLD’S FIRST 144HZ FAST GAMING MONITOR
ULTRA SMOOTH ACTION EXCLUSIVE INNOVATIONS RICH CONNECTIVITY


Inspiring Innovation
•Persistent Perfection Confidential
Unlock ultra-high frame rates, shorten input lag and
reduce motion blur for natural movement and a
competitive advantage in your FPS, Racing Simulator or
RTS games with the ASUS VG248QE 144Hz Fast Gaming
monitor. Built to support NVIDIA 3D Vision® for the
industry’s best stereoscopic 3D, the ASUS VG248QE
also delivers over 2x the 2D performance of conventional
LCDs when paired with an NVIDIA GeForce GTX GPU.
The ASUS VG248QE is guarantee to drive
the most out from gamers’ state-of-the-
art graphics card and enhance the total
gaming experience.
Blur motion scene Ultra-Smooth motion scene

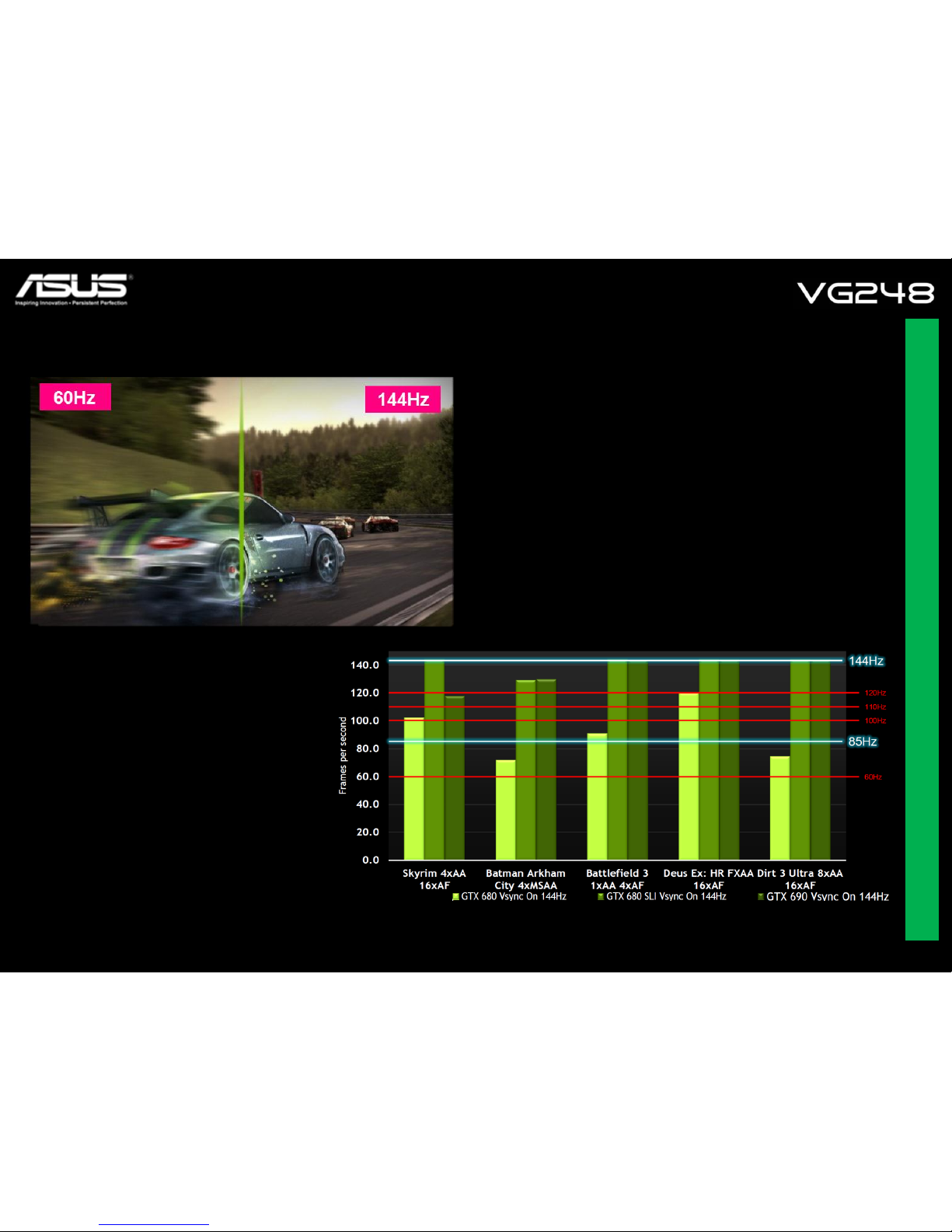

BENEFITS OF THE VG248QE
ULTRA SMOOTH ACTION EXCLUSIVE INNOVATIONS RICH CONNECTIVITY


Inspiring Innovation
•Persistent Perfection Confidential
1) Unlock High Frame Rates
The ASUS VG248QE can increase the
maximum frame rate up to 144 FPS for
silky smooth motion during gameplay.
2) Shorten Input Lag
The ASUS VG248QE shortens the time
it takes for rendered frames to display
on the screen. Lower monitor latency
gives a gamer the opportunity to
improve their in-game response time.
3) Reduce Motion Blur
Conventional 60Hz LCDs show extensive
motion blur, and can be distracting
when playing games with fast movement.
The ASUS VG248QE half the effects of
motion blur to deliver a perceivable
difference for natural movement and
crisp edges on fast paced gaming
environments.
Sluggish motion scenes in 60Hz refresh rate
Sleeker motion scenes in 144Hz refresh rate

Inspiring Innovation
•Persistent Perfection Confidential
NVIDIA® TESTING TOOL FOR DEMO
STEP 01.
Set the display resolution to 1920 x 1080
pixels and refrsh rate to 144Hz via the
NVIDIA® control panel.
STEP 02.
Select file “Test_Tool.exe” to launch the test
application.
STEP 03.
Use the following hotkeys to enable different
modes within the demo.
STEP 04.
The RHS of the screen is
updated at 144Hz frames per
second and the LHS is
updated at half of the speed.
Notice that as you follow a
high-detail image across the
boundary (such as details in
trees, fine lines, or especially
text) the image on the RHS is
much sharper than the LHS
version.
LHS RHS
ULTRA SMOOTH ACTION EXCLUSIVE INNOVATIONS RICH CONNECTIVITY



*NVIDIA®3D Vision™ 2 kit sold separately.
1MS RESPONSE TIME WITH TRACE FREE II TECH.
ULTRA SMOOTH ACTION EXCLUSIVE INNOVATIONS RICH CONNECTIVITY


Inspiring Innovation
•Persistent Perfection Confidential
Trace Free II Technology improves the response time of ASUS
VG248QE, eliminating ghosting and tracers during video playback. It
does this by controlling voltage levels, resulting in 1ms response time
so the VG248QE provides fluid and clear video playback with silky-
smooth motion during gameplay.
Conventional monitor
without Tracer Free II
Technology and with
slower response time
Fluid movement with ASUS
Tracer Free II Technology
and fast 1ms response time
NVIDIA® 3D VISION™ COMPATIBLE
The VG248QE is compatible with the NVIDIA® 3D Vision™2 kit*
through DisplayPort and dual-link DVI, providing support across
three Full HD displays for an immersive multi-display 3D gaming
experience.
When playing games in 3D, the VG248QE also provides smooth
visuals thanks to 120Hz frames per second –therefore enhance
total gaming experience.
The ASUS VG248QE is a quick upgrade away from the richest array
of 3D content available, including more than 700 3D games, Blu-
ray™ 3D movies, 3D photos, streaming YouTube 3D videos and
membership to the world’s largest 3D online community at
3DVisionLive.com.

ASUS EXCLUSIVE INNOVATIONS
EXTENSIVE
CONNECTIVITY &
USER-FRIENDLY
DEISGN
ULTRA-SMOOTH
ACTION ASUS is proud to present its exclusive technologies and
innovations with the VG248QE Fast Gaming Monitor,
including ASUS GamePlus Function, Smart Contrast
Ratio, and Splendid™ Video Intelligence Technology
to enhance overall gaming and multimedia
experience.
ASUS EXCLUSIVE INNOVATIONS
Inspiring Innovation
•Persistent Perfection Confidential

ASUS GAMEPLUS FUNCTION FOR THE WIN.
ULTRA SMOOTH ACTION EXCLUSIVE INNOVATIONS RICH CONNECTIVITY


Inspiring Innovation
•Persistent Perfection Confidential
When it comes to design, ASUS always have customers in mind –the ASUS VG248QE features the
ASUS-exclusive GamePlus hotkey with crosshair (aimpoint) and timer functions. Gamers can select
four different aimpoint types to suit the gaming environment; while the latter keeps players aware
of the elapsed time in real-time strategy games. These tools allow gamers to practice and improve
on their gaming skills.
An exclusive aimpoint feature can be activated via a
designated hotkey; and total of 4different aimpoint
types are offered to gamers to suit the gaming
environment the best. The tool is definitely a plus
when it comes to practice mode –help you improve
your gaming skills.
CROSSHAIR/ AIMPOINT
TIMER
5different time intervals with 3different positions
shown on the screen to choose from.
X5
X4 X3

ASUS SMART CONTRAST RATIO, ASCR.
ULTRA SMOOTH ACTION EXCLUSIVE INNOVATIONS RICH CONNECTIVITY


Inspiring Innovation
•Persistent Perfection Confidential
With ASUS Smart Contrast Ratio (ASCR) of 80,000,000:1 and
350cd/m² brightness, VG248QE augments display contrast and
sharpness by adjusting backlighting luminance to achieve the deepest
blacks and brightest whites for truly lifelike visuals.
Without ASCR 80,000,000:1 ASCR
ASUS SPLENDID™ VIDEO INTELLIGENCE TECH.
ASUS Splendid™ Video Intelligence technology is built upon a color engine that automatically analyzes and
determines the nature and parameters of current visuals tasks, adjusting display parameters to ensure optimal
color accuracy and image fidelity. Six preset video modes (Theater, Scenery, Standard, sRGB, Game, and Night
view) can be selected via a dedicated touch-sensor hotkey.
THEATER STANDARD
SCENERY
►Enhances the contrast and
color saturation of the image —
delivering livelier and more vivid
visuals for greater immersion.
►Increases the brightness range,
introducing more contrast gradations
and selectively tweaking color
saturation for more lush landscapes.
►Delivers clear document viewing
and web browsing experiences
with optimized color and contrast.
sRGB
►Provides the best performance
for viewing graphics online .
GAME
►Brings out dark, hard-to-see areas
while leaving well-lit portions
untouched —allowing you to see
opponents lurking in obscure corners.
NIGHT VIEW
►Intelligently raises Y-luminance to
highlight poorly-lit details, capturing each
scene’s beauty in a crisp and vibrant fashion.

ASPECT RATIO CONTROL.
ULTRA SMOOTH ACTION EXCLUSIVE INNOVATIONS RICH CONNECTIVITY


Inspiring Innovation
•Persistent Perfection Confidential
With the ASUS VG248QE, the aspect ratio can be controlled when using non-
native resolutions. Viewing 4:3 images on a generic widescreen LCD monitor
usually results in image distortion. However, with ASUS VG248QE, you will have
the option of choosing visuals to be shown in either a Full or 4:3 aspect ratio to
ensure that the original image is displayed perfectly and correctly.
Without aspect ratio control support
Image distortion happens on screen
Original 4:3 Content
With aspect ratio control support
No Image Distortion

ASUS EXCLUSIVE
INNOVATIONS
The VG248QE Fast Gaming Monitor supports Full HD
1920 x 1080 resolution and has rich connectivity
design including DisplayPort, HDMI, and Dual-link DVI. It
is also designed with user in mind which provides a
comfortable viewing position with swivel, tilt, pivot, and
height adjustments.
EXTENSIVE CONNECTIVITY &
USER-FRIENDLY DESIGN
Inspiring Innovation
•Persistent Perfection Confidential
EXTENSIVE CONNECTIVITY &
USER-FRIENDLY DESIGN
ULTRA-SMOOTH
ACTION

Inspiring Innovation
•Persistent Perfection Confidential
ULTRA SMOOTH ACTION EXCLUSIVE INNOVATIONS RICH CONNECTIVITY


EXTENSIVE CONNECTIVITY DESIGN
The VG248QE is compatible with the NVIDIA 3D Vision® 2 kit* through DisplayPort and dual-link DVI,
providing support across three Full HD displays for an immersive multi-display 3D gaming experience.
DisplayPort, HDMI, and Dual-link DVI-D ports ensure extensive connectivity and compatibility with a
variety of multimedia devices including Blu-ray disc players or game consoles; while built-in 2W stereo
speakers further add to an immersive home entertainment experience.
*Specific graphics cards that support multi-
display are required.
Please contact the service center of your
graphics card’s company for technical supports.
**NVIDIA®3D Vision™ 2 kit sold separately.
HDMI
Dual-Iink
DVI
DisplayPort
POPULAR MULTIPLE-MONITOR CONFIGURATION
Multi-display @ 60Hz Multi-display @
120 & 144Hz in 2D
Multi-display @ 120 in 3D
PC
+
selected graphic card*
+
DP/ HDMI/ Dual-link DVI-D
PC
+
selected graphic card*
+
DP/ Dual-link DVI-D
PC
+
selected graphic card*
+
DP/ Dual-link DVI-D +
NVIDIA 3D Vision® 2 kit**
2W 2W
Dual 2W speakers

Inspiring Innovation
•Persistent Perfection Confidential
ULTRA SMOOTH ACTION EXCLUSIVE INNOVATIONS RICH CONNECTIVITY


RECOMMENDED 144HZ SUPPORTING
GRAPHICS CARDS
* All ASUS Geforce GTX cards sold today support
144Hz rendering. GTX class of graphics cards, such
as GTX 470, 480, 570, 580, 590, 670, 680, 690, are
positioned as the best support for the 144Hz Fast
Gaming Monitor. Recommendation will be added on
GeForce.com for all GTX GPUs. Other graphics cards
with the latest drivers such as ASUS Radeon HD
6000 and 7000 Series can also be allowed to run at
144Hz. Please contact the service center of your
graphics cards’ companies for technical supports.

Inspiring Innovation
•Persistent Perfection Confidential
ULTRA SMOOTH ACTION EXCLUSIVE INNOVATIONS RICH CONNECTIVITY


ERGONOMIC DESIGN FOR YOUR COMFORT VIEW
The ASUS VG248QE’s ergonomic design provides users with a comfortable viewing position with swivel, tilt,
pivot, and height adjustments. An exclusive cable management feature ensures a clutter-free desktop.
TILT
+15°~ -5°
PIVOT
90°
HEIGHT ADJUSTMENT
(0~110mm)
SWIVEL
(±45°)
CABLE MANAGEMENT

Inspiring Innovation
•Persistent Perfection Confidential
VG248QE SPECIFICATIONS
Display
Panel Size(diagonal)
24" (61cm)Wide Screen (16:9)
Display Viewing Area(
HxV) 531.36(H) x 298.89(V) mm
Panel Backlight/ Type
WLED/ TN
Display
Surface non-glare
Color Saturation(NTSC)
72%
True Resolution
1920x1080 (Full HD)
Pixel Pitch
0.276mm
Brightness (Max.)
350cd/㎡
Contrast Ratio (Max.)
1000:1
ASUS Smart Contrast
Ratio(ASCR)
80,000,000:1
Viewing Angle (CR
≧10) 170°(H) /160°(V)
Display Colors
16.7 million
Response Time
1ms (GTG)
Video
Features
Trace
Free Technology Yes
SPLENDID™ Video
Intelligence Tech.
Yes
SPLENDID™ Video Preset
Mode
6 modes
Skin
-Tone Selection 3 modes
Color Temperature Selection
4 modes
HDCP
Yes
Smart
View Technology Yes
Audio
Features
Stereo Speaker
2W x 2 stereo, RMS
Input/ Output
DP1.2,
HDMI1.4, Dual-
link DVI-
D, Audio Line
-
in, Earphone Jack
Convenient
Hotkeys
SPLENDID™ Video
Preset Mode Select.
Yes (6 modes)
Brightness
Adjustment
Yes
Input Selection Yes
GamePlus Yes (Aimpoint & Timer)
Signal
Frequency
Digital Signal
Frequency
HDMI:30~83KHz(H)/ 50~76Hz(V)
DP/DVI:30~140KHz(H)/
50~144Hz(V)
Power Power Consumption
<
45W (Power ON)/
<0.5W(Saving/
OFF)
Voltage 100–240V, 50 / 60 Hz
Mechanical
Design
Tilt(angle) +15°~ -5°
Swivel +45°~ -45°
Pivot 90°(clockwise)
Height Adjustment
0~110(mm)
VESA Wall Mounting
100x100(mm)
Security Kensington lock Yes
Dimension
Phys. Dimension
(WxHxD)
569.4x 499.9x 231 mm (with
Stand)
Box Dimension
(WxHxD) 674x413x221 mm
Weight 5.5 Kg(Net); 8.1 Kg (Gross)
Accessories
DVI-
DL cable, Audio cable, Power
cord, Support CD, Warranty card,
Quick start guide
Regulation Approvals
Energy Star® , UL/cUL, CB, CE,
ErP, FCC, CCC, BSMI, Gost-R, C-
Tick, VCCI, , J
-MOSS, PSE, RoHS
,
WEEE, Windows 7/Windows 8
WHQL

*Should you have any questions or need anything further,
please kindly contact your local marketing representatives.
Inspiring Innovation
•Persistent Perfection Confidential
