Asus C60M1-I User manual

Motherboard
C60M1-I

ii
E7273
First Edition
April 2012
Copyright © 2012 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product may contain copyrighted software that is licensed under the General Public License (“GPL”)
and under the Lesser General Public License Version (“LGPL”). The GPL and LGPL licensed code in this
product is distributed without any warranty. Copies of these licenses are included in this product.
You may obtain the complete corresponding source code (as dened in the GPL) for the GPL Software,
and/or the complete corresponding source code of the LGPL Software (with the complete machine-
readable “work that uses the Library”) for a period of three years after our last shipment of the product
including the GPL Software and/or LGPL Software, which will be no earlier than December 1, 2011, either
(1) for free by downloading it from http://support.asus.com/download;
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source code
we would be much obliged if you give us a notication to the email address [email protected], stating the
product and describing the problem (please do NOT send large attachments such as source code archives
etc to this email address).

iii
Contents
Safety information ...................................................................................... vi
About this guide ........................................................................................ vii
C60M1-I specications summary............................................................ viii
Chapter 1
Product introduction
1.1 Before you proceed ..................................................................... 1-1
1.2 Motherboard overview................................................................. 1-2

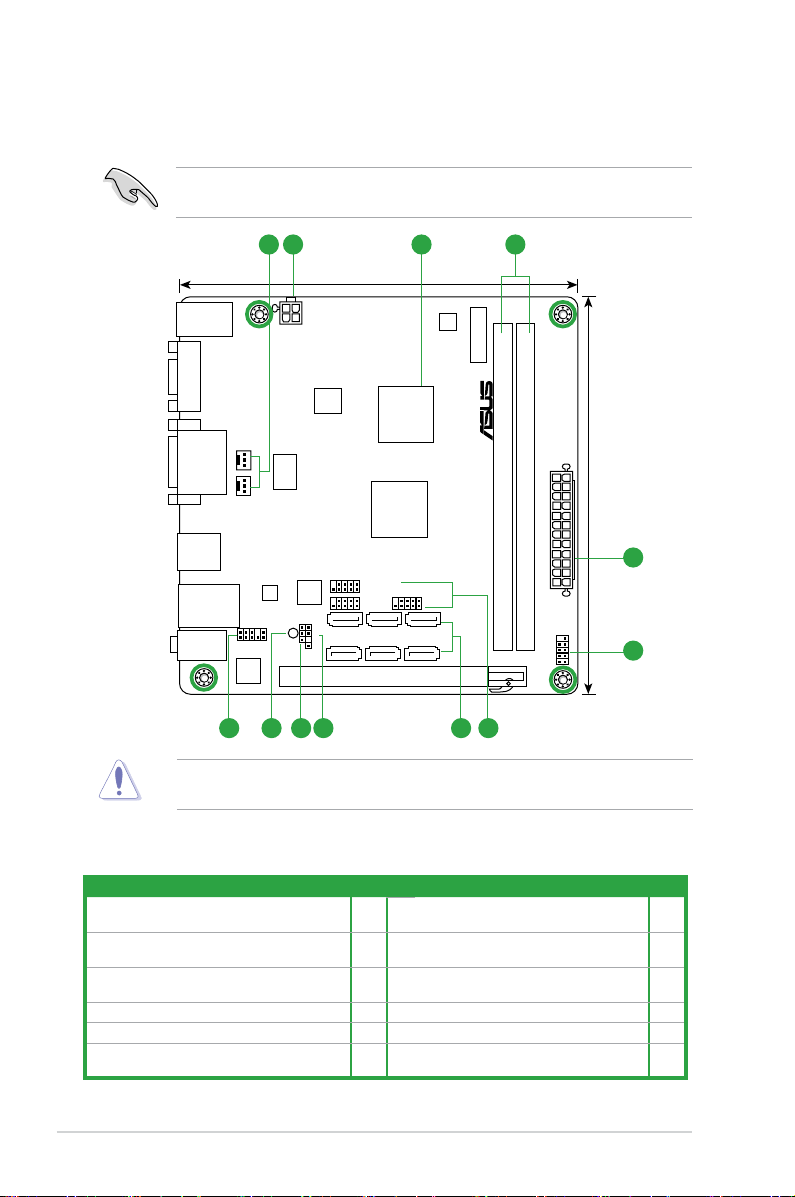

1.2.1 Motherboard layout ......................................................... 1-2
1.2.2 Layout contents............................................................... 1-2
1.3 Central Processing Unit (CPU) ................................................... 1-3
1.4 System memory ........................................................................... 1-3
1.4.1 Overview ......................................................................... 1-3
1.4.2 Memory congurations.................................................... 1-4
1.5 Expansion slots............................................................................ 1-8
1.5.1 Installing an expansion card ........................................... 1-8
1.5.2 Conguring an expansion card ....................................... 1-8
1.5.3 PCI Express x16 slot....................................................... 1-8
1.6 Jumpers ........................................................................................ 1-9
1.7 Connectors ................................................................................. 1-10
1.7.1 Rear panel connectors.................................................. 1-10
1.7.2 Internal connectors ........................................................1-11
1.8 Software support........................................................................ 1-15
1.8.1 Installing an operating system ...................................... 1-15
1.8.2 Support DVD information .............................................. 1-15
Chapter 2
BIOS information
2.1 Managing and updating your BIOS ............................................ 2-1
2.1.1 ASUS Update utility ........................................................ 2-1
2.1.2 ASUS EZ Flash 2............................................................ 2-2
2.1.3 ASUS CrashFree BIOS 3 utility ...................................... 2-3
2.1.4 ASUS BIOS Updater....................................................... 2-4
2.2 BIOS setup program .................................................................... 2-7
2.3 Main menu .................................................................................. 2-10

iv
Contents
2.3.1 System Language [English] ...........................................2-11
2.3.2 System Date [Day xx/xx/xxxx]........................................2-11
2.3.3 System Time [xx:xx:xx] ..................................................2-11
2.3.4 Security ..........................................................................2-11
2.4 Ai Tweaker menu........................................................................ 2-12
2.4.1 Ai Overclock Tuner [Auto] ............................................. 2-13
2.4.2 Memory Frequency [Auto]............................................. 2-13
2.4.3 DRAM Timing Control ................................................... 2-13
2.4.4 CPU Offset Mode Sign [+]............................................. 2-13
2.4.5 VDDNB Offset Mode Sign [+]........................................ 2-13
2.4.6 DRAM Voltage [Auto] .................................................... 2-14
2.4.7 SB 1.1V Voltage [Auto] ................................................. 2-14
2.4.8 APU 1.8V Voltage [Auto]............................................... 2-14
2.4.9 APU 1.05V Voltage [Auto]............................................. 2-14
2.4.10 APU Spread Spectrum [Auto] ....................................... 2-14
2.5 Advanced menu ......................................................................... 2-15
2.5.1 CPU Conguration ........................................................ 2-15
2.5.2 SATA Conguration ....................................................... 2-16
2.5.3 USB Conguration ........................................................ 2-16
2.5.4 NB Conguration........................................................... 2-17
2.5.5 Onboard Devices Conguration.................................... 2-17
2.5.6 APM .............................................................................. 2-17
2.6 Monitor menu ............................................................................. 2-18
2.6.1 CPU Temperature / MB Temperature [xxxºC/xxxºF]...... 2-19
2.6.2 CPU / Chassis Fan Speed ............................................ 2-19
2.6.3 CPU Q-Fan Control [Enabled] ...................................... 2-19
2.6.4 Chassis Q-Fan Control [Enabled] ................................. 2-19
2.6.5 CPU Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage .. 2-20
2.6.6 Anti Surge Support [Enabled] ....................................... 2-20
2.7 Boot menu .................................................................................. 2-21
2.7.1 Bootup NumLock State [On] ......................................... 2-21
2.7.2 Full Screen Logo [Enabled]........................................... 2-21
2.7.3 Option ROM Messages [Force BIOS]........................... 2-21
2.7.4 Setup Mode [EZ Mode] ................................................. 2-22
2.7.5 Boot Option Priorities .................................................... 2-22

v
2.7.6 Boot Override................................................................ 2-22
2.8 Tools menu ................................................................................. 2-23
2.8.1 ASUS EZ Flash 2 Utility ................................................ 2-23
2.8.2 ASUS O.C. Prole......................................................... 2-23
2.9 Exit menu.................................................................................... 2-24
Appendices
Notices.......................................................................................................A-1
Contents

vi
Safety information
Electrical safety
• To prevent electric shock hazard, disconnect the power cable from the electric outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding devices on it, carefully read all the manuals
that came with the package.
• Before using the product, ensure that all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.

vii
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when
completing a task.
CAUTION: Information to prevent damage to the components when
completing a task.
NOTE: Tips and additional information to help you complete a task.
IMPORTANT: Instructions you MUST follow to complete a task.
Where to nd more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty yers,
that may have been added by your dealer. These documents are not part of the
standard package.
Typography
Bold text Indicates a menu or an item to select.
Italics Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign means
that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1>+<Key2>+<Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).
Example: <Ctrl>+<Alt>+<D>
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product introduction
This chapter describes the supported features included with the motherboard.
• Chapter 2: BIOS information
This chapter provides a detailed guide to navigating and setting up the BIOS..

viii
C60M1-I specications summary
(continued on the next page)
CPU AMD® Fusion APU C-60 1.0 Ghz Dual Core Processor
Chipset AMD®FCH A50M
Memory 2 x DIMMs, maximum 8GB, DDR3 1066 / 800 MHz, non-ECC,
un-buffered memory
* Refer to www.asus.com for the latest Memory QVL (Qualied
Vendors List).
** When you install a total memory of 4GB capacity or more,
Windows® 32-bit operating system may only recognize less
than 3GB. We recommend a maximum of 3GB system memory
if you are using a Windows®32-bit operating system.
Expansion slots 1 x PCI Express 2.0 x16 slot (at x4 mode, with latch)
Graphics AMD®Radeon™ HD 6290
Supports DVI with max. resolution up to 1920 x 1200 @60Hz
Supports D-Sub with max. resolution up to 1920 x 1200 @60Hz
Storage 6 x Serial ATA 6.0 Gb/s connectors support AHCI mode
LAN Realtek®8111F PCIe Gigabit LAN controller
Audio VIA® VT1708S 8-channel* High Denition Audio CODEC
* Use a chassis with HD audio module in the front panel to
support an 8-channel audio output.
USB 12 x USB 2.0/1.1 ports (6 ports at the mid-board, 6 ports at the
back panel)
ASUS special
features
ASUS AI Suite II
ASUS Anti-Surge protection
ASUS Q-Fan 2
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS MyLogo 2
ASUS Network iControl
ASUS WebStorage
ASUS Ai Charger
ASUS Fan Xpert
100% All High-quality Conductive Polymer Capacitors
Rear panel ports 1 x PS/2 Keyboard / Mouse combo port
1 x DVI port
1 x D-Sub port
1 x LAN (RJ-45) port
6 x USB 2.0 ports
3 x Audio jacks

ix
C60M1-I specications summary
* Specications are subject to change without notice.
Internal connectors 3 x USB 2.0/1.1 connectors support additional 6 USB 2.0/1.1 ports
1 x CPU fan connector
1 x Chassis fan connector
1 x Chassis intrusion connector
6 x SATA 6.0Gb/s connectors
1 x System Panel connector
1 x Front panel audio connector
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12V power connector
BIOS Features 32 Mb Flash ROM, AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS
2.5
Accessories 2 x Serial ATA 6.0Gb/s cables
1 x I/O shield
1 x User Manual
1 x Support DVD
Support DVD Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)
Form factor Mini ITX form factor: 6.7 in x 6.7 in (17.0 cm x 17.0 cm)

x

1-1Chapter 1: Product introduction
Chapter 1
Product introduction
Thank you for buying an ASUS®C60M1-I motherboard!
Before you start installing the motherboard, and hardware devices on it, check the items in
your motherboard package. Refer to page x for the list of accessories.
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due to
static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that came with the component.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so may
cause severe damage to the motherboard, peripherals, or components.
If any of the items is damaged or missing, contact your retailer.

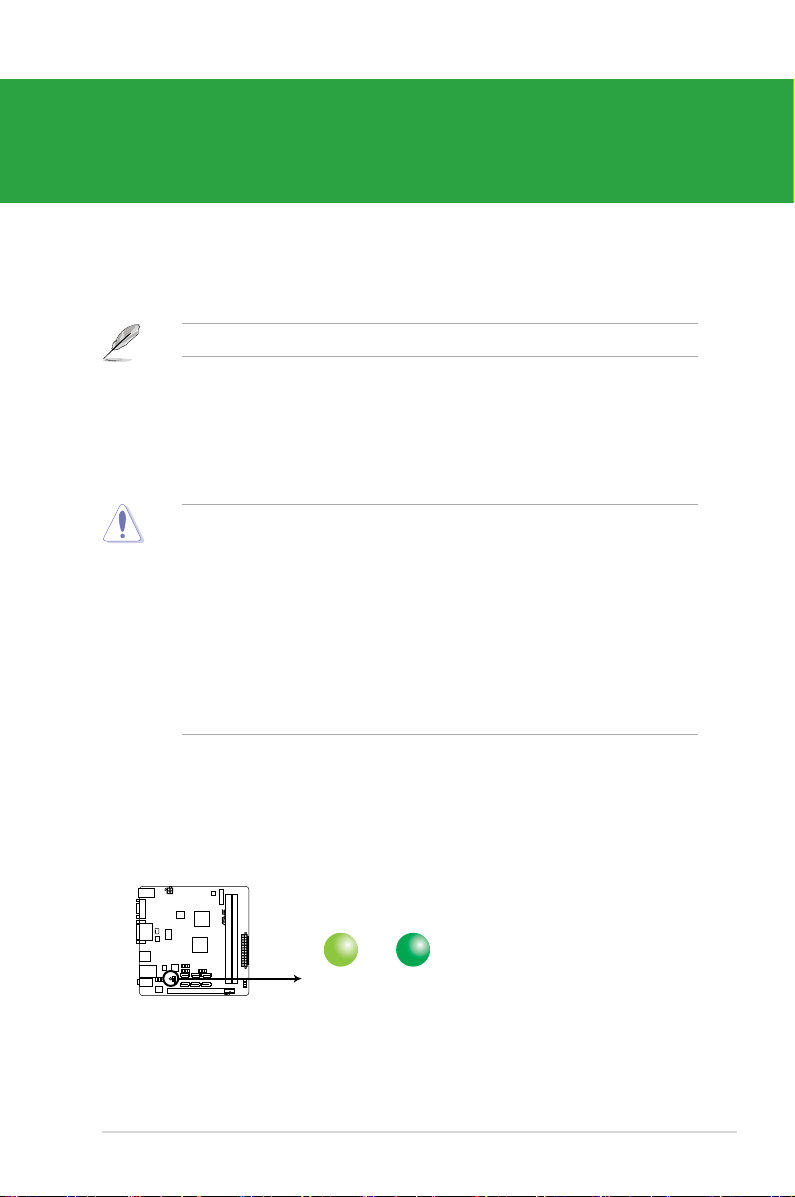

Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the system
is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down
the system and unplug the power cable before removing or plugging in any motherboard
component. The illustration below shows the location of the onboard LED.
C60M1-I
SB_PWR
ON
Standby Power Powered Off
OFF
C60M1-I Onboard LED

ASUS C60M1-I1-2
C60M1-I
PCIEX16
Super
I/O
F_PANEL
AAFP
ATX12V
EATXPWR
CPU_FAN
CHA_FAN
USB1112
USB910
USB78
Lithium Cell
CMOS Power
EPU
VIA
VT1708S
RTL
8111F
32Mb
BIOS
SB_PWR
CLRTC
17cm(6.7in)
17cm(6.7in)
AMD® FCH
A50M
(Hudson M1)
SATA6G_2
SATA6G_1
SATA6G_4
SATA6G_3
SATA6G_6
SATA6G_5
AMD®Fusion
APU C-60
with RadeonTM
HD 6290 graphics
CHASSIS
ICS
9LRPS482
DDR3 DIMM1 (64bit, 240-pin module) DDR3 DIMM2 (64bit, 240-pin module)
AUDIO
KB_USB56
LAN1_USB12
USB34
VGA
DVI
1 2 3
2
5
7891011
4
6
1.2.2 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. CPU and chassis fan connectors (3-pin
CPU_FAN, 3-pin CHA_FAN)
1-11 7. Serial ATA 6.0Gb/s connectors (7-pin
SATA6G_1~6)
1-12
2. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-10 8. Chassis intrusion connector (4-1 pin
CHASSIS)
1-13
3. AMD®Dual-core processor C-60 with AMD®
Radeon™ HD 6290 graphics
1-3 9. Clear RTC RAM (3-pin CLRTC) 1-8
4. DDR3 DIMM slots 1-3 10. Standby power LED (SB_PWR) 1-1
5. System panel connector (10-1 pin F_PANEL) 1-13 11. Front panel audio connector (10-1 pin AAFP) 1-11
6. USB 2.0 connectors (10-1 pin USB78, USB910,
USB1112)
1-12
Place four screws into the holes indicated by circles to secure the motherboard to the
chassis. DO NOT overtighten the screws! Doing so can damage the motherboard.
Ensure that you install the motherboard into the chassis in the correct orientation. The edge
with external ports goes to the rear part of the chassis.
1.2 Motherboard overview
1.2.1 Motherboard layout

1-3Chapter 1: Product introduction
1.3 Central Processing Unit (CPU)
The motherboard comes with an onboard AMD®Dual-core processor C-60 with AMD®
Radeon™ HD 6290 Discrete-Class graphics and a specially designed CPU heatsink.
1.4 System memory
1.4.1 Overview
The motherboard comes with two Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched
differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for
better performance with less power consumption.
The gure illustrates the location of the DDR3 DIMM sockets:
C60M1-I
C60M1-I AMD®APU C-60 Dual Core Processor
with RadeonTM HD 6290 graphics
AMD®Fusion APU C-60 Dual Core Processo
r
with AMD®Radeon™ HD 6290 graphics
C60M1-I
C60M1-I 240-pin DDR3 DIMM sockets
DIMM1 DIMM2

ASUS C60M1-I1-4
1.4.2 Memory congurations
You may install 512MB, 1GB, 2GB, and 4GB unbuffered non-ECC DDR3 DIMMs into the
DIMM sockets.
• We recommend that you install the memory modules from the blue slots for better
overclocking capability.
• Due to the memory address limitation on 32-bit Windows®OS, when you install 4GB
or more memory on the motherboard, the actual usable memory for the OS can be
about 3GB or less. For effective use of memory, we recommend that you do any of the
following:
- Use a maximum of 3GB system memory if you are using a 32-bit Windows®OS.
- Install a 64-bit Windows®OS when you want to install 4GB or more on the
motherboard.
• This motherboard does not support DIMMs made up of 512Mb (64MB) chips or less.
• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value. To operate at the vendor-marked or at a
higher frequency, refer to section 2.4 Ai Tweaker menu for manual memory frequency
adjustment.
• For system stability, use a more efcient memory cooling system to support a full
memory load (2 DIMMs) or overclocking condition.
C60M1-I Motherboard Qualied Vendors Lists (QVL)
Vendors Part No. Size SS/
DS
Chip
Brand Chip NO. Timing Voltage
DIMM socket support
(Optional)
1 DIMM 2 DIMM
Crucial CT12864BA1067.8FF 1GB SS Micron 9GF22D9KPT 7 - • •
Crucial CT25664BA1067.16FF 2GB DS Micron 9HF22D9KPT 7 - • •
ELPIDA EBJ10UE8EDF0-AE-F 1GB SS ELPIDA J1108EDSE-DJ-F - 1.35V(low voltage) • •
ELPIDA EBJ21UE8EDF0-AE-F 2GB DS ELPIDA J1108EDSE-DJ-F - 1.35V(low voltage) •
KINGSTON KVR1066D3N7/1G 1GB SS ELPIDA J1108BFSE-DJ-F 7 1.5V •
KINGSTON KVR1066D3N7/2G 2GB DS ELPIDA J1108BDSE-DJ-F 7 1.5V • •
KINGSTON KVR1066D3N7/4G 4GB DS Hynix H5TQ2G83AFR 7 1.5V •
Micron MT8JTF12864AZ-1G1F1 1GB SS Micron 9GF22D9KPT 7 - • •
Micron MT16JTF25664AZ-1G1F1 2GB DS Micron 9HF22D9KPT 7 - • •
Kingtiger 2GB DIMM PC3-8500 2GB DS Hynix H5TQ1G83AFP G7C - -
DDR3-1066 MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand Chip NO. Timing Voltage
DIMM socket
support
1 DIMM 2 DIMM
A-DATA AD31333001GOU 1GB SS A-Data AD30908C8D-151C E0906 - -
A-DATA AD3U1333C2G9 2GB SS A-DATA 3CCD-1509HNA1126L - - • •
A-DATA AM2U139C2P1 2GB SS ADATA 3CCD-1509A EL1127T - - • •
A-DATA AX3U1333C2G9-BP 2GB SS - - - - • •
A-DATA AD31333G001GOU
3GB(3
x
1GB)
SS - - 8-8-8-24 1.65-
1.85V • •
DDR3-1333 MHz capability
(continued on the next page)

1-5Chapter 1: Product introduction
DDR3-1333 MHz capability
(continued on the next page)
Vendors Part No. Size SS/
DS
Chip
Brand Chip NO. Timing Voltage
DIMM socket
support
1 DIMM 2 DIMM
A-DATA AXDU1333GC2G9-2G(XMP) 4GB (2 x
2GB) SS - - 9-9-9-24
1.25V-
1.35V
(low
voltage)
• •
A-DATA AD31333G002GMU 2GB DS - - 8-8-8-24 1.65-
1.85V
A-DATA AD63I1C1624EV 4GB DS A-Data 3CCA-1509A - - • •
A-DATA AM2U139C4P2 4GB DS ADATA 3CCD-1509A EL1127T - - • •
A-DATA SU3U1333W8G9-B 8GB DS ELPIDA J4208BASE-DJ-F - - • •
Apacer 78.A1GC6.9L1 2GB DS Apacer AM5D5808DEWSBG - - • •
Apacer 78.A1GC6.9L1 2GB DS Apacer AM5D5808FEQSBG 9 - • •
Apacer AU02GFA33C9NBGC 2GB DS Apacer AM5D5808APQSBG - - • •
Apacer 78.B1GDE.9L10C 4GB DS Apacer AM5D5908CEHSBG - - • •
CORSAIR TR3X3G1333C9 G 3GB (3 x
1GB) SS - - 9-9-9-24 1.50V
CORSAIR TR3X6G1333C9 G 6GB (3x
2GB) SS - - 9-9-9-24 1.50V • •
CORSAIR CMD24GX3M6A1333C9(XMP) 24GB
(6x4GB) DS - - 9-9-9-24 1.60V • •
CORSAIR TW3X4G1333C9D G 4GB (2 x
2GB) DS - - 9-9-9-24 1.50V • •
CORSAIR CM3X4GA1333C9N2 4GB DS CORSAIR 256MBDCJGELC0401136 9-9-9-24 - • •
CORSAIR CMX4GX3M1A1333C9 4GB DS - - 9-9-9-24 1.50V • •
CORSAIR CMD8GX3M4A1333C7 8GB (4 x
2GB) DS - - 7-7-7-20 1.60V • •
Crucial CT12864BA1339.8FF 1GB SS Micron 9FF22D9KPT 9 - •
Crucial CT25664BA1339.16FF 2GB DS Micron 9KF27D9KPT 9 - •
Crucial BL25664BN1337.16FF (XMP) 6GB (3 x
2GB) DS - - 7-7-7--24 1.65V •
ELPIDA EBJ10UE8EDF0-DJ-F 1GB SS ELPIDA J1108EDSE-DJ-F - 1.35V(low
voltage) • •
ELPIDA EBJ21UE8EDF0-DJ-F 2GB DS ELPIDA J1108EDSE-DJ-F - 1.35V(low
volatage) • •
G.SKILL F3-10600CL8D-2GBHK(XMP) 1GB SS G.SKILL - - - • •
G.SKILL F3-10600CL9D-2GBNQ 2GB (2 x
1GB) SS - - 9-9-9-24 1.5V • •
G.SKILL F3-10666CL7T-3GBPK(XMP) 3GB (3 x
1GB) SS - - 7-7-7-18 1.5V~1.6V
G.SKILL F3-10666CL8D-4GBECO(XMP) 4GB (2 x
2GB) DS - - 8-8-8-8-24 XMP 1.35V • •
G.SKILL F3-10666CL7T-6GBPK(XMP) 6GB (3 x
2GB) DS - - 7-7-7-18 1.5V~1.6V
G.SKILL F3-10666CL7D-8GBRH(XMP) 8GB (2 x
4GB) DS - - 7-7-7-21 1.5V • •
GEIL GV32GB1333C9DC 2GB (2 x
1GB) DS - - 9-9-9-24 1.5V • •
GEIL GG34GB1333C9DC 4GB (2 x
2GB) DS GEIL GL1L128M88BA12N 9-9-9-24 1.3V(low voltage) • •
GEIL GV34GB1333C9DC 4GB (2 x
2GB) DS - - 9-9-9-24 1.5V • •
GEIL GVP34GB1333C7DC 4GB (2 x
2GB) DS - - 7-7-7-24 1.5V • •

ASUS C60M1-I1-6
Vendors Part No. Size SS/DS Chip Brand Chip NO. Timing Voltage
DIMM socket
support
1 DIMM 2 DIMM
Hynix HMT112U6TFR8A-H9 1GB SS Hynix H5TC1G83TFRH9A - 1.35V(low
voltage) • •
Hynix HMT325U6BFR8C-H9 2GB SS Hynix H5TQ2G83BFRH9C - - • •
Hynix HMT125U6TFR8A-H9 2GB DS Hynix H5TC1G83TFRH9A - 1.35V(low
voltage) • •
Hynix HMT351U6BFR8C-H9 4GB DS Hynix H5TQ2G83BFRH9C - - • •
KINGMAX FLFD45F-B8KL9 NAES 1GB SS KINGMAX KKB8FNWBFGNX-27A - - • •
KINGMAX FLFE85F-C8KF9 CAES 2GB SS KINGMAX KFC8FMFXF-DXX-15A - - • •
KINGMAX FLFE85F-C8KL9 NAES 2GB SS KINGMAX KFC8FNLXF-DXX-15A - - • •
KINGMAX FLFE85F-C8KM9 NAES 2GB SS KINGMAX KFC8FNMXF-BXX-15A - - • •
KINGMAX FLFE85F-B8KL9 NEES 2GB DS KINGMAX KKB8FNWBFGNX-26A - -
KINGMAX FLFF65F-C8KL9 NEES 4GB DS KINGMAX KFC8FNLXF-DXX-15A - - • •
KINGMAX FLFF65F-C8KM9 NEES 4GB DS KINGMAX KFC8FNMXF-BXX-15A - - • •
KINGSTON KVR1333D3N9/1G 1GB SS ELPIDA J1108BDBG-DJ-F 9 1.5V • •
KINGSTON KVR1333D3N9/2G 2GB SS Hynix H5TQ2G83AFRH9C 9 - • •
KINGSTON KVR1333D3S8N9/2G 2GB SS Micron IID77 D9LGK - 1.5V • •
KINGSTON KVR1333D3S8N9/2G-SP 2GB SS ELPIDA J2108BCSE-DJ-F - 1.5V • •
KINGSTON KVR1333D3N9/2G 2GB DS ELPIDA J1108BFBG-DJ-F 9 1.5V • •
KINGSTON KVR1333D3N9/2G 2GB DS KTC D1288JPNDPLD9U 9 1.5V • •
KINGSTON KVR1333D3N9/2G 2GB DS ELPIDA J1108BDSE-DJ-F 9 1.5V • •
KINGSTON KVR1333D3N9/2G-SP 2GB DS KTC D1288JEMFNGD9U - 1.5V • •
KINGSTON KVR1333D3N9/2G-SP 2GB DS KINGSTON D1288JPSFPGD9U - 1.5V • •
KINGSTON KHX1333C7D3K2/
4GX(XMP)
4GB(2
x 2GB) DS - - 7 1.65V • •
KINGSTON KHX1333C9D3UK2/
4GX(XMP)
4GB(2
x 2GB) DS - - 9 XMP 1.25V • •
KINGSTON KVR1333D3N9/4G 4GB DS ELPIDA J2108BCSE-DJ-F 9 1.5V • •
KINGSTON KVR1333D3N9/4G 4GB DS ELPIDA J2108BCSE-DJ-F - 1.5V
KINGSTON KVR1333D3N9/4G 4GB DS KTC D2568JENCNGD9U - 1.5V • •
KINGSTON KVR1333D3N9/4G 4GB DS Hynix H5TQ2G83AFR - - •
KINGSTON KVR1333D3N9/4G-SP 4GB DS KINGSTON D2568JENCPGD9U - 1.5V
Micron MT4JTF12864AZ-1G4D1 1GB SS Micron OJD12D9LGQ - - • •
Micron MT8JTF12864AZ-1G4F1 1GB SS Micron 9FF22D9KPT 9 - • •
Micron MT8JTF25664AZ-1G4D1 2GB SS Micron OJD12D9LGK - - • •
Micron MT8JTF25664AZ-1G4M1 2GB SS MICRON IJM22 D9PFJ - - • •
Micron MT16JTF25664AZ-1G4F1 2GB DS Micron 9KF27D9KPT 9 - •
Micron MT16JTF51264AZ-1G4D1 4GB DS Micron OLD22D9LGK - - • •
NANYA NT4GC64B8HG0NF-CG 4GB DS NANYA NT5CB256M8GN-CG - - • •
PSC AL7F8G73F-DJ2 1GB SS PSC A3P1GF3FGF - - • •
PSC AL8F8G73F-DJ2 2GB DS PSC A3P1GF3FGF - - • •
SAMSUNG M378B2873FHS-CH9 1GB SS SAMSUNG K4B1G0846F - - • •
SAMSUNG M378B5773DH0-CH9 2GB SS SAMSUNG K4B2G0846D - - • •
SAMSUNG M378B5673FH0-CH9 2GB DS SAMSUNG K4B1G0846F - - • •
SAMSUNG M378B5273CH0-CH9 4GB DS SAMSUNG K4B2G0846C - - • •
SAMSUNG M378B1G73AH0-CH9 8GB DS SAMSUNG K4B4G0846A-HCH9 - - • •
Super Talent W1333UA1GH 1GB SS Hynix H5TQ1G83TFR 9 - • •
Super Talent W1333UX2G8(XMP) 2GB(2x
1GB) SS - - 8 - •
Super Talent W1333UB2GS 2GB DS SAMSUNG K4B1G0846F 9 - • •
Super Talent W1333UB4GS 4GB DS SAMSUNG K4B2G0846C - - • •
Super Talent W1333UX6GM 6GB(3x
2GB) DS Micron 0BF27D9KPT 9-9-9- 24 1.5V • •
Transcend JM1333KLN-2G 2GB SS Hynix H5TQ2G83BZRH9C - - • •
Transcend TS256MLK64V3U 2GB DS Micron 9GF27D9KPT - - • •
Transcend TS1GLK64V3H 8GB DS Micron IVD22D9PBC - - • •
AMD AE32G1339U1-U 2GB SS AMD 23EY4587MB3H11503M 9-9-9-
24 1.5V • •
AMD AE34G1339U2-U 4GB DS AMD 23EY4587MB3H11503M 9-9-9-
24 1.5V • •
Century PC3-10600 DDR3-1333
9-9-9 1GB SS NANYA NT5CB128M8DN-CF - - • •
Elixir M2F2G64CB88B7N-CG 2GB SS Elixir N2CB2G80BN-CG - - • •
Elixir M2F2G64CB88D7N-CG 2GB SS Elixir N2CB2G80DN-CG - - • •
Elixir M2F2G64CB88G7N-CG 2GB SS Elixir N2CB2G80GN-CG - - • •
Elixir M2F4G64CB8HB5N-CG 4GB DS Elixir N2CB2G80BN-CG - - • •
Elixir M2F4G64CB8HD5N-CG 4GB DS Elixir N2CB2G80DN-CG - - • •
KINGSHARE KSRPCD313332G 2GB DS PATRIOT PM128M8D385-15 - - • •
KINGSTEK KSTD3PC-10600 2GB SS MICRON PE911-125E - - • •
DDR3-1333 MHz capability
(continued on the next page)

1-7Chapter 1: Product introduction
SS: Single-sided / DS: Double-sided
DIMM support:
• 1 DIMM: Supports one module inserted into either slot as single-channel memory
conguration.
Visit the ASUS website at www.asus.com for the latest QVL.
DDR3 1333MHz memory module will run at DDR3 1066MHz frequency as default.
Vendors Part No. Size SS/
DS Chip Brand Chip NO. Timing Voltage
DIMM socket
support
1 DIMM 2 DIMM
Kingtiger 2GB DIMM PC3-10666 2GB DS SAMSUNG SEC 904 HCH9
K4B1G0846D - - • •
Kingtiger KTG2G1333PG3 2GB DS - - - - • •
MARKVISION BMD32048M1333C9-
1123 2GB DS MARKVISION M3D1288P-13 - - • •
MARKVISION BMD34096M1333C9-
1124 4GB DS MARKVISION M3D2568E-13 - - • •
PATRIOT PSD31G13332H 1GB DS - - 9 - • •
PATRIOT PSD31G13332 1GB DS PATRIOT PM64M8D38U-15 - - • •
PATRIOT PSD32G13332H 2GB DS - - - - • •
PATRIOT PG38G1333EL(XMP) 8GB DS - - 9-9-9-24 1.5V • •
RAMAXEL RMR1870ED48E8F-1333 2GB DS ELPIDA J1108BDBG-DJ-F - - •
RAMAXEL RMR1870EC58E9F-1333 4GB DS ELPIDA J2108BCSE-DJ-F - - • •
RiDATA C304627CB1AG22Fe 2GB DS RiDATA N/A 9 - • •
RiDATA E304459CB1AG32Cf 4GB DS RiDATA N/A 9 - • •
SILICON
POWER SP001GBLTU133S01 1GB SS NANYA NT5CB128M8AN-CG 9 - • •
SILICON
POWER SP001GBLTU133S02 1GB SS Elixir N2CB1680AN-C6 9 - • •
SILICON
POWER SP002GBLTU133S02 2GB DS Elixir N2CB1680AN-C6 9 - • •
TAKEMS TMS1GB364D081-107EY 1GB SS - - 7-7-7-20 1.5V •
TAKEMS TMS2GB364D081-107EY 2GB DS - - 7-7-7-20 1.5V
TAKEMS TMS2GB364D081-138EY 2GB DS - - 8-8-8-24 1.5V
TAKEMS TMS2GB364D082-
138EW 2GB DS - - 8-8-8-24 1.5V
UMAX E41302GP0-73BDB 2GB DS UMAX U2S24D30TP-13 - - • •
WINTEC 3WVS31333-2G-CNR 2GB DS AMPO AM3420803-13H - - • •
DDR3-1333 MHz capability

ASUS C60M1-I1-8
1.5 Expansion slots
In the future, you may need to install expansion cards. The following sub-sections describe
the slots and the expansion cards that they support.
Unplug the power cord before adding or removing expansion cards. Failure to do so may
cause you physical injury and damage motherboard components.
1.5.1 Installing an expansion card
To install an expansion card:
1. Before installing the expansion card, read the documentation that came with it and
make the necessary hardware settings for the card.
2. Remove the system unit cover (if your motherboard is already installed in a chassis).
3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later
use.
4. Align the card connector with the slot and press rmly until the card is completely
seated on the slot.
5. Secure the card to the chassis with the screw you removed earlier.
6. Replace the system cover.
1.5.2 Conguring an expansion card
After installing the expansion card, congure it by adjusting the software settings.
1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for
information on BIOS setup.
2. Assign an IRQ to the card.
3. Install the software drivers for the expansion card.
When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that
the cards do not need IRQ assignments. Otherwise, conicts will arise between the two PCI
groups, making the system unstable and the card inoperable.
1.5.3 PCI Express x16 slot
This motherboard has a PCI Express 2.0 x16 slot that supports PCI Express x16 2.0 graphic
cards complying with the PCI Express specications.

1-9Chapter 1: Product introduction
1.6 Jumpers
Clear RTC RAM (3-pin CLRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can
clear the CMOS memory of date, time, and system setup parameters by erasing
the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in
CMOS, which include system setup information such as system passwords.
Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default
position. Removing the cap will cause system boot failure!
If the steps above do not help, remove the onboard battery and move the jumper again to
clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3
for about 5-10 seconds, then move the cap back to pins 1-2.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter
data.
C60M1-I
C60M1-I Clear RTC RAM
1 2
2 3
Normal
(Default)
Clear RTC
CLRTC

ASUS C60M1-I1-10
1.7 Connectors
1.7.1 Rear panel connectors
1. PS/2 Keyboard / Mouse Combo port. This port is for a PS/2 keyboard or PS/2
mouse.
8
3 4
5
2
6
1
10 7
9
LAN port
Speed
LED
Activity Link
LED
3. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
4. Line Out port (lime). This port connects to a headphone or a speaker. In 4-channel,
6-channel, and 8-channel congurations, the function of this port becomes Front
Speaker Out.
5. Microphone port (pink). This port connects a microphone.
Refer to the audio conguration table below for the function of the audio ports in the 2, 4, 6,
or 8-channel conguration.
Audio 2, 4, 6, 8-channel conguration
Port Headset 2-channel 4-channel 6-channel 8-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) - - - Side Speaker Out
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
2. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
