Asus CUV4X-V User manual

®
CUV4X-V
JumperFree™PC133/VC133
AGP Pro/4X Motherboard
USER’S MANUAL

ASUS CUV4X-V User’s Manual
2
USER'S NOTICE
Product Name: ASUS CUV4X-V
Manual Revision: 1.01 E599
Release Date: September 2000
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form
or by any means, except documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EI-
THER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WAR-
RANTIES OR CONDITIONS OF MERCHANTABILITYOR FITNESS FORAPARTICULAR
PURPOSE. IN NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR
AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUEN-
TIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS,
LOSS OF USE OR DATA, INTERRUPTION OF BUSINESSAND THE LIKE), EVEN IFASUS
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or al-
tered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the
serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trademarks
or copyrights of their respective companies, and are used only for identification or explanation
and to the owners’ benefit, without intent to infringe.
• VIA, ProSavage, and PM133 are trademarks of VIATechnologies, Inc.
• Intel, LANDesk, Pentium, and Celeron are trademarks of Intel Corporation.
• IBM and OS/2 are registered trademarks of International Business Machines.
• Symbios is a registered trademark of Symbios Logic Corporation.
• Windows and MS-DOS are registered trademarks of Microsoft Corporation.
• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
• Trend and ChipAwayVirus are trademarks of Trend Micro, Inc.
The product name and revision number are both printed on the product itself. Manual revisions
are released for each product design represented by the digit before and after the period of the
manual revision number. Manual updates are represented by the third digit in the manual revision
number.
For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at
http://www.asus.com.tw or through any of the means indicated on the following page.
SPECIFICATIONSANDINFORMATION CONTAINED INTHIS MANUALAREFURNISHED
FORINFORMATIONALUSEONLY,ANDARESUBJECTTO CHANGEATANYTIMEWITH-
OUTNOTICE,AND SHOULD NOTBECONSTRUEDASACOMMITMENTBYASUS.ASUS
ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURA-
CIES THAT MAYAPPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFT-
WARE DESCRIBED IN IT.
Copyright © 2000 ASUSTeK COMPUTER INC. All Rights Reserved.

ASUS CUV4X-V User’s Manual 3
ASUS CONTACT INFORMATION
ASUSTeK COMPUTER INC. (Asia-Pacific)
Marketing
Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Technical Support
MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel):[phone] (English)
Fax: [phone]
Email: [email protected]
WWW: www.asus.com.tw
FTP: ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER INTERNATIONAL (America)
Marketing
Address: 6737 Mowry Avenue, Mowry Business Center, Building 2
Newark, CA 94560, USA
Fax: [phone]
Email: [email protected]
Technical Support
Fax: [phone]
Email: [email protected]
WWW: www.asus.com
FTP: ftp.asus.com/Pub/ASUS
ASUS COMPUTER GmbH (Europe)
Marketing
Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
Fax: [phone]
Email: [email protected] (for marketing requests only)
Technical Support
Hotline: MB/Others: [phone] Notebook:[phone]
Fax: [phone]
Support (Email): www.asuscom.de/de/support (for online support)
WWW: www.asuscom.de
FTP: ftp.asuscom.de/pub/ASUSCOM

ASUS CUV4X-V User’s Manual
4
CONTENTS
1. INTRODUCTION 7
1.1 How This Manual Is Organized ................................................... 7
1.2 Item Checklist .............................................................................. 7
2. FEATURES 8
2.1 The ASUS CUV4X-V .................................................................. 8
2.1.1 Specifications ..................................................................... 8
2.1.2 Optional Components......................................................... 9
2.1.3 Special Features................................................................ 10
2.1.4 Performance Features ....................................................... 10
2.1.5 Intelligence ....................................................................... 11
2.2 Motherboard Components.......................................................... 12
2.2.1 Component Locations....................................................... 13
3. HARDWARE SETUP 14
3.1 Motherboard Layout .................................................................. 14
3.2 Layout Contents ......................................................................... 15
3.3 Hardware Setup Procedure......................................................... 17
3.4 Motherboard Settings ................................................................. 17
3.5 System Memory (DIMM) .......................................................... 23
3.5.1 General DIMM Notes....................................................... 23
3.5.2 Memory Installation ......................................................... 24
3.6 Central Processing Unit (CPU) .................................................. 25
3.7 Expansion Cards ........................................................................ 26
3.7.1 Expansion Card Installation Procedure ............................ 26
3.7.2 Assigning IRQs for Expansion Cards .............................. 27
3.7.3 Accelerated Graphics Port Pro (AGP Pro) ....................... 29
3.7.4 Audio Modem Riser (AMR) Slot ..................................... 30
3.8 External Connectors ................................................................... 31
3.9 Starting Up the First Time.......................................................... 43
4. BIOS SETUP 45
4.1 Managing and Updating Your BIOS .......................................... 45
4.1.1 Upon First Use of the Computer System.......................... 45
4.1.2 Updating BIOS Procedures .............................................. 46
4.2 BIOS Setup Program.................................................................. 49
4.2.1 BIOS Menu Bar................................................................ 50
4.2.2 Legend Bar ....................................................................... 50

ASUS CUV4X-V User’s Manual 5
CONTENTS
4.3 Main Menu ................................................................................. 52
4.3.1 Primary & Secondary Master/Slave ................................. 53
4.3.2 Keyboard Features............................................................ 56
4.4 Advanced Menu ......................................................................... 58
4.4.1 Chip Configuration........................................................... 62
4.4.2 I/O Device Configuration ................................................. 65
4.4.3 PCI Configuration ............................................................ 68
4.4.4 Shadow Configuration ...................................................... 71
4.5 Power Menu ............................................................................... 72
4.5.1 Power Up Control............................................................. 74
4.5.2 Hardware Monitor ............................................................ 76
4.6 Boot Menu ................................................................................. 77
4.7 Exit Menu................................................................................... 79
5. SOFTWARE SETUP 81
5.1 Install Operating System ............................................................ 81
5.2 Start Windows ............................................................................ 81
5.3 Motherboard Support CD........................................................... 82
5.4 VIA 4 in 1 drivers....................................................................... 83
5.5 ASUS PC Probe Vx.xx.xx ......................................................... 84
5.6 ASUS Update Vx.xx .................................................................. 85
5.7 YAMAHA Soft Synthesizer S-YXG50...................................... 86
5.8 PC-Cillin 98 Vx.xx .................................................................... 87
5.9 ADOBE Acrobat Reader Vx.xx ................................................. 88
5.10Cyberlink Video and Audio Applications .................................. 89
5.11Uninstalling Programs................................................................ 90
6. SOFTWARE REFERENCE 93
6.1 ASUS PC Probe ......................................................................... 93
6.2 CyberLink PowerPlayer SE ....................................................... 98
6.3 CyberLink PowerDVD .............................................................. 98
6.4 CyberLink VideoLive Mail ...................................................... 100
7. APPENDIX 103
7.1 PCI-L101 Fast Ethernet Card................................................... 103
7.2 Modem Riser............................................................................ 105
7.3 Glossary ................................................................................... 107

ASUS CUV4X-V User’s Manual
6
FCC & DOC COMPLIANCE
FederalCommunications CommissionStatement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly ap-
proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.
Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the
Federal Register, National Archives and Records Administration, U.S. Government Printing Office.
CanadianDepartment ofCommunications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Cana-
dian Department of Communications.
This Class B digital apparatus complies with Canadian ICES-003.
CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003duCanada.

ASUS CUV4X-V User’s Manual 7
1.1 How This Manual Is Organized
This manual is divided into the following sections:
1. INTRODUCTION Manual information and checklist
2. FEATURES Production information and specifications
3. HARDWARE SETUP Intructions on setting up the motherboard.
4. BIOS SETUP Intructions on setting up the BIOS
5. SOFTWARE SETUP Intructions on setting up the included software
6. SOFTWARE REFERENCE Reference material for the included software
7. APPENDIX Optional items and general reference
1.2 Item Checklist
Check that your package is complete. If you discover damaged or missing items,
contact your retailer.
1. INTRODUCTION
1. INTRODUCTION
Manual / Checklist
Package Contents
(1) ASUS Motherboard
(1) 40-pin 80-conductor ribbon
cable for internal UltraDMA/
66 or UltraDMA/33 IDE
drives
(1) Ribbon cable for one 5.25”and
two 3.5”floppy disk drives
(1)ASUS2-portUSB ConnectorSet
(1) 9-pin COM2 cable
(1) Bag of spare jumper caps
(1) ASUS Support CD with
drivers and utilities
(1) This Motherboard User’s
Manual
Optional Items
ASUS CIDB chassis intrusion de-
tection module
ASUS IrDA-compliant infrared
module
ASUS PCI-L101 Wake-On-LAN
10/100 Ethernet Card

8ASUS CUV4X-V User’s Manual
2.1 The ASUS CUV4X-V
The ASUS CUV4X-V motherboard is carefully designed for the demanding PC
user who wants advanced features processed by the fastest processors.
2.1.1 Specifications
•Latest Processor Support
Intel Pentium
®
III 133MHz FSB Coppermine core FC-PGA
Intel Pentium
®
III 100MHz FSB Coppermine core FC-PGA
Intel Celeron™66MHz FSB Coppermine core FC-PGA
Intel Celeron™66MHz FSB Mendocino core PPGA
VIA Cyrix
®
III 133MHz FSB PPGA
•North Bridge System Chipset: Features the VIA VT8605 system controller or
VIA ProSavage™PM133 integrated graphics core logic chipset with support
forAGP4x mode(integrated S3 Savage4); 133/100/66MHz FrontSide Bus (FSB);
and 133MHz (PC133/VCM) memory bus.
•South Bridge System Chipset: VIA VT82C686A PCIset with PCI Super I/O
integrated peripheral controller supports UltraDMA/66/33; AC97 audio; MC-97
modem; and four USB ports.
•PC133 SDRAM / VC133 VCM / HSDRAM Support: Equipped with three
Dual Inline Memory Module (DIMM) sockets to support Intel PC133/PC100-
compliant (8, 16, 32, 64, 128, 256, or 512MB), NEC’s VC133-compliant Virtual
Channel (VC) SDRAM, or Enhanced Memory System’s High-speed DRAMs
(HSDRAMs) up to 1.5GB. VC SDRAM and HSDRAM are new DRAM core
architectures that dramatically improves the memory system’s ability to service,
among others, high multimedia requirements.
•JumperFree™Mode:Allows processor settings and easy overclocking of fre-
quency and Vcore voltage all through BIOS setup when JumperFree™mode is
enabled. Easy-to-use DIP switches instead of jumpers are included to allow
manual adjustment of the processor’s external frequency.
•Multi-Cache: Supports processors with 512, 256, 128, or 0KB Pipelined Burst
Level 2 cache.
•AGPProSlot:SupportsAGP/AGPProcardsforhighperformance,componentlevel
interconnection targeted at 3D graphical applications supporting 133MHz 4X mode.
•UltraDMA/66 Support: Comes with an onboard PCI Bus Master IDE control-
ler with two connectors that support four IDE devices on two channels. Sup-
ports UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and Bus Master IDE
DMA Mode 2, and Enhanced IDE devices, such as DVD-ROM, CD-ROM, CD-
R/RW, LS-120, and Tape Backup drives.
•Wake-On-LAN Connector: Supports Wake-On-LAN activity through an op-
tional ASUS PCI-L101 10/100 Fast Ethernet PCI card (see 7. Appendix).
•Wake-On-Ring Connector: Supports Wake-On-Ring activity through a PCI
modem card that supports a WOR connector.
•PC Health Monitoring: Provides an easy way to examine and manage system
status information, such as CPU and systerm voltages, temperatures, and fan sta-
tus through the onboard hardwareASUS ASIC and the bundledASUS PC Probe.
2. FEATURES
Specifications
2. FEATURES

ASUS CUV4X-V User’s Manual 9
2. FEATURES
2. FEATURES
Specifications
•SMBus:Features the System Management Bus interface, which is used to physi-
cally transport commands and information between SMBus devices.
•PCI/ISA/AMR Expansion Slots: Provides five 32-bit PCI (Rev. 2.2) expan-
sion slots, which can support Bus Master PCI cards, such as SCSI or LAN cards
(PCI supports up to 133MB/s maximum throughput), one 16-bit ISA expansion
slot, and oneAudio Modem Riser (AMR) slot, which supports a very affordable
audio and/or modem riser card. (Only an ISA-side AMR card can be used.)
•Super Multi-I/O: Provides two high-speed UART compatible serial ports and
one parallel port with EPP and ECP capabilities. UART2 can also be directed
from COM2 to the Infrared Module for wireless connections.
•Enhanced ACPI & Anti-Boot Virus Protection: Programmable BIOS (Flash
EEPROM),offeringenhancedACPI forWindows 98compatibility, built-infirm-
ware-based virus protection, and autodetection of most devices for virtually au-
tomatic setup.
•IrDA: Supports an optional infrared port module for wireless interface.
•Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-
ter busses to the memory and processor.
•Smart BIOS: 2Mb firmware provides Vcore and CPU/SDRAM frequency ad-
justments, boot block write protection, and HD/SCSI/MO/ZIP/CD/Floppy boot
selection.Power supplyisautodetected toenable/disablesuspend-to-RAM, elimi-
nating the need to make jumper adjustments.
•Integrated Infrared Support: Integrated IR supports an optional remote con-
trol package for wireless interfacing with external peripherals, personal gad-
gets, or an optional remote controller.
•Desktop Management Interface (DMI): Supports DMI through BIOS, which
allows hardware to communicate within a standard protocol creating a higher
level of compatibility. (Requires DMI-enabled components.)
2.1.2 Optional Components
The following onboard components are optional at the time of purchase:
•Smart Audio: Provides C-Media Electronics Inc.’s CMI-8738 PCI 3D Exten-
sion Positional Audio Chip. With this chip onboard, no external CODEC is
needed.CMI-8738 supportslegacy audio(SB16™),FMemulator/DLS wavetable
music synthesis, and HRTF 3D positional audio functions, and PCtel®HSP56
(1789)interface.Compatible with A3D™andDirectSound™3D, CMI8738thus
meets PC98®requirements, and supports professional digital audio interface.
•OneTouch Management: Supports an optionalASUS iPanel, an easy to access
box with system information LEDs, front I/O ports, and space reserved for a
hard disk drive. With an ASUS iPanel, you can monitor your computer’s vital
components.
•LCD/TV Output: The LCD/TV interface can support either an optional LCD
module for LCD output or a TV-out module for TV output.

10 ASUS CUV4X-V User’s Manual
2. FEATURES
Performance
2. FEATURES
2.1.3 Special Features
•ACPI Ready: Advanced Configuration Power Interface (ACPI) provides more
Energy Saving Features for operating systems that support OS Direct Power
Management (OSPM) functionality. With these features implemented in the OS,
PCs can be ready around the clock, yet satisfy all the energy saving standards.
To fully utilize the benefits of ACPI, an ACPI-supported OS, such as Windows
98 must be used.
•Easy Installation: Incorporates BIOS that supports autodetection of hard disk
drives, PS/2 mouse, and Plug and Play devices to make the setup of hard disk
drives, expansion cards, and other devices virtually automatic.
•PC’99 Compliant: Both the BIOS and hardware levels of ASUS smart series
motherboards meet PC’99 compliancy. The new PC’99 requirements for sys-
tems and components are based on the following high-level goals: Support for
Plug and Play compatibility and power management for configuring and man-
aging all system components, and 32-bit device drivers and installation proce-
duresforWindows95/98/NT. Color-coded connectors anddescriptive icons make
identification easy as required by PC’99.
•Symbios SCSI BIOS: Supports optional ASUS SCSI controller cards through
the onboard SYMBIOS firmware.
2.1.4 Performance Features
•Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-
ter busses to the memory and processor.
•High-Speed Data Transfer Interface: IDE transfers using UltraDMA/33 Bus
Master IDE can handle rates up to 33MB/s. This motherboard with its chipset
and support for UltraDMA/66 doubles the UltraDMA/33 burst transfer rate to
66.6MB/s. UltraDMA/66 is backward compatible with both DMA/33 and DMA
and with existing DMA devices and systems so there is no need to upgrade
current EIDE/IDE drives and host systems. (UltraDMA/66 requires a 40-pin
80-conductor cable to be enabled and/or for UltraDMA Mode 4.)
•VCM/SDRAMOptimizedPerformance:Thismotherboard supports a new gen-
eration memory, NEC’s 64Mb Virtual Channel Memory (VCM) Synchronous
Dynamic RandomAccess Memory (SDRAM), which is compatible to the indus-
try standard SDRAM. The VCM’s core design provides up to 50% higher
SDRAM speed at reduced power consumption of about 30%. This motherboard
also supports standard SDRAM, which increases the data transfer rate (1.064GB/s
max using PC133-compliant SDRAMs and 800MB/s max using PC100-compli-
ant SDRAMs).

ASUS CUV4X-V User’s Manual 11
2. FEATURES
2. FEATURES
Intelligence
2.1.5 Intelligence
•Auto Fan Off: The system fans will power off automatically even in sleep
mode. This function reduces both energy consumption and system noise, and is
an important feature in implementing silent PC systems.
•Dual Function Power Button: Pushing the power button for less than 4 sec-
onds when the system is in the working state places the system into one of two
states: sleep mode or soft-off mode, depending on the BIOS or OS setting (see
PWR Button < 4 Secs in 4.5 Power Menu). When the power button is pressed
for more than 4 seconds, the system enters the soft-off mode regardless of the
BIOS setting.
•Fan Status Monitoring and Alarm: To prevent system overheat and system
damage, the CPU, power supply, and system fans can be monitored for RPM
and failure. All fans are set for its normal RPM range and alarm thresholds.
•Message LED (requiresACPI OS support): Turbo LEDs now act as informa-
tion providers. Through the way a particular LED illuminates, the user can de-
termine if there are messages waiting in the mailbox.Asimple glimpse provides
useful information to the user.
•Remote Ring On (requires modem): This allows a computer to be turned on
remotely through an internal or external modem. With this benefit on-hand, users
can access vital information from their computers from anywhere in the world!
•System Resources Alert: Today’s operating systems such as Windows 95/98/
NT and OS/2, require much more memory and hard drive space to present enor-
mous user interfaces and run large applications. The system resource monitor
will warn the user before the system resources are used up to prevent possible
application crashes. Suggestions will give the user information on managing
their limited resources more efficiently.
•Temperature Monitoring and Alert: CPU temperature is monitored by the
ASUSASIC through the CPU’s internal thermal diode (on Pentium III, Pentium
II (Deschutes), and PPGA370 Celeron in conjunction with the ASUS S370 Se-
ries CPU card) to prevent system overheat and system damage.
•Voltage Monitoring andAlert: System voltage levels are monitored to ensure
stable voltage to critical motherboard components. Voltage specifications are
more critical for future processors, so monitoring is necessary to ensure proper
system configuration and management.
•Chassis Intrusion Detection: Supports chassis-intrusion monitoring through
the ASUS ASIC. A chassis intrusion event is kept in memory on battery power
for more protection.

12 ASUS CUV4X-V User’s Manual
2. FEATURES
2. FEATURES
Motherboard Parts
Location
Processor Support Socket 370 for Pentium III/Celeron/Joshua Processors ........... 2
Feature Setting DIP Switches ................................................... 6
Chipsets North Bridge:VIAVT8605 (VIA ProSavage™PM133) ........ 3
South Bridge:VIA VT82C686A PCIset................................. 13
2Mbit Programmable Flash EEPROM ................................... 11
Main Memory Maximum 1.5GB support
3 DIMM Sockets ...................................................................... 4
PC133 SDRAM support
Expansion Slots 5 PCI Slots .............................................................................. 22
1 ISA Slot ............................................................................... 15
1 Accelerated Graphics Port (AGP) Pro Slot ......................... 23
1 Audio Modem Riser (AMR) Slot ........................................ 16
System I/O 1 Floppy Disk Driver Connector .............................................. 7
2 IDE Connectors (UltraDMA66 Support) .............................. 5
1 Parallel Port Connector ............................................. (Top) 28
1 Serial COM1 Port Connector .............................. (Bottom) 29
1 Serial COM2 Port Connector .............................................. 17
USB Connectors (Port 0 & Port 1) ........................................ 30
USB Connectors (Port 2 & Port 3) ........................................ 10
1 PS/2 Mouse Connector .............................................. (Top) 31
1 PS/2 Keyboard Connector ................................... (Bottom) 31
3D Graphics 1 VGAMonitor Output Connector ........................ (Bottom) 27
2LCD/TV In/Out Connectors (optional) .......................... 24, 26
1 Feature Connector (optional)............................................... 21
Audio C-Media CMI-8738 PCI Audio Chip (optional) .................... 19
1 Game/MIDI Connector*............................................ (Top) 25
1 Line Out Connector* ........................................... (Bottom) 25
1 Line In Connector* (shared with Rear Out) ........ (Bottom) 25
1 Rear Out Connector* (shared with Line In) ........ (Bottom) 25
1 Microphone Connector* ...................................... (Bottom) 25
Network Features Wake-On-LAN Connector...................................................... 20
Wake-On-Ring Connector ...................................................... 14
Hardware Monitoring System Voltage Monitoring (integrated in ASUS ASIC) ....... 12
3 Fan Power and Speed Monitoring Connectors
Power ATX Power Supply Connector ................................................. 1
Special Feature Onboard LED ......................................................................... 18
Form Factor ATX
*On audio model only
2.2 Motherboard Components
See opposite page for locations.

ASUS CUV4X-V User’s Manual 13
2. FEATURES
2. FEATURES
Motherboard Parts
22
31
28
25
30
29
2
23
34 567
101213 916
18
20
21
1415 11
1
8
17
19
27
24
26
2.2.1 Component Locations

14 ASUS CUV4X-V User’s Manual
3. HARDWARE SETUP
3.1 Motherboard Layout
LCDTV
20.9cm (8.22in)
30.5cm (12.0in)
CLRTC
®
Row
Primary IDE
Secondary
IDE
ATX Power Connector
PANEL
PCI 2
WOL_CON
SMB
FLOPPY
CUV4X-V
Audio Modem Riser
(AMR)
HPHONE
PWR_FAN
Socket 370
USBPORT
CHASSIS
VIA
VT82C686A
Chipset
ASUS
ASIC
with Hardware
Monitor
JTPWR
PCI 1
DIMM Socket 1 (64/72-bit, 168-pin module)
01
DIMM Socket 2 (64/72-bit, 168-pin module)
23
DIMM Socket 3 (64/72-bit, 168-pin module)
45
CPU_FAN
IR
DIP Switches
DIP_SW
Accelerated Graphics Port (AGP PRO)
VIA
VT8605
Chipset
Flash EEPROM
(Programable BIOS)
CR2032 3V
Lithium Cell
CMOS Power
PCI 4
PCI 3
PCI 5
COM1
PARALLEL PORT
WOR
ISA Slot
CD
MODEM
AUX
LED
IDELED
JEN
VIO
USB1
USB2
MIC2
CYRIX133
PS/2
T: Mouse
B: Keyboard
VGA
COM2
AFPANEL
AUDIO_EN
PCI
Audio
Chipset
AAPANEL
CHA_FAN
LCDTV
S3JP
GAME_AUDIO
Line
Out
Line In/
Rear Out
Mic
In
Motherboard Layout
3. H/W SETUP
Grayed components are optional at the time of purchase

ASUS CUV4X-V User’s Manual 15
3. HARDWARE SETUP
3.2 Layout Contents
Motherboard Settings
1) JEN p. 18 JumperFree Mode Setting (Disable/Enable)
2) VIO p. 19 I/O Voltage Setting
3) DIP_SW 5–8 p. 20 CPU External Frequency Selection
4) DIP_SW 1-4 p. 21 CPU Core:BUS Frequency Multiple Selection
Expansion Slots/Sockets
1) System Memory p.23 System Memory Support
2) DIMM1/2/3 p.24 DIMM Memory Module Support
3) Socket 370 p.25 CPU Support
4) PCI1/2/3/4/5 p.27 32-bit PCI Bus Expansion Slots
5) AGP Pro p.29 Accelerated Graphics Port Pro Slot
6) AMR p.30 Audio Modem Riser Slot
Connectors
1) PS2KBMS p.31 PS/2 Mouse Port Connector (6 pin-female)
2) PS2KBMS p.31 PS/2 Keyboard Port Connector (6-pin female)
3) USB p.32 Universal Serial Bus Connectors 1 & 2 (Two 4-pin female)
4) COM1/COM2 p.32 Serial Port Connector (9-pin /10-1 pin male)
5) VGA p.32 Monitor Output Connector (15-pin female)
6) PRINTER p.33 Parallel Port Connector (25-pin female)
7) GAME_AUDIO p.33 Game/MIDI Connector (15-pin female) (optional)
8) GAME_AUDIO p.33 Audio Port Connectors (Three 1/8”female) (optional)
9) PRIMARY IDE p.34 IDE Connectors (Two 40-1 pins)
SECONDARY IDE
10) FLOPPY p. 34 Floppy Disk Drive Port Connector (34 pins)
11) WOL_CON p. 35 Wake-On-LAN Connector (3 pins)
12) WOR p. 35 Wake-On-Ring Connector (2 pins)
13) PWR_, CPU_,CHA_FANp. 36 Chassis,PowerSupply,CPUFanConnectors(Three 3pins)
14) USB2 p. 36 USB Header (10-1 pins)
15) LCDTV/LCDTV0 p. 37 LCD/TV Headers (18-1 pins/18 pins)
16) IR p. 37 Infrared Module Connector (5 pins)
17) AFPANEL/IR_CON p. 38 ASUS iPanel Connector (24-1 pins, 10-1 pins)
18) AAPANEL p. 38 ASUS iPanelAudio Connector (10-1 pins)
19) CD_IN, AUX, VIDEO p. 39 Internal Audio Connectors (Four 4-pin)
MODEM
20) HPHONE p. 39 Headphone True-Level LineOut Header (3 pins)
21) MIC2 p. 39 Internal Microphone Connector (3 pins)
Layout Contents
3. H/W SETUP
continued...

16 ASUS CUV4X-V User’s Manual
3. HARDWARE SETUP
Layout Contents
3. H/W SETUP
22) JTPWR p. 40 Power Supply Thermal Sensor Connector (2 pins)
23) ATXPWR p. 40 ATX Power Supply Connector (20 pins)
24) SMB p. 41 SMBus Connector (5-1 pins)
25) CHASSIS p. 41 Chassis Intrusion Lead (4-1 pins)
26) IDELED p. 41 IDE Activity LED (2 pins)
27) SPEAKER (PANEL) p. 42 System Warning Speaker Connector (4 pins)
28)
PWR.LED ( PANEL ) p. 42 System Power LED Lead (3 pins)
29) MSG.LED (PANEL) p. 42 System Message LED (2 pins)
30) RESET (PANEL) p. 42 Reset Switch Lead (2 pins)
31) PWR.SW (PANEL) p. 42 ATX / Soft-Off Switch Lead (2 pins)
32) SMI (PANEL) p. 42 System Management Interrupt Lead (2 pins)

ASUS CUV4X-V User’s Manual 17
3. HARDWARE SETUP
3.3 Hardware Setup Procedure
Before using your computer, you must complete the following steps:
1. Check Motherboard Settings
2. Install Memory Modules
3. Install the Central Processing Unit (CPU)
4. Install Expansion Cards
5. Connect Ribbon Cables, Panel Wires, and Power Supply
6. Setup the BIOS Software
3.4 Motherboard Settings
This section explains in detail how to change your motherboard’s function settings
through the use of switches and/or jumpers.
CUV4X-V Onboard LED
ON OFF
Standby
Power Powered
Off
LED
®
CUV4X-V
WARNING! Computer motherboards and expansion cards contain very delicate
Integrated Circuit (IC) chips. To protect them against damage from static electric-
ity, you should follow some precautions whenever you work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do
not have one, touch both of your hands to a safely grounded object or to a
metal object, such as the power supply case.
3. Hold components by the edges and try not to touch the IC chips, leads or
connectors, or other components.
4. Place components on a grounded antistatic pad or on the bag that came with
the component whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or
remove the ATX power connector on the motherboard.
WARNING! Make sure that you unplug your power supply when adding or re-
moving system components. Failure to do so may cause severe damage to your
motherboard, peripherals, and/or components. The onboard LED when lit acts as
a reminder that the system is in suspend or soft-off mode and not powered OFF.

18 ASUS CUV4X-V User’s Manual
3. HARDWARE SETUP
3. H/W SETUP
Motherboard Settings

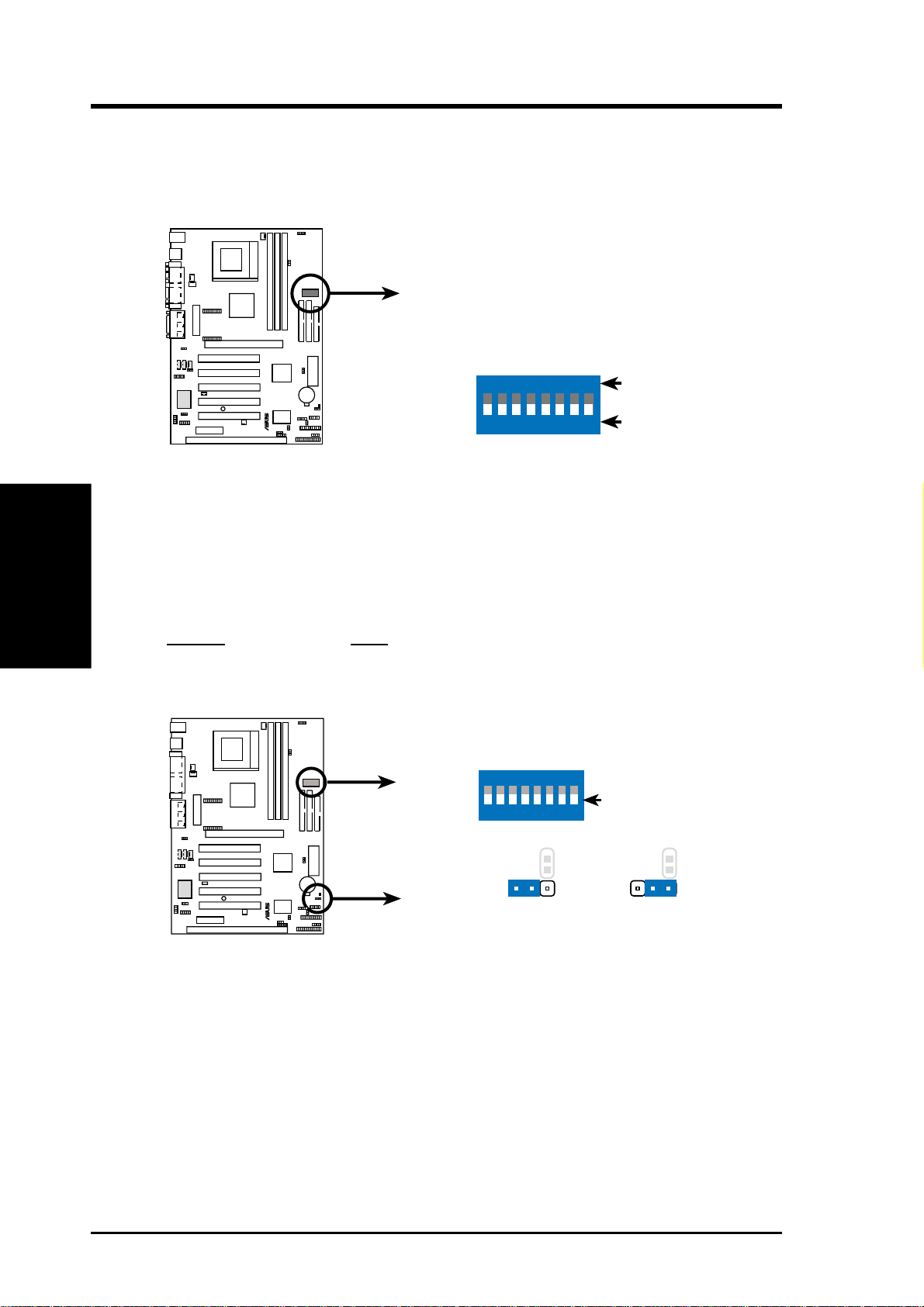

1) JumperFree™Mode (JEN)
This jumper allows you to enable or disable the JumperFree™mode. The
JumperFree™mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu).
Setting JEN
Enable (JumperFree) [2-3] (default)
Disable (Jumper) [1-2]
CUV4X-V JumperFree™ Mode Setting
Jumper
Mode JumperFree Mode
(Default)
JEN
23
JEN
12
ON
12345678
OFF
DIP_SW
®
CUV4X-V
NOTE: In JumperFree™mode, all dip switches (DIP_SW) must be set to OFF.
Motherboard Features Settings (DIP Switches - DIP_SW)
The motherboard’s onboard functions are adjusted through the DIP switches. The
white block represents the switch’s position. The example below shows all the
switches in the OFF position.
CUV4X-V DIP Switches
ON
12345678
OFF
ON
< Frequency Multiple < Frequency Multiple < Frequency Multiple < Frequency Multiple < Frequency Selection < Frequency Selection < Frequency Selection < Frequency Selection
®
CUV4X-V

ASUS CUV4X-V User’s Manual 19
3. HARDWARE SETUP
3. H/W SETUP
Motherboard Settings
2) I/O Voltage Setting (VIO)
VIO allows you to select the voltage supplied to the DRAM, chipset,AGP, PCI,
and the CPU’s I/O buffer. The default voltage (3.40V) should be used unless
processor overclocking requires a higher voltage.
Setting VIO
3.30 Volt [1-2]
3.40 Volt [2-3] (default)
TEST [3-4]
CUV4X-V VIO Setting
VIO
3.30 Volt 3.40 Volt
12 23
TEST
34
®
CUV4X-V
WARNING! Using a higher voltage may help when overclocking but may result
in the shortening of your computer component’s life. It is strongly recommended
that you leave this setting on its default.

20 ASUS CUV4X-V User’s Manual

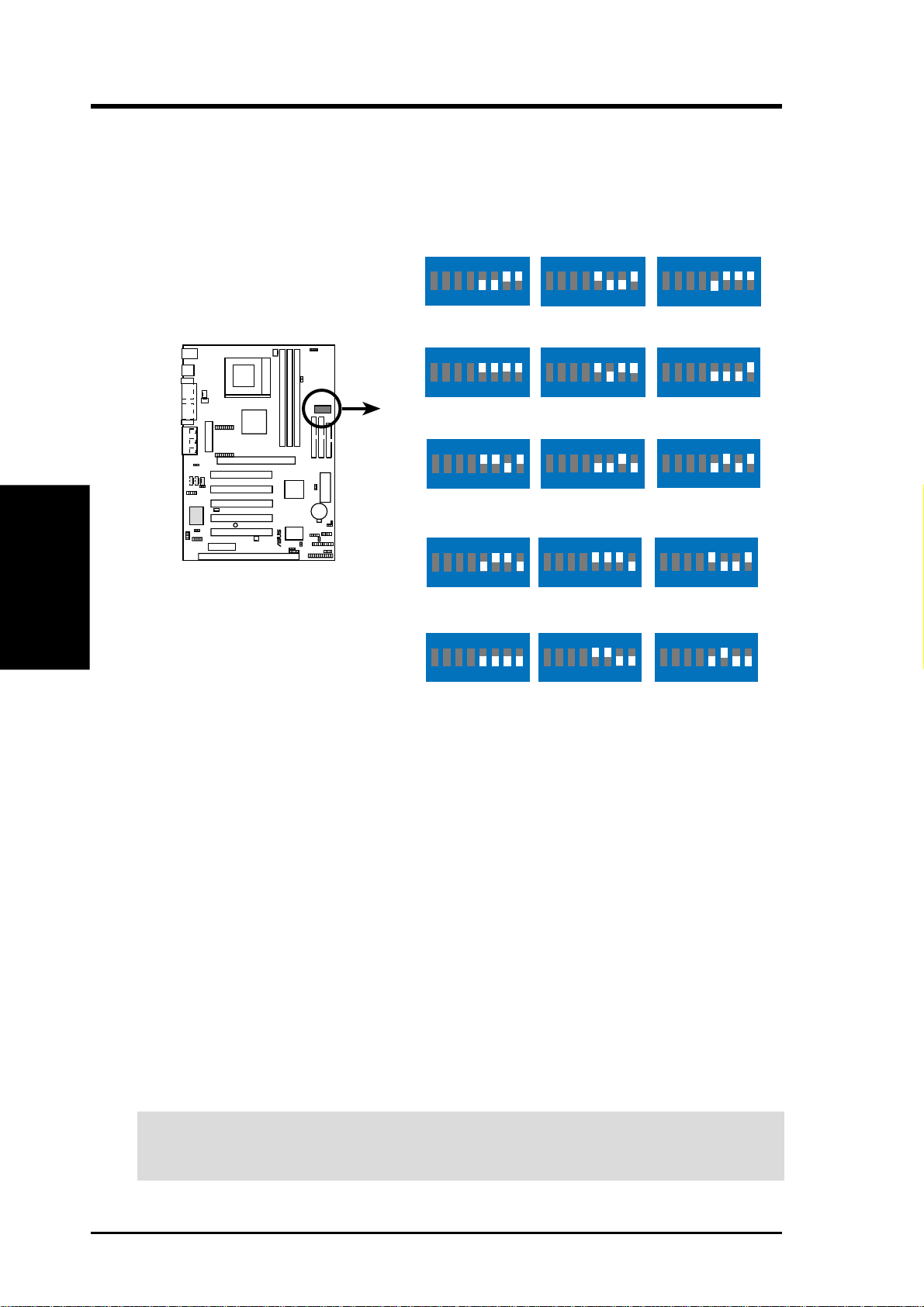

3) CPU External Frequency Selection (DIP_SW Switches 5–8)
This option tells the clock generator what frequency to send to the CPU, DRAM, and
the PCI bus.ThisallowstheselectionoftheCPU’sExternalfrequency(orBUSClock).
The BUS Clock multiplied by the Frequency Multiple equals the CPU’s Internal
frequency (the advertised CPU speed).
CUV4X-V CPU External
Frequency Selection
83.3MHz
41.6MHz
ON
12345678
66MHz
33MHz
ON
12345678 68MHz
34MHz
ON
12345678 75.0MHz
37.5MHz
ON
12345678
80MHz
40MHz
ON
12345678
CPU
PCI
CPU
PCI 100MHz 33MHz
ON
12345678
CPU
PCI 103.0MHz 34.3MHz
ON
12345678 105MHz
35MHz
ON
12345678 112.0MHz
37.3MHz
ON
12345678
133MHz
33MHz
ON
12345678 140MHz
35MHz
ON
12345678 150.0MHz
37.5MHz
ON
12345678
120MHz
40MHz
ON
12345678 124MHz
31MHz
ON
12345678
CPU
PCI 115.0MHz 38.3MHz
ON
12345678
CPU
PCI
®
CUV4X-V
NOTE:Overclocking your processor is not recommended. It may result in a slower
speed.
3. HARDWARE SETUP
WARNING! Frequencies other than the recommended CPU bus frequencies are
not guaranteed to be stable.
3. H/W SETUP
Motherboard Settings
