Medion MS-7091 User manual

1-1
Getting Started
Chapter 1. Getting Started
Getting Started
Thank you for choosing the MS-7091 v1.X Micro ATX
mainboard. The MS-7091 v1.X mainboard is based on Intel®915P
and Intel®ICH6R chipset for optimal system efficiency. Designed to
fit the advanced Intel®Pentium Prescott LGA775 processor, the
MS-7091 v1.X mainboard delivers a high performance and profes-
sional desktop platform solution.

1-2
MS-7091 M-ATX Mainboard
Mainboard Specifications
CPU
hSupports Intel®Pentium 4 Prescott LGA775 processors in LGA775 package.
hSupports up to Pentium 4 3XX, 5XX sequence processor or higher speed.
hSupports Intel Hyper-Threading Technology.
Chipset
hIntel® 915P chipset
- Supports FSB 533/800MHz.
- Supports DDR 400/333 memory interface.
hIntel®ICH6R chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 Serial ATA ports with transfer rate up to 150 Mbytes/sec.
- 1 channel Ultra ATA 100 bus Master IDE controller.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 Compliant.
- Serial ATA 150 RAID 0, RAID 1 and Matrix RAID.
- Integrated AHCI controller.
Main Memory
hSupports four DDR1 SDRAM memory modules.
hSupports up to 4GB memory size.
hSupports Dual channel DDR1.
Slots
hOne PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant).
hThree 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface).
- The second PCI slot (PCI2, in blue color) supports 2 master devices.
On-Board IDE
hOne Ultra DMA 66/100 IDE controllers integrated in ICH6R.
- Supports PIO, Bus Master operation modes.
- Can connect up to Two Ultra ATA drives.
hSerial ATA 150 controller integrated in ICH6R.
- Up to 150MB/sec transfer speed.
- Can connect up to four Serial ATA devices.
On-Board Peripherals
hOn-Board Peripherals include:
- 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port
- 1 parallel port supports SPP/EPP/ECP mode
- 8 USB 2.0 / 1.1 ports (Rear*4 / Front*4)
- 1 RJ45 connector
- 1 Rear 1394 port (6 Pins) / 1 Front 1394 port

1-3
Getting Started
- 1 Coaxial SPDIF-Out / SPDIF-In, 1 Optical SPDIF-Out / SPDIF-In
- 1 MIC-In
- 4 Line-Out
- 1 Line-In
LAN
hVIA®VT6105L LAN Controller
- 10/100 IEEE 802.3/802.3u 10Base-T & 100Base-T compliant.
IEEE 1394
hVIA®VT6307 PCI 1394a Integrated Host Controller
Audio
hAzalia link controller integrated in Intel®ICH6R chipset.
h8-channel audio codec CMedia CMI9880L.
BIOS
hThe mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral
devices and expansion cards of the board automatically.
hThe mainboard provides a Desktop Management Interface (DMI) function which
records your mainboard specifications.
Mounting and Dimension
hM-ATX Form Factor: 24.38 cm (L) x 24.38 cm (W)
h6 mounting holes

1-4
MS-7091 M-ATX Mainboard

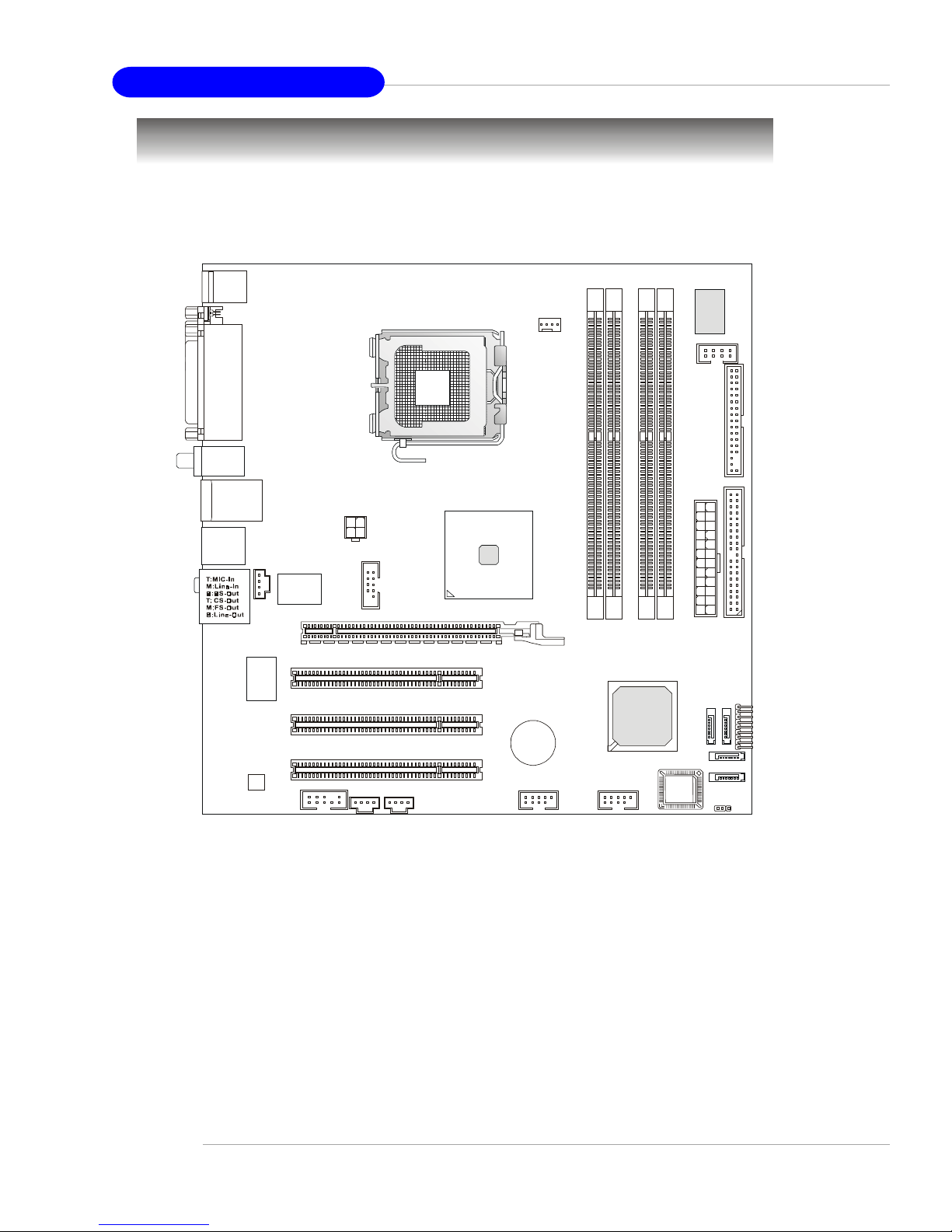

Mainboard Layout
MS-7091 v1.X M-ATX Mainboard
CPUFAN1
Intel
915P
JPW1
SATA1
JF_P1
SATA4
SATA2
SATA3
T:Coaxial
M:
B: Optical SPDIF-Out
SPDIF-Out
Coaxial SPDIF-In
Winbond
W83637THF
VIA
VT6307
ICH6R
BATT
+
DIMM4
DIMM3
DIMM2
DIMM1
PCI 3
PCI 2
PCI 1
IDE1
ATX1
FDD1
JBAT1
JVID1 JL_IN1
J1
JAUD1 JUSB1 JUSB2
Top : m o use
Bottom: keyboard
T:IEEE 1394
B:USB ports
BIOS
T: L A N j a c k
B: USB ports
Top : Par a lle l Port
Bottom:
COM A
Optical SPDIF-In
VIA
VT6105L
Codec
PCIE_X16
JSCA1
JSMC1

2-1
Hardware Setup
Chapter 2. Hardware Setup
This chapter tells you how to install the CPU, memory modules, and
expansion cards, as well as how to setup the jumpers on the mainboard.
Also, it provides the instructions on connecting the peripheral devices,
such as the mouse, keyboard, etc.
While doing the installation, be careful in holding the components and
follow the installation procedures.
Hardware Setup

2-2
MS-7091 M-ATX Mainboard
Quick Components Guide
JPW1, p.2-9
CPU, p.2-3
Back Panel
I/O, p.2-10
CANFAN1, p.2-14
IDE1, p.2-15
DDR DIMMs, p.2-7
PCI slots,
p.2-21

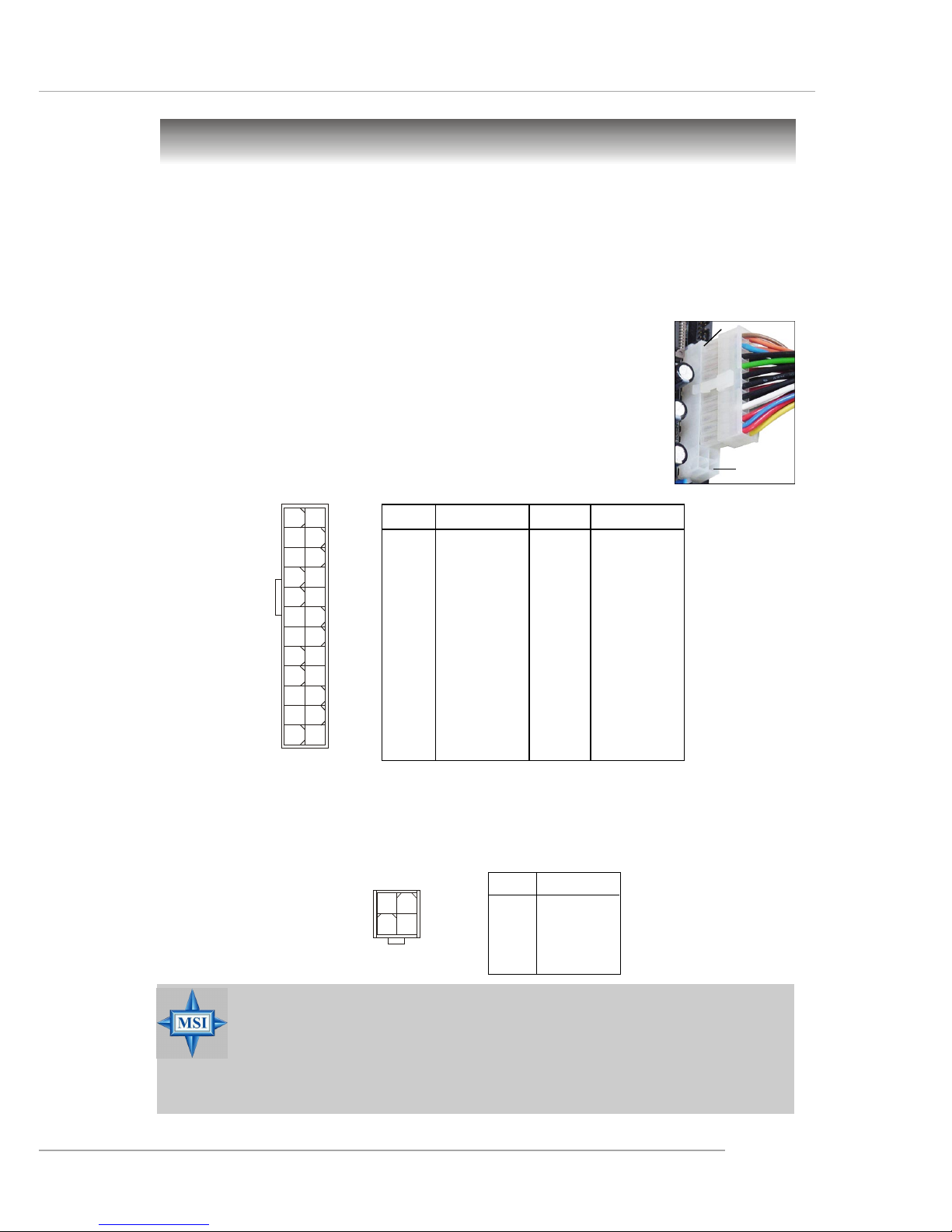

ATX1, p.2-9
FDD1, p.2-14
JAUD1, p.2-17
JL_IN1, p.2-19
JVID1, p.2-19
PCI-E slot,
p.2-21
JF_P1, p.2-19
J1,p.2-17
JUSB1,
p.2-18

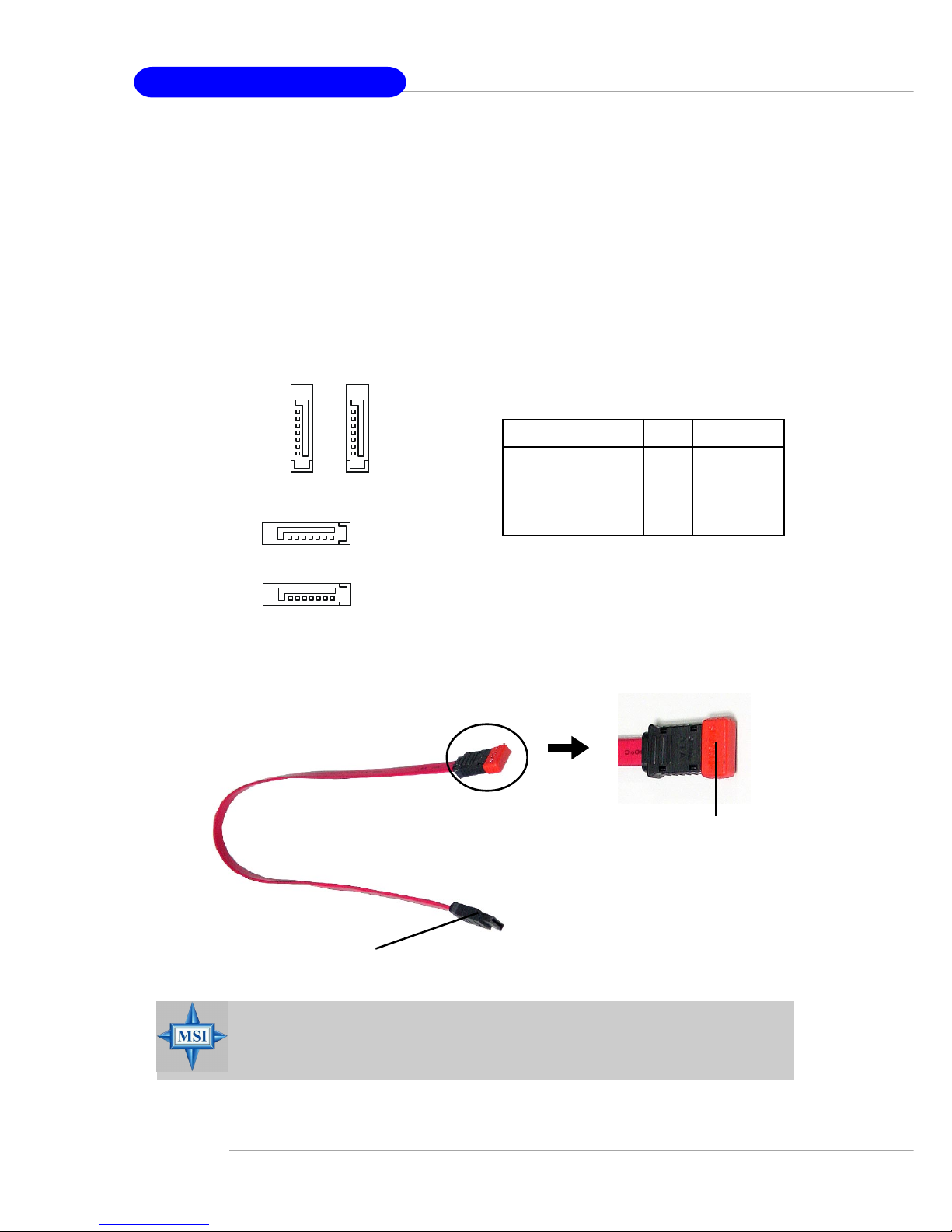

SATA1~SATA4,
p.2-16
JBAT1, p.2-20
JSMC1, p.2-15
JSCA1,p.2-18
JUSB2,
p.2-19

2-3
Hardware Setup
Central Processing Unit: CPU
The mainboard supports Intel®Pentium 4 Prescott processor. The mainboard
uses a CPU socket called LGA775. When you are installing the CPU, make sure to
install the cooler to prevent overheating. If you do not have the CPU cooler,
contact your dealer to purchase and install them before turning on the computer.
For the latest information about CPU, please visit http://www.msi.com.tw/
program/products/mainboard/mbd/pro_mbd_cpu_support.php.
MSI Reminds You...
Overheating
Overheating will seriously damage the CPU and system, always make
sure the cooling fan can work properly to protect the CPU from
overheating.
Replacing the CPU
While replacing the CPU, always turn off the ATX power supply or
unplug the power supply’s power cord from grounded outlet first to
ensure the safety of CPU.
Overclocking
This motherboard is designed to support overclocking. However, please
make sure your components are able to tolerate such abnormal setting,
while doing overclocking. Any attempt to operate beyond product speci-
fications is not recommended. We do not guarantee the damages
or risks caused by inadequate operation or beyond product
specifications.
Introduction to LGA 775 CPU
The surface of LGA 775 CPU.
Remember to apply some sili-
cone heat transfer compound on
it for better heat dispersion.
Yellow triangle is the Pin 1 indicator
The pin-pad side of LGA 775
CPU.
Yellow triangle is the Pin 1 indicator
Alignment Key Alignment Key

2-4
MS-7091 M-ATX Mainboard
2. Remove the cap from lever hinge
side (as the arrow shows).
1. The CPU has a plastic cap on it to
protect the contact from damage.
Before you install the CPU, always
cover it to protect the socket pin.
3. The pins of socket reveal.
CPU & Cooler Installation
When you are installing the CPU, make sure the CPU has a cooler at-
tached on the top to prevent overheating. If you do not have the cooler, contact
your dealer to purchase and install them before turning on the computer. Meanwhile,
do not forget to apply some silicon heat transfer compound on CPU before installing
the heat sink/cooler fan for better heat dispersion.
Follow the steps below to install the CPU & cooler correctly. Wrong installation
will cause the damage of your CPU & mainboard.
4. Open the load lever.

2-5
Hardware Setup

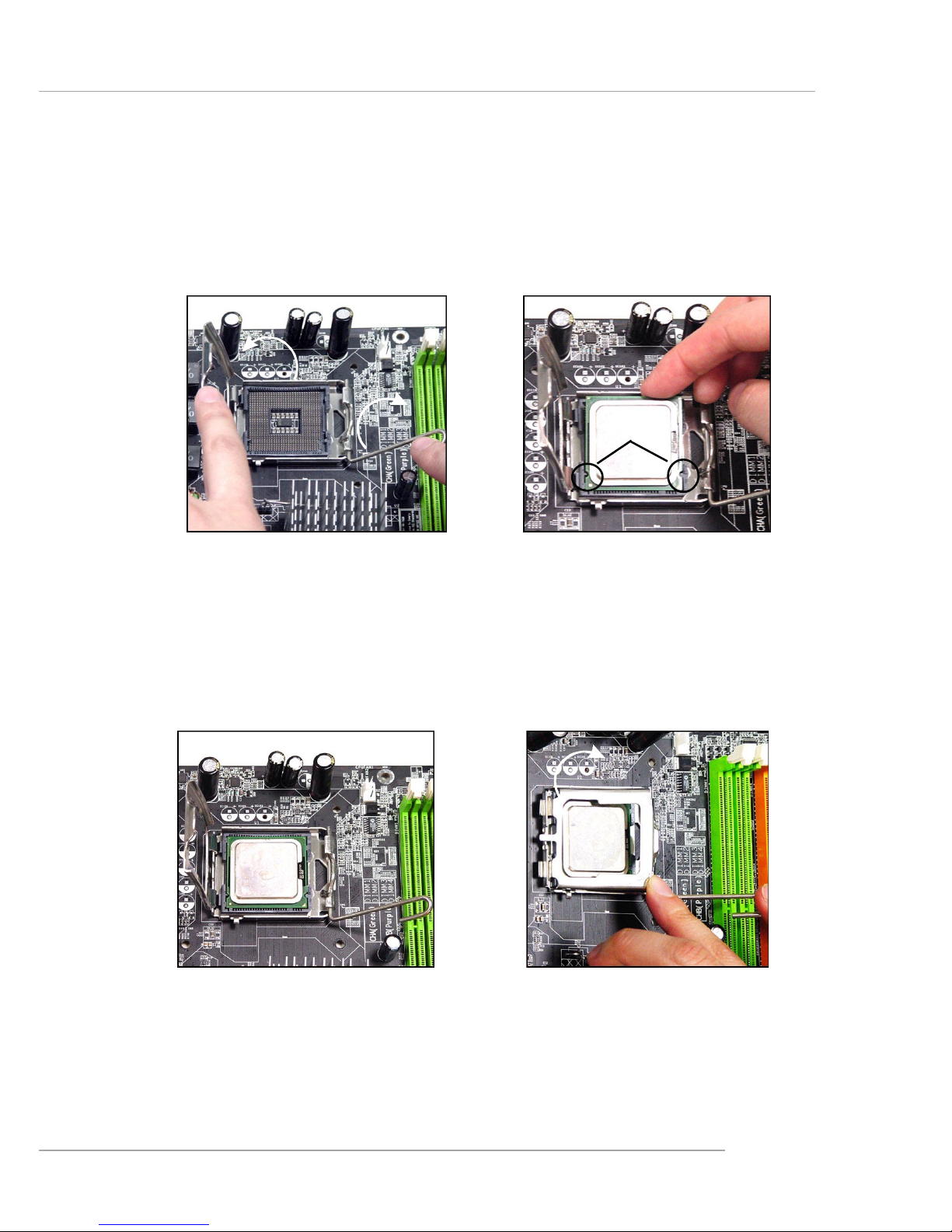

6. After confirming the CPU direction
for correct mating, put down the
CPU in the socket housing frame.
Be sure to grasp on the edge of
the CPU base. Note that the align-
ment keys are matched.
8. Cover the load plate onto the
package.
7. Visually inspect if the CPU is
seated well into the socket. If not,
take out the CPU with pure vertical
motion and reinstall.
alignment
key
5. Lift the load lever up and open the
load plate.

2-6
MS-7091 M-ATX Mainboard

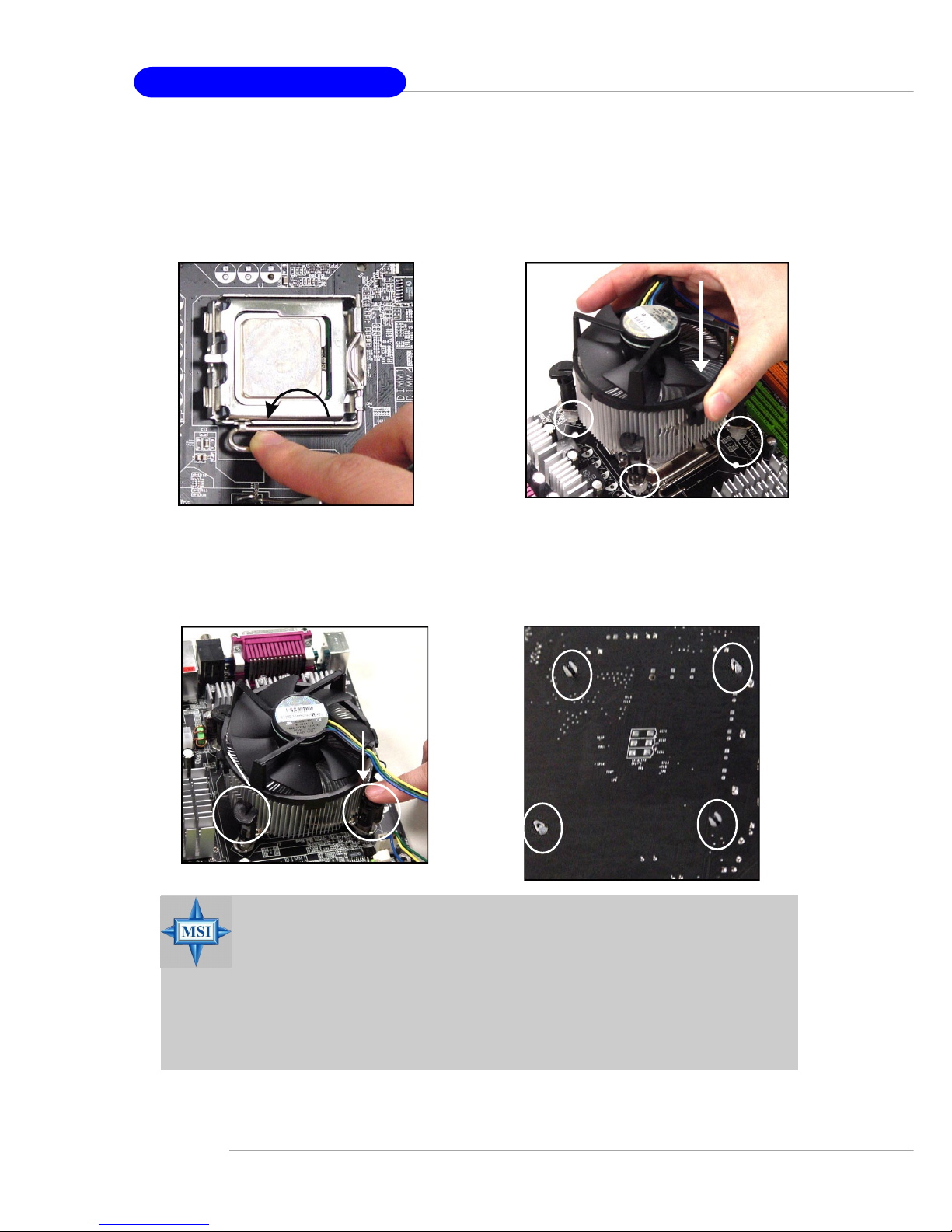

10. Align the holes on the mainboard
with the heatsink. Push down the
cooler until its four clips get
wedged into the holes of the
mainboard.
12. Turn over the mainboard to con-
firm that the clip-ends are cor-
rectly inserted.
11. Press the four hooks down to fas-
ten the cooler. Then rotate the lock-
ing switch (refer to the correct di-
rection marked on it) to lock the
hooks.
9. Press down the load lever lightly
onto the load plate, and then se-
cure the lever with the hook under
retention tab.
locking
switch
MSI Reminds You...
1. Confirm if your CPU cooler is firmly installed before turning on your
system.
2. Do not touch the CPU socket pins to avoid damaging.
3. Whenever CPU is not installed, always protect your CPU socket pin
with the plastic cap covered (shown in Figure 1) to avoid damaging.
4. Please note that the mating/unmating durability of the CPU is 20 cycles.
Therefore we suggest you do not plug/unplug the CPU too often.
