Asus H81-Gamer User manual

Motherboard
H81-GAMER

ii
E9735
Second Edition V2
August 2014
Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product contains copyrighted software that is licensed under the General Public License (“GPL”),
under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software
Licenses. Such software in this product is distributed without any warranty to the extent permitted by the
applicable law. Copies of these licenses are included in this product.
Where the applicable license entitles you to the source code of such software and/or other additional data,
you may obtain it for a period of three years after our last shipment of the product, either
(1) for free by downloading it from http://support.asus.com/download
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source
code we would be much obliged if you give us a notication to the email address [email protected], stating
the product and describing the problem (please DO NOT send large attachments such as source code
archives, etc. to this email address).

iii
Contents
Safety information ...................................................................................... iv
About this guide ......................................................................................... iv
Package contents ....................................................................................... vi
H81-GAMER specications summary....................................................... vi
Chapter 1: Product introduction
1.1 Before you proceed ..................................................................... 1-1
1.2 Motherboard overview................................................................. 1-1
1.3 Central Processing Unit (CPU) ................................................... 1-3
1.4 System memory ........................................................................... 1-7
1.5 Expansion slots.......................................................................... 1-10
1.6 Jumpers ...................................................................................... 1-11
1.7 Connectors ................................................................................. 1-12
1.8 Onboard LED.............................................................................. 1-21
1.9 Software support........................................................................ 1-22
Chapter 2: BIOS information
2.1 Managing and updating your BIOS ............................................ 2-1
2.2 BIOS setup program .................................................................... 2-6
2.3 My Favorites ............................................................................... 2-10
2.4 Main menu .................................................................................. 2-11
2.5 Ai Tweaker menu........................................................................ 2-13
2.6 Advanced menu ......................................................................... 2-26
2.7 Monitor menu ............................................................................. 2-35
2.8 Boot menu .................................................................................. 2-39
2.9 Tool menu................................................................................... 2-45
2.10 Exit menu.................................................................................... 2-46
Appendices
Notices.......................................................................................................A-1

iv
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.
• Before using the product, ensure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.
• Chapter 2: BIOS information
This chapter discusses changing system settings through the BIOS Setup menus.
Detailed descriptions for the BIOS parameters are also provided.

v
Where to nd more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty yers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when
completing a task.
CAUTION: Information to prevent damage to the components when
completing a task
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.
Typography
Bold text Indicates a menu or an item to select.
Italics Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign
means that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).

vi
H81-GAMER specications summary
(continued on the next page)
Package contents
Check your motherboard package for the following items.
Motherboard ASUS Gaming Motherboard – H81-GAMER
Cables 2 x Serial ATA 6.0 Gb/s cables
Accessories 1 x I/O Shield
Application DVD Support DVD
Documentation User Guide
If any of the above items is damaged or missing, contact your retailer.
CPU
LGA1150 socket for Intel®4th and New 4th Generation Core™ i7 / i5 / i3,
Pentium®, and Celeron®processors
Supports Intel®22nm CPU
Supports Intel®Turbo Boost Technology 2.0*
*The Intel®Turbo Boost Technology 2.0 support depends on the type of CPU installed
in your system.
** Refer to www.asus.com for Intel®CPU support list.
Chipset Intel®H81 Express Chipset
Memory
4 x DIMM, maximum 16 GB, DDR3 1600 / 1333 / 1066 MHz, non-ECC, un-buffered
memory*
Dual-channel memory architecture
Supports Intel® Extreme Memory Prole (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Please refer to Memory QVL (Qualied Vendors List) for details.
** Refer to www.asus.com for the latest Memory QVL (Qualied Vendors List).
*** Due to Intel®chipset limitation, DDR3 1600 MHz and higher memory modules on XMP
mode will run at the maximum transfer rate of DDR3 1600 MHz.
**** Due to Intel®chipset limitation, this motherboard can only support single-sided
memories when four modules are installed and they will run at the maximum transfer
rate of DDR3 1066MHz.
Graphics
Multi-VGA output support: DVI / D-Sub ports
- Supports DVI with maximum resolution of 1920 x 1200 @ 60 Hz
- Supports D-Sub with maximum resolution of 1920 x 1200 @ 60 Hz
Supports Intel® InTruTM 3D, Quick Sync Video, Intel®Clear Video HD Technology,
and Intel® InsiderTM
Maximum shared memory of 512 MB
Expansion
slots
1 x PCI Express 2.0 x16 slot
3 x PCI Express 2.0 x1 slots
3 x PCI slots
LAN Intel®Gigabit LAN

vii
H81-GAMER specications summary
(continued on the next page)
Storage
Intel®H81 Express Chipset:
- 2 x Serial ATA 6.0 Gb/s connectors (gray)
- 2 x Serial ATA 3.0 Gb/s connectors (black)
- Supports Intel®Rapid Start Technology* and Intel®Smart Connect
Technology**
* Due to the limitation of the Intel®H81 chipset, Intel®Rapid Start Technology can be
congured only from the BIOS Setup program.
** These functions work depending on the CPU installed.
Audio
SupremeFX 8-channel High Denition Audio CODEC
- Supports jack-detection, multi-streaming and front panel MIC jack-retasking
- High quality 115dB SNR stereo playback output
Audio Features:
- SupremeFX ShieldingTM Technology
- ELNA premium audio capacitors
- Headphone AMP
- Optical S/PDIF out port at back panel
USB
Intel®H81 Express Chipset - support ASUS USB 3.0 Boost
- 2 x USB 3.0/2.0 ports at back panel (blue)
Intel®H81 Express Chipset
- 8 x USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at rear panel)
ASMedia ASM1042 USB 3.0 Controller
- 2 x USB 3.0 ports at mid-board
ASUS
Gaming
Features
Gamer's Guardian
- ESD Guards on D-Sub, LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- 10K Black Metallic Capacitors
- Stainless Steel Back I/O
- ASUS DIGI+ VRM
Performance Optimization
- ASUS DIGI+ VRM: Digital Power Design for the CPU
- ASUS EPU
- ASUS GPU Boost
- ASUS Fan Xpert 2
- USB 3.0 Boost
EZ DIY
- Push Notice
- UEFI BIOS with EZ Mode / CrashFree BIOS 3 / EZ Flash 2
- Q-Design with ASUS Q-Shield / Q-DIMM / Q-slot
ASUS Exclusive Features
- AI Suite 3
- Disk Unlocker
- AI Charger+

viii
H81-GAMER specications summary
Specications are subject to change without notice.

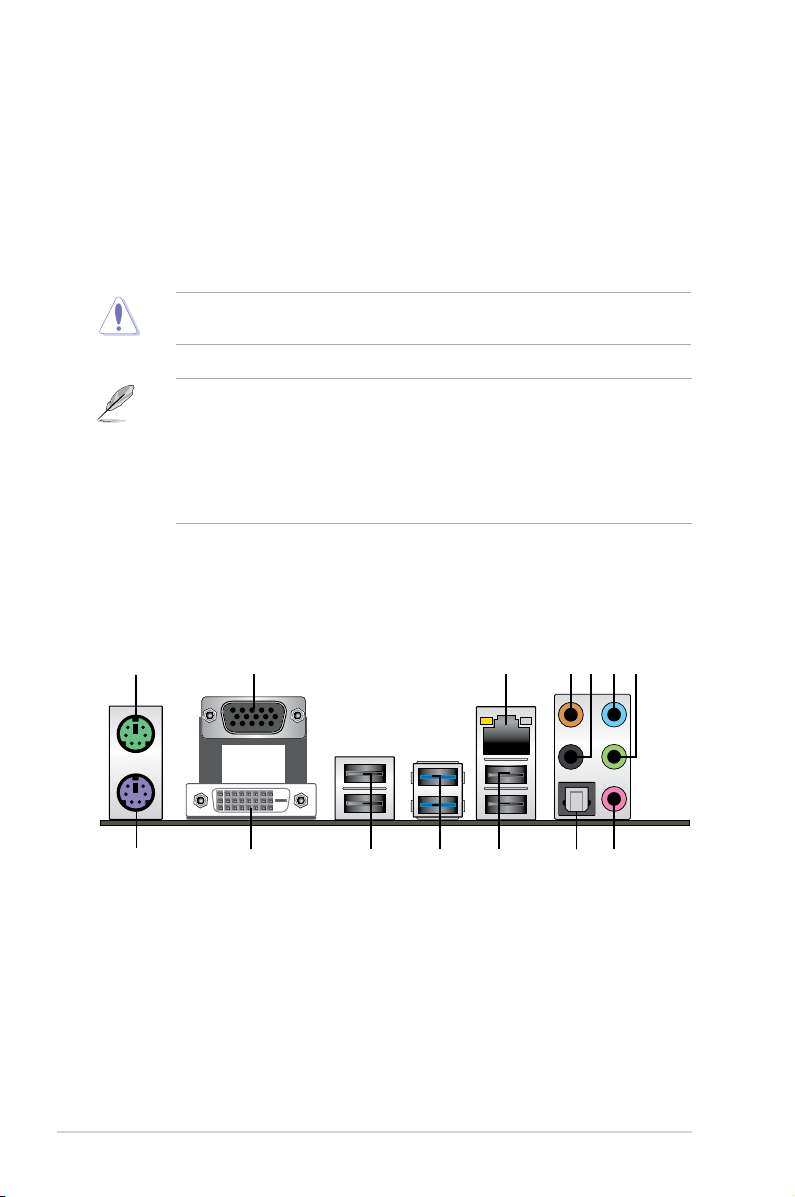

Rear Panel I/O
ports
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x Optical S/PDIF out port
1 x DVI port
1 x D-Sub port
2 x USB 3.0 ports
4 x USB 2.0 ports
1 x LAN (RJ45) port
8-channel audio I/O ports
Internal I/O
connectors
1 x 19-pin USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0 ports
2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports
2 x SATA 6.0 Gb/s connectors (gray)
2 x SATA 3.0 Gb/s connectors (black)
1 x CPU Fan connector (4-pin)
2 x Chassis Fan connectors (4-pin)
1 x COM connector
1 x TPM connector
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector
1 x Front panel audio connector (AAFP)
1 x System panel
1 x Clear CMOS jumper
BIOS features
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8,
ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3,
F11 EZ Tuning Wizard, F6 Q-Fan Control, F3 My Favorites, Quick Note, Last
Modied log, F12 PrintScreen Function, F3 Shortcut function and ASUS DRAM
SPD(Serial Presence Detect)
Manageability Wfm 2.0, DMI 2.7, WOL by PME, PXE
Support DVD
Drivers
ASUS utilities
EZ Update
Anti-virus software (OEM version)
Form factor ATX form factor: 12.0 in. x 8.4 in. (30.5 cm x 21.4 cm)

ASUS H81-GAMER 1-1
Product introduction
1
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
• Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
to static electricity.
• HoldcomponentsbytheedgestoavoidtouchingtheICsonthem.
• Wheneveryouuninstallanycomponent,placeitonagroundedantistaticpadorinthe
bag that came with the component.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switched off or the power cord is detached from the power supply. Failure to do so
maycauseseveredamagetothemotherboard,peripherals,orcomponents.
1.2 Motherboard overview
Beforeyouinstallthemotherboard,studythecongurationofyourchassistoensurethatthe
motherboardts.
Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodosocan
cause you physical injury and damage to motherboard components.
1.2.1 Placement direction
Wheninstallingthemotherboard,placeitintothechassisinthecorrectorientation.Theedge
with external ports goes to the rear part of the chassis as indicated in the image.
1.2.2 Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Donotovertightenthescrews!Doingsocandamagethemotherboard.

1-2 Chapter 1: Product introduction
H81-GAMER
Place this side
towards the rear
of the chassis
1.2.3 Motherboard layout
H81-GAMER
PCIEX16
PCI2
PCI1
PCI3
PCIEX1_3
PCIEX1_2
PCIEX1_1
Intel
I218V
USB910 USB1112
AAFP
EATXPWR
BATTERY
Super
I/O
ASM
1083
ALC
1150
SUPREMEFX
DVI VGA
CLRTC
SB_PWR
21.4cm(8.4in)
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module)
SATA6G_1SATA6G_2SATA3G_1SATA3G_2
LAN_USB34
USB56
KBMS
USB3_12
CHA_FAN1
CHA_FAN2
CPU_FAN
30.5cm(12in)
LGA1150
DIGI
+VRM
COM
EATX12V
USB3_E12
Intel®
H81
TPM
8MB
BIOS
PANEL
AUDIO
1 2 3 41
11 10121314
2
1
5
6
9
8
7

ASUS H81-GAMER 1-3
1.2.4 Layout contents
1.3 Central Processing Unit (CPU)
ThismotherboardcomeswithasurfacemountLGA1150socketdesignedfortheIntel®4th
andNew4thGenerationCore™i7/Core™i5/Core™i3,Pentium® ,Celeron®processors.
H81-GAMER
H81-GAMER CPU socket LGA1150
Connectors/Jumpers/Slots/LED Page
1. CPUandchassisfanconnectors(4-pinCPU_FAN,CHA_FAN1,CHA_FAN2) 1-14
2. EATXpowerconnectors(24-pinEATXPWR,8-pinEATX12V) 1-15
3. Intel®LGA1150CPUsocket 1-3
4. DDR3DIMMslots 1-7
5. USB3.0connector(20-1pinUSB3_E12) 1-17
6. Intel®H81SerialATA6.0Gb/sconnector(7-pinSATA6G_1,SATA6G_2
[gray]) 1-18
7. Intel®H81SerialATA3.0Gb/sconnectors(7-pinSATA3G_1,SATA3G_2
[black]) 1-19
8. StandbyPowerLED(SB_PWR) 1-21
9. Systempanelconnector(20-8pinPANEL) 1-20
10. ClearRTCRAM(3-pinCLRTC) 1-11
11. USB2.0connectors(10-1pinUSB910,USB1112) 1-17
12. TPMconnector(20-1pinTPM) 1-6
13. Serialportconnectors(10-1pinCOM) 1-15
14. Frontpanelaudioconnector(10-1pinAAFP) 1-16

1-4 Chapter 1: Product introduction
1.3.1 Installing the CPU
1
23
A
B
UnplugallpowercablesbeforeinstallingtheCPU.
• EnsurethatyouinstallthecorrectCPUdesignedfortheLGA1150socketonly.DO
NOTinstallaCPUdesignedforLGA1155andLGA1156socketsontheLGA1150
socket.
• Uponpurchaseofthemotherboard,ensurethatthePnPcapisonthesocketand
thesocketcontactsarenotbent.ContactyourretailerimmediatelyifthePnPcap
ismissing,orifyouseeanydamagetothePnPcap/socketcontacts/motherboard
components.ASUSwillshoulderthecostofrepaironlyifthedamageisshipment/
transit-related.
• Keepthecapafterinstallingthemotherboard.ASUSwillprocessReturnMerchandise
Authorization(RMA)requestsonlyifthemotherboardcomeswiththecaponthe
LGA1150socket.
• Theproductwarrantydoesnotcoverdamagetothesocketcontactsresultingfrom
incorrectCPUinstallation/removal,ormisplacement/loss/incorrectremovalofthePnP
cap.

ASUS H81-GAMER 1-5
A
B
C
5
4
1.3.2 CPU heatsink and fan assembly installation
ApplytheThermalInterfaceMaterial
totheCPUheatsinkandCPU
before you install the heatsink and
fan if necessary.

1-6 Chapter 1: Product introduction
3 4
A
B
B
A
To uninstall the CPU heatsink and fan assembly
2
1
To install the CPU heatsink and fan assembly
2
B
A
A
B
1

ASUS H81-GAMER 1-7
1.4 System memory
1.4.1 Overview
ThismotherboardcomeswithfourDoubleDataRate3(DDR3)DualInlineMemoryModule
(DIMM)sockets.ADDR3moduleisnotcheddifferentlyfromaDDRorDDR2module.DO
NOTinstallaDDRorDDR2memorymoduletotheDDR3slot.
H81-GAMER
H81-GAMER 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2
1.4.2 Memorycongurations
Youmayinstall1GB,2GB,4GB,and8GBunbufferednon-ECCDDR3DIMMsintothe
DIMMsockets.Youcanrefertotherecommendedmemorypopulationbelow.
AccordingtoIntel®CPUspec,DIMMvoltagebelow1.65Visrecommendedtoprotectthe
CPU.
Combination
Recommended DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2
1SS
2SS
3SS SS
4DS
5 DS
6DS DS
7 SS SS SS SS
SS:Single-sidedmemory DS:Double-sidedmemory

1-8 Chapter 1: Product introduction
• ThedefaultmemoryoperationfrequencyisdependentonitsSerialPresenceDetect
(SPD),whichisthestandardwayofaccessinginformationfromamemorymodule.
• Forsystemstability,useamoreefcientmemorycoolingsystemtosupportafull
memoryload(4DIMMs).
• VisittheASUSwebsiteatwww.asus.comforthelatestQVL.
• YoumayinstallvaryingmemorysizesinChannelAandChannelB.Thesystem
mapsthetotalsizeofthelower-sizedchannelforthedual-channelconguration.Any
excessmemoryfromthehigher-sizedchannelisthenmappedforsingle-channel
operation.
• DuetoIntel®chipsetlimitation,DDR31600MHzandhighermemorymodulesonXMP
modewillrunatthemaximumtransferrateofDDR31600MHz.
• DuetoIntel®chipsetlimitation,thismotherboardcanonlysupportsingle-sided
memories when four modules are installed and they will run at the maximum transfer
rateofDDR31066MHz.
• AlwaysinstallDIMMswiththesameCASlatency.Foroptimalcompatibility,we
recommendthatyouinstallmemorymodulesofthesameversionordatecode(D/C)
fromthesamevendor.Checkwiththeretailertogetthecorrectmemorymodules.
• Duetothememoryaddresslimitationon32-bitWindows®OS,whenyouinstall4GB
ormorememoryonthemotherboard,theactualusablememoryfortheOScanbe
about3GBorless.Foreffectiveuseofmemory,werecommendthatyoudoanyofthe
following:
- Useamaximumof3GBsystemmemoryifyouareusinga32-bitWindows®OS.
 - Installa64-bitWindows®OSifyouwanttoinstall4GBormoreonthe
motherboard.
 - Formoredetails,refertotheMicrosoft®support site at http://support.microsoft.
com/kb/929605/en-us.
• ThismotherboarddoesnotsupportDIMMsmadeupof512Mb(64MB)chipsorless.

ASUS H81-GAMER 1-9
1.4.3 Installing a DIMM
UnplugthepowersupplybeforeaddingorremovingDIMMsorothersystemcomponents.
Failuretodosocancauseseveredamagetoboththemotherboardandthecomponents.
1. Press the retaining clip outward to
unlockaDIMMsocket.
2. AlignaDIMMonthesocketsuch
thatthenotchontheDIMMmatches
theDIMMslotkeyonthesocket.
ADIMMiskeyedwithanotchsothatittsinonlyonedirection.DONOTforceaDIMM
intoasocketinthewrongdirectiontoavoiddamagingtheDIMM.
3. FirmlyinserttheDIMMintothesocket
until the retaining clip clicks back in
placeandtheDIMMisproperlyseated.
1.4.4 Removing a DIMM
To remove a DIMM:
1. PresstheretainingclipsoutwardtounlocktheDIMM.
2. RemovetheDIMMfromthesocket.
SupporttheDIMMlightlywith
yourngerswhenpressingthe
retainingclip.TheDIMMmight
getdamagedwhenitipsout
with extra force.
DIMM notch
DIMM slot key

1-10 Chapter 1: Product introduction
1.5.1 Installing an expansion card
To install an expansion card:
1. Beforeinstallingtheexpansioncard,readthedocumentationthatcamewithitand
make the necessary hardware settings for the card.
2. Removethesystemunitcover(ifyourmotherboardisalreadyinstalledinachassis).
3. Removethebracketoppositetheslotthatyouintendtouse.Keepthescrewforlater
use.
4. Alignthecardconnectorwiththeslotandpressrmlyuntilthecardiscompletely
seated on the slot.
5. Securethecardtothechassiswiththescrewyouremovedearlier.
6. Replacethesystemcover.
1.5.2 Conguringanexpansioncard
Afterinstallingtheexpansioncard,congureitbyadjustingthesoftwaresettings.
1. TurnonthesystemandchangethenecessaryBIOSsettings,ifany.SeeChapter2for
informationonBIOSsetup.
2. AssignanIRQtothecard.
3. Installthesoftwaredriversfortheexpansioncard.
WhenusingPCIcardsonsharedslots,ensurethatthedriverssupport“ShareIRQ”orthat
thecardsdonotneedIRQassignments.Otherwise,conictswillarisebetweenthetwoPCI
groups,makingthesystemunstableandthecardinoperable.
1.5 Expansion slots
Inthefuture,youmayneedtoinstallexpansioncards.Thefollowingsub-sectionsdescribe
the slots and the expansion cards that they support.
Unplugthepowercordbeforeaddingorremovingexpansioncards.Failuretodosomay
cause you physical injury and damage motherboard components.
1.5.3 PCI slots
ThePCIslotsupportscardssuchasaLANcard,SCSIcard,USBcard,andothercardsthat
complywithPCIspecications.
1.5.4 PCI Express 2.0 x1 slots
ThismotherboardsupportsPCIExpressx1networkcards,SCSIcards,andothercardsthat
complywiththePCIExpressspecications.
1.5.5 PCI Express 2.0 x16 slot
ThismotherboardsupportsPCIExpressx16graphiccardcomplyingwiththePCIExpress
specications.

ASUS H81-GAMER 1-11
IRQ assignments for this motherboard
A B C D E F G H
I.G.D. Shared –––––––
PCIex16 Shared –––––––
PCIex1_1 Shared –––––––
PCIex1_2 –Shared ––––––
PCIex1_3 Shared –––––––
PCI1 –––Shared ––––
PCI2 Shared –––––––
PCI3 –Shared ––––––
IntelSATAController –––Shared ––––
IntelLAN ––––Shared –––
IntelxHCI –––––Shared – –
IntelEHCI1 –––––––Shared
IntelEHCI2 Shared –––––––
ASMUSB3.0 Shared
HDAudio ––––––Shared –
1.6 Jumpers
1. Clear RTC RAM (3-pin CLRTC)
ThisjumperallowsyoutocleartheRealTimeClock(RTC)RAMinCMOS.Youcan
cleartheCMOSmemoryofdate,time,andsystemsetupparametersbyerasing
theCMOSRTCRAMdata.TheonboardbuttoncellbatterypowerstheRAMdatain
CMOS,whichincludesystemsetupinformationsuchassystempasswords.
H81-GAMER
H81-GAMER Clear RTC RAM
122 3
Normal
(Default)
Clear RTC
CLRTC

1-12 Chapter 1: Product introduction
To erase the RTC RAM:
1. TurnOFFthecomputerandunplugthepowercord.
2. Movethejumpercapfrompins1-2(default)topins2-3.Keepthecaponpins2-3
forabout5-10seconds,thenmovethecapbacktopins1-2.
3. PlugthepowercordandturnONthecomputer.
4. Holddownthe<Del>keyduringthebootprocessandenterBIOSsetuptore-
enter data.
ExceptwhenclearingtheRTCRAM,neverremovethecaponCLRTCjumperdefault
position.Removingthecapwillcausesystembootfailure!
• Ifthestepsabovedonothelp,removetheonboardbatteryandmovethejumper
againtocleartheCMOSRTCRAMdata.AfterclearingtheCMOS,reinstallthe
battery.
• YoudonotneedtocleartheRTCwhenthesystemhangsduetooverclocking.For
systemfailureduetooverclocking,usetheCPUParameterRecall(C.P.R.)feature.
Shutdownandrebootthesystem,thentheBIOSautomaticallyresetsparameter
settingstodefaultvalues.
1. PS/2 mouse port (green).ThisportisforaPS/2mouse.
2. Video Graphics Adapter (VGA) port.This15-pinportisforaVGAmonitororother
VGA-compatibledevices.
3. LAN (RJ-45) port.ThisportallowsGigabitconnectiontoaLocalAreaNetwork(LAN)
through a network hub.
1.7 Connectors
1.7.1 Rear panel connectors
3
10
2
13 11
4 5 6 7
8
1
14 12 9
