Asus P3V4X User manual

®
P3V4X
ATX Motherboard
USER’S MANUAL

ASUS P3V4X User’s Manual
2
USER'S NOTICE
Product Name: ASUS P3V4X
Manual Revision: 1.02 E525
Release Date: March 2000
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form
or by any means, except documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EI-
THER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WAR-
RANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FORAPARTICULAR
PURPOSE. IN NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR
AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUEN-
TIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS,
LOSS OF USE OR DATA, INTERRUPTION OF BUSINESSAND THE LIKE), EVEN IFASUS
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or al-
tered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the
serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trademarks
or copyrights of their respective companies, and are used only for identification or explanation
and to the owners’ benefit, without intent to infringe.
• VIAand Apollo Pro133Aare trademarks of VIA Technologies, Inc.
• Intel, LANDesk, Pentium, and Celeron are trademarks of Intel Corporation.
• IBM and OS/2 are registered trademarks of International Business Machines.
• Symbios is a registered trademark of Symbios Logic Corporation.
• Windows and MS-DOS are registered trademarks of Microsoft Corporation.
• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
• Trend and ChipAwayVirus are trademarks of Trend Micro, Inc.
The product name and revision number are both printed on the product itself. Manual revisions
are released for each product design represented by the digit before and after the period of the
manual revision number. Manual updates are represented by the third digit in the manual revision
number.
For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at
http://www.asus.com.tw or through any of the means indicated on the following page.
SPECIFICATIONSAND INFORMATIONCONTAINED INTHISMANUALAREFURNISHED
FORINFORMATIONALUSEONLY,ANDARESUBJECTTOCHANGEATANYTIMEWITH-
OUTNOTICE,ANDSHOULD NOTBE CONSTRUEDASACOMMITMENTBYASUS.ASUS
ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURA-
CIES THAT MAYAPPEAR IN THIS MANUAL, INCLUDING THE PRODUCTSAND SOFT-
WARE DESCRIBED IN IT.
Copyright © 2000 ASUSTeK COMPUTER INC. All Rights Reserved.

ASUS P3V4X User’s Manual 3
ASUS CONTACT INFORMATION
ASUSTeK COMPUTER INC. (Asia-Pacific)
Marketing
Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Technical Support
MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel):[phone] (English)
Fax: [phone]
Email: [email protected]
WWW: www.asus.com.tw
FTP: ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER INTERNATIONAL (America)
Marketing
Address: 6737 Mowry Avenue, Mowry Business Center, Building 2
Newark, CA 94560, USA
Fax: [phone]
Email: [email protected]
Technical Support
Fax: [phone]
Email: [email protected]
WWW: www.asus.com
FTP: ftp.asus.com/Pub/ASUS
ASUS COMPUTER GmbH (Europe)
Marketing
Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
Fax: [phone]
Email: [email protected] (for marketing requests only)
Technical Support
Hotline: MB/Others: [phone] Notebook: [phone]
Fax: [phone]
Support (Email): www.asuscom.de/de/support (for online support)
WWW: www.asuscom.de
FTP: ftp.asuscom.de/pub/ASUSCOM

ASUS P3V4X User’s Manual
4
CONTENTS
1. INTRODUCTION 7
1.1 How This Manual Is Organized ................................................... 7
1.2 Item Checklist .............................................................................. 7
2. FEATURES 8
2.1 The ASUS P3V4X ....................................................................... 8
2.1.1 Specifications ..................................................................... 8
2.1.2 Special Features................................................................ 10
2.1.3 Performance Features ....................................................... 10
2.1.4 Intelligence ....................................................................... 11

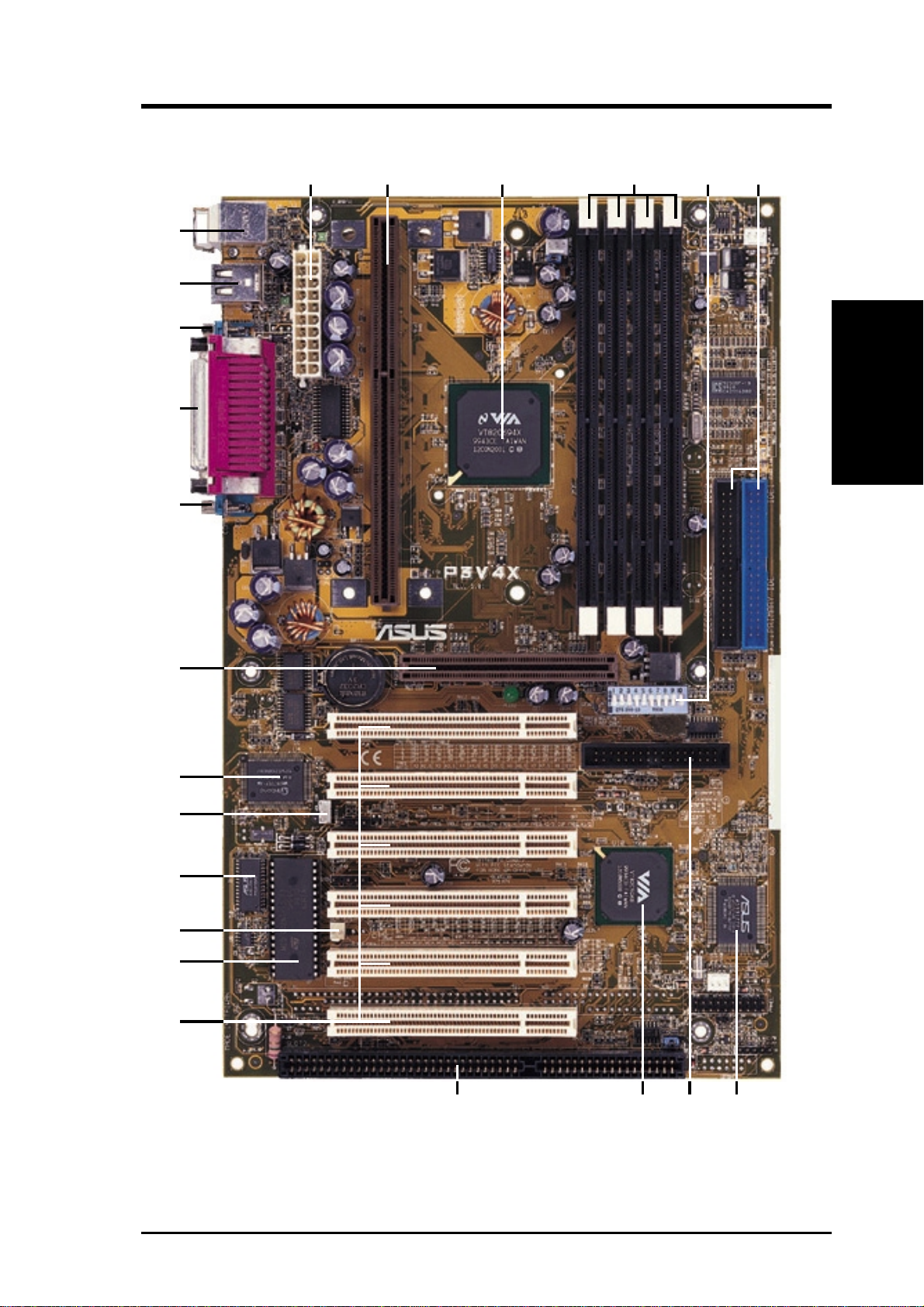

2.2 P3V4X Motherboard Components............................................. 12
3. HARDWARE SETUP 14
3.1 P3V4X Motherboard Layout ..................................................... 14
3.2 Layout Contents ......................................................................... 15
3.3 Hardware Setup Procedure......................................................... 16

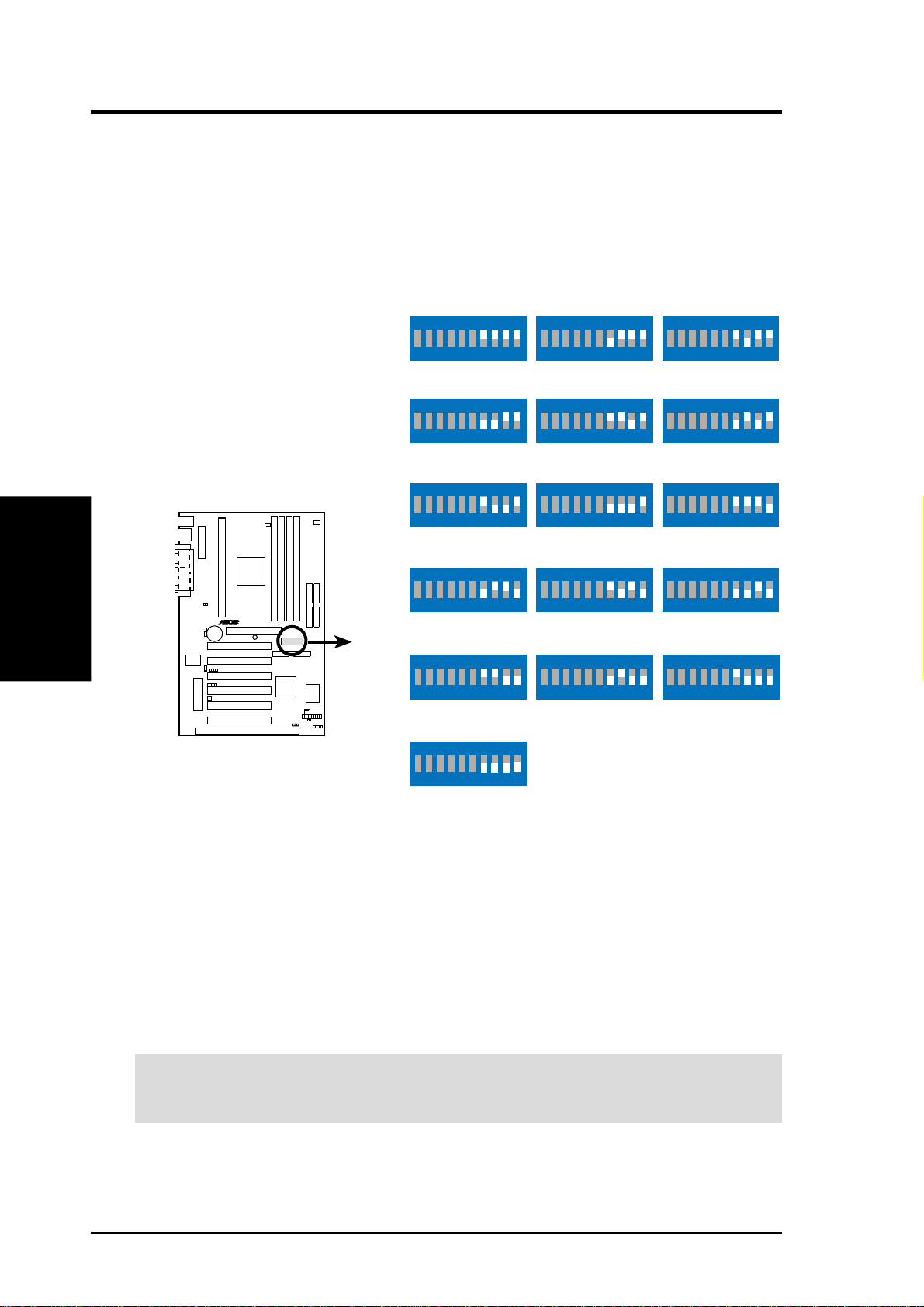

3.4 Motherboard Settings ................................................................. 16
3.5 System Memory (DIMM) .......................................................... 20
3.6 Central Processing Unit (CPU) .................................................. 23
3.6.1 Quick CPU Installation Procedure ................................... 23
3.6.2 Attaching the Heatsink ..................................................... 24
3.6.3 Installing the Universal Retention Mechanism ................ 24
3.6.4 Installing the Processor .................................................... 26
3.6.5 Removing the Processor ................................................... 27
3.6.6 Recommended Heatsinks for Slot 1 Processors ............... 27
3.6.7 Precautions ....................................................................... 28
3.7 Expansion Cards ........................................................................ 29
3.7.1 Expansion Card Installation Procedure ............................ 29
3.7.2 Assigning IRQs for Expansion Cards .............................. 29
Standard Interrupt Assignments ............................................ 30
3.7.3 Assigning DMA Channels for ISA Cards......................... 31
3.7.4 Accelerated Graphics Port (AGP) .................................... 31
3.8 External Connectors ................................................................... 32
3.9 Power Connection Procedures ................................................... 41
4. BIOS SETUP 43
4.1 Managing and Updating Your BIOS .......................................... 43
4.1.1 Upon First Use of the Computer System.......................... 43
4.1.2 Updating BIOS Procedures (only when necessary) ......... 44

ASUS P3V4X User’s Manual 5
CONTENTS
4.2 BIOS Setup Program.................................................................. 47
4.2.1 BIOS Menu Bar................................................................ 48
4.2.2 Legend Bar ....................................................................... 48
4.3 Main Menu ................................................................................. 50
4.3.1 Primary & Secondary Master/Slave ................................. 51
4.3.2 Keyboard Features............................................................ 54
4.4 Advanced Menu ......................................................................... 56
4.4.1 Chip Configuration........................................................... 60
4.4.2 I/O Device Configuration ................................................. 63
4.4.3 PCI Configuration ............................................................ 65
4.4.4 Shadow Configuration ...................................................... 68
4.5 Power Menu ............................................................................... 69
4.5.1 Power Up Control............................................................. 71
4.5.2 Hardware Monitor ............................................................ 73
4.6 Boot Menu ................................................................................. 74
4.7 Exit Menu................................................................................... 75
5. SOFTWARE SETUP 77
5.1 Operating Systems ..................................................................... 77
5.1.1 Windows 98 First Time Installation ................................. 77
5.2 P3V Series Motherboard Support CD........................................ 78
5.3 Install ASUS PC Probe Vx.xx.................................................... 79
5.4 Install PC-Cillin 98 Vx.xx ......................................................... 80
5.5 Install ADOBE AcroBat Reader Vx.xx...................................... 80
5.6 VIA 4 in 1 Driver ....................................................................... 82
5.7 Uninstalling Programs................................................................ 82
6. SOFTWARE REFERENCE 85
6.1 ASUS PC Probe ......................................................................... 85
7. APPENDIX 89
7.1 S370 Series CPU Cards ............................................................. 89
7.1.1 Using the ASUS S370 Series CPU Cards ........................ 90
7.1.2 Setting up the ASUS S370 Series CPU Cards.................. 90
7.2 ASUS PCI-L101 Fast Ethernet Card ......................................... 91
7.3 Glossary ..................................................................................... 93

ASUS P3V4X User’s Manual
6
FCC & DOC COMPLIANCE
FederalCommunications CommissionStatement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly ap-
proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.
Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the
Federal Register, National Archives and Records Administration, U.S. Government Printing Office.
CanadianDepartment ofCommunications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
This Class B digital apparatus complies with Canadian ICES-003.
CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003duCanada.

ASUS P3V4X User’s Manual 7
1.1 How This Manual Is Organized
This manual is divided into the following sections:
1. INTRODUCTION Manual information and checklist
2. FEATURES Production information and specifications
3. HARDWARE SETUP Instructions on setting up the motherboard.
4. BIOS SETUP Instructions on setting up the BIOS
5. SOFTWARE SETUP Instructions on setting up the included software
6. SOFTWARE REFERENCE Reference material for the included software
7. APPENDIX Optional items and general reference
1.2 Item Checklist
Check that your package is complete. If you discover damaged or missing items,
contact your retailer.
(1) ASUS Motherboard
(1) Universal Retention Mechanism for SECC2/SECC/SEPP processors
(1) Ribbon cable for master and slave UltraDMA/66 or UltraDMA/33 IDE drives
(1) Ribbon cable for (1) 5.25”and (2) 3.5”floppy disk drives
(1) Bag of spare jumper caps
(1) Support CD with drivers and utilities
(1) This Motherboard User’s Manual
ASUS IrDA-compliant infrared module (optional)
ASUS S370 Series CPU cards (optional)
ASUS PCI-L101 Wake-On-LAN 10/100 Ethernet Card (optional)
CPU thermal sensor cable (optional)
1. INTRODUCTION
1. INTRODUCTION
Manual / Checklist

8ASUS P3V4X User’s Manual
2.1 The ASUS P3V4X
The ASUS P3V4X motherboard is carefully designed for the demanding PC user
who wants advanced features processed by the fastest processors.
2.1.1 Specifications
•Latest Intel Processor Support
Intel Pentium
®
III 100MHz FSB, Katmai core SECC2
Intel Pentium
®
III B 133MHz FSB, Katmai core SECC2
Intel Pentium
®
III E 100MHz FSB, Coppermine core SECC2
Intel Pentium
®
III EB 133MHz FSB, Coppermine core SECC2
Intel Pentium
®
II 100MHz/66MHz FSB SECC
Intel Celeron™66MHz FSB SEPP
•VIAApollo Pro133AChipset: Features the VIAVT82C694X system control-
ler and VIA VT82C596B PCI to ISA bridge with support for AGP 4x mode;
133/100/66MHz Front Side Bus (FSB); and UltraDMA/66 / UltraDMA/33.
•PC133 Memory / VCM /HSDRAM Support: Equipped with four Dual Inline
Memory Module (DIMM) sockets to support Intel PC133/PC100-compliant (8,
16, 32, 64, 128, 256, or 512MB), NEC’s Virtual Channel (VC) SDRAM, or En-
hanced Memory System’s High-speed DRAMs (HSDRAMs) up to 2GB. VC
SDRAM and HSDRAM are new DRAM core architectures that dramatically im-
prove the memory system’s ability to service, among others, high multimedia re-
quirements.
•JumperFree™Mode: Allows processor settings, core voltage, and easy
overclocking of frequency through BIOS setup when JumperFree™mode is
enabled. Easy-to-use DIP switches instead of jumpers are included to allow
manual adjustment of the processor’s external frequency.
•Multi-Cache: Supports processors with 512, 256, 128, or 0KB Pipelined Burst
Level 2 cache.
•AGP Slot: Supports AGP cards for high performance, component level inter-
connection targeted at 3D graphical applications supporting 133MHz 4X mode.
•UltraDMA/66 Support: Comes with an onboard PCI Bus Master IDE control-
ler with two connectors that support four IDE devices on two channels. Sup-
ports UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and Bus Master IDE
DMA Mode 2, and Enhanced IDE devices, such as DVD-ROM, CD-ROM, CD-
R/RW, LS-120, and Tape Backup drives.
•Wake-On-LAN Connector: Supports Wake-On-LAN activity through an op-
tional ASUS PCI-L101 10/100 Fast Ethernet PCI card (see 7. Appendix).
2. FEATURES
Specifications
2. FEATURES

ASUS P3V4X User’s Manual 9
2. FEATURES
2. FEATURES
Specifications
•Wake-On-Ring Connector: Supports Wake-On-Ring activity through a PCI
modem card that supports a WOR connector.
•PC Health Monitoring: Provides an easy way to examine and manage system
status information, such as CPU and systerm voltages, temperatures, and fan
status through the onboard hardware ASUS ASIC and the bundled ASUS PC
Probe.
•SMBus:Features the System Management Bus interface, which is used to physi-
cally transport commands and information between SMBus devices.
•PCI/ISAExpansion Slots: Provides six 32-bit PCI (Rev. 2.2) expansion slots,
which can support Bus Master PCI cards, such as SCSI or LAN cards (PCI
supports up to 133MB/s maximum throughput) and one 16-bit ISA slot.
•Super Multi-I/O: Provides two high-speed UART compatible serial ports and
one parallel port with EPP and ECP capabilities. UART2 can also be directed
from COM2 to the Infrared Module for wireless connections.
•Enhanced ACPI: Programmable BIOS (Flash EEPROM), offering enhanced
ACPI for Windows 98 compatibility and autodetection of most devices for vir-
tually automatic setup.
•IrDA: Supports an optional infrared port module for wireless interface.
•Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-
ter busses to the memory and processor.
•Universal Retention Mechanism: Supports a Pentium®III / II processor pack-
aged in a Single Edge Contact Cartridge (SECC2/SECC) or a Celeron™proces-
sor packaged in a Single Edge Processor Package (SEPP).
•Smart BIOS: 2MB firmware provides Vcore and CPU/SDRAM frequency ad-
justments, boot block write protection, and HD/SCSI/MO/ZIP/CD/Floppy boot
selection.
•Integrated Infrared Support: Integrated IR supports an optional remote con-
trol package for wireless interfacing with external peripherals, personal gad-
gets, or an optional remote controller.

10 ASUS P3V4X User’s Manual
2. FEATURES
Performance
2. FEATURES
2.1.2 Special Features
•ACPI Ready: Advanced Configuration Power Interface (ACPI) provides more
Energy Saving Features for operating systems that support OS Direct Power
Management (OSPM) functionality. With these features implemented in the OS,
PCs can be ready around the clock, yet satisfy all the energy saving standards.
To fully utilize the benefits of ACPI, anACPI-supported OS, such as Windows
98 must be used.
•Easy Installation: Incorporates BIOS that supports autodetection of hard disk
drives, PS/2 mouse, and Plug and Play devices to make the setup of hard disk
drives, expansion cards, and other devices virtually automatic.
•PC’98 Compliant: Both the BIOS and hardware levels of ASUS smart series
motherboards meet PC’98 compliancy.The PC’98 requirements for systems and
components are based on the following high-level goals: Support for Plug and
Play compatibility and power management for configuring and managing all
system components, and 32-bit device drivers and installation procedures for
Windows95/98/NT.
•Symbios SCSI BIOS: Supports optional ASUS SCSI controller cards through
the onboard SYMBIOS firmware.
2.1.3 Performance Features
•Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-
ter busses to the memory and processor.
•High-Speed Data Transfer Interface: IDE transfers using UltraDMA/33 Bus
Master IDE can handle rates up to 33MB/s. This motherboard with its chipset
and support for UltraDMA/66 doubles the UltraDMA/33 burst transfer rate to
66.6MB/s. UltraDMA/66 is backward compatible with both DMA/33 and DMA
and with existing DMA devices and systems so there is no need to upgrade
current EIDE/IDE drives and host systems. (UltraDMA/66 requires a 40-pin
80-conductor cable to be enabled and/or for UltraDMA Mode 4.)
•VCM/HSDRAM Optimized Performance: Supports the new generation
memory, NEC’s Virtual Channel (VC) SDRAMs (Synchronous Dynamic Ran-
dom Access Memory) or Enhanced Memory System’s High-speed DRAMs
(HSDRAMs) for higher system performance at minimal cost premium.

ASUS P3V4X User’s Manual 11
2. FEATURES
2. FEATURES
Intelligence
2.1.4 Intelligence
•Auto Fan Off: The system fans will power off automatically even in sleep
mode. This function reduces both energy consumption and system noise, and is
an important feature in implementing silent PC systems.
•Dual Function Power Button: Pushing the power button for less than 4 sec-
onds when the system is in the working state places the system into one of two
states: sleep mode or soft-off mode, depending on the BIOS or OS setting (see
PWR Button < 4 Secs in 4.5 Power Menu). When the power button is pressed
for more than 4 seconds, the system enters the soft-off mode regardless of the
BIOS setting.
•Fan Status Monitoring and Alarm: To prevent system overheat and system
damage, the CPU, power supply, and system fans can be monitored for RPM
and failure. All fans are set for its normal RPM range and alarm thresholds.
•PS/2Keyboard/MousePower Up:Keyboard/Mouse Power Up can be enabled
or disabled to allow the computer to be powered on by either pressing the space
bar, Ctrl-Esc, or Power keys (see 4.5.1 Power Up Control).
•Message LED (requiresACPI OS support): Turbo LEDs now act as informa-
tion providers. Through the way a particular LED illuminates, the user can de-
termine if there are messages waiting in the mailbox.Asimple glimpse provides
useful information to the user.
•Remote Ring On (requires modem): This allows a computer to be turned on
remotely through an internal or external modem. With this benefit on-hand, users
can access vital information from their computers from anywhere in the world!
•System Resources Alert: Today’s operating systems such as Windows 95/98/
NT and OS/2, require much more memory and hard drive space to present enor-
mous user interfaces and run large applications. The system resource monitor
will warn the user before the system resources are used up to prevent possible
application crashes. Suggestions will give the user information on managing
their limited resources more efficiently.
•Temperature Monitoring and Alert: CPU temperature is monitored by the
ASUSASIC through the CPU’s internal thermal diode (on Pentium III, Pentium
II (Deschutes), and PPGA370 Celeron in conjunction with theASUS S370-133
CPU card) to prevent system overheat and system damage.
•Voltage Monitoring andAlert: System voltage levels are monitored to ensure
stable voltage to critical motherboard components. Voltage specifications are
more critical for future processors, so monitoring is necessary to ensure proper
system configuration and management.
•Chassis Intrusion Detection: Supports chassis-intrusion monitoring through
the ASUS ASIC. A chassis intrusion event is kept in memory on battery power
for more protection.

12 ASUS P3V4X User’s Manual
2. FEATURES
2. FEATURES
P3V4X Components
2.2 P3V4X Motherboard Components
See opposite page for locations.
Location
Processor Support Slot 1 for Coppermine/Katmai/Mendecino Processors ...... 2
66MHz to 150MHz bus support
(16 external clock settings)
Chipsets VIAVT82C694X System Controller ............................. 3
VIAVT82C596B PCI to ISA Bridge ............................. 9
2 Mbit Programmable Flash EEPROM ........................ 12
Multi-I/O and Keyboard Controller.............................. 16
Main Memory Maximum 2GB support
4 DIMM Sockets ............................................................ 4
PC133 SDRAM support
Expansion Slots 6 PCI Slots .................................................................... 11
1 ISA Slot...................................................................... 10
1 Accelerated Graphics Port (AGP) Slot ...................... 17
System I/O 2 IDE Connectors (UltraDMA66 Support) .................... 6
1 Floppy Disk Driver Connector ....................................8
1 Serial COM1 Connector ............................................ 20
1 Serial COM2 Connector ............................................ 18
1 Parallel Port Connector.............................................. 19
2 USB Connectors ........................................................ 21
1 PS/2 Mouse Connector ....................................(Top) 22
1 PS/2 Keyboard Connector ........................ (Bottom) 22
3D Graphics VIAVT82C694X System Controller ............................. 3
Network Feature Wake-On-LAN Connector ............................................ 15
Wake-On-Ring Connector ............................................ 13
Hardware Monitoring Hardware Monitor .......................................................... 7
3 Fan Power and Speed Monitoring Connectors
Power ATX Power Supply Connector ....................................... 1
Form Factor ATX, 19.2cm x 30.5cm (7.6”x 12”)

ASUS P3V4X User’s Manual 13
2. FEATURES
2. FEATURES
Component Locations
P3V4X Motherboard Component Locations
4
21
19
16
13
18
22
810
23
20
9
1
11
17
5
12
7
15
6
14

14 ASUS P3V4X User’s Manual
3. HARDWARE SETUP
3.1 P3V4X Motherboard Layout
R
P3V4X
19.2cm (7.6in)
30.4cm (12.0in)
CLRTC
COM2
PARALLEL PORT
USB
T: USB1
B:USB2
T: Mouse
B: Keyboard
PS2KBMS
12345
O
N
678910
ATX Power Connector
JTPWR
CPU Slot 1
VIA
VT82C694X
Chipset
CPU_FAN PWR_FAN
Accelerated Graphics Port
PLED2
PCI Slot 1
PCI Slot 2
PCI Slot 4
PCI Slot 3
PCI Slot 5
ISA Slot
PCI Slot 6
VIA
VT82C596B
Chipset ASUS
ASIC
with
Hardware
Monitor
DIP
Switches
FLOPPY
Flash EEPROM
(Programable BIOS)
Multi-I/O
WOR
CHASSIS
WOL_CON
SMB
CR2032 3V
Lithium Cell
(CMOS Power)
CHA_FAN
PANEL
DIMM Socket 0 (64/72 bit, 168 pin module) DIMM Socket 1 (64/72 bit, 168 pin module)
Row
0 1 2 3 4 5 6 7
DIMM Socket 2 (64/72 bit, 168 pin module) DIMM Socket 3 (64/72 bit, 168 pin module)
SECONDARY IDE
PRIMARY IDE
JEN
IDELED
IR
COM1
Motherboard Layout
3. H/W SETUP

ASUS P3V4X User’s Manual 15
3. HARDWARE SETUP
3.2 Layout Contents
Motherboard Settings
1) JEN p. 17 JumperFree™Mode (Enable/Disable)
2) U12-Switches 5 & 6 p. 17 AGP Bus Frequency Setting
3) U12-Switches 7–10 p. 18 CPU Bus Frequency Selection
4) U12-Switches 1–4 p. 19 CPU Core:BUS Frequency Multiple
Expansion Slots/Sockets
1) DIMM1, -2, -3, -4 p. 20 DIMM Memory Module Support
2) Slot 1 p. 23 CPU Support
3) PCI1,-2, -3, -4, -5, -6 p. 29 32-bit PCI Bus Expansion Slots
4) SLOT2 p. 30 16-bit ISA Bus Expansion Slots
*
6) AGP p.31 Accelerated Graphics Port
Connectors
1) PS2KBMS p. 32 PS/2 Mouse Port Connector (6 pin-female)
2) PS2KBMS p. 32 PS/2 Keyboard Port Connector (6-pin female)
3) PARALLEL p. 33 Parallel (Printer) Port Connector (25-pin female)
4) COM1, COM2 p. 33 Serial Port COM1 & COM2 (two 9-pin male)
5) USB p. 33 Universal Serial BUS Port Connectors 1 & 2 (Two 4-pin female)
6) Primary/Secondary IDE p. 34 Primary/Secondary IDE Connectors (Two 40-1 pins)
7) FLOPPY p. 34 Floppy Drive Port Connector (34 pins)
8) IDELED p. 35 IDE LED Activity Light (2 pins)
9) WOR p. 35 Wake-On-Ring Connector (2 pins)
10) CHA_, PWR_, CPU_FAN p. 36 Chassis, Power Supply, CPU Fan Power Lead (3 pins)
11) WOL_CON p. 37 Wake-On-LAN Connector (3 pins)
12) IR p. 37 Infrared Port Module Connector (5 pins)
13) SMB p. 38 SMBus Connector (3 pins)
14) JTPWR p. 38 Thermal Sensor Connector
15) ATXPWR p. 39 ATX Motherboard Power Connector (20 pins)
16) CHASSIS p. 39 Chassis Intrusion Alarm Lead (4-1 pins)
17) PWR.LED ( PANEL ) p. 40 System Power LED Lead (3-1 pins)
18) KEYLOCK ( PANEL ) p. 40 Keyboard Lock Switch Lead (2 pins)
19) SPEAKER (PANEL) p. 40 System Warning Speaker Connector (4 pins)
20) MSG.LED (PANEL) p. 40 System Message LED (2 pins)
21) SMI (PANEL) p. 40 System Management Interrupt Lead (2 pins)
22) PWR.SW (PANEL) p. 40 ATX Power / Soft-Off Switch Lead (2 pins)
23) RESET (PANEL) p. 40 Reset Switch Lead (2 pins)
*
The optional onboard hardware monitor uses the address 290H-297H so legacy ISA cards
must not use this address otherwise conflicts will occur.
Layout Contents
3. H/W SETUP

16 ASUS P3V4X User’s Manual
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
3.3 Hardware Setup Procedure
Before using your computer, you must complete the following steps:
•Check Motherboard Settings
•Install Memory Modules
•Install the Central Processing Unit (CPU)
•Install Expansion Cards
•Connect Ribbon Cables, Panel Wires, and Power Supply
3.4 Motherboard Settings
WARNING! Computer motherboards and expansion cards contain very delicate
Integrated Circuit (IC) chips. To protect them against damage from static electric-
ity, you should follow some precautions whenever you work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do
nothave one,touch bothof yourhands toa safelygrounded objector toa metal
object, such as the power supply case.
3. Hold components by the edges and try not to touch the IC chips, leads or con-
nectors, or other components.
4. Placecomponents onagrounded antistaticpador onthe bag thatcame withthe
component whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or
remove the ATX power connector on the motherboard.
Motherboard Feature Settings (U12)
The motherboard’s onboard functions are either adjusted through jumpers or DIP
switches. When using DIP switches, the white block represents the switch’s posi-
tion. The example below shows all the switches in the OFF position.
9. Frequency Selection
10. Frequency Selection
P3V4X DIP Switches
OFF
ON
12345678910
ON
1. Frequency Multiple
2. Frequency Multiple
3. Frequency Multiple
4. Frequency Multiple
5. AGP Frequency Selection
6. AGP Frequency Selection
7. Frequency Selection
8. Frequency Selection
R
P3V4X

ASUS P3V4X User’s Manual 17
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
1. JumperFree™Mode (JEN)
This jumper allows you to enable or disable the JumperFree™mode. The
JumperFree™mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu).
NOTE: In JumperFree™mode, all dip switches (DSW) must be set to OFF.
Setting JEN
Enable (JumperFree) [2-3] (default)
Disable (Jumper) [1-2]
P3V4X Jumper Mode Setting
Jumper JumperFree
123 123
JEN
R
P3V4X
2. AGPBus Frequency Setting (U12-Switches 5&6)
This option sets the frequency ratio between the AGP bus frequency and the
DRAM (CPU bus) frquency. The default sets theAGPfrequency to be 2/3 of the
DRAM frequency. When the CPU/DRAM frequency is set to 66MHz, set Switch
5 to [ON] and Switch 6, [ON]. See the processor table on the following page.
P3V4X AGP Bus Frequency Setting
AGP Bus Freq.
=DRAM Freq. x2/3
AGP Bus Freq.
=DRAM Freq. x1
AGP Bus Freq.
=DRAM Freq. x1
AGP Bus Freq.
=DRAM Freq. x1/2
ON
12345678910
ON
12345678910
ON
12345678910
ON
12345678910
Auto
Mode
R
P3V4X

18 ASUS P3V4X User’s Manual
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
3. CPU Bus Frequency Selection (U12–Switches 7, 8, 9, 10)
This option tells the clock generator what frequency to send to the CPU, DRAM, and
PCI bus. This allows the selection of the CPU’s External frequency (or BUS Clock).
The BUS Clock multiplied by the BUS Multiple equals the CPU’s Internal frequency
(the advertised CPU speed).
NOTE: In JumperFree mode, all dip switches must be set to OFF.
R
P3V4X
P3V4X CPU External
Frequency Selection
112MHz
37MHz
66MHz
33MHz 103MHz 34MHz
68MHz
34MHz 100MHz 33MHz 120MHz 40MHz
75MHz
37MHz
80MHz
40MHz
CPU/DRAM
PCI 83MHz
42MHz
CPU/DRAM
PCI
CPU/DRAM
PCI
ON
12345678910
ON
12345678910
ON
12345678910
ON
12345678910
ON
12345678910
ON
12345678910
ON
12345678910
ON
12345678910
ON
12345678910
115MHz
38MHz 110MHz
36MHz
CPU/DRAM
PCI
ON
12345678910
ON
12345678910
105MHz
35MHz
ON
12345678910
140MHz
35MHz 150MHz 37MHz
CPU/DRAM
PCI
ON
12345678910
ON
12345678910
124MHz
31MHz
133MHz
33MHz
ON
12345678910
ON
12345678910
CPU/DRAM
PCI
NOTE: Overclocking your processor is not recommended. It may result in a slower
speed. Voltage Regulator Output Selection (VID) is not required for Pentium III/II
processors because they send signals directly to the onboard power regulator.
WARNING! Frequencies above 133MHz exceed the specifications for the on-
board chipset and are not guaranteed to be stable.

ASUS P3V4X User’s Manual 19
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
Adjusting CPU Settings Manually
NOTE: JumperFree mode must be disabled when adjusting CPU settings manually.
Set the jumpers by the Internal speed of your processor as follows:
(CPU BUS Freq.) (Freq. Multiple) AGP
Intel CPU Model Freq. Mult. BUS F. 7 8 9 10 1 2 3 4 5 6
Pentium III 733MHz 5.5x 133MHz [OFF][OFF][OFF][OFF] [OFF][OFF][OFF][ON] [ON][OFF]
Pentium III 667MHz 5.0x 133MHz [OFF][OFF][OFF][OFF] [ON][OFF][OFF][ON] [ON][OFF]
Pentium III 700MHz 7.0x 100MHz [OFF][OFF][OFF][ON] [ON][OFF][ON][OFF] [ON][OFF]
Pentium III 650MHz 6.5x 100MHz [OFF][OFF][OFF][ON] [OFF][ON][ON][OFF] [ON][OFF]
Pentium III 600MHz 6.0x 100MHz [OFF][OFF][OFF][ON] [ON][ON][ON][OFF] [ON][OFF]
Pentium III 550MHz 5.5x 100MHz [OFF][OFF][OFF][ON] [OFF][OFF][OFF][ON] [ON][OFF]
Pentium III 500MHz 5.0x 100MHz [OFF][OFF][OFF][ON] [ON][OFF][OFF][ON] [ON][OFF]
Pentium II/III 450MHz 4.5x 100MHz [OFF][OFF][OFF][ON] [OFF][ON][OFF][ON] [ON][OFF]
Pentium II 400MHz 4.0x 100MHz [OFF][OFF][OFF][ON] [ON][ON][OFF][ON] [ON][OFF]
Pentium II 350MHz 3.5x 100MHz [OFF][OFF][OFF][ON] [OFF][OFF][ON][ON] [ON][OFF]
Celeron 466MHz 7.0x 66MHz [OFF][OFF][ON][ON] [ON][OFF][ON][OFF] [ON][OFF]
Celeron 433MHz 6.5x 66MHz [OFF][OFF][ON][ON] [OFF][ON][ON][OFF] [ON][OFF]
Celeron 400MHz 6.0x 66MHz [OFF][OFF][ON][ON] [ON][ON][ON][OFF] [ON][OFF]
Pentium II/Celeron 333MHz 5.0x 66MHz [OFF][OFF][ON][ON] [ON][OFF][OFF][ON] [ON][OFF]
Pentium II/Celeron 300MHz 4.5x 66MHz [OFF][OFF][ON][ON] [OFF][ON][OFF][ON] [ON][OFF]
Pentium II/Celeron 266MHz 4.0x 66MHz [OFF][OFF][ON][ON] [ON][ON][OFF][ON] [ON][OFF]
Pentium II 233MHz 3.5x 66MHz [OFF][OFF][ON][ON] [OFF][OFF][ON][ON] [ON][OFF]
4. CPU Core:BUS Frequency Multiple (U12–Switches 1, 2, 3, 4)
This option sets the frequency multiple between the Internal frequency of the
CPU and the CPU’s External frequency. These must be set in conjunction with the
CPU Bus Frequency.
NOTE: In JumperFree mode, all dip switches must be set to OFF.
P3V4X CPU : BUS
Frequency Multiple
3.5x(7/2)
ON
12345678910
3.0x(3/1)
ON
12345678910
2.5x(5/2)
ON
12345678910
2.0x(2/1)
ON
12345678910
4.0x(4/1)
ON
12345678910
4.5x(9/2)
ON
12345678910
5.0x(5/1)
ON
12345678910
5.5x(11/2)
ON
12345678910
6.0x(6/1)
ON
12345678910
6.5x(13/2)
ON
12345678910
7.0x(7/1)
ON
12345678910
7.5x(15/2)
ON
12345678910
8.0x(8/1)
ON
12345678910
TEST
ON
12345678910
R
P3V4X
For updated processor settings, visit theASUS web site (see ASUS CONTACT INFORMATION)

20 ASUS P3V4X User’s Manual
3. HARDWARE SETUP
System Memory
3. H/W SETUP
3.5 System Memory (DIMM)
This motherboard uses only Dual Inline Memory Modules (DIMMs). Four sockets
are available for 3.3Volt (power level) unbuffered Synchronous Dynamic Random
Access Memory (SDRAM) of 8, 16, 32, 64, 128, 256, or 512MB to form a memory
size between 8MB to 2GB. One side (with memory chips) of the DIMM takes up one
row on the motherboard. This motherboard also supports NEC’s Virtual Channel
(VC) SDRAMs and Enhanced MemorySystem’s High-speed DRAMs (HSDRAMs).
Memory speed setup is recommended through 4.4.1 Chip Configuration.
IMPORTANT (see General DIMM Notes below for more)
•SDRAMs used must be compatible with the current Intel PC133 SDRAM
specification.
•DO NOT attempt to mix registered SDRAMs with VC SDRAMs.
Install memory in any combination as follows:
DIMM Location 168-pin DIMM Total Memory
Socket 1 (Rows 0&1) SDRAM 8, 16, 32, 64, 128, 256, 512MB x1
Socket 2 (Rows 2&3) SDRAM 8, 16, 32, 64, 128, 256, 512MB x1
Socket 3 (Rows 4&5) SDRAM 8, 16, 32, 64, 128, 256, 512MB x1
Socket 4 (Rows 6&7) SDRAM 8, 16, 32, 64, 128, 256, 512MB x1
Total System Memory (Max 2GB) =
General DIMM Notes
•DIMMs that have more than 18 chips are not supported on this motherboard.
•For the system bus to operate at 100MHz, use only PC100- or PC133-compliant
DIMMs;forthesystembustooperateat133MHz,usePC133-compliantDIMMs.
•ASUS motherboards support SPD (Serial Presence Detect) DIMMs. This is the
memory of choice for best performance vs. stability.
•SDRAM chips are generally thinner with higher pin density than EDO (Extended
Data Output) chips.
•BIOS shows SDRAM memory on bootup screen.
•Single-sided DIMMs come in 16, 32, 64,128, or 256MB; double-sided come in 32,
64, 128, 256, or 512MB.
