Asus PRIME Z790-P WIFI User manual

Motherboard
PRIME Z790-P WIFI

ii
E20425
First Edition
August 2022
Copyright © 2022 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by
any means, except documentation kept by the purchaser for backup purposes, without the express
written permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless
such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM
ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN
THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identification or explanation and to the
owners’ benefit, without intent to infringe.

iii
Contents
Safety information............................................................................................................iv
About this guide................................................................................................................v
PRIME Z790-P WIFI specifications summary ................................................................vi
Package contents..............................................................................................................x
Chapter 1: Product Introduction
1.1 Before you proceed .........................................................................................1-1
1.2 Motherboard layout..........................................................................................1-2
Chapter 2: Basic Installation
2.1 Building your PC system.................................................................................2-1
2.1.1 CPU installation...........................................................................2-1
2.1.2 Cooling system installation..........................................................2-3
2.1.3 DIMM installation.........................................................................2-6
2.1.4 M.2 installation ............................................................................2-7
2.1.5 Motherboard installation..............................................................2-9
2.1.6 ATX power connection..............................................................2-11
2.1.7 SATA device connection...........................................................2-12
2.1.8 Front I/O connector ...................................................................2-13
2.1.9 Expansion card installation .......................................................2-14
2.1.10 Wi-Fi antenna installation..........................................................2-16
2.2 Motherboard rear and audio connections ...................................................2-16
2.2.1 Rear I/O connection ..................................................................2-16
2.2.2 Audio I/O connections...............................................................2-18
2.3 Starting up for the first time..........................................................................2-20
2.4 Turning off the computer ..............................................................................2-20
Chapter 3: BIOS and RAID Support
3.1 Knowing BIOS ..................................................................................................3-1
3.2 BIOS Setup program........................................................................................3-2
3.3 ASUS EZ Flash 3 ..............................................................................................3-3
3.4 ASUS CrashFree BIOS 3..................................................................................3-4
3.5 RAID configurations ........................................................................................3-5
Appendix
Notices ........................................................................................................................... A-1
Warranty......................................................................................................................... A-8
ASUS contact information.......................................................................................... A-10
Service and Support ................................................................................................... A-10

iv
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the electrical
outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These
devices could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding devices on it, carefully read all the
manuals that came with the package.
• Before using the product, ensure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service
technician or your retailer.
• Your motherboard should only be used in environments with ambient temperatures
between 0°C and 40°C.
Button/Coin Batteries Safety Information
WARNING
KEEP OUT OF REACH OF CHILDREN
Swallowing can lead to chemical burns,
perforation of soft tissue, and death. Severe
burns can occur within 2 hours of ingestion.
Seek medical attention immediately.

v
About this guide
This user guide contains the information you need when installing and configuring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product Introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes description of the switches, jumpers, and connectors on the
motherboard.
• Chapter 2: Basic Installation
This chapter lists the hardware setup procedures that you have to perform when
installing system components.
• Chapter 3: BIOS and RAID Support
This chapter tells how to boot into the BIOS, upgrade BIOS using the EZ Flash Utility
and support on RAID.
Where to find more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS website
The ASUS website (www.asus.com) provides updated information on ASUS hardware
and software products.
2. Optional documentation
Your product package may include optional documentation, such as warranty flyers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
CAUTION: Information to prevent damage to the components and injuries to
yourself when trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.

vi
PRIME Z790-P WIFI specifications summary
CPU
Intel®Socket LGA1700 for 13th Gen Intel®Core™ Processors & 12th Gen
Intel®Core™, Pentium®Gold and Celeron®Processors*
Supports Intel®Turbo Boost Technology 2.0 and Intel®Turbo Boost Max
Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel®Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel®Z790 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5
7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/
5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel®Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules
vary depending on the CPU and memory configuration, for more information
refer to www.asus.com for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI®port***
* Graphics specifications may vary between CPU types. Please refer to
www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel®13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel®Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table at the support site
(https://www.asus.com/support/FAQ/1037507/).
Note: To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel®13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
(supports PCIe 4.0 x4 mode)
Intel®Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110
(supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel®Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID
0/1/5/10.
Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless &
Bluetooth®
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth®v5.2
(continued on the next page)

vii
PRIME Z790-P WIFI specifications summary
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the
bandwidth.
* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the
bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support
7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI®port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
(continued on the next page)

viii
PRIME Z790-P WIFI specifications summary
Internal I/O Connectors
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB headers
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
AI Suite 3
- TurboV EVO
- PC Cleaner
- DIGI+ VRM
ASUS CPU-Z
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
(continued on the next page)

ix
PRIME Z790-P WIFI specifications summary
Software Features
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System Windows®11, Windows®10 64-bit
Form Factor ATX Form Factor
12 inch x 9.2 inch (30.5 cm x 23.4 cm)
• Specifications are subject to change without notice. Please refer to the ASUS website
for the latest specifications.
• MyASUS offers a variety of support features such as helping to troubleshoot issues,
optimizing product performance, integrating ASUS software, and recovery drive
creation. Please scan the QR Code for installation guide and FAQ.

x
Package contents
Check your motherboard package for the following items.
Motherboard 1 x PRIME Z790-P WIFI motherboard
Cables 2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
Documentation 1 x User guide
If any of the above items is damaged or missing, contact your retailer.

PRIME Z790-P WIFI 1-1
Chapter 1
Product Introduction
1
Chapter 1: Product Introduction
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in
the bag that came with the component.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or
change any motherboard settings.
• The pin definitions in this chapter are for reference only. The pin names depend on
the location of the header/jumper/connector.
• For more information on installing your motherboard, please scan the QR code
below:

1-2 Chapter 1: Product Introduction
Chapter 1

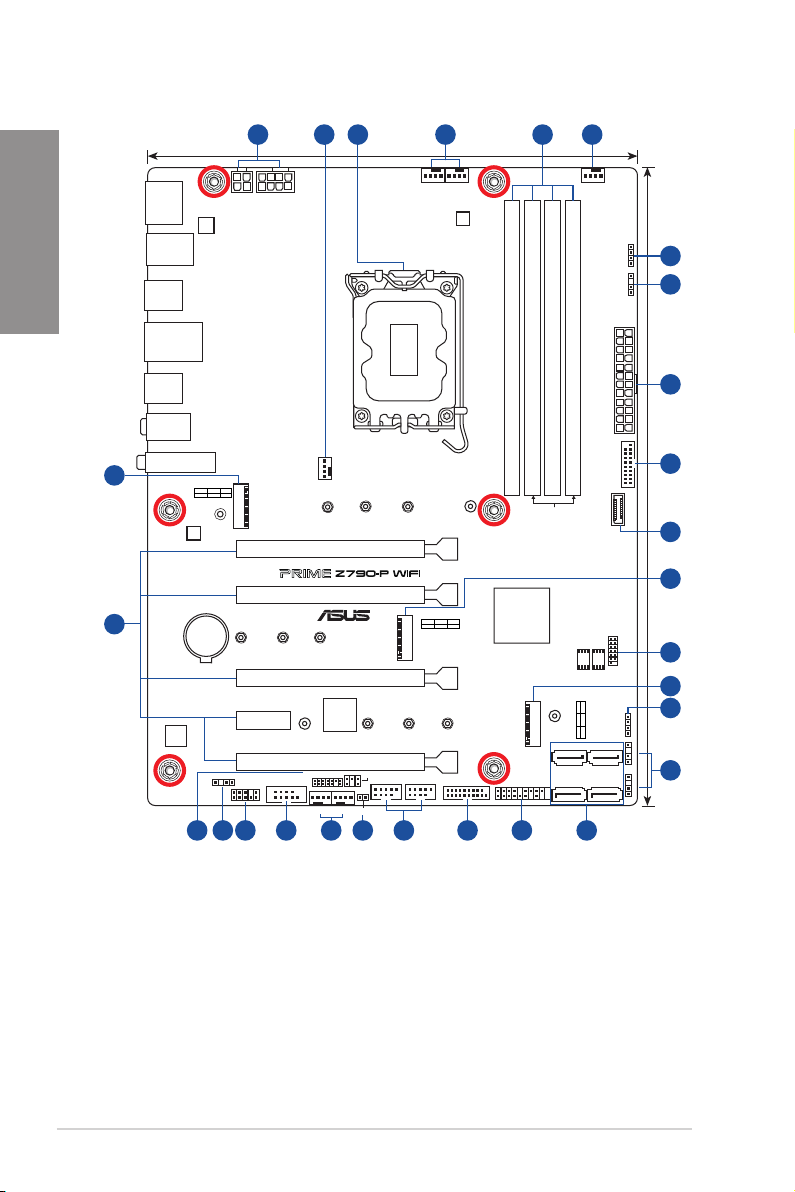

1.2 Motherboard layout
DDR5 DIMM_A1 (64bit, 288-pin module) DDR5 DIMM_A2 (64bit, 288-pin module) DDR5 DIMM_B1 (64bit, 288-pin module)
1st
DDR5 DIMM_B2 (64bit, 288-pin module)
ASM
1442K
LGA1700
CHA_FAN1
CPU_FAN AIO_PUMP CPU_OPT
COM_DEBUG
M.2_3(SOCKET3)
M.2_1(SOCKET3)
M.2_2(SOCKET3)
M.2_1(SOCKET3)
PANEL
AAFP
SPDIF_OUT COM
ATX_12V_1
ATX_PWR
U32G1_78
U32G2_C4
U32G1_56
Intel®
Z790
Ethernet
BATTERY
HDMI_DP
AUDIO
Super
I/O
2280
2260
2242
PCIE SATA IRST
4.0 X4 X V
M.2_3(SOCKET3)
PCIE SATA IRST
4.0 X4 VV
M.2_2(SOCKET3)
PCIE SATA IRST
4.0 X4 VX
228022110
22110
2260 2242
2280 2260 2242
PCIEX1(G3)
PCIEX16(G4)_2
PCIEX16(G4)_3
PCIEX16
PCIEX16(G4)_1
USB_E34USB_E12
Audio Codec
LAN_USB_E56
U32G1_910
KBMS_USB_E78
U32G2X2_C1
U32G2_3
23.4cm(9.2in)
30.5cm(12in)
SATA6G_4SATA6G_3
SATA6G_2SATA6G_1
TPM
128Mb
BIOS 64Mb BIOS
TB_HEADER
RGB_HEADER1
ADD_GEN 2_1
RGB_HEADER2
ADD_GEN 2_3ADD_GEN 2_2
ATX_12V_2
DIGI+
VRM
CHA_FAN2 CHA_FAN3 CLRTC
M.2(WIFI) 9
8
6
17
6
11
12
5
11
12
14 131519 16
3
6
5 214 4
10 9
418
4
7

PRIME Z790-P WIFI 1-3
Chapter 1
Layout contents Page
1. CPU socket 1-4
2. DIMM slots 1-5
3. Expansion slots 1-7
4. Fan and Pump headers 1-8
5. Power connectors 1-9
6. M.2 slots (SOCKET 3) 1-10
7. SATA 6Gb/s ports 1-11
8. USB 3.2 Gen 2 Type-C®Front Panel connector 1-12
9. USB 3.2 Gen 1 headers 1-12
10. USB 2.0 headers 1-13
11. Addressable Gen 2 headers 1-14
12. Aura RGB headers 1-15
13. Clear CMOS header 1-16
14. COM Port header 1-17
15. Front Panel Audio header 1-17
16. S/PDIF Out header 1-18
17. SPI TPM header (14-1pin) 1-18
18. System Panel header 1-19
19. ThunderboltTM header 1-20

1-4 Chapter 1: Product Introduction
Chapter 1

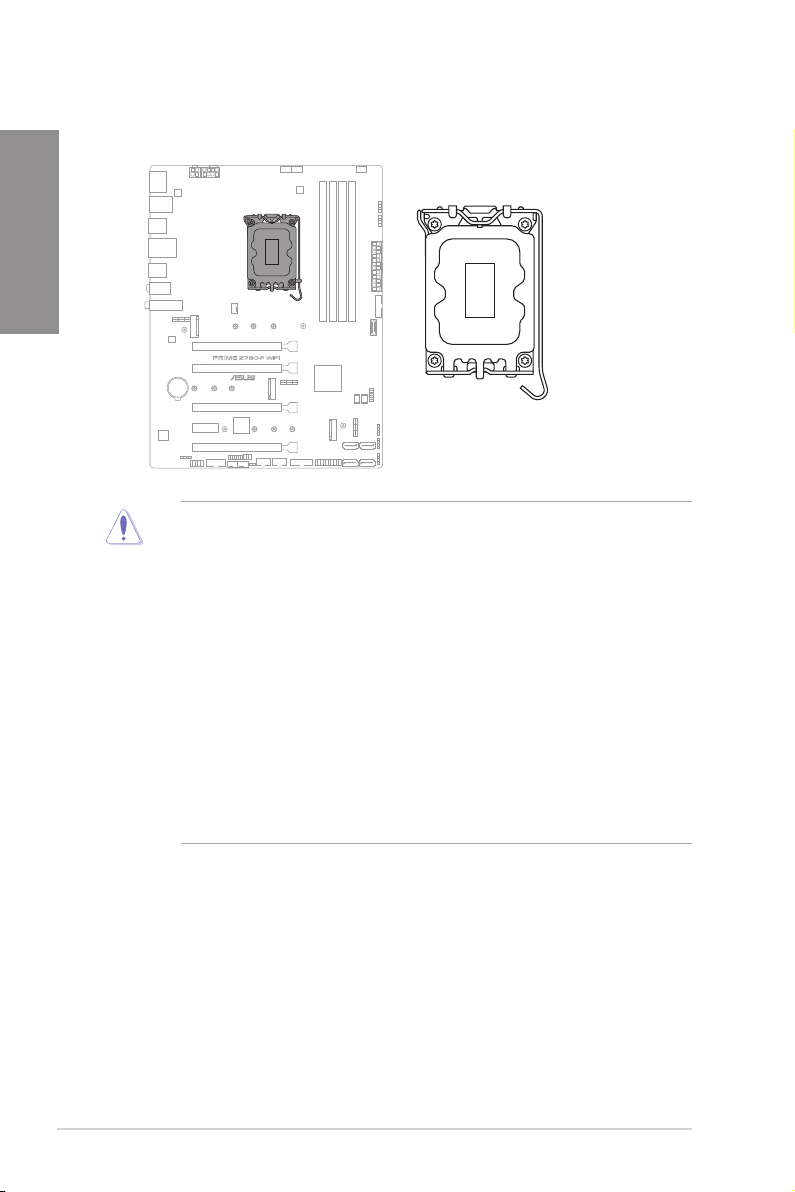

1. CPU socket
The motherboard comes with a LGA1700 socket designed for 13th Gen Intel®Core™
Processors & 12th Gen Intel®Core™, Pentium®Gold and Celeron®Processors.
LGA1700
• Ensure that you install the correct CPU designed for LGA1700 socket only. DO NOT
install a CPU designed for other sockets on the LGA1700 socket.
• The CPU fits in only one correct orientation. DO NOT force the CPU into the socket
to prevent bending the connectors on the socket and damaging the CPU.
• Ensure that all power cables are unplugged before installing the CPU.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components. ASUS will shoulder the cost of repair only if the damage is shipment/
transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return
Merchandise Authorization (RMA) requests only if the motherboard comes with the
cap on the LGA1700 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the
PnP cap.

PRIME Z790-P WIFI 1-5
Chapter 1
2. DIMM slots
The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR5
(Double Data Rate 5) memory modules.
A DDR5 memory module is notched differently from a DDR, DDR2, DDR3 or DDR4
module. DO NOT install a DDR, DDR2, DDR3 or DDR4 memory module to the DDR5 slot.
1st
DIMM_B1 DIMM_B2 DIMM_A1 DIMM_A2
Recommended memory configurations
DIMM_A2
DIMM_B2
DIMM_A2
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2

1-6 Chapter 1: Product Introduction
Chapter 1
Memory configurations
You may install 8 GB, 16 GB, and 32 GB unbuffered and non-ECC DDR5 DIMMs into the
DIMM sockets.
You may install varying memory sizes in Channel A and Channel B. The system maps
the total size of the lower-sized channel for the dual-channel configuration. Any excess
memory from the higher-sized channel is then mapped for single-channel operation.
• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value.
• For system stability, use a more efficient memory cooling system to support a full
memory load or overclocking condition.
• Always install the DIMMs with the same CAS Latency. For an optimum compatibility,
we recommend that you install memory modules of the same version or data code
(D/C) from the same vendor. Check with the vendor to get the correct memory
modules.
• Visit the ASUS website for the latest QVL, and memory frequency support depends
on the CPU types.

PRIME Z790-P WIFI 1-7
Chapter 1
Please refer to the following tables for the recommended VGA configuration and Hyper M.2
configuration.
3. Expansion slots
Unplug the power cord before adding or removing expansion cards. Failure to do so may
cause you physical injury and damage motherboard components.
PCIEX1(G3)
PCIEX16(G4)_2
PCIEX16(G4)_3
PCIEX16
PCIEX16(G4)_1
1
2
3
4
Recommended VGA configuration
Slot Description Single VGA Dual VGA Triple VGA
1 PCIe 5.0 x16 x16 x16 x16
2 PCIe 4.0 x16_1 - - -
3 PCIe 4.0 x16_2 - x4 x4
4 PCIe 4.0 x16_3 - - x4
Connect a chassis fan to the chassis fan connectors when using multiple graphics cards
for better thermal environment.

1-8 Chapter 1: Product Introduction
Chapter 1
4. Fan and Pump headers
The Fan and Pump headers allow you to connect fans or pumps to cool the system.
A B C
E F
D
FAN PWM
FAN IN
FAN PWR
GND
FAN PWM
FAN IN
FAN PWR
GND
GND FAN PWR FAN IN FAN PWM
CPU_OPT
CHA_FAN2
A
B
E
CHA_FAN3
F
C
DCHA_FAN1
AIO_PUMP
CPU_FAN
• DO NOT forget to connect the fan cables to the fan headers. Insufficient air flow
inside the system may damage the motherboard components. These are not
jumpers! Do not place jumper caps on the fan headers!
• Ensure the cable is fully inserted into the header.
PCIe bifurcation & M.2 settings in PCIe x16 slot (from CPU)
Slot Description Quantity of identifiable M.2 SSD (pcs)
Situation 1 Situation 2
PCIe x16 1(x16)* 2(x8+x8)**
* Install an M.2 SSD card to the M.2_1 or M.2_3 slot on the Hyper M.2 X16 series card.
** Install two M.2 SSD cards to the M.2_1 and M.2_3 slots on the Hyper M.2 X16 series card.
• Additional PCIe bifurcation and M.2 settings for RAID function are also supported
when a Hyper M.2 x16 series card is installed.
• For full details on the PCIe bifurcation, you may visit the support site at
https://www.asus.com/support/FAQ/1037507/.
• The Hyper M.2 x16 series card is sold separately.
• Adjust the PCIe bifurcation under BIOS settings.

PRIME Z790-P WIFI 1-9
Chapter 1
5. Power connectors
These Power connectors allow you to connect your motherboard to a power supply.
The power supply plugs are designed to fit in only one orientation. Find the proper
orientation and push down firmly until the power supply plugs are fully inserted.
AB
C
A
C
B
ATX_12V_2 ATX_12V_1
+12V DC
+12V DC
+12V DC
+12V DC
GND
GND
GND
GND
ATX_PWR
PIN 1
PIN 1
GND
+5 Volts
+5 Volts
+5 Volts
-5 Volts
GND
GND
GND
PSON#
GND
-12 Volts
+3 Volts
+3 Volts
+12 Volts
+12 Volts
+5V Standby
Power OK
GND
+5 Volts
GND
+5 Volts
GND
+3 Volts
+3 Volts
PIN 1
+DC_IN +DC_IN
GND GND
Ensure to connect the 8-pin power plug, or connect both the 8-pin and 4-pin power plugs.
• We recommend that you use a PSU with a higher power output when configuring a
system with more power-consuming devices. The system may become unstable or
may not boot up if the power is inadequate.
• If you want to use two or more high-end PCI Express x16 cards, use a PSU with
1000W power or above to ensure the system stability.
Header Max. Current Max. Power Default Speed Shared Control
CPU_FAN 1A 12W Q-Fan Controlled -
CPU_OPT 1A 12W Q-Fan Controlled -
CHA_FAN1 1A 12W Q-Fan Controlled -
CHA_FAN2 1A 12W Q-Fan Controlled -
CHA_FAN3 1A 12W Q-Fan Controlled -
AIO_PUMP 1A 12W Full-Speed -

1-10 Chapter 1: Product Introduction
Chapter 1
6. M.2 slots
The M.2 slots allow you to install M.2 devices such as M.2 SSD modules.
M.2_3(SOCKET3)
M.2_2(SOCKET3)
B
M.2_1(SOCKET3)
A
C
B
A
C
• Intel®13th and 12th Gen processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• Intel®Z790 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA
modes).
• Intel®Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
The M.2 SSD module is purchased separately.
