Atak DVD1100 User manual

DVD1100
DVD PLAYER
INSTRUCTION MANUAL
1-11
OPEN / CLOSE
PLAY / PAUSE
STOP POWER
DVD1000
DVD1100

WARNING
- CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
- CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR
EQUIVALENT TYPE.
- TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER
OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
- WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
- WARNING: THE BATTERIES SHALL NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE.
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended to
alert the user to the presence of
uninsulated "dangerous voltage"
within the product's enclosure
that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
CAUTION
DO NOT OPEN
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER
SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
1) Read the se instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, he at registers, stoves, or other
that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinch particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11) O nly use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When
a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightening storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) T his appliance shall not be exposed to dripping or splashing water and that no object filled with liquid such as vases
shall be placed on the apparatus.
16) CAUTION: Visible and Invisible Laser Radiation when open and interlock defeated.
DO NOT STARE INTO BEAM
17) Rating label is located at the bottom of enclosure.
18) " CAUTION" mark is also located at the bottom of enclosure.
S3125A
apparatus (including amplifiers)
RISK OF ELECTRIC SHOCK

QUICK GUIDE FOR HDMI FUNCTION
1. Please check to see if your TV set has a HDMI video input.
2. If your TV set has a HDMI video input then connect the DVD player to the TV set using an HDMI cable
(not included). Switch on the DVD player and TV set. The DVD Player output will automatically be
adjusted from the default video output of 480i to a higher-resolution setting to match that of your TV
screen, 720p, 1080i, or 1080p. The TV screen will now show the "ATAK" logo. Press the HDMI
buttonon the remote control of the DVD player and you can change the high-resolution setting of the
DVD player to, 720p, 1080i, or 1080p. Once the high-resolution setting of the DVD player changed,
the high-resolution setting on the TV screen image is automatically changed.
3. If your TV set does not have a HDMI video input, that is no problem, simply connect the DVD player to
your TV set using a A/V cable.

IMPORTANT NOTICE
Front and Back Panels. ..................................................................................1
Front Panel. ..................................................................................................1
Back Panel.. ................................................................................................1
Remote Control... ....................................................................................... 2
Operating the Remote Control.... .................................................................... 3
Functions.......... ........................................................................................ 4-7
System Setup..................... ................................................................... . 8-10
MP3 Function .......... ................................................................................... 10
JPEG Files..... ................... ......................................................................... 10
Troubleshooting .........................................................................................11

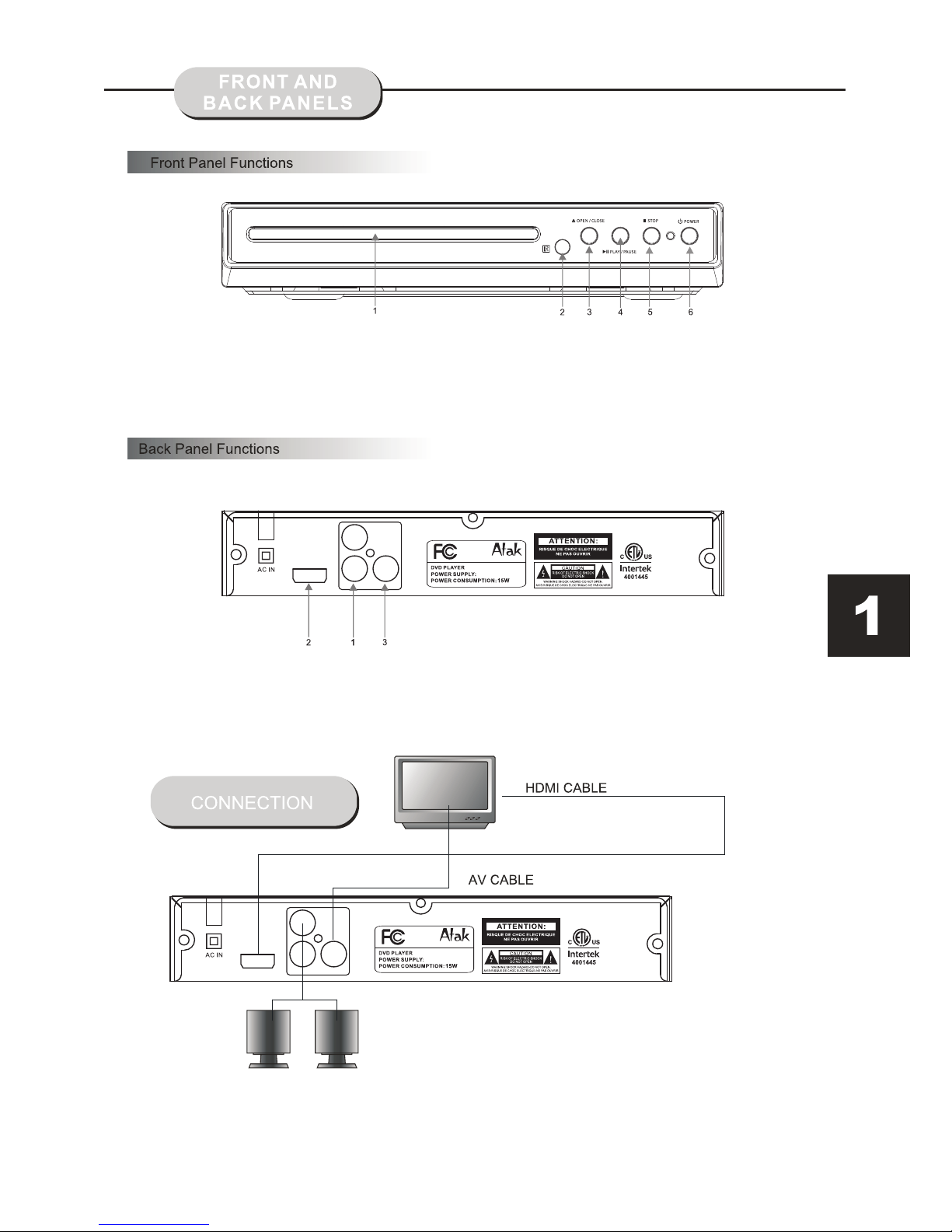

1.DISC DOOR
2.REMOTE CONTROL SENSOR
3.OPEN / CLOSE
4.PLAY / PAUSE
5.STOP
6.POWER
1. AUDIO output
use to connect both the
right and left channels
2.HDMI connector
3. VIDEO output
L
R
VIDEO
HDMI
90-240V~50/60Hz
DVD1100
CONFORMS TO
UL STD 60065
CERTIFIED TO
CSA STD C22.2
No. 60065
L
R
VIDEO
HDMI
90-240V~50/60Hz
DVD1100
CONFORMS TO
UL STD 60065
CERTIFIED TO
CSA STD C22.2
No. 60065

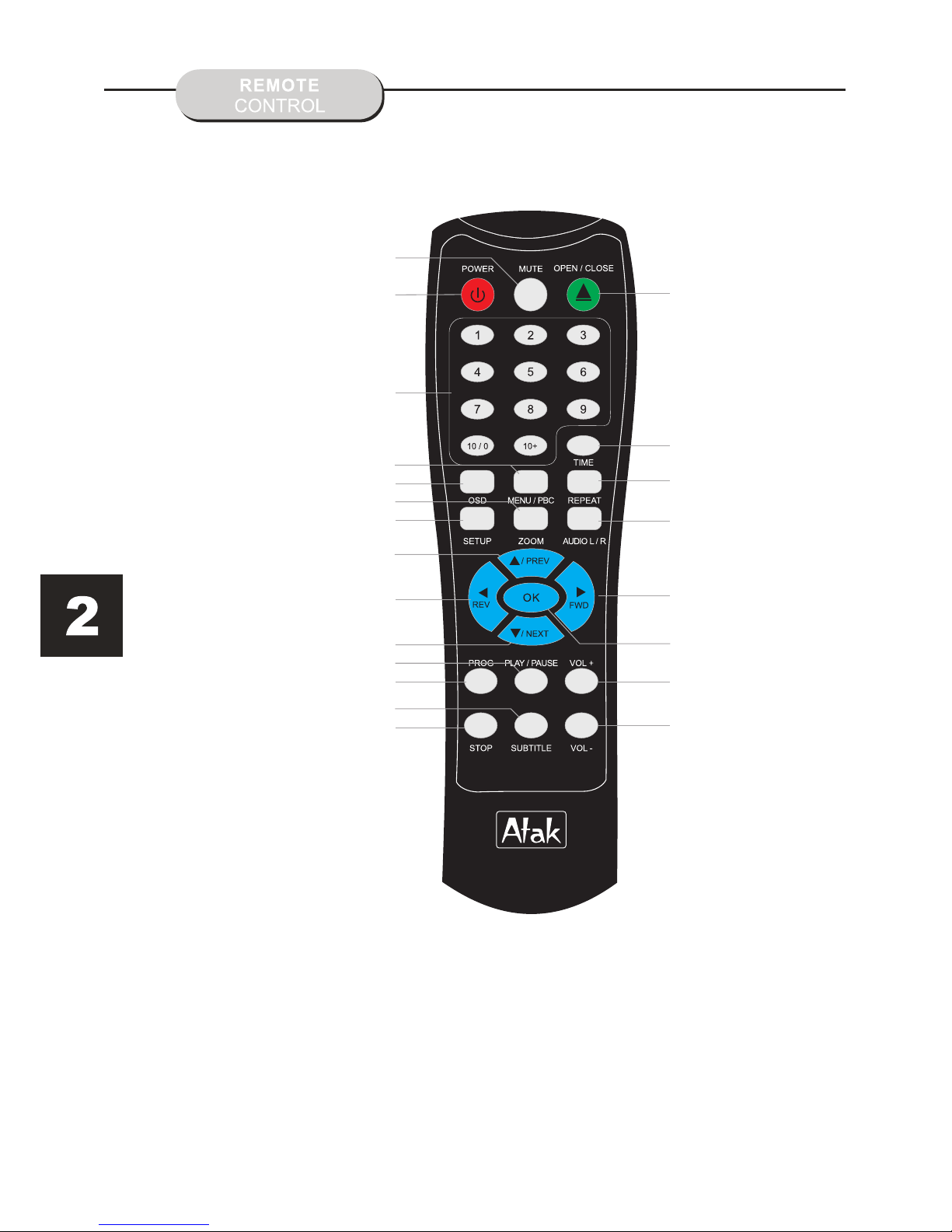

POWER [2]
NUMBER KEY [3]
MENU / PBC [4]
OSD [5]
ZOOM [6]
SETUP [7]
PREV [8]
REV [9]
NEXT [10]
PLAY / PAUSE [11]
PROG [12]
SUBTITLE [13]
STOP [14]
[16] VOL+
[15] VOL-
[18] FWD
[19] AUDIO R / L
[20] REPEAT
[21] TIME
[22] OPEN / CLOSE
[17] ENTER
MUTE[1]
DVD1100

Battery Installation
1. Push down and out on the battery
compartment cover to remove it.
2. Insert the two "AAA" batteries into the battery
compartment of the remote control, making
sure the + and - signs on the batteries and the
inside of the battery compartment match up.
3. Replace the battery compartment cover.
Notes:
Do not mix batteries from different
manufacturers, or old with new.
If the remote control will not be used for an
extended period of time, remove the batteries
to prevent damage-causing corrosion.
Remove the dead batteries immediately to
prevent damage-causing corrosion.
If battery leakage occurs, wipe the battery
liquid from inside the battery compartment,
and then replace both batteries.
Always replace both batteries at the same time,
using new, fully charged batteries.
The life expectancy of batteries may vary
depending on amount of use.
Using the Remote Control
Point the remote control at the remote sensor
on the DVD receiver. When the signal is
received from the remote, the unit will function
accordingly.
The remote will operate up to approximately 16'
from the remote sensor at an angle of around
30' in each direction.
BATTERIES
INCORRECT USE OF BATTERIES MAY
CAUSE THEM TO LEAK, CORRODE,
OR EX-PLODE.
Notes:
Do not direct the remote sensor toward any
light source, such as direct sunlight or strong
fluorescent light as it may cause the unit not to
operate correctly.
When other remote controls are used nearby or
when the remote is used near equipment using
infrared rays, interference may occur.
Placing an object on the remote control may cause
it to inadvertently depress a button, changing a
function and shortening battery life.
Do not cover the front of the DVD receiver
with tinted glass, as it may cause interference
with normal operation of the controller.
Make sure there is no solid objects between
the remote control and the remote sensor .
This could prevent the unit from receiving
the signal.
Do not spill water or put wet items on the
remote control.

Press the PLAY / PAUSE
button.

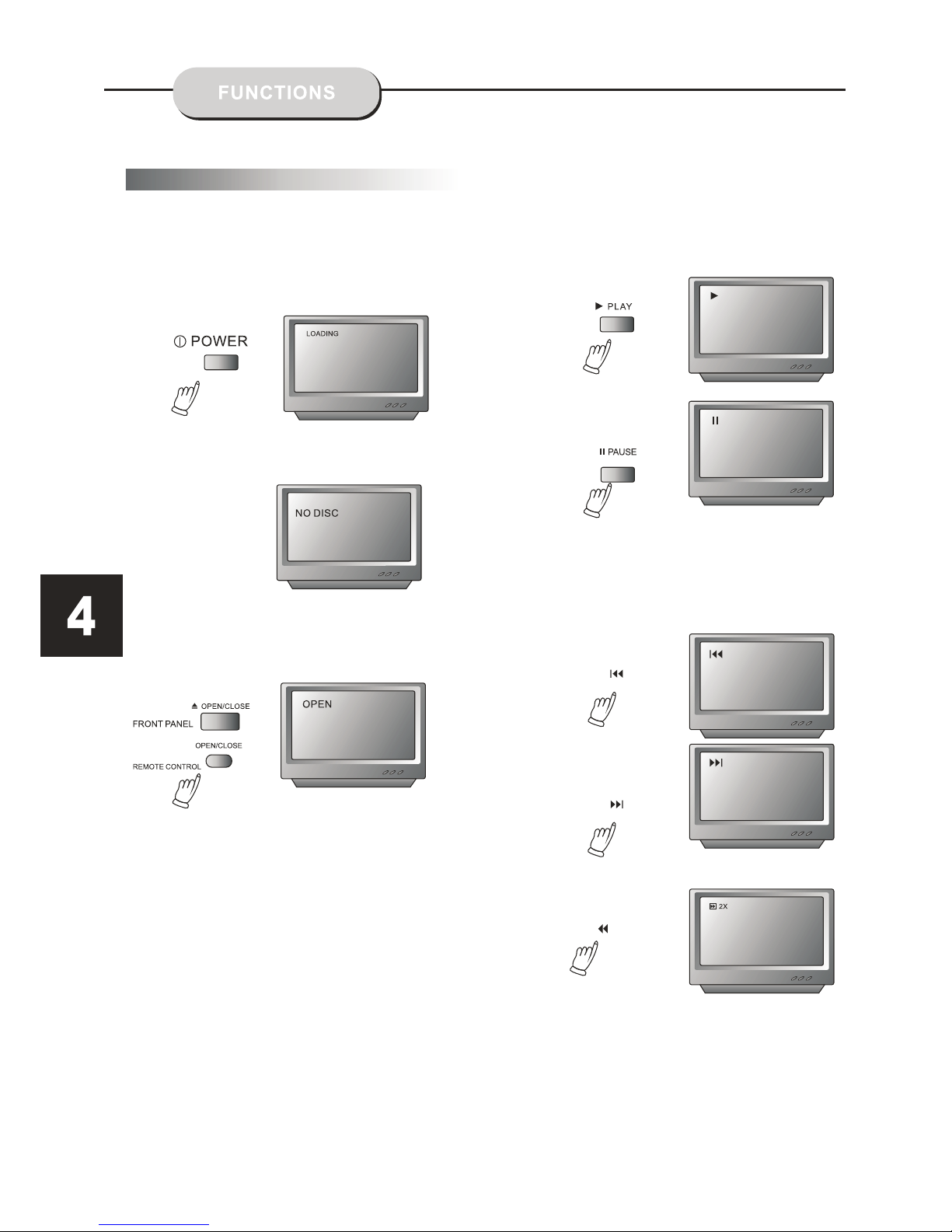

Turn on the TV set and select the A/V mode.
1. Press the POWER button on top panel,
DISC LOADING appears on screen.
If there is no disc in the player, NO DISC will
show on the screen
2. Press the OPEN / CLOSE button.
The disc tray will open.
3. Place the disc on the disc tray, be sure
content (Wide-screen, Full-screen) side is face
down on the tray.
4. Press OPEN / CLOSE button to close the tray.
The disc tray will close and the disc type
will appear in the upper-left-hand corner
of the screen.
Once the player has read the disc, the unit
automatically will begin playback.
Note:
It is possible to damage a disc if it is not placed
correctly on the guides in the disc tray. This may
also cause the DVD player to malfunction. Do
not force or place anything other than a 5" DVD
or CD onto the disc tray.
Never move the DVD player during playback,
as this may cause damage to the disc as well as
the player. To open and close the disc tray, only
use the OPEN / CLOSE key found on both the
remote control and on the unit's front panel.
Press the PREV or NEXT buttons to play the
previous or next track. To resume normal playback,
press PLAY / PAUSE buttons.
Press NEXT button
To play a DVD video disc:
5. PREV / NEXT playback
REV

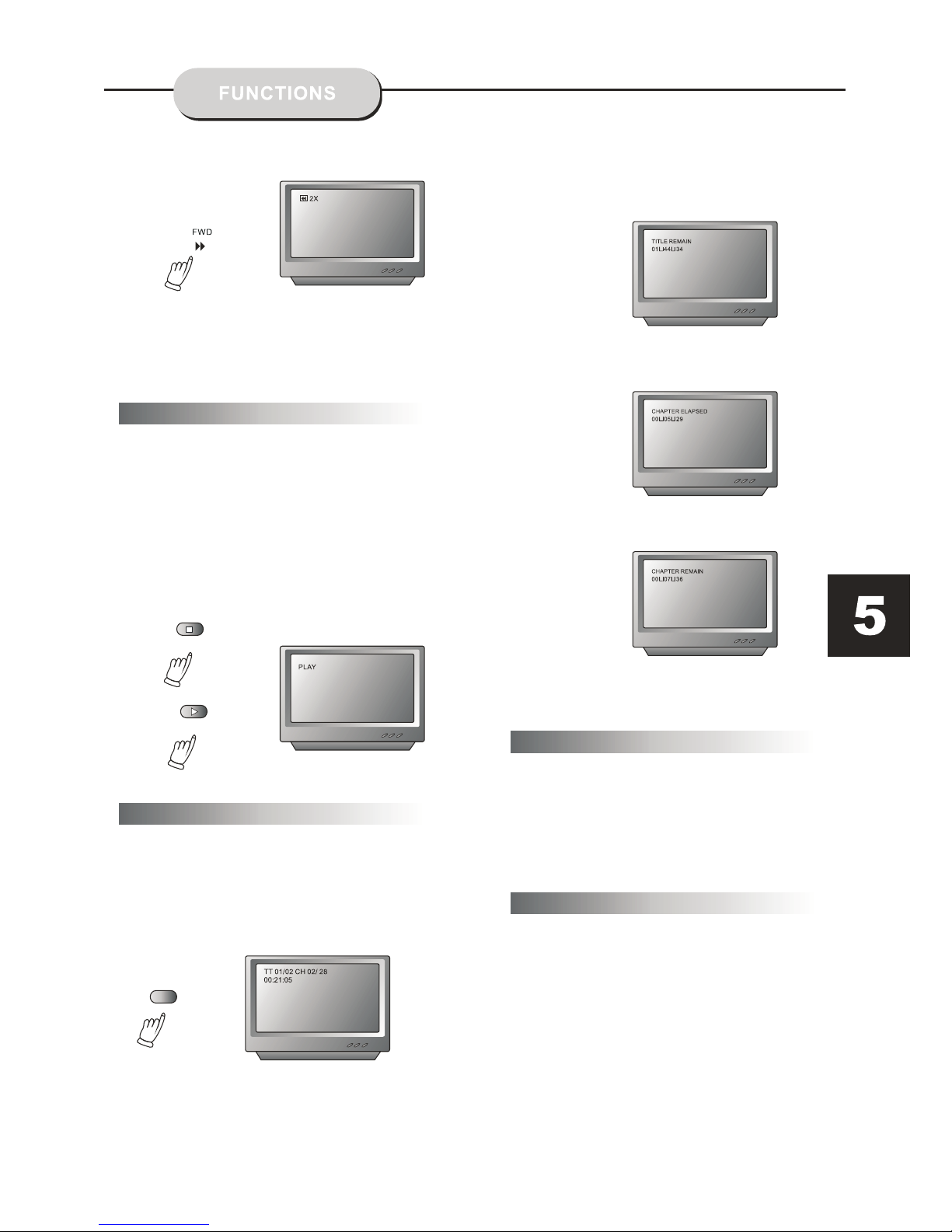

2. Press the OSD button again and the remaining time
for that particular title appears.
3. Press the OSD button again and the
total elapsed time for that particular chapter
appears.
4. Press the OSD button again and the
total remaining time for that particular chapter
appears.
5. Press the OSD button again and the
display turns off.
STOP
PLAY/PAUSE
To activate either function, simply press the
FWD or REV buttons on on the remote control.
The speed changes each time the button is
presse. To resume normal playback, press the
PLAY / PAUSE button.
1. Press the STOP button to end the function and
the TV screen will show the Stop icon. With some
disc formats like DVD, the player can recall the
place in the movie where Stop was pressed, and
resume play from that location.
2. Press PLAY / PAUSE to resume playback from
the location where the disc was stopped or from
the beginning of the disc.
3. Press STOP twice to stop completely.
Stop playback
OSD
While a disc is playing, the status of various
functions may be checked, such as the tile,
track number , and several time categories.
1. Press the OSD button once and the title
appears along with the chapter and how much
time has played.
Screen Display
Audio-L & Audio-R
The default audio setup is STEREO, press
Audio-L , and the sound will be output from Left
channel only, Press Audio-R , and the sound
will be output from Right channel only
Press Audio-L or Audio-R again, sound will
return back to Stereo.
The DVD Player has the capability to display
subtitles in any of 32 different languages.
1. Press the SUBTITLE button. The subtitle
menu will appear. Select the desired language
by pressing the SUBTITLE button.
Subtitles

2. To remove the subtitles from view, press
the SUBTITLE button until they disappear .
Note: The disc being played must be
multi-subtitle encoded.
from chapter 1 of the selected title.
Note:
Some discs do not respond to this function. If different
instructions appear on the TV screen, follow those
instructions. The instructions given here describe
the basic procedure. Procedures may vary depending
on the content of the DVD disc.
The unit has the capability to show movies in one
of eight languages.
1. Press the AUDIO L / R button. The language
menu will appear. Select the desired language
by pressing the AUDIO L / R button.
Note:
The disc being played must be multi-language
encoded.
Locating A Title
DVD discs are normally divided into titles, which are
then sub-divided into chapters. A Specific title or chapter
Title Function Menu
1. Press the MENU button. The title menu will appear
on the TV screen.
2. Press the appropriate scroll button to select the
desired title. A title may also be located by pressing
its assigned number with the number buttons.
3. Press the ENTER button. This will start playback
can easily be located. Specific titles can be found using
the title menu function if the disc contains a title menu,
or through its unique title number.
Language
AUDIO L / R
PBC function
PBC
With the PB function on, choosing a song C
on a CD can only be done when at the main
menu. With the PBC function off, song
selections can be made by entering the
number of the song selection with the
number buttons.

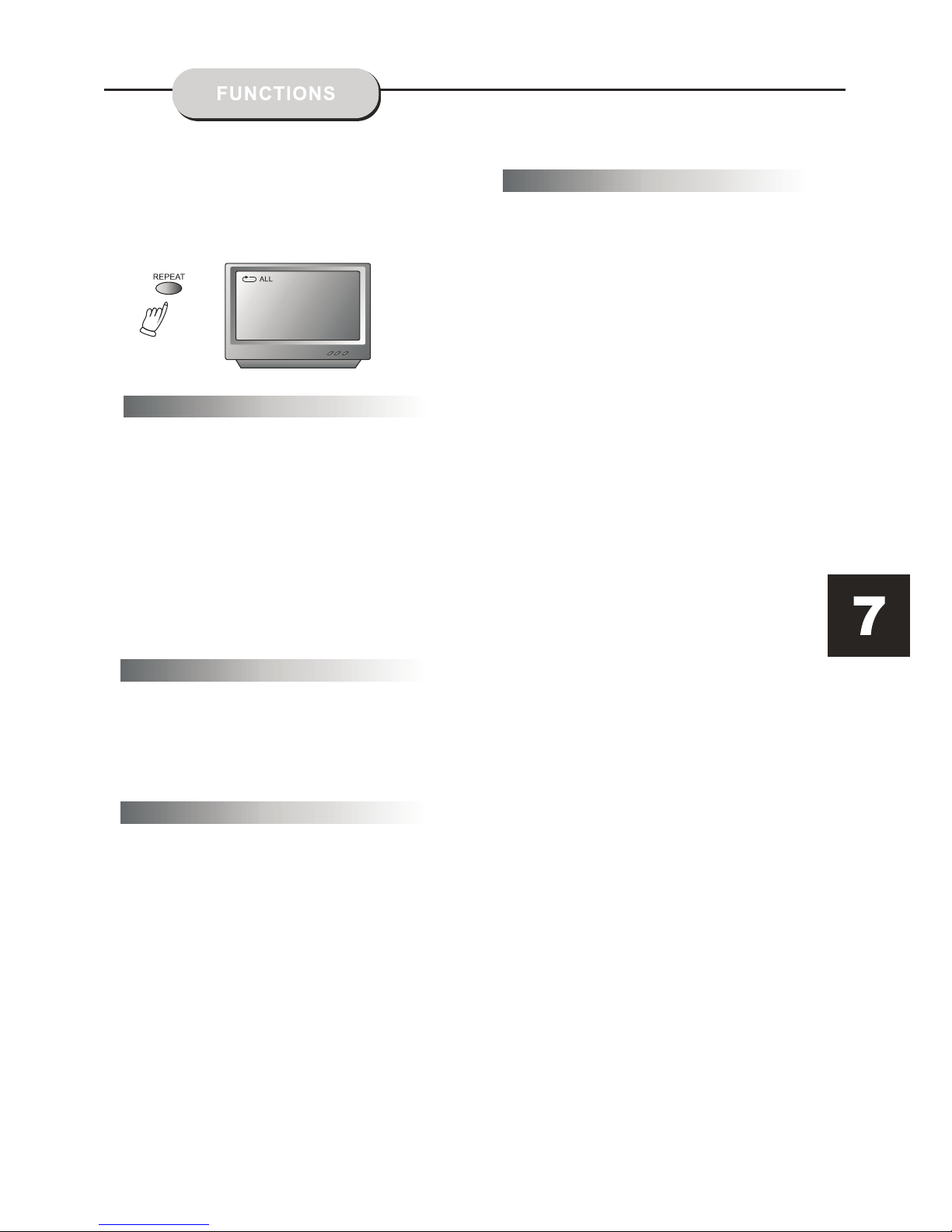

Repeat Play
This DVD receiver allows repeated playback of
specific titles, chapter/ tracks, or segments. It
even allows switching between two items that
are being repeated,
1. Select the item to repeat.
2. Press the REPEAT button.

The repeat mode changes each time
the REPEAT button is pressed (i.e.,from title
repeat to chapter repeat, all repeat, to repeat off.)
ZOOM
The volume on this DVD player is easily controlled
with the remote control by pressing either the VOL +
button to raise the volume or the VOL- button to
will be heard. To return the audio, press the MUTE
button again.
This function allows you to program the desired
order of play for specific tracks. Press the
button, and PROG the Program menu will appear
on the the programs play order using the screen. Set
number buttons. Then scroll to Start on the menu.
Press the ENTER button to begin program play.
To exit from the program play mode, press the
PROG button again.
Volume and Mute
Program
Press the SETUP button on the remote control and
the main menu will appear .
1. After accessing the setup menu, press the
scroll button up or down to select a desired Item.
Once an item is selected, press the PLAY / PAUSE
button to confirm your entry and then you will
have access to the Sub-directory.
2. Use the left or right scroll buttons to move
the pointer and the up or down scroll buttons
to select the desired option. Once an item is
selected, press the ENTER button to confirm
your selection.
DVD Menu Setup
lower it. By pressing the MUTE button, no audio
A picture maybe enlarged up to four times during
either playback or slow motion through the unit's zoom
function.Press the ZOOM button once and it enlarges
the image 2x, press a second time and the image
enlarges 3x. A third press enlarges the image 4x.
A fourth press, shrinks the enlarged image by 1/2x ,
a fifth press shrinks the image 1/3x, a sixth press
shrinks the image 1/4x. To return to normal-size
image, press the ZOOM button a seventh time.
Enlargement takes place in the center of the picture.

OSD Language
Subtitle
MPEG4 Subtitle
Audio
DVD menu
:English
:WesternE uropean
:English
:English
Language
Video
Rating
Misc
:English
Language
Follow the directions displayed in "Setup",
Aspect Ratio
View Mode
TV System
Video Out
:16:9
:NTSC
:HD
Language
Video
Rating
Misc
:Fill
HD Resolution :Auto
Video setup
ASPECT RATIO
There are two kinds of Aspect Ratio, 4:3 & 16:9
which can be selected according to the disc
format & TV set.
VIEW MODE
There are four choices for viewing video:
Fill: Full screen.
Original: Seen according to the contents of
the DVD.
Auto Fit: This is the DEFAULT setting. Auto
Fit will adjust the screen image automatically
Pan Scan: Will automatically edit and show a
Wide screen or other format movie/video as a
Full screen image.
:Fill
:Original
:Auto Fit
:Pan Scan
Aspect Ratio
View Mode
TV System
Video Out
Language
Video
Rating
Misc
HD Resolution
TV SYSTEM
This unit is specifically made for the United
States market and will only operate on the
NTSC system.
:NTSC
Aspect Ratio
View Mode
TV System
Video Out
Language
Video
Rating
Misc
HD Resolution
VIDEO OUTPUT
Aspect Ratio
View Mode
TV System
Video Out
Language
Video
Rating
Misc
HD Resolution
: HD
Use remote control to select the output you
desire.
General Setup
This option is used to setup the following
format and functions: TV screen format,
video functions, DVD settings, language,
parental controls, and others.
and press the remote control buttons based
on the TV Screen display and VIDEO will be
setup.
OSD Language:
There are 3 languages to select from: English,
French and Spanish.
SUBTITLE:
When playing DVD discs, the player can
support: English, French, and Spanish
subtitles. Subtitles can be set to Automatic
or OFF
MPEG4 SUBTITLE:
When playing MPEG4 discs, the player can
support Western European,
AUDIO:
When playing DVD, MPEG4, or VCD discs, the
player can support English, French and Spanish.
DVD MENU:
When playing DVD, MPEG4, or VCD discs,
the player can support English, French and
Spanish.

:Auto
:480p/576p
:720p
:1080i
Aspect Ratio
View Mode
TV System
Video Out
Brightness
Language
Video
Rating
Mixc
Sharpness
HD Resolution
HD Jpeg mode
:1080p
HD RESOLUTION:
Using the HDMI video output requires the use
of a HDMI cable (not included). Your TV set
must must also support high-definition video
as well.
You can select Auto, 480p/576p, 720p, 1080i,
1080p to make the picture much clearer via
the HDMI cable.
HD:
This is only achieved by using a HDMI cable
(not included).
MISC Setup
Language
Video
Rating
Misc
Use Default Settings
USE THE DEFAULT SETTINGS:
During use, if you want to return to the factory
default settings, please select USE DEFAULT
SETTINGS, and the player will automatically
return to the factory settings.
PARENTAL CONTROL
Language
Video
Rating
Misc
Parental Control
Set Password
SET PASSWORD:
The default password is 0000, after this correct
password is entered, you can then change the
password to one of your choice. Your password
is needed to change the Parental Control
settings.
To restrict the viewing of certain movie ratings,
Parental Controls can be accessed on this menu.
In order to set or change these settings, the password
make sure the password is then set to OFF on the
menu, then you can set / change Parental Controls.
1.Kid Safe
2.G
3.PG
4.PG-13
5.PG-R
6.R
7.NC-17
8.Adult
must first be entered. After entering the password,

Play Modes
OPERATION OF MP3 FUNCTION
MP3 is an audio compression mode using
Level 3 of the international standard MPEG.
The audio signal is compressed in a rate of
12: 1. A MP3 disc can contain over 600 minutes
of music that rivals Compact Discs in
sound quality.
When playing a MP3 disc, 2 file menus can be
selected by pressing the PROG button: 1) Folder
List and 2) File List.
1. FOLDER LIST
Display the menu first, then press the UP / DOWN,
LEFT / RIGHT arrows and ENTER button to select
the subdirectory and music.
2.FILE LIST
This menu is where you may select the files (or
song numbers) to be played by pressing UP /
DOWN, LEFT / RIGHT arrow buttons combined
with ENTER button. The number buttons and
ENTER can also be used to make the play
selection. If a track number entered, is incorrect,
the screen will display "INPUT INVALID".
There are 4 kinds of play modes: FOLDER,
SINGLE, REPEAT ONE, REPEAT FOLDER.
Press the REPEAT button to make available
the 4 modes:
1. FOLDER: play the entire music menu in order.
2. SINGLE: play a single-track number .
3. REPEAT ONE: play a single-track number
repeatedly.
4. REPEAT FOLDER: play the entire music
menu repeatedly.
Files Menu of Mp3 play
JPEG is the most efficient image compression
format and is widely used for photo / picture
storage.
Even when pictures are compressed 15-20
times, they still maintain an excellent quality.
The JPEG format is also supported by most
picture processing software. The JPEG file
uses less storage space and is easy to use.
This DVD player can read JPEG formatted
picture CD discs.
1.Place a photo disc in the DVD player and
menu will appear
2.Press the number buttons of the selection
you want to view.
3. Press PLAY button to view.
Using the Menu To Select Photos
1. Press PLAY / PAUSE button to view the photo on the
screen.
2. Press STOP to end viewing.
3. When in STOP mode, you can return to the
upper menu by selecting the top file item on
the right side of the screen and pressing
PLAY / PAUSE button.
Other functions:
1. When playing JPEG images. This DVD
player allows the pause, play, repeat, and
browse functions.
2. When playing JPEG images, press the
RESUME button to see different formats of
photo display.
3. Press VOL+ and VOL - buttons to select
pictures.
4. To zoom in on the image, press the ZOOM
button. Pressing the ZOOM button again will
return the picture to normal.
5. When the zoom is on, press the Fast
Forward or Fast Reverse to zoom in or out
on the image.
6. When the zoom is off, pressing the direction
arrows will cause the image to turn over
(reverse).

TROUBLE-SHOOTING
This handy trouble-shooting guide is provided
to save you time if you experience any problems
with this DVD player. If the problem is not listed
or if the provided solution does not correct the
problem, please call our customer support de
partment.
Possible Problems / Solutions
No power
1. Check to ensure that the power plug is
securely connected to the power outlet and
that the outlet is in working condition (test
outlet by CAREFULLY plugging another
electrical item in to it)
No sound
1. Check the connection between the DVD player
and the TV set, amplifier, or any other unit it is
connected to.
2. Check to ensure the TV and amplifier are in
the correct mode.
No picture
1. Check the connection between the DVD
player and the TV set or any other unit it is
connected to.
2.Check to make sure TV is turned on.
Disc does not play
1.Check to make sure the disc is loaded
correctly label side facing up on disc tray.
2.Check that disc is clean from dirt, dust,
fingerprints, and smudges.
3.Check to ensure the disc is inserted between
the guides on the tray.
4.Check to see if the Parental Lock function is on.
5.Make sure disc is for use in region ONE.
Remote does not work.
1. Check batteries; possibly replace.
2. Check to ensure there aren't any obstacles
between the remote sensor on the unit's front
panel and the remote control.
3.Be sure the remote is aimed at the remote
sensor.
Divided picture
1.Check that disc is clean and has no scratches.
2. This DVD player is controlled by a
microcomputer, which may need to be reset.
To reset, unplug the unit ,wait 30 seconds,
then turn the player back on.
MP3 discs don't play
1. Use a different program to re-burn the disc,
as the program may not be MP3 compatible
with the player.
2. Use a newer edition of MP3 software such
as "Audio station 4", "Easy CD Creator", etc.
3. Make sure MP3 file is not encoded with a
variable bit rate, such as provided by Real
Networks.
