Beko DVD 2006 User manual

USER' SMANUAL

FEATURES OF DVD PLAYER
0Full discs playback compatibility: DVD,DVD±R,DVD±RW, DVCD, MP3, CD-DA,
HDCD ,Picture CD,
VExcellent AV effect:
1.Composite video, S-Vtdeo and component video output. Built-in progressive output
enables ahigher resolution of the pictures.
2.Supports PAL orNTSC system with aspect ratio or4:3 or 16:9. Fiber optical and
coaxial audio outputs are also available.
OTotally supports multi view-angle, multi-language, multi-subtitle and multt screen mode for
DVD discs.
OSupports parental lock control that prevents children to watch unsuitable scenes.
AFriendly-interfaced WINDOWS setup menu.
ADisplays the JPEG picture files.
OMP3 three-dimensional (3D)dynamic playback interface.
APossesses agile zoom function, and pictures can be zoomed during playback.
ONTSC/PAL/AUTO compati bIe, no compress ion of pictures
,
ADynamic screen saver function.
OSupports setup of video quality.
0Software update automatically.
Notes: "Dolby" and the double-0 symbol are trademarks of Dolby Laboratories Licensing
Corporation. Manufactured under license from Dolby laboratories.
Confidential unpublished works. C; 1992-1997 Dolby Laboratories. Inc. All rights reserved.
!

PLEASE READ THIS MANUAL COMPLETELY BEFORE OPERATING THIS UNITAND
KEEP IT FOR FUTURE REFERENCE,

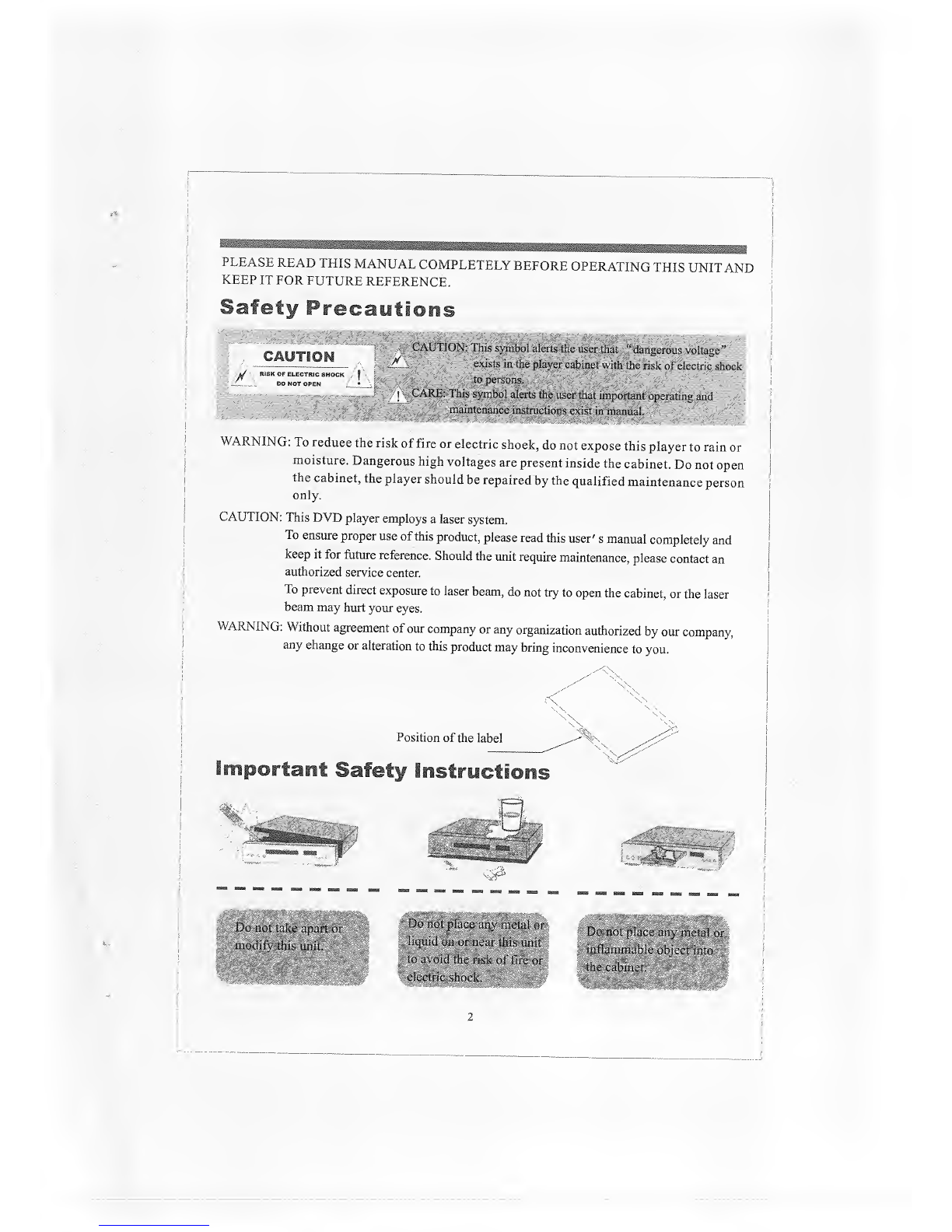

Safety Precautions
CAUTION yCALT,0N: ™sS>™,°' al
,
crts ,bc uscr tl,ai "d£irl=CR>d<^"
a*exists in toe piaver cabinet with the risk or dearie >hock
id \RISK OF ELECTRIC SHOCK ¥
dL.\ oo n0t open £l_ to persons.
!CARL: This symboi alerts the user that important operating and
maintenance instructions exist in munuai.
WARNING: To reduce the risk of fire or electric shock, do not expose this player to rain or
moisture. Dangerous high voltages are present inside the cabinet. Do not open
the cabinet, the player should be repaired by the qualified maintenance person
only.
CAUTION: This DVD player employs alaser system.
To ensure proper use ofthis product, please read this user' smanual completely and
keep it for future reference. Should the unit require maintenance, please contact an
authorized service center.
To prevent direct exposure to laser beam, do not try to open the cabinet, or the laser
beam may hurt your eyes.
WARNING: Without agreement of our company or any organization authorized by our company,
any change or alteration to this product may bring inconvenience to you.
Position of the label
Important Safety Instructions
Do not take apart or
modify this unit.
Do not place any metal or
inflammable object into
the cabinet.

Do no! use the broken
power cord or the power Do nol plug or unplug the
power when the hand is
Plug in completely.
Clean the power plug Turn off litis unit arid unplug Should shut dow nlitis unit
periodically. jLwhile |i nes wear oul and unplug it if liquid has
B^S^^^M^^^B B^^^^^^^^^^^^^ ^^^^^^^^^^^^Bl
fallen into the cabinet.
Should shut down this unit Do not situaU,(his unU in (ho
and unplug it if the player direct sunlight or in dusty or moist place.
I^^^^^^^^^^^B ^^^^^^^^^^^^M ^^^^^^^^^Ml^
Do not situate this unit under:
any heavy object or in
unventihlcd place.
Do not use disc with
scratches or deformation.-

Accessories Open the package ofthis DVD player.make sure
accessories attached with the product:
Audio'Vldeo Cord

IIntroduction
OFeatures of DVD player
<> Safety Precautions
OImportant Safety Instructions '''..'','...',.03
OAccessories 4
II Connections
OControl Button Layout ...
Front Panel/Rear Panel fi
DVDVFD y
Remote Control 8
Preparations/Operation of the Remote Control 9
OConnecting to aTV 10-11
Connecting to an Audio System n-l4
The Amplifier System 1
2
Connecting to an Amplifier with Digital Input Port 13
Connecting to the Amplifier with 5. 1Channel Surround Input 14
III Playback
Playback aDisc
Basic Playback
Playback Control
Set Hot Button
PBC Play
DVD Functions
Volume Control
MP3 Playback
JPEG Picture Display .
Screen Saver Function.
•15-18
15
16-1
7
17
17
-18
18
18
-18
18
IV Function Setup
OFunction Setup 19-21
¥Others
Notes on Discs •
Notes on Service
Specifications
-22
23
24

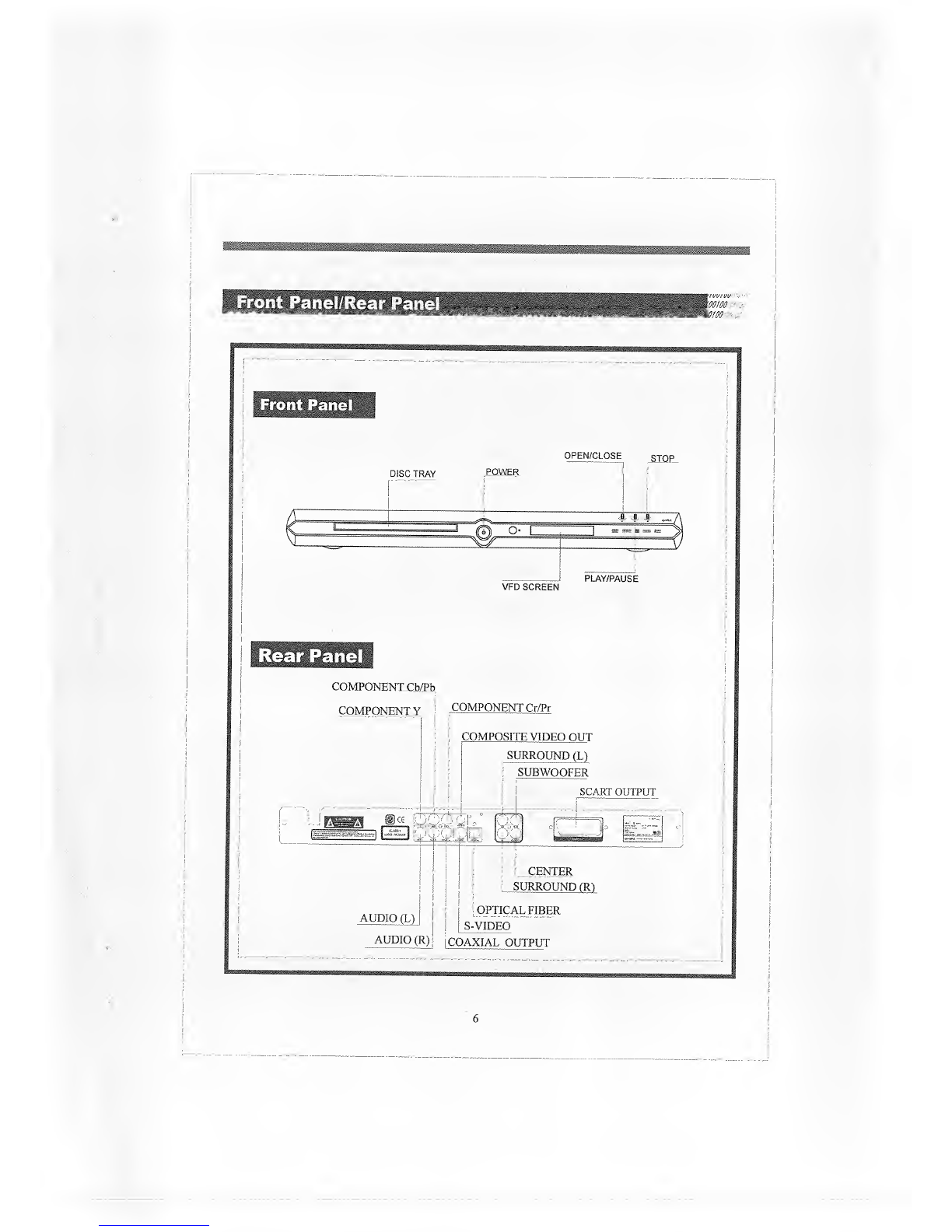

OPEN/CLOSE
DISC TRAY .POWER |
COMPONENT Cb/Pb
COMPONENT
Y
AUDIO (L)
AUDIO (R)
COMPONENT Cr/Pr
!COMPOSITE VIDEO OUT
!SURROUND(L)
[SUBWOOFER
SCART OUTPUT
CENTER
SURROUND (R)
:OPTICAL FIBER
S-
V
IDEO
COAXIAL OUTPUT
6

MP3 INDICATOR
PBC INDICATOR
ANGLE INDICATOR
DOLBY INDICATOR I
CD, VCD, SVCD INDICATOR f5
DTS INDICATOR II I
j[jI
DVD INDICATOR |!ii
I j iCHAPTER /TRACK I
ji 1 NUMBERINDICATOR
|
||REPEAT PLAYBACK INDICATOR jTIME INDICATOR
!PLAY/PAUSE INDICATOR
jjptijjij —-—- - ---
•It is normal if some VFD indicators disappear in playing procedure without harm.

POWER
#
AUDiO
SUBTITLE
CLEAR ANGLE
RETURN SEARCH TITLE DISPLAY
MENU "PBG
SETUP ^-VIDEO
PLAY STOP PAUSE/STEP
{ipiii|"i j]^§i|i jpi^i^]
fB Ff PREV NEXT
A-B REPEAT ~VS. +
SLOW ZOOM PROSRAM M>
OPEfl/CLOSE
MUTE
1. POWER; switch DVD player on or go to standby mode
2.PROGRAM; program playback
3.AUDIO:audio language selector
4.ANGLE: select DVD camera angle
5. SUBTITLE: subtide language selector
6.PBC:open or close the PBC(VCD2.0)
7.ZOOM; enlarge video image
8.DIRECTION BUTTONS: select an item
9.ENTER: acknowledge selection
10.MUTE: mute sound
11. STOP: stop playback
12.PLAY: start playback
13.FB: fast reverse playback
14.FE; fast forward playback
15.REPEAT; repeat chapter, track, title or disc
16.A-B: repeat aspecific segment
17.VOL: volume up -t-; volume down -
1S.SLOW: slowly playback
19,PAUS£/STEP;pauseand step playback
20, PREV: go to aprevious chapter or track
21.NEXT: go to anext chapter or track
22.MENU: access menu of adisc
23. SEARCH: go to aspecific scene
24.TITLE; title of aDVD disc
25 .DISPLAY: to display information of a disc
26. SETUP: setup function
27. VIDEO: switch video output
25.CLEAR; clear input
29,0-9,+lO.numerical key: select numbered items
30.N/P:switchtheTVtype
3I.OPEN/CLOSE:openor close tray
32.RETURN

Insert the batteries into the remote control, and
you can use it to operate DVD player.
This section shows you how to use the
remote control.
Open the cover Point the remote control at the
remote sensor and press the
buttons.
0=
Insert batteries
Make sure to match the +and -to
the mark inside the battery
compartment.
Close the cover.
•Distance: Within 7m from the front of fire
if remote sensor.
Angle; About 30° in each direction of the
si remote sensor.
>3* Do not expose the remote sensor of the
iDVD player to astrong light source such
»as direct sunlight or illumination. If you
do so, you may not be able to operate the
IDVD player with the remote control.
>tes on
Improper use of batteries may cause battery
leakage and corrosion. To operate the remote
control correctly, follow the instructions below.
sRemote -•
*Direct the remote control at the remote sensor
of the DVD player.
*Do not drop or give the remote control ashock,
*Do not leave the remote control near an
extremely hot or humid place.
*Do not spill water or put anything wet on the
remote control.
*Do not open the remote control.
Do not insert the batteries into the remote control
in the wrong direction.
*Do not leave the discarded or exhausted batteries
in the remote control.
*Do not use different types of batteries together, or
mix old and new batteries.
*If you do not use the remote control for along
period of time, remove the batteries to avoid
possible damage from battery corrosion.
*If the remote control does not function correctly or
if the operating range becomes reduced, replace
all batteries with new ones.
*If battery leakage occurs, wipe the battery liquid
from the battery compartment, then insert new
batteries.
*The battery can last for about 1year when
normally used.

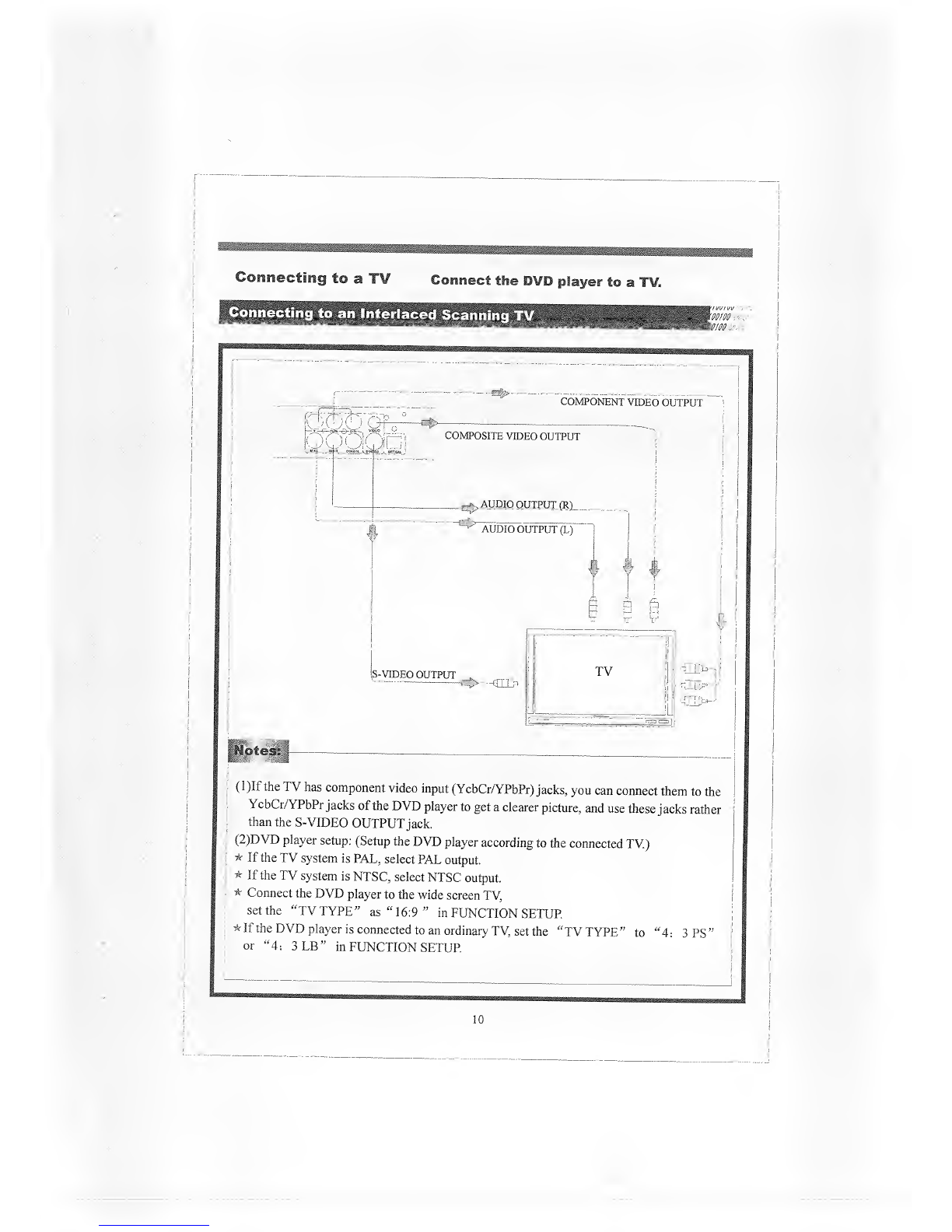

Connecting to aTV Connect the DVD player to aTV.
COMPONENT VIDEO OUTPUT
COMPOSITE VIDEO OUTPUT I
-fAUDIO OUTPUT (R)
AUDIO OUTPUT (L)
IS- VIDEO OUTPUT I!
j; TV
(1)If the TV has component video input (YcbCr/YPbPr) jacks, you can connect them to the
YcbCr/YPbPrjacks of the DVD player to get aclearer picture, and use these jacks rather
than the S-VIDEO OUTPUTjack,
(2)DVD player setup: (Setup the DVD player according to the connected TV.)
*If the TV system is PAL, select PAL output.
*If the TV system is NTSC select NTSC output.
*Connect the DVD player to the wide screen TV,
set the "TV TYPE "as "16:9" in FUNCTION SETUP.
*If the DVD player is connected to an ordinary TV set the "TV TYPE" to "4: 3PS"
or "4= 3LB" in FUNCTION SETUP.
10

Connecting to aTV Connect the DVD player to aTV.
COMPONENT VIDEO OUTPUT
SCART OUTPUT
AUDIO OUTPUT (R)_
AUdWoUTPUT (U~
1.Select progressive when you have aTV
that can accept progressive signals to
enjoy accurate color reproduction and
high quality images.
2. If your TV has acomponent video (YPbPr)
input connector ,connect the YPbPr video
out jacks on the DVD player to corresponding
input on the TV.
3. If your TV has aSCART input connector
.
connect the SCART out jacks on the DVD
player to the corresponding input on the TV.
11

Connecting to an Audio System You can enjoy the sound of au
COMPOSITE VIDEO OUTPUT '
i
~\ iTV
n!i nii i
QQcQ Q!°
.
PoO
0Q\
ihy
:1st
'AUDIO OUTPUT(R) f-
AUDIO OUTPUT(L)
j
j
jjj||t«|jj
:Refer to the user' smanual ofthe connected equipment as well. i
When you connect the DVD player to other equipment, be sure to turn off the power aid unplug all the
equipment from the wall outlet before making any connections.
If you place the DVD player near atuner or radio, the radio broadcast sound might be distorted. In this
case, place the DVD player away from the tuner or radio. ~1
The output sound of the DVD player has awide dynamic range. Be sure to adjust the receiver'
s
volume to amoderate listening level. Otherwise, asudden high volume may damage the speakers.
Turn off the audio system before you connect or disconnect the DVD player' spower cord. Otherwise,
ithe speaker may be damaged. I
12

Connecting to an Audio System
Dolby Digital i
Dolby Digital is the surround sound technology used in theatres showing the latest movies,
and is now available to reproduce this realistic effect at home. You can enjoy motion
picture and live concert DVD video discs with this dynamic realistic sound by connecting i
the DVD player to a5.1-channel amplifier with aDolby Digital decoder or Dolby Surround!
decoder, you will obtain the full benefit from the DVD movies that provide full 5, 1-channel
Dolby Digital sound tracks, as well as from those with the Dolby Surround mark. i
COMPOSITE VIDEO OUTPUT ,
IiITV
OPTICAL FIBER OUTPUT
COAXIAL OUTPUT

REAR SPEAKER (L) REAR SPEAKER(R)
14

Preparations
•If you want to play aDVD, VCD or CD-DA disc, turn on the TV and select the video input source which is
connected to the DVD player.
•If you want to enjoy the sound of disc from the audio system, turn on the audio system and select the input
source which is connected to the DVD player.
•For connection details, see 'Connections' .
l.Turn on the DVD player
Press the POWER button on the front panel.
The DVD player is on.
When the Player is not used for along
period,please pull off the power plug.
2. Open the tray
Press the OPEN/CLOSE button to open the
disc tray.
3. Place the disc
When the disc tray is open, place the disc on
the disc tray, with the playback side down..
54,Play
\Press the PLAY button, the disc tray closes
!and playback starts.
When playing aDVD disc with the title menu
recorded or VIDEO CD with the playback
control (PBC),a menu screen will appear.
Notes:
There are two different disc sizes.Place the disc in
the correct guide on the disc tray.If the disc is out of
the guide,It may damage the disc and cause the DVD
player to malfunction.
Do not place anything except the DVD,VCD,CD and
MP3 discs on the disc tray.
Notes:
For the playback control(PBC)of the VCD2.0 and
SVCD, please refer to PBC Playback.
When not using the menu screen(with PBC) of the
VCD2.0 or SVCD, you can press the PBC button to
tarn off the "PBC" .
Notes
•Do not move the DVD player during playback.Doing so may damage the disc.
•Use the OPEN/CLOSE button on the remote control or DVD player to open or close the disc
tray. Do not push or touch the disc tray while moving. Doing so may cause the DVD player
to malfunction.
•Do not push up on the disc tray or put any objects other than discs on the disc tray.Doing so may
cause the DVD player to malfunction.
15

•Enjoy pictures of higher quality
Sometimes when playing DVD discs, on the TV screen there is unusual interference that are not common in
ordinary television broadcast. This is because the high-resolution pictures of DVD discs contain awide
range of information. The extent ofthe interference depends on the TV set connected with the DVD player,
and it is recommended that you set the TV set to alow contrast ratio when watch aDVD disc.
"J PTthImH>Tm7o1 W/ffff
VffO
t1. Direction Buttons i
sPress the direction buttons to move the cursor to the selected i
sitem, then press the ENTER button to confirm it. s
i2.Play !
sPress this button to play the disc. s
»3, Pause/Step s
sPress this button once to pause the playback, and press this i
sbutton twice to step the playback >
t4.Clear !
Press this button to clear the input digits (displays on the screen) s
•when programming tracks or in searching operation. %
t5.Number Buttons »
sWhen playing aVCD disc, press the number buttons directly to s
iplay your favorite track in PBC off status. If the track number is s
:from 1to 9, you can directly press the number. If the track %
;number is more than 9, you should use button 10+ and the other t
?number buttons together to select the track, eg.: for track 25, <
;first, press the 10+ button twice, then press button 5. s
16.STOP S
;When playing aDVD disc, press this button the first time during ?
splayback, the DVD player memorizes the location where you
sstopped (press PLAY to resume playback from the memorized s
ipoint). Press this button again to stop the disc (then press PLAY i
sto start playing from die beginning of die disc). <
i7.FWD/REV I
iYou may speed up aDVD ,CD, VCDor Mp3 disc by pressing s
tdie FWD /REV buttons on die Remote control .You can fast s
ireverse at 2X.4X.8X and 20X. I
>8.SLOW I
iThe DVD player allows for Slow Motion playback .Press this s
button to select :1/2-1/3-1/4-1/5-1/6-1/7
:Press PLAY button to resume normal playback. I
\9.NEXT /PREV f
Press skip to select the next (previous) chapter (for DVD) or
track (for VCD/CD/MP3).
:10.ZOOM %
This feature allows you to enlarge the picture on
screen 2X ,3X, 4X.1/2X.1/3X, and 1/4X the
original size .Press the ZOOM button to
cyclically scroll through the available strengths
111.A-B
»You can replay aspecific portion of adisc
srepeatedly using diis function
«Press the A-B button on the Remote control
ito select the starting point for die section to be
•f repeated.
»Press the A-B button on the Remote control
sagain to select the ending point This section will
snow continue to repeat until; A-B is pressed for
;; athird time to resume normal playback
i12. REPEAT
si This function can be used to repeatedly play a
iTitle Chapter ,Track or other part of adisc.
DVD-Press REPEAT on the Remote Control to
cyclically select CHAPTER REPEAT-TITLE
REPEAT -REPEAT ALL-REPEAT OFF .
CD/VCD -When PBC is off ,Press REPEAT on
ithe Remote Control to cyclically select REPEAT
IONE-REPEATALL-REPEAT OFF.
113. PROGRAM
§You can program the player to play acustomised
•order of specific tracks ,tide or chapters .To program
gaDVD follow die instructions below,
s1)Press the PROGRAMbutton to initiate the program
!function
2)Press LEFT or RIGHT to highlight either Tfor title
Ior Cfor CHAPTER
s3)Press the Numeric button of the desired title and
5chapter
s4)Highlight PLAY on the screen using the direction
sbutton and press ENTER. Your programmed list w
swill now be set
•< 5)Press the PLAY button after programming to begin
jplayback of the memorised play-list .The memory
sis erased if the disc tray is opened .The unit is
powered OFF or the STOP button is pressed tu ice.
For CD programming follow the above steps 1-S.For
steps 2-3, enter the track number instead of the title
tand chapter numbers
16

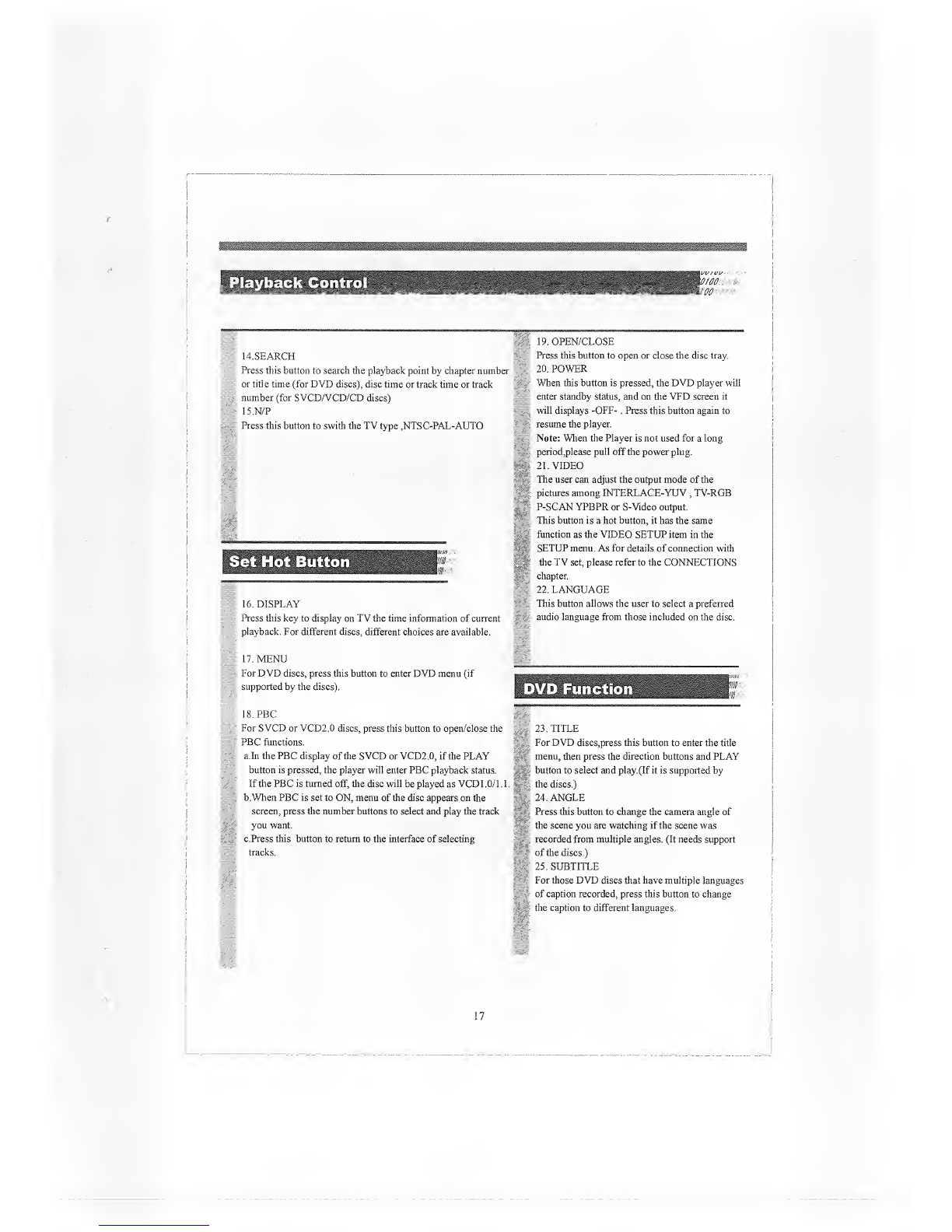

14. SEARCH i
Press this button to search the playback pomt by chapter number
or titl etime (for DVD discs), disc time or track time or track r
number (for SVCD/VCD/CD discs) i
15.N/P !
;Press this button to swith the TV type .NTSC-PAL-AUTO i
Set Hot Button
:16. DISPLAY
Press this key to display on TV the time information of current
;playback. For different discs, different choices are available.
19. OPEN/CLOSE
Press this button to open or close the disc tray.
20. POWER
When this button is pressed, the DVD player will
enter standby status, and on the VFD screen it
will displays -OFF- .Press this button again to
resume the player.
Note: When the Player is not used for along
period,please pull off the power plug.
21. VIDEO
The user can adjust the output mode of the
pictures among INTERLACE-YUV ,TV-RGB
P-SCAN YPBPR or S-Video output.
This button is ahot button, it has the same
function as the VIDEO SETUP item in the
SETUP menu. As for details of connection with
the TV set, please refer to the CONNECTIONS
chapter.
22. LANGUAGE
This button allows the user to select apreferred
audio language from those included on the disc.
;17. MENU
>. For DVD discs, press this button to enter DVD menu (if
supported by the discs).
•18. PBC
;For SVCD or VCD2.0 discs, press this button to open/close the
:PBC functions.
ia.In the PBC display of the SVCD or VCD2.0, if the PLAY
button is pressed, the player will enter PBC playback status.
'If the PBC is turned off, the disc will be played as VCD1 .0/1.1.
;b.Wlien PBC is set to ON, menu of the disc appears on the
:screen, press the number buttons to select and play the track
you want.
;c.Press this button to return to the interface of selecting
tracks.
DVD Function
;23. TITLE
iFor DVD discs.press this button to enter the title
:menu, then press the direction buttons and PLAY
ibutton to select and play.(If it is supported by
;the discs.)
i24. ANGLE
!Press this button to change the camera angle of
:the scene you are watching if the scene was
:recorded from multiple angles. (It needs support
of the discs.)
25. SUBTITLE
For those DVD discs that have multiple languages
of caption recorded, press this button to change
the caption to different languages.
17

s26. VOLUME
sWith an analog Audio connection .The volume can be adjusted
using the VOL+ and VOL- buttons ,The volume can be muted
sby pressing the MUTE button on the remote control.
i27. MUTE
iPress this button to set the play mute, press this button again to
:cancel the mute state.
'28.TIME
•show the time.
iThe playback menu of the JPG picture is similar
ito MP3 playback menu. Please refer to MP3
:playback.
When playing the JPG pictures, press STOP
burton to enter the picture previewing mode.
After entering this mode, operate with the
direction buttons and play button. Press
MENU button to return to the playback mode.
When an MP3 disc is being played.the playback menu will
appear on the screen.as shown in the following figure.
fStlll
In the stop status and when no discs in the player,
the player will enter screen saving status
automatically 3minutes later. Press the PLAY
button or OPEN/CLOSE button to resume the
player.
You can either into tile directory that you want to play by
using the directional button, and then the first song will
be played. The directional button can also be used to choose
any file you would like to play in the file area

Function Setup
Press the SETUP button, the following graphic will display on
the screen.
i
'SYSTEM SETUP i
I_TV SYSTEM i
I
""screen SAVER ""i
]VIDEO
1_TV TYPE ___ 1
[PASSWORD '
\
!
'RAT IMS ':
|DEFAULT !
IEXIT SETUP !
;1.Press the SETUP menu to enter the setup menu.
2. Use thef/ J, button to choose the menu item you want to
change, then press ENTER to confirm it.
;3. Use the—button to move the high light icon to the right side
:item.
:4. Use the up/down button to change the current setup, then press
:the ENTER button to confirm it.
•: 5. Use the4—button to move the high light icon to the left side item.
6Select the EXIT SETUP item or press the SETUP button to quit
the setup menu.
SYSTEM SETUP
SYSTEM SETUP
SCREEN SAVER )
VIDEO »
PASSWORD >
RATING »
INTEM.AQE -YUV
P-SGAN YPBPfi
S-VIDEO
HQ ADULT_
K!_ffSAF£_
_VIE$_AiX_
RESTORE
!TV SYSTEM
:the TV output mode can be :NTSC ,PAL or AUTO .Set
;up the system ofyour DVD player to match the system of your
TV _
^SCREEN SAVER
When in ON mode .ifyou do not make any operation or are in
stop mode for 3 minutes .the screen sa\ er picture will appear
iVIDEO
iVideo setup has four options .If using 1NTERLACE-
sYUV output to TV ,choose INTERLACE-YUV
imode. Ifusing P-SCAN YPBPR output to TV ,
ichoose P-SCANYPBPR mode
:TV TYPE
:16:9-To view broad mode picture with the broad
iscreen TV set
:4:3(LB)-To view the standard 4:3 picture or the cut
:standard 4:3 picture.
!4:3(PS)- 4:3 subtitle block to view the full width of
tite broad mode
IPASSWORD
iThe default mode is set at LOCK ,you cannot change
:the RATING ,and cannot change the password in this
:state. Factory setup(password 0000)
:Ifyou want to change the RATING grade or the
:password, please input the initial password 0000 to
iunlock ,and press the ENTER button first .Thereafter
;input your new password and enter the ENTER button,
sIflater on you want to make anew setting for the
iRATING. And you want to change the password
,
splease input the new password as set above .Ifyou
iinput 0000,it will also work.
*Important:
iPlease remember to write down the new password and
skeep it in asafe place(Ex.behind the remote control
sbattery cover).
•The parent lock function will only work on DVD
sdiscs with parental control marks
!RATING
iThere are three grade ratings .The performance of this
ifunction will depend on the discs
iDEFAULT
;The default is to change your setup state to the
:factory default setup
19
