Athlon TSP1 Installation guide

PRISM SCOPE
USER MANUAL &
CARE INSTRUCTIONS
TSP1

2 3| ATHLONOPTICS.COM ATHLONOPTICS.COM |
1. MOUNTING YOUR ATHLON PRISM SCOPE
CAUTION: BEFORE MOUNTING A SIGHTING DEVICE BE SURE
THAT THE FIREARM IS NOT LOADED, HAS ACTION OPEN AND
THE MUZZLE POINTING IN A SAFE DIRECTION. SAFE FIREARM
HANDLING PROCEDURES NEED TO BE PRACTICED AT ALL TIMES.
To achieve the best performance from your rie and
your Athlon TSP1 Prism Scope, your scope must be
mounted properly. If you are unfamiliar with proper
procedures to mount a scope, we highly recommend to
have the scope mounted by a qualied gunsmith
Your Athlon Prism Scope comes with a mount that
works with most of standard picatinny rails. Please
note that the center height of the Prism Scope is 1.39
inches from the center of the scope to the surface of
the rail.
TABLE OF CONTENT:
1. Mounting the Scope
a) Focusing the Scope
b) Adjustment for Maximum Eye Relief
c) Bore Sighting
d) Zeroing the Scope
2. Reticle
3. Maintaining the Scope
4. Troubleshooting
Congratulations on purchasing an Athlon Prism Scope.
Athlon is the ancient Greek word for “Prize” or “Medal.”
We think that with the purchase of your Athlon product
you have won the best “prize” on the market today.
Great Quality while still being a great value.
Obj. Lens
Elevation Adj.
Ocular Lens
Fast Focus
Illumination Switch

4 5| ATHLONOPTICS.COM ATHLONOPTICS.COM |

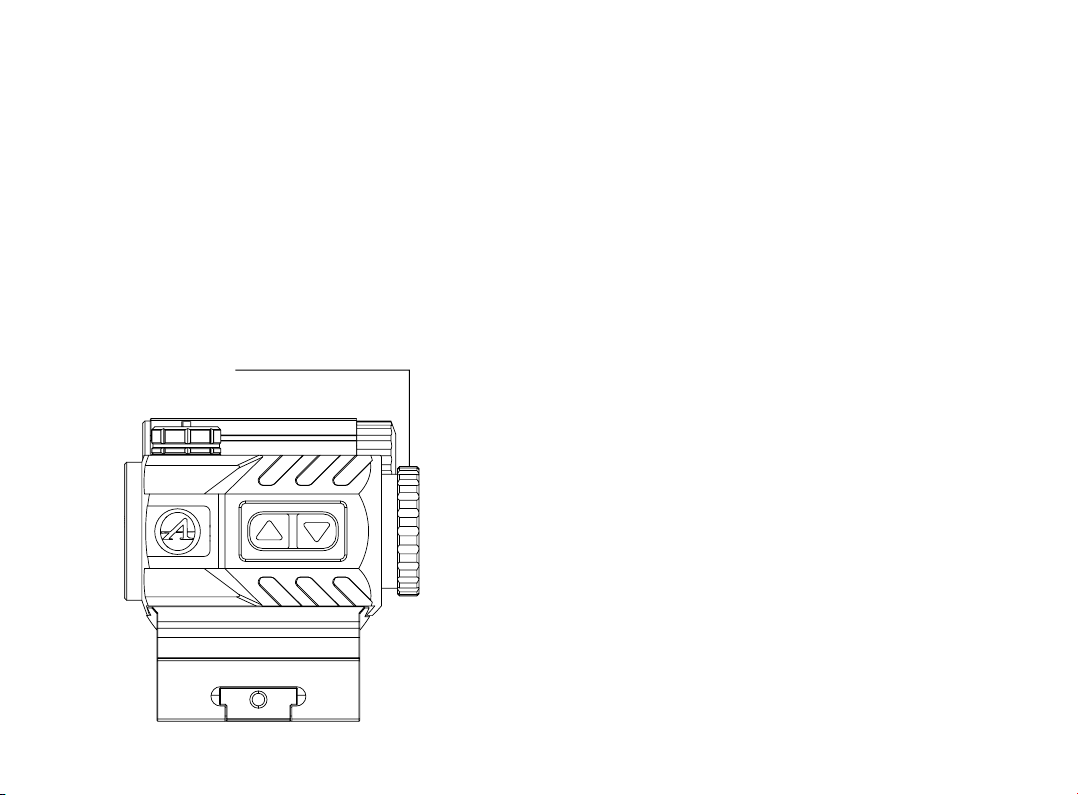

A) FOCUSING THE SCOPE
The purpose of the Fast Focus eyepiece is to focus
the reticle in the scope to your eyes. For a fast focus
eyepiece, just simply rotate the fast focus ring at the
end of the eyepiece in either direction to get a perfect
clear reticle while looking through the scope pointing
at a at plane surface. This is important to do prior to
mounting.
Fast Focus Ring
B) ADJUST FOR MAXIMUM EYE RELIEF
i. You need to adjust the scope for maximum eye re-
lief before tightening of the scope mount to avoid
injury from recoil.
ii. With the rie in normal shooting position, look
through the scope and slowly move the scope and
mount back towards you. When you nally see the
full eld of view with sharp and clear edges, stop.
iii. Tighten the mount on the base or rail on top of
your rie.
C) BORE SIGHTING
Bore sighting is a preliminary procedure to achieve
proper alignment of the scope with the rie’s bore.
iv. The initial bore sighting of the scope can be at
short range of 50 yards. This is easier than trying
to bore sight at 100 yards and will get you on the
paper at that distance, so to save time and mon-
ey at the shooting range. We highly recommend
using a bore sighter, but make sure to follow the
manufacturer’s instructions.

6 7| ATHLONOPTICS.COM ATHLONOPTICS.COM |
v. This can also be done by removing the bolt and
sighting through the barrel on a bolt action rie.
Make sure the rie is placed solidly on a bench
and the bolt is removed. You can then sight
through the bore and center the target inside the
barrel. With target centered in the bore, make
windage and elevation adjustments until the ret-
icle crosshair is also centered over the bulls eye.
D) ZEROING THE SCOPE
IF A LASER BORE SIGHTING OR ANY OTHER SIMILAR DEVICE INSIDE
THE BORE WAS USED, IT MUST BE REMOVED BEFORE FIRING. AN
OBSTRUCTED BORE CAN CAUSE SERIOUS DAMAGE TO THE GUN AND
POSSIBLE INJURY TO THE SHOOTER.
i. Ideally set the rie on a two or three holding
point gun rest, and then re three rounds at a
target 100 yards away. Observe the bullet holes
on the target and calculate how far those bullet
holes are off the center of the target, and then
adjust windage and elevation knobs to move the
center of reticle up, down, left or right. Fire an-
other three rounds, then observe and adjust. Re-
peat this step as necessary until the three round
bullet holes are perfectly aligned with the center
of the target.
ii. Setting Windage and Elevation
Athlon Prism Scopes have capped windage and
elevation turrets. Simply remove the cap and use
the knob on the top of the cap as a screwdriver
to adjust the windage and elevation. Put the cap
back on once your rie is sighted in. By zero-
ing the rie at 100 yards, the shooter can calcu-
late how many clicks of adjustment are needed
for different distances or wind conditions. After
shooting, the shooter can quickly reset the prism
scope back to 100 yards by turning the knobs
back to zero.
Athlon TSP1 Prism Scope has 1 MOA for click values
of elevation and windage adjustment. MOA, a unit of
angular measurement, is dened as a minute of angle,
a minute is 1/60th of one degree and 1/21600th of a
circle. One MOA equals 1.047-inch (rounded down to
one inch) at 100 yards, two inches at 200 yards and
to ten inches at 1000 yards. 1 MOA per click takes one
click to move point of impact one inch at 100 yards.

8 9| ATHLONOPTICS.COM ATHLONOPTICS.COM |
2. RETICLES
The TSP1 Prism Scope has xed 1X magnication
with TSP1 reticle. Please refer to following drawing
for reticle subtension details.
TSP1 RETICLE
Elevation Turret Knob
Windage Turret Knob
A1
B1
B2
D1
A1
A2
B4
B3
C1
C2
C3
C4
D3
D2
SUBTENSIONS IN MOA
A1 A2 B1 B2 B3 B4 C1
2 3 7.6 10.2 15 10 5.9
C2 C3 C4 D1 D2 D3
5.6 13.2 22 3 2 66

10 11| ATHLONOPTICS.COM ATHLONOPTICS.COM |
HOLDOVERS
The TSP1 reticle is designed for 223 Rem/5.56 mm
NATO rounds. It is suitable for many bullet weights in
these calibers. The bullet holdovers can be found in the
following illustration.
RANGING
The TSP1 reticle can be used for ranging a target of an
average human height (69 inches).
200 yds
100 yds
200 yds
300 yds
300 yds
500 yds

12 13| ATHLONOPTICS.COM ATHLONOPTICS.COM |
A) ILLUMINATION SETTINGS
The illumination switch is set on the left side of the
scope chassis. Athlon offers variable 1-10 brightness
settings and two colors settings (red and green) for
the reticle. Press UP button to turn the unit ON. Press
and hold the UP button for 3 seconds to turn it OFF.
Use the UP button to make the reticle brighter and
the DOWN button to make it dimmer. The unit auto-
matically turns OFF if no adjustments are made in 6
hours. Press UP and DOWN button at the same time to
switch between reticle colors. The unit automatically
sets the illumination at the last setting after a new
battery is installed.
Illumination Switch
Battery Chamber Cap
The illumination is powered by a AAA battery. Re-
move the battery chamber cap by turning it count-
er-clockwise and then set the battery with the posi-
tive (+) side facing in. Reinstall the cap by turning it
clockwise, DO NOT OVER TIGHTEN.
3. MAINTAINING YOUR PRISM SCOPE
Disassembling or cleaning the scope internal-
ly will void the warranty. If the scope requires
repairs, please refer to the warranty section for
complete instructions.
The external optical surfaces should occasionally
be wiped clean. Use the lens cloth provided or an
optical quality lens paper to wipe out dust or dirt
on the external lens surface. If large sand parti-
cles or heavy dirt contamination is observed, re-
move using soft brush or by blowing them away.
Apply lens cleaning liquid before wiping off. Al-
ways keep the protective lens covers in place
when the scope is not in use to avoid dust collect-
ing on the surface of the lenses. Store the unit in
a low-humidity environment.
a)
b)

14 15| ATHLONOPTICS.COM ATHLONOPTICS.COM |
4. TROUBLESHOOTING TIPS - Inaccuracy Issues
Check scope mounting and make sure there is
no movement when pulling the scope by hands.
Tighten the mounts if there is any movement ob-
served.
Use a bench rest or sandbag to support the barrel
and stock when making windage and elevation
adjustments. This will help eliminate movement.
It is recommended using the same type of ammu-
nition with same weight.
Check your rie stock, as a loose stock changes
the point of impact.
Make sure your rie chamber and barrel are clean
Make sure riing of the barrel is not damaged and
no excessive grease inside the barrel
For any technical related questions, please con-
tact Athlon Optics at [e-mail]
or call toll free 1-855-913-5678
a)
b)
c)
d)
e)
f)
g)
THE ATHLON GOLD MEDEL LIFETIME WARRANTY*
Your Athlon product is not only warranted to be free
of defects in materials and workmanship for the life-
time of the product. Athlon will also repair or replace,
at no charge to you, your product if you should dam-
age it through normal use. No receipt is needed, no
registration is required. This is a commitment that
Athlon Optics will be the best product you can buy for
your money.
*This warranty does not cover damages caused by
deliberate damage, misuse, theft or maintenance pro-
vided by someone other than the Athlon Authorized
Service Department.

Toll free: 1-855-913-5678
[email protected]
801 N MEADOWBROOK DR,
OLATHE, KS 66062
ATHLONOPTICS.COM
