Operation Manual
NC 3-12x50
DAYTIME RIFLE SCOPE
105 Sparks Ave., Toronto, ON M2H 2S5, Canada

2

3
IMPORTANT INFORMATION
Read prior to activation.
NC 3-12x50 is the sophisticated optical
riflescope. To operate it properly, please read this
manual carefully. Ignoring operation procedures
described in this manual will void your warranty.
NEVER disassemble the unit.
NEVER reverse the polarity of a battery.
NEVER connect the unit to external power
sources.
ALWAYS remove battery when the unit not in
use for a long period.
ALWAYS keep the objective lenses covered
when not in use.
ALWAYS store the unit in a warm dry place.

4
Precautions
NC 3-12x50 is the sophisticated precise optical
instrument equipped with electronics.
It should be handled with due care:
Unit contains fragile components. Avoid impacts,
dust, moisture and sharp changes of temperature.
Do not touch the optical surfaces other than for
cleaning. Doing so may damage the anti-
reflection coating.
Clean optical surfaces with professional lens
cleaning supplies.
Use only a soft clean cloth to clean the exterior of
the riflescope.
Store the unit away from sources of heat, such as
heating appliances, sunlight or central heating.
Switch off the unit and remove the battery during
extended periods of non-operation.
Do not store the riflescope at temperatures higher
than 600C (1400F).
Do not apply excessive force or pressure to the
lens assembly, movable parts and threaded
connections.

5
TABLE OF CONTENTS
DEVICE APPEARANCE........................................6
1. BRIEF DESCRIPTION.......................................8
2. DELIVERY SET.................................................9
3. TECHNICAL SPECIFICATIONS....................10

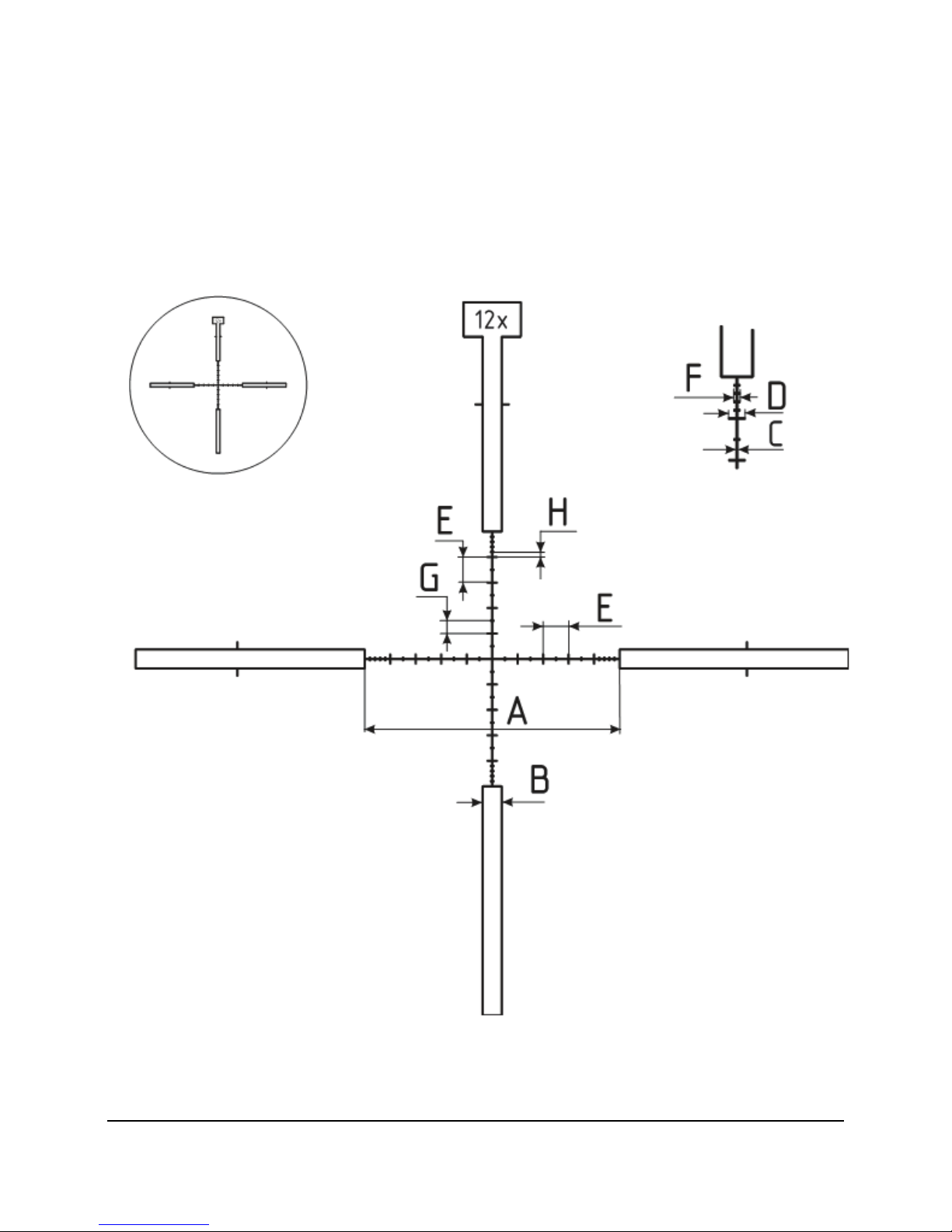

4. TYPE AND SIZE OF THE RETICLE..............11
5. INSTALLATION ON THE WEAPON ............20
6. BATTERY INSTALLATION ..........................21
7. RETICLE ILLUMINATION ............................21
8. USING THE NC 3-12x50 RIFLESCOPE ........22
9. ADJUSTMENT ON THE WEAPON ............... 24
10. STORAGE AND MAINTENANCE ...............27
11. TROUBLESHOOTING...................................28
12. WARRANTY ..................................................29
13. CUSTOMER SUPPORT .................................30
14. ACCEPTANCE CERTIFICATE.....................31

6
DEVICE APPEARANCE
Figure 1
For numbering see the next page.
The manufacturer reserves the right to implement design
and specification improvements from time to time without
notice.

7
Figure. 1
1- Body of the riflescope
2- Objective lens
3- Eyepiece
4- Battery compartment
5- Internal windage/elevation adjustment knobs
6- Reticle brightness adjustment switch
7- Parallax adjustment knob
8- Magnification adjustment ring
9- Objective lens cover
10 - Zeroing setscrew
11 - Fixation screws of the elevation adjustment
12 - Fixation of the windage adjustment
13 - Optional Hood
14 - Eyepiece cover

8
1. BRIEF DESCRIPTION
NC 3-12x50 is the daytime riflescope with variable
magnification, which is designed for being used on
various kinds of weapons.
The Mil-dot reticle of the riflescope is positioned in
the focal plane of the eyepiece (second focal plane),
thus providing permanent size of the reticle
regardless of the riflescope variable magnification.
This creates favorable conditions for acquisition of
small targets at long distances, due to the fact that
the reticle covers only small portion of the target at
large magnification.
The riflescope is equipped with central system
parallax adjustment, which works for ranges from 50
meters to infinity.
The reticle is highlighted with red LED with seven
modes of brightness.
The riflescope incorporates windage adjustment (the
multi-revolving scheme) and elevation (single-
revolving scheme), allowing to adjust shooting
ballistics in wide range.

9
2. DELIVERY SET
Standard delivery set of NC 3-12х50 includes:
- Device - 1 pc.
- Objective lens cover - 1 pc.
- Eyepiece cover - 1 pc.
- Cleaning cloth - 1 pc.
- Allen key for setting zero - 1 pc.
- Battery CR2032 - 1 pc.
- Manual - 1 pc.
Optional accessories:
- Hood - 1 pc.
- Rings for installation on a weapon - 2 pc.
- Hard transportation case - 1 pc.

10
3. TECHNICAL SPECIFICATIONS
Magnification, х3 to 12
Objective lens diameter, mm 50
Field of view, º 6.8 to 1.7
(from 11.9m to
3m @100m)
Exit pupil, mm 12.5 to 4.1
Diopter adjustment +3, -3
Eye relief distance, mm 100
Reticle battery, V CR 2032 (3 V)
Battery life, h 15 to 100
Adjustment mechanism, step 10mm @100m
Elevation range ±1.7m @100m
Maximum windage range ± 0.6m @100m
Working windage range ±0.27m @100m
Operational temperature, оС-50° … +50°
Relative humidity, % Up to 98
Dimensions (without mount), mm 347x77x77
Mounting ring diameter, mm 30
Weight (without mount), kg 0.78
The manufacturer reserves the right to implement design
and specification improvements from time to time without
notice.
