Atlantic Boilers Multi-Elec Compacte Series User manual

Multi-Elec

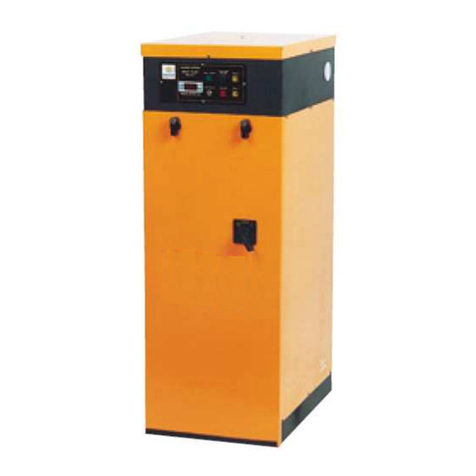

COMPACTE BOILER
TECHNICAL MANUAL
ATLANTIC BOILERS, PO BOX 11, ASHTON UNDER LYNE, OL6 7TR T: 0161 621 5960 E: [email protected] www.atlanticboilers.com
FOR TECHNICAL HELP/ADVICE Call 0161 621 5960
or email [email protected]
FOR FULL PRODUCT RANGE & LITERATURE
Visit www.atlanticboilers.com
03/2013 CODE: 560956
CE Directive 2006/95/CEE British Standard EN 60335-1 (C 73800)

2
CONTENTS
1) INTRODUCTION
1.1) Description 3
1.2) Dimensions &connections 4
2) INSTALLATION
2.1) Procedure 5
2.2) Arrangement 5
2.3) Essential accessories 6
2.4) Precautions 7
2.5) Boiler room arrangements 7
2.6) Commissioning 7
3) ELECTRICAL ARRANGEMENTS
3.1) Control panel arrangement 8
3.2) Control circuitry 9
3.3) Electrical power circuitry 10
3.4) Fuse and overload protection 11-12
3.5) Operation of the digital controller 13
3.6) Alarm signals 14
4) DELIVERY and OFF-LOADING 14
5) MAINTENANCE 15
6) GUARANTEE 16
7) IDENTIFICATION OF SPARE PARTS 17
8) FAULT DETECTION 17

3
1) INTRODUCTION
1.1) Description
The COMPACTE electric boiler is suitable for avariety of types of space heating and indirect
domestic hot water –covering sealed circuits from 0.5BARS to 7.0BARS working pressure.
The COMPACTE electric boiler always requires earthing, under protection index IP21/1K 08.
The COMPACTE electric boiler is designed and manufactured according to the following :-
EN Decree 95-1081 –control of boiler materials and electrical supply voltage used in
order to conserve the safety of persons and animals which might be in the vicinity
European Directive 2006/95/CEE covering low voltage system application
BS EN 60335-1 class C73800, part 1, general rules

4
1.2) Dimensions and connections
The COMPACTE electric boiler range covers from 36kW to 72kW and is complete with pre-
wired electrical controls. Generally, it requires an unvented circuit containing clean water
and without inhibitor or other water treatment. The main boiler body is manufactured from
S235JR 10025-2:2004 quality carbon steel without internal coating.
Data for 36kW to 72kW models
Water content –70l Maximum working pressure –4BARS Test pressure –6BARS
Dry weight –110kgs Maximum working temperature –99degC Limit temperature –110degC
Maximum water flow rate–3.0l/sec Pressure drop–4kPA Minimum water flow rate-0.8l/sec
Glass wool thermal insulation –50mm thick
Model
Maximum
Output
kW
Amps
per
phase
Weight
kg
Footprint
mm
Depth mm
Width mm
Height
mm
36
36
56
120
400 x 600
690
500
1240
48
48
75
122
400 x 600
690
500
1240
60
60
9
4
124
400 x 600
690
500
1240
72
72
124
126
400 x 600
690
500
1240
Access mm: One side: 500 Other side: 100 Front: 1000 Rear: 500 Height: 1240 +700
Access to remove immersion
heater elements

5
2) INSTALLATION
2.1) Procedure
*Position the boiler squarely on the prepared base
*Fit the correct accessories to the boiler connections
*Connect the boiler to the pipework system
*Connect the boiler to the isolated electrical supply
*Fill the boiler with fresh, clean water
*Check that the immersion heaters are electrically isolated from the
boiler. If the isolation is less than 2mega-ohms, the bridge must be
found and rectified.
*Check the operation of the main control panel isolator, and of the
overloads serving the immersion heaters
*Check the operation and the correct direction of rotation of the
circulating pump
*Check, with the circulation pump stopped, that the water flow switch
over-rides the immersion heaters through their relays and also brings
on the relevant alarm light
*Check the setting and operation of the immersion heater step controls
*Switch off the immersion heaters using the main control panel isolator
*Check that all the cartridge fuses are sound
*Double check that all the immersion heaters receive the common
voltage. Repeat the check after several hours run. Any defect in
voltage can destroy the heaters and invalidate the guarantee.
2.2) Basic heating arrangement
Auto top-up system
Radiators
Expansion
vessel
Pressure &
temperature
relief valve
3 port valve
Auto air
vent
Pump
Non return
valve
Pressure relief
valve
Isolating
ball valve
Fill Loop

6
2.3) Essential accessories
The following items are required :-
A. One 4-bar safety valve and one 7bar temperature and pressure relief valve
B. One shunt pump
–protected by overloads (0.37A to 1.4A adjustable) and run +fault lamps
C. One water flow switch
-Recommended water flow settings in litres per second
Pipeline sizes 32mm 40mm 50mm 65mm
Minimum range 0.35-0.47 0.53-0.72 0.61-0.83 1.0-1.4
Maximum setting 1.0 1.6 1.9 3.2
D. One automatic air vent with isolating valve
E. One drain ball valve

7
2.4) Precautions
The Multi-elec Compacte requires an installation conforming to
89.336/EEC Directive (electromagnetic compatibility)
73/23/EEC Directive (low voltage)
92/42/EEC Directive (performance)
2.5) Boiler room arrangements
The Multi-elec Compacte must be installed
In an adequately-ventilated boiler room with ambient temperature below 30degC
And relative humidity maintained between 30% and 80% and where condensation
does not occur
In anon-corrosive atmosphere
In anon-explosive atmosphere
Where there is good access to the boiler position for installation and maintenance
Where there is good access for delivery, off-loading and positioning
Using similar materials in the pipework, and avoiding materials leading to electrolytic
action and system deterioration
The Multi-elec Compacte is not suitable for external installation
2.6) Commissioning
The boiler must be completely full of water before the heating elements are switched
on. To ensure 100% filling, manual and automatic vents must be in effective positions
where complete air clearance can be guaranteed.
The boiler can be filled with water by connecting afill hose to the boiler drain valve
and partly opening the valve.
The boiler safety valve can also be used firstly to vent the boiler at filling and,
secondly, ensuring the blow-down facility of the valve is clear in case of use.
Commissioning is recommended by Atlantic 2000 or an authorised engineer for
Atlantic equipment.

8
3) ELECTRICAL ARRANGEMENTS
3.1) Control panel arrangement
Photograph of control panel with identification of components

9
External Controls

10
3.3) Electrical power circuitry

11
3.4) Fuse and overload protection
Fuse ratings and type
Fuses F1 –F2 cartridge F1 –1A type aM, cartridge F2 –1A type
gG
Fuses F3 –F4 cartridge F3 &F4 type 10 x38 to 22 x58
Amperage requirement
415V 3ph 36kW 48kW 60kW 72kW
Step 1F3 40A (14x51) 40A (14x51) 63A (22x58) 63A
(22x58)
Km1 24kW 24kW 36kW 36kW
Step2 F4 20A (10x38) 40A (14x51) 40A (14x51) 63A
(22x58)
Km2 12kW 24kW 24kW 36kW
ELECTRICAL CIRCUIT
The Compacte electric boiler must be provided with 415volts and
without neutral wiring
The electrical wiring cables must be sized by aqualified electrician in
order to conform
to BS C15100 and satisfying load, length of run and prevention of short
circuit.
The installation must be tested for automatic power failure in the
event of emergency
power cut, heater lock-out or error in the neutral layout.
All electrical equipment shall satisfy IP21/IK08 Class 1
The immersion heaters shall only receive electrical power if they are
fully immersed in water; otherwise the guarantee on the heaters will
not apply
ALL ELECTRICAL WIRING MUST BE CORRECTLY EARTHED

12

13
3.5) Operation of the digital controller
Sous Tension –Alive Step 1Limit thermostat 110degC
Arret –stop Marche –run Step 2Secure
Factory settings –Step 1–80degC; Step 2–75degC
1–digital numbers or message
2–touch settings
3–touch raise settings
4–touch lower settings
5–controller action
Light out –none, light on –in action
6-controller reading
7-error/lockout
Adjusting temperatures
a) SET 1–step 1SET 2–step 2
b) SET 1is always higher than SET 2
c) Minimum temperature setting +20degC
d) Maximum temperature setting +99degC
e) Set SET 1to 3degC below factory setting and allow 3minutes to reach the setting
f) Set SET 2to 2degC below factory setting and allow 3minutes to reach the setting
g) Replace SET 1and SET 2at the factory settings
AFTER THE WAITING PERIOD OF 3MINUTES
A) Touch (2) SET 1for 5seconds –reading (6) shows
B) Make adjustments to (6), touching (3) and (4)
C) Confirm the setting SET 1by touching (2)
Indicator (1) flashes, indicating that Step One is confirmed
Setting (6) fades out and after several seconds, the actual temperature is shown
D) Touch (2) SET 2for 5seconds –reading (6) shows
E) Make adjustments to (6), touching (3) and (4)
F) Confirm the setting SET 2by touching (2)
Indicator (1) flashes, indicating that Step One is confirmed
Setting (6) fades out and after several seconds, the actual temperature is shown

14
3.6) Alarm Signals
On Alarm, light (7) shows and the following messages appear on (1)
<PFO >Lock-out or power cut
<HA >High temperature lock-out
<LA >Low temperature alarm
4) DELIVERY and OFF-LOADING
It is recommended that the COMPACTE electric boiler is transported and, if necessary,
stored on the pallet on which it is delivered from the factory.
If temporarily stored, the surroundings should be maintained at temperatures below
80degC, and without condensation at relative humidities between 30% and 80%
Manhandling the COMPACTE electric boiler into position requires :-
(a) Qualified, skilled manpower
(b) Use of apallet trolley or afork lift truck
(c) Use of the lifting eyes provided on the boiler and tested lifting beams
Lifting eyes

15
5) MAINTENANCE
Effective maintenance must aim at preventing :-
a). areduction in the movement of water circulation through the boiler
-this can result in the formation of sediment or limescale on the
boiler immersion heater elements
b). pockets of high temperature water across the boiler immersion heater
elements –resulting in their destruction by overheating
c). accumulation of sediment or limescale within the boiler, particularly on
or around the boiler immersion heater elements –overcoming these
developments by the introduction of fresh, clean water without any inhibitor
or de-scaling agent
Minimum maintenance periods
A). Monthly maintenance
i). Check operation of the automatic air vent
ii). Check operation of the water flow switch
iii). Check operation of the safety valve
B). Annual maintenance
i). Carry out the monthly checks
ii). Check all the electric control functions
iii). Check all pipework joints are water-tight
iv). Drain off small amount of boiler water content and check for condition
C). 3-yearly maintenance
i). Carry out the annual maintenance
ii). Isolate the boiler safely from all services
iii). Drain the boiler of water and open up for inspection
iv). Check for all maintenance requirements and remedy as necessary
v). Close and seal the boiler, fill with fresh clear water through drain outlet
vi). Pressure test, then repeat annual maintenance procedure

16
6). GUARANTEE

17
7). IDENTIFICATION OF SPARE PARTS
Controller XT120C (5 COPU) 583042
Flow sensor PTC 583024
240V lamp bulb 587215
12kW immersion heater 2412
Limit thermostat 581104
Water flow switch 480230
8). FAULT DETECTION
Before making any physical check, switch off the power
FAULT CHECK
The ‘alive’ light is out Check for incoming power
Check fuses F1 and F2
Check the ‘alive’ bulb
………………………………………………………………………………………………………………………..
The controller screen is out Check fuse F3
………………………………………………………………………………………………………………………….
Step 1or Step 2light is out Change the bulb
………………………………………………………………………………………………………………………….
The ‘red’ light is lit Check the limit thermostat
Check the water flow switch action
Check the circulating pump overload
…………………………………………………………………………………………………………………………..
If the fault remains Call in aqualified service engineer
